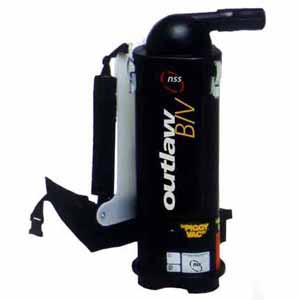

The Outlaw B/V Backpack Vacuum from NSS cuts through the clutter to clean where uprights and tank vacuums cannot. Ideally suited for cleaning tight areas, this comfortable, lightweight vacuum is excellent for offices, schools, theaters, auditoriums, retail stores, and even aircraft.

•The unique triangular body sharp assures strong vacuum performance. Suction air flows unobstructed through the points of the triangular body even as the bag fills-up.
•For increased comfort, the Outlaw's B/V's padded harness resets at the operators hips, unlike typical backpacks that concentrate weight at the shoulders.
•An optional outlet allows the Outlaw B/V to be used with a Powerwand attachment for attachment for more aggressive cleaning performance
•Where Indoor Air Quality is a concern, an optional snap-on HEPA filter attachment is available.

Motor
-Type 2-stage, flow-through 120V AC standard 7 amps @ 120V. - maximum
-Current 3.8 amps @ 240V. - maximum 1-1/8 HP input
-HP 89 (2.52 m3) @ 1.5 in. (3.8 cm) orifice
-Airflow 91 in. (231 cm) sealed
-Waterlift 240V. / 50 Hz;
-Options 120V. / 400 Hz for aircraft
Filtration System Top-fill cloth filter Poly-lined paper insert (fits inside cloth filter) Optional HEPA filter assembly attachment Foam pre-filter Foam final filter air diffuser
-Area 225 in.2 (1,452 cm2)
Construction
-Body Rotocast polyethylene
-Harness 2-in. wide adjustable padded hip belt Adjustable padded shoulder straps
-Hose Wire supported 1-5/8 in. I.D.; swivel cuff at wand; 1.5 in. I.D. intake
-Cord 50 ft. (15.2 m) 16-3 SJT
Closure Cap Adjustable for left or right handed use
Sound Level 69 dBA @ operator
Capacity
-Debris 6.5 quarts (6.15 l.)
Dimensions
-Height 25 in. (63.5 cm)
-Width 8 in. (20.3 cm)
-Weight
• Machine 10 lbs. (4.5 kg)
• Shipping 18.4 lbs. (8.4 kg)
Shipping Class 125
Warranty 3 year limited 10 years poly parts
