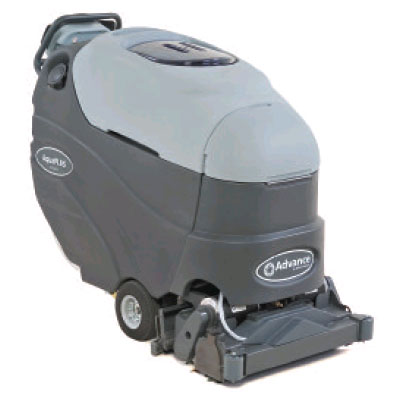

AquaPLUS™ and AquaPLUS™ AXP™ battery-powered carpet extractors are a cleaner, greener solution that have received the CRI Seal of Approval for meeting the industry’s highest cleaning and carpet preservation standards.

Benefits of AquaPLUS Commercial Carpet Extractors
With our patented LIFT™ Technology and the optional AXP™ Onboard Detergent Dispensing System, AquaPLUS extractors are the greenest carpet extractors in the industry. With the CRI Seal of Approval in both LIFT and deep cleaning restoration modes, you can be confident that your carpets will be truly clean and ready to use in no time.
-Control solution flow and choose the perfect solution for your floor with our patented AXP Onboard Detergent Dispensing System (available on AXP models)
-Provide superior cleaning, increase productivity per tank and reduce water consumption with our patented LIFT Low Moisture Technology
-Clean heavily soiled areas with our Deep Treat™ prespray mode, which applies and agitates detergent on the carpet surface (available on AXP models)
-Improve air quality and reduce the risk of mold and allergens thanks to the fast 30 minute carpet dry time
-Work during the day or in noise-sensitive areas thanks to the low 69 dB A sound levels (meets LEED-EB’s IEQ guidelines for quiet operation)

Solution Capacity: 20 gal (76 L)
Solution Pump: 100 psi diaphragm demand
Restoration Mode Flow Rate: 0.81 gpm (3.1 L/min)
LIFT ™ Mode Flow Rate: 0.26 gpm (1 L/min)
Deep Treat™ Pre-Spray Mode Flow Rate: 0.92 gpm (3.5 L/min)
Recovery Capacity: 16 gal (61 L)
Vacuum Motor: Dual 3 stage bypass
Airflow: 93 cfm (44 L/sec)
Waterlift: 70 in H2O (17.4 km/hr)
Vacuum Shoes: Dual 13.5 in (34 cm) Dual pivoting laminar flow 45 lb down pressure
Brushes: Dual 24 in (61 cm) Dual counter rotating with debris hopper
Brush Motors: Dual 1/2 horsepower permanent magnet
Brush Speed: 950 RPM
Sound Level: 69 dB A
Electrical System: 24 V (4) X 6 V batteries
Batteries: 250 Ah wet-acid (optional 255 Ah AGM)
Transport Speed: 220 ft/min (4 km/hr)
LIFT ™ Mode Speed: 90 ft/min (1.6 km/hr)
Restoration Mode Speed: 50 ft/min (0.9 km/hr)
Light Deep Treat™ Mode Speed: 150 ft/min (2.7 km/hr)
Heavy Deep Treat™ Mode Speed: 100 ft/min (1.8 km/hr)
Coverage Rate: 10,800 ft2/hour (LIFT™ Mode)
6,000 ft2/hour (Restoration Mode)
CRI Approval: Bronze for Deep Cleaning Extractors in both Restoration Mode and LIFT ™ Mode
Machine Dimensions: L = 56 in x W = 27 in x H = 43.5 in
(L = 142 cm x W = 69 cm x H = 110 cm)
Machine Weight: 650 lb (295 kg) with batteries / 370 lb (168 kg) without batteries
Shipping Weight: 680 lb (308 kg)
