WB-20B

WB-20B

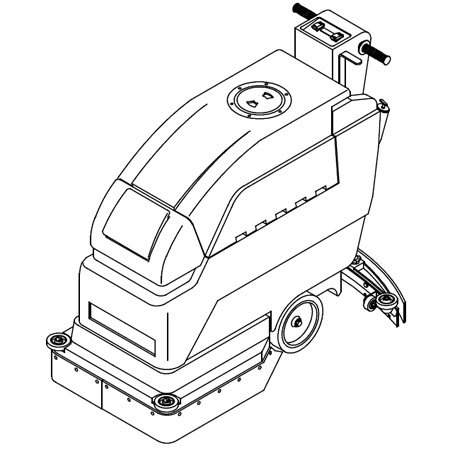

Castex WB-20B

Shop battery auto scrubbers on floorcare.biz
Floor Pad Selection Guide
Brush/ Pad Drive System
Brush Motor rpm: 220 rpm
Brush Motor Watts: 550 watts
Brush Motor HP: .75 hp
Brush Motor Amps: 20 amps
Brush Motor Voltage: 24 V
Brush/ Pad Design Description: Single, 20 in/ 50.8 m pad driver
Brush/ Pad Pressure Maximum: 50 lbs/ 22.68 kg
Chassis/ Body Construction Corrosion-proof rotationally-molded polyethylene
Dimensions
Product Height: 38 in/ 96.52 cm
Product Length: 47 in/ 119.38 cm
Product Weight: 280 lb/ 127.01 kg (w/ batteries)
Product Width: 22 in/ 55.88 cm
Productivity
Maximum Coverage Rate per Hour: 20,536 ft2 (1907.79 m2)
Cleaning Width: 20 in/ 50.8 cm
Battery System
Battery Amp Hour Rating: 130 amp hour
Battery Count: 2
Battery Run Time per Charge: Up to 2.5 hr
Coverage per Battery Charge: 77,111 ft2.(7163.61 m2.)
Recovery System
Recovery Tank Wet Capacity: 12 gal/ 45.42 L
Squeegee Description: Forward/ reverse pickup, free-floating, center mounted, urethane blades, 30.25 in/ 76.8 cm
Solution Delivery System
Coverage Rate Per Tank of Solution: 5476 ft2 (508.72 m2)
Nominal Solution Flow Rate: .5 gal (1.89) per minute
Solution Capacity: 10 gal/ 37.85 L
Vacuum System
Airflow at Orifice: 66 cubic ft. (1.87 cubic meters) per minute
Vacuum Motor Amps: 14 amps
Vacuum Motor Diameter: 5.7/ 14.48 cm
Vacuum Motor Hp: .5 Hp
Vacuum Motor Stages: 2 stage
Vacuum Motor Voltage: 24 V
Vacuum Motor Watts: 350 watts
Waterlift at Sealed Orifice: 44 in/ 111.76 cm

Parts & Support
WB-20B
Shop battery auto scrubbers on floorcare.biz
Floor Pad Selection Guide
Brush/ Pad Drive System
Brush Motor rpm: 220 rpm
Brush Motor Watts: 550 watts
Brush Motor HP: .75 hp
Brush Motor Amps: 20 amps
Brush Motor Voltage: 24 V
Brush/ Pad Design Description: Single, 20 in/ 50.8 m pad driver
Brush/ Pad Pressure Maximum: 50 lbs/ 22.68 kg
Chassis/ Body Construction Corrosion-proof rotationally-molded polyethylene
Dimensions
Product Height: 38 in/ 96.52 cm
Product Length: 47 in/ 119.38 cm
Product Weight: 280 lb/ 127.01 kg (w/ batteries)
Product Width: 22 in/ 55.88 cm
Productivity
Maximum Coverage Rate per Hour: 20,536 ft2 (1907.79 m2)
Cleaning Width: 20 in/ 50.8 cm
Battery System
Battery Amp Hour Rating: 130 amp hour
Battery Count: 2
Battery Run Time per Charge: Up to 2.5 hr
Coverage per Battery Charge: 77,111 ft2.(7163.61 m2.)
Recovery System
Recovery Tank Wet Capacity: 12 gal/ 45.42 L
Squeegee Description: Forward/ reverse pickup, free-floating, center mounted, urethane blades, 30.25 in/ 76.8 cm
Solution Delivery System
Coverage Rate Per Tank of Solution: 5476 ft2 (508.72 m2)
Nominal Solution Flow Rate: .5 gal (1.89) per minute
Solution Capacity: 10 gal/ 37.85 L
Vacuum System
Airflow at Orifice: 66 cubic ft. (1.87 cubic meters) per minute
Vacuum Motor Amps: 14 amps
Vacuum Motor Diameter: 5.7/ 14.48 cm
Vacuum Motor Hp: .5 Hp
Vacuum Motor Stages: 2 stage
Vacuum Motor Voltage: 24 V
Vacuum Motor Watts: 350 watts
Waterlift at Sealed Orifice: 44 in/ 111.76 cm

Castex WB-20B Parts and Support

shop battery auto scrubbers on floorcare.biz
floor pad selection guide
brush/ pad drive system
brush motor rpm: 220 rpm
brush motor watts: 550 watts
brush motor hp: .75 hp
brush motor amps: 20 amps
brush motor voltage: 24 v
brush/ pad design description: single, 20 in/ 50.8 m pad driver
brush/ pad pressure maximum: 50 lbs/ 22.68 kg
chassis/ body construction corrosion-proof rotationally-molded polyethylene
dimensions
product height: 38 in/ 96.52 cm
product length: 47 in/ 119.38 cm
product weight: 280 lb/ 127.01 kg (w/ batteries)
product width: 22 in/ 55.88 cm
productivity
maximum coverage rate per hour: 20,536 ft2 (1907.79 m2)
cleaning width: 20 in/ 50.8 cm
battery system
battery amp hour rating: 130 amp hour
battery count: 2
battery run time per charge: up to 2.5 hr
coverage per battery charge: 77,111 ft2.(7163.61 m2.)
recovery system
recovery tank wet capacity: 12 gal/ 45.42 l
squeegee description: forward/ reverse pickup, free-floating, center mounted, urethane blades, 30.25 in/ 76.8 cm
solution delivery system
coverage rate per tank of solution: 5476 ft2 (508.72 m2)
nominal solution flow rate: .5 gal (1.89) per minute
solution capacity: 10 gal/ 37.85 l
vacuum system
airflow at orifice: 66 cubic ft. (1.87 cubic meters) per minute
vacuum motor amps: 14 amps
vacuum motor diameter: 5.7/ 14.48 cm
vacuum motor hp: .5 hp
vacuum motor stages: 2 stage
vacuum motor voltage: 24 v
vacuum motor watts: 350 watts
waterlift at sealed orifice: 44 in/ 111.76 cm

Parts

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • OEM
    140139 - Sleeved bushing 175-2743

    Sleeved bushing 175-2743

    $4.09
    Specifications:Length: 0.01 in Width: -0.34 in Height: 0.01 in Weight: 0.006 poundsMatches:1401398670941091094200Commonly purchased together:Fits on:Tennant 2550Nobles SPEEDGLEAMNobles SPEEDSCRUB 3301Tennant 5400Nobles SPEEDSCRUB 2001Tennant...
    $4.09
    Qty in Cart: 0
    Price:
    $4.09
    Subtotal:
  • ships same day
    OEM
    1066506 - Handle grip 175-2703

    Handle grip 175-2703

    $4.07
    Specifications:Weight: 0.143 poundsType: HandleMatches:1066506175-2324175-7343200815200823222647222648275-6405541205900020008671344088085360Alternative items:Below are other options that may meet your needs.GRIP-HANDLE 290-1138$2.20993-0254Handle grip$3...
    $4.07
    Qty in Cart: 0
    Price:
    $4.07
    Subtotal:
  • OEM
    26-9-0881 - Tank lid assembly 164-0202

    Tank lid assembly 164-0202

    $86.30
    Specifications:Width: 8 in Height: 1 in Weight: 0.8 poundsType: BodyMatches:100102175-1996175-2645183-0554190-90181912926-9-088126908818.803-850.0867080408688561088038500Commonly purchased together:May fit on these models - select model and diagram...
    $86.30
    Qty in Cart: 0
    Price:
    $86.30
    Subtotal:
  • ships same day
    Non-OEM
    - Wheel 991-2013

    Wheel 991-2013

    $9.35
    Specifications:Weight: 0.112 poundsType: FixedColor: BlackUse: DriveMatches:175-2828630477W-0800-U-3/8Alternative items:Below are other options that may meet your needs.WHEEL 2 inchX7/8 inch, 3/8 inch BORE$4.66993-0709Commonly purchased together:May fit...
    $9.35
    Qty in Cart: 0
    Price:
    $9.35
    Subtotal:
  • OEM
    605357 - 24V 2 stage vacuum motor 275-9420

    24V 2 stage vacuum motor 275-9420

    $625.50
    Looking for a cheaper option? Check out our genuine Ametek-Lamb replacement vacuum motor, part number 991-1203.Specifications:Weight: 4.954 poundsMatches:605357Alternative items:Below are other options that may meet your needs.24 VOLT 2 STAGE VAC...
    $625.50
    Qty in Cart: 0
    Price:
    $625.50
    Subtotal:
  • ships same day
    OEM
    1073638 - 24V 11amp off-board battery charger 275-9111

    24V 11amp off-board battery charger 275-9111

    $687.60
    Specifications:Weight: 7.28 poundsAmp Hours: 11Matches:-275-9111102921610560341073638275911186863270Commonly purchased together:May fit on these models - select model and diagram to confirmTennant T3Nobles SS3Nobles SPEEDSCRUB 2001Tennant 3540Tennant T3...
    $687.60
    Qty in Cart: 0
    Price:
    $687.60
    Subtotal:
  • ships same day
    OEM
    1014918AM - Guide wheel with bushing 175-0117

    Guide wheel with bushing 175-0117

    $9.68
    Specifications:Length: 3 in Width: 0.77 in Weight: 0.19 poundsSize: 3Type: FixedStyle: Non-MarkingMaterial: RubberColor: GrayUse: BumperMatches:06976074810149181014918AM103055175-0083175-0478175-4212630450630450AMAlternative items:Below are other...
    $9.68
    Qty in Cart: 0
    Price:
    $9.68
    Subtotal:
  • ships same day
    OEM
    1065875 - HUB, DRIVE, 3LUG, ALM, NYL 17MM [WB-20] 475-1850

    HUB, DRIVE, 3LUG, ALM, NYL 17MM [WB-20] 475-1850

    $94.82
    Specifications:Weight: 0.755 poundsMatches:1065875May fit on these models - select model and diagram to confirmCastex WB-20B
    $94.82
    Qty in Cart: 0
    Price:
    $94.82
    Subtotal:
