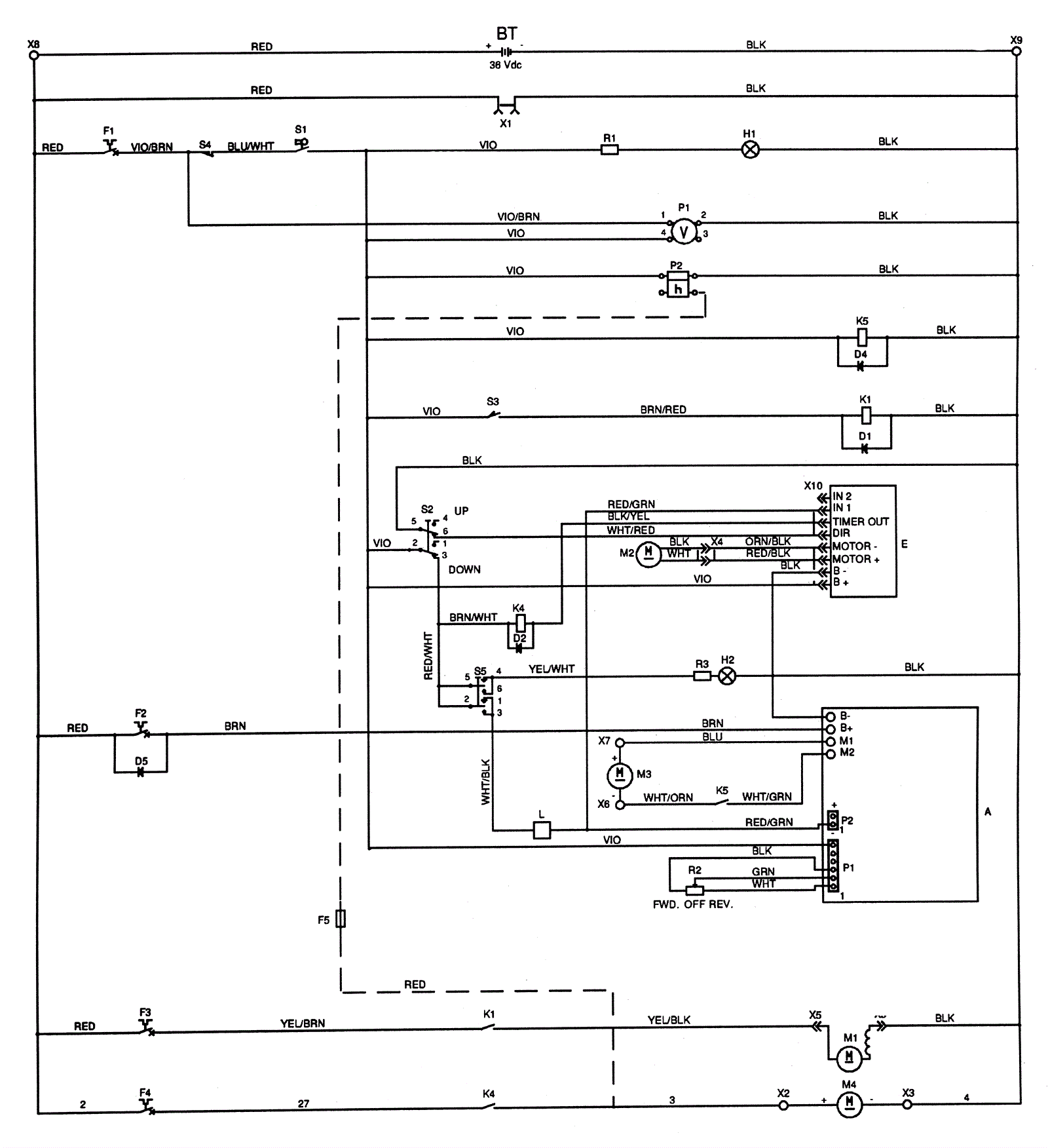

Diagram Viewer NILFISK – CONVERTAMATIC 32LX
Click to view other diagrams

  Classic diagram viewer   Classic view – all diagrams

Click ref # below to see part info


A001 BT001 D001 D002 D004 D005 E001 F001 F002 F003 F004 F005 H001 H002 K001 K004 K005 L001 M001a M001b M002 M003 M004 P001 P002 R001 R002 R003 S001 S002 S003 S004 S005 X001 X002 X003 X004 X005 X006 X007 X008 X009 X010 X011
