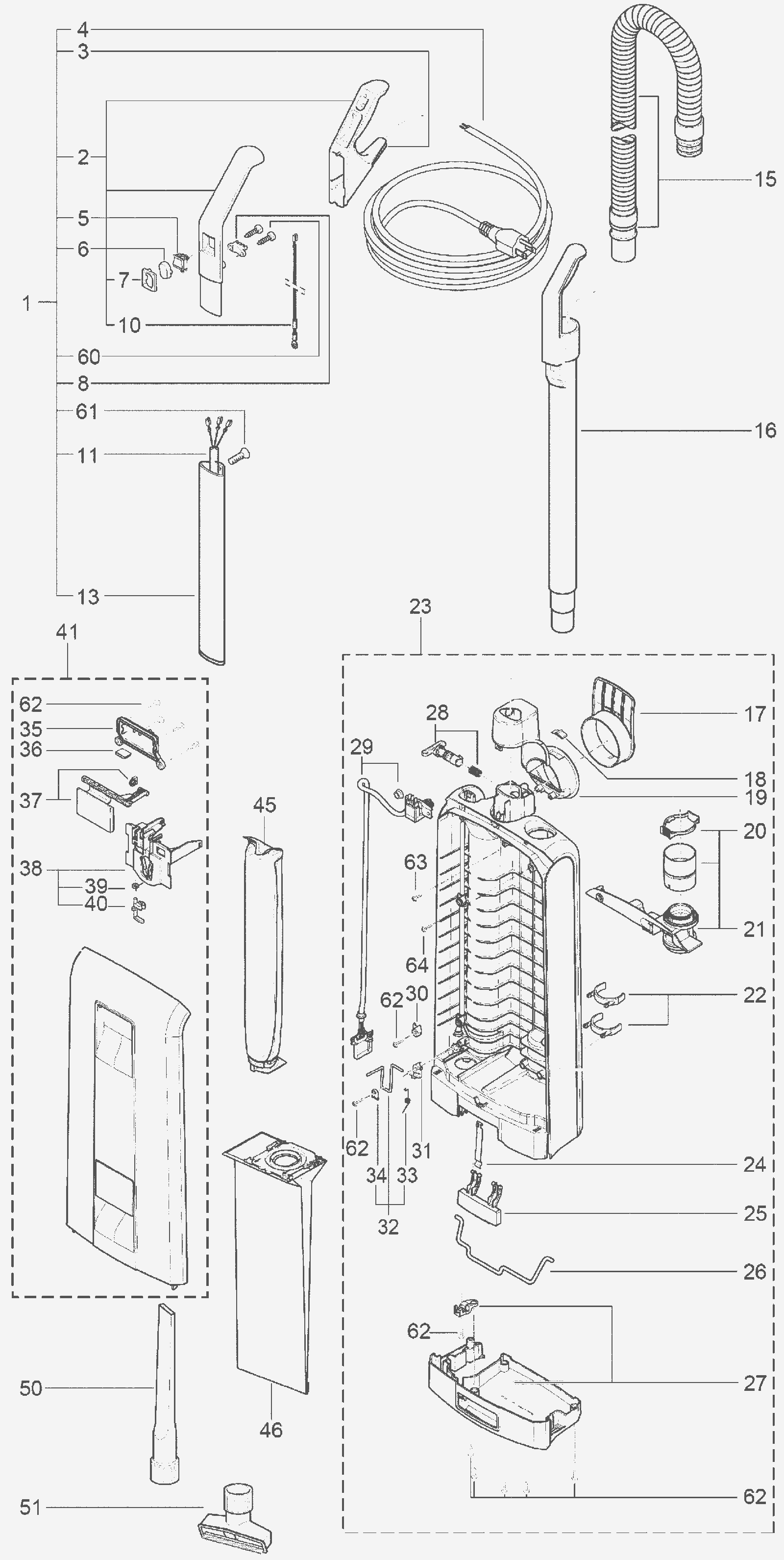

Filter Bag Housing Assembly

#PartDescription ReqNotesAvailability
1 273-7619 Complete handle (black/yellow) 1 (includes 2-13)
2 273-7618 Handle grip (black) 1
3 173-6339 Grommet (black) 1
4a 273-3554 18/3 power cord 40 foot (yellow) 1 (OEM)
4b 991-5008 18/3 replacement power cord 50 foot (beige) 1 (NON-OEM)
5 273-3549 Switch 1
6 173-6340 Switch cap (yellow) 1
7 173-6341 Switch cap holder (black) 1
8 173-2354 Cable clamp 1
10 173-2355 Antistatic wire 1
11 173-2356 Interconnect cord 1
13 173-2357 Handle tube weldment 1
15 173-0205 Hose 1
16 173-6342 Extension tube (black) 1
17 273-3703 Cable hook (grey) 1
18 173-0170 Spring stop 1
19 273-3704 Carrying handle (grey) 1
20 373-9518 Karcher gray retaining ring 1
21 273-3705 Internal cover complete (grey) 1
22 173-6351 Dust bag clip 1
23 273-3706 Dust bag housing complete (grey) 1 (includes 17-22, 24-34, 62-64)
24 173-2379 Locking rod spring 1
25 273-3707 Dust bag housing locking catch (grey) 1
26 173-5234 Locking rod 1
27 273-3708 Dust bag housing bumper base (grey) (OBSOLETE) 1 (includes 62)
28 273-3709 Lock catch with spring 1
29 273-3710 Internal cable 1
30 173-2367 Cable clamp 1
31 173-2376 Cord clamp 1
32 173-2365 Filter safety catch 1
33 173-2366 Torsion spring 1
34 173-0048 Clamp 1
35 273-3711 Cover (grey black) 1
36 173-2359 Bag holder spring 1
37 273-3712 Cover release XP 2017 (zinc yellow) 1
38 173-0199 Bag holder 1 (includes 39-40)
39 173-0202 Safety catch spring 1
40 173-0203 Safety catch 1
41 273-3713 Front cover complete (grey) 1 (includes 35-40, 62)
45 173-0102 HEPA filter 1
46 173-0096 Versamatic Plus/Sensor paper bags (pkg of 10) 1
50 173-7532 Crevice tool (black) 1
51 173-6357 Upholstery nozzle (black) 1
60 173-0135 Screw M3-.5 x 16mm 1
61 173-2457 Screw M4 x 12mm 1
62 273-0130 Screw M4-.7 x 14mm 1
63 273-3714 AMTEC-Screw 4x14 Tx 20 (black) 1
64 273-3715 AMTEC-Screw 3x12 Tx 10 (black) 1

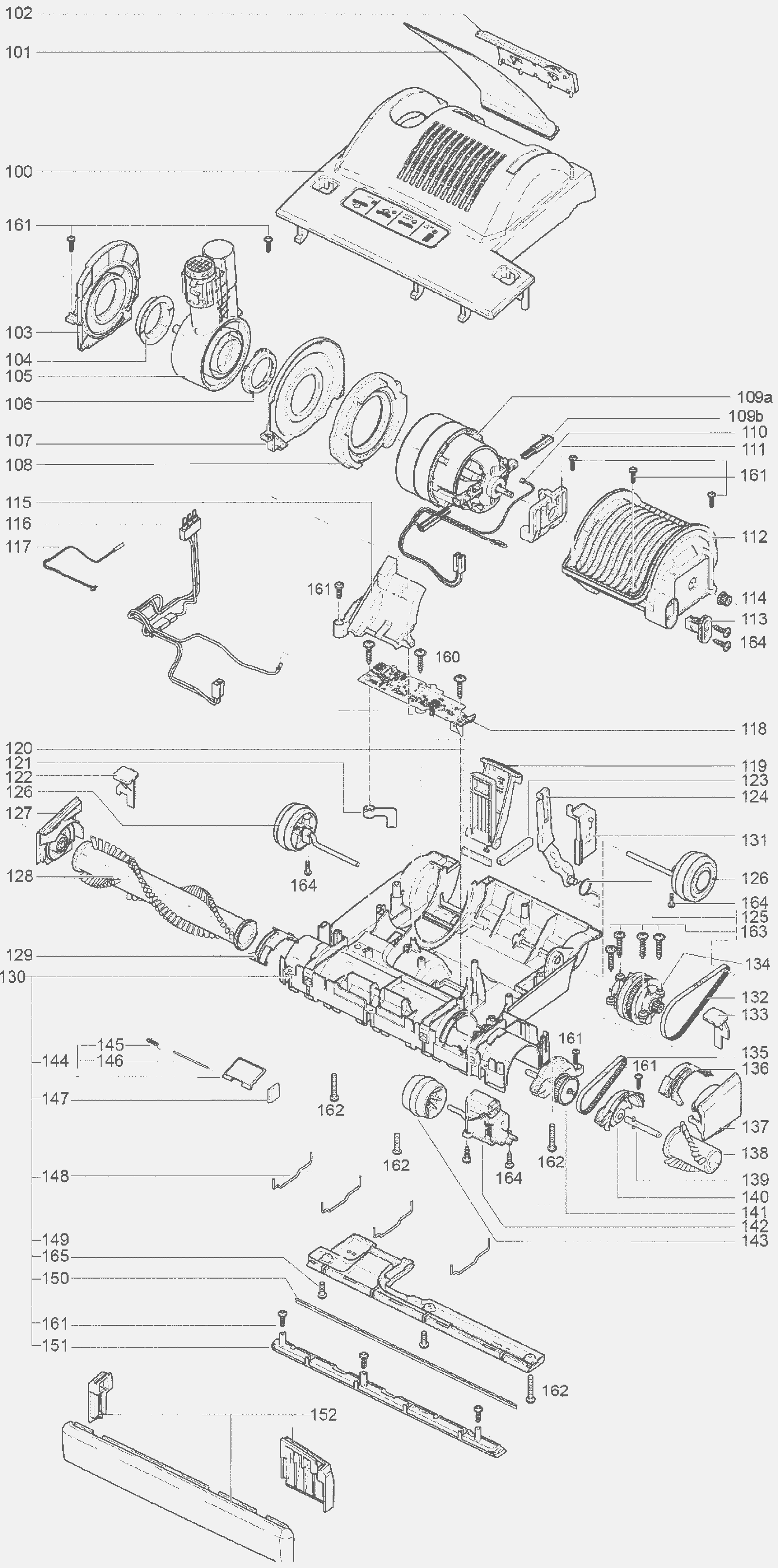

Power Head Assembly

#PartDescription ReqNotesAvailability
100 273-9526 Power head cover (basalt grey) -SRXP15 1
101 273-3699 Exhaust filter 1 (models year 2020 or newer)
102 273-3700 Exhaust filter cover SR XP gray 1
103 273-3717 Swivel neck bearing right hand 1
104 173-2392 Sleeve 1
105 273-3718 Swivel neck assembly 1
106 173-5248 Left side swivel neck bearing 1
107 273-3719 Swivel neck support left hand 1
108 273-3720 Motor support gasket 1
109a 273-3721 Vacuum motor 1000 W/120V with cable 1
109b 173-4726 Carbon brush (pkg of 2) 1
110 273-3722 3 wire motor cable 1
111 173-2415 Rubber mount 1
112 273-3744 Motor housing 3-wire UL-version 1
113 273-3723 Belt tightener 1
114 173-5272 Motor pulley 1
115 273-3724 Cover for air channel 1
116 273-3725 3 wire UL swivel neck cable 1
117 273-3726 Swivel neck reed switch 1
118 273-3727 100-120V PCB power supply / controller 1
119 273-3728 Foot pedal SR XP complete (yellow) 1
120 273-3729 Felt strip 1
121 273-3730 Cable guide 1
122 273-3731 Brush roller release button SR XP 12/15 1
123 273-3732 Support motor housing 1
124 273-3733 Support lever SR XPN 1
125 173-2418 Support spring 1
126 273-3734 Axle assembly (black) 2
127 273-9129 Right hand bearing block 1
128 173-2436 15 inch brush roller (includes large and small portion) 1
129 273-3735 Brush roller right hand release ring with spring 1
130 173-6450 Chassis without bumper 1 (includes 144-151, 161, 165)
131 173-2419 Motor pulley cover 1
132 173-8443 Belt 1
133 173-6451 Brush roller release button 1
134 173-6452 Torque sensor 1
135 173-2424 Belt 1
136 173-6453 Brush roller release ring (OBSOLETE) 1
137 373-3032 Brush cover left hand (black) 1
138 173-6454 Edge brush (blue) 1
139 173-2444 Shaft extension 1
140 173-6455 Sealed bearing 1
141 173-6456 Left hand bearing block coupling 1
142 173-2411 Drive motor with gear box 1
143 173-7619 Pile adjustment knob (black) 1
144 273-8776 Access door (zinc yellow) 1 (includes 145-146)
145 173-2408 Access door spring 1
146 173-2407 Access door axle 1
147 273-8775 Rubbing plate black 1
148 173-5270 Wire tie 1
149 173-6457 Rear bottom plate 1
150 273-0927 15 inch sealing strip 1
151 373-9542 Front bottom plate 1
152 173-6459 Bumper 1
160 273-3743 SCREW C 2.9 X 13 4
161 173-4203 Screw M4 x 16mm self-tapping torx 12
162 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated 7
163 273-1151 Screw 5
164 173-0007 Screw M3-.5 x 13mm 9
165 273-0939 Screw M4-.7 x 12mm with washer 2
