- Batteries, Brushes, and Chargers

#PartDescription ReqNotesAvailability
775-0083 24V 90Ah lithium battery 1
162-0045 12V 140Ah AGM battery 1
162-0057 12V 150Ah wet battery 1
675-9757 BATTERY, CHARGER CBHD1, XR, P 24V 13A 1
203-4016 On board battery charger 12V 12A 1
375-5352 20 inch polyurethane disk brush 1
375-5353 20 inch soft disk scrub brush 1
375-5357 20 inch pad driver assembly 1

- Commonly Asked For Parts

#PartDescription ReqNotesAvailability
203-9155 Bracket
675-9776 Vacuum motor gasket
203-5413 Insulation
203-5414 Fairlead
203-5416 Gasket
775-0104 Squeegee assembly
375-9760 Connector
775-0531 Control panel plate
775-0532 Control panel label

- Frequently Replaced Parts

#PartDescription ReqNotesAvailability
375-5352 20 inch polyurethane disk brush 1
375-5353 20 inch soft disk scrub brush 1
375-5357 20 inch pad driver assembly 1
255-2020 20 inch premium white polishing pad (pkg of 5) 1
175-0510 Buff pad 20d red 1
175-0511 20in scrub pad (blue) 1
255-2092 20 inch premium brown stripping pad (pkg of 5) 1
255-2090 20 inch premium black stripping pad (pkg of 5) 1
255-2047 20 inch Redwood maroon floor prep pad (pkg of 10) 1
375-7835 20 inch polishing pad (yellow) 1
675-9779 Squeegee blade linatex front 1
675-9777 Squeegee blade linatex rear 1
203-9167 Squeegee blade rubber front 1
203-5539 Squeegee blade rubber rear 1
775-0543 Squeegee blade front polyurethane 1
775-0542 Squeegee blade rear polyurethane 1
375-9632 Vacuum fan 1
203-5454 Brush motor 1
203-5856 Carbon brushes 1
375-9626 Brush motor kit 1
203-4366 Carbon brush (sold each) 1
675-9776 Vacuum motor gasket 1
203-5345 Filter 1
203-5332 Hose 1
675-9808 Filter screen 1
675-9550 Drain hose assembly 1
203-5352 Drain hose cap 1
203-4749 Solenoid valve 1
203-5406 Wheel 1
203-5386 24V electric motor 1
162-0045 12V 140Ah AGM battery 1
162-0057 12V 150Ah wet battery 1
375-5553 Motor brush kit 1

- Pad Holders

#PartDescription ReqNotesAvailability
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Pads

#PartDescription ReqNotesAvailability
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg 5) (OBSOLETE)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch super white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

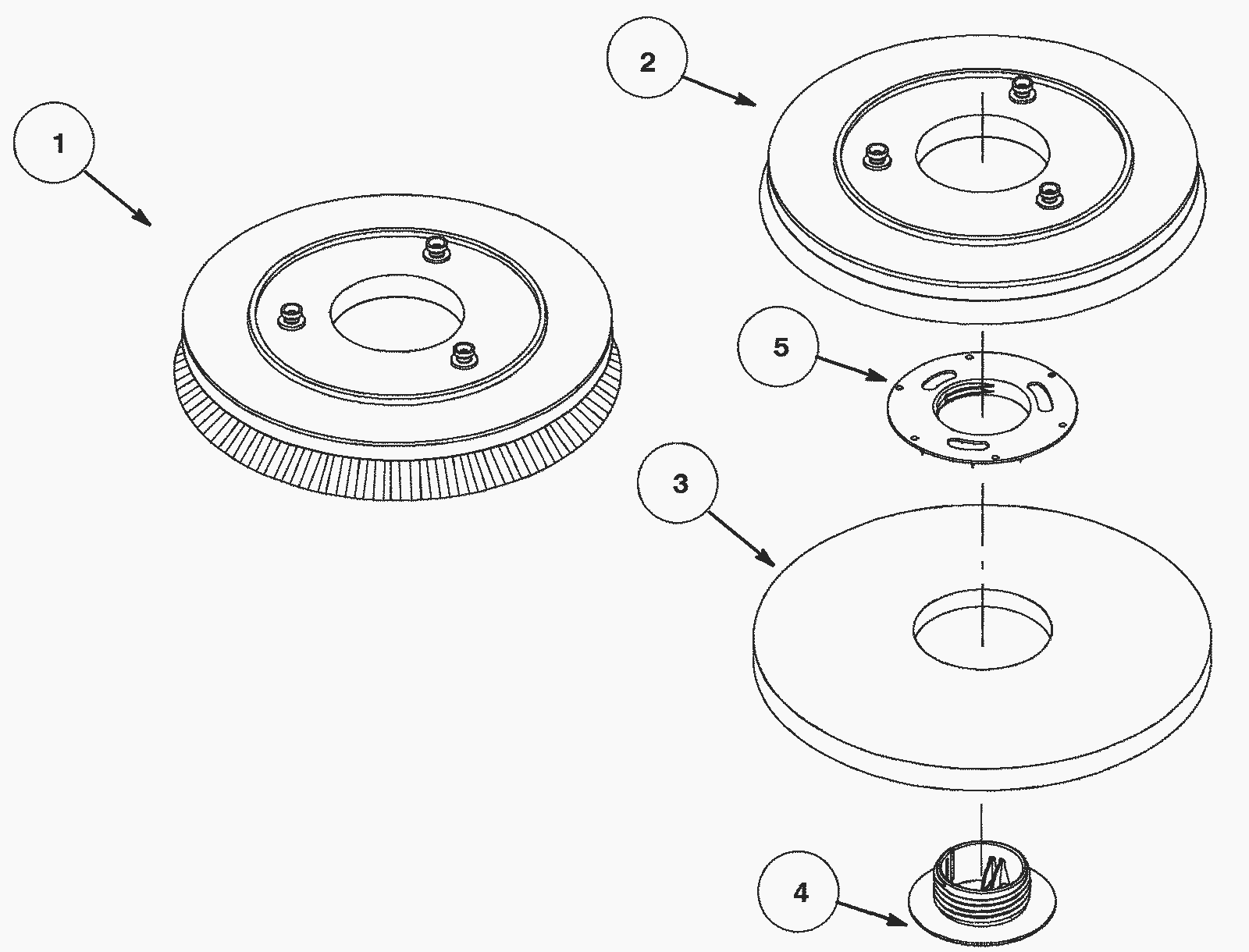

Brush, Pad Driver, and Pads Assembly (SN 125546x-00001)

#PartDescription ReqNotesAvailability
1a 375-5352 20 inch polyurethane disk brush 1
1b 375-5353 20 inch soft disk scrub brush 1
2 375-5357 20 inch pad driver assembly 1
3 255-2020 20 inch premium white polishing pad (pkg of 5) 1
3 175-0510 Buff pad 20d red 1
3 175-0511 20in scrub pad (blue) 1
3 255-2092 20 inch premium brown stripping pad (pkg of 5) 1
3 255-2090 20 inch premium black stripping pad (pkg of 5) 1
3 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10) 1
3 375-7835 20 inch polishing pad (yellow) 1
4 375-7991 Center lock 1
5 375-8069 Center lock pad driver 1

Electrical Component Assembly (SN 1255470-00001)

#PartDescription ReqNotesAvailability
3 N/A Not available 1 (plate) (only available with 1)
19c 991-1634 Key (pkg of 2) (NON-OEM)
19d 991-5161 Key switch with keys 1 (NON-OEM)

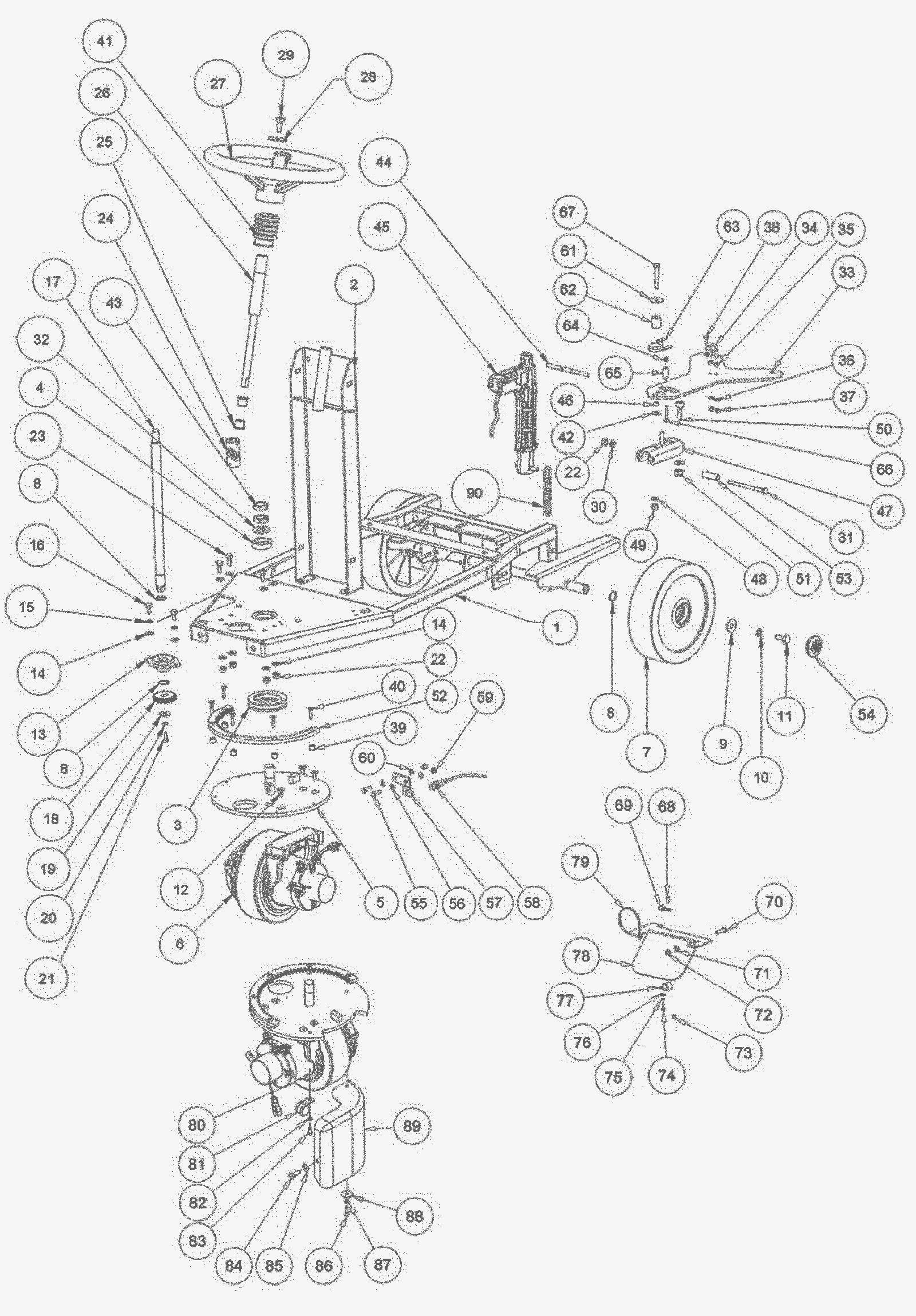

Frame and Drive Wheel Assembly

#PartDescription ReqNotesAvailability
1 203-5381 Frame 1
2 203-5383 Steering 1
3 203-5384 Bearing 1
4 203-2588 Bearing 1
5 203-5385 Plate 1
6 203-5386 24V electric motor 1
7 203-5387 Wheel 2
8 189-7523 Outer snap ring 2
9 189-1532 Washer D10 2
10 189-2272 Washer D10 2
11 203-1800 Screw 10 x 25 inch 2
12 203-5389 Screw 4
13 189-0226 Bearing 1
14 189-0897 Washer D8 2
15 375-9732 Washer D8 2
16 775-0604 Screw 8 x 16 2
17 203-5390 Shaft 1
18 203-2892 Pinion 1
20 203-0971 Washer D6 1
21 189-1497 Screw 6 x 16 inch 1
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
23 189-1512 Screw 8 x 20 inch 4
24 375-5321 U joint 1
25 203-2895 Bushing 2
26 203-5391 Steering shaft 1
27 203-1318 Steering wheel 1
28 203-1294 Washer 1
29 775-0605 Screw M10 x 20 hex 1
30 375-9658 Washer nylon 2
31 775-0606 Screw M8 x 100 hex 1
32 203-1274 Washer 1
33 775-0607 Sheet metal PA 1
34 203-4845 Bracket 1
35 189-1489 Nut M6 2
36 203-1286 Washer D6 2
37 189-1536 Nut with nylon ring 2
38 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
39 203-5395 Spacer 5
40 775-0610 Screw M6 x 25 5
41 375-5322 Bellows 1
42 189-1128 Spring 1
43 203-5396 Nut 2
44 775-0611 Actuator pin 1
45 203-5397 Squeegee actuator 1
46 775-0612 Spacer 1
47 775-0613 Support 1
48 189-0897 Washer D8 1
49 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
50 203-1397 Screw 1
51 999-6697 Nut M10-1.5 hex stainless steel 1
52 203-5402 Sprocket ring 1
53 775-0551 Spacer 1
54 203-2897 Wheel cap 2
56 203-1286 Washer D6 2
57 775-0614 Bracket 1
58 203-1549 Sensor 1
59 203-0524 Nut M6 lock 2
60 203-1286 Washer D6 2
61 203-1497 Washer 1
62 775-0615 Spacer 1
63 775-0616 Spring 1
64 189-1536 Nut with nylon ring 1
65 775-0617 Spacer 1
66 775-0618 Screw M6 x 35 1
67 375-9702 Screw M8 x 50 inox 1
68 203-0144 Screw 1
69 203-4761 P clamp 1
70 189-1537 Screw 1
71 203-1286 Washer D6 1
72 375-9499 Nut M6 inox 1
73 999-1619 Nut M4 hex stainless steel 1
74 203-4752 Screw 1
75 203-4740 Washer D4 1
76 375-5391 Washer 12D 1
77 375-9636 Clamp 1
78 775-0619 Cable guide bracket 1
79 375-5390 Cable tie 1
80 203-5327 Fair lead 1
81 775-0603 Fair lead 1
82 203-0971 Washer D6 1
83 189-1357 Screw 6 x 12 inch 1
84 189-1512 Screw 8 x 20 inch 1
85 189-0897 Washer D8 1
86 203-1323 Screw 1
87 203-0971 Washer D6 1
89 775-0620 Drive wheel cover 1
90 775-0621 Small chain 1

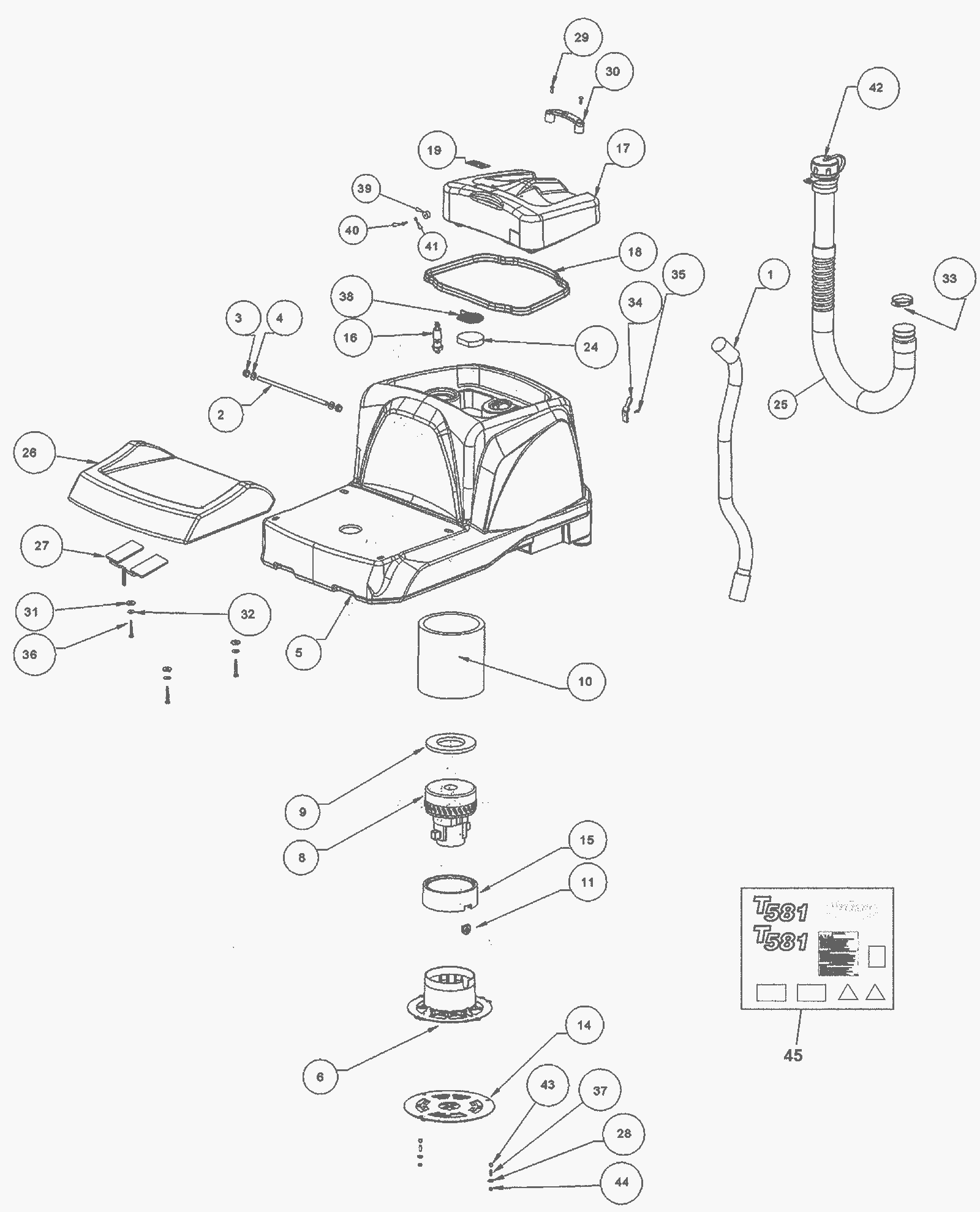

Recovery Tank Assembly (SN 1255470-00001)

#PartDescription ReqNotesAvailability
1 203-5332 Hose 1
2 775-0545 Threaded rod 1
3 375-2827 Nut M10 hex lock stainless steel 2
4 375-2687 Washer 2
5 775-0544 Recovery tank 1
6 203-9155 Bracket 1
8 375-9632 Vacuum fan 1
9 675-9776 Vacuum motor gasket 1
10 203-5413 Insulation 1
11 203-5414 Fairlead 1
14 203-5415 Cover 1
15 203-5416 Gasket 1
16 775-0546 Level sensor 1
17 775-0547 Tank cover 1
18 775-0548 Lid gasket 1
19 203-5342 Decal 1
24 203-5345 Filter 1
25 675-9550 Drain hose assembly 1
26 375-2738 Seat 1
27 375-2734 Seat sensor switch 1
28 189-1462 Washer 5 x 14 inch 3
29 375-9509 Screw M6-16 2
30 775-0549 Handle cover 1
31 375-8020 Rubber washer 4
32 189-1391 Washer D6 4
33 203-4399 Clamp 1
34 203-5350 Hook 1
35 375-9516 Screw M4 x 10 inox 1
36 375-9570 Screw M6 x 45 inox 4
37 775-0550 Screw 3
38 203-5351 Mesh filter 1
39 203-5343 Cap 1
40 203-0144 Screw 1
41 203-0235 Washer 1
42 203-5352 Drain hose cap 1
43 775-0551 Spacer 3
44 999-0740 Nut M5-.8 hex stainless steel 3
45 775-0552 Decal kit 1

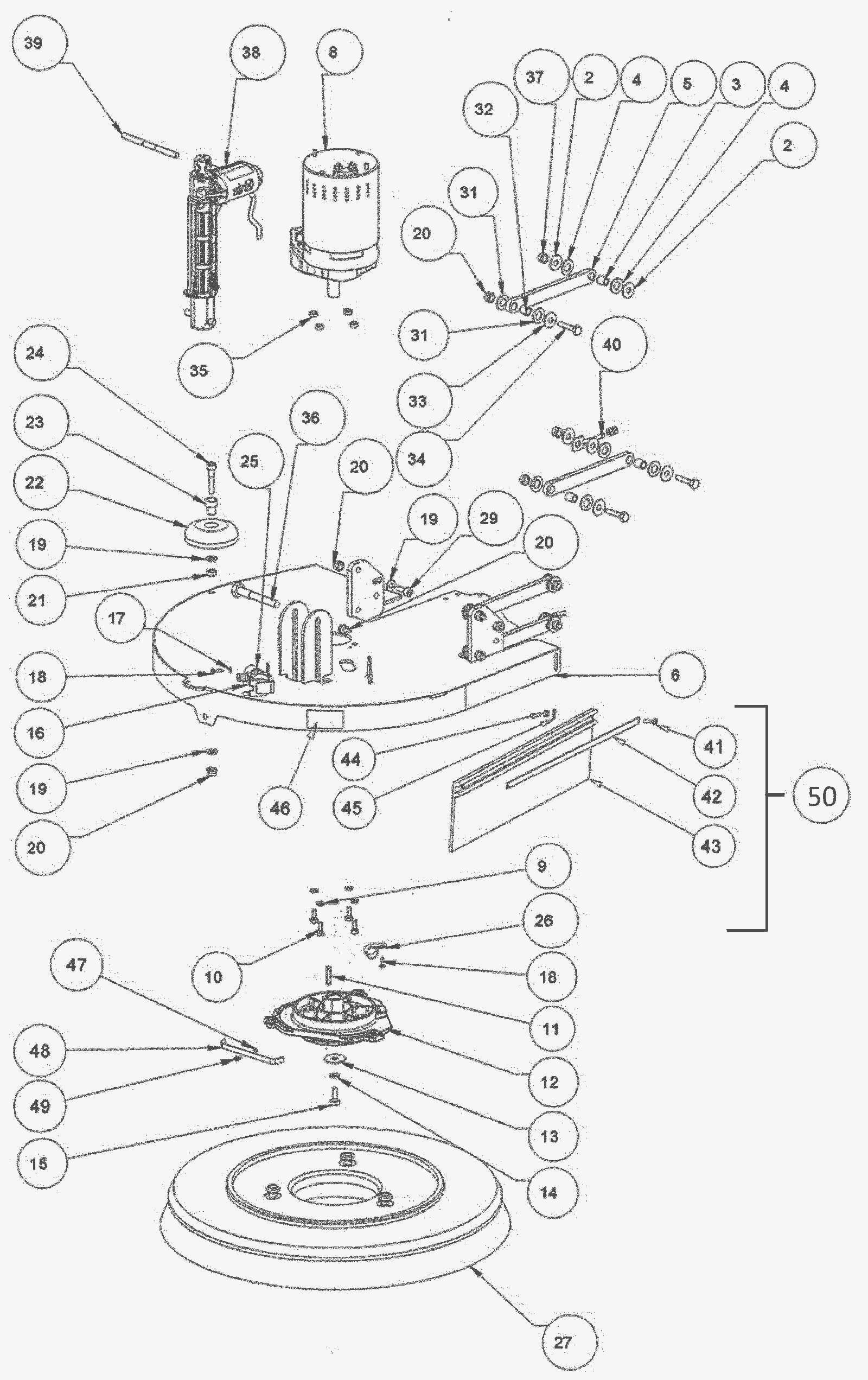

Scrub Head Assembly (SN 1255470-00001)

#PartDescription ReqNotesAvailability
2 375-9615 Washer D. 8 x 24 inox 4
3 375-2837 Bushing 2
4 189-1394 Washer D13 2
5 775-0622 Plate arm 4
6 775-0623 20 inch scrub head 1
8a 203-5454 Brush motor 1 (includes 8b-8d)
8b 375-5553 Motor brush kit 1
8c 775-0624 Motor 1
8d 775-0625 Gearbox 1
9 203-0971 Washer D6 4
10 375-9532 Screw 6 x 20 inox 4
11 203-0644 Square keyway 1
12 375-5551 Disk brush drive hub kit 1
13 203-1497 Washer 1
14 375-9732 Washer D8 1
15 189-1512 Screw 8 x 20 inch 1
16 203-4749 Solenoid valve 1
17 203-0235 Washer 2
18 203-4752 Screw 3
19 189-0897 Washer D8 6
20 999-1651 Nut M8-1 hex stainless steel 1
21 999-1651 Nut M8-1 hex stainless steel 1
22 675-9813 Wheel 80D x 22W bumper 1
23 189-0901 Bushing 1
24 375-8016 Screw M8 x 40 1
25 375-9742 Tube D12 x 3 1
26 375-9636 Clamp 1
27 375-5357 20 inch pad driver assembly 1
29 999-1648 Screw M8-1.25 x 20mm socket head stainless steel 2
31 189-1394 Washer D13 8
32 375-2837 Bushing 4
33 375-9615 Washer D. 8 x 24 inox 4
34 189-1344 Screw M8 4
35 189-0095 Bushing 4
36 999-9079 Screw M8 x 80mm hex head stainless steel 4
37 999-1651 Nut M8-1 hex stainless steel 1
38 203-5250 Actuator brush head 4
39 775-0611 Actuator pin 1
40 203-2211 Alternator belt tightener 2
41 375-9483 Screw M5 x 16 inox 3
42 775-0627 Side skirt retainer 1
43 775-0628 Side skirt 1
44 203-0789 Nut 3
45 189-1462 Washer 5 x 14 inch 3
46 775-0629 Decal 2
47 203-4740 Washer D4 1
48 203-5850 Spring 1
49 189-1376 Screw 4 x 10 inch 1
50 775-0626 Brush head skirt kit 1 (includes 41-46)

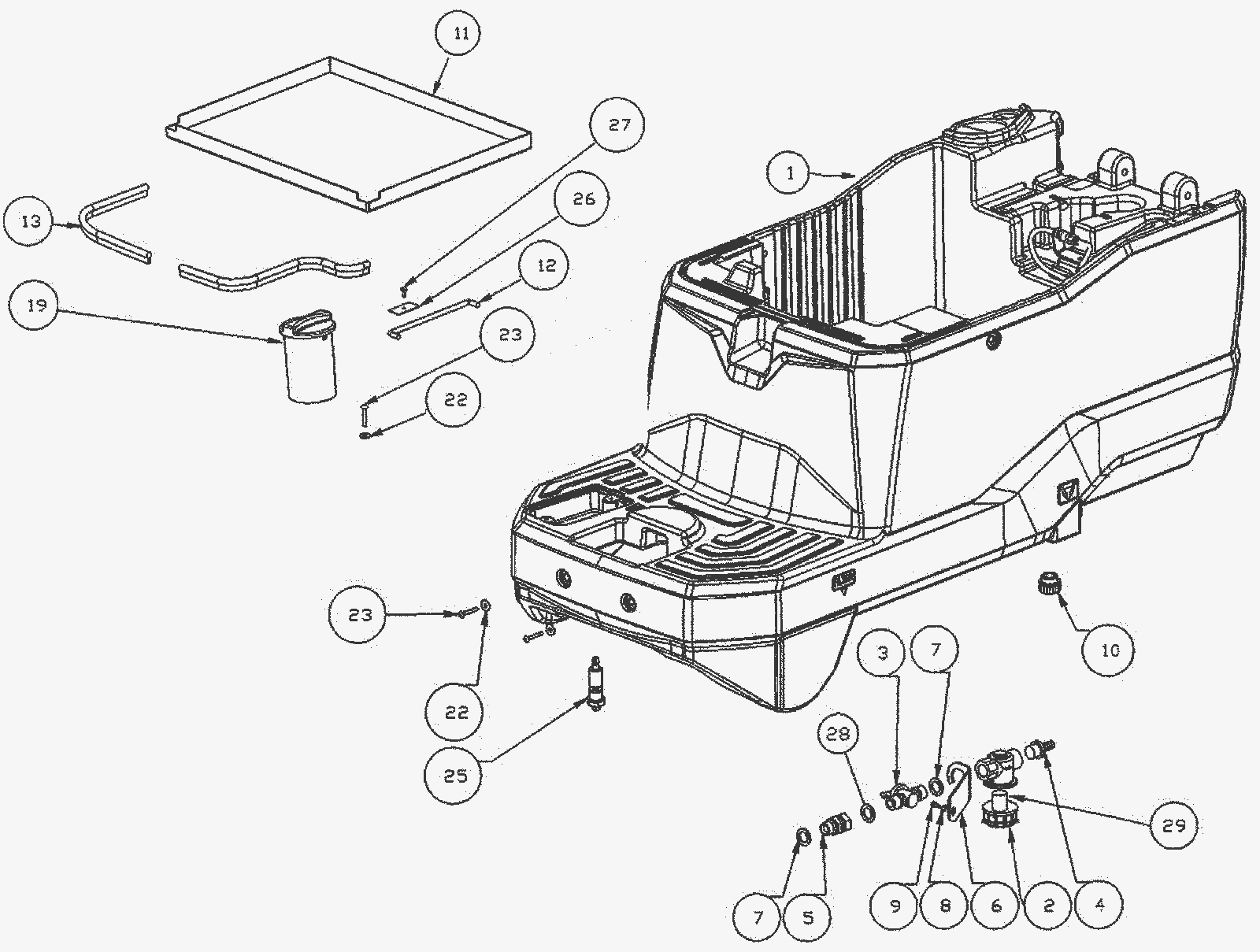

Solution Tank Assembly (SN 1255470-00001)

#PartDescription ReqNotesAvailability
1 775-0600 Solution tank 1
2 203-5355 Filter 1
3 375-2714 Water valve 1
4 203-5357 Connector 1
5 203-5358 1/2 inch connector 1
6 675-9809 Bracket 1
7 675-9928 Washer gasket 2
8 189-1462 Washer 5 x 14 inch 1
9 375-1709 Screw M5 x 12 inox 1
10 203-5362 Cap 1
11 203-5363 Battery container 1
12 203-5364 Pin 1
13 203-5365 Gasket (sold by the inch) 1
19 375-5404 Solution tank cap 1
22 375-9615 Washer D. 8 x 24 inox 2
23 189-1344 Screw M8 2
25 775-0546 Level sensor 1
26 775-0601 Rod bracket 1
27 375-1709 Screw M5 x 12 inox 1
28 203-5377 Gasket 1
29 675-9808 Filter screen 1

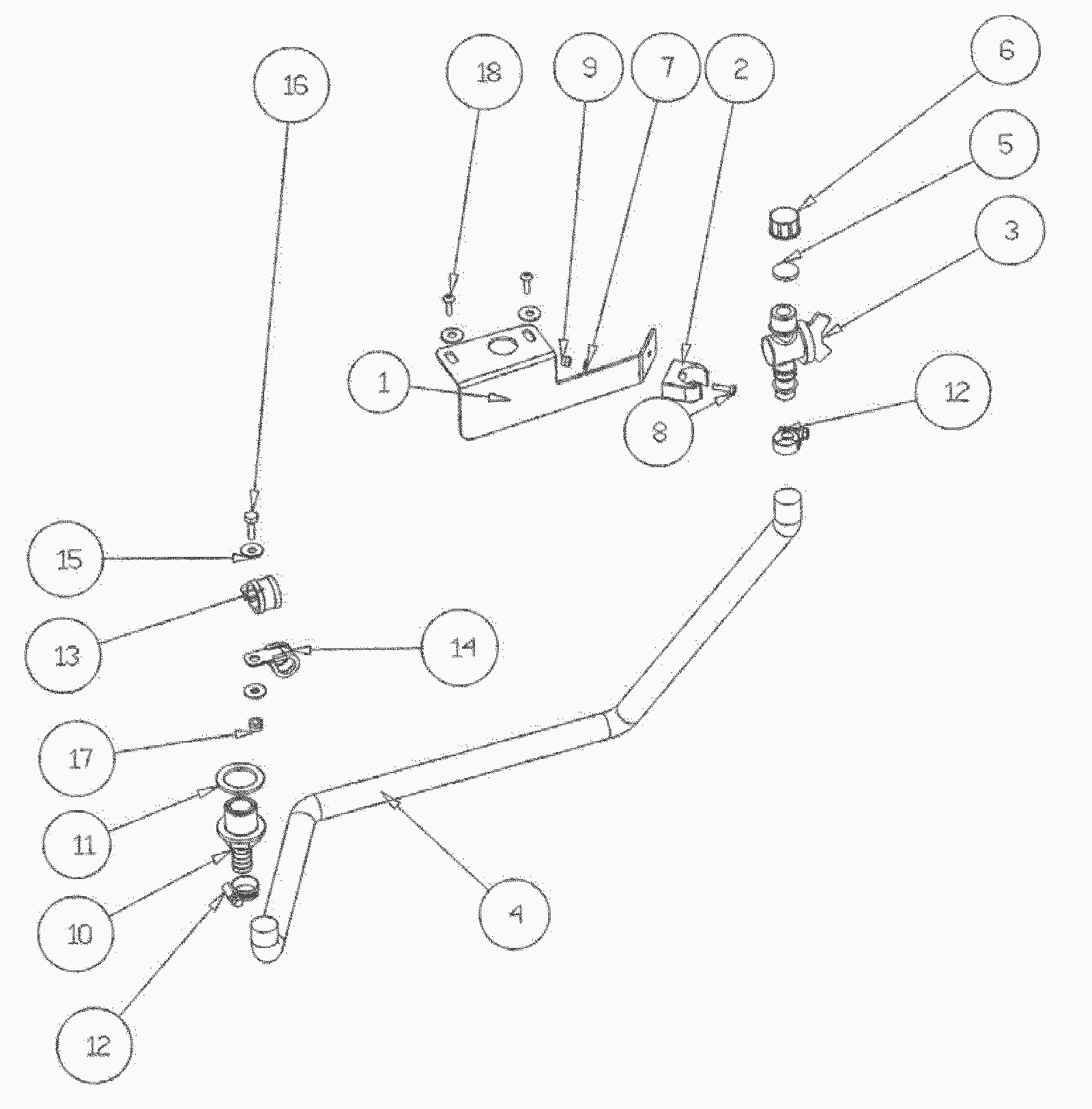

Solution Tank Drain Hose Assembly

#PartDescription ReqNotesAvailability
1 775-0602 Drain valve bracket 1
2 375-9755 Clip 1
3 375-9760 Connector 1
4 203-3594 Solution hose (sold in meters) 1
5 375-9759 Gasket 1
6 375-9758 Cap 1
7 203-0235 Washer 1
8 999-9106 Screw M4-.7 x 16mm hex head stainless steel 1
9 375-9661 Nut M4 inox 1
10 203-1811 Union / Connector 1
11 375-2711 Gasket 1
12 375-2906 Wormdrive hose clamp 2
13 775-0603 Fair lead 1
14 203-7165 Clamp 1
15 189-1391 Washer D6 4
16 375-9532 Screw 6 x 20 inox 1
17 999-1308 Nut M6-1 hex stainless steel 1
18 375-7993 Screw M5 x 16 2

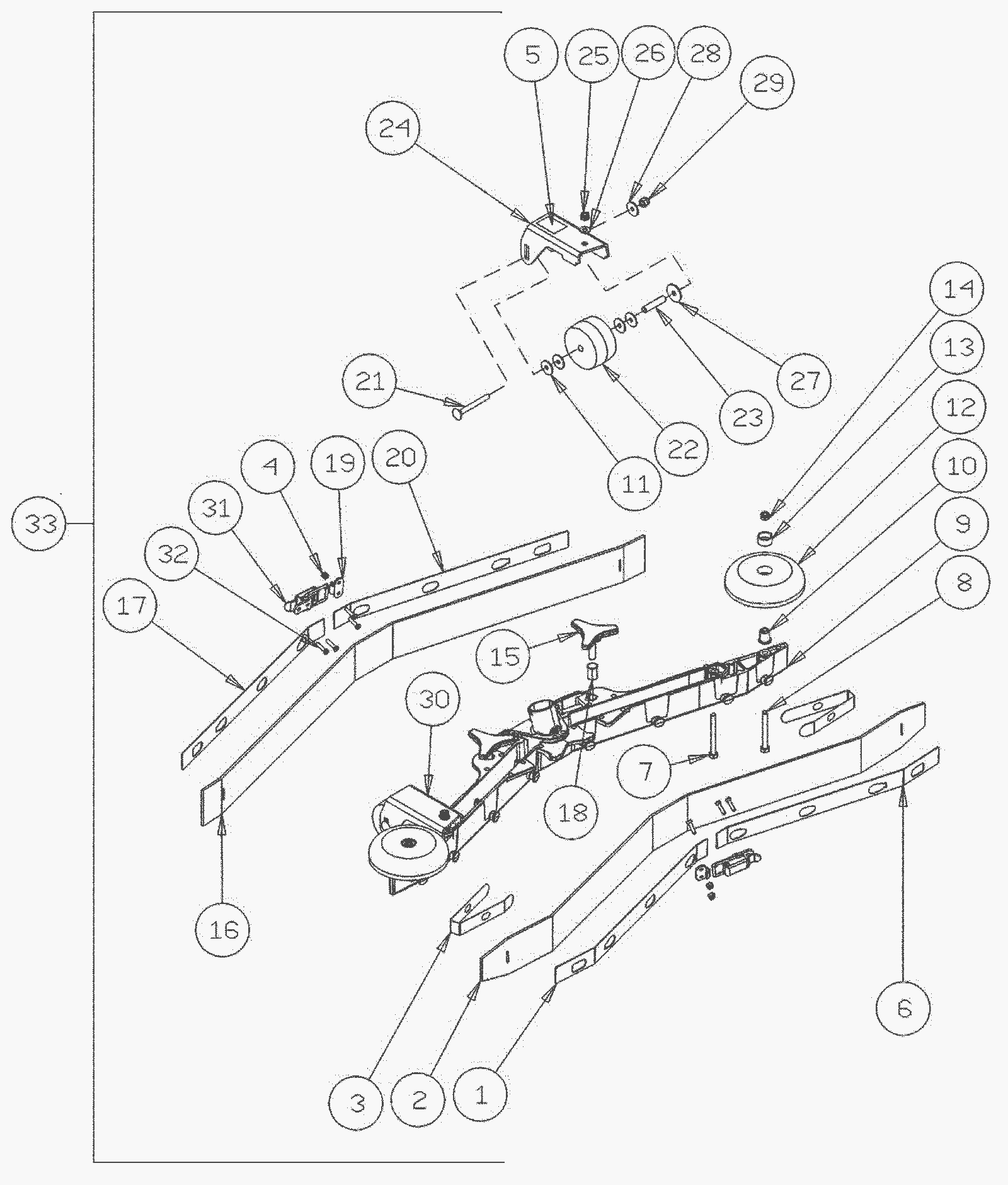

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 203-5534 Front right hand squeegee strap 1
2a 675-9779 Squeegee blade linatex front 1 (Standard)
2b 775-0543 Squeegee blade front polyurethane 1 (Optional)
2c 203-9167 Squeegee blade rubber front 1 (Optional)
3 203-4780 Closure 2
4 203-4787 Nut M3 8
5 775-0630 Decal 2
6 203-5537 Front left hand squeegee strap 1
7 189-1539 Screw 2
8 189-1488 Screw M6 2
9 203-5538 Squeegee body 1
10 203-0920 Spacer 2
11 375-9658 Washer nylon 4
12 675-9813 Wheel 80D x 22W bumper 2
13 189-5086 Bushing 2
14 375-9499 Nut M6 inox 2
15 203-9158 Small knob (yellow) 2
16a 675-9777 Squeegee blade linatex rear 1 (Standard)
16b 775-0542 Squeegee blade rear polyurethane 1 (Optional)
16c 203-5539 Squeegee blade rubber rear 1 (Optional)
17 203-5541 Right hand rear squeegee retainer 1
18 203-5426 Insert 2
19 203-4772 Hook 2
20 203-5543 Left hand rear squeegee retainer 1
21 203-5428 Screw M6 2
22 203-5429 Wheel 2
23 203-5430 Spacer 2
24 203-5545 Support 1
25 375-9499 Nut M6 inox 2
26 203-1286 Washer D6 2
28 189-1391 Washer D6 2
29 375-9620 Nut M6 inox 2
30 203-5546 Support 1
31 203-4765 Retainer closure 2
32 203-4788 Screw 3 x 8 inch 8
33 775-0104 Squeegee assembly 1 (includes 1-32)
