- Commonly Asked For Parts

#	Part	Description	Req	Notes	Availability
	275-7396	Latch

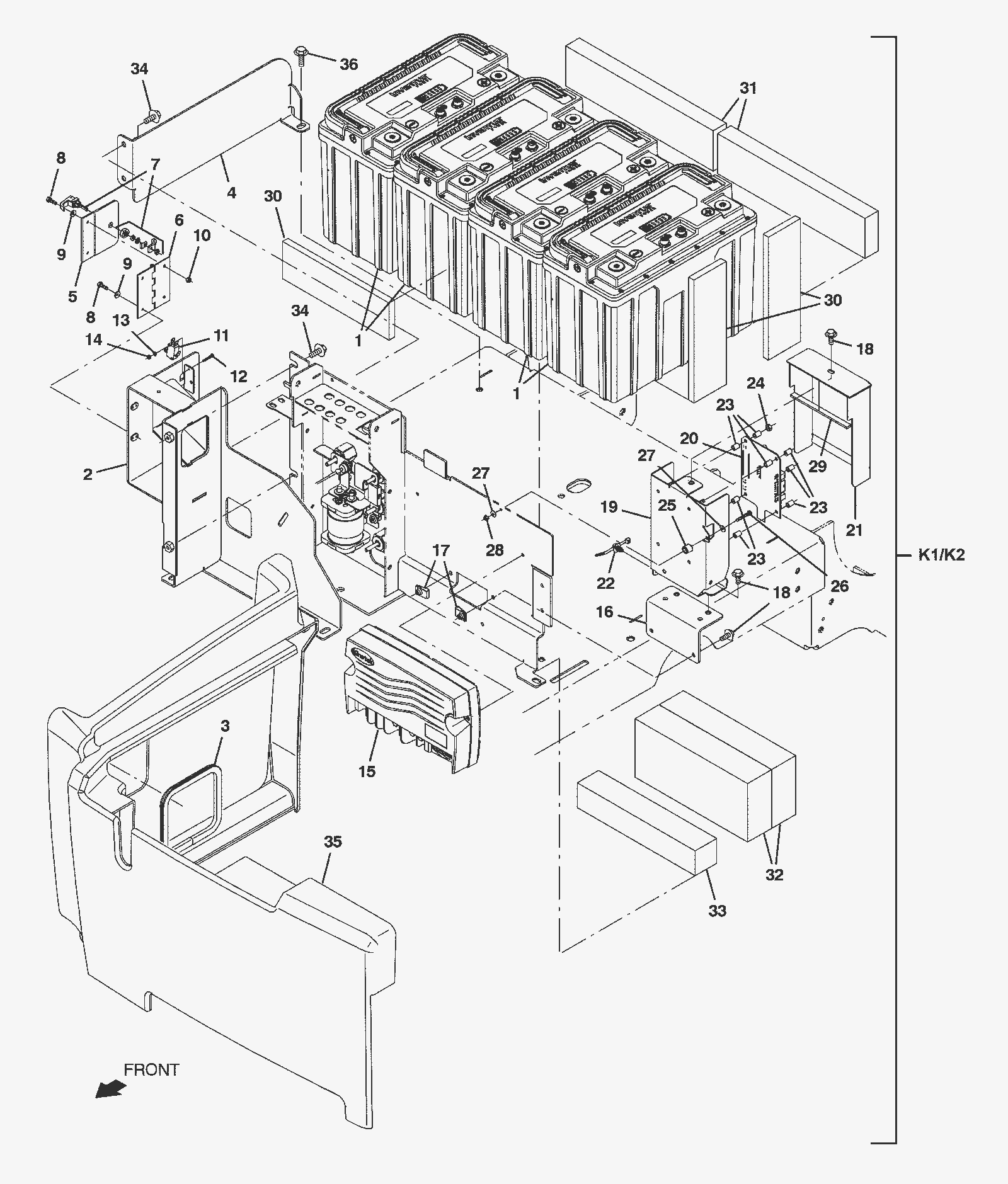

36V 11.5 Kwh Lithium-Ion Battery Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0514	36V 30Ah Li-Ion replacement battery	4
2	775-0515	Battery support bracket weldment	1
3	275-8075	Trim	1
4	775-0516	Battery stop bracket	1
5	775-0517	Connector cover plate	1
6	775-0518	Hinge	1
7	775-0519	Latch	1
8	999-0521	Screw M4-.7 x 12mm pan head phillips zinc	4
9	999-0412	Washer #8 SAE flat	4
10	999-0954	Nut M4-.7 nylon insert lock stainless steel	2
11	775-0520	16amp snap switch	1
12	999-1040	Screw M3-.5 x 20mm pan head	2
13	999-0479	Washer #4 internal star lock zinc plated	2
14	999-0768	Nut M3-.5 hex coarse thread plain finish	2
15a	775-0521	Machine controller	1	(Before SN 101469)
15b	775-0522	Machine controller	1	(After SN 010468)
16	775-0523	Controller support plate weldment	1
17	175-6877	NUT, U, M6 X 1.00 (Tennant Industrial)	2
18	999-1383	Screw M6-1 x 16mm hex head stainless steel	5
19	675-9525	Plate weldment	1
20	675-9526	Interface circuitboard, Li-ion battery	1
21	675-9529	Bracket	1
22	275-5197	Fir tree clip	3
23	675-9527	Spacer	8
24	175-2894	Nut M5-.8 hex nylon locking	4
25	175-2249	Sleeve	1
26	175-3245	Screw 4mm-.7 x 30 pan head	1
27	999-0412	Washer #8 SAE flat	2
28	999-0954	Nut M4-.7 nylon insert lock stainless steel	1
29	275-5893	Seal	1
30	375-2514	Battery spacer	3
31	175-1352	Battery insert	2
32	775-0524	Battery spacer foam	2
33	375-2512	Foam battery spacer	1
34	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	4
35	275-5702	Charger seat shroud (Tennant Industrial)	1
36	275-9575	SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial)	1
K1	775-0525	33amp lithium-ion battery kit	1	(includes 1-36 and all parts in Battery Cable Group diagram) Requires Tennant True service or an authorized Tennant service provider.
K2	775-0526	90amp charger lithium-ion battery kit	1	(includes 1-36 and all parts in Battery Cable Group diagram) Requires Tennant True service or an authorized Tennant service provider.

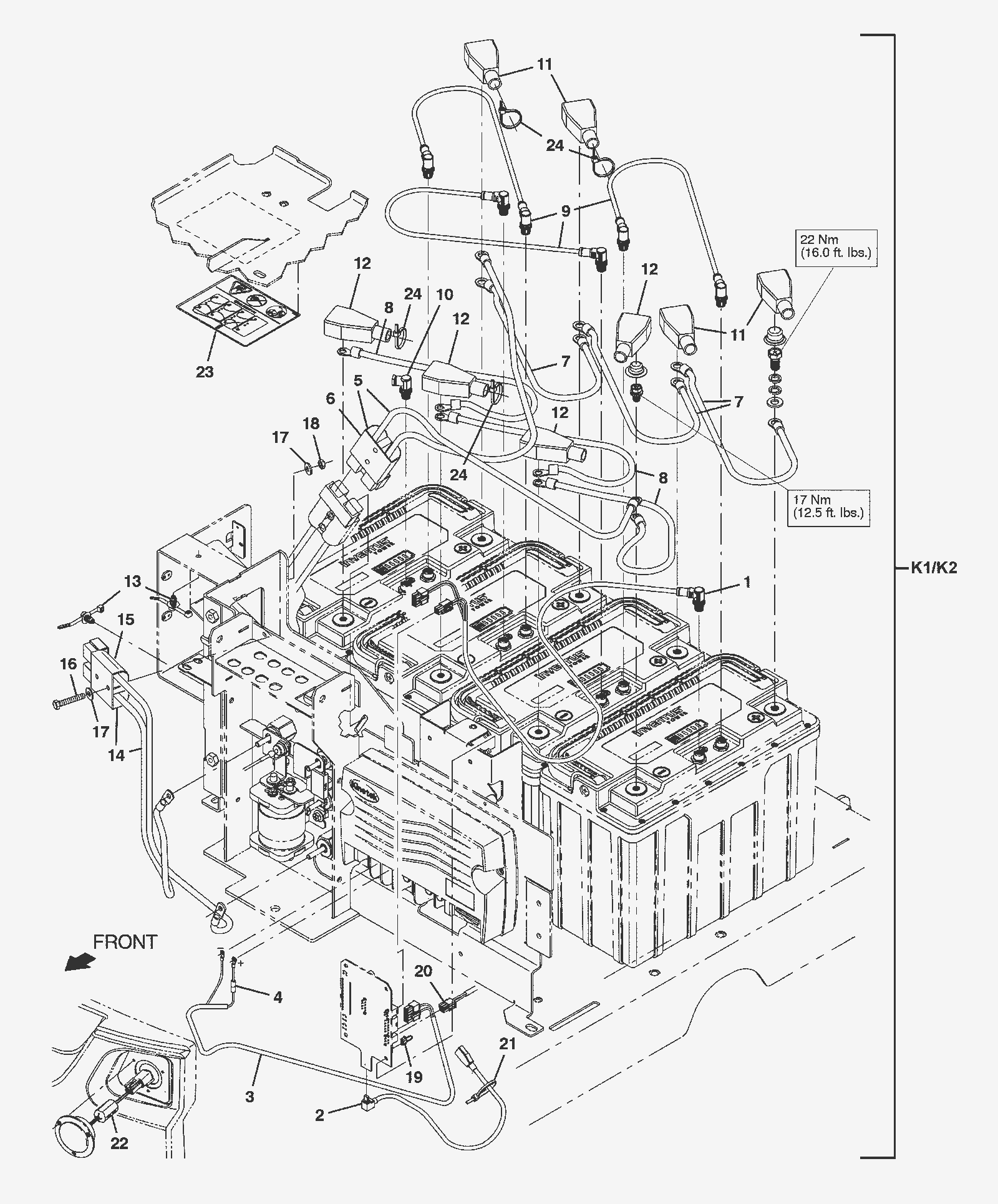

36V 11.5 Kwh Lithium-Ion Battery Cable Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	675-9533	Harness (battery to UI)	1
2	375-4076	USB cable	1
3	675-9532	Harness (ui power)	1	(includes 4) (includes 4)
4	275-7904	Fuse (Tennant Industrial)	1
5	775-0527	Cable assembly	1	(includes 6)
6	991-2112	175amp charger plug with pins (gray) SB175	1
7	675-9521	Cable (red)	3
8	175-9591	Battery cable (black)	3
9	675-9523	8 postion male to male cable assembly	3
10	675-9524	Resistor plug	1
11	175-6887	Boot (red)	4
12	175-6885	Boot (black)	4
13	275-5197	Fir tree clip	2
14	275-2711	175amp cable assembly (Tennant Industrial)	1	(includes 15)
15	991-2112	175amp charger plug with pins (gray) SB175	1
16	999-0780	Screw M6-1 x 40mm hex head	2
17	999-0016	Washer 1/4 flat plain finish	4
18	999-0469	Nut M6-1 nylon insert lock zinc plated	2
19	675-9528	Harness	1
20	675-9534	Harness adaptor kit	1
21	375-3863	Cable tie (Tennant Industrial)	1
22	775-0528	Clamp inductor	1
23	775-0529	Battery hazard decal	1
24	275-0126	TIE, CABLE, 6.0L, 1.25D MAX (Tennant Industrial)	8
K1	775-0525	33amp lithium-ion battery kit	1	(includes 1-24 and all parts in Battery Group diagram) Requires Tennant True service or an authorized Tennant service provider.
K2	775-0526	90amp charger lithium-ion battery kit	1	(includes 1-24 and all parts in Battery Group diagram) Requires Tennant True service or an authorized Tennant service provider.

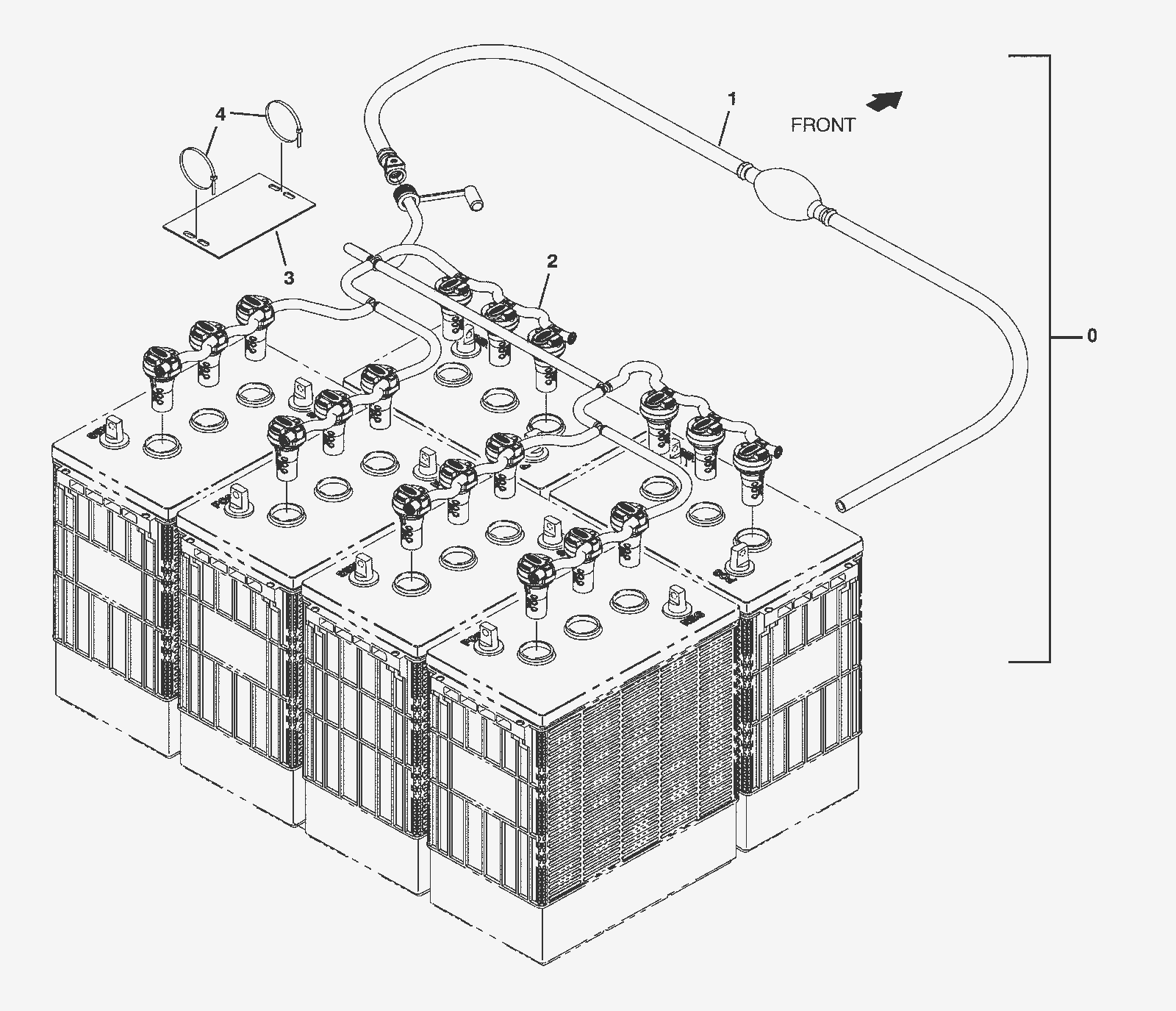

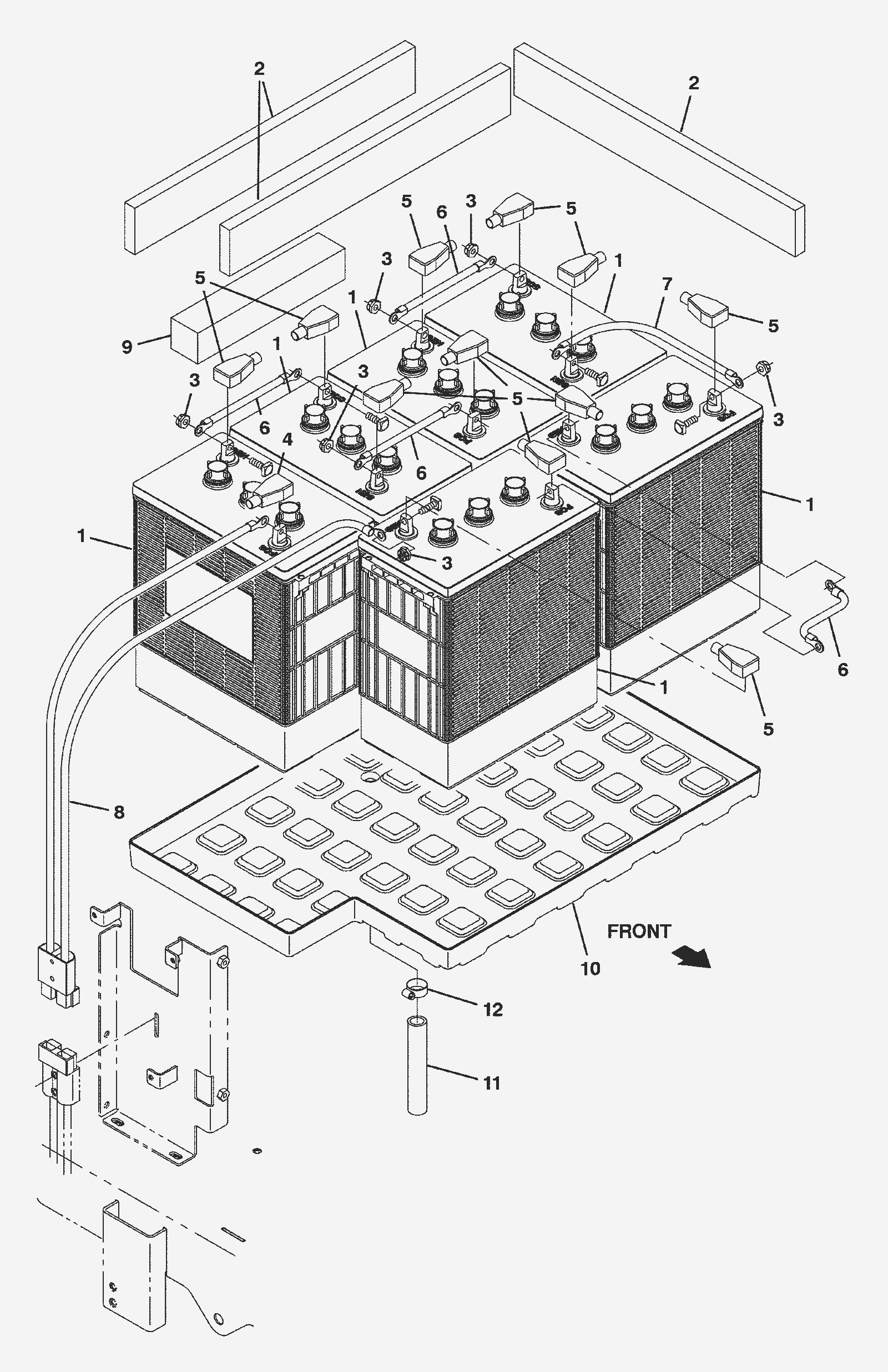

Battery Assembly

Click to enlarge

#	Part	Description	Req
1	162-0005	6V 305Ah wet battery (SNSR)	6
2	175-2127	Battery spacer	3
3	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	12
4	175-6887	Boot (red)	1
5	175-6885	Boot (black)	11
6	275-2727	8 inch cable (red) (Tennant Industrial)	4
7	275-2728	12 inch cable (red) (Tennant Industrial)	1
8	275-2711	175amp cable assembly (Tennant Industrial)	1
9	375-2512	Foam battery spacer	2
10	275-2729	Battery tray (quantum) (Tennant Industrial)	1
11	275-8607	HOSE, AFMKT, PVC, BRD, 0.75ID, 01FT, CLR (Tennant Industria	1
12	175-0199	Hose clamp	1

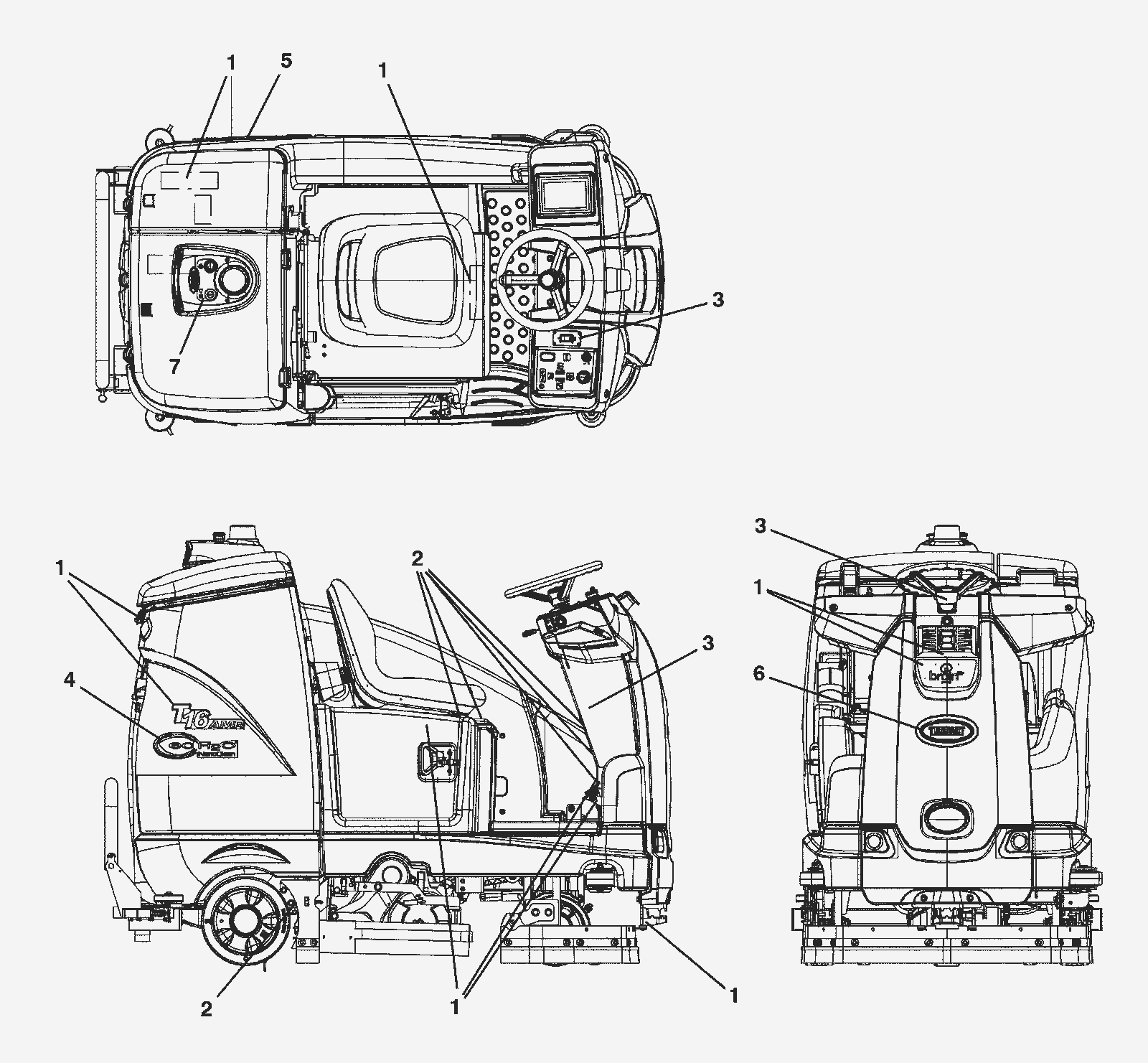

Decal Assembly

Click to enlarge

#	Part	Description	Req
1	775-0510	Information/hazard decal set (polychrome)	1
2a	275-5512	Hazard decal set (Tennant Industrial)	1
2b	575-5027	LABEL SET, INFO/HZRD, CE [T16] (Tennant Industrial)	1
2c	275-5512	Hazard decal set (Tennant Industrial)	1
3	775-0511	Steering information decal set (polychrome)	1
4	375-0248	ec-H2O Nano Tennant decal (OBSOLETE)	1
5	775-0512	Logo decal	1
6	275-7759	Nameplate	1
7	775-0513	E-stop/play/pause decal	1

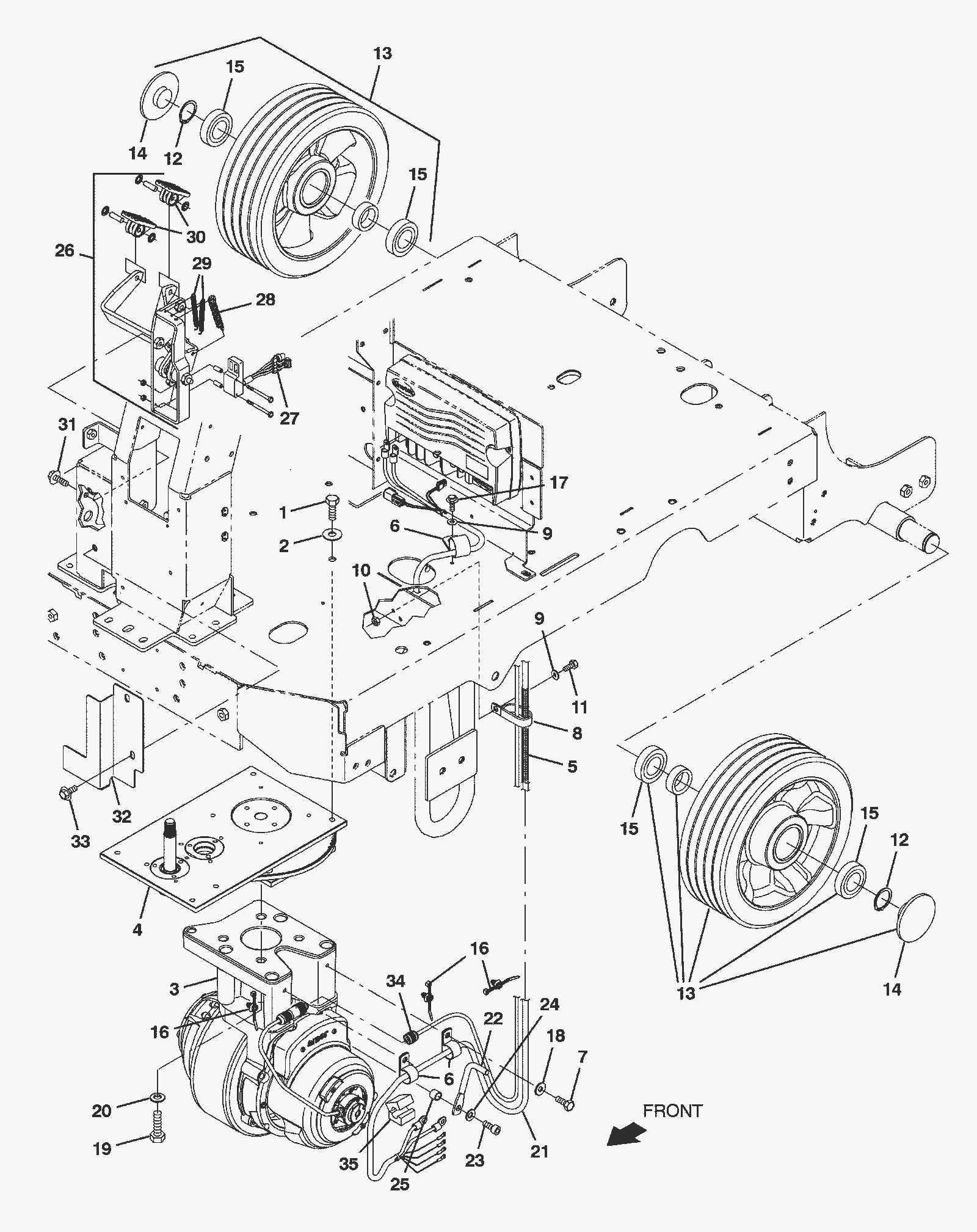

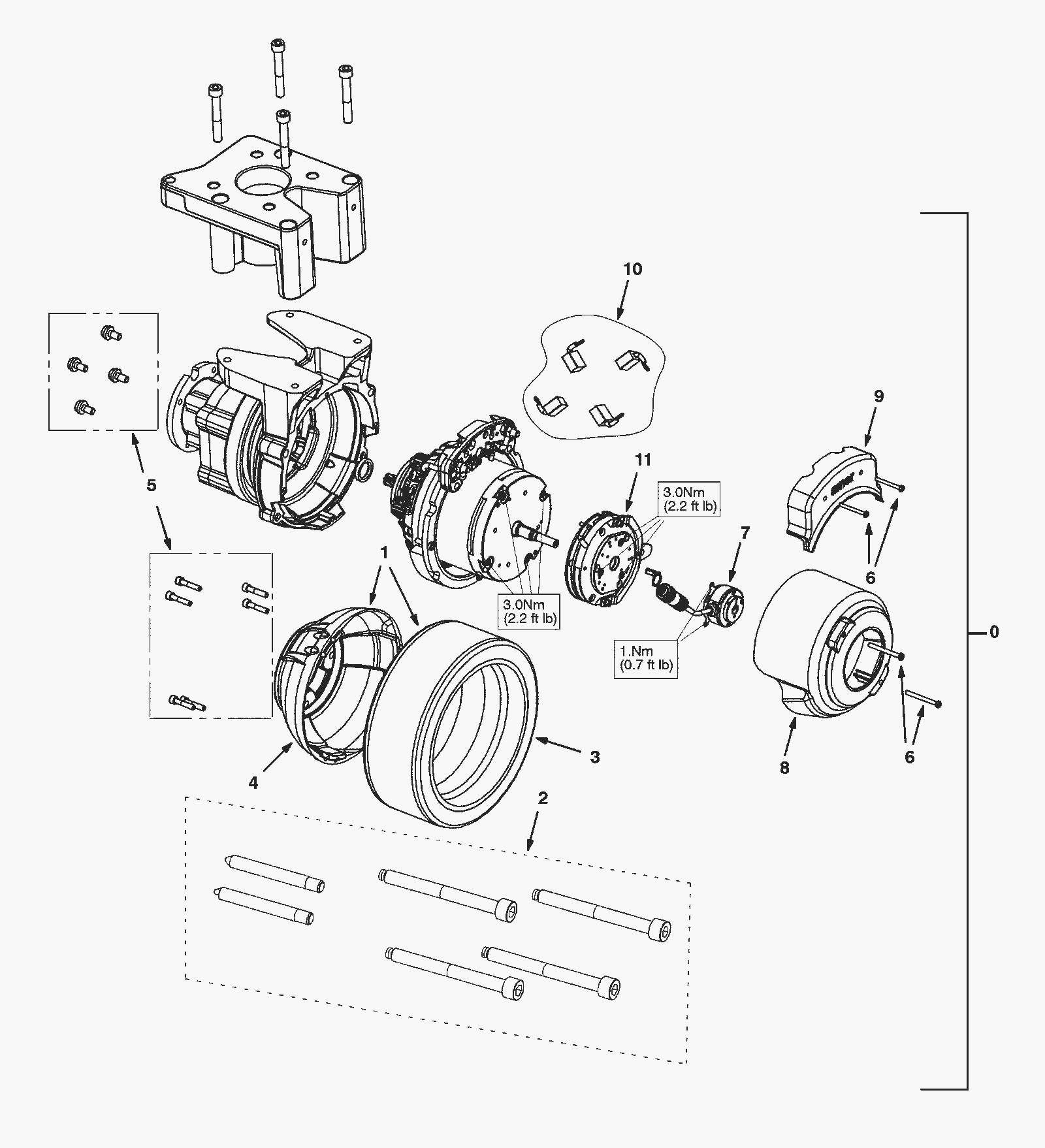

Drive Wheel Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	775-0457	36V 250 mm drive wheel with encoder	1	(includes 1-11)
1	775-0534	Wheel / hub kit (blue)	1	(includes 2-5)
2	675-4657	VR, TIRE KIT, PULLER (Tennant Industrial)	1
3	475-4116	VR, WHEEL, PYU [250X90 BLUE]	1
4	375-2646	Hub	1
5	775-0535	Hub screw kit	1
6	775-0536	Cover screw kit	1
7	375-7795	Traction encoder	1
8	775-0537	Drive motor cover	1
9	775-0538	Connector box cover	1
10	775-0458	Wheel motor brush kit	1	Requires Tennant True service or an authorized Tennant service provider.
11	775-0539	Complete brake kit	1

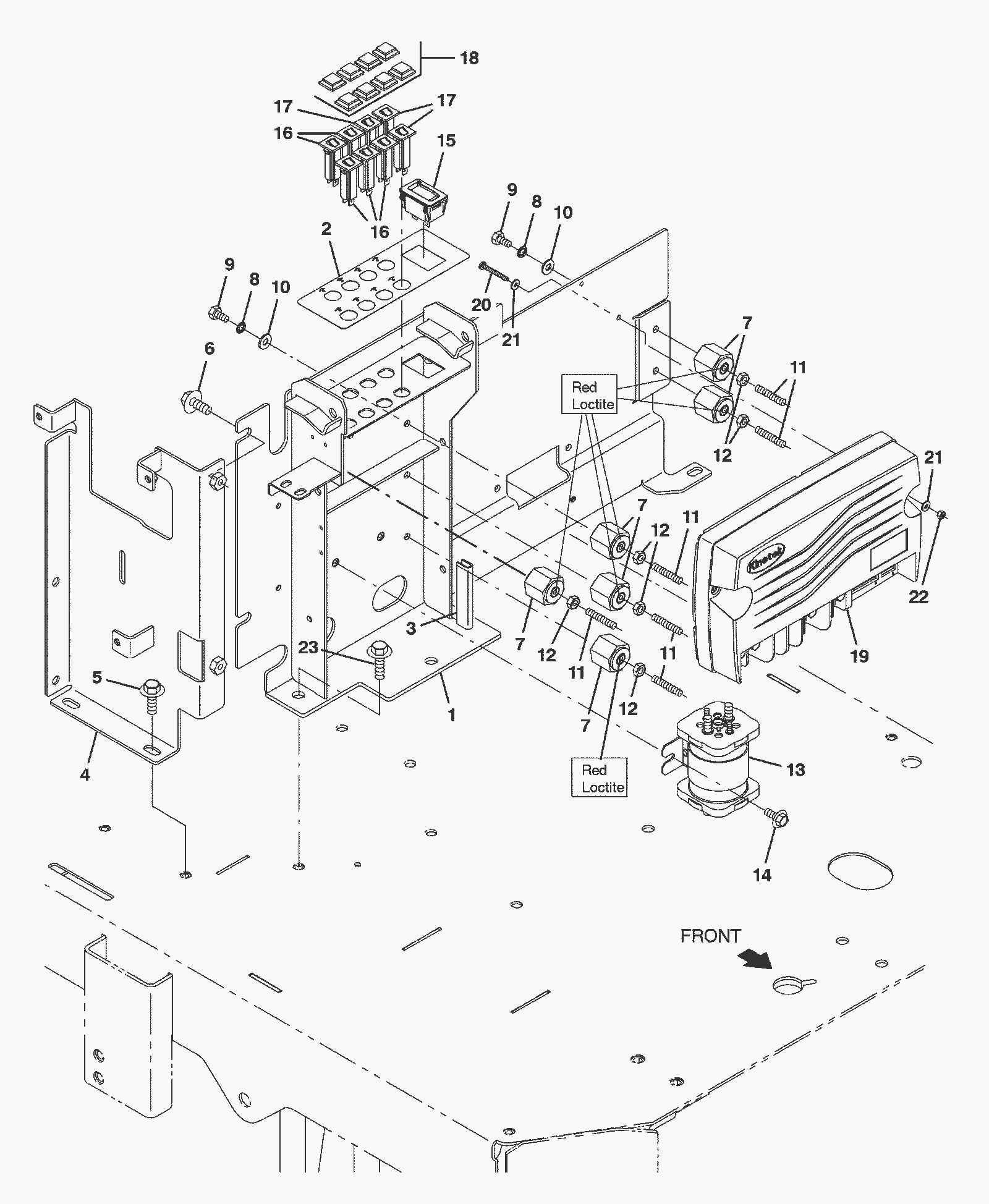

Electrical Box Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0445	Seat support kit mounting	1	(includes 2)
2	775-0446	Breaker label	1
3	375-0751	Trim molding (Tennant Industrial)	1
4	375-9733	Charger mounting bracket weldment	1
5	275-9575	SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial)	2
6	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	2
7	175-3226	Insulated stand off	6
8	999-0238	Washer 1/4 internal star lock zinc plated	6
9	175-9950	Bolt 1/4-20 x 1/2 hex head nylon lock	6
10	999-0016	Washer 1/4 flat plain finish	6
11	175-3227	Threaded rod	6
12	999-0190	Nut 1/4-20 hex plain finish	6
13	775-0447	36V 200amp SPDT contactor	1
14	999-1383	Screw M6-1 x 16mm hex head stainless steel	2
15	275-9900	Hour meter	1
16	275-5483	2.5amp circuit breaker	5
17	275-9986	10amp circuit breaker (Tennant Industrial)	3
18	275-2596	Circuit breaker boot (Tennant Industrial)	8
19a	775-0448	Machine controller	1	Requires Tennant True service or an authorized Tennant service provider (Before SN 010469)
19b	775-0496	Machine controller	1	Requires Tennant True service or an authorized Tennant service provider (After SN 010468)
20	175-2079	Screw M4-.07 x 35mm pan head stainless steel	2
21	999-0266	Washer #8 SAE flat stainless steel	4
22	999-0954	Nut M4-.7 nylon insert lock stainless steel	2
23	999-0786	Screw M8-1.25 x 35mm hex head stainless steel	3

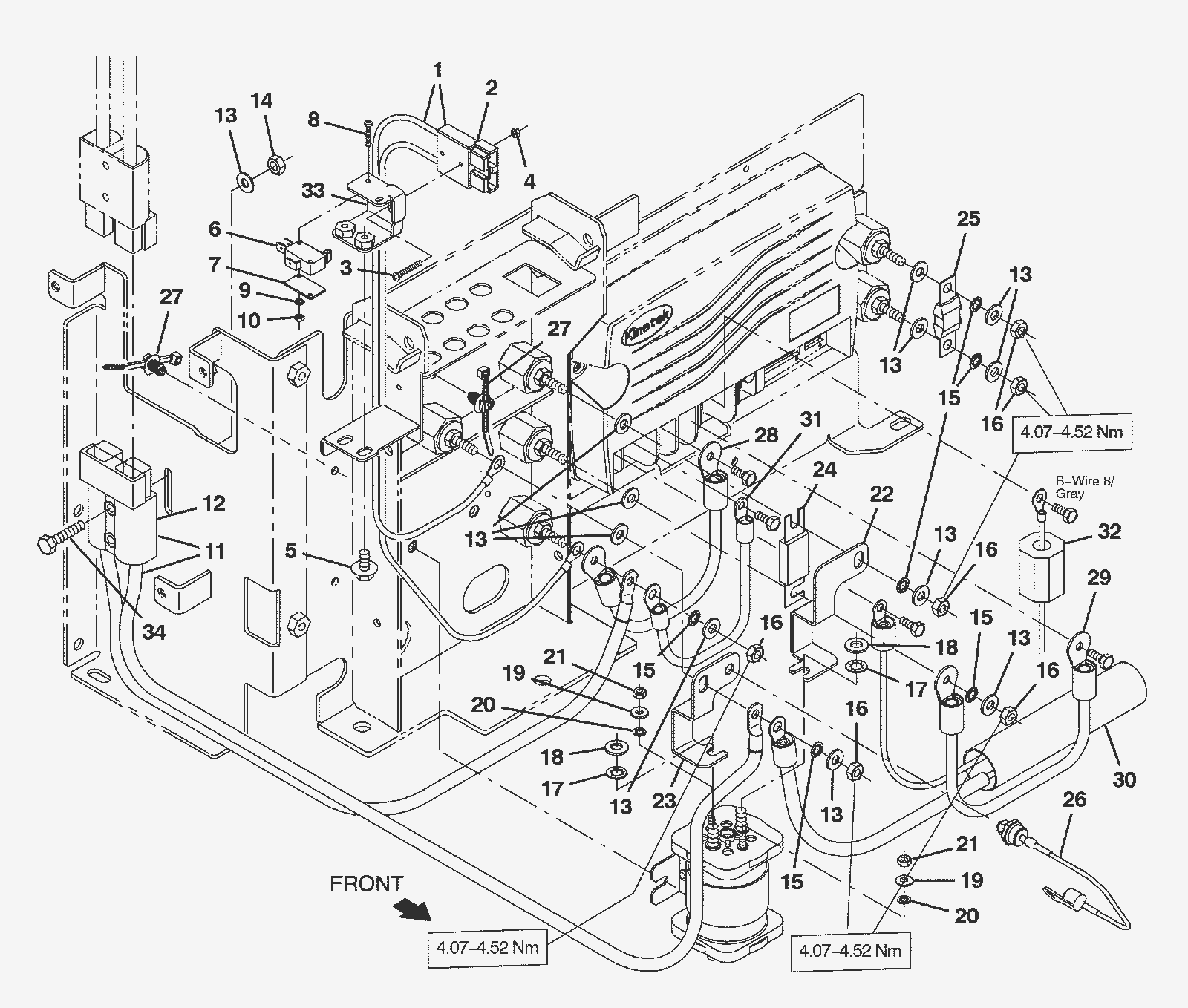

Electrical Box Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	275-7750	Cable assembly (Tennant Industrial)	1	(includes 2)
2	991-2105	SB50 50amp charger plug with pins (gray)	1
3	275-8223	SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial)	2
4	175-3224	Nut 6-32 hex lock	2
5	999-1383	Screw M6-1 x 16mm hex head stainless steel	2
6	175-1199	Snap switch	1
7	175-1200	Switch backing plate	1
8	999-1040	Screw M3-.5 x 20mm pan head	2
9	999-0479	Washer #4 internal star lock zinc plated	2
10	999-0768	Nut M3-.5 hex coarse thread plain finish	2
11	275-2711	175amp cable assembly (Tennant Industrial)	1	(includes 12)
12	991-2112	175amp charger plug with pins (gray) SB175	1
13	999-0016	Washer 1/4 flat plain finish	17
14	999-0469	Nut M6-1 nylon insert lock zinc plated	2
15	999-0238	Washer 1/4 internal star lock zinc plated	12
16	999-0190	Nut 1/4-20 hex plain finish	6
17	999-1053	Washer 5/16 internal star lock stainless steel	2
18	999-0549	Washer 5/16 x 3/4 SAE flat stainless steel	2
19	999-0998	Washer #10 flat stainless steel	1
20	999-1026	Washer #10 internal lock stainless steel	2
21	275-8219	Nut 10-32 hex head stainless steel	2
22	775-0449	Busbar	1
23	775-0450	Busbar	1
24	175-0847	FUSE, 150A, 0.88 2.4L [SLO-BLO] (Tennant Industrial)	1
25	775-0451	58V 125amp fuse	1
26	375-7777	Electrical harness	1
27	275-5197	Fir tree clip	7
28	775-0452	Battery negative electrical cable	1
29	775-0453	Battery positive electrical cable	1
30	775-0454	Shunt positive electrical cable	1
31	775-0455	Shunt negative electrical cable	1
32	575-0329	INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial)	1
33	775-0456	Switch mounting bracket weldment	1
34	175-0574	Bolt 6mm-1 x 35 hex head	2

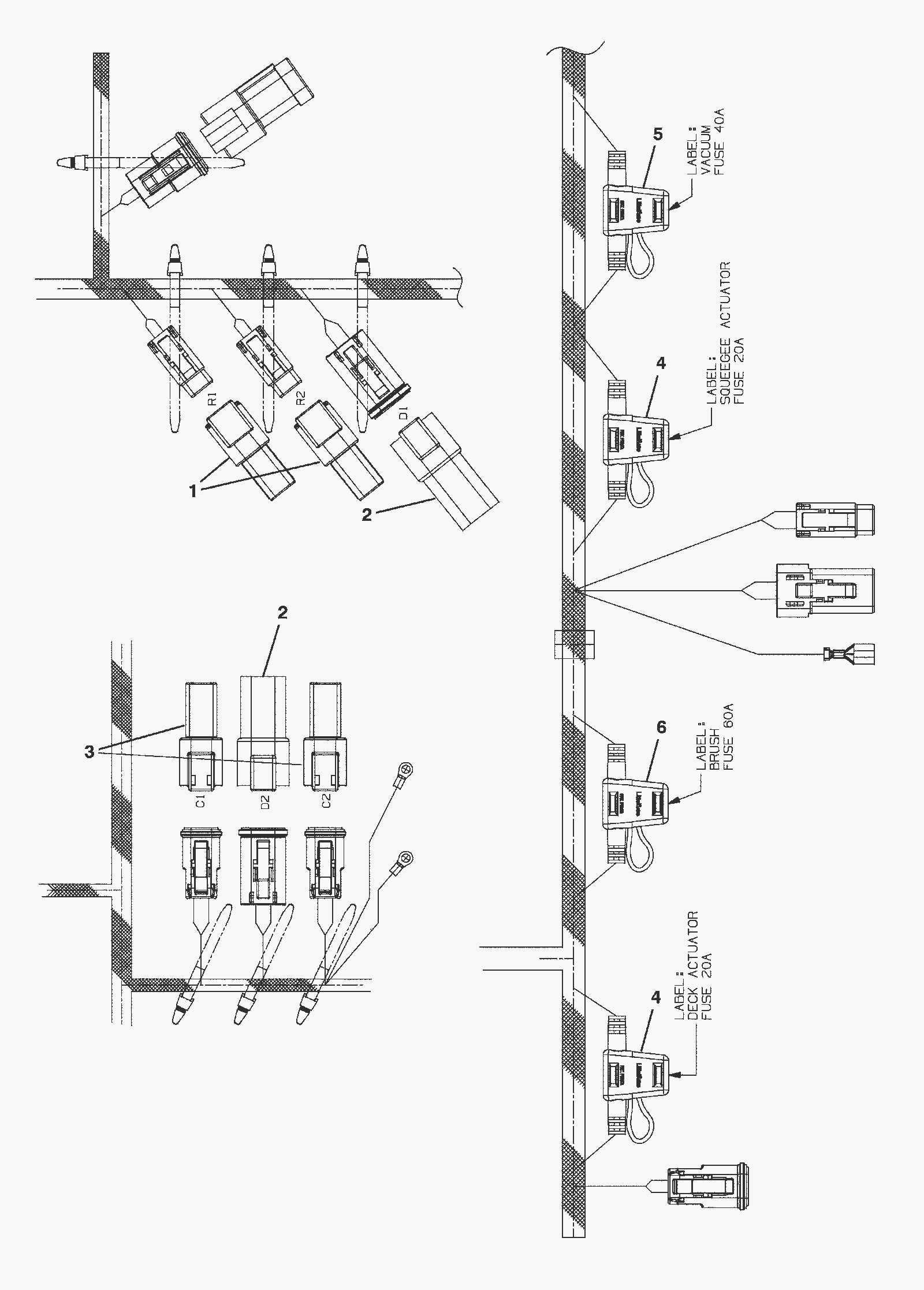

Electrical Fuses and Plugs Assembly

Click to enlarge

#	Part	Description	Req
1	775-0503	Electrical resistor plug	2
2	775-0504	Electrical diode plug	2
3	375-7974	Capacitor plug	2
4	375-7970	20A fuse	2
5	375-7973	40A fuse	1
6	375-7969	68A fuse	1

Front Camera and Sensors Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	375-7752	Controller bracket weldment	2
2	375-7753	M6 isolator	6
3	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	12
4	999-0497	Nut M6-1 nylon insert lock stainless steel	12
5	775-0441	AMR controller	1	Requires Tennant True service or an authorized Tennant service provider
6	999-9113	Screw M4-.7 x 16mm pan head phillips stainless steel	12
7	375-7748	Camera bracket weldment	1
8	375-7693	Antenna	1	Requires Tennant True service or an authorized Tennant service provider
9	375-7751	3D camera cooling fan	1
10	375-7750	Fan guard	1
11	175-3245	Screw 4mm-.7 x 30 pan head	2
12	375-7749	Front 3D camera assembly	1	Requires Tennant True service or an authorized Tennant service provider
13	999-0534	Screw M4-.7 x 10mm pan head slotted zinc	3
14	999-1026	Washer #10 internal lock stainless steel	2
15	999-0412	Washer #8 SAE flat	6
16	375-7684	2D camera	1	Requires Tennant True service or an authorized Tennant service provider
17	775-0442	Sensor hood bracket weldment	1
18	999-1383	Screw M6-1 x 16mm hex head stainless steel	4
N/S	675-9551	Upper sensor guard kit	2	(contains 19-22)
19	375-7757	Planar LIDAR plate assembly	1
20	375-7758	Compression spring stainless steel	3
21	999-1673	Screw M4-.7 x 25mm pan head phillips stainless steel	3
22	175-6939	Screw M5 x 16mm stainless steel	3
23	375-7747	Slanted LIDAR	1	Requires Tennant True service or an authorized Tennant service provider
24	375-7746	Screw M3-.5 pan head	2
25	375-7710	Antenna bracket weldment	1
26	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	2
27	375-7709	Antenna angle (Tennant Industrial)	1
28	275-0684	Rubber grommet	1
29	775-0443	Lower sensor bracket	1
30	275-5197	Fir tree clip	3
31	775-0444	Aftermarket AMR range sensor	1	Requires Tennant True service or an authorized Tennant service provider
32	375-7681	Service cable	1
33	375-7760	Homemarker sign kit	1

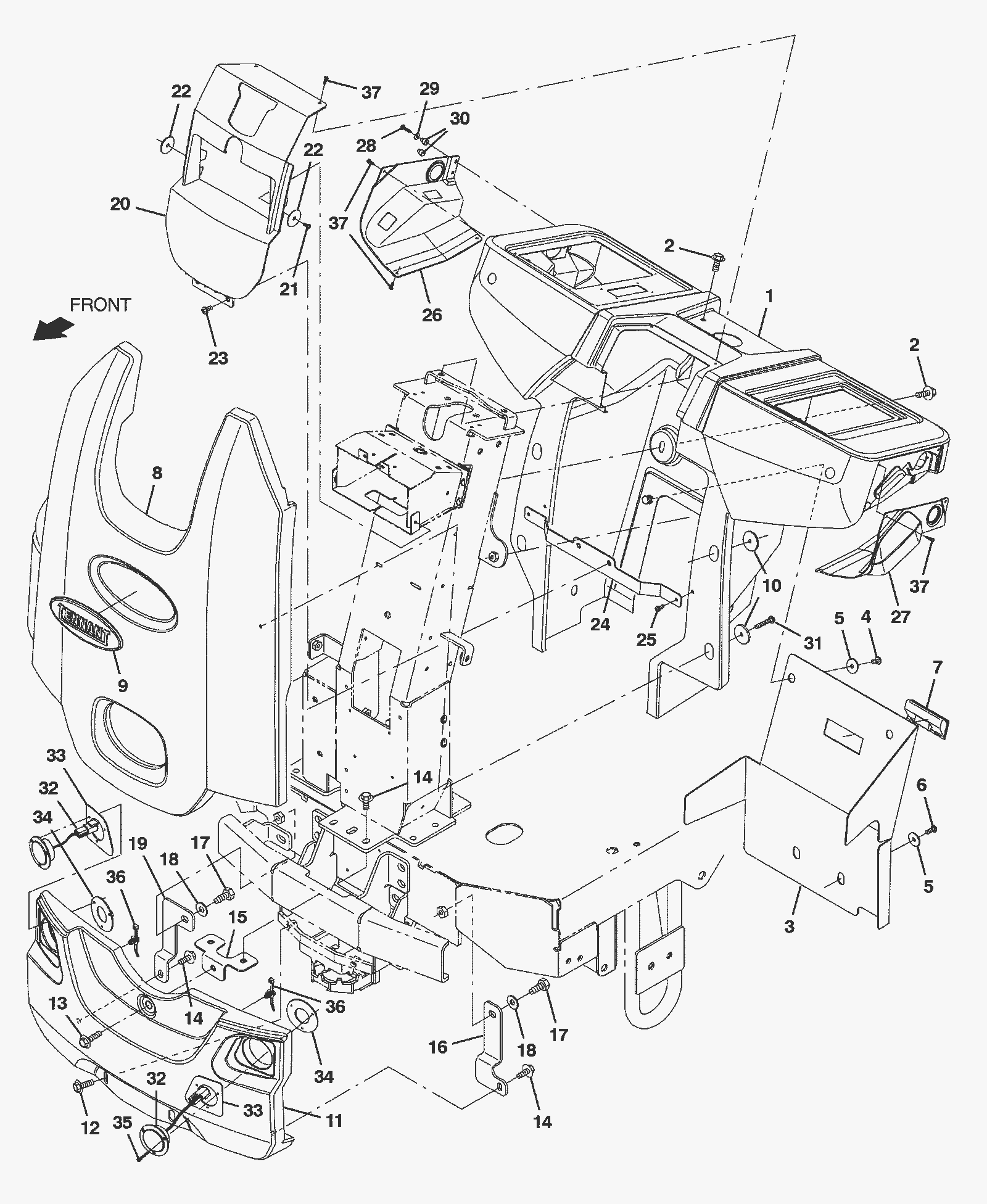

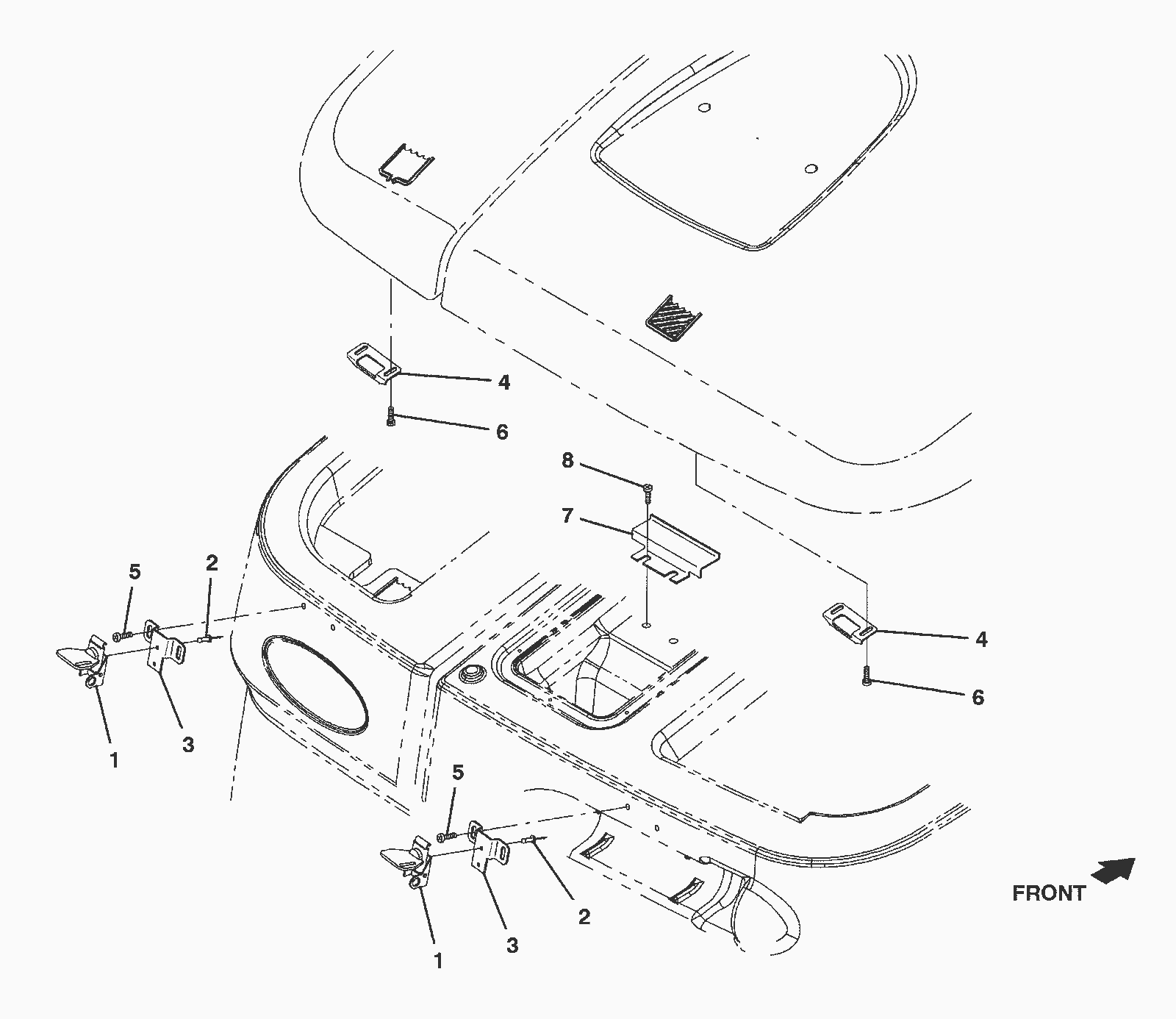

Front Covers Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0427	Aftermarket trimmed instrument shroud	1
2	675-9578	SCREW, HEX, M8 X 1.25 X 25, SEMS, LOCK (Tennant Industrial)	6
3	775-0491	Standard electrical panel with decals	1
4	999-1041	Screw M6-1 x 12mm pan head phillips stainless steel	2
5	275-0093	WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial)	4
6	999-1257	Screw M6-1 x 16mm pan head Phillips	2
7	575-0944	HANDLE, PANEL (Tennant Industrial)	1
8	775-0429	Trimmed front shroud with label	1	(includes 9)
9	275-7759	Nameplate	1
10	475-8043	WASHER, FLAT, 0.28B 1.38D .12, HRS PL (Tennant Industrial)	4
11	775-0492	Front lower shroud	1
12	275-9575	SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial)	2
13	999-0786	Screw M8-1.25 x 35mm hex head stainless steel	1
14	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	4
15	775-0431	Shroud mounting plate weldment	1
16	775-0432	Left hand shroud mounting plate	1
17	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	1
18	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	2
19	775-0433	Right hand shroud mounting plate	1
20	775-0434	Center bezel	1
21	999-0534	Screw M4-.7 x 10mm pan head slotted zinc	2
22	999-1288	Washer 1/4 x 1 OD fender stainless steel	2
23	999-1041	Screw M6-1 x 12mm pan head phillips stainless steel	2
24	775-0435	Bezel mounting bracket weldment	1
25	999-0531	Screw M5-.8 x 16mm pan head slotted zinc	2
26	775-0436	Right hand bezel	1	(Before SN 010445)
27	775-0437	Left hand bezel	1	(Before SN 010445)
28	175-5326	Screw M4-.7 x 20mm pan head phillips stainless steel	2	(Before SN 010514)
29	999-0266	Washer #8 SAE flat stainless steel	2	(Before SN 010514)
30	375-7691	Sleeve	2	(Before SN 015014)
31	275-5062	Screw M6-1 x 35mm hex head	4
32	775-0438	36V LED light	2
33	775-0439	Headlight bezel plate	2
34	775-0440	Rear headlight mounting plate weldment	2
35	999-1221	Screw M3-.5 x 25mm pan head stainless steel	6
36	275-5197	Fir tree clip	2
37	175-2146	Screw 6-20 x 1/2 pan head	9
38	775-0493	Screw M4-.7 x 10mm pan head phillips black	2	(After SN 010513)
39	775-0494	Right hand bezel	1	(After SN 010444)
40	775-0495	Left hand bezel	1	(After SN 010444)

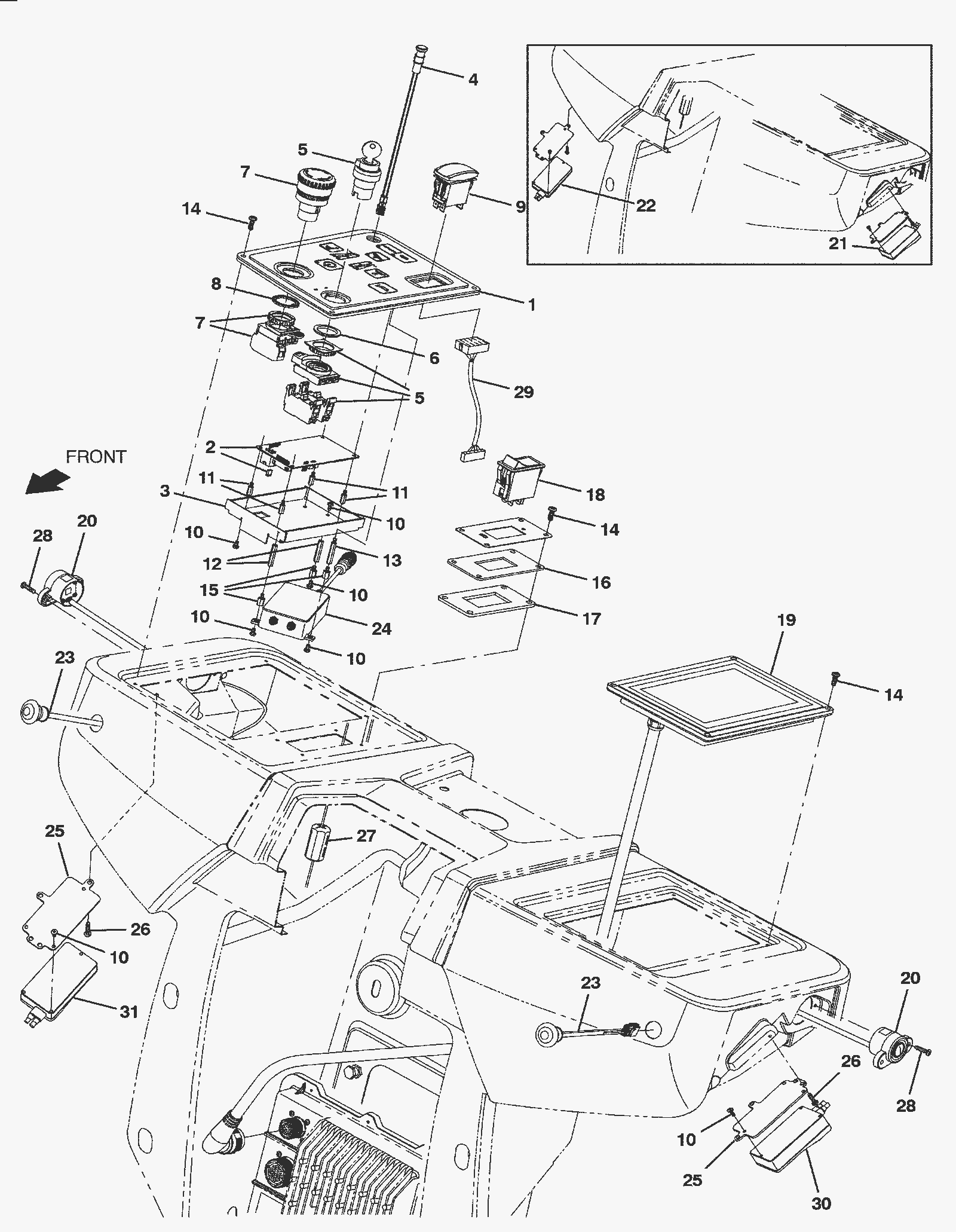

Insturment Panel Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	375-5619	Membrane panel assembly (Tennant Industrial)	1
2	375-9401	Replacement controller kit	1	Requires Tennant True service or an authorized Tennant service provider
3	375-7704	Circuitboard cover	1
4	275-4715	LED light	1
5a	775-0422	24VDC 8amp 2 position key switch	1	(includes 5b)
5b	375-7697	Key (pkg of 2) (Tennant Industrial)	1
6	375-7698	Switch lock ring	1
7	375-7694	Emergency stop switch	1
8	375-7695	E-stop lock ring	1
9	375-7699	Rocker switch	1
10	475-7399	SCREW, PAN, PHL, M3 X 0.50 X 6, 4.8 (Tennant Industrial)	15
11	375-7705	M3 x 1/2 stand off hex 10mml	4
12	375-7706	M3 x 1/2 stand off hex 25mml	2
13	375-7707	M3 x 1/2 stand off hex 25mml	1
14	175-9366	Screw 8-10 x 1/2 pan head plastic	12
15	375-7714	M3 x 1/2 stand off hex 8mml nylon	1
16	775-0423	Switch plate	1
17	775-0424	Switch plate seal	1
18	175-2356	Rocker switch DPST	1
19	375-7682	Touch screen module	1
20	375-7684	2D camera	2	Requires Tennant True service or an authorized Tennant service provider
21	775-0488	Left hand side AMR camera kit	1	(Before SN 010445) Requires Tennant True service or an authorized Tennant service provider
22	775-0489	Right hand side AMR camera kit	1	(Before SN 010445) Requires Tennant True service or an authorized Tennant service provider
23	375-7685	Turn signal blinker	2
24	375-7708	Modem	1	Requires Tennant True service or an authorized Tennant service provider
25	775-0425	Camera mounting plate	2
26	175-2146	Screw 6-20 x 1/2 pan head	6
27	775-0426	Clamp inductor	1
28	999-1111	Screw 6-32 x 3/4 pan head phillips sheet metal	4
29	375-7690	Harness	1
30	375-5634	Left hand side AMR camera	1	(After SN 010444) Requires Tennant True service or an authorized Tennant service provider
31	775-0490	Right hand side AMR camera	1	(After SN 010444) Requires Tennant True service or an authorized Tennant service provider

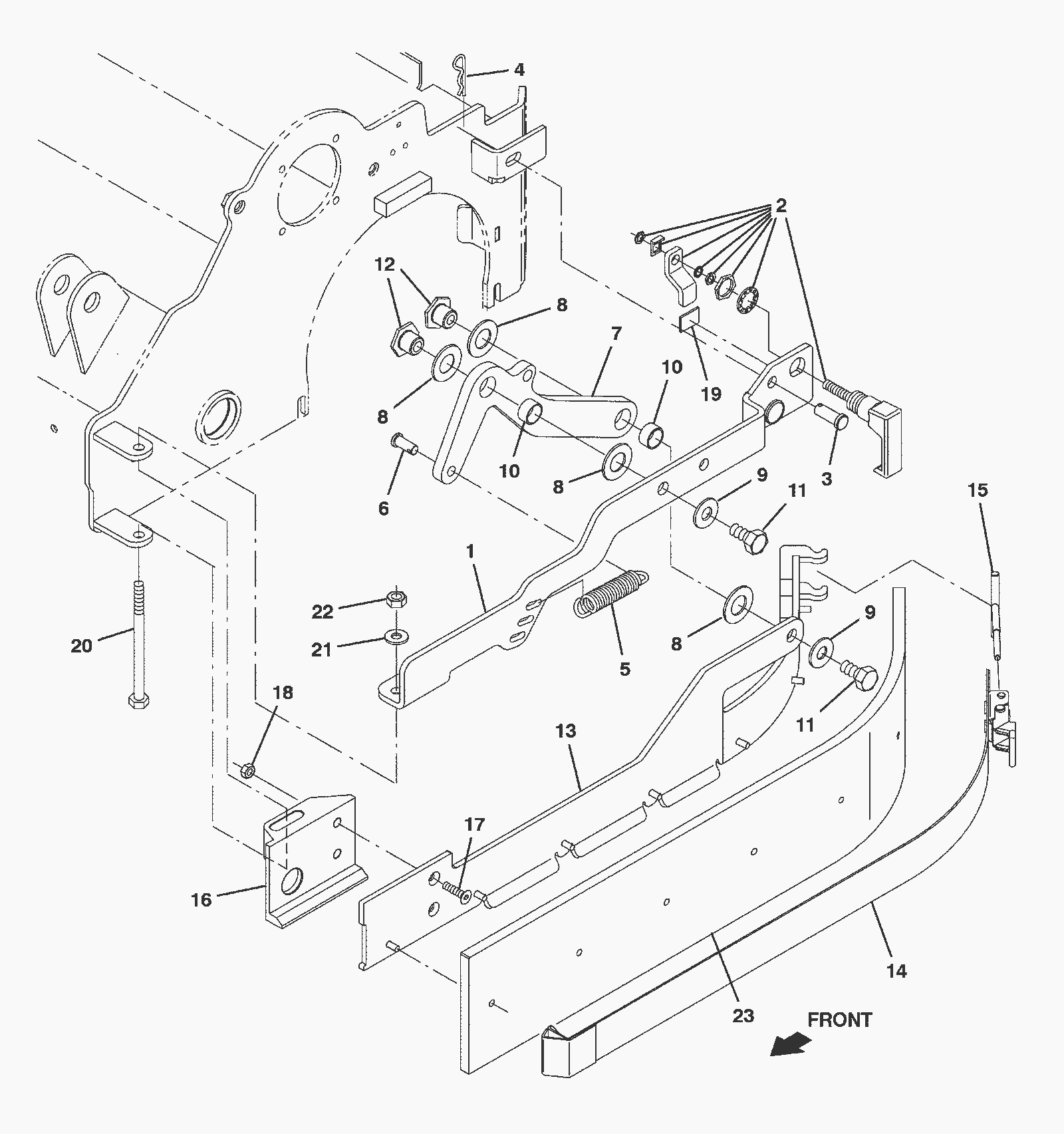

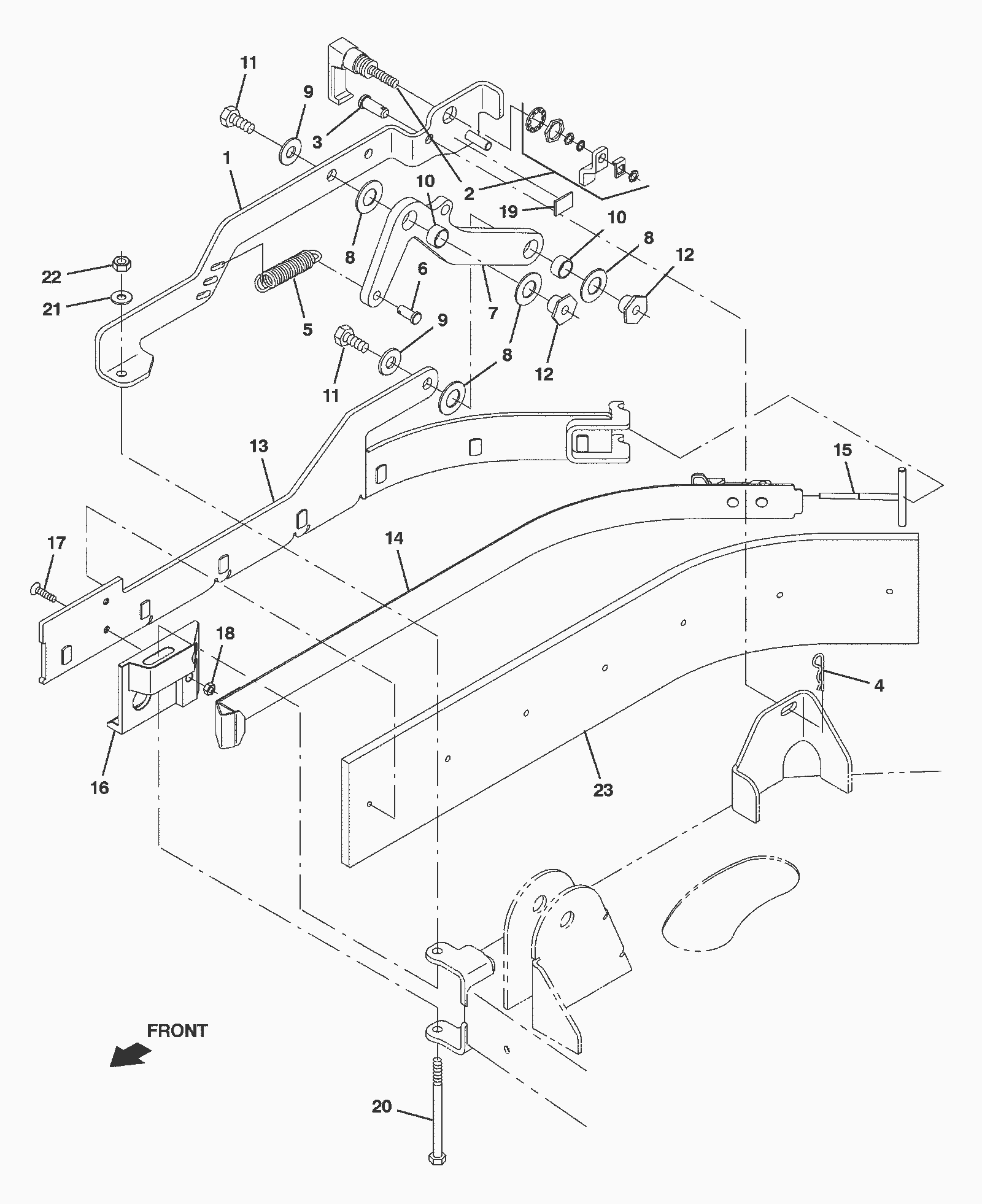

Left Hand Scrub Head Side Squeegee Assembly

Click to enlarge

#	Part	Description	Req	Notes
N/S	675-5146	ARM KIT, SQGE, SIDE, LH, AFMKT [T16] (Tennant Industrial)	1	(includes 1-19)
1	275-1294	Left hand side squeegee bracket (Tennant Industrial)	1
2	275-7341	Latch (yellow)	1
3	175-0637	Clevis pin	1
4	175-2117	Cotter pin	1
5	175-3345	Extension spring	1
6	175-0655	Clevis pin	1
7	275-1291	Squeegee bellcrank lift (Tennant Industrial)	1
8	775-0497	Washer 30mm OD 16mm ID 1.5mm thick thrust	4
9	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	2
10	175-3349	Sleeved bushing	2
11	999-1170	Bolt M10-1.5 x 20mm hex head stainless steel	2
12	275-9507	NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial)	2
13	275-1295	Left hand squeegee weldment (Tennant Industrial)	1
14	275-7339	STRAP ASSY, SQGE, SIDE (Tennant Industrial)	1
15	275-7396	Latch	1
16	275-1296	Left hand squeegee guide (Tennant Industrial)	1
17	475-7402	SCREW, FLT, SOC, M6 X 1.00 X 25, SS (Tennant Industrial)	2
18	999-0497	Nut M6-1 nylon insert lock stainless steel	2
19	375-7041	Gasket	1
20	275-1474	Screw M8-1.25 x 110mm hex head (Tennant Industrial)	1
21	999-0123	Washer 1/4 SAE flat zinc plated	1
22	999-0496	Nut M8-1.25 nylon insert lock stainless steel	1
23a	275-6499	Squeegee blade linatex (TENNANT INDUSTRIAL)	1
23b	275-7389	Squeegee blade polyurethane (Tennant Industrial)	1
23c	275-1293	Squeegee blade 36 inch side gum (Tennant Industrial)	1

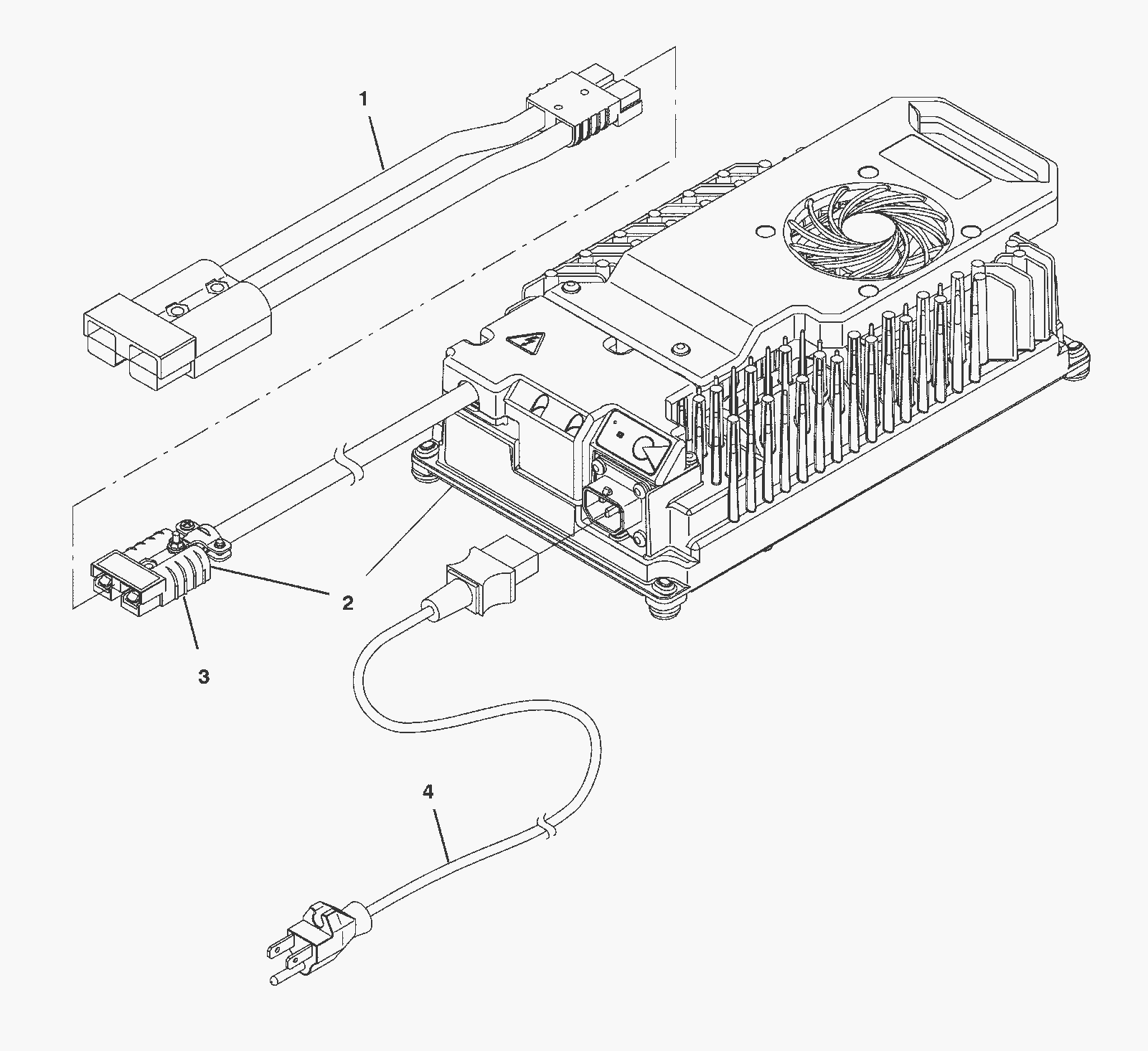

Lithium-Ion Battery Charger Group

Click to enlarge

#	Part	Description	Req	Notes
1	175-5439	Battery cable assembly	1
2	375-2503	36V off-board charger for lithium	1	(includes 3)
3	991-2105	SB50 50amp charger plug with pins (gray)	1
4	275-0052	16/3 charger extension cord 10 foot	1
N/S	775-0530	36V DC 90amp 200-240V AC charger	1

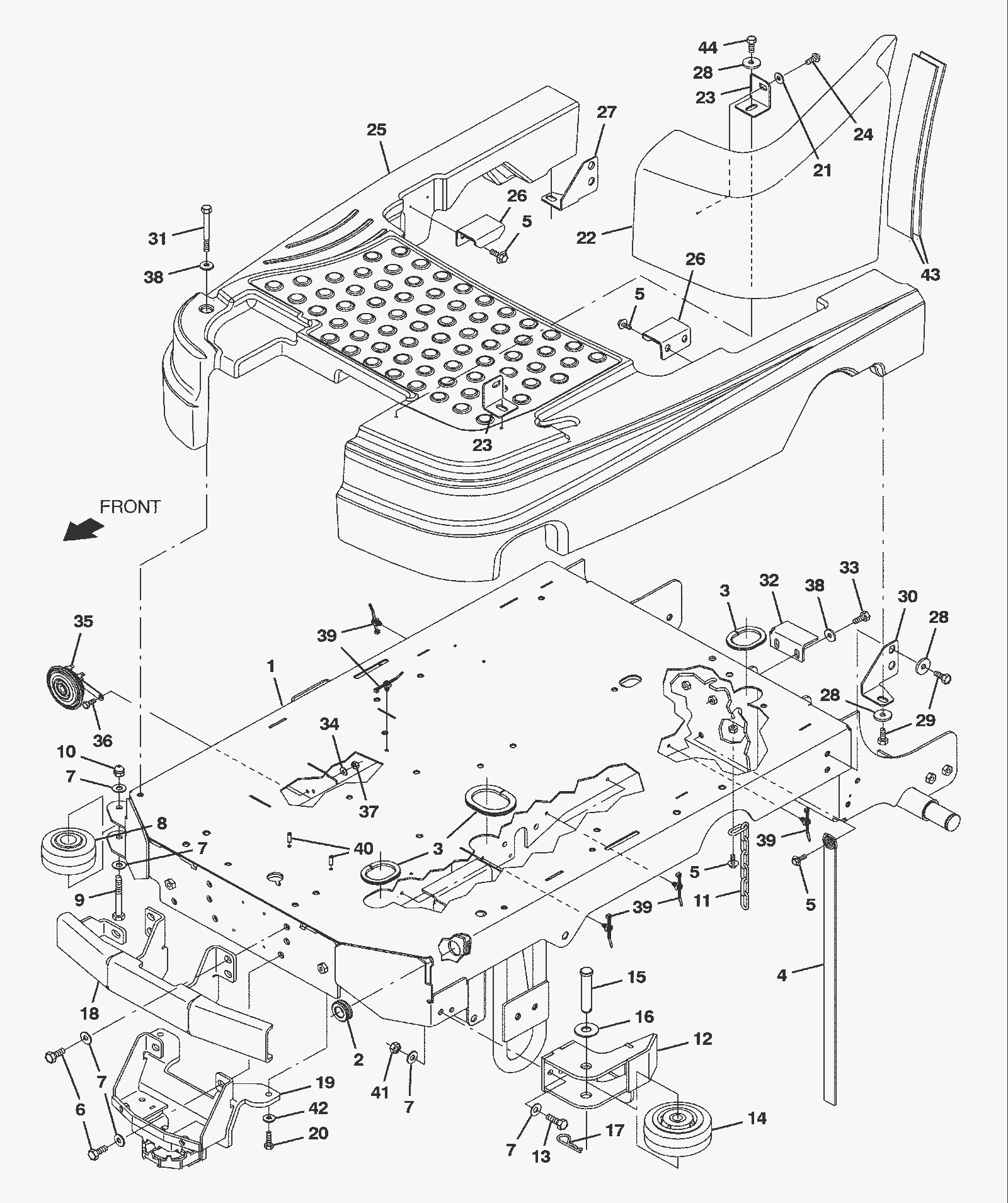

Main Frame Assembly

Click to enlarge

#	Part	Description	Req
1	775-0386	Frame weldment	1
2	275-2655	Rubber grommet (Tennant Industrial)	1
3	275-8203	Molding	1
4	275-9261	Static strip with grommet	1
5	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	6
6	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	3
7	275-1169	Washer .40 x 12mm flat	10
8	275-7566	Wheel (Tennant Industrial)	1
9	475-8327	SCREW, HEX, M10 X 1.50 X 90, SS (Tennant Industrial)	2
10	275-2656	Nut M10 x 1 1/2 low crown black (Tennant Industrial)	2
11	175-2094	Chain	1
12	775-0387	Wheel bracket weldment	1
13	999-0774	Bolt M10-1.5 x 30mm hex head stainless steel full thread	3
14	275-5658	Wheel (gray) (Tennant Industrial)	1
15	275-3007	PIN, CLEVIS, 0.75D X 3.50L (Tennant Industrial)	1
16	275-9590	WASHER, FLAT, 0.78B 1.75D .18, SS (Tennant Industrial)	1
17	275-0028	Cotter hair pin	1
18	775-0388	Bumper weldment	1
19	375-7662	Sensor guard weldment	1
20	999-0770	Screw M8-1.25 x 30mm flat head socket stainless steel	2
21	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	2
22	275-2657	Left hand corner shroud (Tennant Industrial)	2
23	275-2658	Corner shroud mounting bracket (Tennant Industrial)	1
24	175-4927	Screw M8-1.25 x 20mm button head	1
25	275-2661	Frame shroud (Tennant Industrial)	1
26	275-2664	Shroud frame mounting bracket (Tennant Industrial)	2
27	275-2665	Right hand shroud mounting bracket (Tennant Industrial)	1
28	175-7920	Washer M8 flat stainless steel	8
29	999-9092	Screw M8-1.25 x 20mm hex head stainless steel	8
30	275-2666	Left hand shroud mounting bracket (Tennant Industrial)	1
31	175-6979	SCREW, HEX, M8 X 1.25 X 100, 8.8 (Tennant Industrial)	1
32	275-2668	Tank mounting bracket (Tennant Industrial)	1
33	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	2
34	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	1
35	275-7560	36V horn (Tennant Industrial)	1
36	999-1312	Screw M6-1 x 20mm hex head stainless steel	1
37	999-0497	Nut M6-1 nylon insert lock stainless steel	1
38	275-1169	Washer .40 x 12mm flat	3
39	275-5197	Fir tree clip	7
40	175-0768	PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial)	2
41	999-1120	Nut M10-1.5 nylon insert lock stainless steel	2
42	275-6982	Washer	2
43	275-2659	Adhesive foam seal (Tennant Industrial)	2
44	999-0784	Screw M8-1.25 x 16mm hex head stainless steel	1

Manual Battery Watering System

Click to enlarge

#	Part	Description	Req	Notes
0	375-2524	Battery fill kit	1	(includes 1-2, N/S 1 - N/S 2)
1	375-9383	Battery hand pump	1
2	375-7833	Battery water distribution assembly	1
3	375-9385	Battery tag decal	1
4	175-7795	Cable tie	2

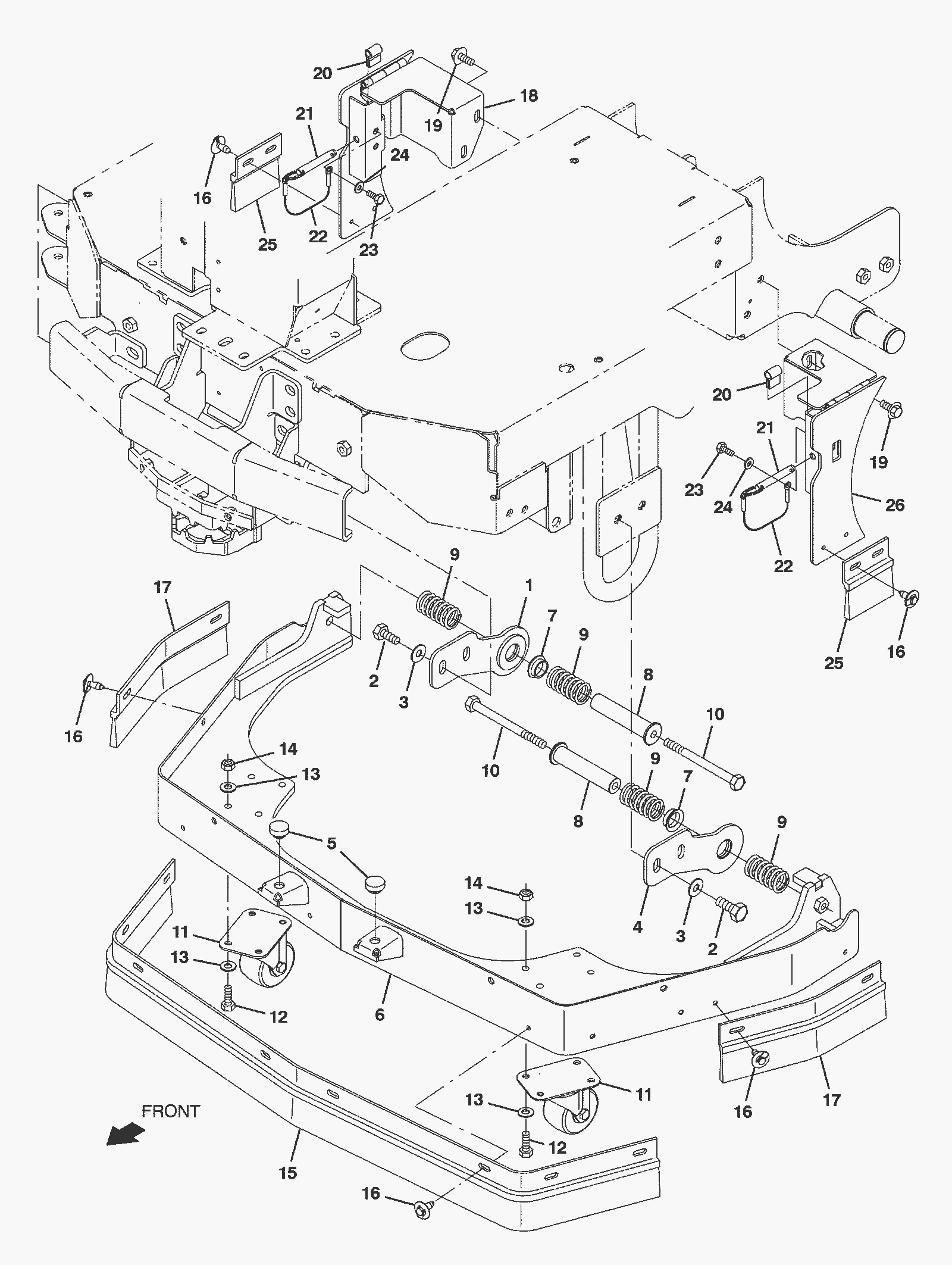

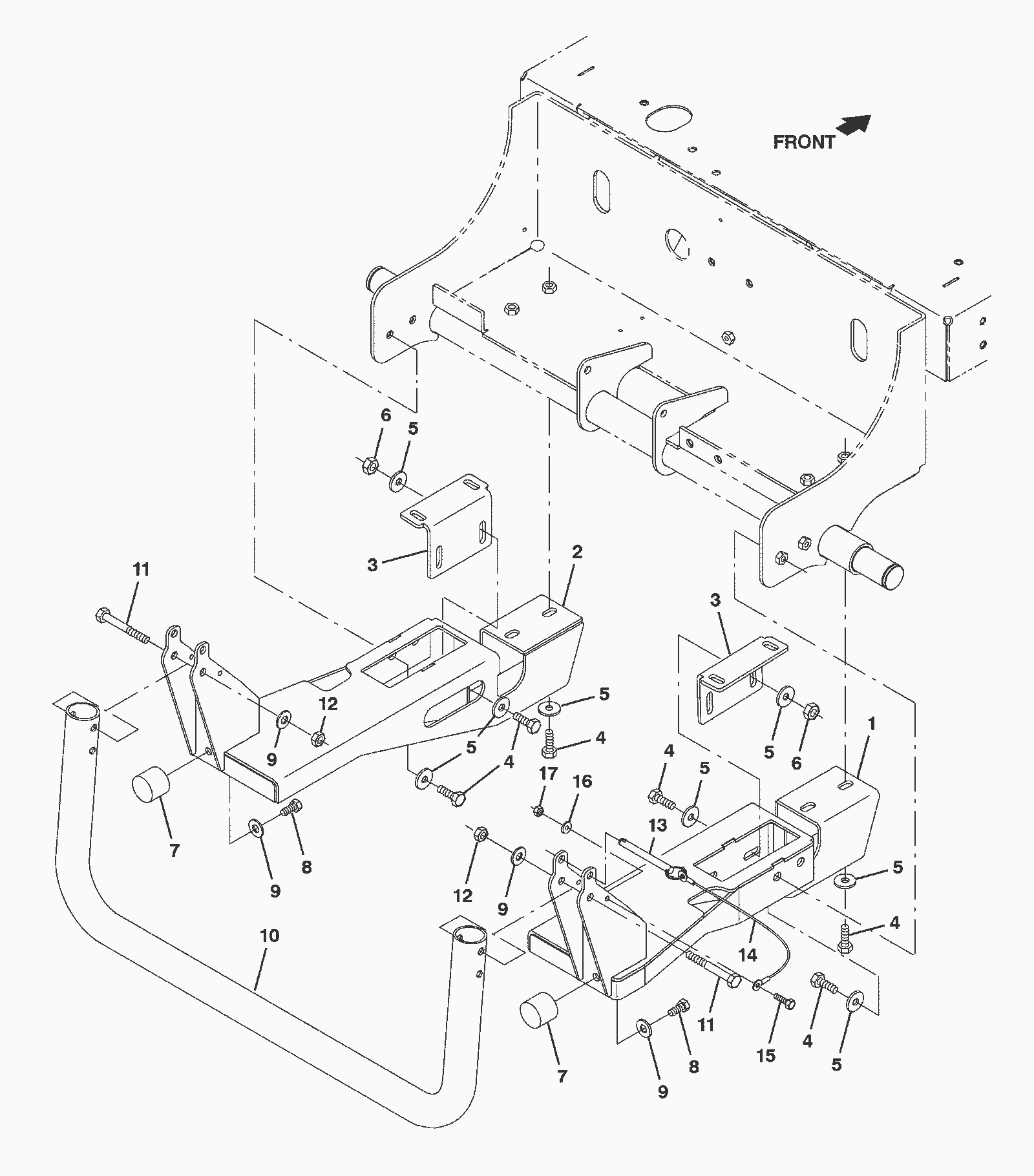

Perimeter Guards Assembly

Click to enlarge

#	Part	Description	Req
1	775-0404	Right hand guard mount plate weldment	1
2	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	4
3	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	4
4	775-0405	Left hand guard mounting plate weldment	1
5	175-5941	BUMPER, RBR, 1.0D 0.69TH 0.50 TIP (Tennant Industrial)	2
6	775-0406	Front guard weldment	1
7	375-0729	Flanged bushing (Tennant Industrial)	2
8	775-0407	Flanged sleeve stainless steel (Tennant Industrial)	2
9	375-7658	Compression spring	4
10	475-9845	SCREW, HEX, M10 X 1.50 X 130 (Tennant Industrial)	2
11	275-6261	Swivel caster wheel	2
12	999-0501	Bolt M8-1.25 x 25mm hex head full thread stainless steel	8
13	999-0120	Washer 3/8 SAE flat	16
14	999-0496	Nut M8-1.25 nylon insert lock stainless steel	8
15	375-7905	Front guard bumper with bristles	1
16	175-3378	Rivet 1/4 x 57/64 plastic	14
17	775-0408	Side bristles guard	1
18	775-0409	Right hand rear guard weldment	1
19	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	4
20	575-3642	SEAL, AFMKT, BULB, STR, .50D F/11GA 01FT (Tennant Industrial	2
21	375-8283	Hitch pin	2
22	275-2677	Cable (Tennant Industrial)	2
23	999-0507	Bolt M6-1 x 16mm hex head full thread plain finish	2
24	999-0016	Washer 1/4 flat plain finish	2
25	775-0410	Rear bristles guard	2
26	775-0411	Left hand rear guard weldment	1

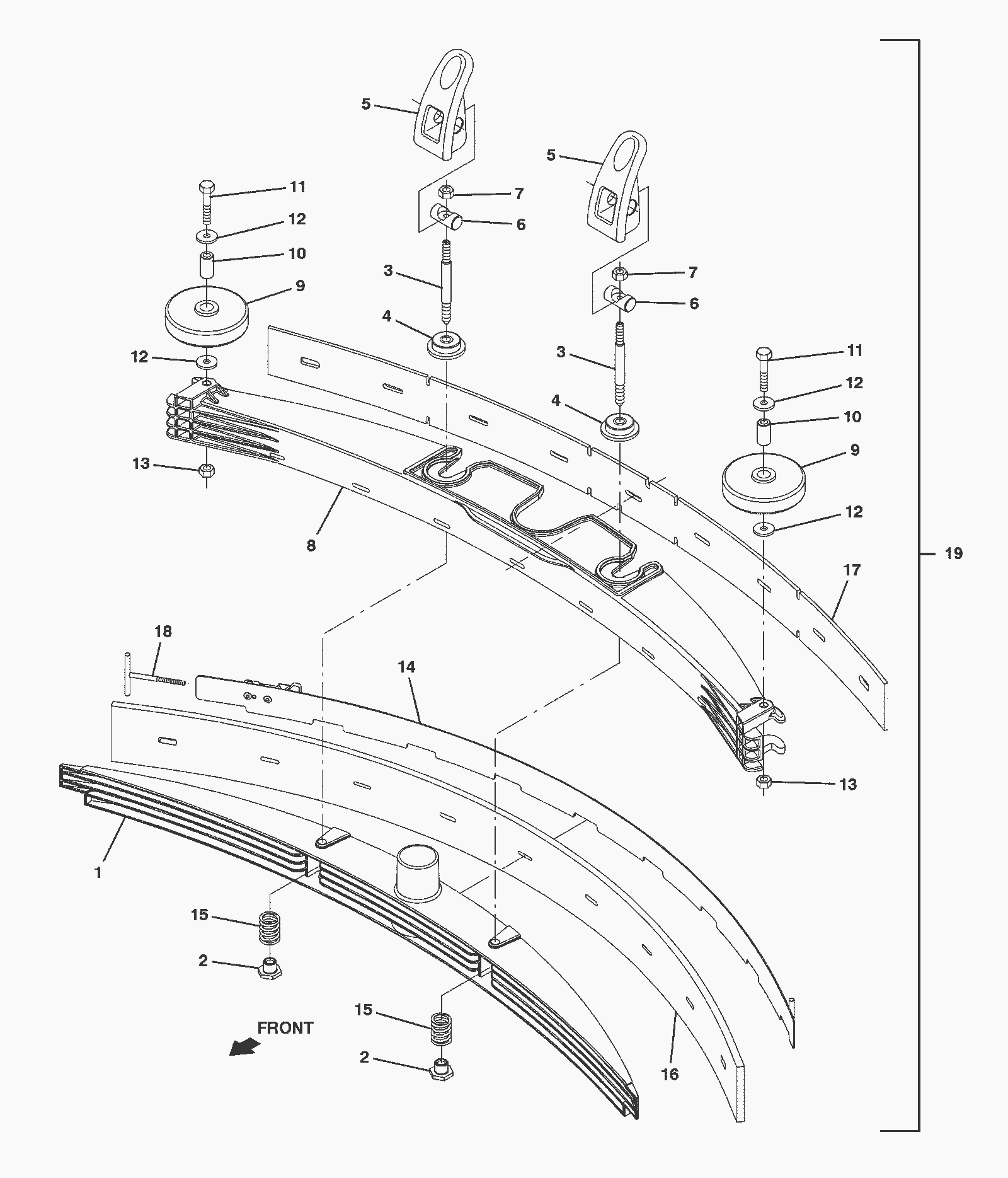

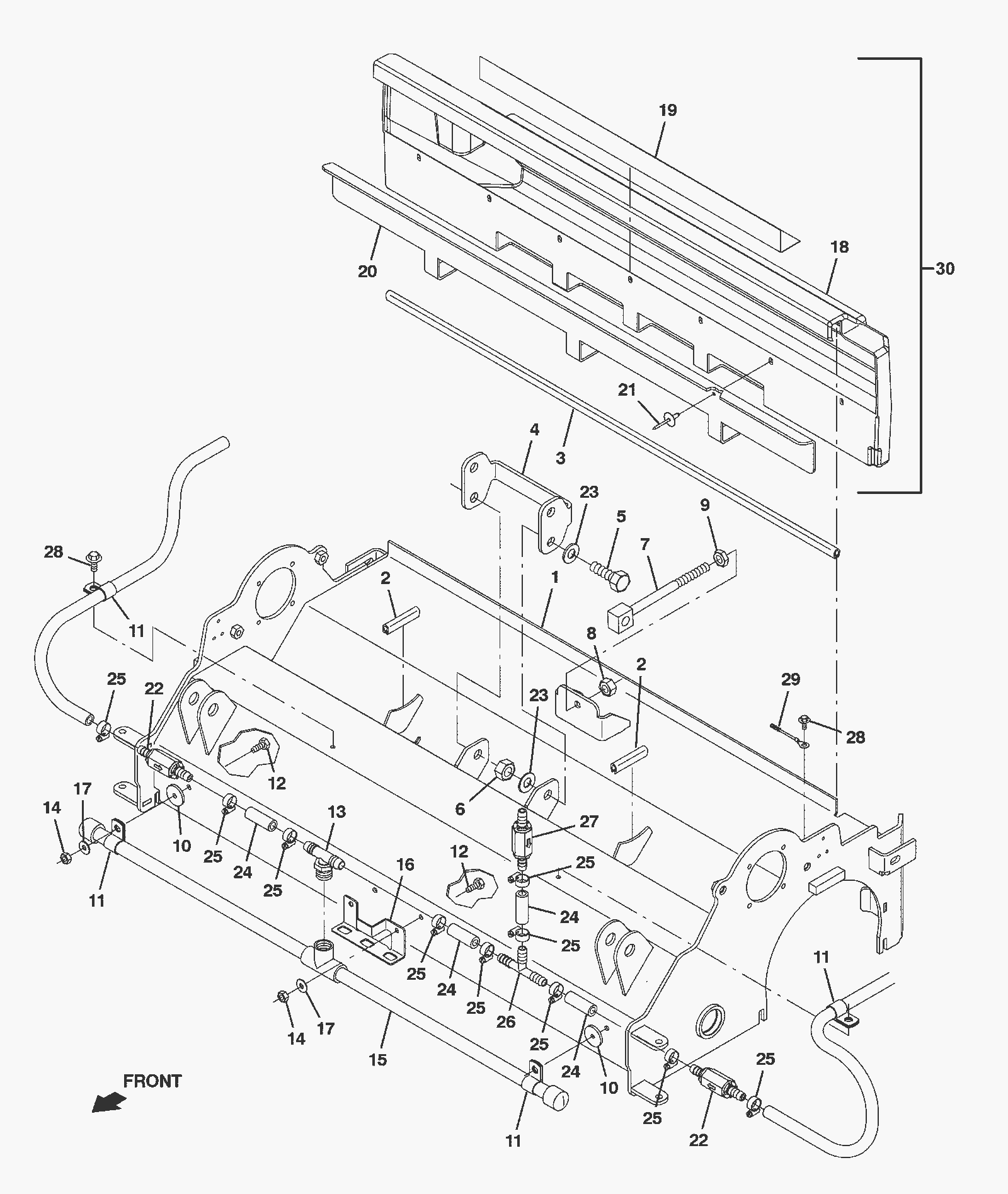

Rear Squeegee Assembly

Click to enlarge

#	Part	Description	Req	Notes
19a	675-6789	SQUEEGEE ASSY, REAR, linatex [T16] (Tennant Industrial)	1	(includes 1a-18a)
1a	275-5502	Inner squeegee frame (Tennant Industrial)	1
2a	175-3352	T-nut M10-1.5mm	2
3a	275-7726	Rod (Tennant Industrial)	2
4a	275-7727	Squeegee mounting ring (Tennant Industrial)	2
5a	275-7724	Lock grip (Tennant Industrial)	2
6a	275-7725	Pin with screw M8 (Tennant Industrial)	2
7a	999-1424	Nut M8-1.25 hex stainless steel	2
8a	275-5503	Outer squeegee frame (Tennant Industrial)	1
9a	275-2208	WHEEL, 04.0D 0.89W 0.64B	2
10a	275-0855	Tube	2
11a	999-1297	Screw M8 x 50mm hex head stainless steel	2
12a	175-7920	Washer M8 flat stainless steel	4
13a	999-0496	Nut M8-1.25 nylon insert lock stainless steel	2
14a	275-7300	Squeegee retainer clamp (TENNANT INDUSTRIAL)	1
15a	275-7728	Compression spring (Tennant Industrial)	2
16a	275-6502	Squeegee blade rear linatex (TENNANT INDUSTRIAL)	1
17a	275-7297	Squeegee blade 36 inch linatex front (red) (Tennant Industr	1
18a	275-7396	Latch	1
19b	675-7211	SQUEEGEE ASSY, REAR, URE [T16] (Tennant Industrial)	1	(includes 1b-18b)
1b	275-5502	Inner squeegee frame (Tennant Industrial)	1
2b	175-3352	T-nut M10-1.5mm	2
3b	275-7726	Rod (Tennant Industrial)	2
4b	275-7727	Squeegee mounting ring (Tennant Industrial)	2
5b	275-7724	Lock grip (Tennant Industrial)	2
6b	275-7725	Pin with screw M8 (Tennant Industrial)	2
7b	999-1424	Nut M8-1.25 hex stainless steel	2
8b	275-5503	Outer squeegee frame (Tennant Industrial)	1
9b	275-2208	WHEEL, 04.0D 0.89W 0.64B	2
10b	275-0855	Tube	2
11b	999-1297	Screw M8 x 50mm hex head stainless steel	2
12b	175-7920	Washer M8 flat stainless steel	4
13b	999-0496	Nut M8-1.25 nylon insert lock stainless steel	2
14b	275-7300	Squeegee retainer clamp (TENNANT INDUSTRIAL)	1
15b	275-7728	Compression spring (Tennant Industrial)	2
16b	675-9795	Squeegee blade urethane rear (Tennant Industrial)	1
17b	275-7390	BLADE, SQGE, FRONT, 43.19L, PYU (Tennant Industrial)	1
18b	275-7396	Latch	1
19c	675-6776	SQUEEGEE ASSY, REAR, GUM [T16] (Tennant Industrial)	1	(includes 1c-18c)
1c	275-5502	Inner squeegee frame (Tennant Industrial)	1
2c	175-3352	T-nut M10-1.5mm	2
3c	275-7726	Rod (Tennant Industrial)	2
4c	275-7727	Squeegee mounting ring (Tennant Industrial)	2
5c	275-7724	Lock grip (Tennant Industrial)	2
6c	275-7725	Pin with screw M8 (Tennant Industrial)	2
7c	999-1424	Nut M8-1.25 hex stainless steel	2
8c	275-5503	Outer squeegee frame (Tennant Industrial)	1
9c	275-2208	WHEEL, 04.0D 0.89W 0.64B	2
10c	275-0855	Tube	2
11c	999-1297	Screw M8 x 50mm hex head stainless steel	2
12c	175-7920	Washer M8 flat stainless steel	4
13c	999-0496	Nut M8-1.25 nylon insert lock stainless steel	2
14c	275-7300	Squeegee retainer clamp (TENNANT INDUSTRIAL)	1
15c	275-7728	Compression spring (Tennant Industrial)	2
16c	775-0486	Squeegee blade gum rubber rear	1
17c	275-5508	Squeegee blade front gum (Tennant Industrial)	1
18c	275-7396	Latch	1

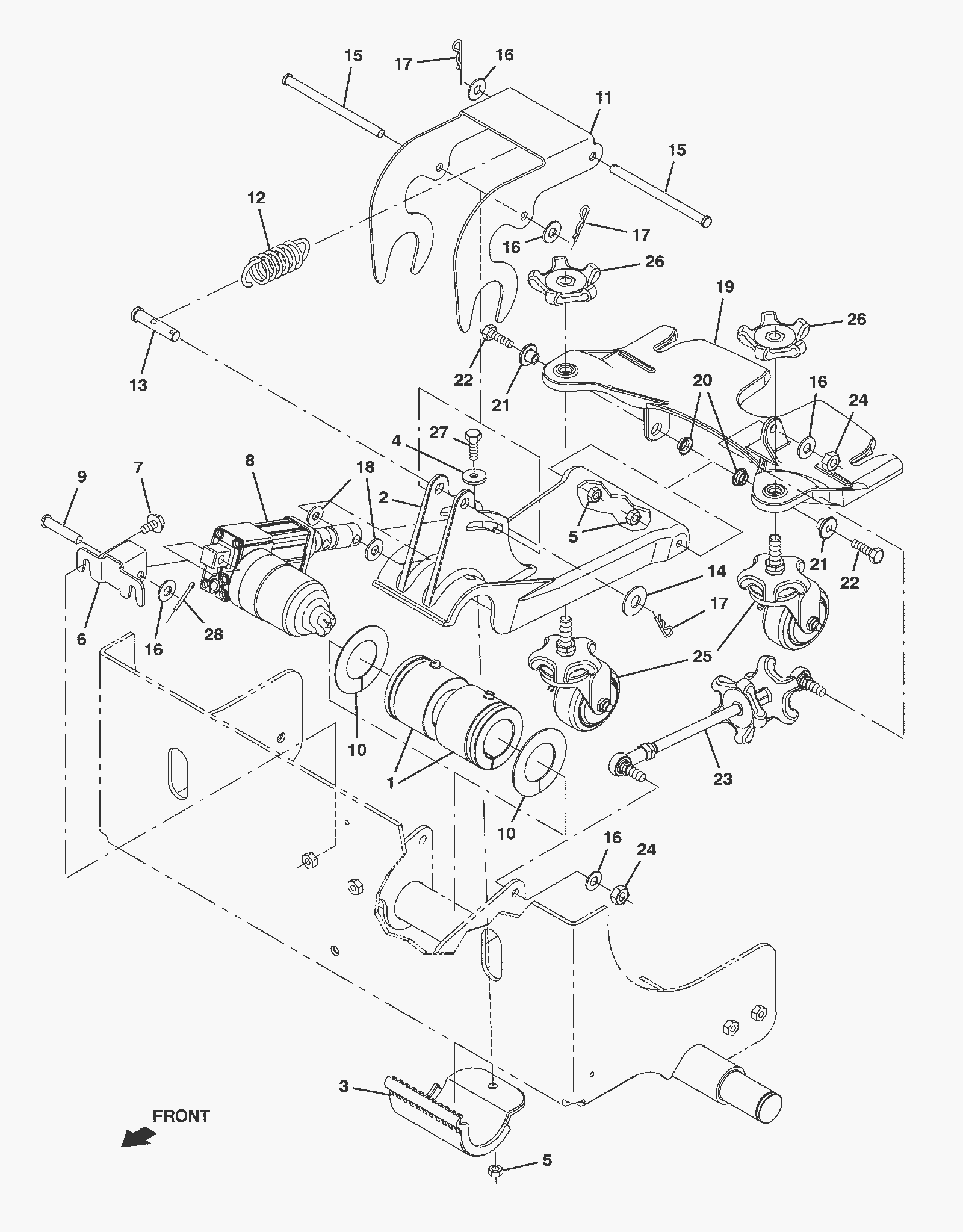

Rear Squeegee Lift Assembly

Click to enlarge

#	Part	Description	Req
1	275-7707	Flex bushing (Tennant Industrial)	2
2	275-7708	Squeegee arm lift (Tennant Industrial)	1
3	275-7709	Pivot clamp (Tennant Industrial)	1
4	175-7920	Washer M8 flat stainless steel	1
5	999-0496	Nut M8-1.25 nylon insert lock stainless steel	3
6	275-5498	Actuator mounting bracket (Tennant Industrial)	1
7	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	2
8	275-7325	ACTUATOR, 36VDC, 02.0STRK, 0147LB (Tennant Industrial)	1
9	275-8195	Clevis pin	1
10	275-7711	Washer plastic (Tennant Industrial)	2
11	275-7712	Spring tensioner link (Tennant Industrial)	1
12	275-6593	Spring (TENNANT INDUSTRIAL)	1
13	275-7714	Clevis pin 2 1/4 inch (Tennant Industrial)	1
14	999-0187	Washer 1/2 flat plain finish	1
15	275-7715	Clevis pin 5 1/4 inch (Tennant Industrial)	2
16	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	5
17	175-2117	Cotter pin	3
18	275-8074	Washer .44 flat nylon	2
19	275-7301	Aluminum squeegee coupling	1
20	275-7632	Flanged bushing (Tennant Industrial)	2
21	275-7716	Flanged sleeve (Tennant Industrial)	2
22	999-0785	Screw M8-1.25 x 30mm hex head stainless steel	2
23	275-7346	Turnbuckle replacement	1
24	999-1120	Nut M10-1.5 nylon insert lock stainless steel	2
25a	275-7718	Swivel caster assembly	2
25b	275-5500	Swivel caster assembly (neoprene) (Tennant Industrial)	2
26	275-7719	Star knob assembly	2
27	999-0501	Bolt M8-1.25 x 25mm hex head full thread stainless steel	1
28	175-3281	Cotter pin	1

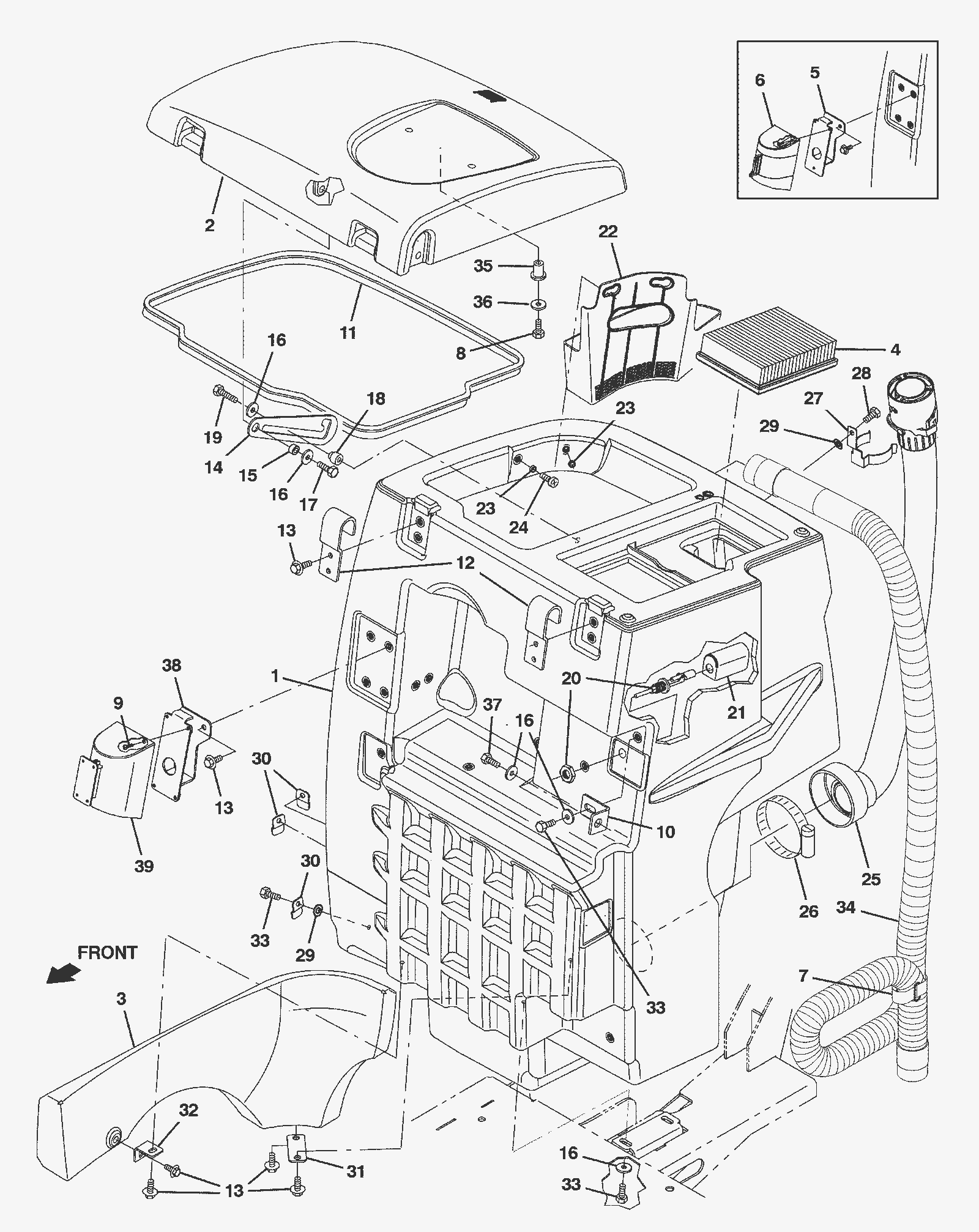

Recovery Tank Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	275-1297	Recovery tank (Tennant Industrial)	1
2a	675-4450	COVER KIT, TANK, RECVY, AFMKT, NA (Tennant Industrial)	1
2b	675-5282	COVER KIT, TANK, RECVY, AFMKT, TJ (Tennant Industrial)	1
2c	775-0469	Aftermarket recovery tank cover	1
3	275-1299	Right hand rear bumper (Tennant Industrial)	1
4	175-3363	Fan filter	1
5	775-0470	Belt bracket weldment	1	(Before SN 010514)
6	375-7732	Safety belt	1	(Before SN 010514)
7	275-7700	Fastener	1
8	175-2860	Screw 1/4-20 x 1 hex stainless steel	1
9	999-9113	Screw M4-.7 x 16mm pan head phillips stainless steel	3
10	275-7682	Tank mounting angle (Tennant Industrial)	1
11	275-7372	SEAL, AFMKT, BULB, DUAL, 08FT [F/.30GAP]	1
12	275-1305	Cover mounting bracket (Tennant Industrial)	2
13	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	10
14	275-7686	Arm plate (Tennant Industrial)	1
15	675-9891	Spacer	1
16	175-7920	Washer M8 flat stainless steel	8
17	999-0501	Bolt M8-1.25 x 25mm hex head full thread stainless steel	1
18	275-1306	Sleeve (Tennant Industrial)	1
19	999-0786	Screw M8-1.25 x 35mm hex head stainless steel	1
20	175-9554	Float switch	1
21	275-4664	Float switch protector bracket	1
22	275-1307	Debris tray (Tennant Industrial)	1
23	275-7679	Sleeve (Tennant Industrial)	2
24	275-1308	Screw M8-1.25 x 20mm pan head phillips (Tennant Industrial)	2
25	475-3771	HOSE ASSY, DRAIN, 2.00ID X 33.9L, BLK	1
26	275-7690	Hose clamp (Tennant Industrial)	1
27	475-3439	BRACKET, MTG, HOSE	1
28	999-0784	Screw M8-1.25 x 16mm hex head stainless steel	1
29	175-2893	Washer 5/16 internal/external locking	4
30	275-1310	Bumper mounting bracket (Tennant Industrial)	3
31	275-1311	Bumper mounting plate (Tennant Industrial)	1
32	275-1312	Bumper mounting angle (Tennant Industrial)	1
33	999-9092	Screw M8-1.25 x 20mm hex head stainless steel	6
34	275-6501	Vacuum hose (TENNANT INDUSTRIAL)	1
35	175-5424	Nut 1/4-20 isolator wall thick	1
36	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	1
37	999-0783	Screw M8-1.25 x 16mm hex head	1
38	775-0498	Belt bracket weldment	1	(After SN 101513)

Right Hand Scrub Head Side Squeegee Assembly

Click to enlarge

#	Part	Description	Req	Notes
N/S	675-5063	Right hand squeegee arm kit	1	(includes 1-19)
1	275-1290	Side squeegee bracket (Tennant Industrial)	1
2	275-7341	Latch (yellow)	1
3	175-0637	Clevis pin	1
4	175-2117	Cotter pin	1
5	175-3345	Extension spring	1
6	175-0655	Clevis pin	1
7	275-1291	Squeegee bellcrank lift (Tennant Industrial)	1
8	775-0497	Washer 30mm OD 16mm ID 1.5mm thick thrust	4
9	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	2
10	175-3349	Sleeved bushing	2
11	999-1170	Bolt M10-1.5 x 20mm hex head stainless steel	2
12	275-9507	NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial)	2
13	275-1292	Right hand squeegee weldment (Tennant Industrial)	1
14	275-7339	STRAP ASSY, SQGE, SIDE (Tennant Industrial)	1
15	275-7396	Latch	1
16	275-6590	Right hand squeegee guide (Tennant Industrial)	1
17	475-7402	SCREW, FLT, SOC, M6 X 1.00 X 25, SS (Tennant Industrial)	2
18	999-0497	Nut M6-1 nylon insert lock stainless steel	2
19	375-7041	Gasket	1
20	275-1474	Screw M8-1.25 x 110mm hex head (Tennant Industrial)	1
21	999-0123	Washer 1/4 SAE flat zinc plated	1
22	999-0496	Nut M8-1.25 nylon insert lock stainless steel	1
23a	275-6499	Squeegee blade linatex (TENNANT INDUSTRIAL)	1
23b	275-7389	Squeegee blade polyurethane (Tennant Industrial)	1
23c	275-1293	Squeegee blade 36 inch side gum (Tennant Industrial)	1

Scrub Head Assembly

Click to enlarge

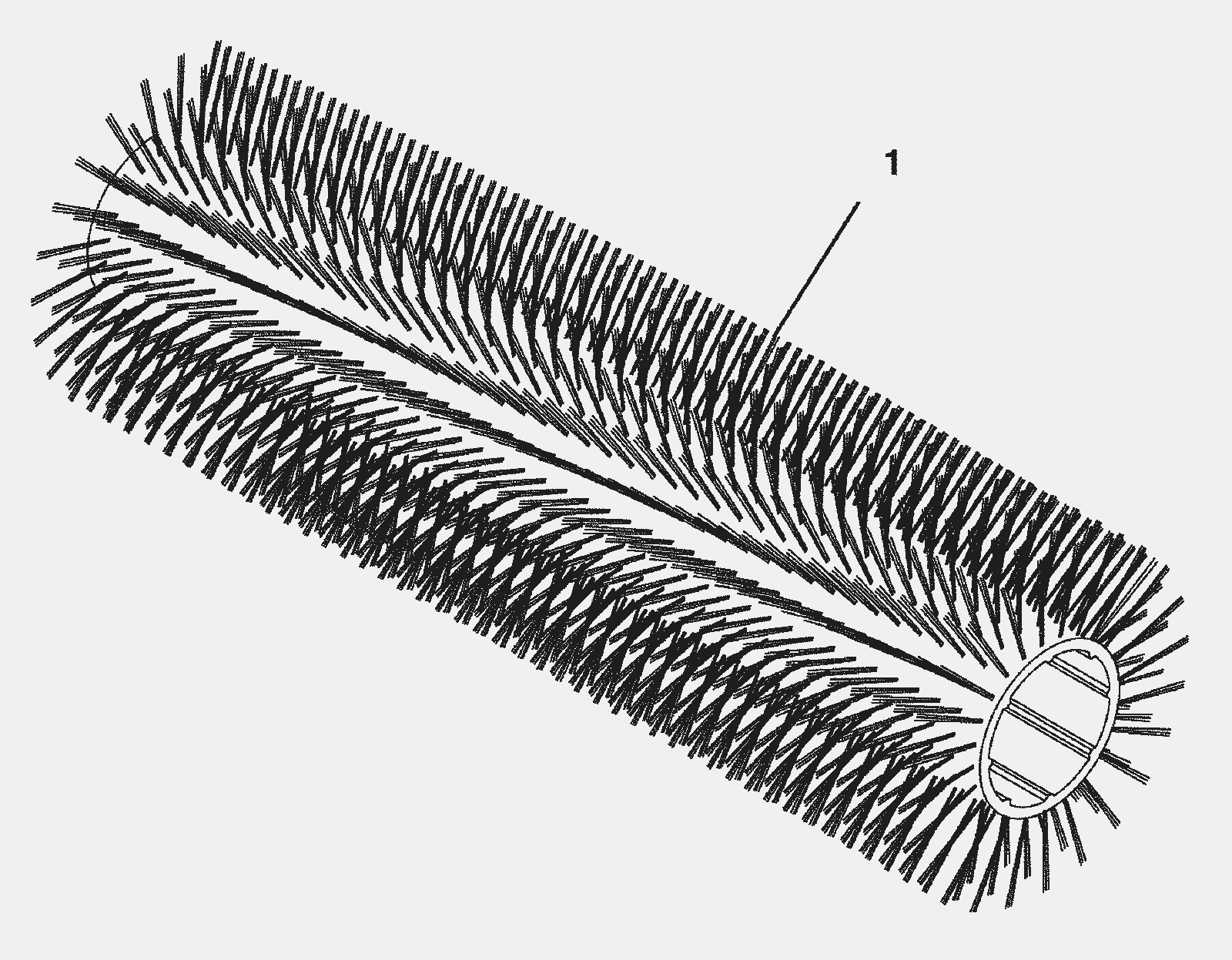

#	Part	Description	Req
1a	275-7388	BRUSH, SCB, 35L, 20SR, PYP, SPL (Tennant Industrial)	2
1b	675-4485	BRUSH, SCB, 35L, 20SR, HD PYP, SPL (Tennant Industrial)	2
1c	675-5610	BRUSH, SCB, 35L, 20SR, PYES, SPL (Tennant Industrial)	2
1d	675-6851	BRUSH, SCB, 35L, 20SR, SAB, SPL (Tennant Industrial)	2

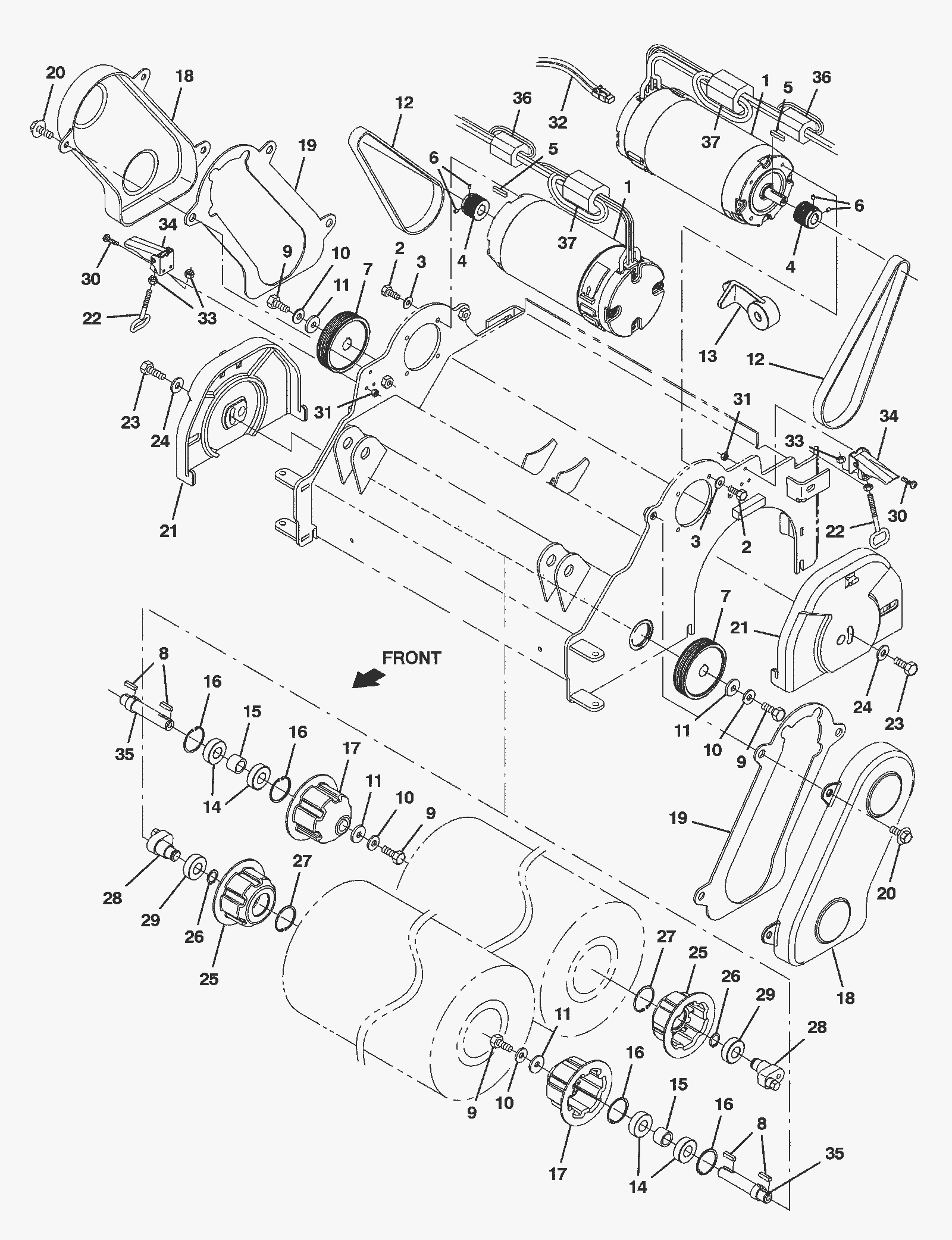

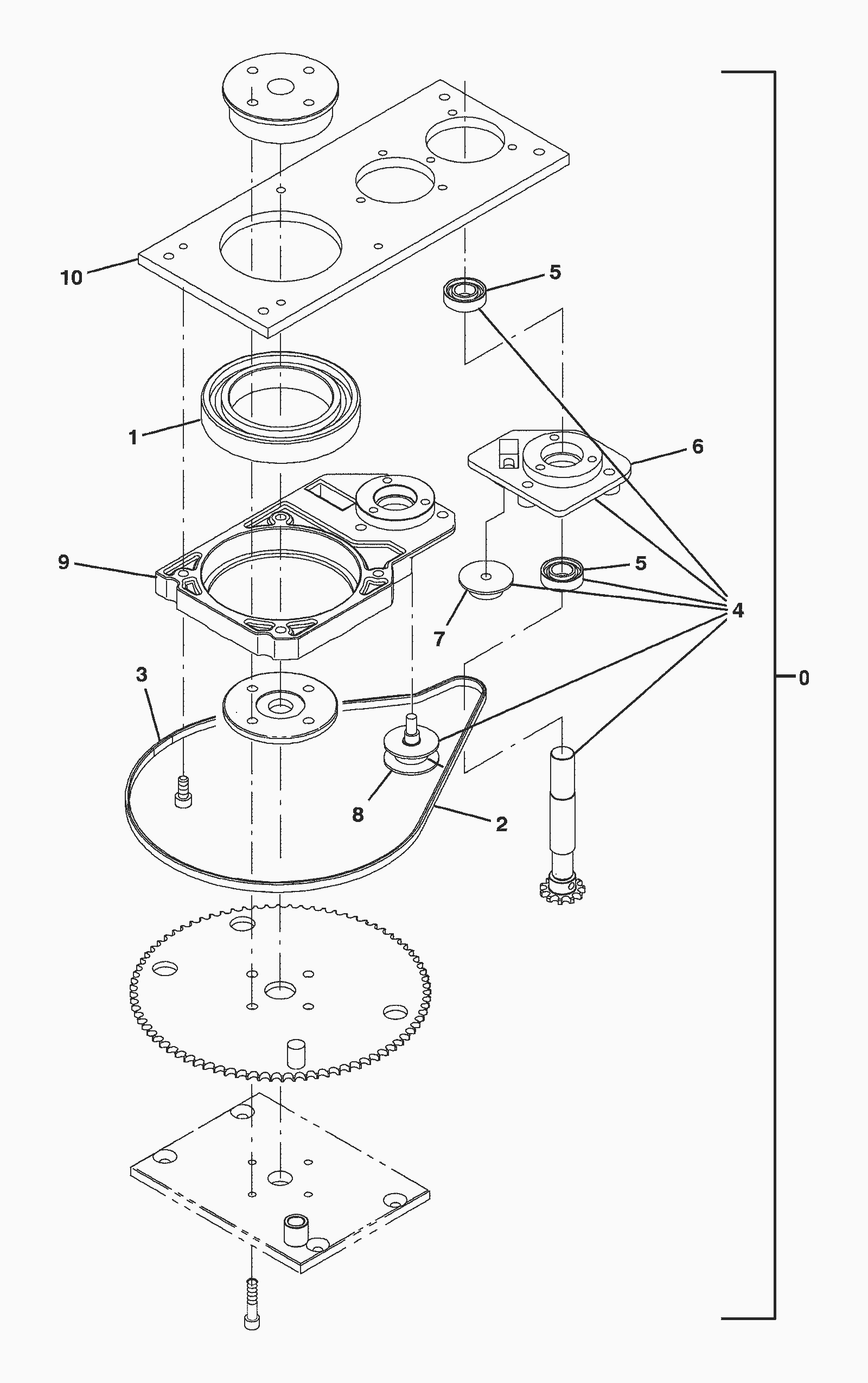

Scrub Head Drive Motor Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0468	36V 22amp 1HP electric motor	2	(includes 38-40)
N/S	275-1277	Brush motor kit	1
N/S	375-6016	Motor bearing	1
N/S	675-9741	VR, BEARING, MOTOR, ELE	1
2	999-0507	Bolt M6-1 x 16mm hex head full thread plain finish	8
3	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	8
4	275-7663	Sheave (Tennant Industrial)(OBSOLETE)	2
5	275-1468	Square keyway	2
6	475-8070	SCREW, SET, SOC, 08-32 X 0.25, NL SS (Tennant Industrial)	4
7	275-1278	Sheave (Tennant Industrial)	2
8	175-8818	Square keyway	4
9	999-9092	Screw M8-1.25 x 20mm hex head stainless steel	4
10	475-9390	WASHER, BELLEVILLE, .31 SS (Tennant Industrial)	4
11	175-7920	Washer M8 flat stainless steel	4
N/S	275-1279	Belt kit with tool (pkg of 2) (Tennant Industrial)	1	(includes 12-13)
12	575-4050	BELT, DRIVE, 7GRV [7PJ] (Tennant Industrial)	2
13	575-4883	TOOL, INSTALLATION, BELT (Tennant Industrial)	1
14	175-9094	Ball bearing	4
15	275-1281	Spacer (Tennant Industrial)	2
16	175-9098	Basic retaining ring (Tennant Industrial)	4
17	275-1282	Brush drive plug (Tennant Industrial)	2
18	275-1283	Belt cover (Tennant Industrial)	2
19	275-1284	Belt cover gasket (Tennant Industrial)	2
20	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	6
21	275-1285	Idler cover (Tennant Industrial)	2
22	275-8633	HOOK WLDT, LATCH (Tennant Industrial)	2
23	999-0501	Bolt M8-1.25 x 25mm hex head full thread stainless steel	2
24	475-9390	WASHER, BELLEVILLE, .31 SS (Tennant Industrial)	2
N/S	275-1289	Cylindrical brush hub kit (Tennant Industrial)	2	(includes 25-29)
25	275-1287	Brush idler plug (Tennant Industrial)	2
26	175-2472	Retaining ring	2
27	175-9098	Basic retaining ring (Tennant Industrial)	2
28	275-1286	Brush adjustment (Tennant Industrial)	2
29	275-1288	Ball bearing (Tennant Industrial)	2
30	999-9113	Screw M4-.7 x 16mm pan head phillips stainless steel	6
31	999-0954	Nut M4-.7 nylon insert lock stainless steel	6
32	275-7667	Wire adapter harness (Tennant Industrial)	1
33	999-0740	Nut M5-.8 hex stainless steel	4
34	575-2393	LATCH (Tennant Industrial)	2
35	275-1280	Drive shaft (Tennant Industrial)	2
36	575-0329	INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial)	2
37	475-3303	INDUCTOR, 18MMID [225 IMP AT 25MHZ]	2

Scrub Head Frame Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0462	Cylindrical Scrub Head Weldment	1
2	275-8203	Molding	2
3	275-1269	3 foot trim molding	1
4	275-1270	Cylindrical head lift channel (Tennant Industrial)	1
5	175-9656	Screw 12-1.75 x 40 hex head stainless steel	2
6	999-0519	Nut M12-1.75 nylon insert lock stainless steel	2
7	275-1271	Bolt M10-1.5 x 140mm eye (Tennant Industrial)	1
8	999-1120	Nut M10-1.5 nylon insert lock stainless steel	1
9	999-1625	Nut M10-1.5 hex jam stainless steel	1
10	275-1464	WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial)	2
11	175-0559	P clamp	4
12	999-1312	Screw M6-1 x 20mm hex head stainless steel	4
13	175-8663	Fitting 1/8 X 3/8	1
14	999-0497	Nut M6-1 nylon insert lock stainless steel	4
15	775-0464	Spray manifold assembly	1
16	775-0465	Manifold mounting bracket	1
17	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	4
30	275-7347	Debris tray kit (Tennant Industrial)	1	(includes 18-21)
18	275-1274	Debris hopper (Tennant Industrial)	1
19	275-1275	Perforated steel angle (Tennant Industrial)	1
20	275-1276	Debris tray lip (Tennant Industrial)	1
21	175-5936	Pop rivet	7
22	775-0466	Check Valve	2
23	999-1346	Washer M12 flat stainless steel	4
24	275-4939	1 foot PVC hose clear	1
25	475-0119	CLAMP, HOSE, WORMDRIVE, SS, 0.22-0.63D	10
26	175-6943	FITTING, PLSTC, TEE, BM06/BM06/BM06 (Tennant Industrial)	1
27	775-0467	Vent valve	1
28	999-0778	Screw M6-1 x 10mm hex head	2
29	375-7740	Electrical harness	1

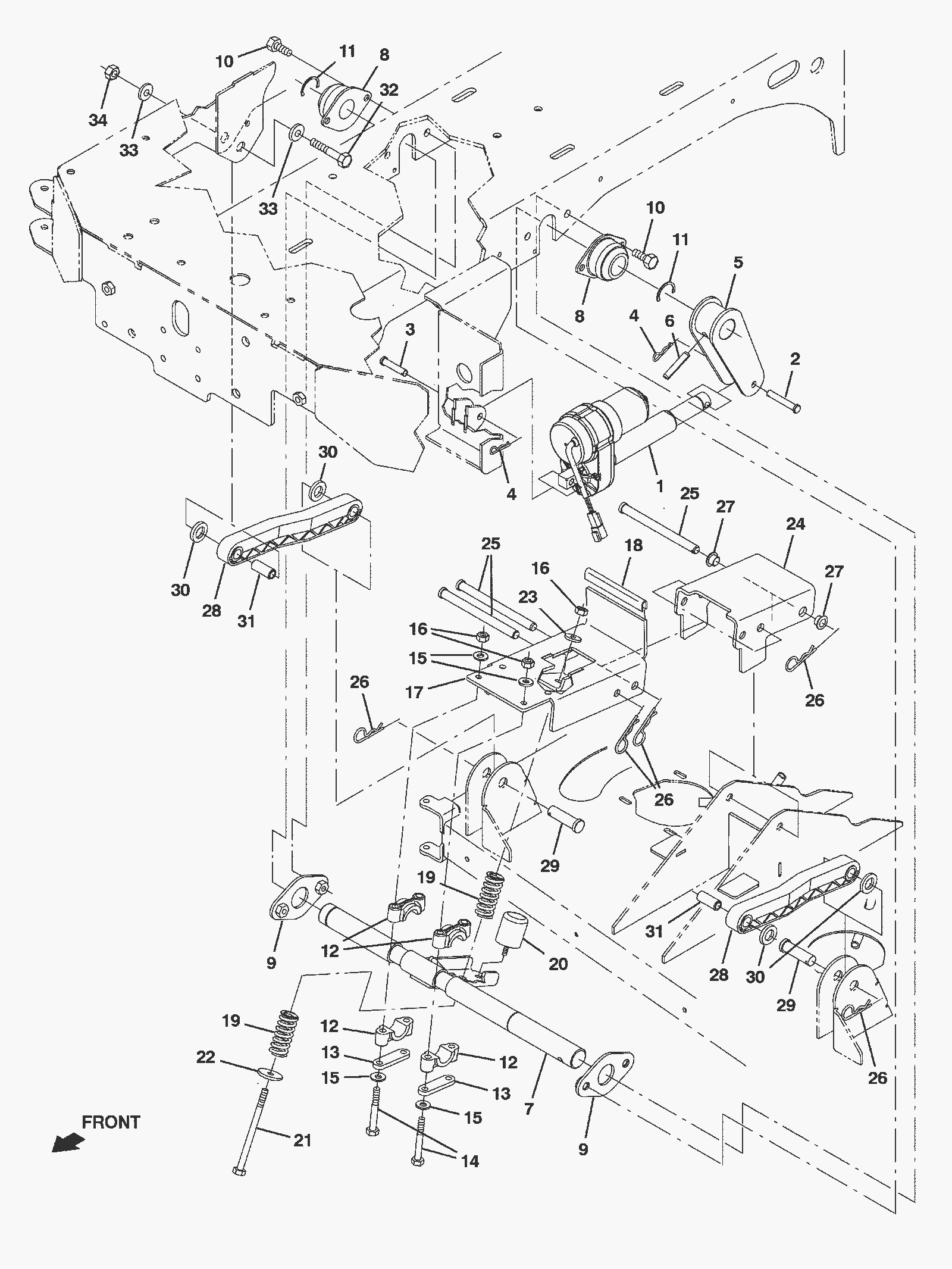

Scrub Head Lift Assembly

Click to enlarge

#	Part	Description	Req
1	275-7330	ACTUATOR, 36VDC, 05.0STRK, 0500LB (Tennant Industrial)	1
2	175-2185	Clevis pin	1
3	175-2592	Clevis Pin 0.37 D X 1.75 L	1
4	175-2117	Cotter pin	2
5	275-1253	Lift arm weldment (Tennant Industrial)	1
6	175-9781	Roll pin 3/8d x 2l .375/.382	1
7	275-1254	Lift shaft weldment (Tennant Industrial)	1
8	275-7612	Flanged bearing (Tennant Industrial)	2
9	275-1255	Arm flange lift (Tennant Industrial)	2
10	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	4
11	175-9783	Retaining ring 1 1/4d	2
12	175-6807	BEARING, SPLIT, 1.00B (Tennant Industrial)	4
13	175-6806	PLATE, SPPT (Tennant Industrial)	2
14	999-0909	Bolt M8-1.25 x 70mm hex head stainless steel	4
15	999-0024	Washer 5/16 flat stainless steel	8
16	999-0496	Nut M8-1.25 nylon insert lock stainless steel	5
17	275-1256	Front head lift bracket weldment (Tennant Industrial)	1
18	275-8203	Molding	5
19	275-1257	Compression spring (Tennant Industrial)	2
20	275-1258	Bumper (Tennant Industrial)	1
21	275-8726	SCREW, HEX, M8 X 1.25 X 130, SS (Tennant Industrial)	1
22	275-8147	Washer 1/3 flat stainless steel	1
23	175-7920	Washer M8 flat stainless steel	1
24	275-1259	Rear head lift channel (Tennant Industrial)	1
25	175-5332	Clevis pin 1/2 x 6	3
26	175-2106	Cotter hair pin	5
27	175-5995	BUSHING, FLNG, 0.50B 0.59D 0.38L (Tennant Industrial)	2
28	175-2102	Scrub head lifting arm	2
29	175-2105	Clevis pin	2
30	275-1260	Round spacer (Tennant Industrial)	4
31	275-1261	Sleeve (Tennant Industrial)	2
32	175-0792	Bolt M10-1.5 x 60mm hex head stainless steel	2
33	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	4
34	999-1120	Nut M10-1.5 nylon insert lock stainless steel	2

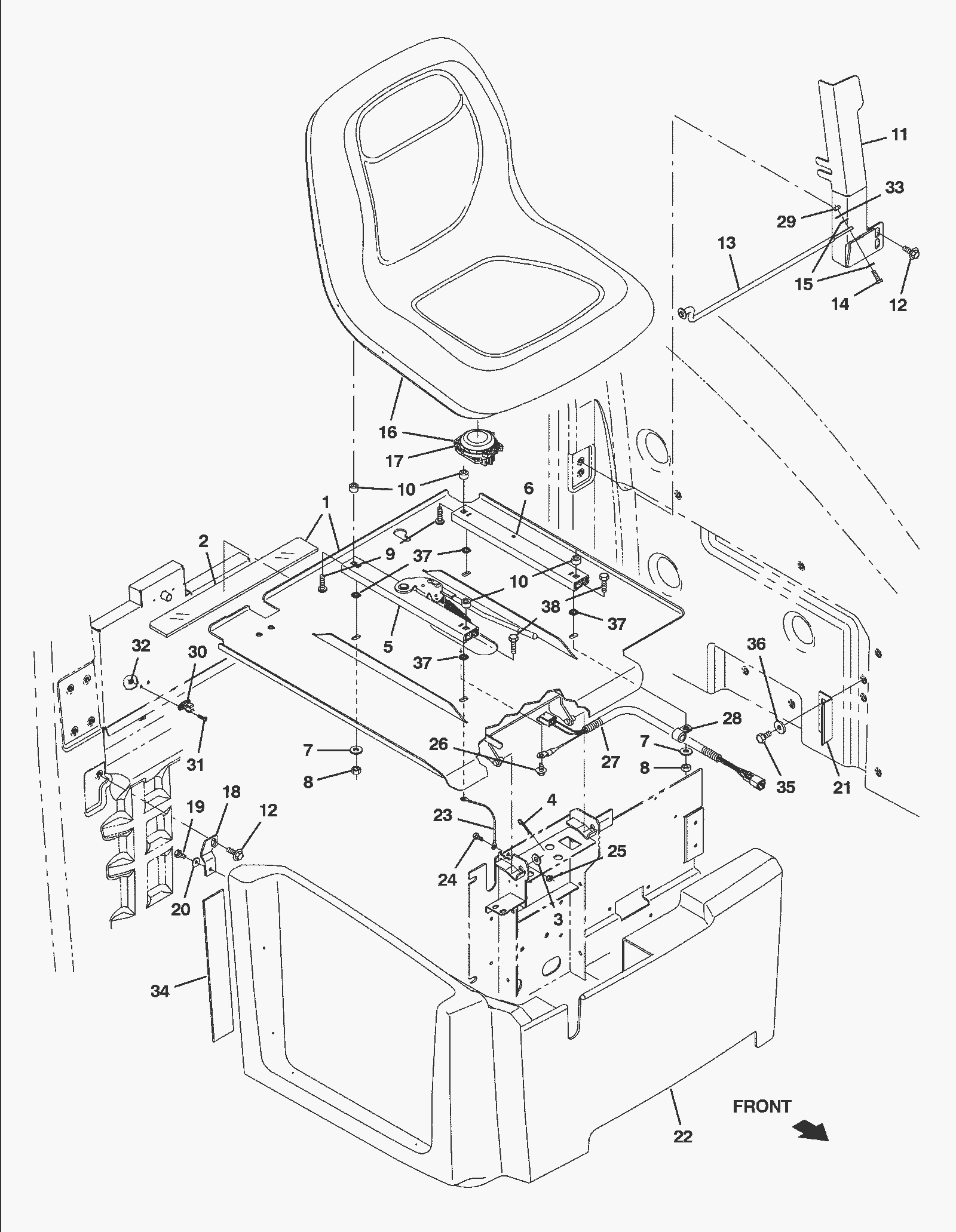

Seat Assembly

Click to enlarge

#	Part	Description	Req	Notes
1a	775-0412	Aftermarket seat plate weldment with labels	1	(includes 2)
1b	775-0413	Aftermarket commercial equipment seat plate weldment	1	(includes 2)
2	275-8159	Rubber pad	1
3	999-0120	Washer 3/8 SAE flat	1
4	175-2113	Cotter pin	1
5	275-2671	11 1/2 inch seat adjuster rail (Tennant Industrial)	1
6	675-9511	Seat track no stud	1
7	999-0024	Washer 5/16 flat stainless steel	3
8	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	4
9	275-9278	SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial)	4
10	275-9333	Spacer	4
11	275-2678	Wire cover weldment (Tennant Industrial)	1
12	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	5
13	275-2679	Prop rod weldment (Tennant Industrial)	1
14	999-0502	Bolt M6-1 x 20mm hex head full thread zinc	1
15	175-2289	Washer	2
16	275-2669	Standard seat (Tennant Industrial)	1	(includes 17)
17	275-2670	Seat switch (Tennant Industrial)	1
18	275-2682	Seat shroud mounting angle (Tennant Industrial)	1
19	999-0507	Bolt M6-1 x 16mm hex head full thread plain finish	1
20	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	1
21	275-2683	Seat shroud angle keeper (Tennant Industrial)	1
22	275-2688	Seat shroud (Tennant Industrial)	1
23	275-2677	Cable (Tennant Industrial)	1
24	999-1228	Screw M5-.8 x 10mm hex head stainless steel	1
25	175-2894	Nut M5-.8 hex nylon locking	1
26	475-8069	SCREW, HEX, M6 X 1.00 X 12, FMG SS (Tennant Industrial)	1
27	775-0414	Seat switch harness	1
28	175-6768	P clamp (Tennant Industrial)	1
29	999-0469	Nut M6-1 nylon insert lock zinc plated	1
30	275-2681	Plastic rod grip clip (black) (Tennant Industrial)	1
31	175-5310	Screw 4 x 45/64 x 16 pan head	2
32	999-0954	Nut M4-.7 nylon insert lock stainless steel	2
33	999-0016	Washer 1/4 flat plain finish	1
34	275-2659	Adhesive foam seal (Tennant Industrial)	1
35	999-0783	Screw M8-1.25 x 16mm hex head	2
36	175-7920	Washer M8 flat stainless steel	2
37	675-9512	Bolt retention push nut	4
38	275-3879	SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial)	4

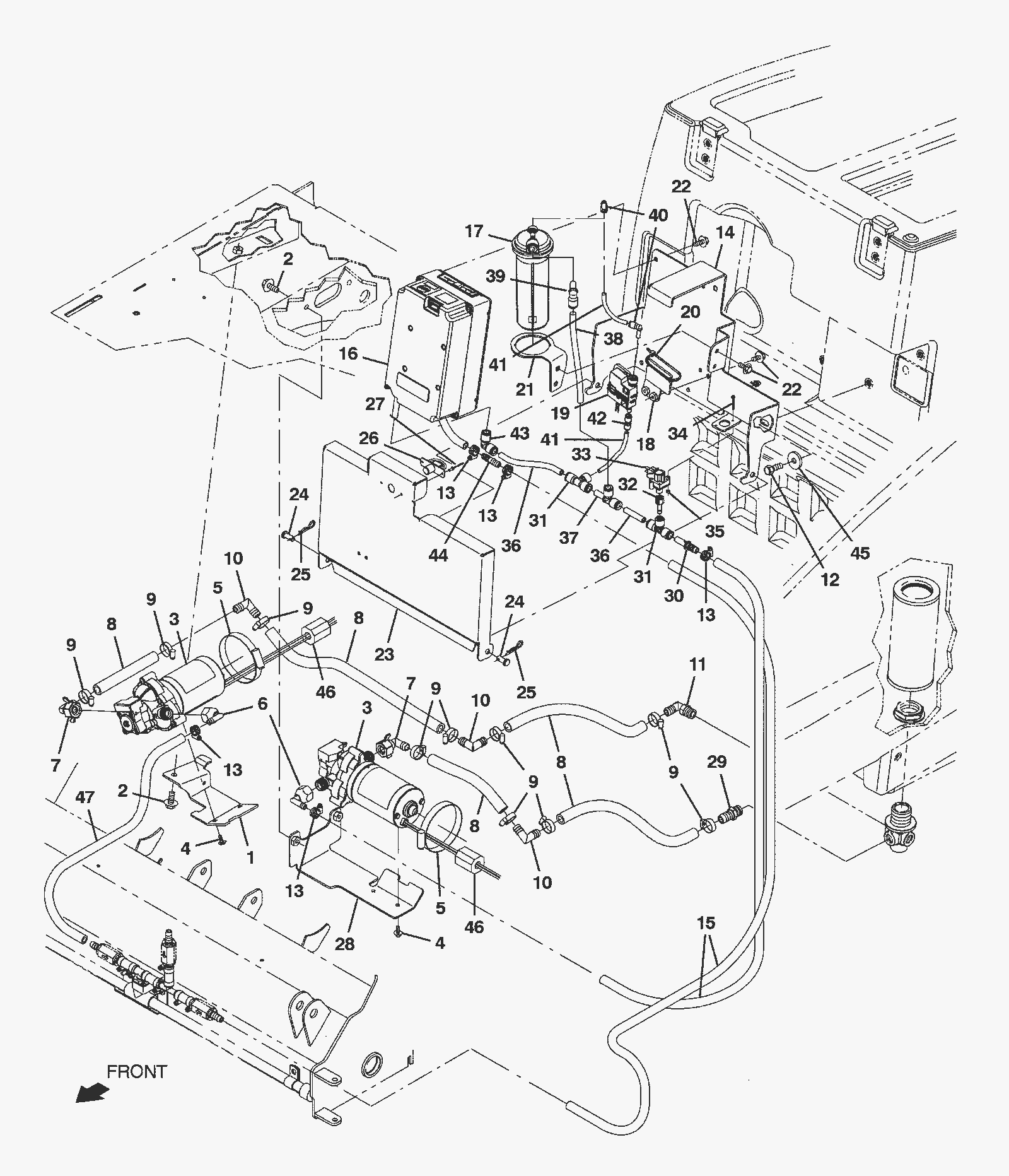

Solution Supply Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0476	Pump bracket	1
2	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	3
3	775-0477	36V electric solution pump	2
4	475-7867	SCREW, HEX, 10-24 X 0.50, FMG, PL (Tennant Industrial)	4
5	997-2009	Hose clamp	2
6	175-9868	Swivel fitting 1/2 x 3/8 inch	2
7	375-1055	Plastic swivel fitting (Tennant Industrial)	2
8	175-9703	HOSE, AFMKT, PVC, BRD, 0.50ID, 08FT, CLR (Tennant Industria	1
9	175-6081	Hose clamp	10
10	175-5233	Plastic fitting	3
11	175-3685	90 degree elbow fitting	1
12	999-0784	Screw M8-1.25 x 16mm hex head stainless steel	3
13	175-3594	Hose clamp	5
14	775-0478	Bracket weldment	1
15	575-7051	HOSE, AFMKT, PVC, BRD, 0.38ID, 12FT, CLR (Tennant Industrial	1
16	375-0142	ec-H2O module kit	1	(includes 17 & N/S)
17	375-0144	Nanoclean cartridge	1
N/S	375-9401	Replacement controller kit	1
18	775-0479	Pump mounting plate weldment	1
19	375-0146	Dispenser pump assembly	1
20	175-7795	Cable tie	1
21	775-0480	Mounting bracket	1
22	999-1383	Screw M6-1 x 16mm hex head stainless steel	8
23	775-0481	Cover plate	1
24	175-3344	Clevis pin	2
25	175-2117	Cotter pin	2
26	175-1231	Spring latch	1
27	475-8860	RIVET, BLIND, .125D X 0.32 X .25D, ALM (Tennant Industrial)	2
28	775-0482	Pump bracket weldment	1
29	175-5234	Plastic fitting	1
30	375-4258	Straight plastic fitting	1
31	375-0148	Plastic tee fitting	2
32	375-4254	Straight plastic fitting	1
33	275-4944	Pressure switch	1
34	999-1221	Screw M3-.5 x 25mm pan head stainless steel	2
35	999-1161	Nut M3-.5 hex nylock stainless steel	2
36	375-0150	6 foot hose	1
37	375-4257	Plastic fitting tee	1
38	375-1298	PVC hose (green)	1
39	375-0075	90 degree elbow	1
40	375-0079	90 degree elbow	1
41	375-1296	PVC hose (green)	1
42	375-0147	Straight plastic fitting	1
43	375-3339	90 degree elbow	1
44	275-8703	Straight plastic fitting (Tennant Industrial)	1
45	175-7920	Washer M8 flat stainless steel	3
46	575-0329	INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial)	2
47	275-7845	8 foot clear PVC hose (Tennant Industrial)	1

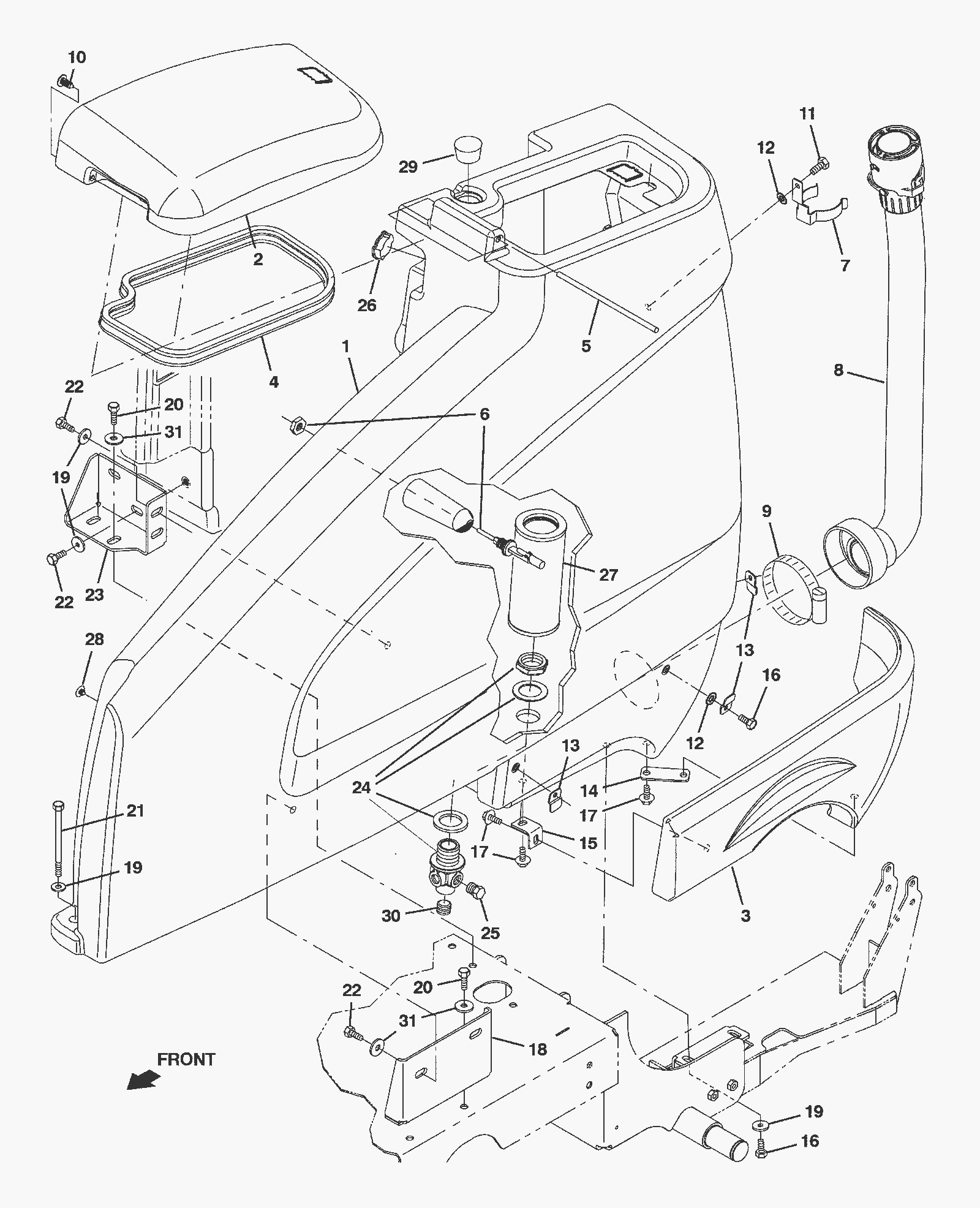

Solution Tank Assembly

Click to enlarge

#	Part	Description	Req
1	275-5487	Solution tank (Tennant Industrial)	1
2a	275-5488	Solution tank cover (ec-H20) (Tennant Industrial)	1
2b	675-3462	COVER, TANK, SOLTN, TJ, REPLMT [ec-H2O] (Tennant Industrial)	1
2c	775-0471	Aftermarket solution tank cover with labels	1
3	275-5490	Left hand rear bumper (Tennant Industrial)	1
4	275-7372	SEAL, AFMKT, BULB, DUAL, 08FT [F/.30GAP]	1
5	275-5491	8 1/2 inch round plastic bar (Tennant Industrial)	1
6	175-9554	Float switch	1
7	475-3439	BRACKET, MTG, HOSE	1
8	475-3771	HOSE ASSY, DRAIN, 2.00ID X 33.9L, BLK	1
9	275-7690	Hose clamp (Tennant Industrial)	1
10	475-7414	PLUG, HOLE, RND, 0.38H .4-.7, BLK NYL (Tennant Industrial)	1
11	999-0784	Screw M8-1.25 x 16mm hex head stainless steel	1
12	175-2893	Washer 5/16 internal/external locking	4
13	275-1310	Bumper mounting bracket (Tennant Industrial)	3
14	275-1311	Bumper mounting plate (Tennant Industrial)	1
15	275-1312	Bumper mounting angle (Tennant Industrial)	1
16	999-0783	Screw M8-1.25 x 16mm hex head	5
17	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	4
18	275-5493	Solution tank mounting bracket (Tennant Industrial)	1
19	175-7920	Washer M8 flat stainless steel	5
20	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	6
21	275-1474	Screw M8-1.25 x 110mm hex head (Tennant Industrial)	1
22	999-0783	Screw M8-1.25 x 16mm hex head	6
23	275-5495	Front tank mounting bracket (Tennant Industrial)	1
24	275-7702	Solution fitting assembly (Tennant Industrial)	1
25	175-4759	3/8 inch nylon plug	1
26	175-3415	Solution tank plug	1
27	275-5547	Solution filter (Tennant Industrial)	1
28	275-1313	Nylon round plug (Tennant Industrial)	2
29	775-0472	Round plug	1
30	775-0473	Plug pipe fitting hex socket	1
31	275-1169	Washer .40 x 12mm flat	6

Squeegee Guard Assembly

Click to enlarge

#	Part	Description	Req
1	275-5535	Right hand bumper channel weldment (Tennant Industrial)	1
2	275-5536	Left hand bumper channel weldment (Tennant Industrial)	1
3	275-5537	Tank mounting bracket (Tennant Industrial)	2
4	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	10
5	275-1169	Washer .40 x 12mm flat	12
6	999-1120	Nut M10-1.5 nylon insert lock stainless steel	4
7	275-7776	Bumper (Tennant Industrial)	2
8	475-7423	SCREW, HEX, .38-16 X 0.88, SS (Tennant Industrial)	2
9	999-0032	Washer 3/8 USS flat plain finish	4
10	275-5538	Guard tube (Tennant Industrial)	1
11	275-8451	SCREW, HEX, M10 X 1.50 X 80, 8.8 (Tennant Industrial)	2
12	999-1120	Nut M10-1.5 nylon insert lock stainless steel	2
13	175-9789	PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial)	1
14	275-5539	12 inch cable (Tennant Industrial)	1
15	275-0923	Screw M5 - 7/8 hex lock	1
16	999-0998	Washer #10 flat stainless steel	1
17	999-0740	Nut M5-.8 hex stainless steel	1

Squeegee Guard Assembly

Click to enlarge

#	Part	Description	Req
1	175-8144	Latch (Tennant Industrial)	2
2	175-8145	Pop rivet	4
3	275-9539	BRACKET, MTG, LATCH, TANK COVER (Tennant Industrial)	2
4	275-9542	CATCH, LATCH, TANK COVER (Tennant Industrial)	2
5	175-5918	SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial	4
6	175-9366	Screw 8-10 x 1/2 pan head plastic	4
7	575-0867	PLATE, RETAINER (Tennant Industrial)	1
8	999-0531	Screw M5-.8 x 16mm pan head slotted zinc	2

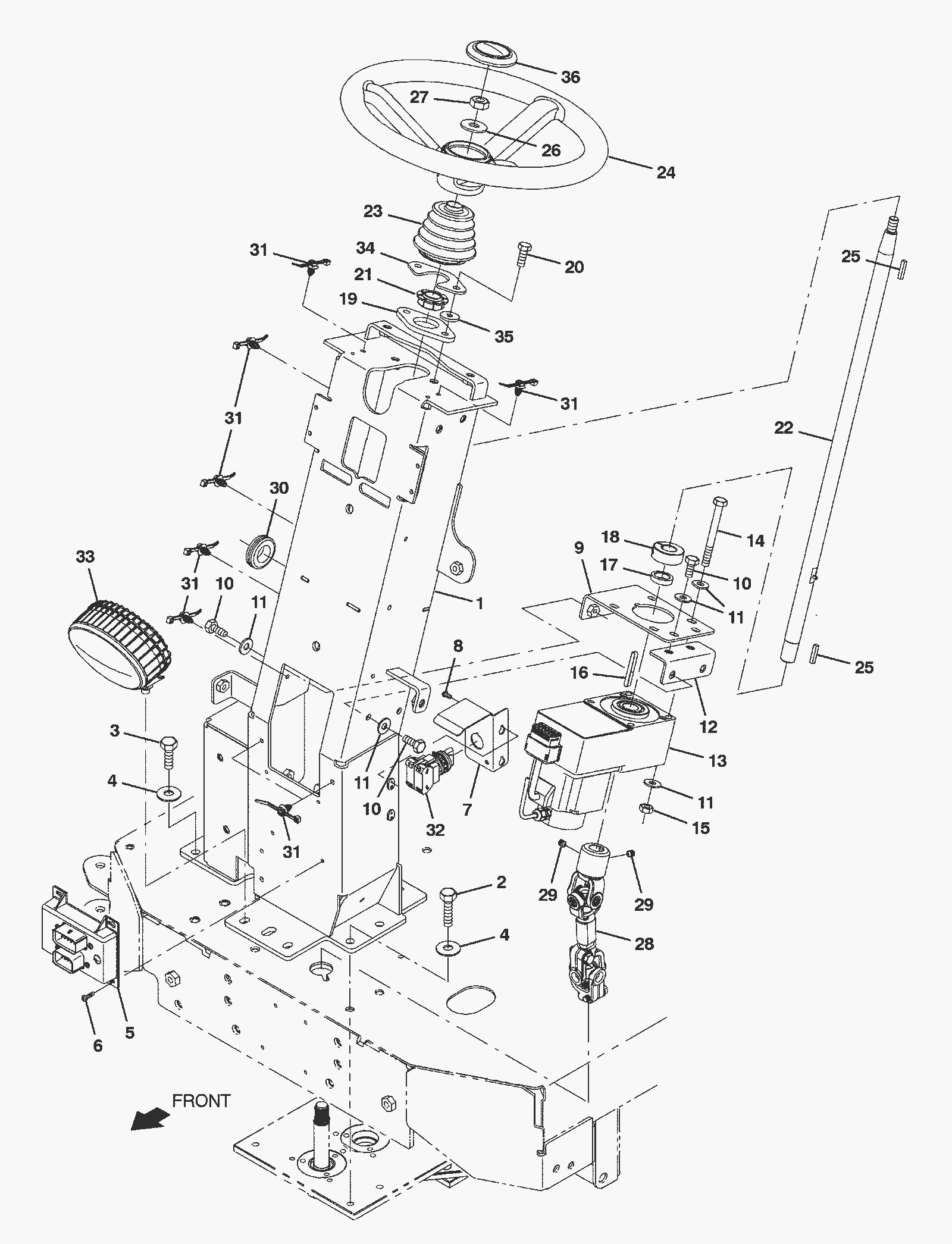

Steering Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	775-0415	Steering column weldment	1
2	175-3258	Bolt M10-1.5 x 35mm hex head	2
3	275-0025	Screw M10-1.5 x 25 hex head 8.8	4
4	999-0033	Washer 7/16 SAE flat	4
5	775-0416	Aftermarket motor control amplifier	1	Requires Tennant True service or an authorized Tennant service provider
6	999-9113	Screw M4-.7 x 16mm pan head phillips stainless steel	4
7	375-7939	Switch mounting bracket	1
8	999-0534	Screw M4-.7 x 10mm pan head slotted zinc	2
9	375-7672	Steering motor plate weldment	1
10	999-0499	Bolt M8-1.25 x 20mm hex head full thread stainless steel	1
11	999-0024	Washer 5/16 flat stainless steel	14
12	375-7673	Steering motor plate weldment	1
13	775-0417	36V electric steering motor assembly	1
14	275-0444	SCREW, HEX, M8 X 1.25 X 90, 8.8 (Tennant Industrial)	4
15	999-0471	Nut M8-1.25 nylon insert lock zinc plated	4
16	375-7671	50mml square keyway	1
17	475-9761	SLEEVE, P/M, 0.79B 1.14D 0.3L [430SS] (Tennant Industrial)	1
18	775-0418	Collar M6 x 15mm	1
19	675-9466	Adapter plate	1
20	999-0248	Bolt M8-1.25 x 30mm hex head full thread plain finish	2
21	675-9467	Bearing	1
22	675-9465	Steering shaft	1
23	275-8081	Steering shaft bellows	1
24	775-0419	Steering wheel	1
25	175-3200	Square keyway	2
26	999-0187	Washer 1/2 flat plain finish	1
27	999-0519	Nut M12-1.75 nylon insert lock stainless steel	1
28a	775-0420	Steer shaft	1	(Before SN 010470)
28b	775-0487	Steering shaft assembly	1	(After SN 010469)
29	175-4926	Screw 5/16-18 x 3/8 set nylon lock	2
30	175-0840	Rubber grommet	2
31	275-5197	Fir tree clip	17
32	375-7767	Rotary switch	1
33	675-9518	Blue LED spot light	1
34	775-0421	Stop bearing plate	1
35	175-7920	Washer M8 flat stainless steel	2
36	275-5333	Steering wheel cap	1
37	999-0549	Washer 5/16 x 3/4 SAE flat stainless steel	1
38	999-0581	Bolt M8-1.25 x 25mm hex head full thread zinc	1

Steering Control Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	275-2734	Drive wheel control assembly (Tennant Industrial)	1	(includes 1-10)
1	275-8270	Steering bearing	1
3	275-8272	Master link	1
4	675-3147	SHAFT ASSY, STEERING [T16] (Tennant Industrial)	1	(includes 5-8)
5	675-9927	VR, BEARING [6003 2RS] (Tennant Industrial)	2
6	575-4720	VR, PLATE, SPPT, ALM [111MM L] (Tennant Industrial)	1
7	675-9924	Tension pulley	1
8	575-6310	VR, PULLEY, GUIDE (Tennant Industrial)	1
9	575-7828	VR, PLATE, SPPT, ALM [236.5MM L] (Tennant Industrial)	1
10	675-3296	VR, PLATE (Tennant Industrial)	1

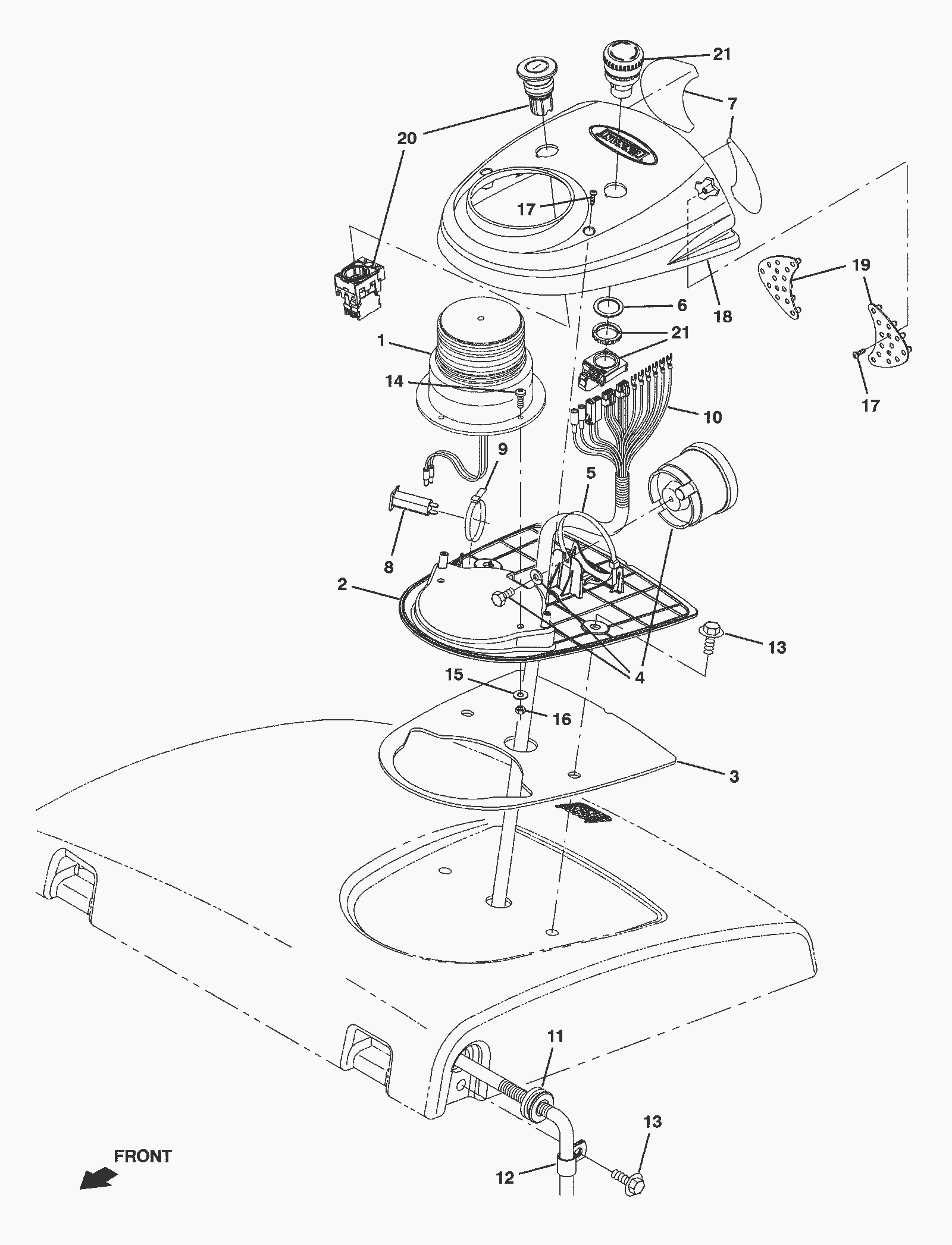

Strobe Light and Backup Alarm Assembly

Click to enlarge

#	Part	Description	Req
1	275-7765	Strobe light	1
2	275-7766	Light base (Tennant Industrial)	1
3	275-7767	Base gasket	1
4	275-7768	Backup alarm (Tennant Industrial)	1
5	375-7695	E-stop lock ring	1
6	775-0485	Backup LED overlay label (clear)	2
7	999-0016	Washer 1/4 flat plain finish	1
8	275-5483	2.5amp circuit breaker	1
9	175-2162	Nylon wire tie	1
10	775-0483	Light module electrical harness	1
11	275-3903	GROMMET, RBR, 0.69ID, F/1.0H, .25 MATL (Tennant Industrial)	1
12	175-0559	P clamp	1
13	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	3
14	999-0901	Screw M5-.8 x 16mm pan head phillips stainless steel	2
15	999-0006	Washer 3/16 flat zinc plated	2
16	175-2894	Nut M5-.8 hex nylon locking	2
17	999-0447	Screw 6-32 x 1/2 pan head phillips zinc plated	6
18	775-0484	Button light module cover	1
19	275-7771	LED light assembly (Tennant Industrial)	2
20	375-7736	Start-pause button assembly	1
21	375-7694	Emergency stop switch	1

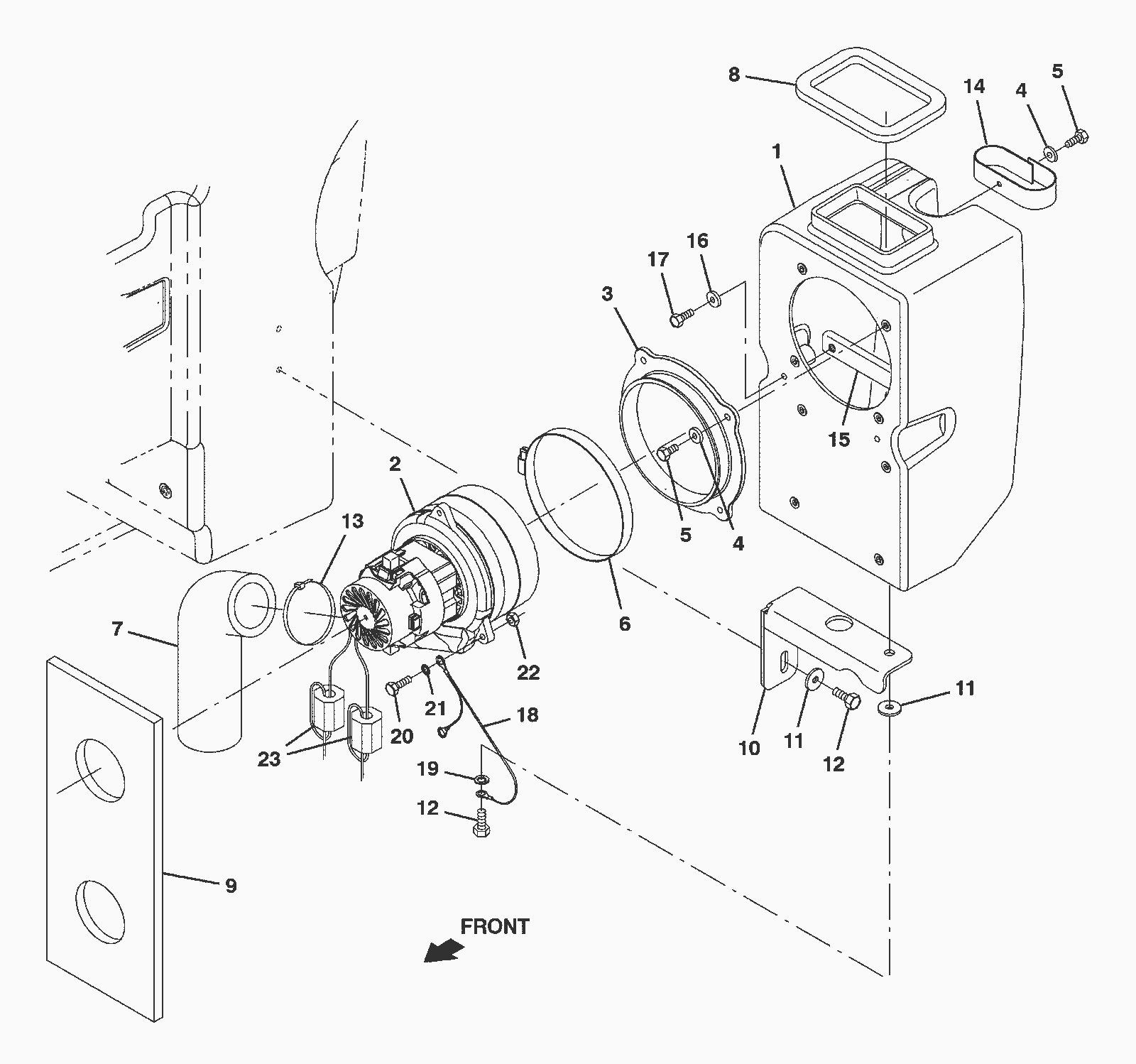

Vacuum Fan Assembly

Click to enlarge

#	Part	Description	Req
1	275-1316	Vacuum motor housing (Tennant Industrial)	1
2	275-1317	36V 3 stage vacuum motor (Tennant Industrial)	1
N/S	991-1221	Carbon brush without plastic cover (pkg of 2)	1
3	275-1318	Vacuum motor mounting seal (Tennant Industrial)	1
4	275-0093	WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial)	5
5	999-0507	Bolt M6-1 x 16mm hex head full thread plain finish	5
6	275-7695	Hose clamp (Tennant Industrial)	1
7	275-1319	Vacuum motor muffler (Tennant Industrial)	1
8	275-1320	Vacuum motor gasket (Tennant Industrial)	1
9	275-1321	Acoustic insulation (Tennant Industrial)	1
10	275-1322	Fan housing mounting bracket (Tennant Industrial)	1
11	175-7920	Washer M8 flat stainless steel	3
12	999-9092	Screw M8-1.25 x 20mm hex head stainless steel	3
13	175-2202	Nylon wire tie	1
14	275-7799	Fastener	1
15	275-1323	Housing stiffener bracket (Tennant Industrial)	1
16	175-2009	WASHER, SEALING, 0.28B 0.75D SS, NEO	2
17	999-1312	Screw M6-1 x 20mm hex head stainless steel	2
18	375-6018	Vacuum harness	1
19	999-1053	Washer 5/16 internal star lock stainless steel	1
20	999-1312	Screw M6-1 x 20mm hex head stainless steel	2
21	175-4544	Washer M6 locking	2
22	999-0497	Nut M6-1 nylon insert lock stainless steel	2
23	575-0329	INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial)	2

Wheels and Directional Pedal Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	999-1372	Bolt M10-1.5 x 25mm hex head stainless steel	3
2	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	3
3	775-0457	36V 250 mm drive wheel with encoder	1	(includes N/S)
N/S	775-0458	Wheel motor brush kit	1
4a	275-2734	Drive wheel control assembly (Tennant Industrial)	1	(Before SN 010041)
4b	275-2734	Drive wheel control assembly (Tennant Industrial)	1	(After SN 010040)
5	275-2810	SLEEVE, NYL, 1.22ID 35.0L (Tennant Industrial)	1
6	175-9979	Clamp (Tennant Industrial)	3
7	999-1415	Screw M8-1.25 x 12mm hex head stainless steel	2
8	175-3171	Cable clamp	1
9	999-0016	Washer 1/4 flat plain finish	1
10	999-0497	Nut M6-1 nylon insert lock stainless steel	1
11	999-1312	Screw M6-1 x 20mm hex head stainless steel	1
12	275-7559	Retaining ring (Tennant Industrial)	2
13	275-7558	Tire assembly (urethane) (Tennant Industrial)	2	(includes 14-15)
14	275-2739	Hub cap	1
15	375-4062	Ball bearing (Tennant Industrial)	2
17	175-0536	Bolt M6-1 x 20mm hex head thread forming	1
18	999-0024	Washer 5/16 flat stainless steel	2
19	475-8612	SCREW, HEX, M12 X 1.75 X 45, 10.9 (Tennant Industrial)	4
20	999-1346	Washer M12 flat stainless steel	4
21	775-0460	Propel electrical harness	1
22	275-7561	Support rod	1
23	475-8076	SCREW, SOC, M10 X 1.50 X 45, 12.9 (Tennant Industrial)	1
24	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	1
25	275-9799	Bushing	1
26	275-9358	Pedal assembly	1	(includes 27-30)
27	275-7039	Hall sensor	1
28	275-9360	Extension spring	1
29	275-7040	Extension spring (Tennant Industrial)	2
30	475-3183	PEDAL, FOOT, W/ TREAD	2
31	275-9575	SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial)	3
32	775-0461	Foot guard plate	1
33	275-4736	Screw M8-1.25 x 20mm hex washer head stainless steel SEMS	2
34	375-7723	Traction encoder cable	1
35	575-0368	INDUCTOR, 32.5MML [FERRITE 25-300MHZ] (Tennant Industrial)	1

Wire Harness Assembly

Click to enlarge

#	Part	Description	Req	Notes
N/S	775-0505	Chassis electrical harness	1
N/S	775-0506	Column electrical harness	1
N/S	775-0414	Seat switch harness	1
N/S	775-0507	Key switch electrical harness	1
N/S	375-7690	Harness	1
N/S	775-0460	Propel electrical harness	1
N/S	775-0508	Upper AMR harness	1	Requires Tennant True service or an authorized Tennant service provider.
N/S	375-5633	Lower AMR harness kit	1	Requires Tennant True service or an authorized Tennant service provider.
N/S	375-5632	AMR power harness kit	1	Requires Tennant True service or an authorized Tennant service provider.
N/S	775-0509	Electrical harness	1
