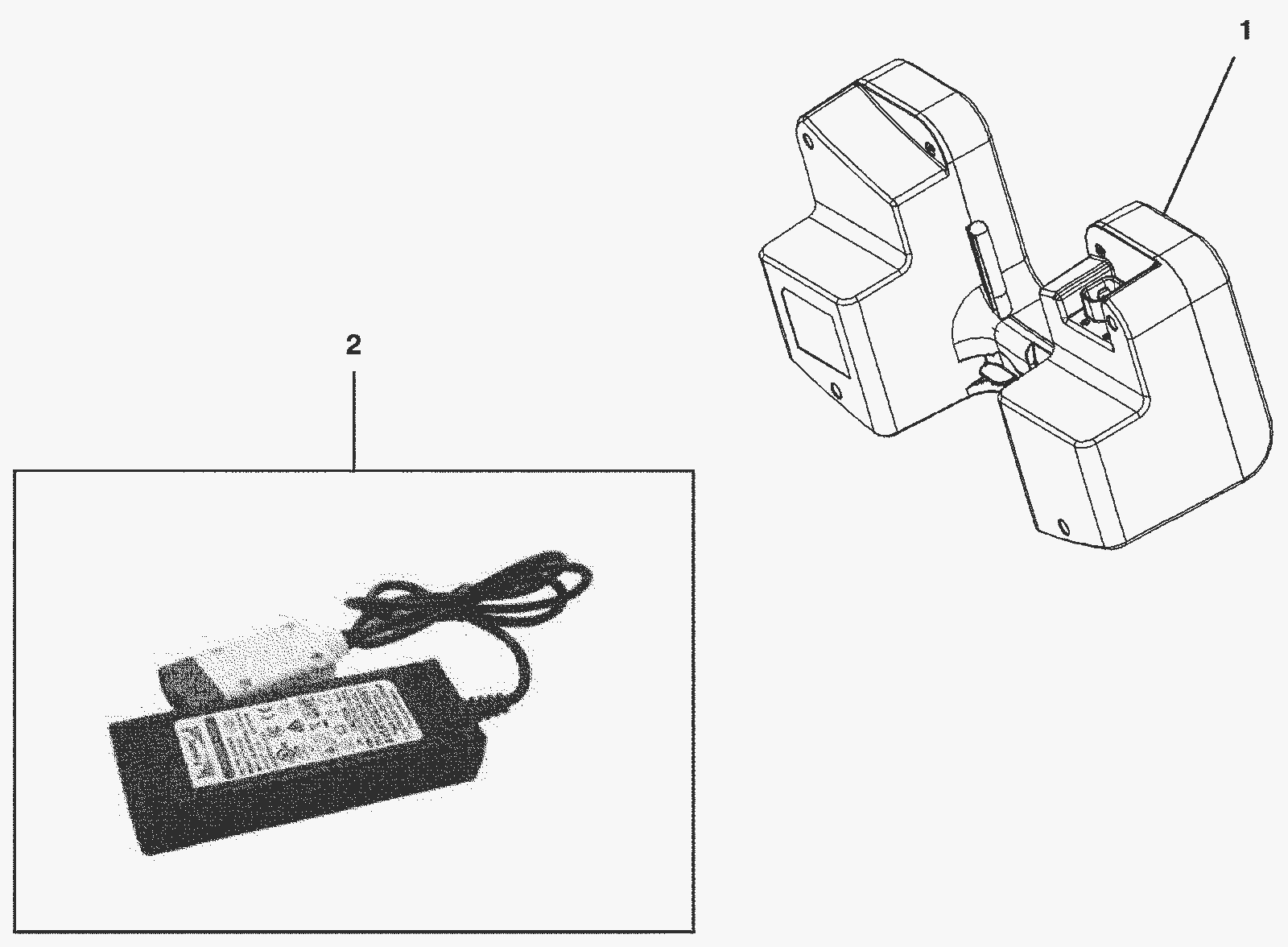

Battery and Charger Assembly

#PartDescription ReqNotesAvailability
1 775-0272 Battery 1
2 775-0273 Battery charger 1

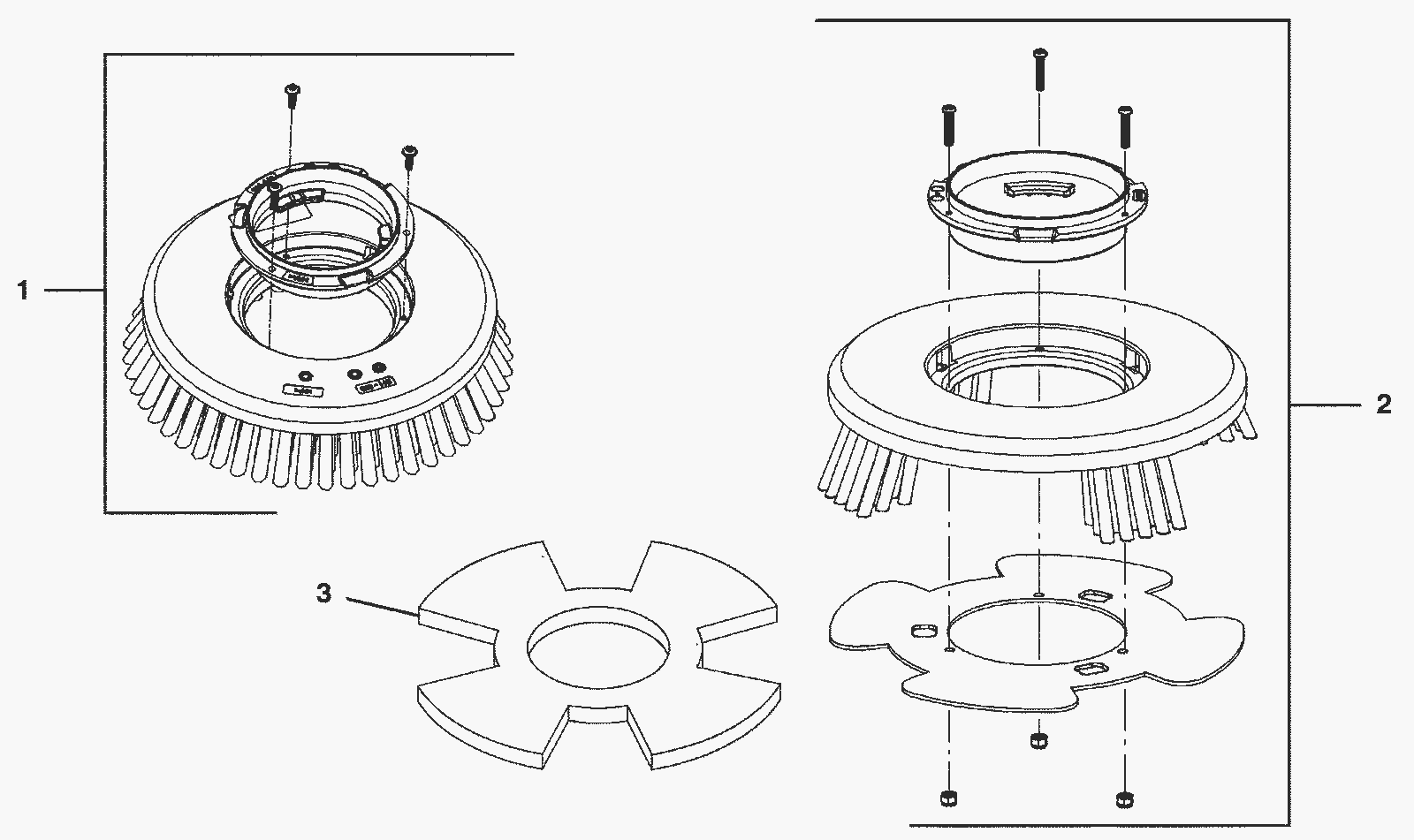

Brush, Pad Driver, and Pads Assembly

#PartDescription ReqNotesAvailability
1a 775-0131 Brush soft (light blue) (pkg of 2) 1
1b 775-0132 Brush medium (blue) (pkg of 2) 1
1c 775-0133 Brush hard (red) (pkg of 2) 1
2 675-9762 PAD, DRIVER, 7 (LITE QTY 2) 1
3a 775-0134 Pad aggressive (black) (pkg of 2) 1
3b 775-0135 Pad regular (red) (pkg of 2) 1
3c 775-0136 Pad buffing (white) (pkg of 2) 1
3d 775-0137 Pad aggressive (green) (pkg of 2) 1
3e 775-0138 Pad heavy (blue) (pkg of 2) 1
3f 775-0139 Pad aggressive (black) (pkg of 10) 1
3g 775-0140 Pad regular (red) (pkg of 10) 1
3h 775-0141 Pad buffing (white) (pkg of 10) 1
3i 775-0142 Pad aggressive (green) (pkg of 10) 1
3j 775-0143 Pad heavy (blue) (pkg of 10) 1

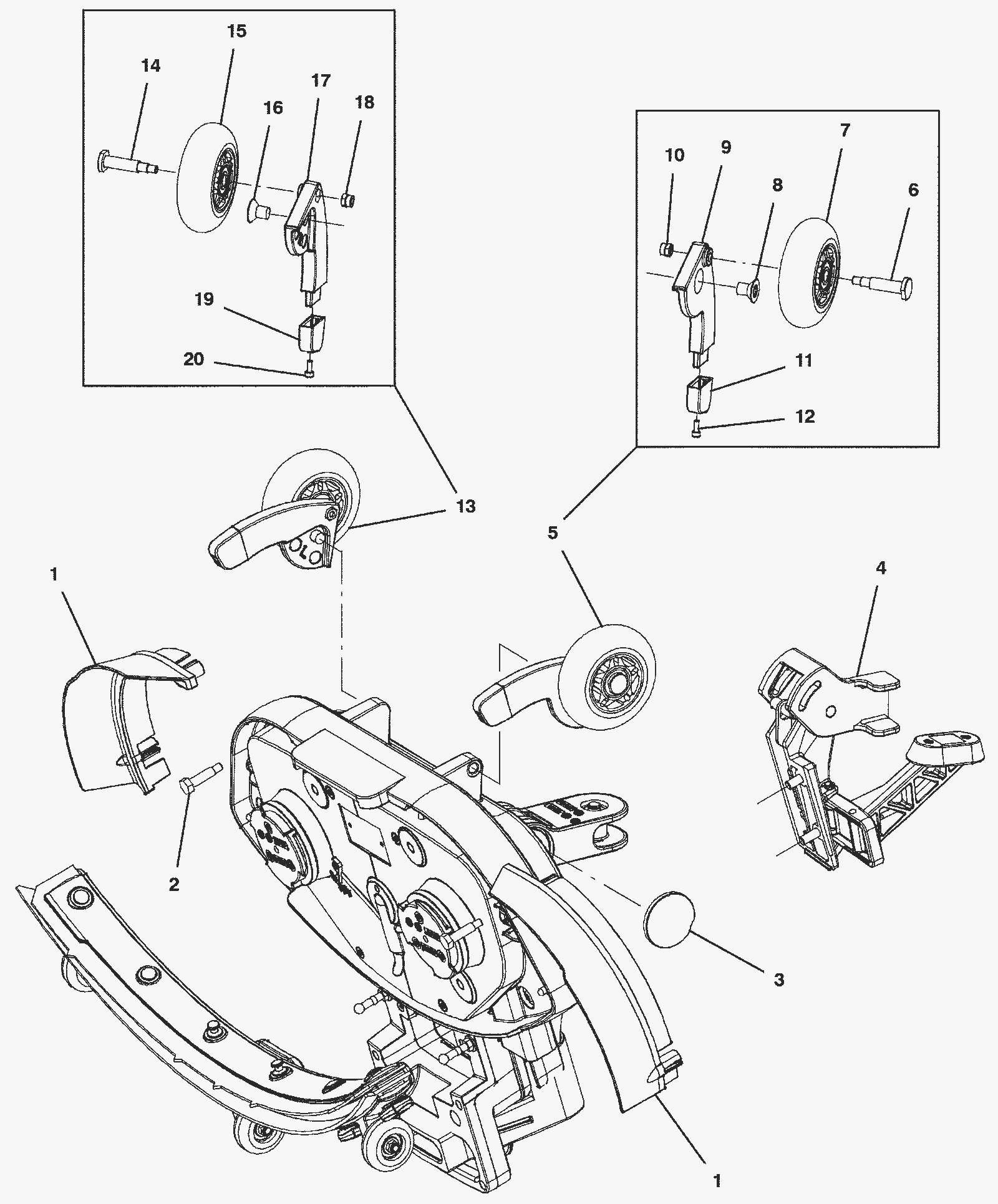

Caster Wheel Assembly

#PartDescription ReqNotesAvailability
1 775-0201 Splash guard set (pkg of 2) 1
2 775-0202 Scrub head fixation pin (pkg of 2) 1
3 775-0203 Main hinge cover 2
4 675-9786 Stand support assembly 1
5 775-0204 Left hand transport caster kit 1 (includes 6-12)
6 775-0205 Bolt 1
7 775-0206 Transport wheel (white) 1
8 775-0207 Bolt M8 x 12mm counter sunk 1
9 775-0208 Left hand transport wheel pillar 1
10 775-0209 Nut M5 1
11 775-0210 Left hand transport pillar cap 1
12 775-0211 Screw M3 x 8mm round cap head 1
13 775-0212 Right hand transport caster kit 1 (includes 14-20)
14 775-0205 Bolt 1
15 775-0206 Transport wheel (white) 1
16 775-0207 Bolt M8 x 12mm counter sunk 1
17 775-0213 Right hand transport wheel pillar 1
18 775-0209 Nut M5 1
19 775-0214 Right hand transport pillar cap 1
20 775-0211 Screw M3 x 8mm round cap head 1

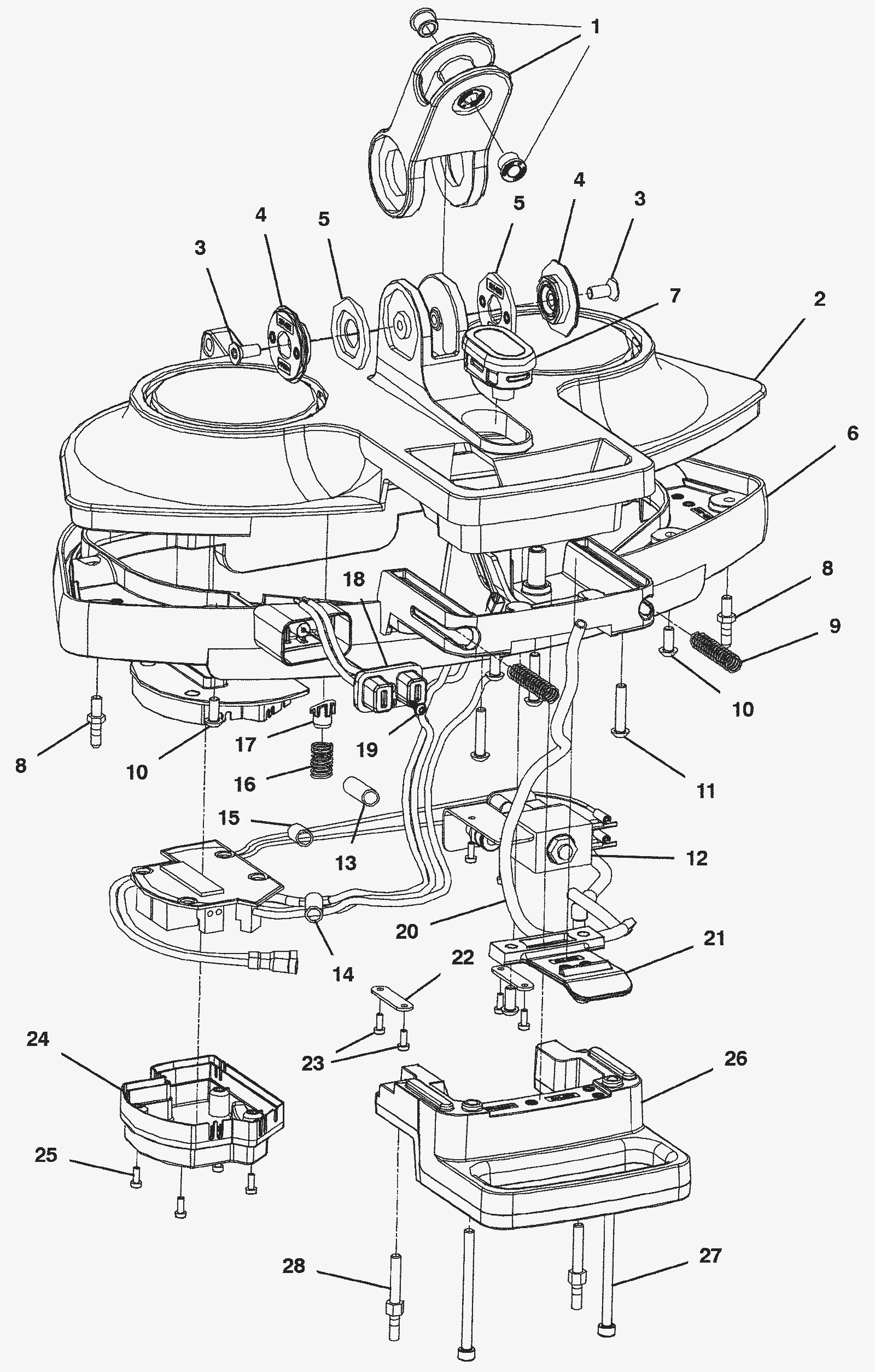

Floor Unit Assembly

#PartDescription ReqNotesAvailability
1 775-0124 HINGE, ASSY, MAIN [LITE] 1
2 775-0249 Main floor unit cover (grey) 1
3 775-0250 Screw M6 x 14mm counter sunk 2
4 775-0251 Brush bearing 2
5 775-0252 Disc bearing 2
6 775-0253 Protection bumper 1
7 775-0254 Park stop assembly magnet 1
8 775-0255 Fixation pin 4
9 775-0256 Compression spring 2
10 775-0257 Screw M5 x 12mm round head 5
11 775-0258 Screw M5 x 25mm round head 3
12 775-0125 CIRCUITBOARD/SOLENOID ASSY [I-MOP LITE] 1
13 N/A Not available 1 (magnetic ring valve lead wire v1)
14 N/A Not available 2 (magnetic ring signal cable bk20231)
15 N/A Not available 2 (magnetic ring battery lead wire b5h)
16 775-0259 Spring 1
17 775-0260 Spring support 1
18 775-0261 Contact 1 (includes 19)
19 775-0197 Screw 30 x 10mm 1
20 775-0127 HOSE, WATER, MAIN [LITE] 1
21 675-9799 Battery clip holder 1
22 775-0262 Cable holder plate 2
23 775-0263 Screw M5 x 8mm socket head torx 4
24 775-0264 Electrical box cover (white) 1
25 775-0257 Screw M5 x 12mm round head 4
26 775-0126 HANDLE, LIFT, SCRUBHEAD [I-MOP LITE] 1
27 775-0265 Screw M5 x 65mm socket head torx 2
28 775-0266 Fixation pin 2

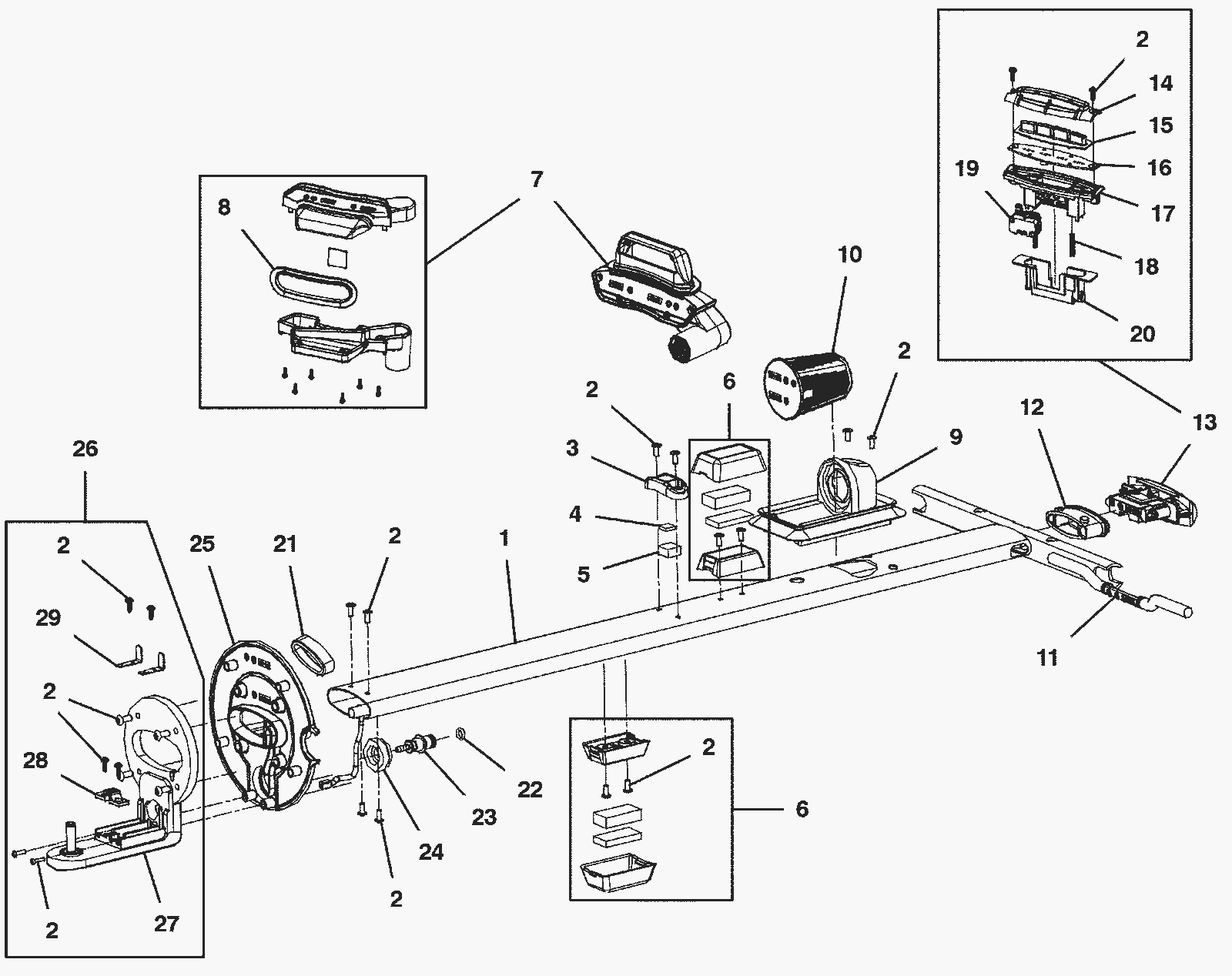

Handle Assembly - 1

#PartDescription ReqNotesAvailability
1 775-0144 Handle tube 1
2 775-0145 Handle hardware set 1
3 775-0146 Hose connector holder (yellow) 1
4 775-0147 Washer 1
5 775-0148 Block magnet 1
6 675-9803 Tank retainer magnet 2
7 775-0150 Hose assembly connector 1 (includes 8)
8 775-0120 SEAL,CONNECTOR,HOSE [I-MOP,LITE] 1
9 775-0151 Top float seal 1
10 775-0152 Ball float filter assembly 1
11 675-9775 Trigger controller 1
12 775-0153 Rubber tube 1
13 775-0154 Controller assembly 1 (includes 14-20)
14 775-0155 Key pad control frame (white) 1
15 775-0156 Key pad control 1
16 775-0157 pcb 1
17 775-0158 Control unit pcb frame 1
18 775-0159 Compression spring 2
19 775-0160 Power assembly control switch 1
20 775-0161 Handle control frame 1
21 775-0121 ADAPTER,SEAL,TUBE,MAIN,GRY [LITE] 1
22 775-0162 O-ring 1
23 775-0163 Male connector pin 1
24 775-0164 Male connector rubber 1
25 775-0165 Main tube adapter 1
26 675-9804 Hinge bracket assembly 1 (includes 27-29)
27 775-0166 Hinge bracket (grey) 1
28 775-0167 Hinge cover bracket (grey) 1
29 775-0168 Vacuum motor contact 2

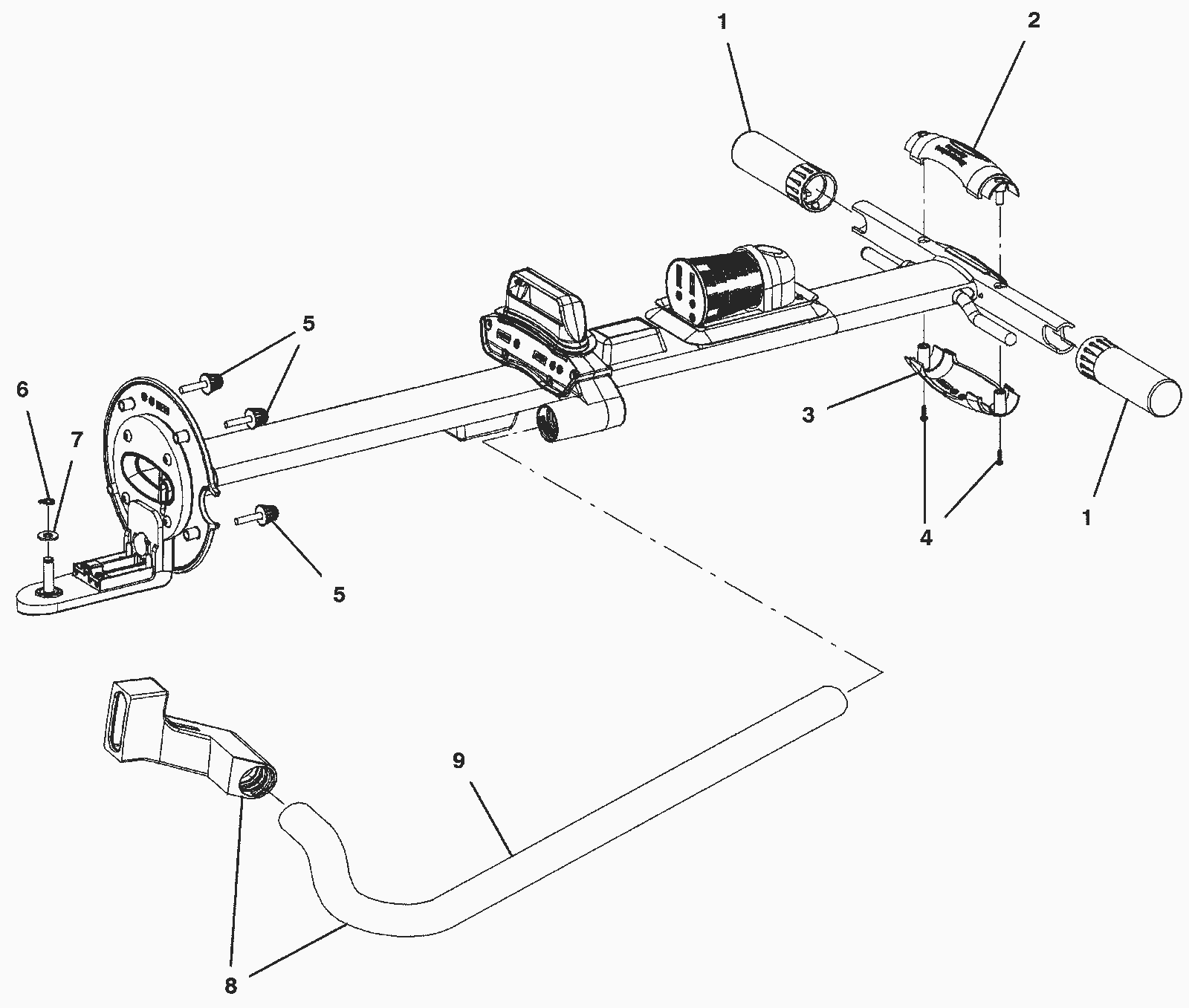

Handle Assembly - 2

#PartDescription ReqNotesAvailability
1 775-0169 Handle grip 2
2 775-0170 Main tube front cover (teal) 1
3 775-0171 Main tube rear cover (teal) 1
4 775-0145 Handle hardware set 2
5 775-0172 Vacuum motor mounting screw 4
6 775-0173 Clip 1
7 775-0174 Washer 1
8 775-0175 Squeegee hose assembly 1 (includes 9)
9 775-0176 Squeegee hose 1
N/S 775-0177 TOOL,F/SCREW,VAC FAN 1

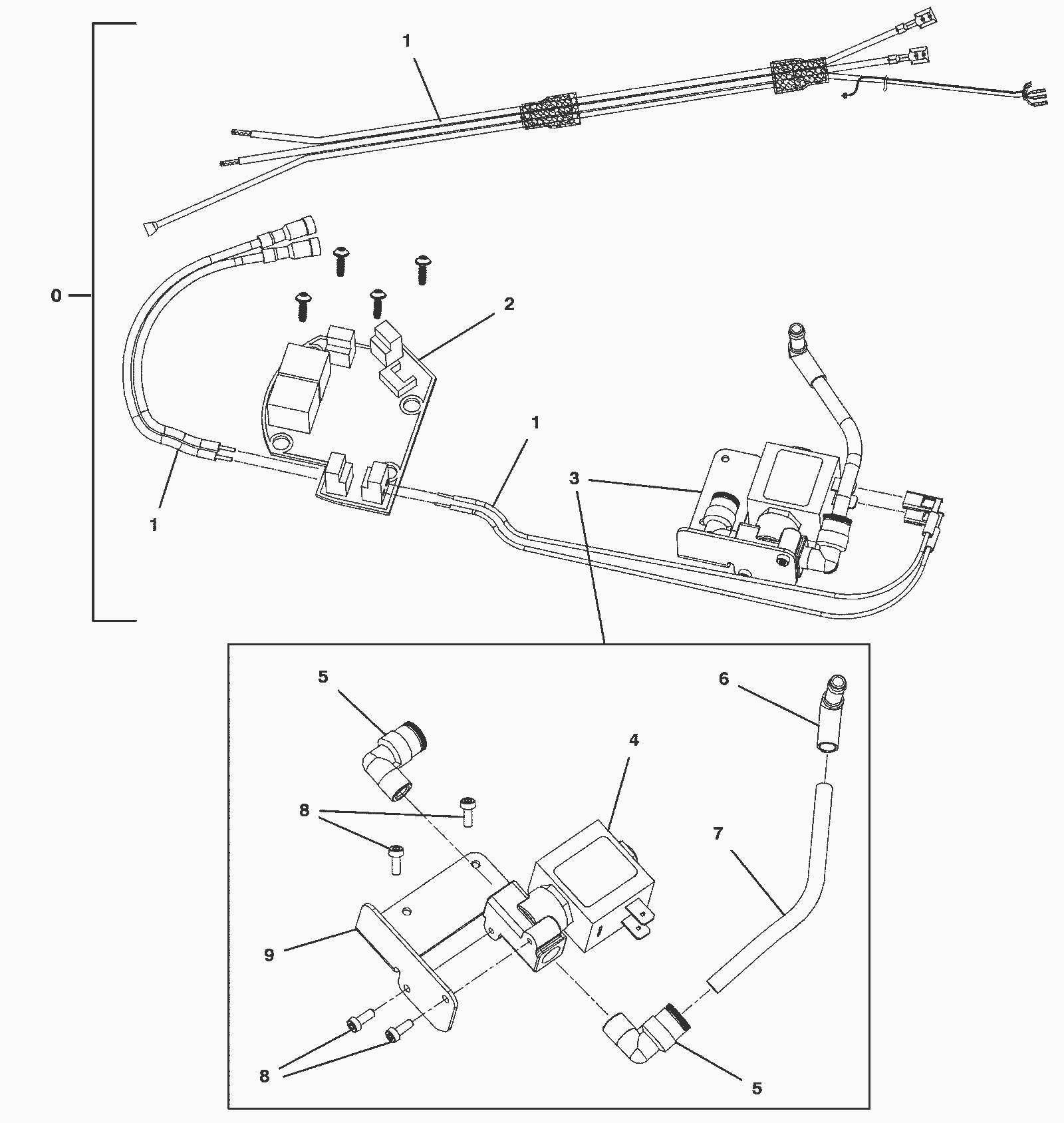

PCB and Solenoid Assembly

#PartDescription ReqNotesAvailability
0 775-0125 CIRCUITBOARD/SOLENOID ASSY [I-MOP LITE] 1 (includes 1-9)
1 775-0267 Wiring set 1
2 775-0268 PCB 1
3 775-0269 Solenoid assembly 1 (includes 4-9)
4 775-0270 Solenoid valve 1
5 N/A Not available 2 (elbow fitting) (only available in 0 or 3)
6 775-0271 90 degree plastic elbow fitting 1
7 N/A Not available 1 (external hose) (only available in 0 or 3)
8 N/A Not available 4 (screw M5 x 8mm socket cap head torx) (only available in 0 or 3)
9 N/A Not available 1 (fixation plate) (only available in 0 or 3)

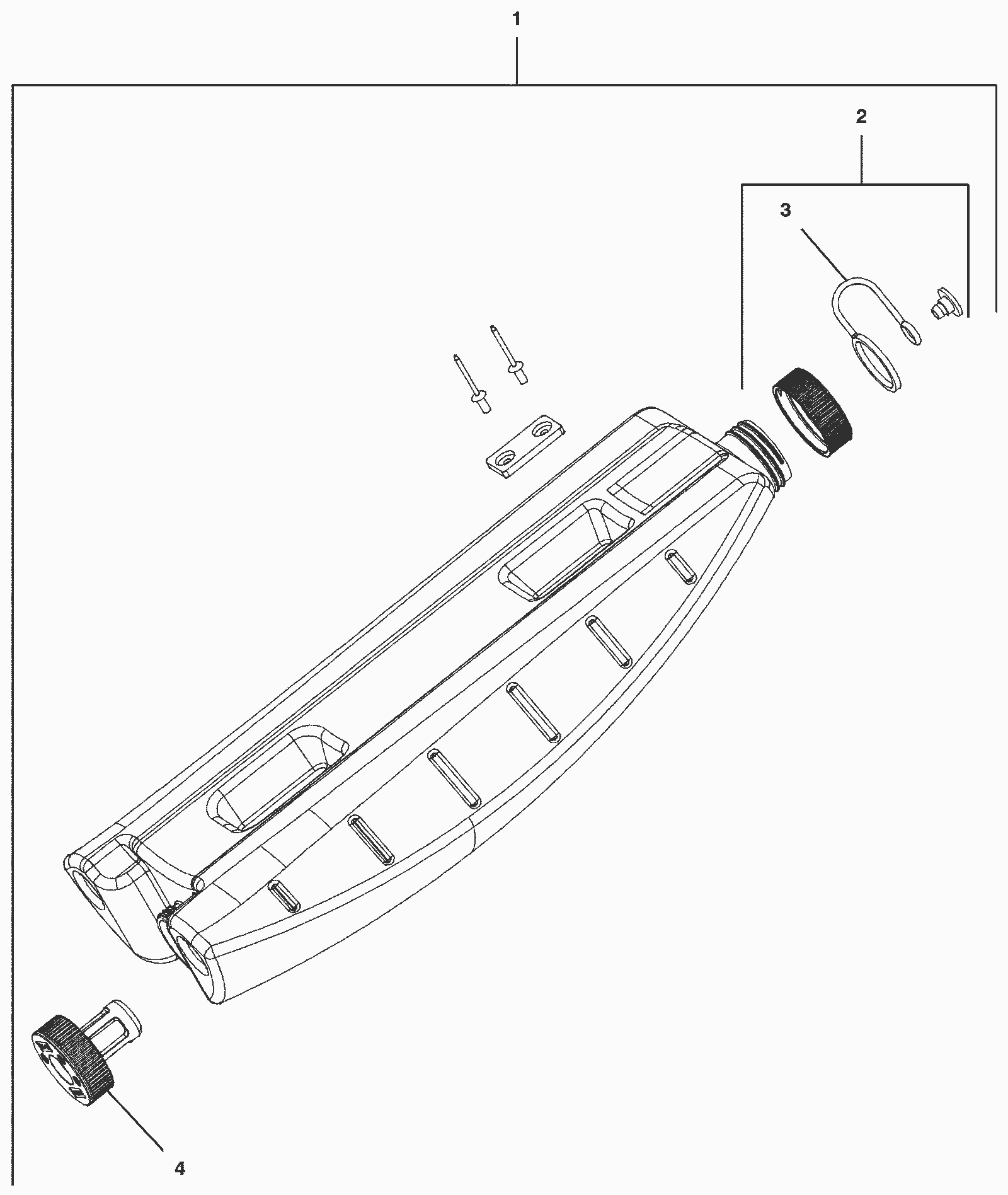

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 775-0180 Recovery tank 1 (includes 2-3)
2 375-4105 Recovery tank cap kit 1 (includes 3)
3 775-0181 Cap holder 1

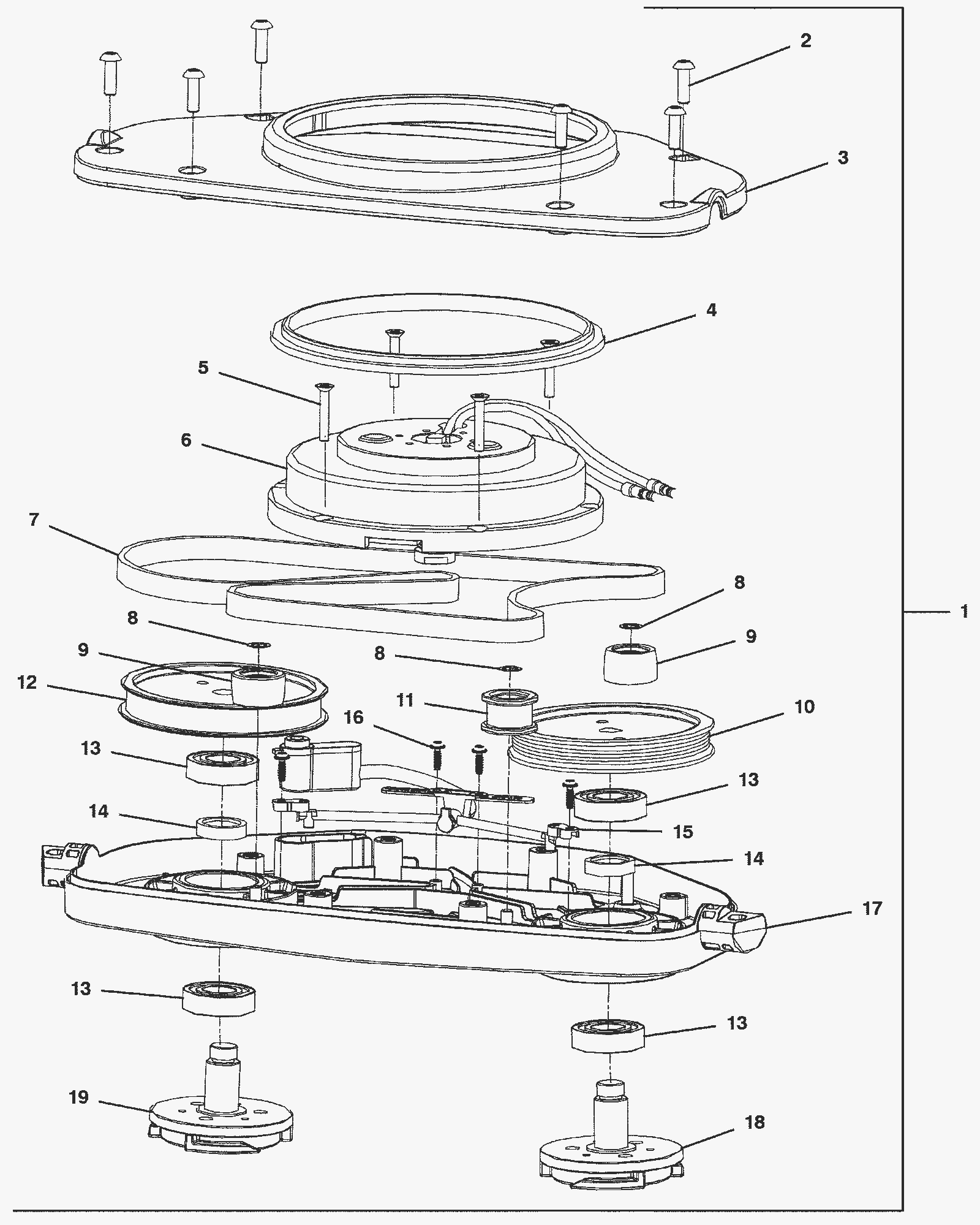

Scrub Head Assembly

#PartDescription ReqNotesAvailability
1 775-0117 Scrubber head assembly 1 (includes 2-19)
2 775-0183 Screw M5 x 16mm round cap head 6
3 775-0184 Drive module cover (grey) 1
4 775-0185 Drive motor rubber gasket 1
5 775-0186 Bolt M4 x 25mm counter sunk 4
6 775-0187 Brush drive motor 2
7 775-0188 Brush head drive belt 1
8 775-0189 Self-locking ring 3
9 775-0190 Idler pulley type c 2
10 775-0191 Drive pulley 1
11 775-0192 Idler pulley type b 1
12 775-0193 Drive pulley 1
13 775-0194 Coupling bearing 2
14 775-0195 Bearning support ring 2
15 775-0196 Water distributor assembly 1
16 775-0197 Screw 30 x 10mm 4
17 775-0198 Chassis (grey) 1
18 775-0199 Left hand brush coupling assembly 1
19 775-0200 Right hand brush coupling assembly 1

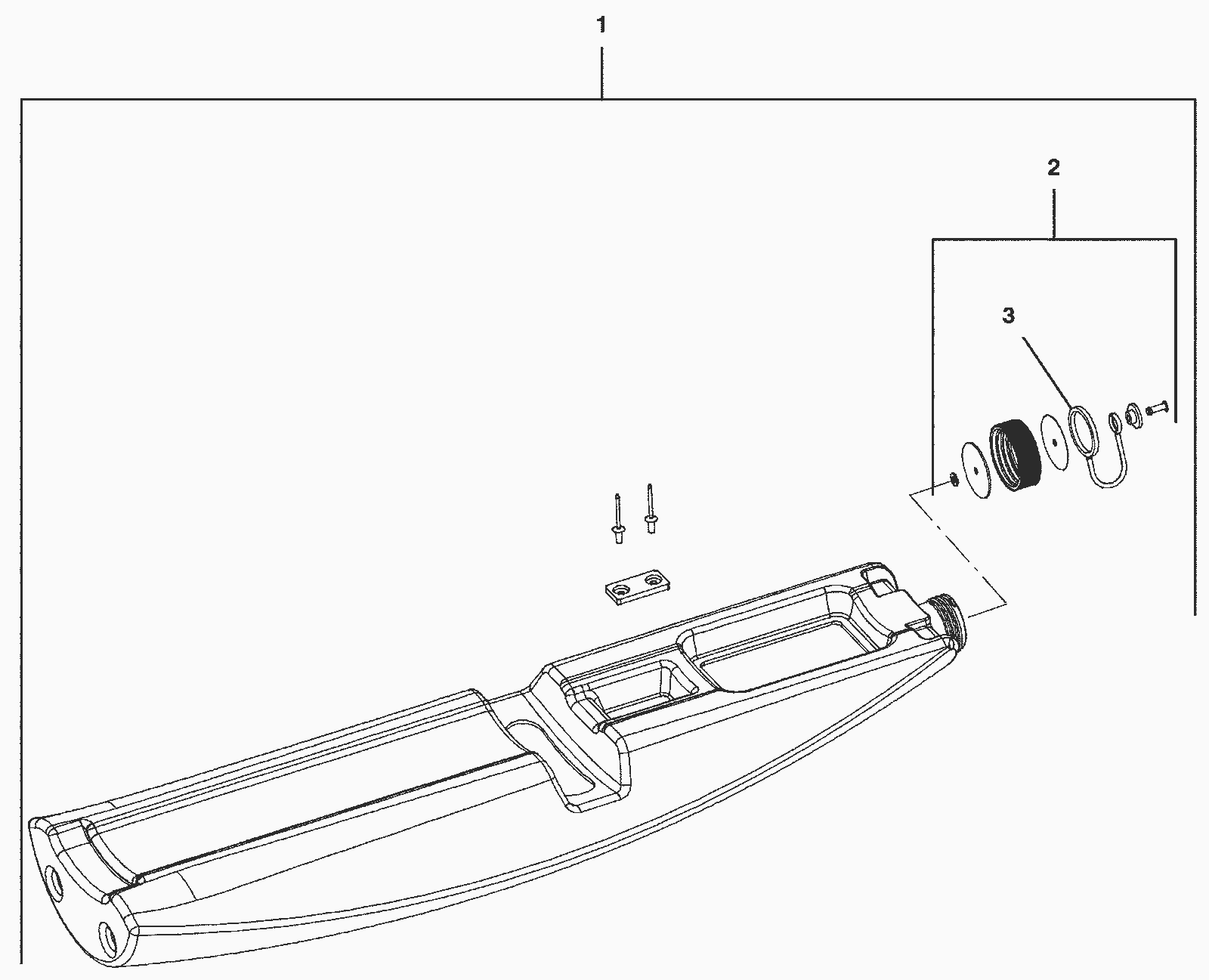

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 675-9783 Fresh water tank 1 (includes 2-4)
2a 375-4122 Solution tank cap (blue) 1 (includes 3, standard)
2b 375-4123 Solution tank cap (red) 1 (optional)
2c 375-4124 Solution tank cap (yellow) 1 (optional)
2d 375-4125 Solution tank cap (green) 1 (optional)
3 775-0181 Cap holder 1
4 775-0182 Solution tank filter assembly 1

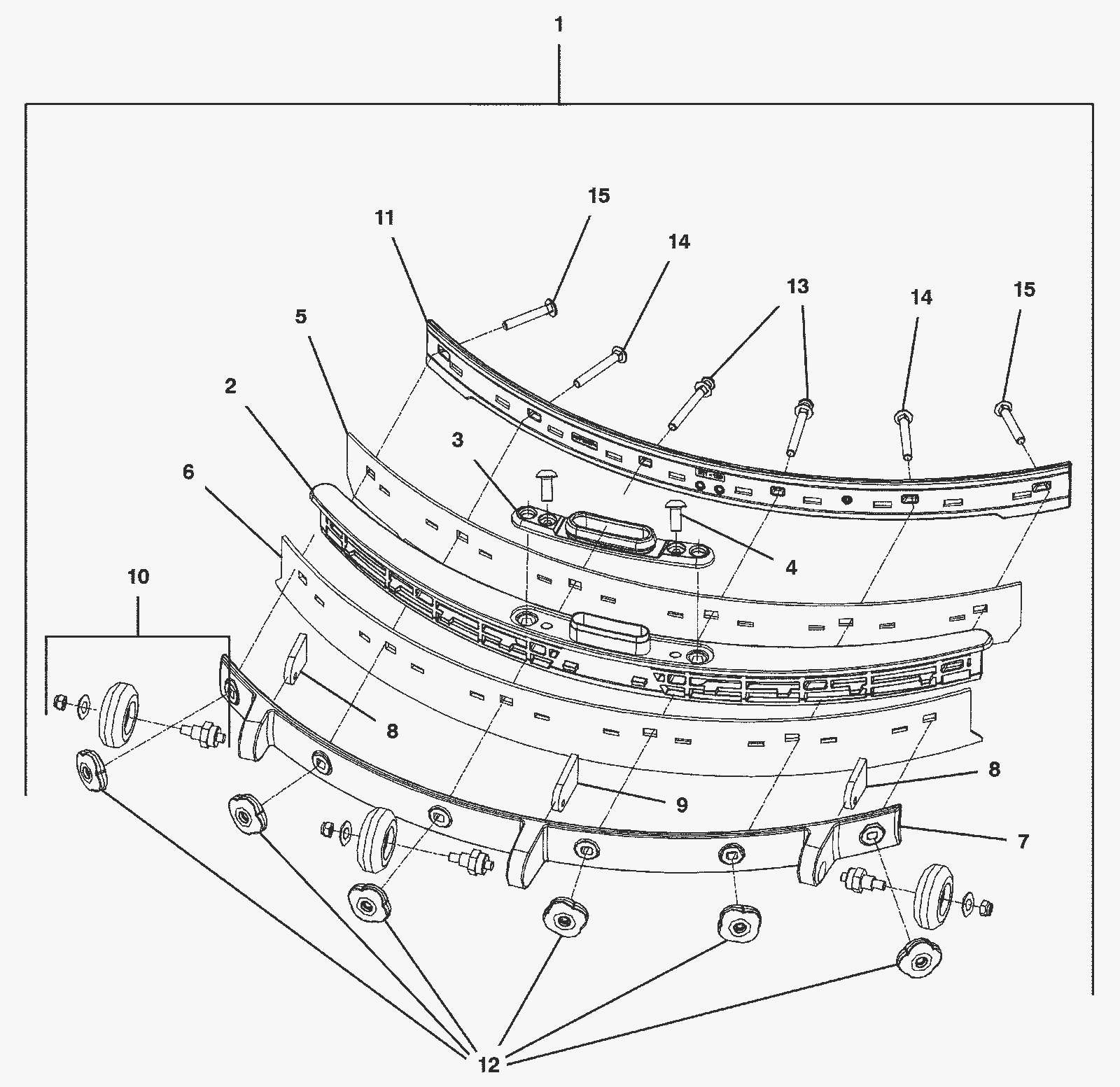

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 775-0233 Squeegee assembly 1 (includes 2-15)
2 775-0234 Main squeegee housing (grey) 1
3 775-0235 Squeegee bracket (grey) 1
4 775-0145 Handle hardware set 1
5a 775-0236 Squeegee blade linatex front 1 (standard)
5b 775-0237 Squeegee blade primo front 1 (optional)
6a 775-0238 Squeegee blade linatex rear 1 (standard)
6b 775-0239 Squeegee blade primo rear 1 (optional)
7 775-0240 Rear squeegee housing (grey) 1
8 775-0241 Short caster bracket 2
9 775-0242 Long caster bracket 1
10 775-0243 Squeegee caster assembly (pkg of 3) 3
11 775-0244 Front squeegee housing (grey) 1
12 775-0245 Squeegee retainer knob kit (pkg of 6) 1
13 775-0246 Bolt large 2
14 775-0247 Bolt medium 2
15 775-0248 Bolt small 2

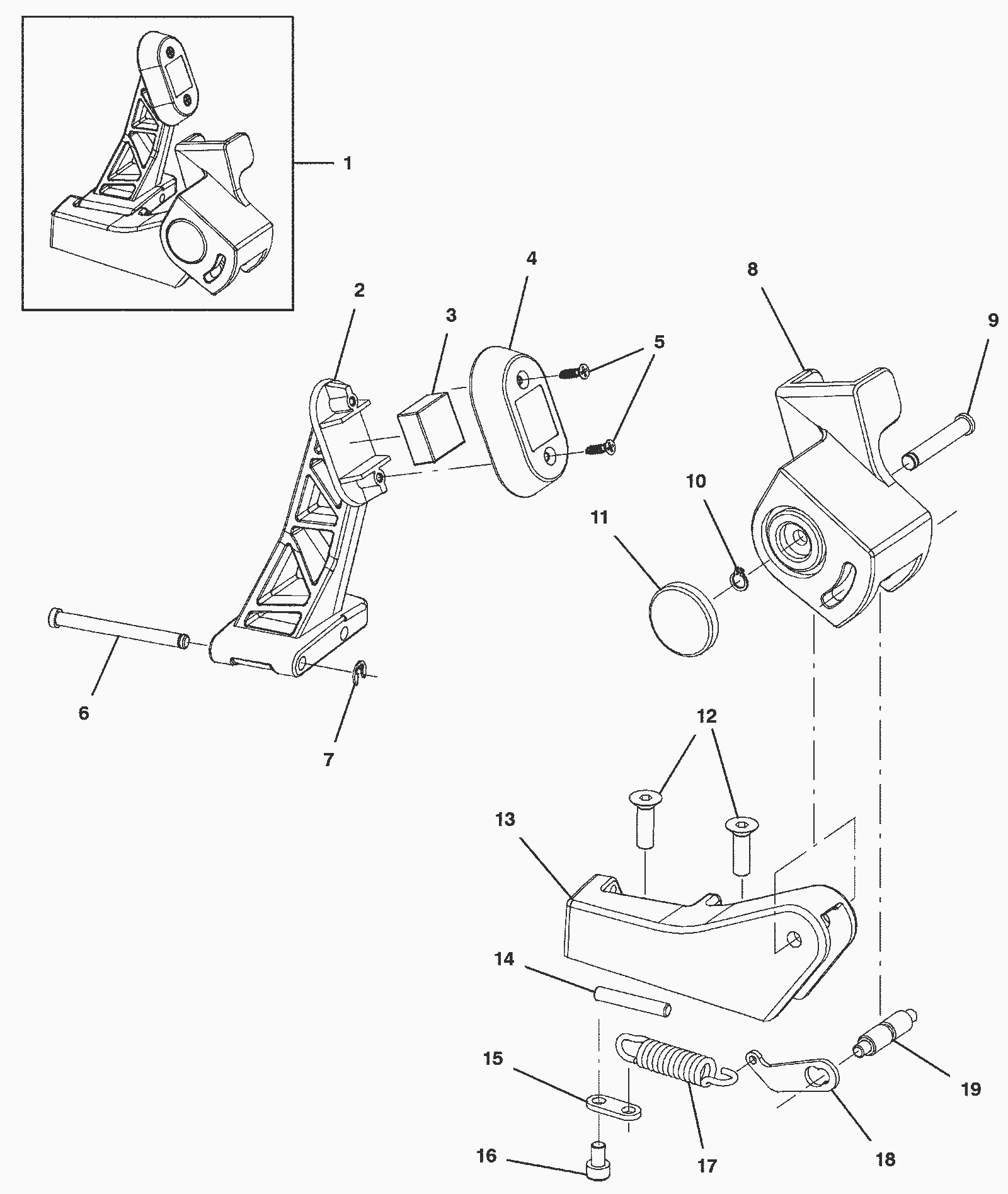

Support System Assembly

#PartDescription ReqNotesAvailability
1 675-9786 Stand support assembly 1 (includes 2-19)
2 775-0215 Support system assembly lever 1
3 775-0216 Small top unit magnet 1
4 775-0217 Support system cap (yellow) 1
5 775-0218 Screw 3 x 10 self-tapping counter sunk 2
6 775-0219 Pin shaft 1
7 775-0220 External clip 1
8 775-0221 Support system holder (grey) 1
9 775-0222 Holder pin shaft 1
10 775-0223 External clip 1
11 775-0224 Painted round cover (light grey) 1
12 775-0225 Screw M6 x 20mm cap counter sunk 2
13 775-0226 Support system bracket 1
14 775-0227 Lever axis 1
15 775-0228 Spring support 1
16 775-0229 Bolt M5 x 8mm hex head socket stainless steel 1
17 775-0230 Support system spring 1
18 775-0231 Spring axis bracket 1
19 775-0232 Spring axis 1

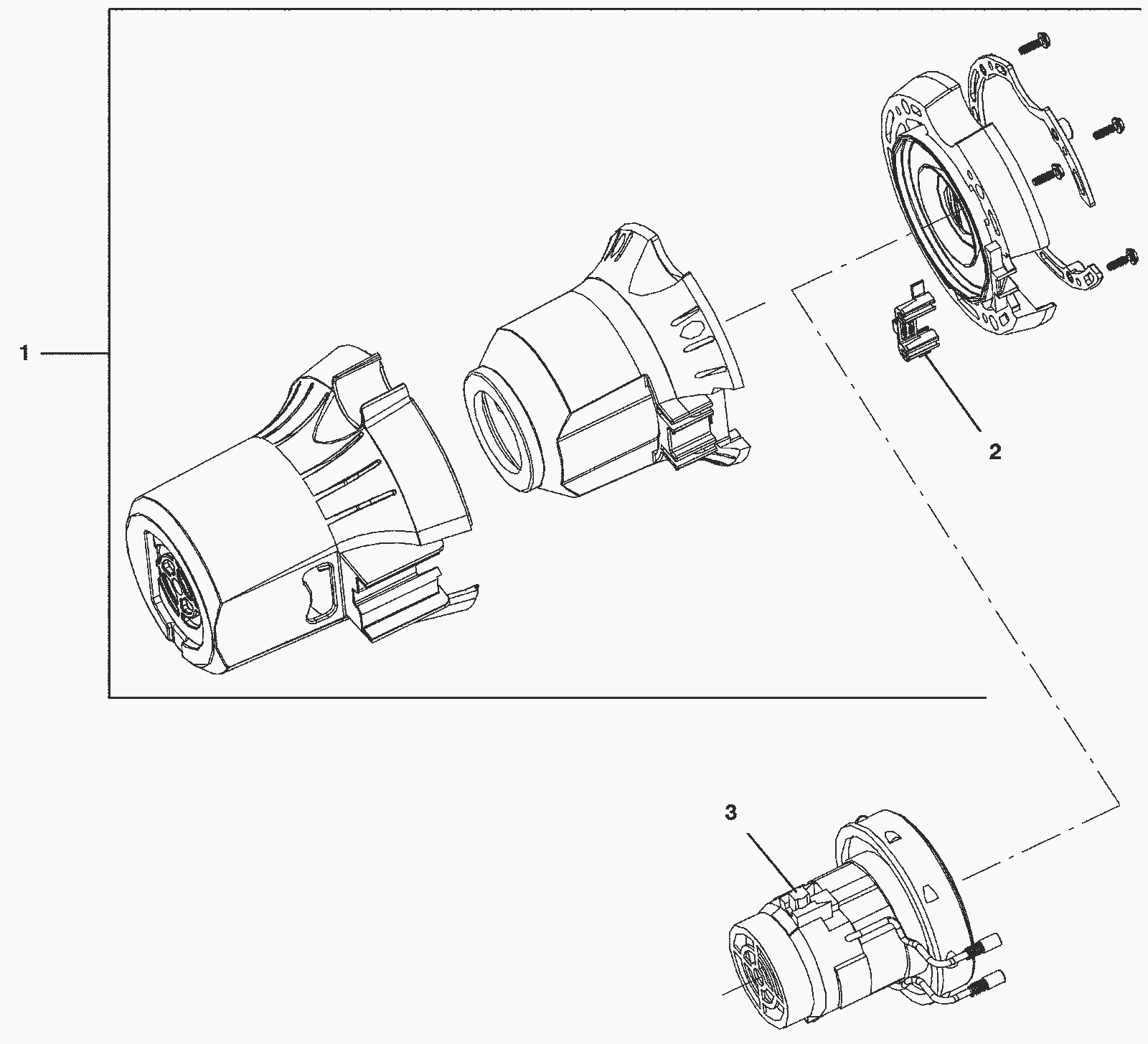

Vacuum Motor Assembly

#PartDescription ReqNotesAvailability
1 775-0178 Vacuum motor housing assembly 1 (includes 2)
2 775-0179 Motor contact block 1
3 675-9812 Vacuum motor 1
