- Commonly Asked For Parts

#PartDescription ReqNotesAvailability
01 220-0447 Nozzle support
02 220-0417 Spring with antidrop valve
03 220-0304 Nozzle
04 220-0448 Locking nut
05 220-0418 Complete manifold
06 220-0449 Manifold
07 220-0035 Male fitting
08 193-0120 Switch 2 (vac and brush)
09 220-0423 3 position switch 1 (pump)

- Extractor Fit All Parts

#PartDescription ReqNotesAvailability
001a 991-8000 12 inch stainless head wand, 1 jet 120 PSI plastic valve (wands)
001b 991-8001 12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) (wands)
001c 991-8002 12 inch aluminum head wand, 3 jet, 120 PSI plastic valve (wands)
001d 991-8227 500psi brass valve (wands)
002a 991-8222 30 inch stair wand (open spray) (stair wand)
002b 991-8223 30 inch swivel head ergonomic stair wand (open spray) (stair wand)
004 991-8129 Handle 1-1/2 inch low profile comfort grip assist (wands)
005a 991-8128 120 PSI, acetel plastic valve, low heat 140 degrees (wands)
005b 991-8127 120 PSI, brass valve, stainless steel stem (wands)
005c 991-8226 Valve
005d 991-8171 400psi cast aluminum valve
007 991-8130 3-1/2 inch wide 120 PSI standard detailer, external spray (wands)
008 991-8132 10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
009 991-8133 20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
010 991-8136 10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml (hose assemblies and parts)
011 991-8137 20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml (hose assemblies and parts)
012 991-8134 10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi (hose assemblies and parts)
013 991-8135 20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings (hose assemblies and parts)
014 991-8138 10ft 100psi vac/sol hose assembly w/ 1/4 male fittings (hose assemblies and parts)
015 991-8139 20ft 100psi vac/sol hose assembly with male fittings (hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI)
016 991-8142 10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
017 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
018 991-8140 10ft 100psi vac/sol hose assembly w/ 1/4 female fittings (hose assemblies and parts)
021 991-8286 1 1/2 inch vacuum hose (sold by the foot) (hose assemblies and parts)
022 991-8005 1 1/2 inch replacement hose cuff (black) (hose assemblies and parts)
023 991-8131 1 1/2 inch hide-a-hose cuff (no swivel) (hose assemblies and parts)
026 991-8045 1/8 inch brass vee jet 8001 (1/8 brass vee jet)
027 991-8046 1/8 inch brass vee jet 8001.5 (1/8 brass vee jet)
028 991-8047 1/8 inch brass vee jet 8002 (1/8 brass vee jet)
029 991-8048 1/8 inch brass vee jet 8003 (1/8 brass vee jet)
030 991-8049 1/8 inch brass vee jet 8004 (1/8 brass vee jet)
031 991-8050 1/8 inch brass vee jet 8005 (OBSOLETE) (1/8 brass vee jet)
032 991-8051 1/8 inch brass vee jet 8006 (1/8 brass vee jet)
033 991-8052 1/8 inch brass vee jet 8008 (1/8 brass vee jet)
034 991-8053 1/8 inch brass vee jet 8010 (1/8 brass vee jet)
035 991-8054 1/8 inch brass vee jet 9502 (1/8 brass vee jet)
036 991-8055 1/8 inch brass vee jet 9503 (1/8 brass vee jet)
037 991-8056 1/8 inch brass vee jet 9504 (1/8 brass vee jet)
038 991-8057 1/8 inch brass vee jet 9505 (1/8 brass vee jet)
039 991-8058 1/8 inch brass vee jet 9506 (1/8 brass vee jet)
040 991-8059 1/8 inch brass vee jet 9508 (1/8 brass vee jet)
041 991-8060 1/8 inch brass vee jet 11001 (1/8 brass vee jet)
042 991-8061 1/8 inch brass vee jet 11001.5 (1/8 brass vee jet)
043 991-8062 1/8 inch brass vee jet 11002 (1/8 brass vee jet)
044 991-8063 1/8 inch brass vee jet 11003 (1/8 brass vee jet)
045 991-8064 1/8 inch brass vee jet 11004 (1/8 brass vee jet)
046 991-8065 1/8 inch brass vee jet 11005 (1/8 brass vee jet)
047 991-8066 1/8 inch brass vee jet 11006 (1/8 brass vee jet)
048 991-8067 1/8 inch brass vee jet 11008 (1/8 brass vee jet)
049 991-8068 1/8 inch brass vee jet 11010 (1/8 brass vee jet)
050 991-8021 1/4 inch brass vee jet 8001 (1/4 brass vee jet)
051 991-8022 1/4 inch brass vee jet 8001.5 (1/4 brass vee jet)
052 991-8023 1/4 inch brass vee jet 8002 (1/4 brass vee jet)
053 991-3005 1/4 inch brass vee jet 8003 (1/4 brass vee jet)
054 991-8025 1/4 inch brass vee jet 8004 (1/4 brass vee jet)
055 991-8026 1/4 inch brass vee jet 8005 (1/4 brass vee jet)
056 991-8027 1/4 inch brass vee jet 8006 (1/4 brass vee jet)
057 991-8028 1/4 inch brass vee jet 8008 (1/4 brass vee jet)
058 991-8029 1/4 inch brass vee jet 8010 (1/4 brass vee jet)
059 991-8030 1/4 inch brass vee jet 9502 (1/4 brass vee jet)
060 991-8031 1/4 inch brass vee jet 9503 (1/4 brass vee jet)
061 991-8032 1/4 inch brass vee jet 9504 (1/4 brass vee jet)
062 991-8033 1/4 inch brass vee jet 9505 (1/4 brass vee jet)
063 991-8034 1/4 inch brass vee jet 9506 (1/4 brass vee jet)
064 991-8035 1/4 inch brass vee jet 9508 (1/4 brass vee jet)
065 991-8036 1/4 inch brass vee jet 11001 (1/4 brass vee jet)
066 991-8037 1/4 inch brass vee jet 11001.5 (1/4 brass vee jet)
067 991-8038 1/4 inch brass vee jet 11002 (1/4 brass vee jet)
068 991-8039 1/4 inch brass vee jet 11003 (1/4 brass vee jet)
069 991-8040 1/4 inch brass vee jet 11004 (1/4 brass vee jet)
070 991-8041 1/4 inch brass vee jet 11005 (OBSOLETE) (1/4 brass vee jet)
071 991-8042 1/4 inch brass vee jet 11006 (1/4 brass vee jet)
072 991-3006 1/4 inch brass vee jet 11008 (1/4 brass vee jet)
073 991-8044 1/4 inch brass vee jet 11010 (1/4 brass vee jet)
074 991-8069 1/4 inch stainless vee jet 8001 (1/4 stainless vee jet)
075 991-8070 1/4 inch stainless vee jet 8002 (1/4 stainless vee jet)
076 991-8071 1/4 inch stainless vee jet 8003 (1/4 stainless vee jet)
077 991-8072 1/4 inch stainless vee jet 8004 (1/4 stainless vee jet)
078 991-8073 1/4 inch stainless vee jet 9501 (1/4 stainless vee jet)
079 991-8074 1/4 inch stainless vee jet 9502 (1/4 stainless vee jet)
080 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless vee jet)
081 991-8076 1/4 inch stainless vee jet 9504 (1/4 stainless vee jet)
082 991-8077 1/4 inch stainless vee jet 11003 (1/4 stainless vee jet)
083 991-8078 1/4 inch stainless vee jet 11004 (1/4 stainless vee jet)
084 991-8079 1/4 inch stainless vee jet 11006 (1/4 stainless vee jet)
085 991-8080 1/4 inch stainless vee jet 11008 (1/4 stainless vee jet)
086 991-8081 1/4 inch stainless/plastic tee jet 8002 (1/4 stainless/plastic tee jet)
087 991-8082 1/4 inch stainless/plastic tee jet 8003 (1/4 stainless/plastic tee jet)
088 991-8083 1/4 inch stainless/plastic tee jet 8004 (1/4 stainless/plastic tee jet)
089 991-8084 1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) (1/4 stainless/plastic tee jet)
090 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless/plastic tee jet)
091 991-8086 1/4 inch stainless/plastic tee jet 9504 (1/4 stainless/plastic tee jet)
092 991-3010 1/4 inch stainless/plastic tee jet 11003 (1/4 stainless/plastic tee jet)
093 991-8088 1/4 inch stainless/plastic tee jet 11004 (1/4 stainless/plastic tee jet)
094 991-8089 1/4 inch stainless/plastic tee jet 11006 (1/4 stainless/plastic tee jet)
095 991-8090 1/4 inch stainless/plastic tee jet 11008 (1/4 stainless/plastic tee jet)
096 991-8091 1/4 inch x 1/8 hex nipple H21
097 991-8092 1/4 inch x 1/4 hex nipple H22
098 991-8093 1/4 inch x 3/8 hex nipple H23
099 991-8094 45 degree street elbow 1/4 inch H24
100 991-8095 45 degree street elbow 1/8 inch H25
101 991-8096 45 degree union elbow 1/4 inch H26
102 991-8098 90 degree street elbow short 1/4 inch H28
103 991-8098 90 degree street elbow short 1/4 inch H28
104 991-8099 90 degree street elbow 1/8 inch H29
105 991-8100 90 degree street elbow short 1/8 inch H30 (OBSOLETE)
106 991-8101 90 degree union elbow 1/4 inch H31
107 991-8102 90 degree union elbow 1/8 inch H32
108 991-8103 30 degree union elbow 1/4 inch H33
109 991-8104 1/4 inch coupling H34
110 991-8105 1/8 inch coupling H35
111 991-8106 1/4 inch adapter H36
112 991-8107 1/8 inch adapter H37
113 991-8108 1/4 inch branch tee H38
114 991-8109 1/8 inch branch tee H39
115 991-8110 1/8 inch tee H40
116 991-8111 7/16 inch stainless steel hose clamp H41
117 997-2002 Hose clamp #6
118 991-8113 Strainer for 1/8 inch vee jets H43
119 991-8114 Strainer for 1/4 inch vee jets H44
120 991-8115 Strainer/check valve for 1/4 inch vee jets H45
121 991-8116 Brass strainer/check valve for tee jets H46
122 991-8117 500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47
123 991-8118 500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48
124 991-8119 500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49
125 991-8120 1/4 inch brass flood jets K1 or K2 H54
126 991-8158 1/4 inch BH2-60 female coupler (mate to QD40)
127 991-8150 1/4 inch BH2-61 male nipple (mate to QD80)
128 991-8144 B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55
129 991-8152 B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15
130 991-8145 B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55
131 991-8153 B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15
132 991-8146 BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65
133 991-8154 B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25
134 991-8147 BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65
135 991-8155 B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25
136 991-8148 Hansen 02 male nipple, mate to QD70
137 991-8156 Quick disconnect socket female to QD30
138 991-8149 1/8 inch male quick disconnect
139 991-8157 1/8 inch female quick disconnect socket
140 991-8151 BH3-61,3/8 inch FPT, Male Nipple, mate to QD85
141 991-8159 BH3-60, 3/8 inch fpt, female coupler, mate to QD45
142 991-8123 Bottom hex nut for Kingston or P valve H57
143 991-8121 1/8 inch brass flood jets K1 or K2 H55
144 991-8124 Inline filter H58
145 991-8122 1/8 inch special brass flood jets for V1245 H56
146 991-8008 120V 50 PSI Flo Jet pump (pumps)
147 991-8009 120V 100 PSI Flo Jet pump (pumps)
148 991-8218 120V 120 PSI pump (pumps)
149 991-8220 1/8 fpt brass female connector
150 991-1835 Crevice tool

- Frequently Replaced Parts

#PartDescription ReqNotesAvailability
1 220-4027 Power cord 1
2 193-0120 Switch 2 (vac and brush)
3 220-0423 3 position switch 1 (pump)
3 220-0422 Regulation valve with fittings 1
5 220-0421 Vacuum hose 1
6 220-0420 Recovery lid with gasket 1
7 220-0420 Recovery lid with gasket 1
8 220-0420 Recovery lid with gasket 1
9 220-4014 110V motor 1
10 220-0321 100V pump 135 Psi 1
11 220-0418 Complete manifold 1
12 220-0417 Spring with antidrop valve 1
13 220-0271 Belt 1
14 220-0347 Brush roll 1
15 220-0416 Microswitch support and nuts 1
16 220-4038 Drain hose 1
17 220-0415 Wheel 2
18 220-0414 Front wheel 2
19 220-0413 Wheel 2
20 220-0412 Vacuum head 1
21 220-0411 Circuit breaker 1

- Frequently Replaced Parts

#PartDescription ReqNotesAvailability
01 220-0059 Solution lever
02 220-0172 Water pipe
03 220-0301 Bearing with support
04 220-0302 Belt stretcher
05 220-0303 Bearing with support
06 220-0304 Nozzle
07 220-0320 Filter
08 220-0321 100V pump 135 Psi
09 220-0329 Steel wire
10 220-0347 Brush roll

Bracket Kit Assembly After SN 1010

#PartDescription ReqNotesAvailability
1 220-0929 Solution hose (includes 10-12)
2a 220-0919 Prespray gun
2b 220-4063 Brass male quick disconnect
2c 220-0930 Spray gun
2d 220-0931 Aluminum extension
2e 220-0920 Nozzle with variable angle and bypass
4 220-0921 Clip assembly (includes 13-15)
5 220-0924 Spray tube hook
6 220-0925 Clip
7 220-0926 Lower support
8 220-0927 Rivet
9 220-0901 Washer stainless steel
10 220-0825 Coupling with anti drip fitting
11 220-0826 Connector elbow
12 220-0049 Female coupling
13 220-0922 Washer
14 220-0923 Clip
15 220-0932 Screw
N/S 220-0933 Bracket kit

Bracket Kit Assembly Before SN 1011

#PartDescription ReqNotesAvailability
1 220-0917 Rango hose (includes 11-14)
2a 220-0919 Prespray gun
2b 220-4063 Brass male quick disconnect
2c 220-0920 Nozzle with variable angle and bypass
4 220-0921 Clip assembly (includes 15-17)
5 220-0924 Spray tube hook
6 220-0925 Clip
7 220-0926 Lower support
8 220-0927 Rivet
9 220-0901 Washer stainless steel
10 220-0928 Hook
11 220-0918 Tubo Rango
12 220-0825 Coupling with anti drip fitting
13 220-0826 Connector elbow
14 220-0049 Female coupling
15 220-0922 Washer
16 220-0923 Clip
17 220-0524 Screw

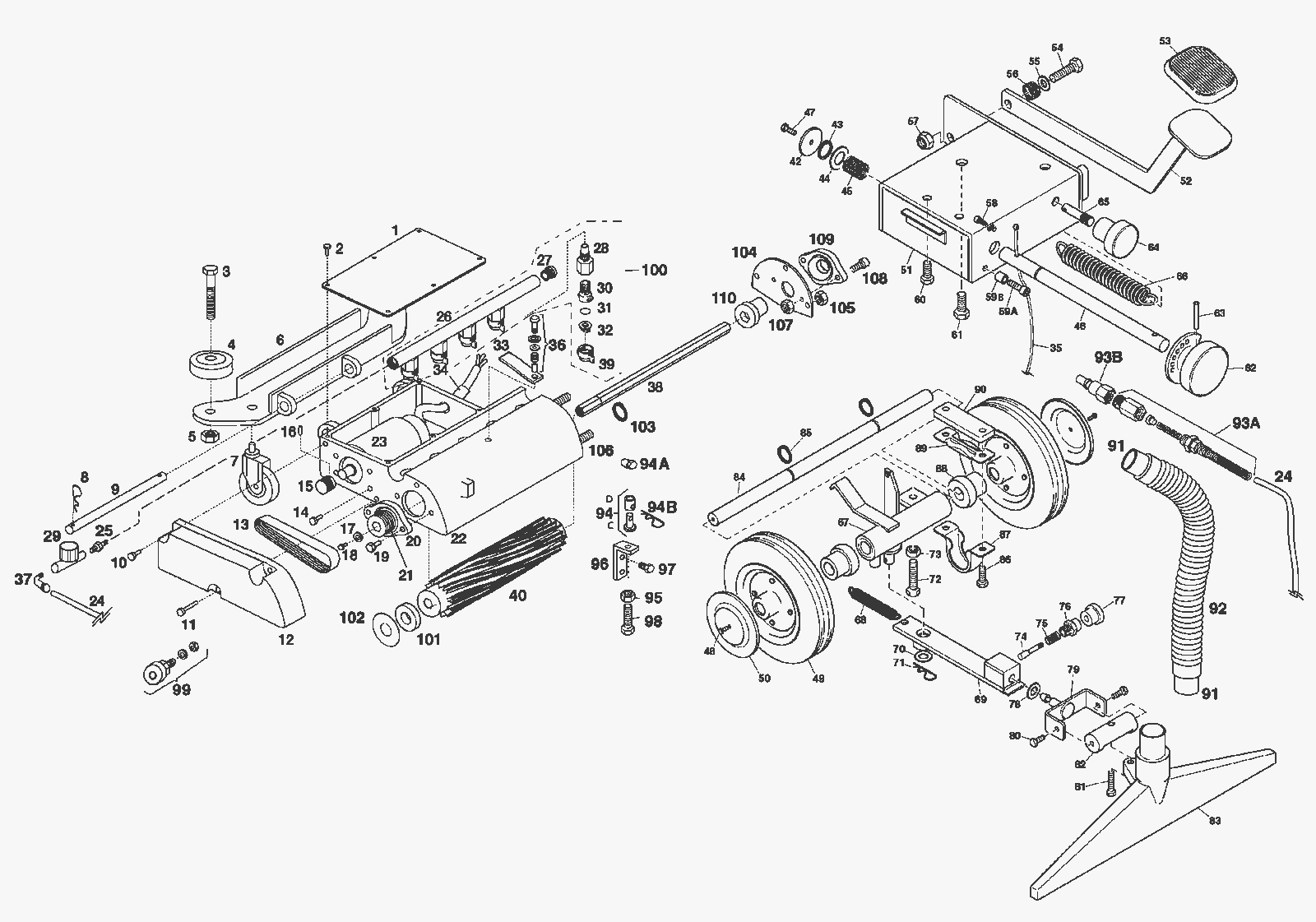

Brush Deck Assembly After SN 92890

#PartDescription ReqNotesAvailability
1a 220-0818 Gasket
1b 220-0528 Sliding block cover
2 220-4009 Screw
3 220-0529 Bolt
4 220-0415 Wheel
5 220-0819 Nut
6 220-0531 Front wheel support
7 220-0774 Front wheel
8 220-0533 Cotter pin
9 220-0534 Shaft
10a 220-0467 Screw
10b 220-0536 O-ring
11a 220-0536 O-ring
11b 220-0467 Screw
12a 220-0538 Gasket (from S/N 34040)
12b 220-0537 Belt cover (from S/N 34040)
13 220-0271 Belt
14 220-0539 Screw
15 220-0540 Pulley
16 220-0541 Stop dowel
17 220-0542 Washer
18 220-0776 Screw
19a 220-0543 Screw (from S/N 34040)
19b 220-0544 Screw
20a 220-0303 Bearing with support (from S/N 34040)
20b 220-0301 Bearing with support (until S/N 34039)
21a 220-0445 Brush pulley (from S/N 34040)
21b 220-0548 Brush pulley (until S/N 34039)
22a 220-0549 Sliding block (from S/N 34040)
22b 220-0777 Sliding block (until S/N 34039)
23 220-0551 120V brush motor
24 220-0172 Water pipe
25a 220-0778 Nipple 3/8 x 1/8 inch
26 220-0449 Manifold
27 220-0555 Cap
29 220-0779 Water flow regulation valve
31 220-0326 O-ring
32 220-0820 Green tip nozzle
33 220-0556 Manifold lock
34 220-4028 Fairlead
35 220-0329 Steel wire
36a 220-0565 Spring
36b 999-1658 Washer M5 x 15mm flat stainless steel (OBSOLETE)
36c 220-0542 Washer
36d 220-0821 Screw
36e 220-0611 Bushing
37a 220-0675 Elbow
37b 220-0822 Quick disconnect (orange)
38 220-0781 Brush shaft
39 220-0327 Nut
40 220-0347 Brush roll
42 220-0562 Washer
43 220-0563 Circlip
44 220-0564 Washer
45 220-0565 Spring
46 220-0782 Shaft
47 220-0539 Screw
48 220-0570 Screw
49 220-0413 Wheel
50 220-0783 Washer
51 220-0784 Metal housing
52 220-4170 Pedal
53 220-0785 Rubber pedal cover
54 220-0573 Screw
55 999-6713 Washer M10 x 30mm flat stainless steel
56 220-0786 Spring
57 220-0787 Locking nut
58a 999-6714 Washer M6 x 12mm flat stainless steel
59a 220-0790 Screw
59b 220-0789 Thimble
60 220-0544 Screw
61 220-4231 Screw
62 220-0583 Knob
63 220-0584 Elastic pin
64 220-0791 Pressure regulation knob
65 220-0792 Rod
66 220-0823 Spring
68 220-0796 Spring
69 220-0795 Vacuum head support
70 220-0564 Washer
71 220-0533 Cotter pin
72 220-0797 Screw
73 220-0798 Nut
74 220-0799 Pawl pin
75 220-0691 Complete pawl
76 220-0800 Pawl body
77a 220-0801 Pawl hand grip
77b 220-0802 Complete pawl
79 220-0803 Vacuum head support
80 220-4231 Screw
81 220-0573 Screw
82 220-0804 Support for vacuum head orientation
83a 220-0412 Vacuum head
83b 220-4249 Vacuum head with hose and support (includes 79-83)
84 220-0806 Shaft for wheels
85 220-0807 Seeger
86 220-4231 Screw
87 220-0593 Washer
88 220-4238 Pillow block
92 220-0421 Vacuum hose
93b 220-0825 Coupling with anti drip fitting (before S/N 56.000)
94a 220-0812 Rope lock
94b 220-0533 Cotter pin
94c 220-0811 Internal pin
94d 220-0810 External support
95 220-0530 Nut
96 220-0813 Stop plate
97 220-0607 Screw
98 220-0814 Screw
99a 220-0615 Belt tension assembly
99b 220-0530 Nut
99c 220-0613 Lock washer
99d 220-0815 Belt stretcher shaft
99e 220-0302 Belt stretcher
99f 220-0614 Seeger
99g 220-0326 O-ring
100 220-0816 Manifold with nozzles, cap, and nipple
101a 220-0443 Rubber gasket (from S/N 34040)
101b 220-0817 Rubber gaskets for bearing (until S/N 34039)
102 220-0444 Mialar disc
103 220-0446 Seegar
104 220-0618 Plate
105 220-0620 Locking nut
106 220-0622 Screw
107 220-0621 Brass nut
108 220-0543 Screw
109 220-0303 Bearing with support
110 220-0617 Pulley
111 220-0826 Connector elbow
112 220-0827 Bearing cover
113 220-0828 Screw
N/S 220-0794 Cylinder with brackets
N/S 220-0574 Spring
N/S 220-0575 Spring
N/S 220-0576 Rubber pin
N/S 220-0577 Brass coupling
N/S 220-0788 Lock screw

Brush Deck Assembly Before SN 92891

#PartDescription ReqNotesAvailability
1 220-0528 Sliding block cover
2 220-0518 Screw
3 220-0529 Bolt
4 220-0415 Wheel
5 220-0530 Nut
6 220-0773 Front wheels support
7 220-0774 Front wheel
8 220-0533 Cotter pin
9 220-0534 Shaft
10a 220-0467 Screw
10b 220-0536 O-ring
11a 220-0467 Screw
11b 220-0536 O-ring
12a 220-0537 Belt cover (from S/N 05XX34040)
12b 220-0538 Gasket (from S/N 05XX34040)
12c 220-0775 Belt cover (until S/N 05XX34039)
13 220-0271 Belt
14 220-0539 Screw
15 220-0540 Pulley
16 220-0541 Stop dowel
17 220-0542 Washer
18 220-0776 Screw
19a 220-0543 Screw (from S/N 05XX34040)
19b 220-0544 Screw (until S/N 05XX34039)
20a 220-0303 Bearing with support (from S/N 05XX34040)
20b 220-0301 Bearing with support (until S/N 05XX34039)
21a 220-0445 Brush pulley (from S/N 05XX34040)
21b 220-0548 Brush pulley (until S/N 05XX34039)
22a 220-0549 Sliding block (from S/N 05XX34040)
22b 220-0777 Sliding block (until S/N 05XX34039)
23 220-0551 120V brush motor
24 220-0172 Water pipe
25 220-0778 Nipple 3/8 x 1/8 inch
26a 220-0449 Manifold
26b 220-0554 Plate
27 220-0555 Cap
28 220-0449 Manifold
29 220-0779 Water flow regulation valve
30 220-0616 Quick disconnect support
31 220-0326 O-ring
32 220-0304 Nozzle
33 220-0556 Manifold lock
34 220-4028 Fairlead
35 220-0329 Steel wire
36a 220-0565 Spring
36b 220-4017 Washer
36c 220-0542 Washer
36d 220-4018 Screw
36e 220-0611 Bushing
37 220-0780 Elbow for 6/8 pipe
38 220-0781 Brush shaft
39 220-0327 Nut
40 220-0347 Brush roll
42 220-0562 Washer
43 220-0563 Circlip
44 220-0564 Washer
45 220-0565 Spring
46 220-0782 Shaft
47 220-0539 Screw
48 220-0570 Screw
49 220-0413 Wheel
50 220-0783 Washer
51 220-0784 Metal housing
52 220-4170 Pedal
53 220-0785 Rubber pedal cover
54 220-0573 Screw
55 999-6713 Washer M10 x 30mm flat stainless steel
56 220-0786 Spring
57 220-0787 Locking nut
58a 220-0788 Lock screw
58b 999-6714 Washer M6 x 12mm flat stainless steel
59a 220-0789 Thimble
59b 220-0790 Screw
60 220-0544 Screw
61 220-4231 Screw
62 220-0583 Knob
63 220-0584 Elastic pin
64 220-0791 Pressure regulation knob
65 220-0792 Rod
66 220-0793 Spring
67 220-0794 Cylinder with brackets
68 220-0796 Spring
69 220-0795 Vacuum head support
70 220-0564 Washer
71 220-0533 Cotter pin
72 220-0797 Screw
73 220-0798 Nut
74 220-0799 Pawl pin
75 220-0691 Complete pawl
76 220-0800 Pawl body
77a 220-0801 Pawl hand grip
77b 220-0802 Complete pawl
78 220-0564 Washer
79 220-0803 Vacuum head support
80 220-4231 Screw
81 220-0573 Screw
82 220-0804 Support for vacuum head orientation
83a 220-0412 Vacuum head
83b 220-4249 Vacuum head with hose and support (includes 79,80,81,82,83a)
84 220-0806 Shaft for wheels
85 220-0807 Seeger
86 220-4231 Screw
87 220-4238 Pillow block
88 220-4238 Pillow block
89 220-4238 Pillow block
90 220-4230 Distance plate
91 220-4059 Hose cuff
92 220-0421 Vacuum hose
93b 220-0035 Male fitting (Metal)
94a 220-0812 Rope lock
94b 220-0533 Cotter pin
94c 220-0811 Internal pin
94d 220-0810 External support
95 220-0530 Nut
96 220-0813 Stop plate
97 220-0607 Screw
98 220-0814 Screw
99a 220-0530 Nut
99b 220-0613 Lock washer
99c 220-0815 Belt stretcher shaft
99d 220-0302 Belt stretcher
99e 220-0614 Seeger
99f 220-0326 O-ring
99g 220-0615 Belt tension assembly
100 220-0816 Manifold with nozzles, cap, and nipple
101a 220-0443 Rubber gasket (from S/N 05XX34040)
101b 220-0817 Rubber gaskets for bearing (until S/N 05XX34039)
102 220-0444 Mialar disc
103 220-0446 Seegar
104 220-0618 Plate
105 220-0620 Locking nut
106 220-0622 Screw
107 220-0621 Brass nut
108 220-0543 Screw
109 220-0303 Bearing with support
110 220-0617 Pulley
N/S 220-0326 O-ring
N/S 220-0574 Spring
N/S 220-0575 Spring
N/S 220-0576 Rubber pin
N/S 220-0577 Brass coupling
N/S 220-0809 1/4 inch plastic male quick disconnect (plastic)

Hand Tool Assembly

#PartDescription ReqNotesAvailability
1 220-0829 Plastic body
2 220-0327 Nut
3 220-0830 Nozzle (green)
4 220-0326 O-ring
5 220-0831 Elbow
6 220-0832 Nut
7 220-0833 Valve lock
8 220-4051 Screw
9 220-0834 Automatic coupling
10 220-4021 O-ring
11 220-0835 Solution valve with lever
12 220-0035 Male fitting
13 220-0836 Solution valve with metal coupling (includes 9-12)

Recovery Tank Assembly After SN 92890

#PartDescription ReqNotesAvailability
1 220-0420 Recovery lid with gasket
2 220-0420 Recovery lid with gasket
3a 220-0697 Rivet
3b 220-0466 Elbow
6 220-0467 Screw
7a 193-0120 Switch
7b 220-0423 3 position switch (for pump)
8 220-0724 Panel decal
9a 220-0478 Panel gasket
9b 220-0725 Control panel
10a 220-0515 Varistor
10b 220-0472 Connecting terminal
11 220-0482 Plate
12a 220-0761 Blue upper tank
12b 220-0727 Green upper tank
13 220-0425 Strain relief with nut
14 220-4027 Power cord
15 220-0728 Soundproofing panel
16 220-4036 Hose nipple
17 220-4037 Tie
18 220-4041 Screw
19 220-4042 Clip
23a 220-4038 Drain hose
23b 220-0430 Drain hose
25 220-0732 Hose with cuffs
26 220-4059 Hose cuff
27a 220-0733 Soundproofing panel (up to S/N 92890)
27b 220-0762 Soundproofing panel (from S/N 92890)
29 220-0416 Microswitch support and nuts
30 220-0059 Solution lever
31 220-0479 Pin
32 220-0734 Cap
33 220-0735 Circular cap
84 220-0411 Circuit breaker
85 220-0514 Cap
105 220-0760 Elbow
106 220-0763 Gasket
107 220-0697 Rivet
108 220-0764 Special oval elbow
109 220-0765 Gasket for filter support
110 220-0766 Large filter
111 220-0767 Large filter
112 220-0479 Pin
113a 220-4079 Float
113b 220-0769 Silent floater
113c 220-0524 Screw
113d 220-0570 Screw
113e 220-0770 Nut with washer
113f 220-0771 Float
113g 220-0525 Locking washer
113h 220-0768 Moving part for floater (includes 113a-g)
N/S 220-4039 Tie

Recovery Tank Assembly Before SN 92891

#PartDescription ReqNotesAvailability
1 220-0420 Recovery lid with gasket
2 220-0420 Recovery lid with gasket
3 220-0511 Filter
4a 220-0722 Big elbow and gasket
4b 220-0723 Elbow for serena floater
4c 220-0697 Rivet
5 220-0466 Elbow
6 220-0467 Screw
7a 193-0120 Switch
7b 220-0423 3 position switch
8 220-0724 Panel decal
9a 220-0478 Panel gasket
9b 220-0725 Control panel
10a 220-0515 Varistor
10b 220-0472 Connecting terminal
11 220-0482 Plate
12a 220-0726 Blue upper tank
12b 220-0727 Green upper tank
13 220-0425 Strain relief with nut
14 220-4027 Power cord
15 220-0728 Soundproofing panel
16 220-4036 Hose nipple
17 220-4037 Tie
18 220-4041 Screw
19 220-4042 Clip
23a 220-0730 Drain hose with cap
23b 220-0430 Drain hose
25 220-0732 Hose with cuffs
26 220-4059 Hose cuff
27 220-0733 Soundproofing panel
29 220-0416 Microswitch support and nuts
30 220-0059 Solution lever
31 220-0479 Pin
32 220-0734 Cap
33 220-0735 Circular cap
82 220-0518 Screw
85 220-0514 Cap
96 220-0736 Screw
97 220-0521 Washer
98 220-0522 Nut
99 220-0523 Plate
100 220-4079 Float
101 220-0524 Screw
102 220-0525 Locking washer
103 220-0526 Float nut
104 220-0527 Filter holder
N/S 220-4039 Tie

Smart Kit Pre Spray Assembly Before SN 1010

#PartDescription ReqNotesAvailability
1 220-0431 Ball valve
2 220-0883 Swivel elbow R31
3 220-0908 T coupling
4 220-0675 Elbow
5 220-0884 Coupling fm 1/4 to 1/8 inch
6 220-0909 Pipe
7 220-0883 Swivel elbow R31
8 220-0886 Dema injector
9 220-0887 Bushing for dema injector .03
10 220-4047 Female quick disconnect
11 220-0673 Male disconnect
12a 220-0910 Coupling
12b 220-0888 T coupling
13 220-0881 Swivel elbow
14 220-0911 PTC fitting
15 220-0890 Rilsan hose
16 220-0891 Bushing for dema injector .04
19 220-0049 Female coupling
20 220-0433 Chemical dispenser hose
21 220-0825 Coupling with anti drip fitting
22 220-0913 Anti foam filter
26 220-0895 Chemical cap
28 220-0896 Poly tube
29 220-0897 Spring
30 220-4080 Coupling
32 220-0675 Elbow
33 220-4080 Coupling
34 220-0896 Poly tube
35 220-0914 Locking plate
36 220-0622 Screw
37 220-0620 Locking nut
38a 220-0900 Screw
38b 220-0915 Screw stainless steel
39 220-0901 Washer stainless steel
40 220-0902 Pin
41 220-0770 Nut with washer
42 220-0903 Screw
43 220-0905 Housing
44 220-0904 Chemical tank holder
45 220-0916 Nozzle (for use with smartkit hand tool)
46 220-0830 Nozzle (green) (for use with smartkit with 3 nozzles wand)
47 220-0907 Smart kit decal

Smart Kit Pre Spray Assembly Before SN 1011

#PartDescription ReqNotesAvailability
1 220-0431 Ball valve
2 220-0881 Swivel elbow
3 220-0882 T coupling
4 220-0883 Swivel elbow R31
5 220-0884 Coupling fm 1/4 to 1/8 inch
6 220-0885 Hose
7 220-0883 Swivel elbow R31
8 220-0886 Dema injector
9 220-0887 Bushing for dema injector .03
10 220-4047 Female quick disconnect
11 220-0673 Male disconnect
12 220-0888 T coupling
13 220-0881 Swivel elbow
14 220-0889 Restrictor
15 220-0890 Rilsan hose
16 220-0891 Bushing for dema injector .04
17 220-0892 Nipple
18 220-0893 T coupling
19 220-0049 Female coupling
20 220-0894 Pressure hose 380mm 1/4 to 1/4
21 220-0035 Male fitting
26 220-0895 Chemical cap
28 220-0896 Poly tube
29 220-0897 Spring
30 220-4080 Coupling
31 220-0898 Ball valve
32 220-0675 Elbow
33 220-4080 Coupling
34 220-0896 Poly tube
35 220-0899 Locking plate
36 220-0622 Screw
37 220-0620 Locking nut
38 220-0900 Screw
39 220-0901 Washer stainless steel
40 220-0902 Pin
41 220-0770 Nut with washer
42 220-0903 Screw
43 220-0904 Chemical tank holder
44 220-0905 Housing
45 220-0906 Nozzle (for use with smartkit with hand tool)
46 220-0830 Nozzle (green) (for use with smartkit with 3 nozzle wand)
47 220-0907 Smart kit decal

Solution and Vacuum Hose Assembly

#PartDescription ReqNotesAvailability
1 220-0035 Male fitting
2 220-0426 Solution hose
3 220-0865 1 1/2 inch hose cuff
4 220-0866 Solution hose clip
6 220-0865 1 1/2 inch hose cuff
7 220-0049 Female coupling

Solution Tank Assembly After SN 92890

#PartDescription ReqNotesAvailability
34 220-0488 Screw
35 999-1658 Washer M5 x 15mm flat stainless steel (OBSOLETE)
36 220-0737 Vibration dampening
37 220-0738 Aluminum silencing flange
38 220-0739 Soundproofing filter
39 220-0740 Soundproofing filter
40 220-0741 Soundproofing filter
41 220-0742 Soundproofing filter
42a 220-0490 Gasket (for 808PA)
42b 220-0429 Vacuum motor gasket (per 808)
43a 220-4077 120V 3 stage vacuum motor (S/N after 47090)
43b 220-4014 110V motor (S/N before 47089)
43c 220-0743 100V 3 stage vacuum motor (S/N after 49620)
43d 220-0744 100V 3 stage vacuum motor (S/N before 49620)
44a 220-4015 Connector
44b 220-0492 Male electrical terminal
45 220-0429 Vacuum motor gasket
46 220-0745 Lower tank (blue)
47 220-0493 Toggle
48 220-4035 Screw
49 220-0401 Filter
50 220-0427 Ballast
51 220-0495 Extraflex pipe
52 220-0496 Hose nipple
53 220-0746 Screw
54 220-0747 Circular lower panel
55 220-0748 Lower soundproofing disc
56 220-0749 Lower motor flange
57 220-0750 Lower soundproofing filter
58 220-0751 Lower soundproofing cylinder
59 220-4023 Rislan pipe
60 220-4047 Female quick disconnect
61 220-4048 Metal washer
62 220-0400 Neoprene washer
63 220-4022 Elbow
64a 220-4078 100V pump 100 Psi (internal rectif.)
64b 220-0321 100V pump 135 Psi (internal rect.)
65 220-0498 Nut
66 220-4018 Screw
67 220-4017 Washer
68 220-4016 Vibration dampening
69a 220-4020 Extension
69b 220-4019 Elbow
70 220-0752 Gasket for coupling
71 220-0753 Coupling with anti drip fitting
72 220-0500 Panel gasket
73a 220-0754 Lower panel (without hole for plug)
73b 220-0755 Lower panel with hole for plug (with hole for plug)
74 220-4024 Bush
75 220-0756 Lower panel decal
76 220-0501 Connector
77 220-4009 Screw
78 220-0757 Cable sheath
79 220-0503 Tie
80 220-0758 Wiring harness
81 220-0759 Socket with wires
82 220-0518 Screw
83 220-0516 External rectifier
86 220-0509 Drain valve
87 220-0508 Lock washer
88 220-0507 Connector
94 220-0518 Screw
95 220-0760 Elbow
N/S 220-0425 Strain relief with nut
N/S 220-0516 External rectifier
N/S 220-0517 Radio interference suppressor
N/S 220-0518 Screw
N/S 220-0519 Radio interference supressor
N/S 220-0499 Extension

Solution Tank Assembly Before SN 92891

#PartDescription ReqNotesAvailability
34 220-0488 Screw
35 220-0489 Washer
36 220-0737 Vibration dampening
37 220-0738 Aluminum silencing flange
38 220-0739 Soundproofing filter
39 220-0740 Soundproofing filter
40 220-0741 Soundproofing filter
41 220-0742 Soundproofing filter
42a 220-0490 Gasket (for 808PA)
42b 220-0429 Vacuum motor gasket (per 808)
43a 220-4077 120V 3 stage vacuum motor (after s/n 47090)
43b 220-4014 110V motor (before s/n 47089)
43c 220-0743 100V 3 stage vacuum motor (after s/n 49620)
43d 220-0744 100V 3 stage vacuum motor (before s/n 49620)
44a 220-4015 Connector
44b 220-0492 Male electrical terminal
45 220-0429 Vacuum motor gasket
46 220-0745 Lower tank (blue)
47 220-0493 Toggle
48 220-4035 Screw
49 220-0401 Filter
50 220-0427 Ballast
51 220-0495 Extraflex pipe
52 220-0496 Hose nipple
53 220-0746 Screw
54 220-0747 Circular lower panel
55 220-0748 Lower soundproofing disc
56 220-0749 Lower motor flange
57 220-0750 Lower soundproofing filter
58 220-0751 Lower soundproofing cylinder
59 220-4023 Rislan pipe
60 220-4047 Female quick disconnect
61 220-4048 Metal washer
62 220-0400 Neoprene washer
63 220-4022 Elbow
64a 220-4078 100V pump 100 Psi (includes 59,63,64b,66,67,68,69a,69b,70, and 71)
64b 220-0321 100V pump 135 Psi
65 220-0498 Nut
66 220-4018 Screw
67 220-4017 Washer
68 220-4016 Vibration dampening
69a 220-4020 Extension
69b 220-4019 Elbow
70 220-0752 Gasket for coupling
71 220-0753 Coupling with anti drip fitting
72 220-0500 Panel gasket
73a 220-0754 Lower panel
73b 220-0755 Lower panel with hole for plug
74 220-4024 Bush
75 220-0756 Lower panel decal
76 220-0501 Connector
77 220-4009 Screw
78 220-0757 Cable sheath
79 220-0503 Tie
80 220-0758 Wiring harness
81 220-0759 Socket with wires
82 220-0518 Screw
83 220-0516 External rectifier
86 220-0509 Drain valve
87 220-0508 Lock washer
88 220-0507 Connector
94 220-0518 Screw
95 220-0760 Elbow
N/S 220-0499 Extension
N/S 220-0411 Circuit breaker
N/S 220-0425 Strain relief with nut
N/S 220-0516 External rectifier
N/S 220-0517 Radio interference suppressor
N/S 220-0518 Screw
N/S 220-0519 Radio interference supressor

Solution Valve Assembly

#PartDescription ReqNotesAvailability
0a 220-0836 Solution valve with metal coupling (includes 1-14)
0b 220-0844 Solution valve with coupling and hose nipple (includes 2-15)
1 220-0843 Hose nipple
2 220-0935 Plastic body
3 220-0936 High pressure hose
5 220-0035 Male fitting
6 220-0937 Spring
7 220-0536 O-ring
8 220-0938 Solution valve shutter
9 220-0326 O-ring
10 220-0939 O ring
11 220-0940 Seat
12 220-0941 Screw
13 220-0942 Screw
14 220-0943 Solution valve lever
15 220-0834 Automatic coupling

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 220-0867 Fork with stud
2 220-4048 Metal washer
3a 220-0868 Knob and stud
3b 220-0791 Pressure regulation knob
3c 220-0869 Stud
4 220-0598 Screw
5 220-0870 Support plate
6 220-4231 Screw
7 220-0594 Locking nut
8 220-0544 Screw
9 220-0871 Tuning block
10 220-0529 Bolt
11 220-0415 Wheel
12 220-0543 Screw
13 220-0872 Drain trap
14 220-0873 Gasket
15 220-0874 Aluminum head
16 220-0543 Screw
17 220-0875 Plate
18 220-0876 Front transport rubber
19 220-0877 Rubber blade
20 220-0878 Blade
21 220-0879 Rubber post
22 220-0594 Locking nut
23 220-0593 Washer
24 220-0880 Wheel

Wand Assembly - After May 2010

#PartDescription ReqNotesAvailability
1a 220-0837 Aluminum head
1b 220-0838 Aluminum nozzle head and tube
2 220-0832 Nut
3 220-0833 Valve lock
4 220-0839 Metal tube
5 220-4051 Screw
6 220-0840 Connection reduction 1/4 to 1/8 inch
7 220-0841 Extension
8 220-0842 Brass nozzle
9 220-0843 Hose nipple
12 220-0035 Male fitting
13 220-0834 Automatic coupling
14 220-0844 Solution valve with coupling and hose nipple (includes 9 and 12)
15 220-0836 Solution valve with metal coupling (includes 12-13)
16 220-0858 Vacuum tube handle
17 220-0668 Clip
18 220-0859 Vacuum hose
19 220-0860 Rilsan pipe
20a 220-0848 Aluminum head
20b 220-0861 Aluminum head with hose
21 220-0862 Coupling
23 220-0576 Rubber pin
24 220-0575 Spring
26 220-0863 Nozzle manifold
27 220-0326 O-ring
28 220-0830 Nozzle (green)
29 220-0327 Nut
30 220-0864 Complete manifold (includes 21,23,24,26-29, and 31)
31 220-4009 Screw
38a 220-0852 Cylindric support for handle
38b 220-0853 Handle rubber grip
39 220-0854 Upper part for handle
40 220-0855 Lower part for handle
41 220-0543 Screw
42 220-4071 Screw
43a 220-0620 Locking nut
43b 220-0856 Handle

Wand Assembly - Before June 2010

#PartDescription ReqNotesAvailability
1a 220-0837 Aluminum head
1b 220-0838 Aluminum nozzle head and tube
2 220-0832 Nut
3 220-0833 Valve lock
4 220-0839 Metal tube
5 220-4051 Screw
6 220-0840 Connection reduction 1/4 to 1/8 inch
7 220-0841 Extension
8 220-0842 Brass nozzle
9 220-0843 Hose nipple
12 220-0035 Male fitting
14 220-0844 Solution valve with coupling and hose nipple (includes 9 and 12)
15 220-0845 Valve with meter lever and couplings
17 220-4037 Tie
18 220-0846 Vacuum hose
19 220-0847 Solution hose
20 220-0848 Aluminum head
22 220-0577 Brass coupling
23 220-0576 Rubber pin
24 220-0575 Spring
25 220-0849 Locking nut
26 220-0850 Nozzle manifold
27 220-0326 O-ring
28 220-0830 Nozzle (green)
29 220-0327 Nut
30 220-0851 Complete manifold (includes 22-29)
33a 220-0852 Cylindric support for handle
33b 220-0853 Handle rubber grip
34 220-0854 Upper part for handle
35 220-0855 Lower part for handle
36 220-0543 Screw
37 220-4071 Screw
38 220-0620 Locking nut
N/S 220-0856 Handle
