- Commonly Asked For Parts

#PartDescription ReqNotesAvailability
01 172-6258 14/3 power cord 75 foot (OBSOLETE)
02 996-0709 20 inch pad driver
03 172-4549 5 inch wheel (OBSOLETE)
04 172-8069 Filter (OBSOLETE)
05 172-0270 Snap switch (OBSOLETE)
06a 991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM) (does not include strain relief)
06b 991-5001 14/3 extension cord 50 foot (yellow) (NON-OEM)

- Pad Holders

#PartDescription ReqNotesAvailability
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Pads

#PartDescription ReqNotesAvailability
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg 5) (OBSOLETE)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch super white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

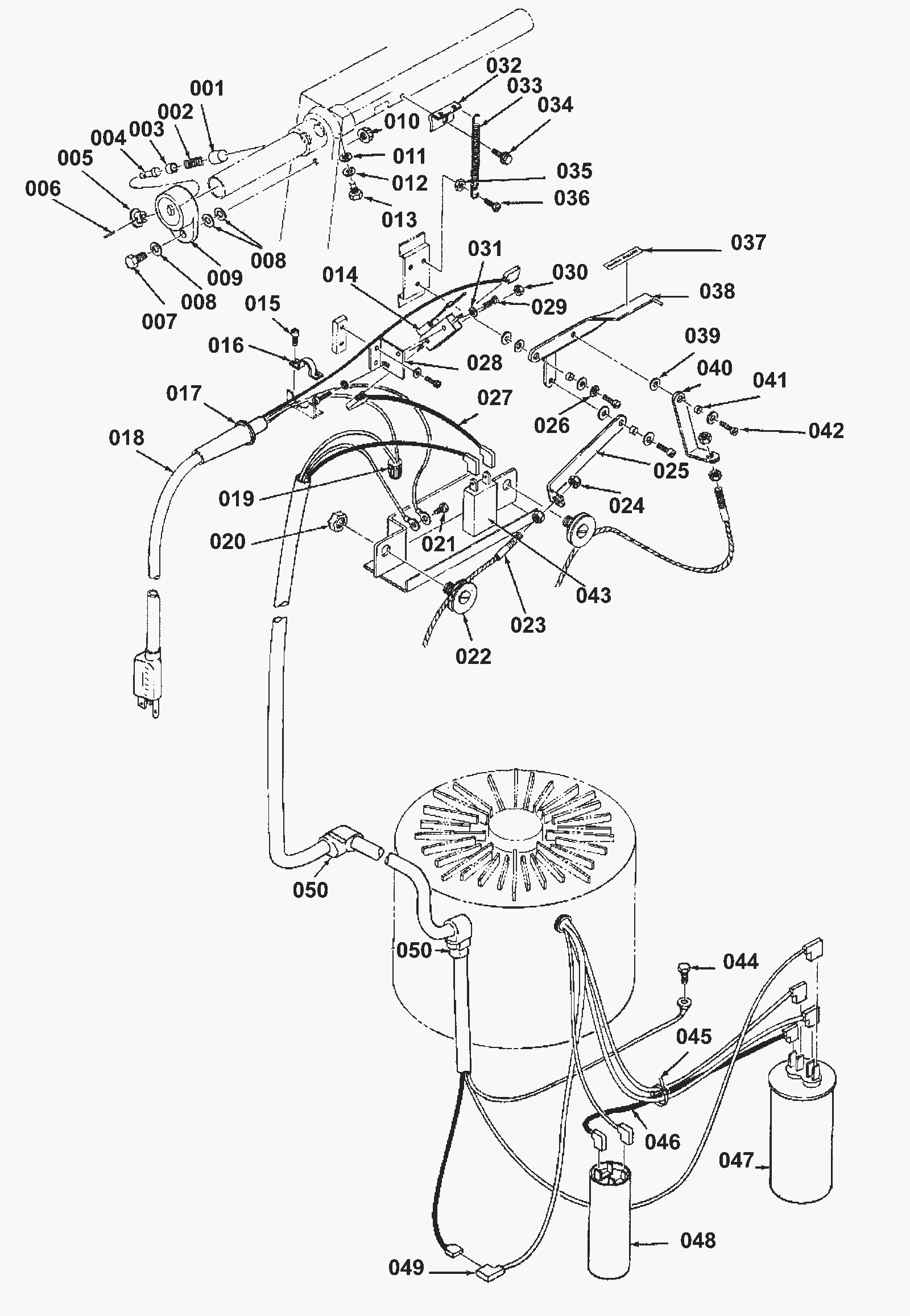

Electrical Assembly

#PartDescription ReqNotesAvailability
001 172-4529 Bushing 1
002 172-4632 Spring 1
003 172-3031 Plunger 1
004 172-4630 Pin 1
005 172-4526 Knob 1
006 172-4527 Spring pin 1
007 N/A Not available 1 Screw 1/4-20 x 5/8
008 N/A Not available 3 Washer 1/4 flat
009 172-4525 Collar 1
010 N/A Not available 1 Nut 1/4-20 whiz
011 N/A Not available 1 Washer shakeproof
012 N/A Not available 1 Washer 5/16 flat
013 172-4505 Screw 1
014 172-0270 Snap switch (OBSOLETE) 1
015 N/A Not available 4 Screw #8-32 x 5/8
016 N/A Not available 1 Clamp strain relief
017 N/A Not available 1 Strain relief
018 172-6258 14/3 power cord 75 foot (OBSOLETE) 1
019 172-4513 Wire connector 1
020 N/A Not available 2 Nut 7/16-14 hex
021 N/A Not available 2 Screw #10-24 x 1/2
022 272-0105 Pulley idler 1-1/4 x 19/64 (OBSOLETE) 2
023 172-0018 Wire rope assembly (OBSOLETE) 2
024 N/A Not available 4 Nut 1/4-20 hex
025 272-0106 Link (OBSOLETE) 1
026 N/A Not available 1 Washer shakeproof
027 272-0107 Wire assembly #14 x 6 (OBSOLETE) 2
028 272-0108 Switch plate (OBSOLETE) 1
029 N/A Not available 2 Screw #4-40 x 7/8
030 N/A Not available 1 Nut #4 hex
031 N/A Not available 2 Washer #4 flat
032 272-0109 Spring mounting tab (OBSOLETE) 1
033 172-4506 Extension spring (OBSOLETE) 2
034 N/A Not available 1 Screw #8-32 x 1/2
035 N/A Not available 2 Nut #10-24 hex
036 N/A Not available 2 Screw #10-24 x 3/4
037 172-5019 Handle decal 1
038 272-0110 Handle weldment (OBSOLETE) 1
039 N/A Not available 7 Washer #10 flat
040 272-0111 Link cable (OBSOLETE) 1
041 172-4064 Bushing 3
042 N/A Not available 3 Screw #10-24 x 3/4
043a 172-9572 15amp circuit breaker 1
043b 172-2160 10amp circuit breaker 1
043c 991-8539 15amp circuit breaker 1 (NON-OEM)
044 N/A Not available 2 Screw #10-24 x 1/2
045 997-2101 6 inch cable tie 2
046 272-0107 Wire assembly #14 x 6 (OBSOLETE) 2
047a N/A Not available 1 Capacitor
047b 172-3023 Capacitor 115v (OBSOLETE) 1
048a 272-0114 Capacitor 108-130 mfd (OBSOLETE) 1
048b N/A Not available 1 Capacitor
049 272-0116 Receptacle flag 1
050 172-6146 Strain relief 2

Handle and Base Assembly

#PartDescription ReqNotesAvailability
001 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 3
002 N/A Not available 1 (Advance decal)
003 172-8070 Shroud cover (OBSOLETE) 1
004 N/A Not available 3 Screw 5/16-18 x 5/8
005 172-8069 Filter (OBSOLETE) 1
006 N/A Not available 1 Bracket weldment
007 272-0059 Shroud (OBSOLETE) 1
008 270-0060 2 sided velcro 14 x 20 inch 1
009 272-0061 Support weldment (OBSOLETE) 1
010 272-0062 Bumper (OBSOLETE) 1
011 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 5
012 272-0053 Bumper strap (OBSOLETE) 1
013 N/A Not available 1 (Base decal)
014 272-0056 Base weldment 1
015 272-0057 Weight (OBSOLETE) 2
016 N/A Not available 4 Screw 1/2-20 x 1/2
017 172-2666 Bumper 4
018 N/A Not available 6 #10-24 x 5/8
019 N/A Not available 2 #10 Shakeproof washer
020 999-0588 Washer 7/8 flat stainless steel 2
021 272-1670 Washer 3/8 bowed 2
022 172-3010 Wheel 2
023 N/A Not available 2 Setscrew 1/4-20 x 3/8
024 272-0064 Block (OBSOLETE) 2
025 N/A Not available 1 Axle
026 272-0066 Plate weldment (OBSOLETE) 1
027 N/A Not available 3 Nut 5/16-18
028 N/A Not available 2 Screw 1/4-20 x 1-1/4
029 N/A Not available 2 Nut 1/4-20
030 172-4572 Seal shaft 1
031 172-4570 Bearing 2
032 272-0067 Pully with bearing pc404x (OBSOLETE) 1
033 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened 1
034 N/A Not available 1 Washer 9/16
035 999-0425 Nut 9/16-12 hex slotted plain finish 1
036 N/A Not available 1 Cotter Key
037 272-0068 Gasket (OBSOLETE) 1
038 272-0069 Casting drive cap (OBSOLETE) 1
039 N/A Not available 6 Screw #12-24 x 5/8
040 996-0709 20 inch pad driver 1
041 172-8422 Clutch plate (OBSOLETE) 1
042 N/A Not available 1 Screw 5/16-24 x 5/8
043 N/A Not available 3 Washer 5/16 shakeproof
044 172-3047 Washer 11/32 x 1/8 flat 1
045 172-3045 Key 1
046a 272-0071 Sheave j-12 x 3-3/4 (OBSOLETE) 1
046b 272-0072 Sheave j-12 x 4-1/2 (OBSOLETE) 1
047a 272-0073 Poly V belt (OBSOLETE) 1
047b 272-0074 Belt, poly-v 370j12 (OBSOLETE) 1
048 172-0551 Washer 25/32 x 1 5/8 x 1/64 2
049 N/A Not available 12 Nut #10-24
050 N/A Not available 2 Screw 1/4-20 x 1
051 N/A Not available 2 Washer 1/4 shakeproof
053 272-0075 Bracket weldment left hand (OBSOLETE) 1
054 172-0048 Bearing 2
055 272-0076 Bracket weldment right hand (OBSOLETE) 1
056 172-8197 Extension spring 2
057 172-4008 Bushing 2
058 272-0077 Catch assembly (OBSOLETE) 2
059 272-0078 Handle weldment (OBSOLETE) 1
060 N/A Not available 1 (Name plate)
061 N/A Not available 5 Clip
062 N/A Not available 2 Screw #10-24 x 5/8
063a N/A Not available 1 Motor 115V
063b N/A Not available 1 motor 230V
064 N/A Not available 14 Screw 1/4-20 x 5/8
065 N/A Not available 1 (Handle decal)
066 272-0084 Handle tube (OBSOLETE) 1
067a 164-0304 Handle grip 2
067b 172-1057 Solution tank lid (OBSOLETE) 2 (NON-OEM)
067c 991-8571 Handle grip 2 (NON-OEM)
068 N/A Not available 4 Screw #8-32 x 3/8
069 172-1375 Cover plate (OBSOLETE) 1
070 N/A Not available 1 (Breaker decal)
071 172-5020 Warning decal (OBSOLETE) 1
072 N/A Not available 1 (Wiring decal)
073 N/A Not available 4 Screw 5/16-18 x 5/8
074 272-0088 Plate (OBSOLETE) 1
075 172-2742 Bushing 2
076 172-4549 5 inch wheel (OBSOLETE) 2
077 272-0090 Sleeve 3/8 x 1/2 x 1-3/16 (OBSOLETE) 2
078 N/A Not available 2 Washer shakeproof
079 N/A Not available 2 Screw 3/8-16 x 2
080 272-1835 Washer flat 4
081 172-2623 Collar (OBSOLETE) 2
082 N/A Not available 2 Nut 5/16-18
083 272-0091 Spring extension 1/2 x 6 cl11j 4
084a 272-0092 Clamp 2 diamater (OBSOLETE) 1
084b 272-0093 Capicitor clamp 230v (OBSOLETE) 1
085 272-0094 Bracket weldment (OBSOLETE) 1
086 272-0095 Shaft adjust (OBSOLETE) 1
087 172-6237 Washer 3/8 bowed (OBSOLETE) 1
088 172-0078 Knob 1
089 N/A Not available 1 (Pad pressure decal)
090 N/A Not available 1 Setscrew #10-24 x 1/2
091 272-0097 Clamp 1-3/8 diamater (OBSOLETE) 1
092 N/A Not available 2 Screw 5/16-18 x 1-1/2
093 172-0079 Sleeve bearing (OBSOLETE) 2
094 N/A Not available 2 Washer 5/8
095 172-2067 Washer 11/32 x 1/8 flat 2
096 N/A Not available 2 Screw 5/16-18 x 5/8
097 N/A Not available 2 (Sleeved bearing) (please order 172-0069)
098 272-0098 Cover plate (OBSOLETE) 1
099 272-0099 Shaft (OBSOLETE) 1
100 172-5044 Hands clear decal 2
101 N/A Not available 4 Screw #10-24 x 1/4
102 272-0100 Axle weldment (OBSOLETE) 1
103 N/A Not available 2 Screw #10-24 x 5/8
104 272-0101 Spring (OBSOLETE) 1
105 N/A Not available 2 Washer #10 shakeproof
106 N/A Not available 2 Screw #10-24 x 1/4
107 272-0102 Cord hook (OBSOLETE) 1
108 272-0103 Washer 7/32 flat 1
109 N/A Not available 1 Screw #10-24 x 1/2
110 N/A Not available 1 (Cord hook decal)
111 172-2836 Bushing (OBSOLETE) 1
112 172-5023 Warning decal (OBSOLETE) 1
113 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 3
