- Batteries

#PartDescription ReqNotesAvailability
1 162-0003 6V 225Ah wet battery (SNSR) 4
2 162-0005 6V 305Ah wet battery (SNSR) 4
3 162-0043 6V 224Ah AGM battery (Group GC2) (SNSR) 4
4 162-0046 6V 335Ah AGM battery (Group J305) (SNSR) 4

- Batteries, Brushes and Charger - 26 inch

#PartDescription ReqNotesAvailability
1 162-0003 6V 225Ah wet battery (SNSR) 4
2 162-0005 6V 305Ah wet battery (SNSR) 4
3 162-0043 6V 224Ah AGM battery (Group GC2) (SNSR) 4
4 162-0046 6V 335Ah AGM battery (Group J305) (SNSR) 4
5a 162-5061 24V 20amp battery charger with SB175 large red plug 1
5b 991-0045 24V 27amp Summit II battery charger with SB175 red plug (NON-OEM)
7 272-8616 120V Onboard charger kit 1
8a 272-2225 Onboard charger cord 1
8b 991-8566 Onboard battery charger power cord 1
9 162-5045 175amp charger plug with pins (red) SB175 1
10 998-0010 Battery jumper cable - ring type (red) 1
11 996-0158 12 inch heavy grit stripping brush - 80 grit 2
12 996-0024 12 inch medium grit scrubbing brush - 180 grit 2
13 996-0094 12 inch lite grit scrubbing brush - 500 grit 2
14 996-3064 12 inch value daily cleaning brush assembly (OBSOLETE) 2
15 996-0591 12 inch Pad driver 2
16 996-0341 Drive lugs - plastic (pkg of 3) 2
17 991-2206 Center-Lok 3 pad holder 2

- Chargers

#PartDescription ReqNotesAvailability
1 162-5061 24V 20amp battery charger with SB175 large red plug 1
3a 272-8616 120V Onboard charger kit 1
3b 272-2225 Onboard charger cord 1
4 162-5045 175amp charger plug with pins (red) SB175 1
5a 162-5079 SCR assembly kit (OBSOLETE) 1
5b 372-1254 Fuse assembly 1
6 162-5087 AC cord set kit 1
7 162-5081 Control board assembly (OBSOLETE) 1

- Commonly Asked For Parts

#PartDescription ReqNotesAvailability
01 272-6575 Squeegee blade kit gum rubber
02 272-3516 Water filter
03 996-0094 12 inch lite grit scrubbing brush - 500 grit 26 inch
04 270-0241 35 inch squeegee weldment (BOOST 28)
05 272-6576 Squeegee blade kit linatex
06 170-7019 Brush deck latch
07 170-7029 Keeper
08 272-3543 Actuator
09 270-0226 Knob
10a 272-7272 Recovery drain hose
10b 991-3169 DRAIN HOSE-RECOVERY (NON-OEM)
11 272-7268 Wheel
12 272-7269 Squeegee assembly
13 272-7270 Squeegee assembly
14 270-0216 Relay
15 272-6607 Jumper harness
16 272-6606 24V 21amp battery charger

- Frequently Replaced Parts

#PartDescription ReqNotesAvailability
1 162-0003 6V 225Ah wet battery (SNSR)
2 162-0005 6V 305Ah wet battery (SNSR)
3 162-0043 6V 224Ah AGM battery (Group GC2) (SNSR)
4 162-0046 6V 335Ah AGM battery (Group J305) (SNSR)
4.1 162-5061 24V 20amp battery charger with SB175 large red plug
5 272-8616 120V Onboard charger kit
6a 272-2225 Onboard charger cord
6.1 162-5045 175amp charger plug with pins (red) SB175
6b 991-8566 Onboard battery charger power cord
7 998-0010 Battery jumper cable - ring type (red)
8 272-2195 Key switch assembly (power)
9 272-2196 Keys (pkg of 2)
10 272-9815 Solenoid valve assembly
11 170-5402 Manual solution valve
12 272-0268 Gasket (OBSOLETE)
13a 272-9862 Suction hose 1
13b 991-3141 Suction hose 1 (NON-OEM)
14 272-9855 Recovery tank lid
15 272-9861 Recovery tank lid gasket
16a 272-7272 Recovery drain hose
16b 991-3169 DRAIN HOSE-RECOVERY (NON-OEM)
17a 272-9857 24V 3 stage vacuum motor
17b 991-1253-D 24V 3 stage vacuum motor peripheral w/ intake & Delphi plug
18 996-0094 12 inch lite grit scrubbing brush - 500 grit
19 996-0341 Drive lugs - plastic (pkg of 3)

- Pad Holders

#PartDescription ReqNotesAvailability
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Pads - 13 inch

#PartDescription ReqNotesAvailability
01 255-1340 13 inch aqua plus burnishing pad (pkg of 5)
02 255-1335 13 inch Armadillo concrete scrub pad (pkg of 5) (OBSOLETE)
03 255-1364 13 inch Blue ace pad (pkg of 5)
04 255-1342 13 inch Blue Jay burnishing pad (pkg of 5)
05 255-1312 13 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-1377 13 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1338 13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1321 13 inch gorilla lite burnishing pad (pkg of 5)
09 255-1350 13 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1365 13 inch Heat concrete bonding pad (pkg of 5)
11 255-1330 13 inch jaguar burnishing pad (pkg of 5)
12 255-1387 13 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1390 13 inch premium black stripping pad (pkg of 5)
14 255-1370 13 inch premium blue cleaning pad (pkg of 5)
15 255-1392 13 inch premium brown stripping pad (pkg of 5)
16 255-1380 13 inch premium green scrubbing pad (pkg of 5)
17 255-1360 13 inch premium red scrubbing pad (pkg of 5)
18 255-1352 13 inch premium tan polishing pad (pkg of 5)
19 255-1320 13 inch premium white polishing pad (pkg of 5)
20 255-1311 13 inch superspeed rubberized pad (pkg of 5)
21 255-1395 13 inch razorback stripping pad (pkg of 5)
22 255-1347 13 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1355 13 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1323 13 inch sand screen driver pad (pkg of 2)
25 255-0198 13 inch Superscreen sand screen 100 grit (pkg of 10)
26 255-0199 13 inch Superscreen sand screen 120 grit (pkg of 10)
27 255-0200 13 inch Superscreen sand screen 150 grit (pkg of 10)
28 255-0201 13 inch Superscreen sand screen 180 grit (pkg of 10)
29 255-0202 13 inch Superscreen sand screen 220 grit (pkg 10)(OBSOLETE)
30 255-0203 13 inch Superscreen sand screen 400 grit (pkg of 10)
31 255-0196 13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE
32 255-0197 13 inch Superscreen sand screen 80 grit (pkg of 10)
33 255-0113 13 inch Professional sand screen 100 grit (pkg of 10)
34 255-0114 13 inch Professional sand screen 120 grit (pkg of 10)
35 255-0115 13 inch Professional sand screen 150 grit (pkg of 10)
36 255-0116 13 inch Professional sand screen 180 grit (pkg of 10)
37 255-0117 13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE)
38 255-0118 13 inch Professional sand screen 400 grit (pkg of 10)
39 255-0111 13 inch Professional sand screen 60 grit (pkg of 10)
40 255-0112 13 inch Professional sand screen 80 grit (pkg of 10)
41 255-1324 13 inch Tiger carpet bonnet (pkg of 2)
42 255-9542 13 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9539 13 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9536 13 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9540 13 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9537 13 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9538 13 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9541 13 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9638 13 inch Diamond starter pack (1 of each grit)
50 255-1382 13 inch Turbostrip segmented rotary pad (pkg of 4)(OBSOLETE)
51 255-1315 13 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1316 13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE)

- Pads - 14 inch

#PartDescription ReqNotesAvailability
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (OBSOLETE)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean shine padhighspeed (pkg 5)(OBSOLETE

Battery Charger Assembly (Before May 2015)

#PartDescription ReqNotesAvailability
1 N/A Not available 2 (washer)
2a 272-8616 120V Onboard charger kit 1 (The onboard battery charger 56112544 has been replaced in production by 56383856. If you need to replace 56112544 please order Onboard Charger Kit 272-8616. This update kit is needed to change the charger over. You cannot just go from 56112544 to 270-8393.)
2b 270-8393 24V onboard battery charger 1 (Only to be used if you have already purchased the update kit.)
3a 272-2225 Onboard charger cord 1 (OEM)
3b 991-8566 Onboard battery charger power cord 1 (NON-OEM)
4 997-2103 8 inch cable tie 6
5 272-0659 On-board charger cord wrap 1
6 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel 2
7 999-0060 Washer 1/4 split lock plain finish 4
8 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 4
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4

Battery Charger Assembly (After May 2015)

#PartDescription ReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
2 372-1011 Washer 1/4 4
3 472-7904 BRACKET-LED 1
4 472-7905 DECAL-CHARGER LED 1
5 272-6665 Power charger adapter 1
6 472-7971 ADAPTER-INTERLOCK 1
7 270-8393 24V onboard battery charger 1 (the onboard battery charger is standard on model 56112780. the onboard battery charger 56112544 has been replaced in production by part number 270-8393 (56383856). if you need part number 272-9824 (56112544) please order on board charger kit part number 272-8616 (56383869)
8 272-6663 LED charge indicator 1
9 270-8395 AC cord 1
10 272-0659 On-board charger cord wrap 1
11 999-0588 Washer 7/8 flat stainless steel 2
12 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel 2
13 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
14 272-6666 Strain relief kit 1
N/S 272-7413 Cable tie 8

Chassis Assembly - Cylindrical (After August 2013)

#PartDescription ReqNotesAvailability
1 272-9812 Tube 1
2 272-9813 Chassis weldment 1
3 270-0265 Solution valve bracket 1
4 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 8
5 472-4566 Bushing 8
6 999-1862 Washer #10 flat SAE stainless steel 1
7 172-2001 Hair cotter pin 1
8 172-3484 Clevis pin 1
9 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
10 272-9814 Tire 2
11 272-9815 Solenoid valve assembly 1
12a 272-9820 Flange kit 2 (includes 12b)
12b 272-9816 Transaxle 1
12c 272-9970 Transaxle motor kit 1 (optional) (includes 12d)
12d 372-1624 Carbon brush 4 (optional)
13 272-9817 Connector bracket 1
14 272-9821 Extension spring 1
15 172-9530 Cable clamp 1
16 272-7413 Cable tie 1
17 270-0227 Spacer (OBSOLETE) 2
18 272-9818 Rear caster 1
19 270-0258 Spacer 2
20 472-7661 Lever kit 4
21 270-0261 Bracket 1
22 270-0267 Filter bracket 1
23 272-3543 Actuator 1
24a 272-3516 Water filter 1
24b 272-3516 Water filter 1 (optional)
25 270-0256 Lever 1
26 999-1120 Nut M10-1.5 nylon insert lock stainless steel 9
27 270-0287 Spring 2
28 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
29 997-2002 Hose clamp #6 4
30 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
31 999-0017 Washer 1/4 external star lock 3
32 170-5602 Washer 1
33 999-0028 Washer 5/16 split lock plain finish 8
34 270-0263 25 inch hose (clear) 1
35 270-0270 3 inch hose (clear) 1
36 472-3608 SCR-HEX SS M6-1 X 20MM 1
37 270-0273 Strap bracket 1
38 170-7146 Static strap 1
39 170-0226 Moving warning decal 1
40 270-0269 Screw M4-.7 x 10mm 2
41 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
42 999-0471 Nut M8-1.25 nylon insert lock zinc plated 9
43 999-0497 Nut M6-1 nylon insert lock stainless steel 4
44 272-8931 Screw M6-1 x 10mm pan head 1
45 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
46 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
47 999-0716 Washer 3/8 x 1 1/4 fender 10
49 999-0671 Washer M10 split lock plain finish 10
51 472-3486 SCR-HEX M10-1.5 X 20MM 10
52 999-9115 Screw M10-1.5 x 75mm hex head stainless steel 1
53 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
54 270-0297 Screw M12-1.75 x 160mm hex head 1
55 270-0255 Screw M12-1.75 x 90mm hex head 1
56 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
57 270-0264 Screw M5 x 12mm hex head self-tapping 4
58 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
59 272-9819 Screw M8-1.25 x 90mm hex head 2
60 999-6736 Bolt M8-1.25 x 75mm hex head stainless steel 1
61 272-9822 Spacer 1

Chassis Assembly - Cylindrical (Before August 2013)

#PartDescription ReqNotesAvailability
1 272-9812 Tube 1
2 272-9813 Chassis weldment 1
3 270-0265 Solution valve bracket 1
4 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 8
5 270-0288 Flanged bushing 8
6 999-1862 Washer #10 flat SAE stainless steel 1
7 172-2001 Hair cotter pin 1
8 172-3484 Clevis pin 1
9 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 1
10 272-9814 Tire 2
11 272-9815 Solenoid valve assembly 1
12a 272-9820 Flange kit 2 (includes 12b)
12b 272-9820 Flange kit 1
12c 272-9970 Transaxle motor kit 1 (optional) (includes 12d)
12d 372-1624 Carbon brush 4
13 272-9817 Connector bracket 1
14 272-9821 Extension spring 1
15 172-9530 Cable clamp 1
16 272-7413 Cable tie 1
17 270-0227 Spacer (OBSOLETE) 2
18 272-9818 Rear caster 1
19 270-0258 Spacer 2
20 472-7661 Lever kit 4
21 270-0261 Bracket 1
22 270-0267 Filter bracket 1
23 272-3543 Actuator 1
24a 272-3516 Water filter 1
24b 270-0256 Lever 1 (optional)
25 270-0256 Lever 1
26 999-1120 Nut M10-1.5 nylon insert lock stainless steel 9
27 270-0287 Spring 2
28 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
29 997-2002 Hose clamp #6 4
30 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
31 999-0017 Washer 1/4 external star lock 3
32 170-5602 Washer 1
33 999-0028 Washer 5/16 split lock plain finish 8
34 270-0263 25 inch hose (clear) 1
35 270-0270 3 inch hose (clear) 1
36 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
37 270-0273 Strap bracket 1
38 170-7146 Static strap 1
39 170-0226 Moving warning decal 1
40 270-0269 Screw M4-.7 x 10mm 2
41 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
42 999-0471 Nut M8-1.25 nylon insert lock zinc plated 9
43 999-0497 Nut M6-1 nylon insert lock stainless steel 4
44 272-8931 Screw M6-1 x 10mm pan head 1
45 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
46 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
47 999-0716 Washer 3/8 x 1 1/4 fender 3
48 999-0006 Washer 3/16 flat zinc plated 7
49 999-0671 Washer M10 split lock plain finish 10
51 472-3486 SCR-HEX M10-1.5 X 20MM 10
52 999-9115 Screw M10-1.5 x 75mm hex head stainless steel 1
53 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
54 270-0297 Screw M12-1.75 x 160mm hex head 1
55 270-0255 Screw M12-1.75 x 90mm hex head 1
56 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
57 270-0264 Screw M5 x 12mm hex head self-tapping 4
58 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
59 272-9819 Screw M8-1.25 x 90mm hex head 2
60 999-6736 Bolt M8-1.25 x 75mm hex head stainless steel 1
61 272-9822 Spacer 1

Chassis Assembly - Disk (After August 2013)

#PartDescription ReqNotesAvailability
1 272-9812 Tube 1
2 272-9813 Chassis weldment 1
3 270-0265 Solution valve bracket 1
4 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 8
5 472-4566 Bushing 8
6 270-0282 Spacer 2
7 999-1862 Washer #10 flat SAE stainless steel 1
8 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
9 272-9814 Tire 2
10 272-9815 Solenoid valve assembly 1
11a 272-9820 Flange kit 2 (includes 11b)
11b 272-9816 Transaxle 1
11c 272-9970 Transaxle motor kit 1 (includes 11d) (optional)
11d 372-1624 Carbon brush 4 (optional)
12 272-9817 Connector bracket 1
13 172-9530 Cable clamp 1
14 272-7413 Cable tie 1
15 270-0227 Spacer (OBSOLETE) 2
16 272-9818 Rear caster 1
17 270-0258 Spacer 2
18 472-7661 Lever kit 4
19 270-0261 Bracket 1
20 270-0267 Filter bracket 1
21 272-3543 Actuator 1
22a 272-3516 Water filter 1
22b 272-3516 Water filter 1 (for 22a) (optional)
23 270-0256 Lever 1
24 270-0283 Gas spring 1
25 999-1120 Nut M10-1.5 nylon insert lock stainless steel 9
26 270-0287 Spring 2
27 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
28 997-2002 Hose clamp #6 4
29 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
30 999-0017 Washer 1/4 external star lock 3
31 170-5602 Washer 1
32 999-0028 Washer 5/16 split lock plain finish 8
33 270-0263 25 inch hose (clear) 1
34 270-0270 3 inch hose (clear) 1
35 472-3608 SCR-HEX SS M6-1 X 20MM 1
36 270-0254 Spacer 2
37 270-0273 Strap bracket 1
38 170-7146 Static strap 1
39 170-0226 Moving warning decal 1
40 270-0269 Screw M4-.7 x 10mm 2
41 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
42 999-0471 Nut M8-1.25 nylon insert lock zinc plated 9
43 999-0497 Nut M6-1 nylon insert lock stainless steel 4
44 272-8931 Screw M6-1 x 10mm pan head 1
45 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
46 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
47 999-0716 Washer 3/8 x 1 1/4 fender 10
49 999-0671 Washer M10 split lock plain finish 10
51 472-3486 SCR-HEX M10-1.5 X 20MM 10
52 999-9115 Screw M10-1.5 x 75mm hex head stainless steel 1
53 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
54 270-0297 Screw M12-1.75 x 160mm hex head 1
55 270-0255 Screw M12-1.75 x 90mm hex head 1
56 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
57 270-0264 Screw M5 x 12mm hex head self-tapping 4
58 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
59 272-9819 Screw M8-1.25 x 90mm hex head 2
60 270-0257 Screw M8-1.25 x 75mm hex head 1

Chassis Assembly - Disk (Before August 2013)

#PartDescription ReqNotesAvailability
1 272-9812 Tube 1
2 272-9813 Chassis weldment 1
3 270-0265 Solution valve bracket 1
4 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 8
5 270-0288 Flanged bushing 8
6 270-0282 Spacer 2 (Disk)
7 999-1862 Washer #10 flat SAE stainless steel 1
8 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1
9 272-9814 Tire 2
10 272-9815 Solenoid valve assembly 1
11a 272-9820 Flange kit 2 (includes 11b)
11b 272-9816 Transaxle 1 (OEM)
11c 991-3081 Transaxle 1 (NON-OEM)
11d 272-9970 Transaxle motor kit 1 (optional) (includes 11e)
11e 372-1624 Carbon brush 1 (optional)
12 272-9817 Connector bracket 1
13 172-9530 Cable clamp 1
14 997-2103 8 inch cable tie 1
15 270-0227 Spacer (OBSOLETE) 2
16 272-9818 Rear caster 1
17 270-0258 Spacer 2
18 472-7661 Lever kit 4
19 270-0261 Bracket 1
20 270-0267 Filter bracket 1
21 272-3543 Actuator 1
22a 272-3516 Water filter 1
22b 272-3516 Water filter 1 (optional) (for 22a)
23 270-0256 Lever 1
24 270-0283 Gas spring 1 (Disk)
25 999-1120 Nut M10-1.5 nylon insert lock stainless steel 9
26 270-0287 Spring 2
27 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
28 997-2002 Hose clamp #6 4
29 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
30 999-0017 Washer 1/4 external star lock 3
31 170-5602 Washer 1
32 999-0028 Washer 5/16 split lock plain finish 8
33 270-0263 25 inch hose (clear) 1
34 270-0270 3 inch hose (clear) 1
35 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
36 270-0254 Spacer 2 (Disk)
37 270-0273 Strap bracket 1
38 170-7146 Static strap 1
39 170-0226 Moving warning decal 1
40 270-0269 Screw M4-.7 x 10mm 2
41 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
42 999-0471 Nut M8-1.25 nylon insert lock zinc plated 9
43 999-0497 Nut M6-1 nylon insert lock stainless steel 4
44 272-8931 Screw M6-1 x 10mm pan head 1
45 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
46 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
47 999-0716 Washer 3/8 x 1 1/4 fender 3
48 999-0006 Washer 3/16 flat zinc plated 7
49 999-0671 Washer M10 split lock plain finish 10
51 472-3486 SCR-HEX M10-1.5 X 20MM 10
52 999-9115 Screw M10-1.5 x 75mm hex head stainless steel 1
53 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
54 270-0297 Screw M12-1.75 x 160mm hex head 1
55 270-0255 Screw M12-1.75 x 90mm hex head 1
56 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
57 270-0264 Screw M5 x 12mm hex head self-tapping 4
58 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
59 272-9819 Screw M8-1.25 x 90mm hex head 2
60 270-0257 Screw M8-1.25 x 75mm hex head 1

Control Assembly SC750 ST, SC800 ST

#PartDescription ReqNotesAvailability
0a 272-9926 Handle assembly (OBSOLETE) 1 (includes 1-10) (before SN 4000068715)
0b 472-7867 HANDLE ASSY 1 (includes 1-10) (after SN 4000068714)
1 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 2
2 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 4
3a 272-9927 Handle harness 1 (before SN 4000068715)
3b 472-7865 HARNESS-HANDLE 1 (after SN 4000068714)
4 272-2192 Knob 1
5 272-8196 Rotomold handle 1
6 272-8190 Access plate 1
7 272-8199 Access plate gasket 1
8 272-8197 Handle switch assembly 2
9 272-8191 SPST momentary switch 1
10 272-8189 Potentiometer 1
11 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 4
12 472-4583 SQUEEGEE HOLDER 1
13 999-0123 Washer 1/4 SAE flat zinc plated 2
14 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
15 999-0024 Washer 5/16 flat stainless steel 4

Control Assembly SC750, SC800

#PartDescription ReqNotesAvailability
0a 272-9834 Paddle assembly 1 (includes 1-22) (before SN 4000068715)
0b 372-1168 Paddle assembly 1 (includes 1-22) (after SN 4000068714)
1 172-2047 U clamp 1
2 991-9022 100K Potentiometer (speed control) 1
3 172-2039 5K potentiometer 1
4 999-0377 Washer 6 SAE flat plain finish 2
5 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel 7
6 172-2035 Screw 1/4-10 x 2 pan head phillips 1
7 272-2188 Screw 8-10 x 3/4 pan head phillips plastite 4
8 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
9 N/A Not available 1 (washer)
10 172-2037 Screw 8 x 2 pan head phillips type B 1
11 272-2189 Rear paddle 1
12a 272-9835 Paddle harness 1 (before SN 4000068715)
12b 472-7862 HARNESS-PADDLE 1 (after SN 4000068714)
13 272-2190 Front paddle 1
14 272-2191 Handle bar weldment 1
15 272-2192 Knob 1
16 172-2036 Compression spring 2
17 172-2038 Cam controller 1
18 572-9318 Sleeve 1
19 572-9317 Washer plastic 3
20 272-1353 Clamp 2
21 997-2101 6 inch cable tie 1
22 172-4063 P clamp 2
23 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4

Decal Assembly

#PartDescription ReqNotesAvailability
1 172-5000 Caution decal 1
2 272-2292 Advance decal 1
3 172-5010 Charger decal 1
4 272-9836 Circuit breaker decal 1
5a 272-9837 SC750 decal 2
5b 272-9838 SC750 EcoFlex decal 2
5c 272-9918 SC800 decal 2
5d 272-9919 SC750 ST decal 2
5e 472-4563 DECAL-SC800 ST 2
5f 272-9920 SC800 EcoFlex decal 2
6 272-9839 Error codes decal 1
7 272-9840 NFSI decal 1
8 272-9841 Warning/wiring decal 1

Detergent Injection Assembly - EcoFlex

#PartDescription ReqNotesAvailability
1 999-0100 Screw 6-32 x 5/16 round head slotted zinc plated 2
2 272-9827 Chemical ratio decal 1
3 272-9828 Support bracket 1
4 272-9829 Pump mount bracket 1
5 997-2002 Hose clamp #6 2
6 272-9830 Hose 1
7 272-8135 Tee assembly 1
8 272-2175 Chemical pump 1
9a 272-2180 Solution fill cap 1 (before August 2017)
9b 272-2180 Solution fill cap 1 (after August 2017)
10 272-2182 Dry break cap 1
11 272-2184 Dry break insert 1
12 172-6196 Cable tie 2
13 172-7747 Insulated tubing 1 (before August 2017)
14 272-9831 Hose 1
15a 272-9833 Chemical bottle assembly 1 (optional) (includes 9, 11 and 15b) (EcoFlex)
15b 272-9832 Chemical bottle assembly 1
16 999-0123 Washer 1/4 SAE flat zinc plated 2
17 999-1257 Screw M6-1 x 16mm pan head Phillips 2
18 172-0548 Washer 17/64 x 47/64 flat stainless steel 1

Electrical Assembly (Before January 2015)

#PartDescription ReqNotesAvailability
1 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
2 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 2
3 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 5
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
6 999-0781 Screw M6-1 x 45mm hex head 2
7 272-9904 Screw M5-.8 x 12mm truss head phillips 5
8 372-1625 Screw 6-32 x 3/16 pan head phillips (black) 4
9 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated 4
10 172-0345 Terminal stud 1
11 172-0346 Stud 1/4-20 2
12 272-9842 Control panel 1
13 272-9843 Electrical panel 1
14 272-9844 AXP control board kit 1
15 272-9845 Circuit breaker plate 1 (circuit breaker plate 561121122 has been replaced by 56112540)
19 272-9848 Speed controller 1
20 272-9850 Connector assembly (to battery) 1
21 272-9849 Connector assembly (to panel) 1
22 272-2209 30amp circuit breaker 1
23 172-0223 Battery cable boot 2
24 172-2173 24V contactor 1
25 270-0015 Battery series cable ring style 3
26 172-8836 150amp fuse 1
27 172-0103 Electrical mount 3
28 997-2101 6 inch cable tie 2
29 272-9374 10amp circuit breaker 1
30 999-1416 Washer 7/16 flat stainless steel 1
31 270-0216 Relay 2
32 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 2
33 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
34 272-8590 Screw 8-32 x 1 1/4 pan head 2
35 272-1835 Washer flat 2
36 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
37 272-9851 PCB mount bracket 1
38 999-0412 Washer #8 SAE flat 4
N/S 272-2195 Key switch assembly 1
N/S 272-2196 Keys (pkg of 2) 1 (optional)
N/S 272-9846 Jumper cable 1
N/S 272-9847 Main harness (OBSOLETE) 1 before serial number 4000068715
N/S 272-9852 Interface panel kit 1 (optional)
N/S 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
N/S 999-0869 Nut M4-.7 hex coarse thread plain finish 4
N/S 999-0469 Nut M6-1 nylon insert lock zinc plated 2
N/S 372-1992 EMC filter brush motor assembly (OBSOLETE) 2
N/S 372-1993 EMC filter transaxle assembly (OBSOLETE) 1
N/S 372-1994 Filter mount weldment (OBSOLETE) 1
N/S 372-1995 Filter mount bracket (OBSOLETE) 1
N/S 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 2
N/S 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
N/S 270-0264 Screw M5 x 12mm hex head self-tapping 2
N/S 472-7974 HARNESS-MAIN 1 after SN 4000068714

Electrical Assembly SC750 ST, SC800 ST

#PartDescription ReqNotesAvailability
1 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
2 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 2
3 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 5
4 999-0609 Nut 1/4-20 hex stainless steel 5
6 999-0781 Screw M6-1 x 45mm hex head 2
7 272-9904 Screw M5-.8 x 12mm truss head phillips 5
8 372-1625 Screw 6-32 x 3/16 pan head phillips (black) 4
9 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated 4
10 172-0345 Terminal stud 1
11 172-0346 Stud 1/4-20 2
12 272-9842 Control panel 1
13 272-9843 Electrical panel 1
14 272-9922 ST control board kit 1
15a 272-9845 Circuit breaker plate 1 (56112122 is obsolete, and replaced by 56112540 (15a)) (before SN 4000068715)
19 272-9850 Connector assembly (to battery) 1
20 272-9849 Connector assembly (to panel) 1
21 272-9925 Speed controller 1
22 272-2209 30amp circuit breaker 1
23 172-0223 Battery cable boot 2
24 270-0015 Battery series cable ring style 3
25 172-8836 150amp fuse 1
26 172-0103 Electrical mount 3
28 272-9374 10amp circuit breaker 1
29 999-1416 Washer 7/16 flat stainless steel 2
30 270-0216 Relay 1
31 172-2163 24V solenoid 4 post (2 large 2 small) 1
32 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 2
33 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
34 272-8590 Screw 8-32 x 1 1/4 pan head 2
35 172-0553 Washer 17/64 x 1/16 flat 2
36 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
37 272-9851 PCB mount bracket 1
38 999-0412 Washer #8 SAE flat 4
39 472-8035 WASHER-BLACK NYLON-6/6 5
N/S 272-9923 Momentary rocker switch 3
N/S 272-2195 Key switch assembly 1
N/S 272-2196 Keys (pkg of 2) 1 (for 56303553)
N/S 272-9924 ST interface panel kit 1 (membrane switch, membrane panel, gasket)
N/S 272-9846 Jumper cable 1
N/S 272-9847 Main harness (OBSOLETE) 1 (before SN 4000068715)
N/S 472-7974 HARNESS-MAIN 1 (after SN 4000068714)

Electrical Assembly SC750, SC800 (After January 2015)

#PartDescription ReqNotesAvailability
1 999-9090 Screw M5-.8 x 25mm hex head stainless steel 1
2 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
3 999-0412 Washer #8 SAE flat 4
4 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 2
5 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 5
6 999-0609 Nut 1/4-20 hex stainless steel 5
7 372-1625 Screw 6-32 x 3/16 pan head phillips (black) 4
9 999-0781 Screw M6-1 x 45mm hex head 2
10 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated 4
11 272-9904 Screw M5-.8 x 12mm truss head phillips 5
12 172-0345 Terminal stud 1
13 172-0346 Stud 1/4-20 2
14 181-0421 Spacer 1
15 272-9842 Control panel 1
16 272-9843 Electrical panel 1
19 272-9848 Speed controller 1
20 272-9850 Connector assembly (to battery) 1
21 272-9849 Connector assembly (to panel) 1
22 272-9851 PCB mount bracket 1
23a 272-9845 Circuit breaker plate 1
24 272-9844 AXP control board kit 1
25 272-2209 30amp circuit breaker 1
26 172-0223 Battery cable boot 2
27 272-1835 Washer flat 2
28 172-2173 24V contactor 1
29 172-8836 150amp fuse 1
30 172-0230 P-clamp 2
31 172-0103 Electrical mount 3
33 272-9374 10amp circuit breaker 1
34 270-0015 Battery series cable ring style 3
35 999-1416 Washer 7/16 flat stainless steel 2
36 270-0216 Relay 2
37 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 2
38 999-1220 Screw M5-.8 x 12mm hex head stainless steel 1
39 272-8590 Screw 8-32 x 1 1/4 pan head 2
40 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
41 472-8035 WASHER-BLACK NYLON-6/6 5
N/S 272-9847 Main harness (OBSOLETE) 1 (before SN 4000068715)
N/S 472-7974 HARNESS-MAIN 1 (after SN 4000068714)
N/S 272-9846 Jumper cable 1
N/S 272-2195 Key switch assembly 1
N/S 272-2196 Keys (pkg of 2) 1 (optional)
N/S 272-9852 Interface panel kit 1 (optional)

Ladder Assembly (After June 2014)

#PartDescription ReqNotesAvailability
A1 272-9844 AXP control board kit 1
A2 272-9848 Speed controller 1
A3 272-8616 120V Onboard charger kit 1 (optional)
A4 172-2162 Hour meter 1 (optional)
A5 472-4530 LASER 1 (optional)
F1 172-8836 150amp fuse 1
CB1 272-2209 30amp circuit breaker 1
CB2 272-9374 10amp circuit breaker 1
K1 270-0216 Relay 1
K2 172-2173 24V contactor 1
K3 270-0216 Relay 1
L1 272-9815 Solenoid valve assembly 1
M1 272-9970 Transaxle motor kit 1
M2 272-3543 Actuator 1 (includes S0, S1, and S2)
M3a 272-9872 Gearbox motor assembly 1 (disk)
M3b 272-9886 Brush motor 1 (cylindrical)
M3c 272-6547 Motor 1 (REV)
M4a 272-9872 Gearbox motor assembly 1 (disk)
M4b 272-9886 Brush motor 1 (cylindrical)
M4c 272-6547 Motor 1 (REV)
M5 272-9857 24V 3 stage vacuum motor 1
M6 172-2039 5K potentiometer 1 (optional)
R1 172-2039 5K potentiometer 1
S3 272-2195 Key switch assembly 1

Ladder Assembly (Before June 2014)

#PartDescription ReqNotesAvailability
A1 272-9844 AXP control board kit 1
A2 272-9848 Speed controller 1
A3 272-8616 120V Onboard charger kit 1 (optional)
A4 172-2162 Hour meter 1 (optional)
A5 472-4530 LASER 1 (optional)
F1 172-8836 150amp fuse 1
CB1 272-2209 30amp circuit breaker 1
CB2 272-9374 10amp circuit breaker 1
K1 270-0216 Relay 1
K2 172-2173 24V contactor 1
K3 270-0216 Relay 1
L1 272-9815 Solenoid valve assembly 1
M1 272-9970 Transaxle motor kit 1
M2 272-3543 Actuator 1 (includes S0, S1 and S2)
M3a 272-9872 Gearbox motor assembly 1 (disk)
M3b 272-9886 Brush motor 1 (cylindrical)
M3c 272-6547 Motor 1 (REV)
M4a 272-9872 Gearbox motor assembly 1 (disk)
M4b 272-9886 Brush motor 1 (cylindrical)
M4c 272-6547 Motor 1 (REV)
M5 272-9857 24V 3 stage vacuum motor 1
M6 272-2175 Chemical pump 1 (optional)
R1 172-2039 5K potentiometer 1
S3 272-2195 Key switch assembly 1

Ladder Assembly ST (After June 2014)

#PartDescription ReqNotesAvailability
A1 272-9922 ST control board kit 1
A2 272-9925 Speed controller 1
A4 172-2162 Hour meter 1 (optional)
F1 172-8836 150amp fuse 1
CB1 272-2209 30amp circuit breaker 1
CB2 272-9374 10amp circuit breaker 1
K1 270-0216 Relay 1
K2 172-2163 24V solenoid 4 post (2 large 2 small) 1 (brush)
L1 272-9815 Solenoid valve assembly 1
M1 272-9970 Transaxle motor kit 1
M2 272-3543 Actuator 1 (includes S0, S1, and S2
M3a 272-9872 Gearbox motor assembly 1 (disk)
M3b 272-9886 Brush motor 1 (cylindrical)
M4a 272-9872 Gearbox motor assembly 1 (disk)
M4b 272-9886 Brush motor 1 (cylindrical)
M5 272-9857 24V 3 stage vacuum motor 1
R2 272-8189 Potentiometer 1
R4 N/A Not available 1 (4.75K resistor)
S3 272-2195 Key switch assembly 1
S4 272-8197 Handle switch assembly 1
S5 272-8197 Handle switch assembly 1
S6 272-8191 SPST momentary switch 1
S7 272-9923 Momentary rocker switch 1
S8 272-9923 Momentary rocker switch 1
S9 272-9923 Momentary rocker switch 1

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 272-9853 Float ball cage kit 1 (included in kit 1)
2a 999-0006 Washer 3/16 flat zinc plated 2 (before August 2017)
2b 999-1862 Washer #10 flat SAE stainless steel 2 (after August 2017)
3a 999-1312 Screw M6-1 x 20mm hex head stainless steel 2 (before August 2017)
3b 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel 2 (after August 2017)
4a 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2 (before August 2017)
4b 372-1036 Washer 6mm 2 (after August 2017)
5 272-9902 Screw M4-.7 x 8mm flat head phillips stainless steel 1
6a 272-9854 Recovery tank 1 (SC750 models)
6b 472-4528 RECOVERY TANK 1 (SC800 models)
7a 272-9855 Recovery tank lid 1 (SC750 models)
7b 272-9901 Recovery tank lid 1 (SC800 models)
8 272-9856 Utility caddy 1
9a 272-9857 24V 3 stage vacuum motor 1 (before August 2017)
9b 272-9858 Carbon brush (pkg of 2) 1 (before August 2017)
9d 170-1960 Carbon brush set 1 (after August 2017)
10 272-9859 Retainer plate 2
20b 991-3141 Suction hose 1 (NON-OEM)
11 272-9860 Retainer plate 1
12 272-9861 Recovery tank lid gasket 1
13 172-4064 Bushing 2
14 N/A Not available 1 (ball float) (included in kit 1)
15 997-2003 Hose clamp 2
16 997-2102 Cable tie 2
17 997-2103 8 inch cable tie 1
18 172-9530 Cable clamp 2
19a 172-4733 Vacuum motor cover 1 (before August 2017)
19b 572-3651 COVER-VACUUM MOTOR PKD 1 (after August 2017)
20a 272-9862 Suction hose 1
21 172-4734 Acoustic insulation pipe 1
22 172-4731 Acoustic insulation panel 1
23 270-0197 Cable 1
24 270-0193 Plate cover (OBSOLETE) 3
25 272-5297 Plate 1
26 172-4732 Filter 1
27a 172-4719 Plug 1 (before August 2017)
27b 172-4719 Plug 1 (after August 2017)
28 270-0364 Vacuum motor gasket 1
29a 272-7272 Recovery drain hose 1
29b 991-3169 DRAIN HOSE-RECOVERY 1 (NON-OEM)
30 272-9863 Debris tray 1
31 272-9864 Debris tray cover 1
32 272-9865 Vacuum motor gasket 1
33 272-9866 Float support system 1
34a 272-9867 Float support gasket 1 (before August 2017)
34b 272-9867 Float support gasket 1 (after August 2017)
35 272-9903 Self driving nut stainless steel 2
36 270-0269 Screw M4-.7 x 10mm 3
37 272-8931 Screw M6-1 x 10mm pan head 2
38 272-9950 Screw M5-.8 x 12mm 2
39 172-4428 Screw M6-1.0 x 35mm hex 3
40 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
41 172-4718 Bushing 1
KIT 1 272-9853 Float ball cage kit 1 (includes 1 and 14)

REV Chassis Assembly

#PartDescription ReqNotesAvailability
1 272-9812 Tube 1
2 270-0265 Solution valve bracket 1
3 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 8
4 270-0288 Flanged bushing 8
5 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
6 999-1862 Washer #10 flat SAE stainless steel 1
7a 999-0120 Washer 3/8 SAE flat 2 (before March 2018)
7b 999-0114 Washer 1/2 SAE flat 2 (after March 2018)
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
9a 272-9823 Screw M8 x 65mm hex head (OBSOLETE) 1 (before March 2018)
9b 999-6736 Bolt M8-1.25 x 75mm hex head stainless steel 1 (after March 2018)
10 272-9819 Screw M8-1.25 x 90mm hex head 2
11 172-0345 Terminal stud 2
12a 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1 (before March 2018)
12b 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1 (after March 2018)
13 272-9814 Tire 2
14 272-9815 Solenoid valve assembly 1
15a 272-9817 Connector bracket 1 (before March 2018)
15b 272-9817 Connector bracket 1 (after March 2018)
16 272-9818 Rear caster 1
17a 272-9820 Flange kit 2 (includes 17b) (after March 2018)
17b 272-9816 Transaxle 1
17c 991-3081 Transaxle 1 (before March 2018)
17d 272-9970 Transaxle motor kit 1 (optional) (includes 17e ) (after March 2018)
17e 372-1624 Carbon brush 4 (optional) (for 17a) (after March 2018)
19 472-4573 LIFTING SUPPORT WELDT 1
20 272-9825 Nylon spacer 2
21 272-9826 Nylon spacer 2
22 472-4574 LEVER 1
23 272-9813 Chassis weldment 1
25 172-9530 Cable clamp 1
26 172-0103 Electrical mount 2
27 997-2103 8 inch cable tie 8
28 172-8964 Terminal insulator 2
29 270-0227 Spacer (OBSOLETE) 2
30 270-0258 Spacer 2
31 472-7661 Lever kit 4
32 270-0267 Filter bracket 1
33a 272-3516 Water filter 1
33b 272-3516 Water filter 1 (optional)
34 270-0282 Spacer 2
35 270-0283 Gas spring 1
36 999-1120 Nut M10-1.5 nylon insert lock stainless steel 9
37 270-0287 Spring 2
38 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
39 997-2002 Hose clamp #6 4
40 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
41 999-0017 Washer 1/4 external star lock 3
42 999-0028 Washer 5/16 split lock plain finish 8
43 999-0060 Washer 1/4 split lock plain finish 4
44a 270-0263 25 inch hose (clear) 1 (before March 2018)
44b 272-9541 Spiral hose 1 (after March 2018)
45 270-0270 3 inch hose (clear) 1
46 272-3543 Actuator 1
47 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 5
48 270-0273 Strap bracket 1
49 170-7146 Static strap 1
50 170-0226 Moving warning decal 1
51 270-0269 Screw M4-.7 x 10mm 2
52 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
53 999-0471 Nut M8-1.25 nylon insert lock zinc plated 9
54 999-0497 Nut M6-1 nylon insert lock stainless steel 4
55 272-8931 Screw M6-1 x 10mm pan head 1
56 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
57 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
58 999-0716 Washer 3/8 x 1 1/4 fender 3
59 170-6124 Washer flat nylon 2
60 172-0346 Stud 1/4-20 1
61 999-0671 Washer M10 split lock plain finish 10
62 472-3486 SCR-HEX M10-1.5 X 20MM 10
63 999-9115 Screw M10-1.5 x 75mm hex head stainless steel 1
64 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
65 270-0297 Screw M12-1.75 x 160mm hex head 1
66 270-0255 Screw M12-1.75 x 90mm hex head 1
67 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
68 270-0264 Screw M5 x 12mm hex head self-tapping 4
69 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
70 272-9820 Flange kit 2
N/S 272-9970 Transaxle motor kit 1 (optional)
N/S 372-1624 Carbon brush 4 (optional)
N/S 272-9824 24V 25amp onboard battery charger (OBSOLETE) 1 (replaced by part number 272-9824 (56383856)
N/S 272-2225 Onboard charger cord 1
N/S 991-8566 Onboard battery charger power cord 1
N/S 272-8616 120V Onboard charger kit 1 (the onboard battery charger part number 272-9824 (56112544) has been replaced in production by part number 270-8393 (56383856). If you need to replace part number 272-9824 (56112544), please order onboard charger kit part number 272-8616 (56383869).
N/S 270-8395 AC cord 1 (after March 2018)

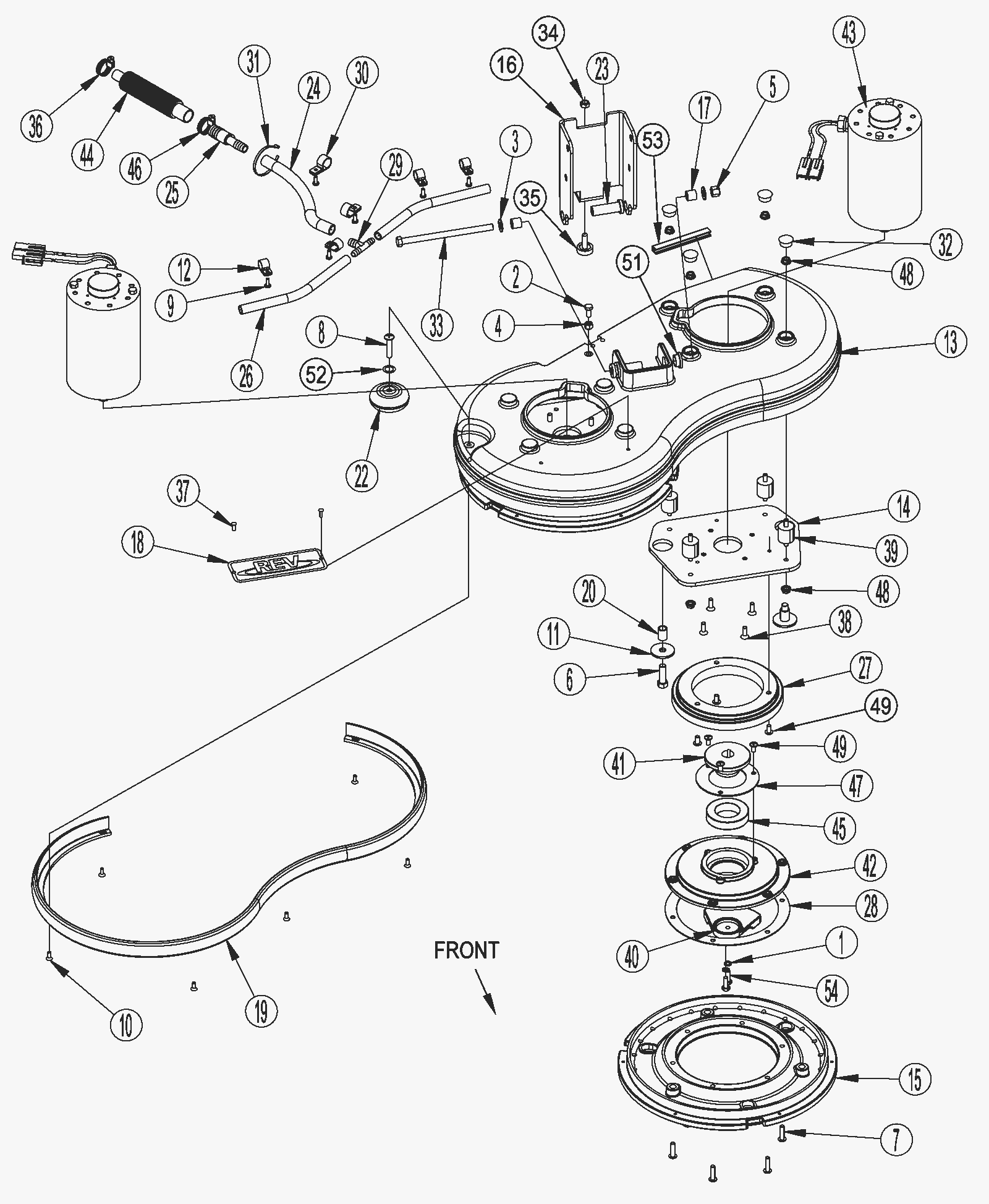

REV Scrub Deck Assembly (After February 2014)

#PartDescription ReqNotesAvailability
1 N/A Not available 4 (only available in K6) (lock washer)
2 N/A Not available 1 (only available in K6) (screw)
3 N/A Not available 2 (only available in K6) (washer)
4 N/A Not available 1 (only available in K6) (nut hex nylock)
5 N/A Not available 1 (only available in K6) (nut hex nylock)
6 N/A Not available 4 (only available in K2, K6) (screw)
7 N/A Not available 12 (only available in K5, K6) (screw)
8 N/A Not available 1 (only available in K6) (screw)
9 N/A Not available 6 (only available in K3, K6) (screw)
10 N/A Not available 6 (only available in K4, K6) (screw)
11 N/A Not available 4 (only available in K2, K6) (washer)
12 N/A Not available 4 (only available in K3) (p clamp)
13 272-9938 REV deck 1
14 272-6545 Motor plate 2
15a N/A Not available 2 (only available in K5) (pad driver assembly)
15b 272-6546 Pad driver hook kit 2
16 472-4584 BRACKET-DECK LINKAGE 1
17 272-9941 Nylon bushing 2
18 272-9942 REV decal 1
19 N/A Not available 1 (only available in K4) (bumper)
20 N/A Not available 4 (only available in K2) (sleeve)
22 272-9944 Wheel 1
23 272-9945 Bushing 2
24 N/A Not available 1 (only available in K3) (pvc hose)
25 N/A Not available 1 (only available in K3) (barb coupler)
26 N/A Not available 2 (only available in K3) (pvc hose)
27 N/A Not available 2 (splash shield)
28 N/A Not available 2 (only available in K8) (gasket driver)
29 N/A Not available 1 (only available in K3) (tee barb)
30 N/A Not available 2 (only available in K3) (p clamp)
31 N/A Not available 1 (only available in K3) (cable tie)
32 172-1803 Plug 8
33 N/A Not available 1 (only available in K6) (screw)
34 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
35 172-2503 Tank leveler 1
36 997-2002 Hose clamp #6 1
37 N/A Not available 2 (only available in K6) (rivet)
38 N/A Not available 8 (only available in K6) (screw)
39 N/A Not available 8 (only available in K1) (isolator)
40 272-9946 Counter weight 2
41 N/A Not available 2 (only available in K9) (eccentric)
42 272-9947 Motor driver 2
43 272-6547 Motor 2
44 170-0033 Solution hose 1
45 270-0065 Bearing 2
46 997-2002 Hose clamp #6 1
47 N/A Not available 2 (only available in K8) (bearing retainer)
48 N/A Not available 16 (only available in K1, K6) (serrated flange nut)
49 N/A Not available 12 (only available in K6, K8) (screw)
51 272-1843 Flanged bearing 2
52 272-5215 Washer 17/32 1
53 472-4581 TRIM 1
54 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
N/S 272-9943 Jumper 2 (jumper)
N/S 272-3688 Brush and spring kit 2 (brush and spring kit motor)
N/S 170-0009 Connector housing 4 (connector housing pp75 black)
N/S 272-9949 Connector contact 4 (connector contact)
N/S 472-8234 PAD-MAROON-14-10/CS 2 (optional) (pad - maroon)
N/S 472-4578 PAD MICRO FIBER-14 IN 2 (optional) (pad - micro fiber)
N/S 472-4580 VELCRO 2 SIDED 14 2 (optional) (velcro 2 sided)
N/S 472-4572 BRUSH NYLON REV-14 2 (optional) (nylon brush)
N/S 472-8385 KIT-BRUSH SCREW 2 (optional) (brush screw kit) (includes 3 brush screws)
K1 272-9928 Isolator kit 1 (isolator kit) (includes 39, 48)
K2 272-9929 Stabilizer stud kit 1 (stabilizer stud kit) (includes 6, 11, 20)
K3 272-9930 Solution hose kit 1 (solution hose kit) (includes 9, 12, 24-26, 29-31)
K4 272-9932 Bumper kit 1 (bumper kit) (includes 10, 19)
K5 272-9933 Pad driver kit 2 (pad driver kit) (includes 7, 15)
K6 272-9934 REV deck hardware kit 1 (deck hardware REV2 kit) (includes 1-11, 33, 37-38, 48-49)
K8 272-9936 Driver assembly 2 (driver kit) (includes 28, 47, 49)
K9 272-9937 Eccentric kit 2 (eccentric kit) (includes 41)

REV Scrub Deck Assembly (Before March 2014)

#PartDescription ReqNotesAvailability
1 272-9934 REV deck hardware kit 4 (Washer 1/4 helical spring lock)
2 272-9934 REV deck hardware kit 1 (Screw 1/4-20 x .62mm hex head)
3 999-0120 Washer 3/8 SAE flat 2 (included in REV deck hardware kit)
4 999-0190 Nut 1/4-20 hex plain finish 1 (included in REV deck hardware kit)
5 999-1482 Nut 3/8-16 nylon lock stainless steel 1 (included in REV deck hardware kit)
6a 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4 (included in stabilizer stud kit)
6b 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4 (included in REV deck hardware kit)
7a 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 12 (included in pad driver kit)
7b 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 12 (included in REV deck hardware kit)
8 272-9934 REV deck hardware kit 1 (Screw 5/16-18 x 1 1/2 pan head phillips SS)
9a 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 6 (included in solution hose kit)
9b 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 6 (included in REV deck hardware kit)
10a 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 6 (included in bumper kit)
10b 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 6 (included in REV deck hardware kit)
11a 272-9929 Stabilizer stud kit 6 (Washer flat)
11b 272-9934 REV deck hardware kit 6 (Washer flat)
12 272-9930 Solution hose kit 4 (P-clamp)
13 272-9938 REV deck 1
14 272-6545 Motor plate 2
15 272-9933 Pad driver kit 2 (Pad driver assembly)
16 472-4584 BRACKET-DECK LINKAGE 1
17 272-9941 Nylon bushing 2
18 272-9942 REV decal 1
19 272-9932 Bumper kit 1 (Bumper)
20 272-9929 Stabilizer stud kit 4 (Sleeve)
22 272-9944 Wheel 1
23 272-9945 Bushing 2
24 272-9930 Solution hose kit 1 (PVC hose)
25 272-9930 Solution hose kit 1 (Coupler barb)
26 272-9930 Solution hose kit 2 (PVC hose)
27 272-9935 Splash guard kit 2 (Splash shield)
28 272-9936 Driver assembly 2 (Gasket driver)
29 272-9930 Solution hose kit 1 (Tee barb)
30 272-9930 Solution hose kit 2 (P-clamp)
31 272-9930 Solution hose kit 1 (Cable tie)
32 172-1803 Plug 8
33 272-9934 REV deck hardware kit 1 (Screw 3/8-16 x 6mm)
34a 999-0609 Nut 1/4-20 hex stainless steel 6 (included in REV deck hardware kit)
34b 999-0609 Nut 1/4-20 hex stainless steel 6 (included in splash guard kit)
35a 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 10 (included in REV deck hardware kit)
35b 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 10 (included in splash guard kit)
36 997-2002 Hose clamp #6 1
37 272-9934 REV deck hardware kit 2 (Rivet)
38 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 8 (included in REV deck hardware kit)
39 272-9928 Isolator kit 8 (Isolator)
40 272-9946 Counter weight 2
41 272-9937 Eccentric kit 2 (Eccentric)
42 272-9947 Motor driver 2
43a 272-9948 24V brush motor 2
43b 172-8951 Carbon brush and spring kit 2
43c 170-0009 Connector housing 2
43d 272-9949 Connector contact 2
44 170-0033 Solution hose 1
45 270-0065 Bearing 2
46 997-2002 Hose clamp #6 1
47 272-9936 Driver assembly 2 (Bearing retainer)
48a 272-9928 Isolator kit 16 (serrated nut)
48b 272-9934 REV deck hardware kit 16 (serrated nut)
49a 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6 (included in REV deck hardware kit)
49b 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6 (included in driver kit)
50a 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6 (included in REV deck hardware kit)
50b 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6 (included in splash guard kit)
51 272-1843 Flanged bearing 2
52 272-5215 Washer 17/32 1
N/S 272-9943 Jumper 2
KIT 272-9928 Isolator kit 1 (includes 39 and 48a)
KIT 272-9929 Stabilizer stud kit 1 (includes 6a, 11a and 20)
KIT 272-9930 Solution hose kit 1 (includes 9a, 12, 24-26 and 29-31)
KIT 272-9932 Bumper kit 1 (includes 10a and 19)
KIT 272-9933 Pad driver kit 1 (includes 7a and 15)
KIT 272-9934 REV deck hardware kit 1 (includes 1-5, 6b, 7b, 8, 9b, 10b, 11b, 33, 34a, 35, 37, 38, 48b, 49a and 50a)
KIT 272-9935 Splash guard kit 1 (includes 27, 34b, 35b and 50b)
KIT 272-9936 Driver assembly 1 (includes 28, 47 and 49b)
KIT 272-9937 Eccentric kit 1 (includes 41)

Scrub Deck Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1 272-2630 Hose 1
2 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 4
3 272-1596 Bolt 1/4-20 x 3/4 hex head lock 8
4 997-2518 Hitch pin 1
5 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
8a 999-0469 Nut M6-1 nylon insert lock zinc plated 2 (before October 2016)
8b 999-0497 Nut M6-1 nylon insert lock stainless steel 8 (after September 2016)
9 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
10 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
11a 999-1329 Screw M6-1 x 100mm hex head 2 (before October 2016)
11b 372-1626 Screw M6-1 x 95mm hex head 2 (after September 2016)
12a 272-1562 Screw 1/4-20 x 3/5 pan head thread forming 2 (before October 2016)
13 172-3484 Clevis pin 1
14 172-2067 Washer 11/32 x 1/8 flat 2
15a 272-9886 Brush motor 2
15b 172-8948 Brush cap assembly 1
16b 272-9911 32 inch brush housing weldment 1 (32 inch models) (before October 2016)
16d 272-9911 32 inch brush housing weldment 1 (32 inch models) (after September 2016)
17 272-9888 Motor strap 2
18 272-9889 Poly-v sheave 2
19 272-9871 Linkage bracket 1
20a 272-9890 28 inch hopper weldment 1 (28 inch models) (before October 2016)
20b 272-9912 32 inch hopper weldment 1 (32 inch models) (before October 2016)
20c 272-9890 28 inch hopper weldment 1 (28 inch models) (after September 2016)
20d 272-9912 32 inch hopper weldment 1 (32 inch models) (after September 2016)
21 997-2004 Hose clamp 6
22 172-4114 Tee barb 1
24 272-2150 Tension belt 2
25a 272-2145 PVC manifold 28 inch 2 (28 inch models)
25b 272-2230 32 inch manifold 2 (32 inch models)
26a 172-8933 Drive end assembly 2 (before October 2016)
26b 472-4877 DRIVE END ASSY 2 (after September 2016) (includes 41-48)
27 272-2152 Belt cover 2
28 172-3373 Idler end assembly 2 (includes 49-53)
29 272-9415 Motor spacer plate 2
30 172-8926 Blade 2
31 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
32 172-8944 Bushing 2
33 172-9040 Wheel 2
34 172-9147 Terminal insulator 2
35 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 1
36 270-0336 3/8 inch hosebarb 1
37 999-0238 Washer 1/4 internal star lock zinc plated 1
38 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
39 170-0033 Solution hose 1
40 272-2213 Coupler 1/2 x 3/4 barb 1
41 272-1454 Screw 1/4-20 X 3/8 socket set lock 2
42 172-8956 Square keyway 1
43 172-4656 Ball bearing 2
44 472-4878 SPINDLE-LONG 1
45 272-2169 Bearing plate 1
46 172-8957 Spacer 1
47 472-4875 SHEAVE-POLY V 1
48 172-1837 Bearing washer 1
49 172-4656 Ball bearing 1
50 172-1837 Bearing washer 1
51 272-2170 Idler bearing plate 1
52 172-2150 Knob 2
53 172-1838 Hub 1
N/S 172-8969 Nylon soft scrubbing brush - CYLINDRICAL 2 (28 inch models)
N/S 172-9308 Soft nylon brush - CYLINDRICAL (yellow) 2 (32 inch models)

Scrub Deck Assembly - Disk

#PartDescription ReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
2 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
4a 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4 (before June 2016)
4b 472-3627 SCR-BUTTON SOC SS M4-0.7X12 4 (after May 2016)
5a 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8 (before June 2016)
5b 472-3482 SCR SOC SS M6-1X14MM 8 (after May 2016)
6 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 1
7 272-9905 Screw 5/16-18 x 1 1/4 socket head zinc plated 2
8 472-3611 NUT-HEX NYL LOC SS M4-0.7 4
9 272-1835 Washer flat 2
10 272-1382 Counterclockwise brush plate assembly 1 (includes 36-42)
11 272-1383 Clockwise brush plate assembly 1 (includes 36-42)
12 272-9868 Button plug 1
13a 272-9869 26 inch brush plate weldment 1 (before June 2016) (26 inch models)
13b 272-9870 28 inch brush plate weldment 1 (before June 2016) (28 inch models)
13c 272-9906 34 inch brush plate weldment 1 (before June 2016) (34 inch models)
13d 272-9869 26 inch brush plate weldment 1 (after May 2016) (26 inch models)
13e 272-9870 28 inch brush plate weldment 1 (after May 2016) (28 inch models)
13f 272-9906 34 inch brush plate weldment 1 (after May 2016) (34 inch models) (on machines before April 2015, the machines design allowed the motor gearbox assembly to interfere with the recovery tank causing blown/shorted fuses and broken electrical stud connections.) (on machines after March 2015, brush plate weldt 34D 56112759 was modified by rotationg the motor gearbox assembly mounting holes 25 degrees to allow for a non-interfering motor positioning)
14 272-9871 Linkage bracket 1
15a 272-9872 Gearbox motor assembly 2
15b 272-9873 Carbon brush kit 2
16a 272-9874 26 inch left brush skirt assembly 1 (26 inch models)
16b 272-9875 28 inch left brush skirt assembly 1 (28 inch models)
16c 272-9907 34 inch left brush skirt assembly 1 (34 inch models)
17a 272-9876 26 inch right brush skirt assembly 1 (26 inch models)
17b 272-9877 28 inch right brush skirt assembly 1 (28 inch models)
17c 272-9908 34 inch right brush skirt assembly 1 (34 inch models)
18a 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) 2 (26 inch models)
18b 272-2630 Hose 2 (28 inch models)
18c 170-7018 Hose 2 (34 inch models)
19 172-9147 Terminal insulator 2 (28 inch and 34 inch models)
20 272-9881 Wheel 1
21 272-9882 Bushing 1
22 997-2002 Hose clamp #6 1
23 170-0198 Hose clamp 2
24 170-0033 Solution hose 1
25 170-7013 Solution splitter 1
26 997-2001 Hose clamp 2
27 997-2002 Hose clamp #6 1
28 170-7029 Keeper 1
29 170-7019 Brush deck latch 1
30 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
31 170-7026 Latch tab 1
32 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
34 999-0497 Nut M6-1 nylon insert lock stainless steel 4
35a 270-0294 Screw M6-1 x 40mm pan head 2 (before June 2016)
36 272-7257 6 tab gimbal and collar assembly 1
37 172-0155 Stop plate 1
38 172-0553 Washer 17/64 x 1/16 flat 1
39 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 3
40 272-9883 Retainer spring 1
41 272-9884 Brush holder spring 1
42 272-9885 Brush plate 1
N/S 272-9878 26 inch bristle skirt kit 1 (26 inch models) (includes 2 skirts and mounting hardware)
N/S 272-9879 28 inch bristle skirt kit 1 (28 inch models) (includes 2 skirts and mounting hardware)
N/S 272-9909 34 inch bristle skirt kit 1 (34 inch models) (includes 2 skirts and mounting hardware)

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 172-4857 Hose clamp 1
2 999-0559 Washer 1/2 x 1/4 flat stainless steel 3 (SC750 and SC800)
3a 272-9891 Solution tank 1 (SC750 and SC750 ST)
3b 272-9913 Solution tank 1 (SC800 and SC800 ST)
4 272-9892 Pressure sensing tube 1 (SC750 and SC800)
5a 272-9893 Drain hose 1 (SC750 and SC750 ST) (before June 2016)
5b 272-9914 Drain hose 1 (SC800 and SC800 ST) (before June 2016)
5c 472-8020 HOSE-PVC-5/8X19 1 (after May 2016)
6 272-9894 Gasket 3 (SC750 and SC800)
7 997-2103 8 inch cable tie 4 (the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014)
8a 272-9895 Hose (OBSOLETE) 1 (before June 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570)
8b 472-4568 HOSE 1 (after May 2016) (SC750, SC800) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570)
9 272-8076 Gasket 1
10 170-5402 Manual solution valve 1
11 181-0259 Adaptor PP-HS 1 (SC750 and SC800)
12a 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel 1 (before June 2016)
12b 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 1 (after May 2016)
13a 272-9352 Raw cap with tether 1 (before June 2016)
13b 272-9352 Raw cap with tether 1 (after May 2016)
14a 272-9896 Straight connector 2 (before June 2016)
14b 272-9896 Straight connector 2 (after May 2016)
15 170-1387 Bushing fitting 2
16 170-7388 1/4 tab 4 (the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014)
17 272-8931 Screw M6-1 x 10mm pan head 4 (the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014)
18 272-9915 Pipe plug 1 (SC750 ST and SC800 ST)
19 272-9961 Pipe plug 1 (SC800 and SC800 ST)
20a 997-2005 Hose clamp 1 (before June 2016)
20b 209-0604 Hose clamp 1 (after May 2016)
21 472-4569 ELBOW 3/16 X 3/16 POLY 1 (after May 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570)
22 472-4567 HOSE 1 (after May 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570)
23 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 2 (after May 2016)
24 172-9530 Cable clamp 4 (after May 2016)
25 472-7868 POWER CORD BRACKET 1 (after May 2016)

Squeegee Assembly

#PartDescription ReqNotesAvailability
0a 272-7269 Squeegee assembly 1 (26 and 28 inch models)
0b 272-7270 Squeegee assembly 1 (32 and 34 inch models)
1a 272-6575 Squeegee blade kit gum rubber 1 (26 and 28 inch models)
1b 994-0072 Squeegee blade kit 35 inch gum rubber 1 (26 and 28 inch models)
1c 272-9916 Squeegee blade kit gum rubber 1 (32 and 34 inch models)
1d 272-6576 Squeegee blade kit linatex 1 (26 and 28 inch models)
1e 372-1167 Squeegee blade kit linatex 1 (32 and 34 inch models)
1f 270-0803 Squeegee blade kit 35 inch urethane 1 (26 and 28 inch models)
1g 994-0074 Squeegee blade kit 35 inch urethane 1 (26 and 28 inch models)
1h 272-7419 Squeegee blade kit urethane 1 (32 and 34 inch models)
1i 991-3125 BLADE KIT- RED 32-34 1 (NON-OEM)
2a 270-0248 35 inch squeegee band front (BOOST 28) 1 (26 and 28 inch models)
2b 270-0249 41 inch squeegee band front 1 (32 and 34 inch models)
3 999-9112 Screw M8-1.25 x 30mm set stainless steel 1
4 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
6 272-9868 Button plug 2
7 272-7268 Wheel 2
9a 272-9897 Rear squeegee strap 1 (26 and 28 inch models)
9b 272-9917 Rear squeegee strap 1 (32 and 34 inch models) (before August 2017)
9c 272-9917 Rear squeegee strap 1 (32 and 34 inch models) (after July 2017)
10 272-9882 Bushing 2
11 172-4793 Squeegee wheel kit 2
12 272-9898 Rear latch strap 1
13 172-4099 Nut 5/16-18 thumb 2
15 999-9093 Screw M6-1 x 55mm hex head stainless steel 2
16 272-7124 Squeegee latch 1
17 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 2
18 270-0243 Knob 1
19 270-0251 Screw shim 2
20 999-0497 Nut M6-1 nylon insert lock stainless steel 2
21 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
23 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
24 472-8250 WASHER-POLYURETHANE-1.25 2

Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
1 270-0223 Support plate 1
2 272-2009 Pin 1
3 272-2007 Spacer 1
4a 272-7269 Squeegee assembly 1 (26 and 28 inch)
4b 272-7270 Squeegee assembly 1 (32 and 34 inch)
5 172-3668 Spacer 6 1/2 X 10 X 4 1/2 1
6 272-7164 Elbow joint 1
7 272-7000 Squeegee mounting bracket kit 1
8 270-0114 Spring support 1
9 172-4807 Bolt M10 x 16mm shoulder 2
10 270-0395 Squeegee pin 1
11 172-4776 Right hand squeegee torsion spring 1
12 172-4777 Spring 1
13 270-0222 Lift cable 1
14 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
15 170-3541 Cotter pin 2
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
18 170-0213 Nylon washer 2
19 170-7402 Squeegee lift knob 1
20 270-0226 Knob 1
21 270-0228 Squeegee lift lever 1
22 999-1424 Nut M8-1.25 hex stainless steel 1
23 999-1308 Nut M6-1 hex stainless steel 1
24 270-0195 Screw M6 x 15mm pan head phillips stainless steel 1
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
26 999-0497 Nut M6-1 nylon insert lock stainless steel 1
27 272-9900 Washer flat 2
28 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc 1
29 999-0016 Washer 1/4 flat plain finish 2
30 170-1397 Washer nylon 2
31 999-0673 Nut M6-1 acorn zinc plated 1
32 172-4784 Wire tie holder 2
