- Commonly Asked For Parts

Click to enlarge

#	Part	Description	Req	Notes	Availability
01	572-4237	Smart location tag assembly

2D Sensor Assembly- Left

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT7)(nut M6 nylon hex loc thin)
2	999-6714	Washer M6 x 12mm flat stainless steel	5
3	N/A	Not available	4	(only available in KIT13)(screw M5-0.8 x 10mm pan head phillips)
4	999-1308	Nut M6-1 hex stainless steel	7
5	N/A	Not available	3	(only available in KIT7)(screw M6 x 12 socket head)
6	999-1147	Bolt M6-1 x 40mm hex head stainless steel	1	(included in KIT7)
7	999-1953	Screw M6-1 x 35mm socket stainless steel	6	(included in KIT7) (included in KIT7)
8	N/A	Not available	2	(only available in KIT12)(screw 10-24 x .38 pan head phillips)
9	N/A	Not available	1	(only available in KIT12)(2d sensor)
10	N/A	Not available	1	(only available in KIT7)(2d sensor bracket weldment)
11	N/A	Not available	1	(only available in KIT7)(laser mount bracket)
12	N/A	Not available	1	(only available in KIT7)(laser adjust bracket)
13	N/A	Not available	1	(only available in KIT7)(2d laser mounting plate)
14	N/A	Not available	1	(only available in KIT13)(2d sensor left configured-a50)(also refered as safety sensor)
15	N/A	Not available	7	(only available in KIT7)(spring)
16	N/A	Not available	1	(only available in KIT15)(2d mounting feet sensor)
KIT7	572-7071	Safety sensor mtg kit-left	1	(includes 1-2, 4-7, 10-13, and 15)
KIT12	572-7072	Mapping sensor kit	1	(includes 8 and 9)
KIT13	572-7073	Safety sensor kit-left	1	(includes 3 and 14)
KIT15	572-7074	2d sensor mounting feet	1	(includes 16)

2D Sensor Assembly-Right

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT8)(nut M6 nylon hex loc thin)
2	N/A	Not available	5	(only available in KIT8)(wahser M6 x 12 stainless steel)
3	N/A	Not available	4	(only available in KIT14)(screw M5-0.8 x 10mm pan head phillips)
4	999-6714	Washer M6 x 12mm flat stainless steel	4	(included in KIT8)
5	N/A	Not available	3	(only available in KIT8)(screw)
6	N/A	Not available	1	(only available in KIT8)(screw M6-1 x 40mm hex stainless steel)
7	999-1953	Screw M6-1 x 35mm socket stainless steel	3	(included in KIT8)
8	N/A	Not available	1	(only available in KIT8)(laser mount bracket)
9	N/A	Not available	1	(only available in KIT8)(sensor mount bracket)
10	N/A	Not available	1	(only available in KIT8)(right sensor mount beacket weldment)
11	N/A	Not available	1	(only available in KIT14)(2d sensor right configured-a50)(also referred as safety sensor)
12	N/A	Not available	4	(only available in KIT8)(spring)
KIT8	572-7075	Safety sensor mtg kit-right	1	(includes 1,2,4-10, and 12)
KIT14	572-7076	Safety sensor kit-right	1	(includes 3 and 11)

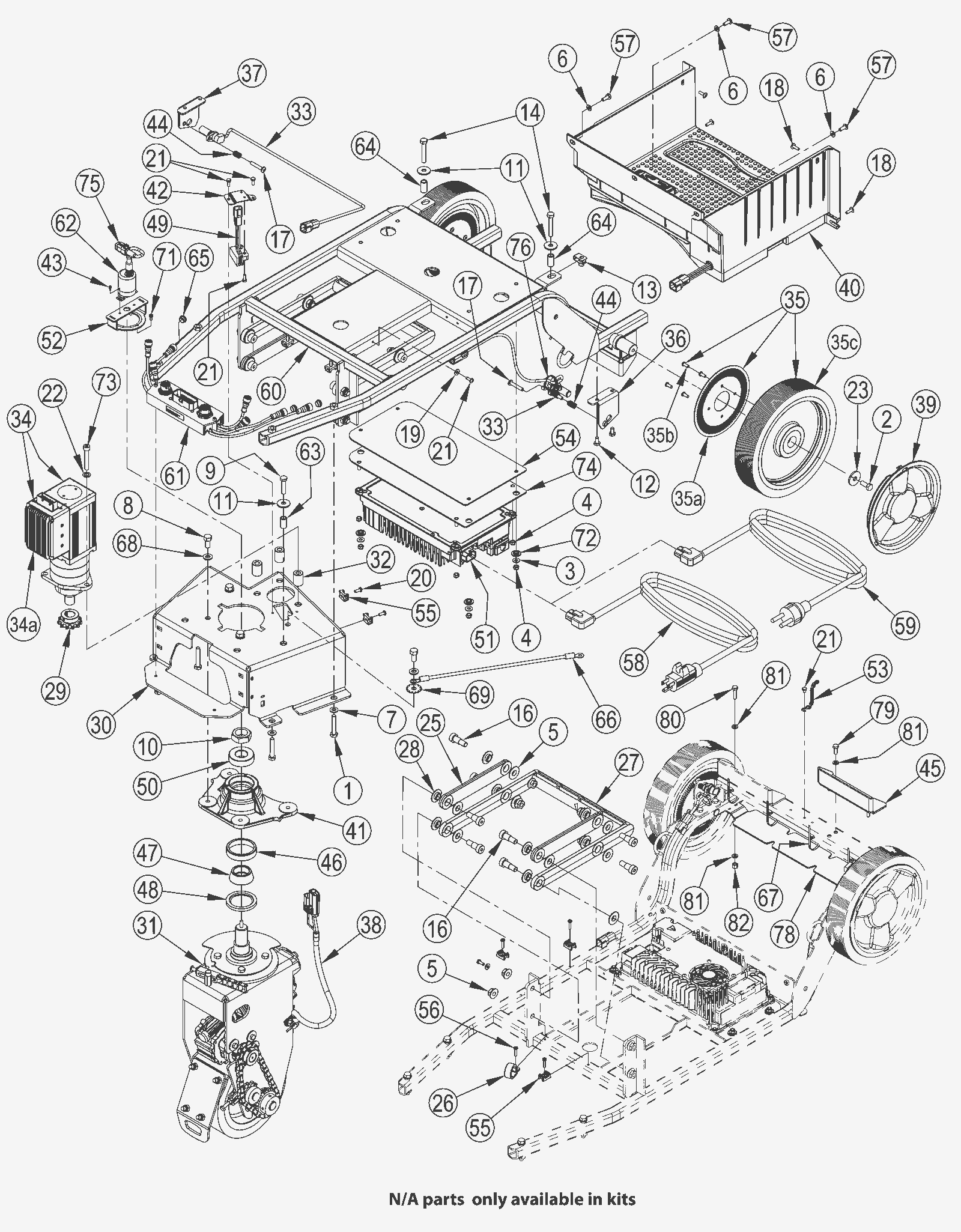

Chassis System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	4	(only available in KIT3) (screw M8 x 45 hex head)
2	999-9092	Screw M8-1.25 x 20mm hex head stainless steel	2	(only available in KIT1 and KIT3)( Screw M8-1.25 x 20mm hex head stainless steel)
3	N/A	Not available	4	(only available in KIT3)(washer)
4	N/A	Not available	4	(only available in KIT3)(nut M6 hex nylon loc thin)
5	N/A	Not available	8	(only available in KIT3)(nut M10-1.50 hex flange spiraloc)
6	N/A	Not available	3	(only available in KIT3)(washer)
7	N/A	Not available	4	(only available in KIT3)(washer)
8	N/A	Not available	4	(only available in KIT3)(screw 3/8-16 x .75 hex loc)
9	999-0787	Bolt M8-1.25 x 40mm hex head full thread stainless steel	1
10	N/A	Not available	1	(only available in KIT2)(nut 1-14 nylon hex loc thin)
11	N/A	Not available	3	(only available in KIT3)(washer)
12	N/A	Not available	2	(only available in KIT3 and KIT5)(screw 1/4-20 x .50 hex thd form)
13	N/A	Not available	2	(only available in KIT3)(nut M8 x 1.25)
14	999-1692	Screw M8-1.25 x 50mm hex stainless steel	2
16	N/A	Not available	8	(only available in KIT3)(screw M12 x 16mmx M10-1.50 socket)
17	999-6718	Screw M6-1 x 35mm pan head phillips stainless steel	2
18	N/A	Not available	4	(only available in KIT3)(screw M5 x 16)
19	N/A	Not available	1	(only available in KIT3)(washer)
20	N/A	Not available	2	(only available in KIT3)(screw 10-24 x .50 Pan head Phillips Thread Form)
21	N/A	Not available	5	(only available in KIT3)(screw 10-24x .50 Hex Thread Form)
22	N/A	Not available	3	(only available in KIT3)(washer)
23	N/A	Not available	2	(only available in KIT1 and KIT3)(washer)
25	272-6646	Linkage bar	2
26	172-1014	P clamp	1
27	272-6649	Link bar	1
28	N/A	Not available	16	(only available in KIT3)(bushing link arm)
29	272-6655	11 tooth sprocket	1
30	572-6000	Spindle mount	1
31	N/A	Not available	1	(drive wheel assembly)
32	N/A	Not available	2	(only available in KIT3)(bushing)
33	572-6001	Encoder sensor	2
34a	572-6002	Motor steering controller	1
34b	572-6003	Motor steering controller	1
35a	N/A	Not available	2	(only available in KIT1)(wheel/encoder plate assembly)
35b	572-6004	Encoder plate	1
35c	N/A	Not available	4	(only available in KIT1 and KIT3)(screw 10-14 x .50 pan head phillips plastite)
35d	N/A	Not available	1	(only available in KIT1)(wheel)
36	N/A	Not available	1	(only available in KIT5)(encoder plate left mount)
37	N/A	Not available	1	(only available in KIT5)(encoder plate right mount)
38	572-6005	Drive motor harness	1
39	572-6006	Hub cap	2
40	N/A	Not available	1	(platform assembly)
41	572-6007	Bearing block	1
42	572-6008	Mounting switch plate	1
43	N/A	Not available	2	(only available in KIT3 and KIT4)(screw)
44	N/A	Not available	2	(only available in KIT3 and KIT5)(spring)
45	572-6009	Tip bracket	2
46	N/A	Not available	1	(only available in KIT2)(Bearing)
47	N/A	Not available	1	(only available in KIT2)(bearing cone)
48	N/A	Not available	1	(only available in KIT2)(shaft seal)
49	372-3090	Proximity sensor	1
50	N/A	Not available	1	(only available in KIT2)(bearing ball)
51a	270-8393	24V onboard battery charger	1
51b	572-6010	24v1000w onboard charger	1
52	572-6011	Steering encoder bracket weldment	1
53	N/A	Not available	1	(only available in KIT3)(ground chain)
54a	572-6012	Insulator charger	1
54b	572-6013	Insulator charger (obsolete)	1
55	N/A	Not available	5	(only available in KIT3)(flat tie holder)
56	N/A	Not available	4	(only available in KIT3)(screw 8-32 x .75 pan head phillips thread form)
57	999-1257	Screw M6-1 x 16mm pan head Phillips	3
58	270-8395	AC cord	1
60a	572-6014	Chassis weldment	1	(before SN 1000073534)
60b	572-6015	Chassis weldment	1	(after SN 1000073534)
61	572-6016	Breakout box assembly	1
62	N/A	Not available	1	(only available in KIT4)(drive wheel angle sensor)
63	N/A	Not available	1	(only available in KIT3)(bushing)
64	N/A	Not available	2	(only available in KIT3)(bushing)
65	N/A	Not available	3	(only available in KIT3)(cap)
66	572-6017	12 Awg ground wire assembly	1
67	N/A	Not available	4	(only available in KIT3)(cable tie)
68	N/A	Not available	4	(only available in KIT3)( washer)
69	N/A	Not available	1	(only available in KIT3)(washer)
72	572-6018	Step bushing	4
73	272-7154	Screw M8 x 50mm	3
74a	572-6019	Charger mount plate	1
74b	572-6020	Charger mount plate	1
75	N/A	Not available	1	(only available in KIT4)(rotary encoder harness)
76	N/A	Not available	1	(only available in KIT5)(cable tie mount)
78	572-6021	Platform support plate (obsolete)	1
79	999-1383	Screw M6-1 x 16mm hex head stainless steel	4
80	999-0518	Bolt M6-1 x 25mm hex head full thread zinc	4
81	372-1036	Washer 6mm	12
82	999-0497	Nut M6-1 nylon insert lock stainless steel	4
KIT1	572-6022	Rear wheel kit	1	(includes 2, 23, 35a-d, 39)
KIT2	272-6660	Bearing block kit	1	(includes 10, 46-48, 50)
KIT3	572-6023	Chassis hardware kit	1	(includes 1-9, 11-23, 28, 32, 35c, 43, 44, 53, 55-57, 63-65, 67-73)
KIT4	572-6024	Rotary encoder kit	1	(includes 43, 62, 75)
KIT5	572-6025	Bracket encoder kit	1	(includes 12, 17, 36, 37, 44, 76)
N/S	172-6196	Cable tie	2

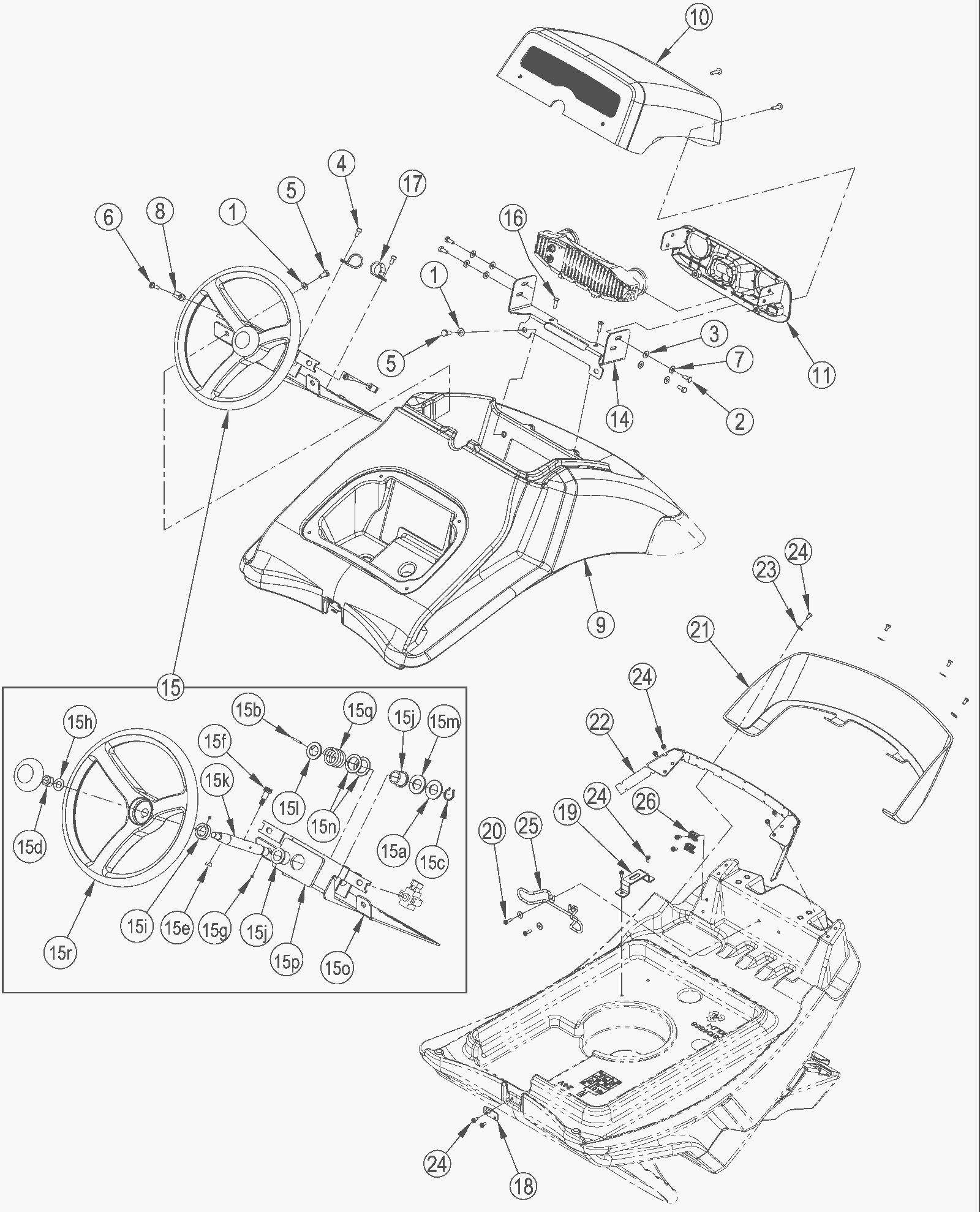

Control System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	6	(only available in KIT3)(washer M8 x 16)
2	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	4
3	999-0123	Washer 1/4 SAE flat zinc plated	4
4	172-0768	Screw 6 x 12 socket thread to head	1
5	999-0784	Screw M8-1.25 x 16mm hex head stainless steel	6
6	N/A	Not available	4	(only available in KIT3)(screw M6 x 25)
7	372-1011	Washer 1/4	4
8	N/A	Not available	2	(only available in KIT3)(long M6 U-nut)
9	572-6042	Top hood	1
10	572-6043	Hood cover assembly	1
11	572-6044	Camera bezel	1
14	572-6045	Camera brakcet	1
15	N/A	Not available	1	(steering assembly)
15a	999-0630	Washer 3/4 SAE flat	1
15b	N/A	Not available	1	(only available in KIT2)(dowel pin)
15c	N/A	Not available	1	(only available in KIT2)(750 shaft ret ext ring)
15d	999-1122	Nut M12-1.75 hex nylon insert lock stainless steel	1
15e	N/A	Not available	1	(only available in KIT2)(key 5 x 6.5 din 6888 din)
15f	N/A	Not available	1	(only available in KIT2)(screw 10 x 16-M8-1.25 socket head shoulder)
15g	N/A	Not available	2	(only available in KIT2)(screw M5-0 8 x 5 socket head)
15h	N/A	Not available	1	(only available in KIT3)(washer)
15i	N/A	Not available	1	(only available in KIT2)(collar)
15j	N/A	Not available	2	(only available in KIT2)(flange bearing)
15k	N/A	Not available	1	(only available in KIT2)(steering shaft)
15l	N/A	Not available	1	(only available in KIT2)(Spring support bracket)
15m	N/A	Not available	1	(only available in KIT2)(washer)
15n	N/A	Not available	2	(only available in KIT2)(washer)
15o	N/A	Not available	1	(only available in KIT2)(electrical panel weldment hood)
15p	N/A	Not available	1	(only available in KIT2)(electrical plate gasket)
15q	N/A	Not available	1	(only available in KIT2)(compression spring)
15r	272-8887	Steering wheel	1
16	N/A	Not available	2	(only available in KIT3)(screw M6 x 20)
17	N/A	Not available	1	(only available in KIT6)(p clamp 56e00623)
18	N/A	Not available	1	(only available in KIT1 and KIT3)(latch hook)
19	272-6693	Prop rod bracket	1
20	N/A	Not available	2	(only available in KIT3)(screw M5 x 15 pan head stainless steel)
21	572-6046	Light bar lens	1
22	N/A	Not available	1	(only available in KIT4)(lightstrip weldment)
23	N/A	Not available	6	(only available in KIT3)(washer M5 x 15 stainless steel)
24	N/A	Not available	14	(only available in KIT1 and KIT3)(screw M5 x 10 pan head phillips stainless steel)
25	N/A	Not available	1	(only available in KIT5)(cable support)
26	N/A	Not available	2	(only available in KIT3)(flat tie holder)
KIT1	272-6692	Draw latch kit	1	(includes 18 and 24)
KIT2	572-6047	Steering assembly kit	1	(includes 15a-15c,15e-15g,15i-15q)
KIT3	572-6048	Control hardware kit	1	(includes 1-8,15d,15h,16,18,20,23,24, and 26)
KIT4	572-6049	Light bar kit	1	(includes 22)
KIT5	372-1321	Cable support	1	(includes 25)
KIT6	572-6050	Electrical hardware kit	1	(includes 17)

Decal System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT1)(caution decal)
2	N/A	Not available	1	(only available in KIT1)(chemical ratio decal)
3	N/A	Not available	1	(only available in KIT1)(charger cord decal)
4	N/A	Not available	1	(only available in KIT1)(logo decal)
5	N/A	Not available	2	(only available in KIT1)(Nilfisk liberty sc50 decal)
6	N/A	Not available	1	(only available in KIT1)(Prop 65 decal)
7	N/A	Not available	1	(only available in KIT1)(Battery wiring decal)
8	N/A	Not available	1	(only available in KIT1)(Patent pending decal)
9	N/A	Not available	1	(only available in KIT1)(Patent information decal)
KIT1	572-6051	Liberty sc50 decal kit	1	(Includes 1-9)

Disc Brush Motor Assembly

Click to enlarge

#	Part	Description	Req
1	472-3873	MOTOVARIO GEARBOX 15/1	1
2	572-7025	24VDC 2100RPM .5HP motor	1
3	572-7026	Brush housing assembly	1
4	372-1364	Cover with screws	1
5	272-3610	Brush motor cover	1
6	272-3608	Carbon brush (sold individually)	1

Drive Wheel Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	4	(only available in KIT1 and KIT4)(screw M5 x 16 cap hex head socket)
2	999-0496	Nut M8-1.25 nylon insert lock stainless steel	13
3	172-4754	Snap ring	1
4	N/A	Not available	1	(only available in KIT4)(stop steering bushing)
5	N/A	Not available	1	(only available in KIT4)(nut 1/4-20 nylon hex loc stainless steel)
6	N/A	Not available	1	(only available in KIT4)(screw M8 x 20.0 socket head)
7	999-0123	Washer 1/4 SAE flat zinc plated	1
8	999-9004	Washer 5/16 SAE flat stainless steel	1
9	999-0971	Nut 1/4-20 jam stainless steel	1
10	N/A	Not available	4	(only available in KIT4)(screw M8 x 45 hex head)
11	999-1170	Bolt M10-1.5 x 20mm hex head stainless steel	1
12	999-1400	Screw 1/4-20 x 1 3/4 carriage head stainless steel	1
13	999-0599	Screw 1/4-20 x 1 3/4 pan head phillips stainless steel	1
14	472-3576	KEY-WDF 5X6.5 DIN 6888	2
15	472-3589	Screw M8-1.25 X 20mm carriage head stainless steel	4
16	272-6673	Washer	1
17	572-6026	Axle bearing (obsolete)	2
18	572-6027	Spindle weldment	1
19	N/A	Not available	1	(only available in KIT1)(spacer)
20	N/A	Not available	1	(only available in KIT3)(11 tooth sprocket)
21	272-6672	Roller chain	1
22	N/A	Not available	1	(only available in KIT3)(Idler adjustment bracket)
23	572-6028	Drive wheel	1
24	N/A	Not available	1	(only available in KIT3)(15 tooth sprocket)
25	572-6029	Drive axle	1
26	N/A	Not available	1	(only available in KIT3)(Roller chain)
27	572-6030	Steering plate	1
28	572-6031	Chain tensioner	1
29a	N/A	Not available	1	(only available in KIT1)(Drive wheel motor)
29b	572-6032	Electromagnetic brake kit	1	(Electromagnetic Brake Kit 56104850 can be used to replace Brake-Electromagnetic as a separate repair part for the Drive Wheel Motor) (optional)
30	572-6033	Brake boot	1
31	572-6034	Switch cam spacer	2
32	372-1362	Drive wheel frame weldment	1
33	172-3388	Square keyway	1
34	N/A	Not available	1	(only available in KIT3)(Sprocket assembly)
35	N/A	Not available	1	(only available in KIT4)(p-clamp)
36	N/A	Not available	1	(only available in KIT3 and KIT4)(flanged bushing)
37	N/A	Not available	1	(only available in KIT3 and KIT4)(Screw M6x35 Hex head stainless steel)
38	572-6035	Tie down bracket	1
39	N/A	Not available	4	(only available in KIT1 and KIT4)(Screw M6-1.0x25mm hex head stainless stell)
40	N/A	Not available	1	(only available in KIT3)(Nut M6 Hex stainless steel)
41	N/A	Not available	1	(only available in KIT3 and KIT4)(screw M8x55 Hex head stainless steel)
42	372-3071	Washer M8 (set of 10)	8
43	N/A	Not available	4	(only available in KIT4)(Screw M8x25)
44	572-6036	Home position cam	1
45	999-0497	Nut M6-1 nylon insert lock stainless steel	2
46	372-3148	Connector clip	1
47	572-6037	Rentention harness brakcet	1
48	372-2096	Cable tie	4
49	272-0780	Screw M6 x 20 hex head stainless steel (set of 10)	2
KIT1	572-6038	Drive wheel motor kit	1	(includes 1,14,19,29a,39, and 42)
KIT3	272-6676	Sprocket and chain kit	1	(includes 2)
KIT4	572-6039	Drive wheel hardware kit	1	(includes 1-16,33,35-37,39,41-43)
KIT5	272-6679	Front wheel bearings kit	1	(includes 2,15,17, and 42)

Electrical System Assembly- 1

Click to enlarge

#	Part	Description	Req	Notes
1	999-0412	Washer #8 SAE flat	2
2	N/A	Not available	2	(only available in KIT1)(nut 8-32 nylon hex loc)
3	N/A	Not available	4	(only available in KIT1,KIT2 AND KIT5)(screw M5 x 15)
4	172-9233	Emergency stop button	1
5a	N/A	Not available	1	(only available in KIT2)(interface panel assembly)
5b	572-6052	Interface panel kit	1	(included in KIT5)
6	N/A	Not available	1	(only available in KIT4)(speaker 4-w)
7	472-5047	IBUTTON-PROBE	1
8	991-1628	5amp circuit breaker	2
9	N/A	Not available	1	(only available in KIT4)(heavy duty adhesion tape 1.5in)
10	272-9755	15amp circuit breaker	1
11	270-0781	Relay	1
12	170-1876	Traverse control knob	1
KIT1	572-6050	Electrical hardware kit	1	(includes 1-3)
KIT2	572-6053	User interface kit	1	(includes 3 and 5a)
KIT4	572-6054	Speaker kit	1	(includes 6 and 9)
KIT5	572-6052	Interface panel kit	1	(includes 3 and 5b)

Electrical System Assembly- 2

Click to enlarge

#	Part	Description	Req	Notes
1	572-6056	Hall effect sensor	1
3	572-6057	5 conductor wire assembly	1
4	572-6058	Cat5E wire assembly	1
5	N/A	Not available	1	(only available in KIT5 and KIT6)(TC-1 module SIP)
6	N/A	Not available	1	(only available in KIT4)(autonomous module)
8	572-6059	Wifi antenna cable	2
9	572-6060	Wifi antenna	2
10	472-5061	SMART KEY-USER	1
11	472-5062	SMART KEY-SUPERVISOR	1
12	372-2096	Cable tie	1
13	272-3623	Ferrite bead	2
14	N/A	Not available	1	(only available KIT3)(knight 3d camera)(aslo refered as 3-D vision sensor)
15	N/A	Not available	1	(only available in KIT2)(led light bar)
16	N/A	Not available	13	(only available in KIT2)(cable tie)
17	572-6061	Breakout box/autonomy harness	1
18	572-6062	2d sensor ethernet cable	2
19	572-6063	2d sensor power cable	1
20	572-6064	Safety laser ethernet cable	1
21	N/A	Not available	5	(only available in KIT1)(cable tie mount)
22	N/A	Not available	2	(only available in KIT1)(clip conduit)
23	472-4939	FERRITE BEAD	2
24	N/A	Not available	1	(only available in KIT1)(cable tie e00549 Hc360c)
25	N/A	Not available	10	(only available in KIT1)(cable tie e00549 re409s)
26	N/A	Not available	11	(only available in KIT1)(cable tie e00549)
27	172-9147	Terminal insulator	12
28	172-8964	Terminal insulator	2
29	572-6065	Protective boot	1
30	472-4937	FERRITE BEAD	1
31	572-6066	Heavy duty dhesion tape1.5in	3
32	572-6067	Ethernet M12D-RJ45 cable	1
33	572-6068	Antenna retainer	1
34	572-6069	TC1 sc50 gateway harness	1
KIT1	572-6050	Electrical hardware kit	1	(includes 21-26)
KIT2	572-6049	Light bar kit	1	(includes 15 and 16)
KIT3	572-6070	3D camera kit	1	(includes 14) (before SN 100004332 will require a software update to install 3D camera)
KIT4	572-6071	Autonomous module kit	1	(includes 6)
KIT5	572-6072	Liberty sc50 trackclean 1 kit	1	(includes 5)
KIT6	572-6073	Trackclean 1 sc50 upgrade kit	1	(includes 5)

Electrical System Assembly- 3

Click to enlarge

#	Part	Description	Req	Notes
1	572-6056	Hall effect sensor	1
3	572-6057	5 conductor wire assembly	1
4	572-6058	Cat5E wire assembly	1
5	N/A	Not available	1	(only available in KIT5 and KIT6)(tc-1 module sip)
6	N/A	Not available	1	(only available in KIT4)(autonomous module)
8	572-6059	Wifi antenna cable	2
9	572-6060	Wifi antenna	2
10	472-5061	SMART KEY-USER	1
11	472-5062	SMART KEY-SUPERVISOR	1
12	372-2096	Cable tie	1
13	272-3623	Ferrite bead	2
14	N/A	Not available	1	(only available in KIT3)(3D knight camera) (also referred as 3D vision sensor)
15	N/A	Not available	1	(only available in KIT2)(led light bar)
16	N/A	Not available	13	(only available in KIT2)(cable tie)
17	572-6061	Breakout box/autonomy harness	1
18	572-6062	2d sensor ethernet cable	2
19	572-6063	2d sensor power cable	1
20	572-6064	Safety laser ethernet cable	1
21	N/A	Not available	5	(only available in KIT4)(mount cable tie)
22	N/A	Not available	2	(only available in KIT4)(conduit clip)
23	472-4939	FERRITE BEAD	2
24	N/A	Not available	1	(only available in KIT4)(cable tie)
25	N/A	Not available	10	(only available in KIT4)(cable tie)
26	N/A	Not available	11	(only available in KIT4)(cable tie)
27	172-9147	Terminal insulator	12
28	172-8964	Terminal insulator	2
29	572-6065	Protective boot	1
30	472-4937	FERRITE BEAD	1
31	572-6066	Heavy duty dhesion tape1.5in	3
32	572-6067	Ethernet M12D-RJ45 cable	1
33	572-6068	Antenna retainer	1
34	572-6069	TC1 sc50 gateway harness	1
KIT1	572-6050	Electrical hardware kit	1	(includes 21-26)
KIT2	572-6049	Light bar kit	1	(includes 15 and 16)
KIT3	572-6070	3D camera kit	1	(includes 14)
KIT4	572-6071	Autonomous module kit	1	(includes 6)
KIT5	572-6072	Liberty sc50 trackclean 1 kit	1	(includes 5)
KIT6	572-6073	Trackclean 1 sc50 upgrade kit	1	(includes 5)

Electrical System Assembly- 4

Click to enlarge

#	Part	Description	Req	Notes
1	172-3762	Washer 6 X 12 1/2 flat (OBSOLETE)	1
2	999-0523	Screw 1/4-20 x 1 1/2 pan head phillips stainless steel	1
3	999-9116	Screw M6-1 x 12mm hex head stainless steel	1
4	999-0469	Nut M6-1 nylon insert lock zinc plated	2
5	572-6074	Hinge spacer	1
6	572-6075	Bracket main harness connector	1
8	572-6076	10 awg red wire assembly	1
9	572-6077	10 awg black wire assembly	1
10	572-6078	8 awg red wire assembly	1
11	572-6079	8 awg black assembly	1
12	572-6080	6 awg red wire assembly	1
13	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	1
14	272-9984	Washer .266 x .906 x .06 flat stainless steel	1
15a	572-6081	Main harness	1	(included in KIT1 and KIT2) (after SN 1000073529)
15b	372-3737	Main harness	1	(before SN 1000072368)
16	572-6082	power mach/control harness assembly	1
17	572-6083	Fuse to cont pos cable assembly	1
KIT1	572-6084	Main harness speed pot kit	1	(includes 15)
KIT2	572-6085	Sc50 fuse kit	1	(includes 15)
N/S	572-6086	Mini 3A fuse	1

Ladder Diagram Assembly- 1

Click to enlarge

#	Part	Description	Req	Notes
A1	572-6053	User interface kit	1
A7	572-7082	Liberty sc50 trackclean kit	1
A8	270-8393	24V onboard battery charger	1
B1	572-6054	Speaker kit	1
BT1	162-0043	6V 224Ah AGM battery (Group GC2) (SNSR)	1
CB1	991-1628	5amp circuit breaker	2
CB2	991-1628	5amp circuit breaker	2
LT1	572-6049	Light bar kit	1
E1	572-7020	24v max flow meter	1
E2	472-5047	IBUTTON-PROBE	1
F1	572-6088	100 amp fuse	1
K1	270-0781	Relay	1
L1	572-7019	Solenoid valve assembly	1
M6	272-7679	12V detergent pump	1
M10	N/A	Not available	1	(solution pump assembly)
S1	572-6040	Switch harness	1
S2	572-6040	Switch harness	1
S6	572-7016	Float switch kit	1

Ladder Diagram Assembly- 2

Click to enlarge

#	Part	Description	Req	Notes
A2	572-7037	High power module	1
K2	172-2163	24V solenoid 4 post (2 large 2 small)	1
M2a	572-7018	24VDC 140RPM 50HP motor	1	(20D)
M2b	272-9948	24V brush motor	1	(20R)
M5	272-6723	Vacuum motor kit	1
M7	572-7024	Actuator kit	1

Ladder Diagram Assembly- 3

Click to enlarge

#	Part	Description	Req	Notes	Availability
A3	572-6003	Motor steering controller	1
K3	172-2163	24V solenoid 4 post (2 large 2 small)	1

Ladder Diagram Assembly- 4

Click to enlarge

#	Part	Description	Req
A4	572-6002	Motor steering controller	1
E3	572-6056	Hall effect sensor	1
CB3	272-9755	15amp circuit breaker	1

Ladder Diagram Assembly- 5

Click to enlarge

#	Part	Description	Req	Notes
A5	572-6071	Autonomous module kit	1
AN2	572-6060	Wifi antenna	1
AN3	572-6060	Wifi antenna	1
E4	N/A	Not available	1	(rear left wheel encoder)
E5	N/A	Not available	1	(rear right wheel encoder)
E6	572-7072	Mapping sensor kit	1
E7	572-6024	Rotary encoder kit	1	(before SN 1000073327 will require software updates to install) (also refered as drive wheel angle sensor)
E8a	572-6070	3D camera kit	1
F2	572-6086	Mini 3A fuse	1

Ladder Diagram Assembly- 6

Click to enlarge

#	Part	Description	Req
A5	572-6071	Autonomous module kit	1
A9	572-6016	Breakout box assembly	1
E9	572-7050	Distance sensor kit	1
E10	572-7050	Distance sensor kit	1
E11	572-7050	Distance sensor kit	1
E12	572-7050	Distance sensor kit	1
E13a	572-7073	Safety sensor kit-left	1
E13b	572-9207	Sensor lens	1
E14a	572-7076	Safety sensor kit-right	1
E14b	572-9207	Sensor lens	1

Ladder Diagram Assembly- 7

Click to enlarge

#	Part	Description	Req	Notes	Availability
1	572-7083	Liberty SC50 UVGI	1

Lead Acid Battery System

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT1)(nut 1/4-20 hex)
2	572-6087	Battery power harness assembly	1
3	272-8585	Battery jumper cable	3
4	572-6088	100 amp fuse	1
5	472-4933	HOLDER-FUSE	1
6	372-1324	Fuse boot holder	1
7	572-6089	Power cable bracket	1
8	999-0469	Nut M6-1 nylon insert lock zinc plated	4
9	472-3552	SCR-HEX LOC SS M5-0.8 X 16MM	2
11	572-6090	15.0 x 4 x 2.0 battery spacer	1
12	272-6647	Battery tray	1
KIT1	572-6050	Electrical hardware kit	1	(includes 1)

Lithium Ion Battery System Assembly

Click to enlarge

#	Part	Description	Req
2	272-9523	Washer 4 x 9	2
3	999-0016	Washer 1/4 flat plain finish	4
4	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	4
5	999-0497	Nut M6-1 nylon insert lock stainless steel	4
6	272-1599	Bolt M6 x 15mm hex head nylok	16
7	372-1036	Washer 6mm	12
8	472-3537	SCR SOC SET LOC 1/4-20X1.25 ZP	4
9	472-3552	SCR-HEX LOC SS M5-0.8 X 16MM	2
11	572-6092	Cap-7/8 dia black	4
12	572-6093	0.5m long control cable assembly	1
13	572-6094	Power/ control bracket harness assembly	1
14	572-6095	Battery to busbar negative cable assembly	3
15	572-6096	Battery to busbar positive cable assembly	3
16	572-6097	395 x 32mm vibration foam	2
17	572-6098	77 x 42mm virbration foam	2
18	572-6099	24v dc converter	1
19	572-7000	Regulator bracket	1
20	572-7001	Switch bracket	1
21	572-7002	Sc50 battery box cover	1
22	572-7003	Battery box base weldment	1
23	572-7004	Battery box brace assembly	1
24	572-7005	Battery box retainer	1
25	572-7006	Side cover weldment	2
26	272-0487	2 position rocker switch	1
27	572-6089	Power cable bracket	1
28	572-7007	20mm expandable grommet	3
29	272-9689	Trim	2
30	172-0103	Electrical mount	4
31	372-1517	Ground bar	2
32	572-7008	Neigbour module control cable	1
33	572-7009	Termination resistor	1
34	999-0955	Nut M4-.7 hex nylon lock	2

Optional Kits and Accessories

Click to enlarge

#	Part	Description	Req	Notes
1	572-6052	Interface panel kit	1
2	572-6053	User interface kit	1
3	572-6070	3D camera kit	1
4	572-7050	Distance sensor kit	1
5	572-7072	Mapping sensor kit	1
6	572-7073	Safety sensor kit-left	1
7	572-7076	Safety sensor kit-right	1
8	572-6024	Rotary encoder kit	1
9	572-6071	Autonomous module kit	1
10	572-7084	Cellular gateway kit-us	1
11	472-7919	PROGRAMMER-USER	1
12	472-7920	PROGRAMMER CABLE-MOLEX	1
13	472-3864	ECOFLEX BOTTLE ASSY	1
14	572-4237	Smart location tag assembly	1
15	572-4237	Smart location tag assembly	1
16	572-7086	Sensor calibration kit	1
17	572-7087	Cylinder tagret 2.76	1
18	572-7088	Cylinder tagret 7.87	1
19	572-7089	Encoder calibration harness	1
20	472-5078	USB-2.0-TYPE A-PANEL MOUNT	1
21	572-7083	Liberty SC50 UVGI	1
22	572-7090	Lithium ion base kit-sc50	1
23	572-7091	Lithium ion expansion kit-sc50	1
24	572-7092	24v-500 baud li ion battery assembly	1
25	572-7093	Literature pack	1
26	572-7094	Literature pack	1
27	272-7356	Squeegee blade kit polyurethane	1	(All squeegee blade kits include both front and rear squeegee blades)
28	272-7357	Squeegee blade kit linatex	1	(All squeegee blade kits include both front and rear squeegee blades)
29	572-7095	20 3 lug pad holder	1
30	572-7096	20 3 lug magnagrit disc brush	1
31	572-7097	20 3 lug dyna grit disc brush	1
32	572-7098	20 3 lug aglite disc brush	1
33	372-3025	20 inch prolene brush	1
34	572-7099	20 3 lug prolite disc brush	1
35	172-2637	Union mix polish for 38	1
36	572-8000	20 3 lug midgrit disc brush	1
37	572-8001	20 3 lug midlite disc brush	1
41	272-7291	2 sided velcro	1
44	472-8393	PAD MICRO FIBER	1

Platform Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(only avaliable in KIT1)(screw 10-14 x 1.0 pan head phillips plastite)
2	N/A	Not available	6	(only avaliable in KIT1)(screw 10-14 x .62 pan head phillips plastite)
3	N/A	Not available	4	(only avaliable in KIT1)(screw M5 x 2.3 x 10mm pan head phillips plastite)
4	272-6680	Upper platform	1
5	272-6681	Safety pedal	1
6	272-6683	Bottom platform	1
7	572-6040	Switch harness	1
8	172-9055	Grommet	1
9	N/A	Not available	2	(only avaliable in KIT1)(washer)
10	272-6686	Grommet	2
11	472-8293	Pedal	1
12	472-8294	SPRING-COMPRESSION-SS-.480 OD	1
13	472-8297	SPRING-COMPRESSION-M/W-.480 OD	2
14	N/A	Not available	6	(only avaliable in KIT1)(washer M5 x 15 plain)
KIT1	272-6687	Platform hardware kit	1	(includes 1-3,9 and 14)

Recovery System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	3	(only available in KIT1,KIT3 and KIT6)(washer)
2	N/A	Not available	3	(only available in KIT6)(nylon rivet)
3	N/A	Not available	1	(only available in KIT2)(debris cage)
4	N/A	Not available	1	(only available in KIT2)(debris tray cover)
5	572-7010	Modified vac hose assembly	1
6	272-6716	Drain hose 1 1/2 x 34 inches	1
7	N/A	Not available	1	(vacuum support motor gasket)
8	272-6718	Splash guard	1
9	572-7011	Recovery tank	1
10	572-7012	Back panel	1
11	572-7013	Recovery tank gasket	1
13	N/A	Not available	1	(only available in KIT7)(120v mechanical float switch)
14	N/A	Not available	3	(only available in KIT6)(screw M6 x 20)
15	172-1356	Vac motor gasket	1	(included in KIT4)
16	272-2106	Inlet screen	1
17	N/A	Not available	1	(only available in KIT1)(draw latch)
18	997-2000	Hose clamp	2	(included in KIT6)
19	N/A	Not available	4	(only available in KIT6)(washer M5 stainless steel)
20	N/A	Not available	3	(only available in KIT1,KIT3 and KIT6)(screw M4 x 25 cap hex head socket)
21	N/A	Not available	1	(only available in KIT5)(insulation tube)
22	N/A	Not available	1	(only available in KIT5)(insulation acoustic panel)
23	N/A	Not available	1	(only available in KIT6)(flat tie holder)
24	N/A	Not available	3	(only available in KIT6)(cover plate)
25	272-6344	Filter	1
26a	N/A	Not available	1	(only available in KIT4)(24v 3 stage vacuum motor)
26b	270-8269	Carbon brush kit	1
27	N/A	Not available	1	(only available in KIT6)(screw 5 x 16 rolling thread)
28	572-3651	COVER-VACUUM MOTOR PKD	1
29	N/A	Not available	3	(only available in KIT1,KIT3 and KIT6)(nut M4 nylon thin hex loc stainless steel)
30	N/A	Not available	4	(only available in KIT6)(screw M5 x 16 pan head phillips stainless steel)
31	N/A	Not available	2	(only available in KIT6)(cable tie)
32	N/A	Not available	1	(only available in KIT3 and KIT6)(hose clamp)
33	572-7014	Vacuum ring	1
34	272-0430	Vacuum duct gasket	1
35	N/A	Not available	1	(only available in KIT6)(cable tie)
KIT1	272-6692	Draw latch kit	1	(includes 1,17,20 and 29)
KIT2	272-6721	Debris cage kit	1	(includes 3, and 4)
KIT3	272-6722	Hose clamp kit	1	(includes 1,20,29, and 32)
KIT4	272-6723	Vacuum motor kit	1	(includes 15 and 26a)
KIT5	272-6725	Vacuum motor insulation kit	1	(includes 21 and 22)
KIT6	572-7015	Recovery hardware kit	1	(includes 1,2,14,18-20,23,24,27,29-32, and 35)
KIT7	572-7016	Float switch kit	1	(inlcudes 13)
N/S	572-7017	Jumper harness	1

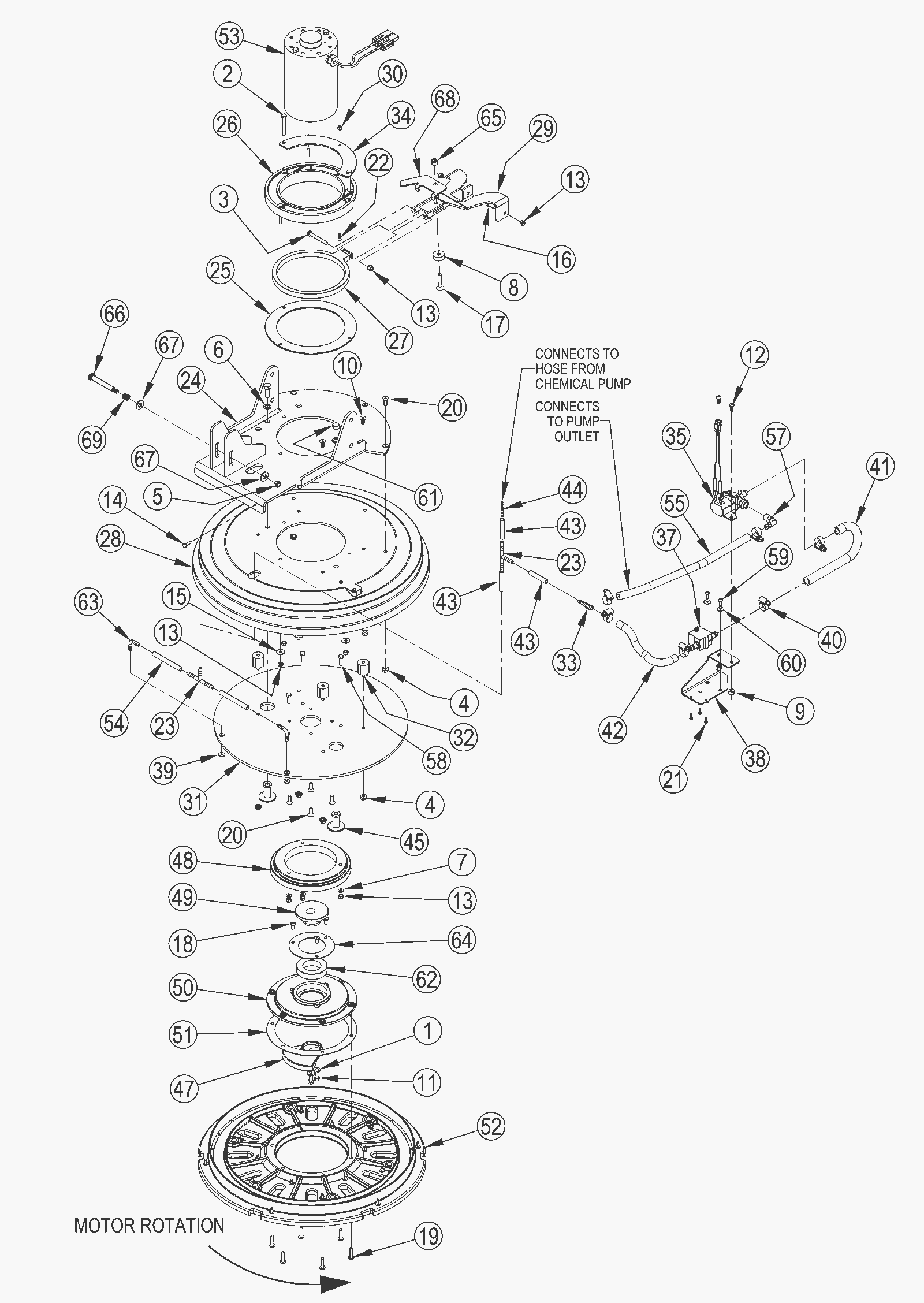

Scrub System Assembly- 20D

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT2)(screw M6 x 50 hex head full thread)
2	N/A	Not available	4	(only available in KIT2)(screw M6 x 16.0 flat socket head)
4	N/A	Not available	1	(only available in KIT2 and KIT4)(nut M8 nylon hex loc thin)
5	N/A	Not available	3	(only available in KIT2)(washer D.8 spilt lock)
6	N/A	Not available	1	(only available in KIT2)(glide spacer)
8	N/A	Not available	1	(only available in KIT2)(square keyway)
9	999-1667	Screw 5/16-18 x 1 1/4 socket head stainless steel	1
10	N/A	Not available	1	(only available in KIT2)(screw M5-0.8 x 16mm hex loc stainless steel)
11	N/A	Not available	1	(only available in KIT2)(screw M6 x 10mm hex thread forming)
13	N/A	Not available	2	(only available in KIT2)(screw M8 x 16mm x M6 -1.00 socket head)
14	999-1825	Screw 5/16-18 x 1 1/2 flat head socket SS	1
15	N/A	Not available	3	(only available in KIT2)(screw M4 x 12mm t20 pan head plastite)
17	272-6727	Brush motor shaft	1
18	272-6728	Deck lift plate weldment	1
19	272-6729	Lower deck plate	1
20	272-6730	Brush housing	1
21	272-6731	Squeegee link weldment	1
22	N/A	Not available	1	(only available in KIT1)(squeegee pivot block)
23	N/A	Not available	1	(only available in KIT1)(flange bearing)
24	N/A	Not available	1	(only available in KIT1)(squeegee pivot washer)
25	272-6732	Motor spacer	1
26	272-6734	Bristle skirt	1
28	572-7018	24VDC 140RPM 50HP motor	1
29	572-7019	Solenoid valve assembly	1
30	572-7020	24v max flow meter	1
31	N/A	Not available	5	(only available in KIT3)(hose clamp)
32	N/A	Not available	1	(only available in KIT3)(tube)
33	N/A	Not available	1	(only available in KIT3)(tee assembly)
34	N/A	Not available	1	(only available in KIT3)(hose PVC)
35	N/A	Not available	1	(only available in KIT3)(barbed elbow)
36	N/A	Not available	1	(only available in KIT3)(pvc clear hose)
37	N/A	Not available	1	(only available in KIT3)(spiral hose)
38	272-3613	Right brush plate assembly	1
38a	172-0155	Stop plate	1
38b	999-1416	Washer 7/16 flat stainless steel	1
38c	172-0553	Washer 17/64 x 1/16 flat	2
38d	999-1833	Screw 10-14 x 3/8 pan head phillips stainless steel	4
38e	272-9883	Retainer spring	2
38f	272-7257	6 tab gimbal and collar assembly	1
38g	272-9884	Brush holder spring	1
38h	272-9885	Brush plate	1
39	N/A	Not available	1	(only available in KIT3(barb)
40	N/A	Not available	2	(only available in KIT2)(screw)
41	N/A	Not available	2	(only available in KIT2)(washer M5 x 15 stainless steel)
42	N/A	Not available	1	(only available in KIT2)(washer M8 plain)
43	272-0742	Clamp	1
44	N/A	Not available	1	(only available in KIT2)(screw M8 x 16 hex head scotch grip)
45	N/A	Not available	3	(only available in KIT2)(screw M8 x 30 hex head stainless steel)
48	N/A	Not available	1	(only available in KIT2)(key)
49	572-7021	Squeegee rotation stop disc	1
50	N/A	Not available	1	(only available in KIT2)(nut 5/16-18 nylon hex loc)
51	N/A	Not available	1	(only available in KIT2 and KIT4)(screw M10 x 50mm x M8-1.25 socket head)
KIT1	272-6736	Squeegee pivot kit	1	(includes 22-24)
KIT2	572-7022	Disc deck hardware kit	1	(includes 1-15 and 39-51)
KIT3	572-7023	Disc deck solution hose kit	1	(includes 31-37 and 39)
KIT4	572-7024	Actuator kit	1	(includes 51)

Scrub System-Rev Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(only available in KIT1)(washer)
2	N/A	Not available	1	(only available in KIT1 and KIT2)(screw M6 x 45 hex head)
3	N/A	Not available	3	(only available in KIT1)(screw M6 x 50 hex head)
4	N/A	Not available	9	(only available in KIT1 and KIT3)(nut serrated hex)
5	N/A	Not available	1	(only available in KIT1 and KIT5)(nut M8 nylon hex loc thin)
6	N/A	Not available	2	(only available in KIT1)(washer spilt lock)
7	N/A	Not available	3	(only available in KIT1)(washer)
8	N/A	Not available	1	(only available in KIT1)(glide spacer)
9	N/A	Not available	2	(only available in KIT1)(nut 1/4-20 nylon hex loc stainless steel)
10	999-1824	Screw 1/4-20 x 5/8 flat head socket stainless steel	4	(included in KIT1 and KIT3)
11	N/A	Not available	2	(only available in KIT1)(screw 1/4-20 x .75 hex head loc)
12	999-1480	Screw 1/4-20 x 5/8 button head socket cap stainless steel	2	(included in KIT1)
14	N/A	Not available	1	(only available in KIT1)(screw M5-0.8 x 16mm hex loc stainless steel)
15	N/A	Not available	2	(only available in KIT1 and KIT2)(washer)
16	N/A	Not available	2	(only available in KIT1)(screw M8 x 16mm x M6-1.00 socket)
17	999-1825	Screw 5/16-18 x 1 1/2 flat head socket SS	1	(included in KIT1)
18	999-0522	Screw 1/4-20 x 1/2 pan head phillips stainless steel	3	(included in KIT1)
19	999-0342	Screw 1/4-20 x 1 pan head phillips stainless steel	6	(included in KIT1)
20	999-1571	Screw 1/4-20 x 3/4 flat head socket stainless steel	9	(included in KIT1)
21	N/A	Not available	3	(only available in KIT1)(screw M4 x 12mm t20 pan head plastite)
22	N/A	Not available	1	(only available in KIT1 and KIT2)(screw flat head phillips)
23	N/A	Not available	2	(only available in KIT4)(tee 1/4 hose barb)
24	572-7027	Rev deck plate weldment	1
25	N/A	Not available	1	(only available in KIT2)(squeegee washer)
26	N/A	Not available	1	(only available in KIT2)(squeegee bushing)
27	N/A	Not available	1	(only available in KIT2)(pivot plate)
28	272-6741	Scrub deck housing	1
29	272-6742	Squeegee link weldment	1
30	N/A	Not available	1	(only available in KIT1 and KIT2)(nut 8-32 nylon hex loc)
31	272-6743	Motor plate	1
32	N/A	Not available	4	(only available in KIT3)(isolator)
33	N/A	Not available	1	(only available in KIT4)(barb reducer)
34	N/A	Not available	1	(only available in KIT2)(squeegee bracket bushing)
35	572-7019	Solenoid valve assembly	1
37	572-7020	24v max flow meter	1
38	572-7028	Valve bracket	1
39	N/A	Not available	2	(only available in KIT1 and KIT4)(washer)
40	N/A	Not available	6	(only available in KIT1 and KIT4)(Hose clamp)
41	N/A	Not available	1	(only available in KIT4)(spiral hose)
42	N/A	Not available	1	(only available in KIT4)(tube)
43	N/A	Not available	3	(only available in KIT4)(2 inch chemical resistant hose)
44	N/A	Not available	1	(only available in KIT4)(barb reducer)
45	N/A	Not available	2	(only available in KIT1)(short stud stablizer)
47	272-9946	Counter weight	1
48	272-6548	Splash shield	1
49	272-6366	Eccentric	1
50	272-9947	Motor driver	1
51	272-6368	Driver gasket	1
52	272-7405	Pad driver assembly	1
53a	272-9948	24V brush motor	1
53b	172-8951	Carbon brush and spring kit	1
54	N/A	Not available	2	(only available in KIT4)(pvc clear hose)
55	N/A	Not available	1	(only available in KIT4)(vinyl tube)
57	N/A	Not available	1	(only available in KIT4)(90 elbow 3/8 x 1/4npt barb)
58	N/A	Not available	3	(only available in KIT1)(screw M6 x 20 hex head f/thd stainless steel)
59	N/A	Not available	2	(only available in KIT1)(screw pan head thread forming)
60	N/A	Not available	2	(only availablein KIT1)(washer)
61	999-1498	Screw 3/8-24 x 1 hex head stainless steel	2	(included in KIT1)
62	270-0065	Bearing	1
63	N/A	Not available	2	(only available in KIT4)(barbed elbow)
64	572-7029	Bearing retainer	1
65	N/A	Not available	1	(only available in KIT1)(nut 5/16-18 nylon hex loc)
66	N/A	Not available	1	(only available in KIT1 , KIT5 and KIT6)(screw M8-1.25 x 10 x 65 socket shoulder)
67	N/A	Not available	2	(only available in KIT1 , KIT5 and KIT6)(washer)
68	572-7030	Squeegee rev rotation stop	1
69	N/A	Not available	1	(only available in KIT1 , KIT5 and KIT6)(spring)
KIT1	572-7031	Rev deck hardware kit	1	(includes 1-22, 30,39,40,45 and 69)
KIT2	272-6747	Squeegee pivot kit	1	(includes 2,13, 15,22,25-30 and 34)
KIT3	272-6748	Isolator kit	1	(includes 4,10 and 32)
KIT4	572-7032	Solution hose kit rev-deck	1	(inlcudes 13, 23,33,39-41 and 44)
KIT5	572-7024	Actuator kit	1	(inlcudes 5 and 66-69)
KIT6	572-7033	Solution hardware kit	1	(includes 66-69)

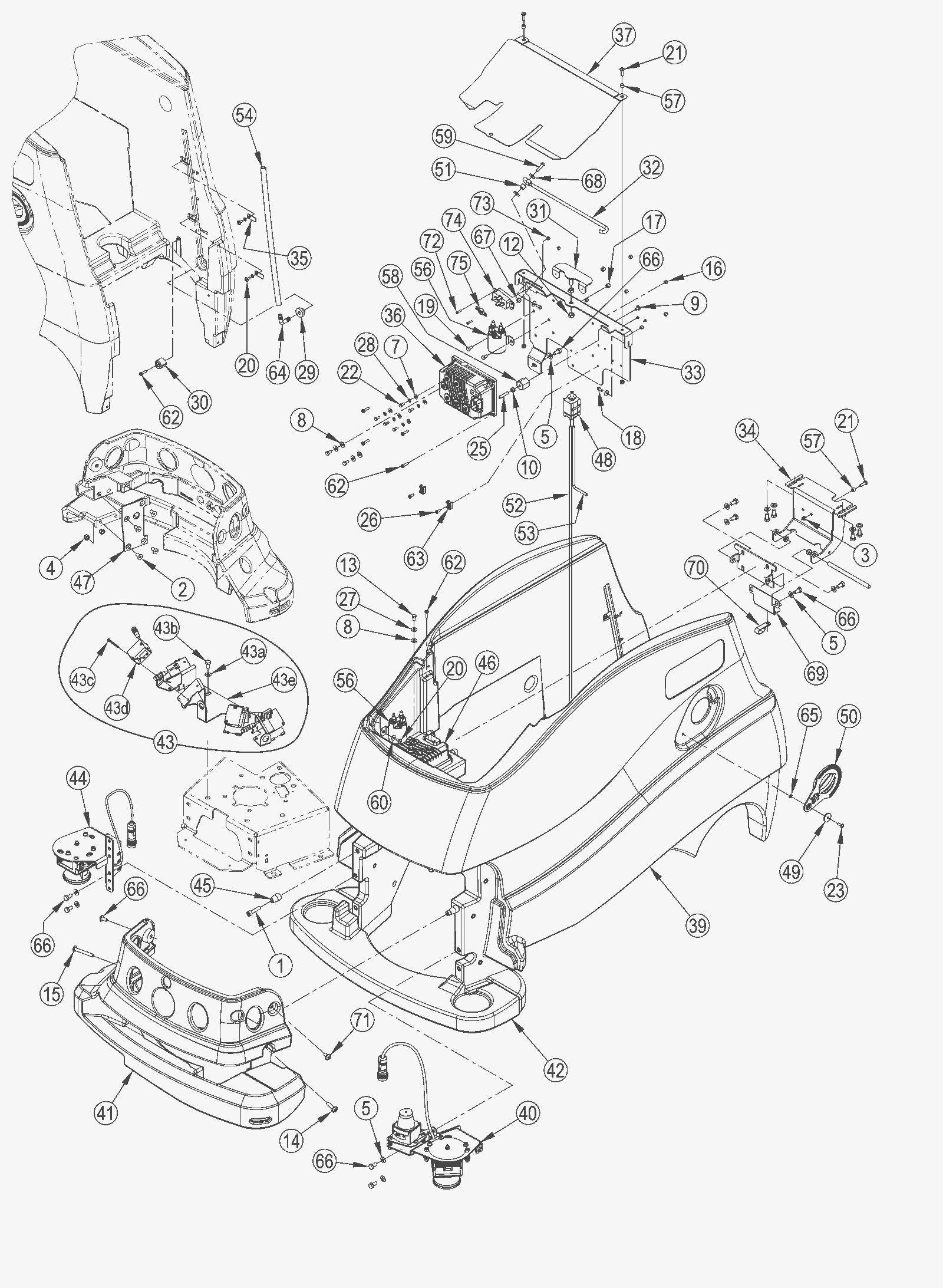

Solution System Assembly- 1

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(only available in KIT6)(screw M8 x 35 socket cap head stainless steel)
2	N/A	Not available	4	(only available in KIT6)(vite)
3	N/A	Not available	3	(only available in KIT6)(nut M6 nylon hex loc thin)
4	N/A	Not available	2	(only available in KIT6)(nut M8 hex)
5	N/A	Not available	15	(only available in KIT6)(washer M8)
7	N/A	Not available	5	(only available in KIT6)(washer flat sae #10)
8	999-0123	Washer 1/4 SAE flat zinc plated	6	(included in KIT6)
9	N/A	Not available	1	(only available in KIT6)(screw 1/4-20 x .38 pan head phillips)
10	N/A	Not available	1	(only available in KIT6)(nut 1/4-20 hex)
12	N/A	Not available	2	(only available in KIT6)(nut 3/8-16 nylon hex loc thin stainless steel)
13	999-9166	Screw M4-.7 x 20mm socket cap stainless steel	8	(included in KIT6)
14	N/A	Not available	1	(only available in KIT6)(screw M8 x 35)
15	N/A	Not available	1	(only available in KIT6)(screw M8 x 60)
16	N/A	Not available	4	(only available in KIT6)(nut M5-0.8 nylon hex loc)
17	N/A	Not available	2	(only available in KIT6)(nut M6-1 nylon hex loc)
18	N/A	Not available	2	(only available in KIT6)(screw M5-0.8 x 5mm hec loc)
20	N/A	Not available	4	(only available in KIT6)(screw M5-0.8 x 12mm phillips)
21	999-1168	Screw M6-1 x 20mm pan head phillips stainless steel	3	(included in KIT6)
22	N/A	Not available	5	(only available in KIT6)(screw M5-0.8 x 12mm hex thd to hd stainless steel)
23	N/A	Not available	1	(only available in KIT2 and KIT6)(screw M5 x 16)
25	N/A	Not available	1	(only available in KIT6)(stud)
26	N/A	Not available	2	(only available in KIT6)(screw 10-24 x .50 pan phillips thread forming)
27	N/A	Not available	6	(only available in KIT6)(washer 1/4)
28	N/A	Not available	5	(only aavailable in KIT6)(washer 5mm)
29	N/A	Not available	1	(only available in KIT6)(grommet)
30	N/A	Not available	2	(only available in KIT6)(pivot block)
31	272-6761	Adjustment pad	1
32	272-6763	Prop rod	1
33	572-7035	Tank support bracket	1
34	N/A	Not available	1	(hinge assembly)
34a	572-7036	Hinge weldment	1
34b	272-6754	Hinge pin	1
34c	272-6757	Flange bearing	1
34d	272-6756	Hinge bracket	1
35	N/A	Not available	2	(only available in KIT6)(hose retainer plate)
36	572-7037	High power module	1
37	572-7038	Drip guard	1
39	572-7039	Solution tank	1
40	N/A	Not available	1	(2d sensor assembly left)
41	572-7040	Front cover	1
42	572-7041	Front bumper	1
43	N/A	Not available	1	(sensor bracket assembly)
43a	N/A	Not available	2	(only availablein KIT6)(washer M8 x 16)
43b	999-0783	Screw M8-1.25 x 16mm hex head	2
43c	N/A	Not available	8	(only available in KIT9)(screw M4-0.7 x 40mm pan head phillips)
43d	N/A	Not available	4	(only available in KIT9)(distance sensor)
43e	572-7042	Sensor mount weldment	1
44	N/A	Not available	1	(2d sensor assembly right)
45	N/A	Not available	2	(only available in KIT6)(tapered guide)
46	572-7043	Speed controller	1
47	572-7044	Front cover support plate	1
48	272-7679	12V detergent pump	1
49	N/A	Not available	1	(only available in KIT2 and KIT6)(bushing)
50	N/A	Not available	1	(only available in KIT2)(solution fill cap)
51	172-0068	Bushing	1	(included in KIT6)
53	N/A	Not available	1	(only available in KIT10)(14" chemical reistant hose)
54	209-0040	Hose 3/8 x 24 inch	1
56	172-2163	24V solenoid 4 post (2 large 2 small)	2
57	172-0185	Bushing	3
58	N/A	Not available	1	(only available in KIT6)(electrical mount)
59	N/A	Not available	1	(only available in KIT6)(screw M6-1.0 x 25mm hex thdtohd stainless steel)
60	N/A	Not available	2	(only available in KIT6)(washer M5 x 15 stainless steel)
62	N/A	Not available	8	(only available in KIT6)(screw M5 x 20 pan head phillips)
63	N/A	Not available	2	(only available in KIT6)(flat tie holder)
64	N/A	Not available	1	(only available in KIT6)(90 degree hosebarb)
65	N/A	Not available	3	(only available in KIT6)(washer M5 x 10 stainless steel)
66	N/A	Not available	15	(only available in KIT6)(screw M8 x 16)
67	N/A	Not available	1	(only available in KIT6)(nut M6 nylon hex loc stainless steel)
69	572-6075	Bracket main harness connector	1
70	N/A	Not available	1	(only available in KIT12)(clamp)
71	N/A	Not available	2	(only available in KIT6)(screw M8 x 16)
72	999-6705	Screw 6-32 x 5/8 inch pan head stainless steel	2
73	370-0937	NUT-HEX INS-FIBRE 6-32 ZN	2
74	572-7045	Midi fuse holder	1
75	272-7716	100amp fuse	1
KIT1	572-7046	Solution drain kit	1
KIT2	572-7047	Solution cap kit	1	(includes 23,49 and 50)
KIT3	572-7024	Actuator kit	1
KIT4	572-7048	Tip pad kit	1
KIT5	572-7049	Pump filter and valve kit	1
KIT6	572-7033	Solution hardware kit	1	(includes 1-30, 35,43a,45,49,51,58-68)
KIT9	572-7050	Distance sensor kit	1	(includes 43c and 43d)
KIT10	572-7023	Disc deck solution hose kit	1	(includes 53)
KIT11	572-7032	Solution hose kit rev-deck	1	(includes 52)
KIT12	572-6050	Electrical hardware kit	1	(includes 70)

Solution System Assembly- 2

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT3 and KIT6) (screw M10 x 50 hex head)
2	N/A	Not available	2	(only available in KIT4 and KIT6)(screw M8 x 30 cap hex head sock stainless steel)
4	N/A	Not available	8	(only available in KIT4 and KIT6)(washer M8)
6	N/A	Not available	3	(only available in KIT6)(washer stainless steel)
7	272-6752	Dry brake insert	1
8	272-6758	Actuator bracket	1
9	N/A	Not available	1	(only available in KIT3 and KIT6)(spacer)
10	272-6762	Chemical bottle assembly	1
11	N/A	Not available	1	(only available in KIT3)(actuator assembly)
12	N/A	Not available	1	(solution pump assembly)
12a	999-0442	Nut 10-24 nylon insert lock stainless steel	4
12b	999-0998	Washer #10 flat stainless steel	4
12c	172-4936	Screw 10-24 x 7/8 flat head phillips stainless steel	4
12d	N/A	Not available	1	(only available in KIT5)(solution filter)
12e	N/A	Not available	1	(only available in KIT5)(pipe reducer)
12f	572-7057	24VDC pump	1
12g	572-7058	Pump support bracket	1
12h	N/A	Not available	1	(only available in KIT5)(adapter barb 1/2 x 1/2 npt)
12i	N/A	Not available	2	(only available in KIT10 and KIT11)(hose clamp)
12j	N/A	Not available	1	(only available in KIT5)(ball valve)
12k	N/A	Not available	1	(only available in KIT10 and KIT11)(vinyl tube)
12l	N/A	Not available	1	(only available in KIT5, KIT10 and KIT11)(barb 90 elbow)
12m	N/A	Not available	2	(only available in KIT6)(screw M4 x 10 pan head phillips stainless steel)
12n	N/A	Not available	1	(only available in KIT10 and KIT11)(cable tie)
13	N/A	Not available	2	(only available in KIT1,KIT5 and KIT6)(grommet seal)
14	572-7059	Actuator bracket gasket	1
15	572-7060	Crossover hose	1
16	572-7061	Bumper plate	1
17	N/A	Not available	2	(only available in KIT4)(tip pad)
18	N/A	Not available	2	(only available in KIT6)(hose clamp)
19	N/A	Not available	2	(only available in KIT6 and KIT8)(washer)
20	N/A	Not available	3	(only available in KIT6)(screw M5 x 12 pan head phillips head stainless steel)
21	N/A	Not available	1	(only available in KIT1 and KIT6)(valve elbow)
22	272-2180	Solution fill cap	1
23	272-2182	Dry break cap	1
24	N/A	Not available	6	(only available in KIT6)(screw M8 x 16 hex head)
25	572-7064	Stud M8-1.25 x 40 stainless steel	2
26	999-0496	Nut M8-1.25 nylon insert lock stainless steel	2
N/S	572-7070	3/8 qd elbows pump port kit	1
KIT1	572-7046	Solution drain kit	1	(includes 13 and 21)
KIT2	572-7047	Solution cap kit	1
KIT3	572-7024	Actuator kit	1	(includes 1,9 and 11)
KIT4	572-7048	Tip pad kit	1	(includes 2,4 and 17)
KIT5	572-7049	Pump filter and valve kit	1	(includes 12d-12h, 12j,12l and 13)
KIT6	572-7033	Solution hardware kit	1	(includes 1-9, 13m, 13, 18-21, and 24)
KIT9	572-7050	Distance sensor kit	1
KIT10	572-7023	Disc deck solution hose kit	1	(includes 12i,12k,12l, and 12n)
KIT11	572-7032	Solution hose kit rev-deck	1	(includes 12i, 12k,12l, and 12n)

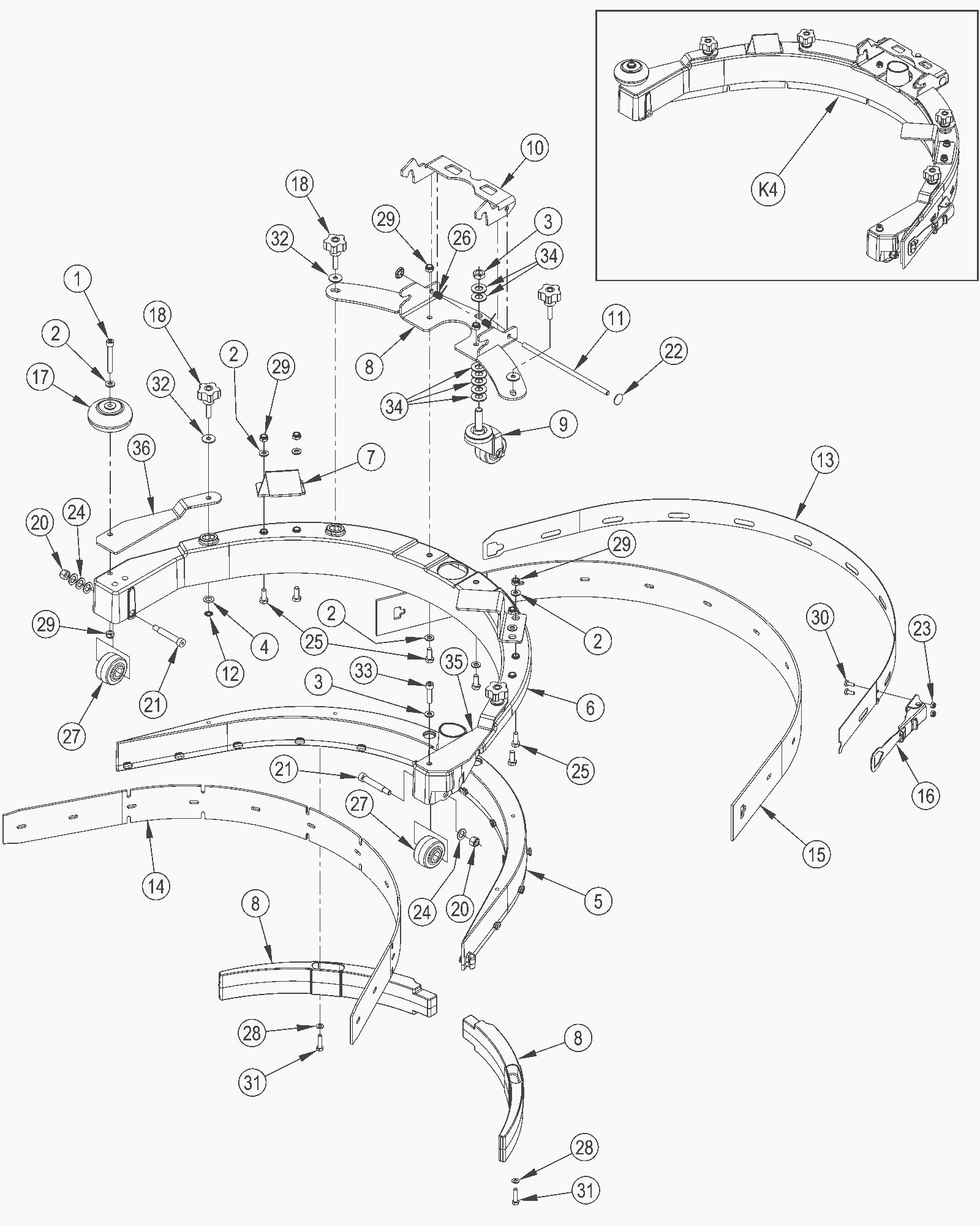

Squeegee System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(only available in KIT4 and KIT6)(screw M6 x 45)
2	N/A	Not available	8	(only available in KIT3, KIT4 and KIT6)(washer)
3	999-0628	Nut 3/8-16 hex jam stainless steel	1	(included in KIT4 and KIT6)
4	N/A	Not available	4	(only available in KIT4 and KIT5)(washer)
5	N/A	Not available	1	(only available in KIT4)(squeegee casting)
6	472-3861	SQUEEGEE COVER	1	(included in KIT4)
7	N/A	Not available	2	(only available in KIT4)(squeegee lift bracket)
8	N/A	Not available	2	(only available in KIT4 and KIT8)(squeegee plate)
9	472-3868	CASTER WHEEL	1	(only available in KIT4 and KIT6)
10	N/A	Not available	1	(only available in KIT4 and KIT8)(squeegee mount bracket)
11	N/A	Not available	1	(only available in KIT4 and KIT8)(pivot pin)
12	N/A	Not available	4	(only available in KIT4 and KIT5)(retaining ring)
13	N/A	Not available	1	(only available in KIT4 and KIT7)(squeegee rear strap)
14	N/A	Not available	1	(squeegee blade linatex front)
14a	N/A	Not available	1	(squeegee blade polyurethane front )(only available in KIT1)(all squeegee blades kits include both front and rear squeegee blades)
15	N/A	Not available	1	(only available in KIT2 and KIT4)(squeegee linatex blade rear)(all squeegee blades kits include both front and rear squeegee blades)
15a	N/A	Not available	1	(only available in KIT1)(squeegee polyurethane blade rear)(all squeegee blades kits include both front and rear squeegee blades)
16	N/A	Not available	1	(only available in KIT4 and KIT7)(t-latch tab assembly)
17	N/A	Not available	1	(only available in KIT4 and KIT6)(roller wheel)
18	N/A	Not available	4	(only available in KIT4 and KIT5)(knob)
19	N/A	Not available	1	(only available in KIT4 and KIT8)(squeegee bracket weldment)
20	N/A	Not available	2	(only available in KIT4 and KIT6)(nut 1/4-20 nylon hex loc stainless steel)
21	N/A	Not available	2	(only available in KIT4 and KIT6)(bolt)
22	N/A	Not available	2	(only available in KIT4 and KIT8)(6mm pin cover)
23	N/A	Not available	2	(only available in KIT4 and KIT7)(nut M4 nylon hex loc thin stainless steel)
24	N/A	Not available	4	(only available in KIT4 and KIT6)(spacer)
25	999-1383	Screw M6-1 x 16mm hex head stainless steel	6	(included in KIT3 and KIT4)
26	N/A	Not available	2	(only available in KIT4 and KIT8)(spring)
27	N/A	Not available	2	(only available in KIT4 and KIT6)(front wheel)
28	N/A	Not available	2	(only available in KIT3 and KIT4)(washer)
29	N/A	Not available	7	(only available in KIT3, KIT4 and KIT6)(nut M6 nylon hex loc stainless steel)
30	N/A	Not available	2	(only available in KIT4 and KIT7)(screw M4 x 10 pan head phillips stainless steel)
31	N/A	Not available	2	(only available in KIT3 and KIT4)(screw M5 x 20 hex head stainless steel)
32	N/A	Not available	4	(only available in KIT4 and KIT5)(washer)
33	N/A	Not available	1	(only available in KIT4)(screw)
34	999-9128	Washer 3/8 SAE flat stainless steel	7	(inlcuded in KIT4 and KIT6)
35	572-7077	Squeegee bracket-left	1	(included in KIT4)
36	572-7078	Squeegee bracket-right	1	(included in KIT4)
KIT1	272-7356	Squeegee blade kit polyurethane	1	(includes 14a and 15a)
KIT2	272-7357	Squeegee blade kit linatex	1	(includes 14 and 15)
KIT3	272-6771	Squeegee hardware kit	1	(includes 25,28,29 and 31)
KIT4	572-7079	Squeegee assembly kit	1	(includes 1-14, 15,16-36)
KIT5	572-7080	Squeegee knob kit	1	(includes 4,12,18 and 32)
KIT6	572-7081	Squeegee wheels kit	1	(includes 1-3,9,17,20,21,24,27,29 and 34)
KIT7	272-6774	Squeegee strap kit	1	(includes 13,16,23 and 30)
KIT8	272-6775	Squeegee mounting bracket kit	1	(includes 8,10,11,19,22 and 26)
