- Commonly Asked For Parts

Click to enlarge

#	Part	Description	Notes
01	172-9347	Filter	(solution filter)
02	272-9981	Filter	(Recovery lid)
03	372-1230	Solution filter kit	(High pressure pump)
04	272-3270	Air cleaner
05	272-3271	Primary element	(For 272-3270)
06	372-1231	Oil filter cartridge
07	372-1232	Rectangular synthetic filter
08	372-1145	Squeegee blade kit gum rubber (red)
09	572-1606	BLADE KIT-SQGEE-GUM
10	572-1607	BLADE KIT-SQGEE-PU
11	272-3779	Mold-on wheel 16.2 x 4
12	372-2979	Drive wheel

- Pad Holders

Click to enlarge

#	Part	Description	Notes
1	991-2214	Center-Lok II pad holder - left hand thread (red)
2a	991-2201	Center-Lok II pad holder - right hand thread (black)	(Pad driver side female, Floor side male)
2b	991-8577	Pad retainer	(Pad driver side male, Floor side female)
3a	991-2202	Big mouth pad holder set (blue)	(includes 3 screws)
3b	991-2205	Deep lock ring and pad grip ring
4	991-2203	Big mouth pad holder male thread portion
5	991-2206	Center-Lok 3 pad holder	(includes 3 screws)
6	996-0372	Big mouth pad holder (left hand thread)
7	N/A	Not available
8	991-2209	Split retainer - pad holder ring (OBSOLETE)
9	N/A	Not available	(replaced by #3 991-2202)
10	991-2211	Center lock pad holding cup (male) (yellow) (OBSOLETE)

Brake Linkage Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(screw) (only available in KIT2)
2	N/A	Not available	2	(screw) (only available in KIT2)
3	999-0333	Screw 10-24 x 1/2 pan head phillips stainless steel	1	(included in KIT2)
4	999-0120	Washer 3/8 SAE flat	2	(included in KIT1 and KIT2)
5	999-0123	Washer 1/4 SAE flat zinc plated	8	(included in KIT2)
6	999-1006	Screw 3/8-16 x 1 3/4 hex head stainless steel	1	(included in KIT1)
7	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	4	(included in KIT2)
8	999-1136	Screw 1/4-20 x 7/8 pan head phillips stainless steel	2	(included in KIT2)
9	N/A	Not available	1	(nut) (only available in KIT2)
10	N/A	Not available	2	(nut) (only available in KIT1 and KIT2)
11	999-0822	Screw 1/4-20 x 7/8 hex head plain finish	4	(included in KIT2)
12	999-0273	Screw 1/4-20 x 1/2 hex washer head thread rolling zinc	2	(included in KIT1)
13	999-0169	Nut 3/8-24 hex jam plain finish	1	(included in KIT2)
14	N/A	Not available	2	(nut) (only available in KIT2)
15	472-4292	YOKE CLEVIS	2
16	272-7653	Brake lock catch	1
17	272-8850	Proximity sensor	1
18	372-1450	Weldment brake bar	1
19	372-1451	Brake rod	1
20	372-1452	Brake rod	2
21	372-1453	Pivot brake	4
22	372-1454	Switch mount bracket	1
23a	N/A	Not available	1	(brake pedal assembly) (includes 6, 23b-23m) (only available in KIT1)
23b	999-0114	Washer 1/2 SAE flat	2	(included in KIT1)
23c	999-9004	Washer 5/16 SAE flat stainless steel	2	(included in KIT1)
23d	999-0031	Bolt 5/16-18 x 1 hex head grade 5 zinc plated	1	(included in KIT1)
23e	N/A	Not available	1	(nut) (only available in KIT1)
23f	N/A	Not available	1	(nut) (only available in KIT1)
23g	N/A	Not available	1	(screw) (only available in KIT1)
23h	N/A	Not available	1	(bushing) (only available in KIT1)
23i	N/A	Not available	2	(bearing) (only available in KIT1)
23j	N/A	Not available	1	(extension spring) (only available in KIT1)
23k	N/A	Not available	1	(bushing) (only available in KIT1)
23l	N/A	Not available	1	(brake pedal weldment) (only available in KIT1)
23m	N/A	Not available	1	(park brake pedal) (only available in KIT1)
24	372-1455	Right hand rod end	1
25	372-1456	Left hand rod end	1
26	272-5619	Female rod end	2
KIT1	372-1457	Brake pedal kit	1	(includes 4, 6, 10, 12, 16, 23a-23m)
KIT2	372-1458	Brake linkage hardware kit	1	(includes 1-5, 7-11, 13-14)

Broom Arm Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	172-4521	Spring com .75 x 1.68	1
2	N/A	Not available	1	(nut)
3	N/A	Not available	1	(nut)
4	N/A	Not available	1	(screw)
5	999-0114	Washer 1/2 SAE flat	2
6	999-1531	Screw 3/8-16 x 1 hex washer head zinc plated	1
7	999-0628	Nut 3/8-16 hex jam stainless steel	1
8	999-0181	Nut 1/4-20 hex jam plain finish	1
9	N/A	Not available	2	(ring)
10	999-9094	Screw 3/8-16 x 3 hex head stainless steel	1
11	N/A	Not available	2	(screw)
12	N/A	Not available	3	(washer)
13	N/A	Not available	2	(bearing)
14	N/A	Not available	1	(bushing)
15	N/A	Not available	1	(bushing)
16	N/A	Not available	1	(upper arm assembly)
17	N/A	Not available	1	(lower arm assembly)
18	N/A	Not available	1	(hinge weldment)
19	N/A	Not available	1	(hinge weldment)

Chassis System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	3	(screw) (qty 2 for LPG and diesel) (only available in KIT2 and KIT4)
2	999-0114	Washer 1/2 SAE flat	4	(battery model) (included in KIT4 and KIT5)
3	999-9004	Washer 5/16 SAE flat stainless steel	6	(included in KIT2, KIT3 and kIT4)
4	999-0333	Screw 10-24 x 1/2 pan head phillips stainless steel	1	(battery model) (included in KIT4)
5	999-0120	Washer 3/8 SAE flat	10	(qty 6 for LPG and diesel) (included in KIT2 and KIT4)
6	999-0123	Washer 1/4 SAE flat zinc plated	4	(qty 8 for LPG and diesel) (included in KIT2, KIT3, and KIT4)
7	N/A	Not available	4	(screw) (qty 2 for LPG and diesel) (only available in KIT2, KIT3 and KIT4)
8	N/A	Not available	1	(screw) (only available in KIT4)
9	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	2	(included in KIT2 and KIT4)
10	999-0570	Screw 10-24 x 1 1/4 pan head phillips stainless steel	1	(included in KIT2 and KIT4)
11	N/A	Not available	8	(nut) (qty 6 for LPG and diesel) (only available in KIT2, KIT3 and KIT4)
12	N/A	Not available	2	(nut) (only available in KIT2 and KIT4)
13	N/A	Not available	3	(nut) (battery model) (only available in KIT4)
14	N/A	Not available	2	(nut) (only available in KIT2, KIT3 and KIT4)
15	N/A	Not available	1	(nut) (battery model) (only available in KIT4)
16	999-1343	Screw 5/16-18 x 5/8 hex head stainless steel	6	(included in KIT2 and KIT4)
17	N/A	Not available	10	(screw) (qty 6 LPG and diesel) (only available in KIT2, KIT3 and KIT4)
18	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	2	(included in KIT2, KIT3 and KIT4)
19	999-0822	Screw 1/4-20 x 7/8 hex head plain finish	2	(included in KIT2 and KIT4)
20	N/A	Not available	3	(screw) (qty 1 LPG and diesel) (only available in KIT2, KIT4 and KIT5)
21	999-1006	Screw 3/8-16 x 1 3/4 hex head stainless steel	2	(battery model) (included in KIT4 and KIT5)
22	N/A	Not available	3	(screw) (battery model) (only available in KIT4 and KIT5)
23	N/A	Not available	10	(washer) (only available in KIT1, KIT2 and KIT4)
24	999-1129	Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc	10	(included in KIT 1, KIT2 and KIT4)
25	999-0181	Nut 1/4-20 hex jam plain finish	1	(included in KIT3)
26	272-7595	Tank stop bracket	2
27	172-2631	Bushing	1
28	472-5743	ROLLER ASSEMBLY	6	(battery model)
29	272-8850	Proximity sensor	1	(battery model)
30	272-0420	Gas spring	1
31	N/A	Not available	1	(leg leveler) (only available in KIT3)
32	472-8953	SHIELDED PULLEY	1
33	N/A	Not available	1	(chassis weldment)
34	372-2706	Front engine cover assembly	1
35	N/A	Not available	1	(roller bracket) (battery model) (only available in KIT5)
36	372-1398	Engine cover	1
37	372-2707	Right hand door assembly	1
38	372-1400	Support panel	1
39a	372-1416	Plate assembly	1	(battery model) (includes 39b-39l)
39b	172-9507	Leveler	2	(battery model)
39c	999-1862	Washer #10 flat SAE stainless steel	1	(battery model)
39d	999-0705	Screw 10-24 x 3/4 pan head phillips stainless steel	1	(battery model)
39e	472-3477	NUT WING 1 1/2-13	2	(battery model)
39f	181-0223	Screw socket head	1	(battery model)
39g	172-8283	Spring .38 x 2	1	(battery model)
39h	472-5770	BEARING FL .375X.250X.188	1	(battery model)
39i	172-8164	Bushing	1	(battery model)
39j	472-8733	WASHER TEFLON .21X.88X.045	1	(battery model)
39k	372-1417	Plate	1	(battery model)
39l	372-1418	Latch	1	(battery model)
40	372-1419	Bracket	1	(battery model)
41	N/A	Not available	1	(front battery guide) (battery model) (only available in KIT5)
42	N/A	Not available	1	(battery guide weldment) (battery model) (only available in KIT5)
43	372-1401	Left hand cover	1
44	372-1402	Lower cover	1
45	372-1404	Pull rod assembly	1
46	372-1405	Bushing	1
47	372-1406	Reservoir guard	1
48	N/A	Not available	1	(dust shield) (only available in KIT1)
49	N/A	Not available	2	(bushing) (battery model) (only available in KIT5)
50	N/A	Not available	1	(battery stop weldment) (battery model) (only available in KIT5)
51	372-1420	Bracket	1	(battery model)
52	N/A	Not available	1	(bracket) (battery model) (only available in KIT5)
53	372-2708	Bracket (OBSOLETE)	1
54	472-7756	HANGER-SIDE PANEL	1
55	372-1408	Nut plate	1
56a	372-1421	Cover plate assembly	1	(battery model)
56b	172-9788	Door latch	1	(LPG and diesel)
57	372-1422	Retainer	1	(battery model)
58	N/A	Not available	1	(strike latch) (only availabele in KIT3)
59	N/A	Not available	1	(bracket) (only available in KIT3)
60	N/A	Not available	4	(carriage bolt) (only available in KIT5)
61	372-1411	Foam insulation	1	(LPG and diesel)
62	372-1412	Foam insulation	1	(LPG and diesel)
N/S	N/A	Not available	2	(screw) (LPG and diesel) (only available in KIT2)
N/S	N/A	Not available	2	(washer) (LPG and diesel) (only available in KIT2)
N/S	372-2709	Panel stop weldment (OBSOOLETE)	1	(LPG and diesel)
N/S	372-1409	Bracket	1	(LPG and diesel)
N/S	372-1410	Latch	1	(LPG and diesel)
KIT1	372-1414	Dust shield	1	(includes 23-24, 48)
KIT2	372-2710	Chassis hardware kit	1	(includes 1, 3, 5-7, 9-12, 14, 16-20, 23-24)
KIT3	372-2711	Right hand door latch kit (OBSOLETE)	1	(includes 3, 6-7, 14, 18, 31, 58-59)
KIT4	372-1414	Dust shield	1	(includes 1-24)
KIT5	372-2711	Right hand door latch kit (OBSOLETE)	1	(includes 2, 11, 17, 20-22, 35, 41-42, 49-50, 52, 60)

Circuit Breaker Panel Assembly

Click to enlarge

#	Part	Description	Req
1	999-0332	Screw 10-24 x 5/8 pan head phillips stainless steel	4
2	991-1628	5amp circuit breaker	1
3	272-9755	15amp circuit breaker	1
4	272-7727	20amp circuit breaker	1
5	272-9374	10amp circuit breaker	1
6	372-1510	Circuit breaker panel	1
7	272-6708	25amp circuit breaker	1
8	372-1511	Panel gasket	1
9	272-6708	25amp circuit breaker	1
10	272-9755	15amp circuit breaker	1
11	272-6708	25amp circuit breaker	1
12	272-6708	25amp circuit breaker	1
13	272-6708	25amp circuit breaker	1

Contactor Panel Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	172-2805	36V contactor	1
2	172-9261	P clamp	2
3	172-1779	36V relay SPST	1
4	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	4
5	999-0016	Washer 1/4 flat plain finish	4
6	999-1865	Screw 6-32 x 5/16 pan head phillips thread cutting ss	4
7	372-1512	Washer	2
8	999-0360	Screw 1/4-20 x 3/8 hex head thread rolling unslotted	24
9	999-1152	Screw 10-24 x 3/8 pan head phillips thread rolling zinc	4
10	272-9677	Screw 1/4-20 x 1/2 hex head	2
11	172-4032	Grommet	1
12	472-5722	CONTACTOR 36V TYPE 4	1
13	472-5775	STUD TYPE JUNCTION BOX	2
14	272-1322	Motor contactor	1
15	172-1779	36V relay SPST	1
16	372-1513	Contactor panel	1
17	372-1515	Current sensor	1
18	372-1516	Delphi clip	3
19	372-1517	Ground bar	1
20	372-1323	Bus bar contactor	2
21	999-0714	Nut 1/2-20 hex jam stainless steel	2
22	172-2805	36V contactor	1	(center brush)
23	172-2805	36V contactor	1	(right brush)
24	172-2805	36V contactor	1	(vacuum motors)
25	172-2805	36V contactor	1	(dust control)
26	172-2805	36V contactor	1	(main broom)
27	272-1322	Motor contactor	1	(hydraulic pump)
28	172-2805	36V contactor	1	(aux)
29	172-2805	36V contactor	1	(steering)
30	172-2805	36V contactor	1	(side brooms)
31	372-1515	Current sensor	1	(vacuum)
32	372-1515	Current sensor	1	(broom)

Control System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(screw) (only available in KIT2)
2	999-1532	Screw 1/4-20 x 1/2 hex head stainless steel	4	(included in KIT2)
3	999-0123	Washer 1/4 SAE flat zinc plated	4	(included in KIT2)
4	999-0412	Washer #8 SAE flat	2	(included in KIT2)
5	999-0005	Screw 5/16-18 x 7/8 socket head	4	(included in KIT2)
6	999-0456	Screw 1/4-20 x 3/4 pan head phillips stainless steel	3	(included in KIT1)
7	N/A	Not available	2	(nut) (only available in KIT2)
8	999-9006	Screw 5/16-18 x 3/4 pan head phillips stainless steel	4	(included in KIT2)
9	N/A	Not available	1	(screw) (only available in KIT2)
10	N/A	Not available	2	(screw) (only available in KIT2)
11	N/A	Not available	1	(washer) (only available in KIT2)
12	999-1104	Screw 10-24 x 3/4 pan head phillips thread rolling zinc	4	(included in KIT2)
13	999-1129	Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc	4	(included in KIT2)
14	272-8850	Proximity sensor	2
15	372-1439	Steering controller	1
16	172-9147	Terminal insulator	5
17	372-2718	Tilt steering assembly (OBSOLETE)	1
18	N/A	Not available	1	(brake linkage assembly)
19	372-1440	Steering cam	1
20	372-1441	Spacer	2
21	372-3099	Sensor mounting bracket	1
22	372-1442	Splash shield	1
23	N/A	Not available	1	(foot pedal assembly) (only available in KIT1)
24	472-7286	MOTOR STEERING 36V	1
25	372-2720	Sensor mounting bracket (OBSOLETE)	1
KIT1	372-1437	Foot pedal kit	1	(includes 6 and 23)
KIT2	372-1438	Control system hardware kit	1	(includes 1-5, 7-13)

Decal System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(caution decal) (only available in KIT1)
2	N/A	Not available	1	(LPG decal) (only available in KIT1)
3	N/A	Not available	1	(broom warning decal) (only available in KIT1)
4	N/A	Not available	1	(tip over warning decal) (only available in KIT1)
5	N/A	Not available	1	(hot warning decal) (LPG and diesel) (only available in KIT1)
6	N/A	Not available	1	(advance decal) (only available in KIT1)
7	N/A	Not available	1	(diesel fuel decal) (only available in KIT1)
8	N/A	Not available	1	(low sulfur diesel decal) (only available in KIT1)
9	N/A	Not available	1	(exhaust decal) (LPG and diesel) (only available in KIT1)
10a	N/A	Not available	2	(CS7000 decal) (only available in KIT1)
10b	N/A	Not available	2	(CS7000 Ecoflex decal) (only available in KIT1)
11	N/A	Not available	1	(circuit breaker decal) (only available in KIT1)
12	N/A	Not available	1	(contactor location decal) (only available in KIT1)
13	N/A	Not available	1	(battery wiring decal) (battery model) (only available in KIT1)
14	N/A	Not available	1	(swing out tank decal) (diesel model) (only available in KIT1)
15	N/A	Not available	1	(hopper safety support decal) (only available in KIT1)
16	N/A	Not available	1	(battery wiring decal) (only available in KIT1)
17	N/A	Not available	1	(belt removal tool decal) (only available in KIT1)
18a	372-1460	Hybrid embossed decal	2	(LPG and diesel) (included in KIT1)
18b	372-1461	E power embossed decal	2	(battery model) (included in KIT1)
19	N/A	Not available	1	(filter shaker hanger decal) (only available in KIT1)
20	N/A	Not available	1	(disconnect power decal) (only available in KIT1)
21	N/A	Not available	1	(hopper warning decal) (only available in KIT1)
22	N/A	Not available	1	(hydraulic warning decal) (only available in KIT1)
KIT1	372-2721	Advance decal kit	1	(includes 1-22)

Diesel Fuel Tank Assembly

Click to enlarge

#	Part	Description	Req
1	999-0123	Washer 1/4 SAE flat zinc plated	4
2	272-1562	Screw 1/4-20 x 3/5 pan head thread forming	1
3	272-9677	Screw 1/4-20 x 1/2 hex head	4
4	172-2303	Rubber boot	1
5	372-1571	Fuel tank assembly	1
6	372-1569	90 degree elbow	2
7	372-2794	Tank support bracket (OBSOLETE)	1
N/S	272-7868	Fuel cap	1
N/S	372-2795	Fuel level sender	1
N/S	372-2796	Fuel withdraw tube (OBSOLETE)	1
N/S	372-2797	Fuel return tube (OBSOLETE)	1

Dust Control System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	6	(included in KIT1)
2	999-0123	Washer 1/4 SAE flat zinc plated	6	(included in KIT1)
3	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	4	(included in KIT2 and KIT3)
4	N/A	Not available	4	(screw) (only available in KIT2)
5	999-9004	Washer 5/16 SAE flat stainless steel	4	(included in KIT2)
6	N/A	Not available	2	(screw) (only available in KIT2)
7	N/A	Not available	2	(washer) (only available in KIT3)
8	172-4099	Nut 5/16-18 thumb	2
9a	N/A	Not available	1	(impeller assembly) (includes 9b-9k) (only available in KIT1)
9b	472-2563	MOTOR VACUUM 36V	1	(included in KIT1)
9c	N/A	Not available	1	(vacuum support) (only available in KIT1)
9d	N/A	Not available	1	(vacuum plate) (only available in KIT1)
9e	N/A	Not available	3	(spacer) (only available in KIT1)
9f	472-2626	GASKET	1	(included in KIT1)
9g	N/A	Not available	6	(nut) (only available in KIT1)
9h	999-1329	Screw M6-1 x 100mm hex head	3	(included in KIT1)
9i	999-0273	Screw 1/4-20 x 1/2 hex washer head thread rolling zinc	4	(included in KIT1)
9j	N/A	Not available	1	(cable tie) (only available in KIT1)
9k	N/A	Not available	1	(protection grate) (only available in KIT1)
10a	372-1462	Filter shaker assembly	1	(includes 10b-10m)
10b	999-0024	Washer 5/16 flat stainless steel	4	(included in KIT4 and KIT5)
10c	999-1223	Screw M12-1.75 x 25mm hex head stainless steel	2	(included in KIT4)
10d	N/A	Not available	4	(nut) (only available in KIT5)
10e	N/A	Not available	2	(washer) (only available in KIT5)
10f	N/A	Not available	1	(cable tie) (only available in KIT5)
10g	N/A	Not available	1	(filter shaker weldment) (only available in KIT5)
10h	N/A	Not available	2	(isolator) (only available in KIT5)
10i	N/A	Not available	1	(motor shaker clamp) (only available in KIT4)
10j	N/A	Not available	2	(washer) (only available in KIT5)
10k	N/A	Not available	1	(filter clamp weldment) (only available in KIT5)
10l	N/A	Not available	1	(filter clamp weldment) (only available in KIT5)
10m	N/A	Not available	1	(36V filter shaker motor) (only available in KIT4)
11	372-1463	Threaded rod	2
12	372-1232	Rectangular synthetic filter	1
13	N/A	Not available	2	(filter tie down bracket) (only available in KIT2)
KIT1	372-1464	Impeller kit	1	(includes 1-2, 9a-9k)
KIT2	372-1465	Filter tie down bracket kit	1	(includes 3-6, 13)
KIT3	372-1466	Dust control system hardware kit	1	(includes 3 and 7)
KIT4	372-1467	Shaker motor kit	1	(includes 10b-10c, 10i, 10m)
KIT5	372-1468	Filter shaker kit	1	(includes 10b, 10d-10h, 10j-10l)

Ecoflex TM Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	372-2722	Onboard chemical assembly	1	(includes 1-30)
1	999-1862	Washer #10 flat SAE stainless steel	4	(included in KIT2)
2	999-0571	Screw 10-24 x 3/8 pan head phillips stainless steel	2	(included in KIT2)
3	999-0123	Washer 1/4 SAE flat zinc plated	4	(included in KIT2)
4	999-0456	Screw 1/4-20 x 3/4 pan head phillips stainless steel	2	(included in KIT2)
5	N/A	Not available	4	(nut) (only available in KIT2)
6	999-1477	Screw 10-24 x 1 1/4 hex head stainless steel	4	(included in KIT2)
7	N/A	Not available	1	(bushing) (only available in KIT2)
8	N/A	Not available	2	(screw) (only available in KIT2)
9	N/A	Not available	1	(chemical ration decal) (only available in KIT2)
11	N/A	Not available	2	(detergent pump) (only available in KIT1)
12	N/A	Not available	2	(hose clamp) (only available in KIT3)
13	N/A	Not available	1	(elbow) (only available in KIT3)
14	N/A	Not available	1	(chemical resistant hose) (only available in KIT1)
15	N/A	Not available	2	(raw cap) (only available in KIT4)
16	N/A	Not available	1	(dry break cap) (only available in KIT4)
17	N/A	Not available	1	(chemical resistant hose) (only available in KIT1)
18	N/A	Not available	1	(cap) (only available in KIT4)
19	N/A	Not available	1	(spiral hose) (only available in KIT3)
20	N/A	Not available	2	(y barb fitting) (only available in KIT1)
21	N/A	Not available	4	(chemical resistant hose) (only available in KIT1)
22	N/A	Not available	2	(dry break insert) (only available in KIT4)
23	272-5716	Solution control pump	1
24	N/A	Not available	1	(pump mount weldment) (only available in KIT2)
25	N/A	Not available	1	(cover weldment) (only available in KIT2)
26	N/A	Not available	1	(pump support weldment) (only available in KIT2)
27	N/A	Not available	1	(coupling) (only available in KIT3)
28	N/A	Not available	2	(chemical bottle assembly) (only available in KIT4)
29	N/A	Not available	1	(elbow) (only available in KIT3)
30	N/A	Not available	1	(tee) (only available in KIT3)
KIT1	372-1469	Detergent pump kit	1	(includes 11, 14, 17, 20-21)
KIT2	372-1470	Bracket hardware kit	1	(includes 1-9, 24-26)
KIT3	372-1471	Hose fitting kit	1	(includes 12-13, 19, 27, 29-30)
KIT4	372-1472	Chemical bottle kit	1	(includes 15-16, 18, 22, 28)

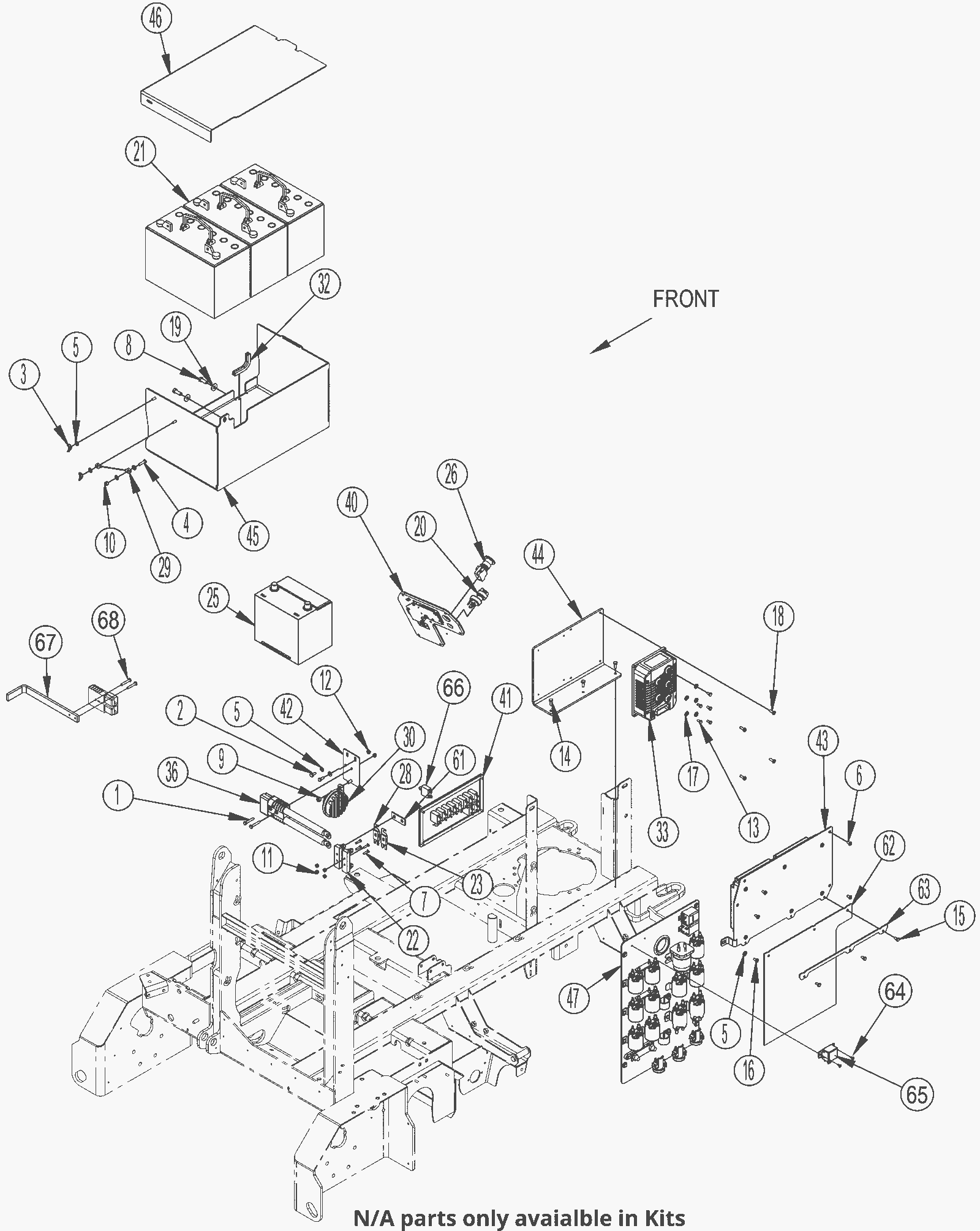

Electrical System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	999-1260	Screw 1/4-20 x 1 1/2 hex cap stainless steel	2	(included in KIT1, KIT2 and KIT3)
2	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	2	(included in KIT1, KIT2 and KIT3)
3	999-0603	Nut 1/4-20 wing stainless steel	2	(LPG and diesel) (included in KIT2 and KIT3)
4	N/A	Not available	1	(screw) (LPG and diesel) (included in KIT2 and KIT3)
5	999-0123	Washer 1/4 SAE flat zinc plated	7	(qty 3 for battery model) (included in KIT1, KIT2 and KIT3)
6	999-0522	Screw 1/4-20 x 1/2 pan head phillips stainless steel	4	(included in KIT1, KIT2 and KIT3)
7	N/A	Not available	4	(screw) (only available in KIT1, KIT2 and KIT3)
8	999-1531	Screw 3/8-16 x 1 hex washer head zinc plated	2	(LPG and diesel) (included in KIT2 and KIT3)
9	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	1	(included in KIT1, KIT2 and KIT3)
10	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	1	(LPG and diesel) (included in KIT2 and KIT3)
11	N/A	Not available	4	(nut) (only available in KIT1, KIT2 and KIT3)
12	N/A	Not available	2	(nut) (only available in KIT1, KIT2 and KIT3)
13	999-9116	Screw M6-1 x 12mm hex head stainless steel	5	(included in KIT1, KIT2 and KIT3)
14	N/A	Not available	3	(screw) (only available in KIT1, KIT2 and KIT3)
15	999-0273	Screw 1/4-20 x 1/2 hex washer head thread rolling zinc	3	(included in KIT1, KIT2 and KIT3)
16	999-1129	Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc	1	(included in KIT1, KIT2 and KIT3)
17	N/A	Not available	5	(washer) (only available in KIT1, KIT2 and KIT3)
18	999-1058	Screw 1/4-20 x 3/4 pan head thread rolling phillips	4	(included in KIT1, KIT2 and KIT3)
19	N/A	Not available	2	(washer) (LPG and diesel) (only available in KIT2 and KIT3)
20	272-7714	Key switch assembly	1
21	162-6022	12V 102Ah gel battery (SNSR)	3	(LPG and diesel) (OEM)
22	272-9750	Fuse block	2
23	472-5774	FUSE 400 AMP	1
25	472-7303	BATTERY-12V 45AH WET	1	(diesel model)
26	172-9233	Emergency stop button	1
28	172-8836	150amp fuse	1
29	472-8620	WIRE ROPE ASSY	1	(LPG and diesel)
30	172-9432	36V horn	1
32	372-1509	Edge trim	1	(LPG and diesel)
33	372-1508	Traction controller kit	1
36	372-1475	Main power cable assembly	1
40	372-2723	User interface panel assembly (OBSOLETE)	1
41	N/A	Not available	1	(circuit breaker panel assembly)
42	372-1480	Connector mount bracket	1
43	372-1482	Control board kit	1
44	372-1484	Control mount panel	1
45	372-1485	Battery box weldment	1	(LPG and diesel)
46	372-1486	Battery cover	1	(LPG and diesel)
47	N/A	Not available	1	(contactor panel assembly)
61	372-1499	Fuse bar	1
62	372-1500	Cover	1
63	372-2724	Strap (OBSOLETE)	1
64	999-1152	Screw 10-24 x 3/8 pan head phillips thread rolling zinc	2	(diesel model) (included in KIT3)
65	272-7725	12V 75amp relay	1	(diesel model)
66	372-1502	40amp circuit breaker (OBSOLETE)	1	(diesel model)
67	372-1503	Disconnect bar	1	(diesel model)
68	999-0523	Screw 1/4-20 x 1 1/2 pan head phillips stainless steel	2	(diesel model) (included in KIT2 and KIT3)
N/S	172-0223	Battery cable boot	6
N/S	172-8828	Battery cable	2
N/S	172-8964	Terminal insulator	8
N/S	372-1474	Main harness	1
N/S	372-2725	Hopper harness (OBSOLETE)	1
N/S	372-1477	Alternator cable assembly	1
N/S	372-1478	Starter battery cable assembly	1
N/S	372-1479	Vacuum harness	1
N/S	372-1487	Engine interface harness	1
N/S	372-1489	13 3/4 inch u 1 awg cable	1
N/S	372-1490	16 inch v 1 awg cable	1
N/S	372-1491	19 inch w 1 awg cable	1
N/S	372-1492	52 1/4 inch 1 awg cable	1
N/S	372-1493	7 inch 4 awg cable	1
N/S	372-1494	46 1/2 inch 1 awg cable	1
N/S	372-2726	Cable 1 awg x 31.25 (OBSOLETE)	1
N/S	372-2727	Cable 1 awg x 46.75 (OBSOLETE)	1
N/S	372-1495	7 3/4 inch 4 awg cable	1
N/S	372-1496	9 inch 6 awg cable	1
N/S	372-1497	29 1/4 inch 1 awg cable	1
N/S	372-1498	26 1/2 inch 1 awg cable	1
N/S	372-2728	Glow plug harness (OBSOLETE)	1	(diesel model)
KIT1	372-1505	Electric system battery hardware kit	1	(includes 1-2, 5-7, 9, 11-18)
KIT2	372-1506	Electric system LPG hardware kit	1	(includes 1-19, 68)
KIT3	372-1507	Electric system diesel hardware kit	1	(includes 1-19, 64, 68)

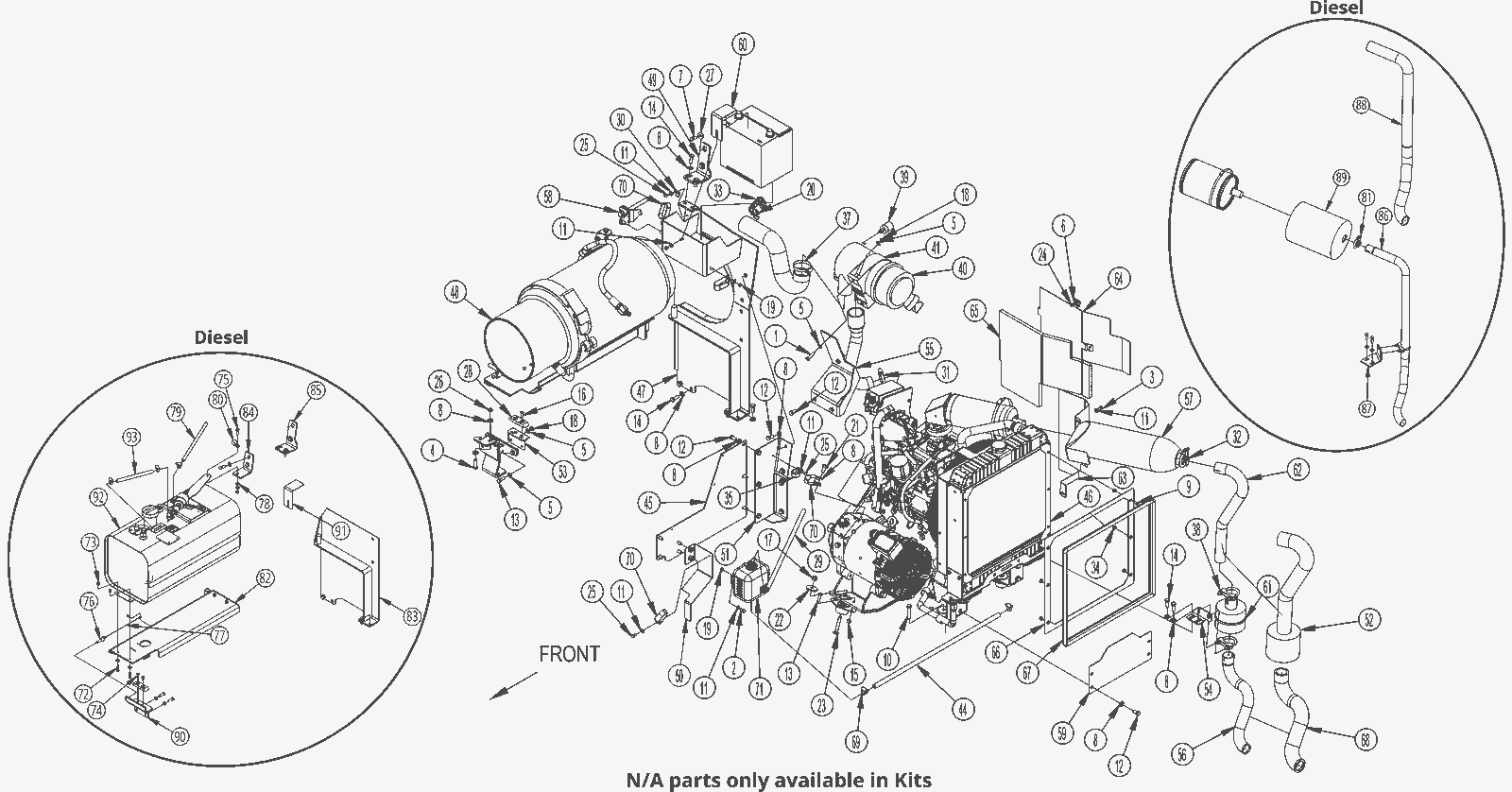

Engine Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	372-2750	Brass plug	1	(diesel model)
2	181-1100	Female hose barb	1
3	999-0114	Washer 1/2 SAE flat	3
4	999-0024	Washer 5/16 flat stainless steel	4	(qty 2 for LPG)
5	999-0558	Bolt 1/2-13 x 1 1/2 hex head stainless steel	2
6	999-0120	Washer 3/8 SAE flat	16	(qty 12 for LPG)
7	999-0123	Washer 1/4 SAE flat zinc plated	15	(qty 11 for LPG)
8	272-1465	Screw 1/4-20 X 5/8 hex head lock	12	(qty 8 for LPG)
9	172-4370	Screw M10-1.25 x 50 mm hex head	6	(diesel model)
10	999-1133	Bolt M8-1.25 x 20mm hex head full thread plain	2	(qty 1 for LPG)
11	999-1424	Nut M8-1.25 hex stainless steel	2	(qty 1 for LPG)
12	472-3516	SCR HEX THD TO HD 1/2-13X2.00	3
13	272-9677	Screw 1/4-20 x 1/2 hex head	4	(diesel model)
14	999-0633	Bolt 1/4-20 x 5/8 hex head stainless steel	3
15	272-7412	Hose clamp	2	(diesel model)
16	372-2751	Hose (OBSOLETE)	1
17	272-7768	Hose clamp	2
18	272-7830	Fuel filter kit	1	(diesel model)
19	272-3351	P clamp	2	(diesel model)
20	172-1337	90 degree barb 1/4	1
21	172-9852	Isolator mount	2
22	172-2122	P clamp	1	(diesel model)
23	372-1550	Engine isolator	2	(qty of 1 for LPG)
24	372-1551	Washer	2
25	272-7818	Electronic fuel pump	1	(diesel model)
26	372-2752	Radiator (OBSOLETE)	1
27a	372-1552	Alternator	1
27b	372-2753	Sheave	1	(for 27a)
27c	372-1553	Sheave	1	(LPG model)
28	372-1567	Belt	1
29	N/A	Not available	1	(sheave) (diesel)
30	N/A	Not available	1	(engine mount weldment) (diesel model)
31	372-2754	Radiator bracket	1	(diesel model)
32	372-2755	Radiator bracket	1	(diesel model)
33	N/A	Not available	1	(spacer plate) (diesel model)
34	N/A	Not available	1	(engine assembly) (diesel model)
35a	N/A	Not available	1	(exhaust assembly) (diesel model)
35b	272-7821	Exhaust gasket	1	(diesel model)
35c	372-1061	Muffler clamp	1	(diesel model)
35d	372-2756	Exhaust pipe weldment	1	(diesel model)
35e	372-2757	Muffler support weldment	1	(diesel model)
35f	372-2758	Hose clamp (OBSOLETE)	1	(diesel model)
35g	372-2161	Muffler	1	(diesel model)
36a	N/A	Not available	1	(tensioner assembly)
36b	372-1555	Automatic tensioner	1
36c	372-2759	Snap ring (OBSOLETE)	1
36d	372-1556	Bearing	1
36e	372-1557	Idler pulley kit	1
37	372-2760	Air cleaner hose	1	(diesel model)
38	372-1559	Air cleaner hose	1
39	372-2761	Radiator hose	1	(diesel model)
40	372-2762	Radiator hose	1	(diesel model)
41	372-2763	Controller governor	1	(diesel model)
42a	372-2764	Fan guard assembly	1	(diesel model)
42b	372-1562	LPG fan guard assembly	1	(LPG model)
43	372-2765	Guard plate	2	(diesel model)
45	372-1564	Pipe plug	1
46	372-1024	Screw M10-1.25 x 20mm	16	(diesel model)
47	999-9116	Screw M6-1 x 12mm hex head stainless steel	2	(LPG model)
48	999-1383	Screw M6-1 x 16mm hex head stainless steel	2	(LPG model)
49	999-1308	Nut M6-1 hex stainless steel	2	(LPG model)
50	997-2005	Hose clamp	2	(LPG model)
51	272-1587	Clamp hose support (OBSOLETE)	3	(LPG model)
52	N/A	Not available	1	(upper radiator mount bracket) (LPG model)
53	N/A	Not available	1	(sheave) (LPG model)
54	372-1554	Radiator bracket	1	(LPG model)
55	N/A	Not available	1	(engine assembly) (LPG model)
57	372-1558	Air cleaner hose	1	(LPG model)
58	372-1560	Radiator hose	1	(LPG model)
59	372-1561	Radiator hose	1	(LPG model)
60	372-1563	Relay box isolator	2	(LPG model)
61	372-1064	Screw M8-1.25 x 40mm	5	(LPG model)
N/S	372-2767	Kubota harness	1	(diesel model)
N/S	372-2166	Ignition DF-WG972 harness	1	(LPG model)

Engine Cover Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	372-1398	Engine cover	1
1	999-1862	Washer #10 flat SAE stainless steel	7	(included in KIT1)
2	999-0123	Washer 1/4 SAE flat zinc plated	2	(included in KIT1)
3	999-0567	Screw 1/4-20 x 5/8 pan head phillips stainless steel	2	(included in KIT2)
4	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	2	(included in KIT2)
5	N/A	Not available	7	(screw) (only available in KIT1)
6	N/A	Not available	2	(screw) (only available in KIT1)
7	N/A	Not available	2	(bushing) (only available in KIT1)
8	372-1427	Rear engine cover	1
9	N/A	Not available	1	(bracket) (only available in KIT2)
10	N/A	Not available	1	(latch strike weldment) (only available in KIT2)
11	N/A	Not available	1	(shield) (only available in KIT1)
12	N/A	Not available	1	(plate seal) (only available in KIT1)
13	N/A	Not available	1	(shield) (only available in KIT1)
14	N/A	Not available	1	(bulb seal) (only available in KIT1)
KIT1	372-1425	Seal kit	1	(includes 1-2, 5-7, 11-14)
KIT2	372-1426	Latch strike kit	1	(includes 3-4, 9-10)

Engine Sub-Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	181-0983	Screw 5/16-18 x 7/8 hex head	2
2	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	4	(qty 2 for diesel)
3	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	2	(LPG model)
4	999-0893	Screw 5/16-18 x 2 hex head stainless steel	2	(LPG model)
5	999-1905	Screw M6-1 x 60mm hex head zinc plated	4	(LPG model)
6	272-9677	Screw 1/4-20 x 1/2 hex head	4	(qty 3 for diesel)
7	272-7817	Speed sensor	1
8	172-8494	#6 hose clamp SAE	2	(LPG model)
9	272-3351	P clamp	1	(LPG model)
10	172-2122	P clamp	3
11	372-2135	Regulator	1	(LPG model)
12	372-2137	Spark controller	1	(LPG model)
13	372-2787	LP lock off with filter	1	(LPG model)
14	372-2769	Mag pickup bracket	1
15a	N/A	Not available	1	(exhaust assembly) (LPG model) (includes 15b-15g)
15b	999-9138	Screw M8-1.25 x 25mm socket head stainless steel	1	(included in KIT1) (LPG model)
15c	172-8490	#96 hose clamp SAE	1	(LPG model)
15d	N/A	Not available	2	(only available in KIT1) (LPG model)
15e	372-1143	Muffler	1	(LPG model)
15f	372-2770	Exhaust spacer	1	(LPG model)
15g	372-2771	Support bracket	1	(LPG model)
16	N/A	Not available	1	(coil mount weldment)
17	372-2248	Fan	1
18	N/A	Not available	1	(exhaust manifold)
19	372-2785	Controller governor	1	(LPG model)
20	N/A	Not available	1	(governer mount bracket) (LPG model)
21	N/A	Not available		(dipstick assembly) (LPG model)
22a	372-2773	Remote oil drain assembly	1	(LPG model)
22b	372-2793	Drain hose assembly	1	(diesel model)
23	372-2775	Vaporizer hose	2	(LPG model)
24	372-2141	Fuel hose	1	(LPG model)
25	372-2776	Vaporizer hose	1	(LPG model)
26a	372-2784	Engine	1	(LPG model)
26b	372-2791	Engine	1	(diesel model)
27a	372-2779	Fan pulley	1	(LPG model)
27b	272-7755	89mm fan pulley	1	(diesel model)
28a	372-2780	Fan spacer	1	(LPG model)
28b	372-2781	Fan spacer	1	(diesel model)
29	372-2782	Pulley spacer	1	(LPG model)
30	372-2152	Fuel hose	1	(LPG model)
31	170-5169	Hose clamp SAE #4	4	(LPG model)
N/S	372-2783	Low fan kit	1	(diesel model)
N/S	372-2784	Engine	1	(LPG model)
N/S	272-7796	Thermostat kit	1	(LPG model)
N/S	372-2785	Controller governor	1	(LPG model)
N/S	372-1487	Engine interface harness	1
N/S	372-2786	Kubota harness	1	(LPG model)
N/S	372-2166	Ignition DF-WG972 harness	1	(LPG model)
N/S	372-2165	Plug wire/coil kit	1	(LPG model)
N/S	472-7318	SPARK PLUG WIRE KIT-CLY 1	1	(LPG model)
N/S	472-7319	SPARK PLUG WIRE KIT- CYL 2	1	(LPG model)
N/S	472-7320	SPARK PLUG WIRE KIT- CYL 3	1	(LPG model)
N/S	372-2157	Spark plug	3	(LPG model)
N/S	372-2787	LP lock off with filter	1	(LPG model)
N/S	372-2158	Starter motor	1	(LPG model)
N/S	272-7814	Temperature switch	1
N/S	372-2159	Water pump assembmly	1	(LPG model)
N/S	372-1231	Oil filter cartridge	1	(LPG model)
N/S	372-2789	Dipstick	1	(LPG model)
N/S	372-2160	Exhaust gasket donut	1	(LPG model)
N/S	472-9176	SWITCH ENGINE OIL PRESSURE	1	(LPG model)
N/S	372-1143	Muffler	1	(LPG model)
N/S	372-2790	Fan belt	1	(LPG model)
N/S	372-1560	Radiator hose	1	(LPG model)
N/S	372-1558	Air cleaner hose	1	(LPG model)
N/S	372-1559	Air cleaner hose	1
N/S	372-2791	Engine	1	(diesel model)
N/S	372-2792	Alternator	1	(diesel model)
N/S	272-7808	Fuel filter cartridge	1	(diesel model)
N/S	272-7809	Oil filter cartridge	1	(diesel model)
N/S	472-9174	ALTERNATOR BELT	1	(diesel model)
N/S	272-7747	Fan belt	1	(diesel model)
N/S	272-7796	Thermostat kit	1	(diesel model)
N/S	272-7812	Starter motor	1	(diesel model)
N/S	272-7813	Oil pressure switch	1	(diesel model)
N/S	272-7815	Throttle shut down actuator	1	(diesel model)
N/S	372-2763	Controller governor	1	(diesel model)
N/S	272-7817	Speed sensor	1	(diesel model)
N/S	372-2761	Radiator hose	1	(diesel model)
N/S	372-2762	Radiator hose	1	(diesel model)
N/S	372-2793	Drain hose assembly	1	(diesel model)
N/S	272-7818	Electronic fuel pump	1	(diesel model)
N/S	272-3327	Strainer	1	(diesel model)
N/S	372-2760	Air cleaner hose	1	(diesel model)
KIT1	372-1141	Exhaust gasket kit (OBSOLETE)	1	(includes 15b and 15d)

Engine System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	999-0829	Screw 5/16-18 x 1 1/4 hex head plain finish	2	(included in KIT1 and KIT2)
2	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	2	(included in KIT1 and KIT2)
3	999-1532	Screw 1/4-20 x 1/2 hex head stainless steel	3	(LPG model) (included in KIT2)
4	N/A	Not available	1	(screw) (LPG model) (only available in KIT2)
5	999-9004	Washer 5/16 SAE flat stainless steel	8	(qty 9 for diesel) (included in KIT1 and KIT2)
6	999-1862	Washer #10 flat SAE stainless steel	1	(LPG model) (included in KIT2)
7	N/A	Not available	2	(screw) (qty 4 for diesel) (only available in KIT1 and KIT2)
8	999-0120	Washer 3/8 SAE flat	26	(included in KIT1 and KIT2)
9	999-0567	Screw 1/4-20 x 5/8 pan head phillips stainless steel	6	(included in KIT1 and KIT2)
10	N/A	Not available	3	(screw) (included in KIT1 and KIT2)
11	999-0123	Washer 1/4 SAE flat zinc plated	11	(qty 13 for diesel) (included in KIT1 and KIT2)
12	N/A	Not available	17	(screw) (qty 15 for diesel) (included in KIT1 and KIT2)
13	999-1857	Screw 5/16-18 x 1 hex cap stainless steel	10	(included in KIT1 and KIT2)
14	999-1531	Screw 3/8-16 x 1 hex washer head zinc plated	8	(qty 12 for diesel) (included in KIT1 and KIT2)
15	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	8	(included in KIT1 and KIT2)
16	999-1895	Screw 1/4-20 x 7/8 flat head phillips stainless steel	2	(LPG model) (included in KIT2)
17	999-1482	Nut 3/8-16 nylon lock stainless steel	1	(included in KIT1 and KIT2)
18	N/A	Not available	4	(nut) (qty 7 for diesel) (only available in KIT1 and KIT2)
19	N/A	Not available	5	(nut) (only available in KIT1 and KIT2)
20	N/A	Not available	2	(screw) (only available in KIT1 and KIT2)
21	N/A	Not available	1	(screw) (only available in KIT1 and KIT2)
22	N/A	Not available	4	(washer) (only available in KIT1 and KIT2)
23	999-0894	Screw 3/8-16 x 2 1/2 carriage head stainless steel	1	(included in KIT1 and KIT2)
24	N/A	Not available	1	(screw) (only available in KIT1 and KIT2)
25	999-1532	Screw 1/4-20 x 1/2 hex head stainless steel	3	(qty 4 for diesel) (included in KIT1 and KIT2)
26	999-0628	Nut 3/8-16 hex jam stainless steel	1	(LPG model) (included in KIT1 and KIT2)
27	N/A	Not available	2	(washer) (only available in KIT1 and KIT2)
28	272-3872	Skid	1
29	272-7994	20 inch hose	1	(qty 2 for diesel)
30	172-9530	Cable clamp	1	(LPG model)
31	172-8493	#24 hose clamp SAE	1	(LPG model)
32	272-3274	Muffler clamp	1
33	272-1317	Plastic clamp	1
34	172-1139	Bushing	6
35	172-1014	P clamp	1
36	472-9240	MOUNT ISOLATOR	4
37	272-9976	#32 hose clamp SAE	2	(qty 3 for diesel)
38	N/A	Not available	2	(muffler) (LPG model) (only available in KIT3)
39	272-3288	Service indicator	1
40	272-3270	Air cleaner	1
41	272-3273	Band assembly	1
44	372-2140	Regulator to engine hose	1	(LPG model)
45	372-1534	Tank guard plate	1
46	N/A	Not available	1	(engine assembly) (LPG model)
47	372-1600	Tank support weldment	1	(LPG model)
48	N/A	Not available	1	(fuel tank assembly) (LPG model)
49	372-2737	Tank support bracket (OBSOLETE)	1	(LPG model)
50	372-2730	Cable guard weldment (OBSOLETE)	1	(LPG model)
51	372-2731	Guard mount weldment (OBSOLETE)	1
52	372-2732	Tailpipe blanket (OBSOLETE)	1	(LPG model)
53	372-1601	Tank mount weldment	1	(LPG model)
54	372-2733	Muffler bracket (OBSOLETE)	1	(LPG model)
55	372-1521	Air cleaner mount weldment	1
56	N/A	Not available	1	(tailpipe) (LPG model) (only available in KIT3)
57	372-2734	Muffler blanket (OBSOLETE)	1	(LPG model)
58	372-1537	Belt removal tool	1
59	372-1528	Plate guard	1
60	372-2742	Battery hold down (OBSOLETE)	1	(LPG model)
61	372-1146	Exhaust silencer	1	(LPG model)
62	372-1547	Carbureted exhaust system kit	1	(LPG model)
63	372-1603	Heat shield	1	(LPG model)
64	372-1523	Heat shield muffler	1	(LPG model)
65	372-1524	Foam insulation	1	(LPG model)
66	372-2736	Radiator seal mount	1
67	372-1525	Trim seal	1
68	N/A	Not available	1	(tailpipe blanket) (LPG model) (only available in KIT1)
69	170-5169	Hose clamp SAE #4	2	(qty 9 for diesel)
70	272-7769	3/4 inch double wire clamp	4	(qty 5 for diesel)
71	272-7997	Overflow bottle assembly	1
72	999-0830	Screw 1/4-20 x 1 hex head plain finish	4	(diesel model) (included in KIT1)
73	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	4	(diesel model) (included in KIT1)
74	999-0990	Screw 1/4-20 x 5/8 flat head phillips stainless steel	2	(diesel model) (included in KIT1)
75	999-0696	Screw 5/16-18 x 1 pan head phillips zinc plated	1	(diesel model) (included in KIT1)
76	172-7339	Pin	1	(diesel model)
77	172-3357	9 inch wire rope	1	(diesel model)
78	172-4008	Bushing	1	(diesel model)
79	272-3286	Hose	1	(diesel model)
80	172-2122	P clamp	1	(diesel model)
81	372-2178	Muffler clamp	1	(diesel model)
82	372-1532	Tank pivot weldment	1	(diesel model)
83	372-1529	Fuel tank support	1	(diesel model)
84	372-1536	Tank pivot bracket	1	(diesel model)
85	372-2737	Tank support bracket (OBSOLETE)	1	(diesel model)
86	372-2738	Tailpipe	1	(diesel model)
87	372-2739	Tailpipe bracket	1	(diesel model)
88	372-2740	Tailpipe blanket (OBSOLETE)	1	(diesel model)
89	372-2741	Muffler blanket (OBSOLETE)	1	(diesel model)
90	372-1522	Mount weldment	1	(diesel model)
91	372-2742	Battery hold down (OBSOLETE)	1	(diesel model)
92	372-2743	Diesel tank assembly	1	(diesel model)
93	372-2744	Fuel hose	1	(diesel model)
N/S	N/A	Not available	1	(nut) (diesel model) (only available in KIT1)
N/S	272-3351	P clamp	1	(diesel model)
N/S	572-0322	TUBE RUBBER.312X60 E00556	1	(diesel model)
N/S	N/A	Not available	1	(engine assembly)
N/S	372-2746	Cable bracket weldment	1	(diesel model)
N/S	372-2747	Fuel hose	1	(diesel model)
N/S	272-3775	Double clamp	1	(diesel model)
KIT1	372-2748	Diesel engine hardware kit	1	(includes 1-2, 5, 7, 8-15, 17-25, 27)
KIT2	372-1546	LPG engine system hardware kit	1	(includes 1-27)
KIT3	372-2749	Exhaust system kit	1	(includes 38, 56, 68)

Front Engine Cover Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	372-2706	Front engine cover assembly	1	(includes 1-14)
1	999-1343	Screw 5/16-18 x 5/8 hex head stainless steel	2	(included in KIT1)
2	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	4	(included in KIT1)
3	999-0822	Screw 1/4-20 x 7/8 hex head plain finish	4	(included in KIT1)
4	N/A	Not available	4	(washer) (only available in KIT1)
5	N/A	Not available	2	(washer) (only available in KIT1)
6	372-1424	Engine cover	1
7	N/A	Not available	1	(right hand hinge weldment) (only available in KIT1)
8	N/A	Not available	1	(left hand hinge weldment) (only available in KIT1)
9	N/A	Not available	1	(bracket) (only available in KIT1)
10	N/A	Not available	1	(bracket) (only available in KIT1)
11	N/A	Not available	1	(bracket) (only available in KIT1)
12	N/A	Not available	1	(bracket) (only available in KIT1)
13	N/A	Not available	1	(bracket) (only available in KIT1)
14	N/A	Not available	1	(bracket) (only available in KIT1)
KIT1	472-7772	FRONT ENGINE COVER HINGE KIT	1	(includes 1-5, 7-14)

Hopper Assembly 1

Click to enlarge

#	Part	Description	Req	Notes
1	172-4018	Strain relief	1
5	999-0333	Screw 10-24 x 1/2 pan head phillips stainless steel	2	(included in KIT4)
7	999-1207	Screw 5/16-18 x 2 1/2 hex head stainless steel	1	(included in KIT4)
8	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	8	(included in KIT3)
12	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	13	(included in KIT2)
13	999-0123	Washer 1/4 SAE flat zinc plated	4	(included in KIT2)
14	999-0916	Screw 8-32 x 1/2 pan head phillips stainless steel	8	(included in KIT1 and KIT4)
19	N/A	Not available	4	(screw) (only available in KIT2)
20	N/A	Not available	1	(screw) (only available in KIT4)
21	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	3	(included in KIT4)
28	N/A	Not available	6	(screw) (only available in KIT3 and KIT4)
29	N/A	Not available	4	(washer) (only available in KIT4)
30	N/A	Not available	13	(screw) (only available in KIT2)
34	N/A	Not available	15	(washer) (only available in KIT2 and KIT4)
36	372-2798	Tie anchor	2
37	N/A	Not available	2	(latch) (only available in KIT1)
38a	372-2319	Head light assembly	2
38b	272-7703	Headlight replacement bulb	1	(for 38a)
42	372-2799	Plug	1
44	N/A	Not available	1	(hopper flap) (only available in KIT3)
45	N/A	Not available	1	(hopper flap clamp) (only available in KIT3)
49	372-2800	Hopper seal	1
50	372-2801	Lower hopper	1
51	372-2802	Upper hopper	1
52a	N/A	Not available	1	(hopper cover assembly) (only available in KIT1)
52b	N/A	Not available	1	(strain relief) (only available in KIT1)
52c	999-0123	Washer 1/4 SAE flat zinc plated	5	(included in KIT1)
52d	N/A	Not available	5	(screw) (only available in KIT1)
52e	N/A	Not available	2	(bearing) (only available in KIT1)
52f	N/A	Not available	1	(hopper cover) (only available in KIT1)
52g	N/A	Not available	1	(hopper cover seal) (only available in KIT1)
52h	N/A	Not available	1	(left hopper cover hinge) (only available in KIT1)
52i	N/A	Not available	1	(right hopper cover hinge) (only available in KIT1)
52j	N/A	Not available	1	(hopper cover seal) (only available in KIT1)
57	372-2803	Vented cap with tether	1
60	N/A	Not available	1	(hopper skid plate) (only available in KIT2)
63	N/A	Not available	1	(hopper skid weldment) (only available in KIT2)
KIT1	372-2804	Hopper cover kit	1	(includes 14, 37, 52a-52j)
KIT2	372-2805	Skid plate kit	1	(includes 12-13, 19, 30, 34, 60-63)
KIT3	372-2806	Hopper flap kit	1	(includes 8, 28, 44-45)
KIT4	372-2807	Hardware kit	1	(includes 5, 7, 14, 20-21, 28-29, 34)

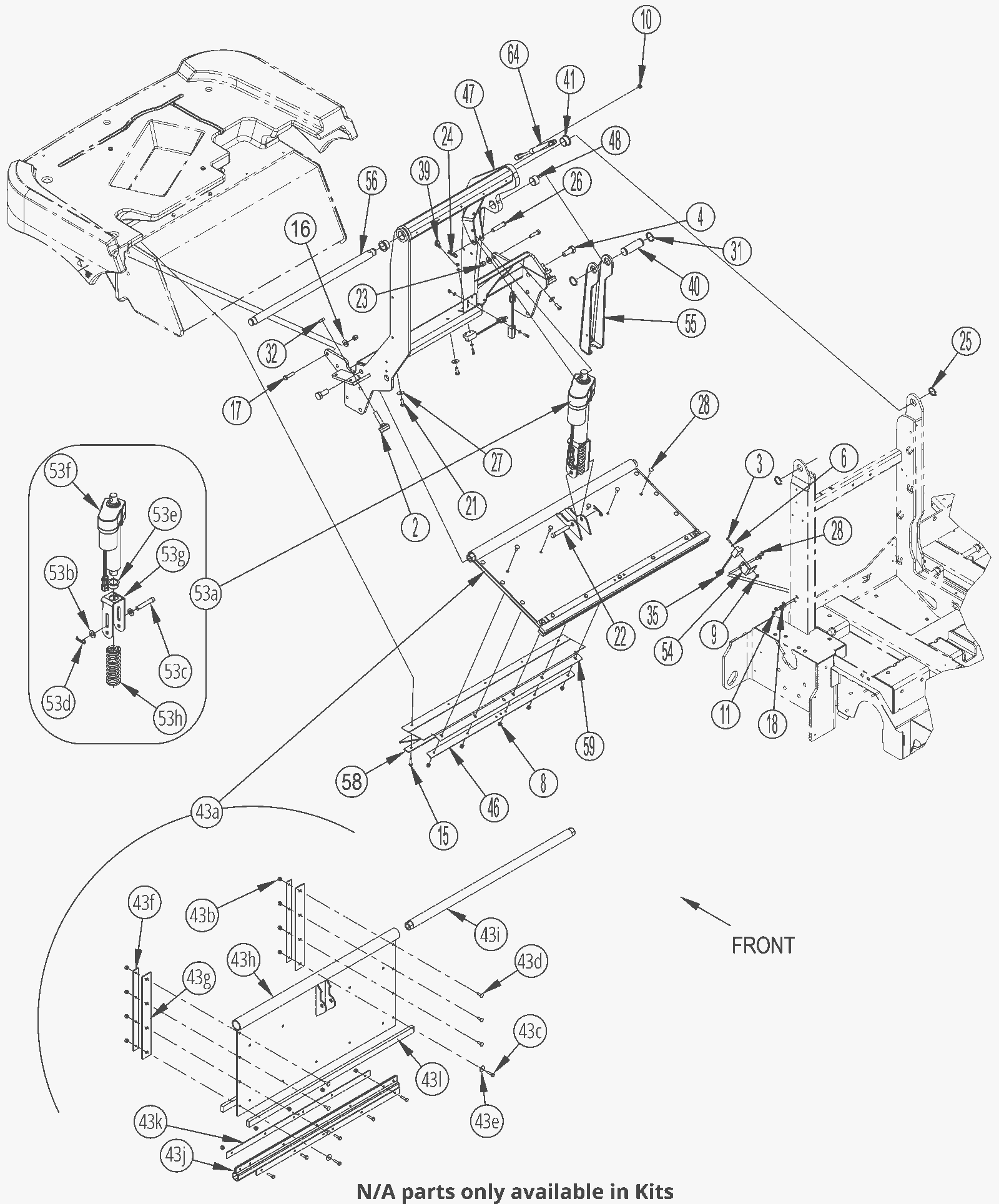

Hopper Assembly 2

Click to enlarge

#	Part	Description	Req	Notes
2	172-9507	Leveler	2
3	N/A	Not available	3	(screw) (only available in KIT4)
4	N/A	Not available	2	(screw) (only available in KIT4)
6	999-0412	Washer #8 SAE flat	5	(included in KIT4)
8	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	8	(included in KIT3)
9	999-0442	Nut 10-24 nylon insert lock stainless steel	3	(included in KIT4)
10	N/A	Not available	1	(nut) (only available in KIT4)
11	N/A	Not available	2	(nut) (only available in KIT4)
15	999-0297	Bolt 1/4-20 x 1 hex head stainless steel	5
16	999-9128	Washer 3/8 SAE flat stainless steel	4	(included in KIT4)
17	999-1489	Screw 3/8-16 x 1 1/2 hex head stainless steel	4	(included in KIT4)
18	999-6684	Washer 1/4 flat stainless steel	2	(included in KIT4)
21	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	3	(included in KIT4)
22	N/A	Not available	1	(clevis pin) (only available in KIT4)
23	999-1482	Nut 3/8-16 nylon lock stainless steel	4	(included in KIT4)
24	N/A	Not available	2	(cotter hair pin) (only available in KIT4)
25	N/A	Not available	2	(ring) (only available in KIT4)
26	N/A	Not available	1	(clevis pin) (only available in KIT4)
27	N/A	Not available	3	(washer) (only available in KIT4)
28	N/A	Not available	6	(screw) (only available in KIT3 and KIT4)
31	N/A	Not available	2	(ring) (only available in KIT4)
32	999-0050	Nut 1/2-13 hex jam plain finish	2	(included in KIT4)
35	272-8850	Proximity sensor	3
39	272-8754	Conduit clip	1
40	372-2337	Cylinder pin	1
41	372-2818	Flange bearing	2
43a	372-2809	Dump door assembly	1	(includes 43b-43l)
43b	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	13
43c	999-0297	Bolt 1/4-20 x 1 hex head stainless steel	7
43d	272-3627	Screw 1/4-20 x 3/4 carriage head stainless steel	6
43e	172-0553	Washer 17/64 x 1/16 flat	2
43f	572-0622	CLAMP HOPPER DOOR SIDE SEAL	2
43g	572-0623	SEAL HOPPER DOOR SIDE	2
43h	372-2810	Hopper door weldment	1
43i	372-2811	Dump door pivot weldment	1
43j	372-2812	Hopper door bottom seal	1
43k	372-2813	Hopper door bottom clamp	2
43l	372-2814	Hopper door bottom seal	2
46	N/A	Not available	1	(hopper door bottom clamp) (only available in KIT5)
47	372-2815	Hopper lift weldment	1
48	372-2816	Bearing	1
53a	372-2817	Dump door actuator assembly	1	(includes 53b-53h)
53b	999-0114	Washer 1/2 SAE flat	2
53c	172-4393	Pin .50 x 3.00 clevis	1
53d	997-2518	Hitch pin	1
53e	372-2818	Flange bearing	1
53f	372-2819	Dump door actuator	1
53g	372-2820	Dump door actuator yoke (OBSOLETE)	1
53h	372-2821	Compression spring (OBSOLETE)	1
54	472-7936	BRACKET-SENSOR MOUNTING	1
55	372-2822	Prop rod assembly	1
56	372-2823	Hopper hinge bar	1
58	N/A	Not available	1	(hopper door seal clamp) (only available in KIT5)
59	N/A	Not available	1	(hopper door seal) (only available in KIT5)
64	372-3257	Gas spring	1
KIT3	372-2806	Hopper flap kit	1	(includes 8 and 28)
KIT4	372-2807	Hardware kit	1	(includes 3-4, 6, 9-11, 16-18, 21-28, 31-32)
KIT5	372-2825	Hopper door seal kit	1	(includes 58-59)

Hydraulic System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	272-3209	Left hinge pin weldment	1
2	272-9727	Screw 1/4-20 x 1/2 hex head lock	1
3	272-1652	Bolt 3/8-16 x 5/6 lock	2
4	999-0793	Screw 10-24 x 3/8 hex washer slot thread cutting zinc	1
5	272-8806	P clamp	1
6a	372-2832	Hydraulic power pack assembly	1	(includes 6b-6e)
6b	372-2833	36V motor	1
6c	372-2834	Hydraulic pump/reservoir assembly	1
6d	372-2835	Orifice fitting	1
6e	272-2983	90 degree elbow	2
6f	372-2836	Hydraulic reservoir kit	1	(for 6c)
6g	372-2837	Hydraulic reservoir cap	1	(for 6c)
6h	472-7032	O-RING -132 NBR 70 HC350B	1	(for 6c)
7a	N/A	Not available	1	(hopper lift cylinder assembly) (includes 7b-7e)
7b	372-2818	Flange bearing	2
7c	372-2838	Hydraulic cylinder	1
7d	272-2983	90 degree elbow	1
7e	272-3151	90 degree elbow	1
7f	372-2839	Seal kit	1	(for 7c)
8	372-2840	Hose assembly	2

Kubota Diesel Engine Ladder Diagram

Click to enlarge

#	Part	Description	Req	Notes
B4	N/A	Not available	1	(magnetic pick up) (part of Apecs 3000 Governor)
CB11	372-1502	40amp circuit breaker (OBSOLETE)	1
DV6	272-7812	Starter motor	1
E1	N/A	Not available	1	(glow plug)
E2	N/A	Not available	1	(glow plug)
E3	N/A	Not available	1	(glow plug)
G2	372-2792	Alternator	1
K13	272-7725	12V 75amp relay	1
M15	N/A	Not available	1	(actuator) (part of the Apecs 3000 Governor)
M20	272-7818	Electronic fuel pump	1
S18	272-7814	Temperature switch	1
S19	272-7813	Oil pressure switch	1
N/S	372-2763	Controller governor	1

Kubota LPG Engine Ladder Diagram

Click to enlarge

Part	Description	Req
372-2788	Alternator with pulley	1
372-2787	LP lock off with filter	1
472-9176	SWITCH ENGINE OIL PRESSURE	1
272-7814	Temperature switch	1
372-2158	Starter motor	1

Ladder Diagram 1

Click to enlarge

#	Part	Description	Req	Notes
A1	372-1482	Control board kit	1
A3	372-2723	User interface panel assembly (OBSOLETE)	1
A4	N/A	Not available		(engine system)
BATT	162-0042	12V 115Ah AGM battery (Group 31) (SNSR)	3
BAT2	162-0057	12V 150Ah wet battery	1
CB1	272-7727	20amp circuit breaker	1
CB2	272-6708	25amp circuit breaker	1
CB3	272-6708	25amp circuit breaker	1
CB4	991-1628	5amp circuit breaker	1
CB6	272-9755	15amp circuit breaker	1
CB9	272-9755	15amp circuit breaker	1
CB12	272-9755	15amp circuit breaker	1
F1	472-5774	FUSE 400 AMP	1
G1	372-1552	Alternator	1
H1	172-9146	Back-Up alarm	1
H2	172-9432	36V horn	1
K9	172-2805	36V contactor	1
K10	172-2805	36V contactor	1
K14	172-1779	36V relay SPST	1
K15	172-1779	36V relay SPST	1
L2	272-2586	36V solenoid valve	1
LT1	372-2987	Trouble lamp (OBSOLETE)	1
M17	272-7679	12V detergent pump	1
M18	272-7679	12V detergent pump	1
M19	272-5716	Solution control pump	1
M22	372-2988	Pump adapter cable kit	1
M23	372-2989	Pump adapter cable kit	1
M25	272-5716	Solution control pump	1

Ladder Diagram 2

Click to enlarge

#	Part	Description	Req	Notes
A1	372-1482	Control board kit	1
B1	372-1515	Current sensor	1
B2	372-1515	Current sensor	1
B3	372-1515	Current sensor	1
K1	172-2805	36V contactor	1
K2	172-2805	36V contactor	1
K3	172-2805	36V contactor	1
K4	172-2805	36V contactor	1
K5	172-2805	36V contactor	1
K6	172-2805	36V contactor	1
K8	172-2805	36V contactor	1
K11	272-1322	Motor contactor	1
K12	272-1322	Motor contactor	1
L1	272-2193	Solenoid valve assembly	1
LT2	372-2319	Head light assembly	1
LT3	372-2319	Head light assembly	1
LT4	372-2990	Turn signal light	1
LT5	372-2991	12V tail light	1
LT6	372-2991	12V tail light	1
LT7	372-2990	Turn signal light	1
LT8	372-2992	Curb light	1
LT9	372-2993	12V red light	1
LT10	472-6242	BEACON WARNING	1
LT11	372-2993	12V red light	1
M11	372-2892	Scrub deck actuator	1
M12	372-2963	Squeegee lift actuator	1
M13	272-7198	36V actuator	1
M14	372-1467	Shaker motor kit	1
M21	372-2994	Broom lift actuator	1
M26	372-2819	Dump door actuator	1
R4	N/A	Not available	1	(part of M21)
S1	272-8850	Proximity sensor	1

Ladder Diagram 3

Click to enlarge

#	Part	Description	Req	Notes
A2	372-1508	Traction controller kit	1
CB5	272-9374	10amp circuit breaker	1
CB7	272-6708	25amp circuit breaker	1
CB8	272-6708	25amp circuit breaker	1
F2	172-8836	150amp fuse	1
K1	172-2805	36V contactor	1
K2	172-2805	36V contactor	1
K3	172-2805	36V contactor	1
K4	172-2805	36V contactor	1
K5	172-2805	36V contactor	1
K6	172-2805	36V contactor	1
K7	472-5722	CONTACTOR 36V TYPE 4	1
K8	172-2805	36V contactor	1
K11	272-1322	Motor contactor	1
K12	272-1322	Motor contactor	1
M1	472-8051	MOTOR-36 VDC-3000 RPM-1.1 HP	1
M2	372-2907	Scrub motor assembly (OBSOLETE)	1
M3	372-2907	Scrub motor assembly (OBSOLETE)	1
M4	372-2908	Scrub motor assembly	1
M5	372-2997	Impeller assembly	1
M6	372-2874	36V vacuum motor	1
M7	372-2874	36V vacuum motor	1
M8	472-8233	SIDE BROOM MOTOR KIT	1
M9	472-8233	SIDE BROOM MOTOR KIT	1
M10	372-2833	36V motor	1
M24	372-2998	Traction motor	1
R1	N/A	Not available	1	(part of 272-880)
N/S	372-2854	Brush motor kit	1	(for M1)
N/S	572-4029	Brush motor kit	1	(for M2)
N/S	572-4029	Brush motor kit	1	(for M3)
N/S	572-4029	Brush motor kit	1	(for M4)
N/S	372-2933	Motor brush kit	1	(for M8 and M9)

Ladder Diagram 4

Click to enlarge

#	Part	Description	Req	Notes
A5	372-1439	Steering controller	1
CB10	272-6708	25amp circuit breaker	1
E4	372-1443	Torque feedback device (OBSOLETE)	1
K10	172-2805	36V contactor	1
K14	172-1779	36V relay SPST	1
M16	472-7286	MOTOR STEERING 36V	1
R3	N/A	Not available	1	(resistor)
S16	272-8850	Proximity sensor	1
S17	272-8850	Proximity sensor	1

Left Cover Assembly

Click to enlarge

#	Part	Description	Req
0	372-1401	Left hand cover	1
1	999-0567	Screw 1/4-20 x 5/8 pan head phillips stainless steel	8
2	999-0152	Nut 1/4-20 nylon insert lock zinc plated	8
3	372-1431	Left hand cover	1
4	372-1432	Grille	1

Left Skirt Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(bushing) (only available in KIT1)
2	999-0423	Nut 5/16-18 nylon insert lock stainless steel	8	(included in KIT1)
3	999-0829	Screw 5/16-18 x 1 1/4 hex head plain finish	8	(included in KIT1)
4	999-0336	Screw 6-32 x 3/8 pan head phillips stainless steel	4	(included in KIT2 and KIT3)
5	999-9004	Washer 5/16 SAE flat stainless steel	8	(included in KIT1)
6	N/A	Not available	4	(nut) (only available in KIT2 and KIT3)
7	472-6259	SPRING EXTENSION	1	(included in KIT1)
8	N/A	Not available	8	(flange bearing) (only available in KIT1)
9	N/A	Not available	6	(bushing) (only avilable in KIT1)
10	N/A	Not available	2	(latch assembly) (only available in KIT2 and KIT3)
11	372-2922	Blade support weldment	1
12	372-2914	Catch plate	1	(included in KIT1)
13	372-2915	Extension spring	1	(included in KIT1)
14	N/A	Not available	1	(side squeegee weldment arm) (only available in KIT1)
15	N/A	Not available	1	(side squeegee weldment arm) (only available in KIT1)
16	N/A	Not available	1	(blade strap) (only available in KIT2)
17	372-2911	Blade kit red gum	1	(all deck blade kits includes all blades for both skirt assemblies)
18	N/A	Not available	1	(blade strap) (only available in KIT3)
N/S	372-2911	Blade kit red gum	1	(all deck blade kits includes all blades for both skirt assemblies)
N/S	372-2916	Blade kit gum rubber	1	(all deck blade kits includes all blades for both skirt assemblies) (optional)
N/S	372-2917	Blade kit polyurethane	1	(all deck blade kits includes all blades for both skirt assemblies) (optional)
KIT1	372-2918	Left hand squeegee arm kit	1	(includes 1-3, 5, 7-9, 12-15)
KIT2	372-2923	Left hand front squeegee strap kit	1	(includes 4, 6, 10, 16)
KIT3	372-2924	Left hand rear squeegee strap kit	1	(includes 4, 6. 10, 18)

LPG Tank Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(bushing) (only available in KIT2)
2	999-0829	Screw 5/16-18 x 1 1/4 hex head plain finish	1	(included in KIT2)
3	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	2	(included in KIT2)
4	999-6684	Washer 1/4 flat stainless steel	3	(included in KIT2)
5	999-9004	Washer 5/16 SAE flat stainless steel	2	(included in KIT2)
6	999-0123	Washer 1/4 SAE flat zinc plated	1	(included in KIT2)
7	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	3	(included in KIT2)
8	999-0457	Screw 1/4-20 x 3/4 flat head phillips stainless steel	2	(included in KIT2)
9	N/A	Not available	1	(nut) (only available in KIT2)
10	N/A	Not available	1	(screw) (only available in KIT2)
11	999-0050	Nut 1/2-13 hex jam plain finish	1	(included in KIT2)
12	N/A	Not available	1	(screw) (only available in KIT2)
13	N/A	Not available	1	(screw) (only available in KIT1 and KIT2)
14	172-9530	Cable clamp	1
15	N/A	Not available	1	(right latch) (only available in KIT1)
16	272-3359	LP tank	1
17	272-7880	Toggle	1
18	272-1613	P clamp	3
19	N/A	Not available	1	(pin) (only available in KIT1)
20	372-2826	Fuel tank mount weldment	1
21a	372-2827	LP filter assembly	1	(includes 21b-21m)
21b	272-3355	45 degree elbow, male	2
21c	172-4330	Nut 7/8-14 hex jam	1
21d	272-2073	Elbow	1
21e	272-7886	45 degree SAE adapter	1
21f	272-7275	Female coupler	1
21g	272-3353	Switch N C Pressure	1
21h	272-3357	Bulkhead fitting	1
21i	272-7887	Dust boot	1
21j	272-3356	1/4 NPT vent	1
21k	372-2828	LPG hose assembly	1
21l	372-2829	LPG hose assembly	1
21m	272-3337	Tee	1
KIT1	372-2830	Tank latch kit	1	(includes 13, 15, 19)
KIT2	372-2831	Hardware kit	1	(includes 1-13)

Main Broom Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	472-2965	BROOM-MAIN PROLENE/WIRE STD	1
2	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	4	(included in KIT6
3	N/A	Not available	1	(cotter pin) (only available in KIT6)
4	N/A	Not available	1	(screw) (only available in KIT5)
5	N/A	Not available	8	(screw) (only available in KIT1)
6	999-1208	Nut 1/2-13 nylon insert lock stainless steel	2	(included in KIT6)
7	N/A	Not available	5	(nut) (only available in KIT7)
8	999-0123	Washer 1/4 SAE flat zinc plated	5	(included in KIT6 and KIT7)
9	999-0830	Screw 1/4-20 x 1 hex head plain finish	1	(included in KIT7)
10	N/A	Not available	2	(screw) (only available in KIT6)
11	N/A	Not available	2	(screw) (only available in KIT6)
12	999-0114	Washer 1/2 SAE flat	2	(included in KIT6)
13	999-0456	Screw 1/4-20 x 3/4 pan head phillips stainless steel	6	(included in KIT4)
14	N/A	Not available	1	(clevis pin) (only available in KIT6)
15	999-1482	Nut 3/8-16 nylon lock stainless steel	3	(included in KIT5 and KIT7)
16	N/A	Not available	1	(key) (only available in KIT6 and KIT7)
17	N/A	Not available	3	(clevis pin) (only available in KIT5)
18	N/A	Not available	4	(screw) (only available in KIT6)
19	N/A	Not available	1	(clevis pin) (only available in KIT5)
20	N/A	Not available	3	(bow tie cotter pin) (only available in KIT5)
21	N/A	Not available	1	(bow tie cotter pin) (only available in KIT5)
22a	N/A	Not available	4	(screw) (only available in KIT2 and KIT6)
22b	N/A	Not available	1	(screw) (only available in KIT7)
23	N/A	Not available	1	(washer) (only available in KIT6 and KIT7)
24	N/A	Not available	2	(flange bearing) (only available in KIT5)
25	170-6734	Strap static	1
26	N/A	Not available	2	(bearing) (only available in KIT6)
27	N/A	Not available	1	(broom lift actuator) (only available in KIT5)
28	N/A	Not available	1	(spring arm) (only available in KIT5)
29	N/A	Not available	1	(extension spring) (only available in KIT5)
30	N/A	Not available	1	(right skirt foam) (only available in KIT4)
31	N/A	Not available	1	(left skirt foam) (only available in KIT4)
32	N/A	Not available	1	(right skirt) (only available in KIT4)
33	N/A	Not available	1	(left skirt) (only available in KIT4)
34	N/A	Not available	2	(skirt strap) (only available in KIT4)
35	372-2841	Left hand skirt strap	1
36	372-2842	Panel weldment	1
37	N/A	Not available	1	(broom support weldment) (only available in KIT6)
38a	372-2843	Broom arm assembly	1	(includes 38b-38g)
38b	172-4412	Retaining ring	1
38c	999-0493	Bolt 3/8-16 x 3/4 hex head stainless steel	1
38d	172-1939	Washer 13/32 x 1 1/4 x 5/32	1
38e	172-9411	Ball bearing	2
38f	372-2843	Broom arm assembly	1
38g	372-2845	Broom idler hub	1
39a	372-2846	Broom door assembly	1	(includes 39b-39k)
39b	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	2
39c	999-0335	Washer 1/4 x 5/8 SAE flat stainless steel	3
39d	172-3280	Screw 5/16 - 18 x 5/8 hex lock stainless steel	3
39e	999-0334	Bolt 1/4-20 x 3/4 inch hex head stainless steel	2
39f	472-3509	SCR SOC SHD .31X.25X1/4-20	1
39g	472-3555	SCR-HEX SS 1/4-20 X .88	1
39h	272-9692	Right hand latch	1
39i	372-2847	Broom door weldment	1
39j	372-2848	Broom door seal	1
39k	372-2849	Stop arm	1
40	N/A	Not available	1	(broom drive assembly hub) (only available in KIT6)
41a	N/A	Not available	1	(broom motor assembly) (only included in KIT2)
41b	372-2854	Brush motor kit	1	(for 41a) (included in KIT3)
42	N/A	Not available	1	(broom flap) (only available in KIT1)
43	N/A	Not available	1	(rear broom skirt) (only available in KIT1)
44	N/A	Not available	2	(rear broom strap) (only available in KIT1)
45	N/A	Not available	1	(washer) (only available in KIT7)
46	N/A	Not available	1	(washer) (only available in KIT7)
47	N/A	Not available	1	(bolt) (only available in KIT7)
48	999-0635	Nut 3/8-16 hex stainless steel	1	(included in KIT7)
N/S	472-2965	BROOM-MAIN PROLENE/WIRE STD	1
N/S	472-2963	BROOM-MAIN NYLON	1	(optional)
N/S	472-2964	BROOM-MAIN PROLENE	1	(optional)
N/S	372-2851	Main broom natural/union mix (OBSOLETE)	1	(optional)
KIT1	372-2852	Rear broom strap kit	1	(includes 5, 42-44)
KIT2	372-2853	Broom motor kit	1	(includes 22 and 41)
KIT3	372-2854	Brush motor kit	1	(includes 41b)
KIT4	372-2855	Broom skirt kit	1	(includes 13, 30-34)
KIT5	372-2856	Main broom actuator kit	1	(includes 4, 15, 17, 19-21, 24, 27-29)
KIT6	372-2857	Main broom support kit	1	(includes 2-3, 6, 8, 10-12, 16, 18, 22, 23, 26, 37, 40)
KIT7	372-2858	Main broom hardware kit	1	(includes 7-9, 15-16, 22-23, 45-48)

Pull Rod Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	372-1404	Pull rod assembly	1	(includes 1-23)
1	999-1260	Screw 1/4-20 x 1 1/2 hex cap stainless steel	3	(included in KIT1 and KIT2)
2	999-9004	Washer 5/16 SAE flat stainless steel	2	(included in KIT1)
3	999-0123	Washer 1/4 SAE flat zinc plated	8	(included in KIT1 and KIT2)
4	N/A	Not available	3	(screw) (only available in KIT2)
5	N/A	Not available	1	(nut) (only available in KIT1)
6	999-1231	Screw 10-24 x 5/8 hex head stainless steel	1	(included in KIT1)
7	N/A	Not available	6	(nut) (only available in KIT1 and KIT2)
8	999-1343	Screw 5/16-18 x 5/8 hex head stainless steel	2	(included in KIT1)
9	999-1948	Nut 1/4-20 wing lock	1	(included in KIT2)
10	999-1866	Screw 10-24 x 3/8 pan head phillips nylon stainless steel	1	(included in KIT1)
11	N/A	Not available	3	(bushing) (only available in KIT2)
12	N/A	Not available	1	(bearing) (only available in KIT2)
13	472-6058	LATCH LH	1
14	N/A	Not available	1	(latch bracket) (only available in KIT1)
15	N/A	Not available	1	(pin) (only available in KIT1)
16	372-1436	Pull rod	1
17	N/A	Not available	1	(yoke) (only available in KIT2)
18	N/A	Not available	1	(pivot weldment) (only available in KIT2)
19	N/A	Not available	1	(pull rod bracket) (only available in KIT1)
20	N/A	Not available	1	(bushing) (only available in KIT2)
21	N/A	Not available	1	(pull rod retainer) (only available in KIT1)
22	N/A	Not available	1	(cable assembly) (only available in KIT2)
23	999-1968	Nut 10-24 wing stainless steel	1	(included in KIT1)
KIT1	372-1433	Engine cover latch kit	1	(includes 1-3, 5-8, 10, 13-15, 19, 21, 23)
KIT2	372-1434	Pull rod pivot kit	1	(includes 1, 3-4, 7, 9, 11-12, 17-18, 20, 22)

Recovery System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	999-0822	Screw 1/4-20 x 7/8 hex head plain finish	1	(included in KIT5)
2	999-6684	Washer 1/4 flat stainless steel	6	(included in KIT5)
3	999-0333	Screw 10-24 x 1/2 pan head phillips stainless steel	3	(included in KIT5)
4	999-0567	Screw 1/4-20 x 5/8 pan head phillips stainless steel	6	(included in KIT5)
5	999-1030	Screw 1/4-20 x 2 pan head phillips stainless steel	1	(included in KIT5)
6	999-0024	Washer 5/16 flat stainless steel	12	(included in KIT5)
7	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	12	(included in KIT5)
8	999-0152	Nut 1/4-20 nylon insert lock zinc plated	1	(included in KIT5)
9	999-0332	Screw 10-24 x 5/8 pan head phillips stainless steel	6	(included in KIT4)
10	999-0599	Screw 1/4-20 x 1 3/4 pan head phillips stainless steel	4	(included in KIT5)
11	999-0452	Screw 8-32 x 3/8 pan head phillips zinc plated	8	(included in KIT5)
12	N/A	Not available	2	(screw) (only available in KIT5)
13	N/A	Not available	6	(washer) (only available in KIT5)
14	N/A	Not available	3	(clamp) (only available in KIT4)
15	272-0430	Vacuum duct gasket	2
16	172-0162	Bushing	1
17	272-9973	Quick link cable assembly	1
18	272-9976	#32 hose clamp SAE	2
19	N/A	Not available	1	(hose clamp) (only available in KIT3)
20	172-2122	P clamp	1
21	372-2036	Hopper cover latch	1
22	372-2283	Shrink tube 3/4 x 2 1/2	1
23	372-2859	Tank pivot weldment (OBSOLETE)	2
24	372-2860	Recovery tank	1
25	372-2861	Exhaust cover	1
26	372-2862	Latch pin weldment	1
27	372-2863	Recovery tank cover	1	(included in KIT1)
28	372-2864	Tether hook	1
29	372-2865	Cover plate	1
30a	N/A	Not available	1	(vacuum fan cover assembly) (includes 30b-30o)
30b	999-0567	Screw 1/4-20 x 5/8 pan head phillips stainless steel	2
30c	272-9978	Screw 10-14 x 1/2 pan head phillips plastite	2
30d	272-1601	Screw 1/4-14 X 5/8 pan head phillips type B	4
30e	172-3357	9 inch wire rope	1
30f	N/A	Not available	4	(float cage) (only available in KIT2)
30g	N/A	Not available	2	(float ball) (only available in KIT2)
30h	272-9980	Filter screen	1
30i	272-9981	Filter	1
30j	172-0185	Bushing	2
30k	372-2866	Vacuum fan cover	1
30l	372-2867	Vacuum fan top gasket	1
30m	372-2868	Vacuum cover plate	1
30n	372-2869	Latch (plastic)	2
30o	372-2870	Vacuum filter lid assembly	1
31	372-2871	Squeegee hose	1
32	372-2872	Hinge tab	2
33	372-2873	Inlet plate	1
34	372-2874	36V vacuum motor	2
35	372-2875	Isolator mount	4
36	372-2876	Recovery tank cover gasket	1	(included in KIT1)
37	372-2877	Debris basket	1
38	372-2878	Cover gasket	2
39	372-2879	Seal trim	1
40	372-2880	Foam tube assembly	2
41	372-2881	Tank gasket	1
42	372-2882	Inlet plate gasket	1
43	372-2883	Foam isolator	5
44	372-1144	Vacuum fan seal assembly	1
45	572-9314	Drain hose	1	(included in KIT3)
KIT1	372-2884	Recovery lid kit	1	(includes 27 and 36)
KIT2	372-2885	Float ball cage kit	1	(includes 30f-30g)
KIT3	472-7846	DRAIN HOSE KIT	1	(includes 19 and 45)
KIT4	372-2886	Drain hose clip kit	1	(includes 9 and 14)
KIT5	372-2887	Recovery system hardware kit	1	(includes 1-8, 10-13)

Right Hand Door Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	372-2707	Right hand door assembly	1	(includes 1-13)
1	999-0024	Washer 5/16 flat stainless steel	2
2	999-0123	Washer 1/4 SAE flat zinc plated	8	(included in KIT1)
3	N/A	Not available	8	(screw) (included in KIT1)
4	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	2
5	N/A	Not available	10	(screw) (included in KIT1)
6	999-1833	Screw 10-14 x 3/8 pan head phillips stainless steel	6
7	N/A	Not available	2	(upper hinge weldment) (only available in KIT1)
8	N/A	Not available	2	(lower hinge weldment) (only available in KIT1)
9	372-2713	Right hand door	1
10	372-2714	Side door stiffener	1
11	372-1429	Right hand grille	1
12	372-2715	Latch bracket	1
13	372-2716	Door latch	1
KIT1	372-1430	Right hand hinge kit	1	(includes 2-3, 5, 7-8)

Right Skirt Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(bushing) (only available in KIT1)
2	N/A	Not available	6	(nut) (only available in KIT4)
3	999-0423	Nut 5/16-18 nylon insert lock stainless steel	9	(included in KIT1 and KIT3)
4	999-0829	Screw 5/16-18 x 1 1/4 hex head plain finish	8	(included in KIT1)
5	999-0336	Screw 6-32 x 3/8 pan head phillips stainless steel	2	(included in KIT2)
6	999-9004	Washer 5/16 SAE flat stainless steel	8	(included in KIT1)
7	N/A	Not available	2	(nut) (only available in KIT2)
8	999-0457	Screw 1/4-20 x 3/4 flat head phillips stainless steel	6	(included in KIT4)
9	N/A	Not available	1	(screw) (only available in KIT3)
10	N/A	Not available	2	(wing knob) (only available in KIT3)
11	172-2150	Knob	1
12	N/A	Not available	8	(flange bearing) (only available in KIT1)
13	N/A	Not available	6	(bushing) (only available in KIT1)
14	N/A	Not available	1	(latch assembly) (only available in KIT2)
15	372-2910	Blade support weldment	1
16	372-2911	Blade kit red gum	1	(all deck blade kits include all blades for both skirt assemblies)
17	N/A	Not available	1	(blade strap) (only available in KIT2)
19	372-2912	Weldment strap	1
20	372-2913	Scrub edge guard	1
21	N/A	Not available	1	(guard) (only available in KIT4)
22	372-2914	Catch plate	1	(included in KIT1)
23	372-2915	Extension spring	2	(included in KIT1)
24	N/A	Not available	1	(side squeegee weldment arm) (only available in KIT1)
25	N/A	Not available	1	(side squeegee weldment arm) (only available in KIT1)
N/S	372-2911	Blade kit red gum	1	(all deck blade kits include all blades for both skirt assemblies)
N/S	372-2916	Blade kit gum rubber	1	(all deck blade kits include all blades for both skirt assemblies) (optional)
N/S	372-2917	Blade kit polyurethane	1	(all deck blade kits include all blades for both skirt assemblies) (optional)
KIT1	372-2918	Left hand squeegee arm kit	1	(includes 1, 3-4, 6, 12-13, 22-25)
KIT2	372-2919	Side squeegee strap kit	1	(includes 5, 7, 14, 17)
KIT3	372-2920	Right hand squeegee hardware kit	1	(includes 3, 9-10)
KIT4	372-2921	Guard kit	1	(includes 2, 8, 21)

Scrub System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	6	(included in KIT1)
2	999-0442	Nut 10-24 nylon insert lock stainless steel	1	(included in KIT1)
3	N/A	Not available	2	(nut) (only available in KIT1)
4	999-0123	Washer 1/4 SAE flat zinc plated	4	(included in KIT1)
5	999-0830	Screw 1/4-20 x 1 hex head plain finish	2	(included in KIT1)
6	999-0332	Screw 10-24 x 5/8 pan head phillips stainless steel	1	(included in KIT1)
7	999-0114	Washer 1/2 SAE flat	7	(included in KIT1)
8	N/A	Not available	2	(screw) (only available in KIT1)
9	N/A	Not available	2	(clevis pin) (only available in KIT1)
10	N/A	Not available	2	(bow tie cotter pin) (only available in KIT1)
11	N/A	Not available	2	(screw) (only available in KIT1)
12	999-0822	Screw 1/4-20 x 7/8 hex head plain finish	4	(included in KIT1)
13	997-2005	Hose clamp	2
14	272-8850	Proximity sensor	1
15	172-0024	Bushing	4
16	172-9354	Spiral hose for disc models	1
17	272-1843	Flanged bearing	4
18	997-2102	Cable tie	1
19	N/A	Not available	1	(deck assembly)
20a	N/A	Not available	1	(deck lift arm assembly) (includes 20b-20m)
20b	472-3556	SCR-HEX SS 3/8-16 X 7.0	1
20c	999-9071	Nut 3/8-16 nylon insert jam lock stainless steel	1
20d	999-0355	Washer 3/8 x 7/8 SAE flat stainless steel	2
20e	472-3540	PIN-BOW-TIE COT 1/4-3/8X.072	1
20f	172-1939	Washer 13/32 x 1 1/4 x 5/32	1
20g	172-8815	Flanged bearing	2
20h	372-3287	Deck lift weldment	1
20i	372-3287	Deck lift weldment	1
20j	372-2889	Spacer	1
20k	372-2890	Arm lift spring	1
20l	272-3552	Compression spring	2
20m	372-2891	Clevis pin	1
21	372-2892	Scrub deck actuator	1
22	372-2893	Target sensor bracket	1
23	372-2894	Positive stop bracket	1
24	372-2895	Scrub deck stop	1
KIT1	372-2896	Scrub system hardware kit	1	(includes 1-12)

Scrub System Deck Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(nut) (only available in KIT1)
2	N/A	Not available	1	(nut) (only available in KIT1)
3	999-0423	Nut 5/16-18 nylon insert lock stainless steel	4	(included in KIT1)
4	N/A	Not available	2	(screw) (only available in KIT1)
5	999-1857	Screw 5/16-18 x 1 hex cap stainless steel	5	(included in KIT1)
6	999-0114	Washer 1/2 SAE flat	5	(included in KIT1)
7	999-9004	Washer 5/16 SAE flat stainless steel	3	(included in KIT1)
8	999-1667	Screw 5/16-18 x 1 1/4 socket head stainless steel	3	(included in KIT1)
9	N/A	Not available	3	(key) (only available in KIT1)
10	999-1857	Screw 5/16-18 x 1 hex cap stainless steel	4	(included in KIT1)
11	N/A	Not available	12	(screw) (only available in KIT1)
12	N/A	Not available	1	(screw) (only available in KIT1)
13	999-1019	Nut 5/16-18 hex jam stainless steel	1	(included in KIT1)
14	997-2004	Hose clamp	4
15	272-2193	Solenoid valve assembly	1
16	272-2213	Coupler 1/2 x 3/4 barb	3
17	272-5788	Solution manifold	1
18	372-2346	Bearing 1 x 1 1/4 x 1/2	2
19	372-2897	Arm weldment (OBSOLETE)	1
20	372-2898	Deck weldment (OBSOLETE)	1
21	372-2899	Pivot plate	1
22	N/A	Not available	1	(side squeegee assembly)
23	N/A	Not available	1	(side squeegee assembly)
24	372-2900	Lever arm bracket	1
25	372-2901	Motor spacer	3
26	372-2902	Scrub adjustment bracket (OBSOLETE)	1
27	372-2903	Gas spring	1
28	372-2904	Hose push lock 14	1
29	372-2905	Hose push lock 17.5	1
30	372-2906	Hose push lock 16	1
31a	372-2907	Scrub motor assembly (OBSOLETE)	2
31b	572-4029	Brush motor kit	1	(for 31a)
32a	372-2908	Scrub motor assembly	1
32b	572-4029	Brush motor kit	1	(for 32a)
33a	372-1331	Brush plate assembly	2	(includes 33b-33i)
33b	172-0155	Stop plate	1
33c	272-5779	Spring retainer	1
33d	172-0553	Washer 17/64 x 1/16 flat	1
33e	999-1833	Screw 10-14 x 3/8 pan head phillips stainless steel	3
33f	272-9884	Brush holder spring	1
33g	272-9885	Brush plate	1
33h	272-7257	6 tab gimbal and collar assembly	1
33i	170-0233	Brush driver collar - See pop-up (OBSOLETE)	1
34	372-1332	Brush plate assembly	1	(use same components as 33a)
KIT1	372-2909	Deck assembly hardware kit	1	(includes 1-13)

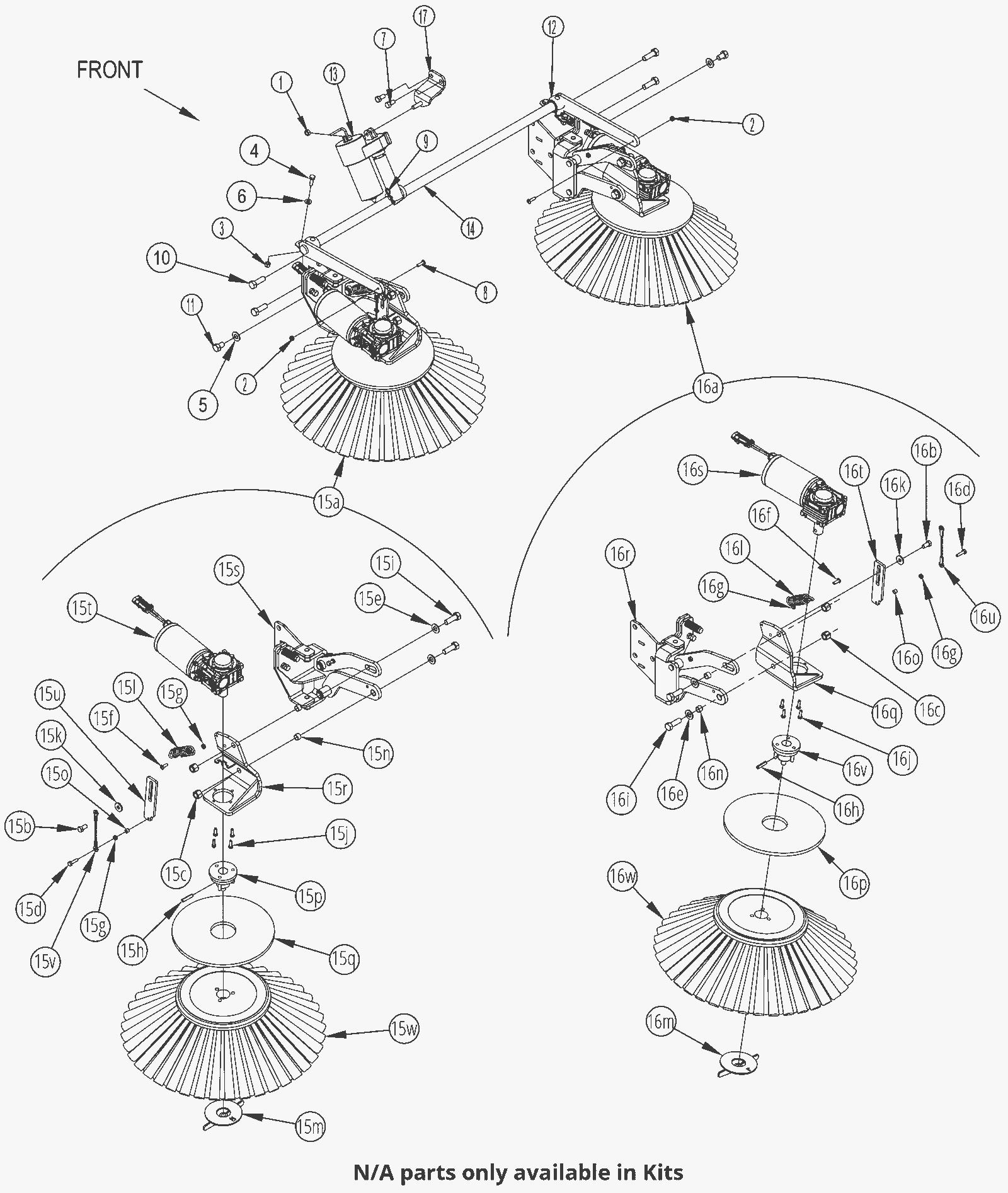

Side Broom System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(nut) (only available in KIT4)
2	N/A	Not available	2	(nut) (only available in KIT4)
3	999-0423	Nut 5/16-18 nylon insert lock stainless steel	4	(included in KIT1)
4	999-1857	Screw 5/16-18 x 1 hex cap stainless steel	4	(included in KIT1)
5	999-0114	Washer 1/2 SAE flat	2	(included in KIT4)
6	999-9004	Washer 5/16 SAE flat stainless steel	4	(included in KIT1)
7	N/A	Not available	2	(screw) (only available in KIT4)
8	999-1136	Screw 1/4-20 x 7/8 pan head phillips stainless steel	2	(included in KIT4)
9	N/A	Not available	1	(cotter hair pin) (only available in KIT4)
10	N/A	Not available	4	(screw) (only available in KIT4)
11	N/A	Not available	2	(screw) (only available in KIT4)
12	N/A	Not available	2	(bearing) (only available in KIT1)
13	272-7198	36V actuator	1
14	372-2925	Side broom lift weldment	1
15a	372-2926	Right hand broom assembly	1	(includes 15b-15w)
15b	999-0882	Screw 3/8-16 x 3/4 hex head hot dipped galvanized	1	(included in KIT2)
15c	999-1208	Nut 1/2-13 nylon insert lock stainless steel	2	(included in KIT2)
15d	999-0830	Screw 1/4-20 x 1 hex head plain finish	1	(included in KIT2)
15e	999-0114	Washer 1/2 SAE flat	2	(included in KIT2)
15f	999-0456	Screw 1/4-20 x 3/4 pan head phillips stainless steel	1	(included in KIT2 and KIT5)
15g	999-0181	Nut 1/4-20 hex jam plain finish	2	(included in KIT2 and KIT5)
15h	N/A	Not available	1	(pin) (only available in KIT5)
15i	N/A	Not available	2	(screw) (only available in KIT2)
15j	N/A	Not available	4	(screw) (only available in KIT5)
15k	N/A	Not available	1	(washer) (only available in KIT2)
15l	181-0142	Extension spring	1
15m	272-3956	Right hand thumb nut	1
15n	N/A	Not available	2	(bushing) (only available in KIT2)
15o	N/A	Not available	1	(bushing) (only available in KIT2)
15p	372-2927	Side broom hub assembly	1
15q	372-2928	Side broom guard	1
15r	N/A	Not available	1	(right hand motor braket weldment) (only available in KIT2)
15s	N/A	Not available	1	(right hand squeegee blade arm assembly) (only available in KIT2)
15t	472-8233	SIDE BROOM MOTOR KIT	1
15u	N/A	Not available	1	(lift bracket) (only available in KIT2)
15v	N/A	Not available	1	(cable assembly) (only available in KIT2)
15w	372-2929	Side broom	1
16a	372-2930	Left hand broom assembly	1	(includes 16b-16w)
16b	N/A	Not available	1	(screw) (only available in KIT3)
16c	999-1208	Nut 1/2-13 nylon insert lock stainless steel	2	(included in KIT3)
16d	999-0830	Screw 1/4-20 x 1 hex head plain finish	1	(included in KIT3)
16e	999-0114	Washer 1/2 SAE flat	2	(included in KIT3)
16f	999-0456	Screw 1/4-20 x 3/4 pan head phillips stainless steel	1	(included in KIT3 and KIT5)
16g	999-0181	Nut 1/4-20 hex jam plain finish	2	(included in KIT3 and KIT5)
16h	N/A	Not available	1	(pin) (only available in KIT5)
16i	N/A	Not available	2	(screw) (only available in KIT3)
16j	999-1312	Screw M6-1 x 20mm hex head stainless steel	4	(included in KIT5)
16k	N/A	Not available	1	(washer) (only available in KIT3)
16l	N/A	Not available	1	(extension spring) (only available in KIT3)
16m	272-3948	Left hand thumb nut	1
16n	N/A	Not available	2	(bushing) (only available in KIT3)
16o	N/A	Not available	1	(bushing) (only available in KIT3)
16p	372-2928	Side broom guard	1
16q	N/A	Not available	1	(left hand motor braket weldment) (only available in KIT3)
16r	N/A	Not available	1	(left hand squeegee blade arm assembly) (only available in KIT3)
16s	472-8233	SIDE BROOM MOTOR KIT	1
16t	N/A	Not available	1	(swueegee blade lift bracket) (only available in KIT3)
16u	N/A	Not available	1	(cable assembly) (only available in KIT3)
16v	372-2931	Left hand squeegee blade hub assembly	1
16w	372-2929	Side broom	1
17	372-2932	Actuator bracket weldment	1
N/S	372-2933	Motor brush kit	1	(for 15t and 16s)
KIT1	372-2934	Broom bearing kit	1	(includes 3-4, 6, 12,
KIT2	372-2935	Right hand broom bracket kit	1	(includes 15b-15g, 15i, 15k, 15n-15o, 15r-15s, 15u-15v)
KIT3	372-2936	Left hand broom bracket kit	1	(includes 16b-16g, 16i, 16k-16l, 16n-16o, 16q-16r, 16t-16u)
KIT4	372-2937	Broom system hardware kit	1	(includes 1-2, 5, 7-11)
KIT5	372-2938	Broom assembly hardware kit	1	(includes 15f-15h, 15j, 16f-16h, 16j)

Solution System Assembly 1

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	1	(filter) (only avaialble in KIT1)
2	N/A	Not available	1	(barb) (only available in KIT2)
3	999-1862	Washer #10 flat SAE stainless steel	8	(included in KIT1 and KIT4)
4	999-0333	Screw 10-24 x 1/2 pan head phillips stainless steel	4	(included in KIT4)
5	999-0830	Screw 1/4-20 x 1 hex head plain finish	1	(included in KIT4)
6	999-0123	Washer 1/4 SAE flat zinc plated	9	(included in KIT4)
7	N/A	Not available	2	(screw) (only available in KIT4)
8	999-0342	Screw 1/4-20 x 1 pan head phillips stainless steel	1
9	999-0199	Nut 10-24 nylon insert lock zinc plated	4	(included in KIT1)
10	999-1532	Screw 1/4-20 x 1/2 hex head stainless steel	2	(included in KIT1)
11	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	5	(included in KIT4)
13	181-0421	Spacer	1
14	272-3968	U-bolt	2
15	N/A	Not available	4	(clamp) (only available in KIT1 and KIT2)
16	N/A	Not available	1	(pipe cap) (only available in KIT2)
17	472-6384	BARB ELBOW MALE 90 E00037	1	(included in KIT1)
18	N/A	Not available	2	(hose) (only available in KIT1 and KIT2)
19	N/A	Not available	1	(washer) (only available in KIT2)
20	N/A	Not available	1	(solution valve) (only available in KIT1)
21	372-2939	Solution tank	1
22a	N/A	Not available	1	(seat assembly) (includes 22b-22i)
22b	999-0024	Washer 5/16 flat stainless steel	4
22c	999-1099	Bolt 1/4-20 x 3/4 hex head stainless steel	3
22d	999-0024	Washer 5/16 flat stainless steel	3
22e	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	4
22f	372-2940	Seat mount weldment	1
22g	272-7645	Seat (OBSOLETE)	1
22h	170-8321	Seat adjuster kit	1
22i	272-9417	Seat switch	1
23	372-2941	Pressure sensing tube assembly	1
24	272-9352	Raw cap with tether	1
25	N/A	Not available	1	(valve shield) (only available in KIT1)
26	372-2942	Plate seal	1
27	372-2943	Plate spacer	1
28	372-2944	Plate (OBSOLETE)	1
29	372-1408	Nut plate	1
30	372-2945	Bulb seal	1
31	372-2946	Cover weldment (OBSOLETE)	1
32	372-2947	Cover hanger weldment (OBSOLETE)	1
33	372-2948	Tygon tube	1
34	272-8795	Seat rod	1
35	172-0261	Barb adapter	2	(included in KIT1)
KIT1	372-2949	Solution filter kit	1	(includes 1, 3, 9-10, 15, 17-18, 20, 25, 35)
KIT2	372-2950	Solution drain hose kit	1	(includes 2, 15-16, 18-19)
KIT4	372-2951	Solution system hardware kit	1	(includes 3-7, 11-12)

Solution System Assembly 2

Click to enlarge

#	Part	Description	Req	Notes
1	999-1260	Screw 1/4-20 x 1 1/2 hex cap stainless steel	1	(included in KIT3)
2	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	1	(included in KIT3)
3	999-1532	Screw 1/4-20 x 1/2 hex head stainless steel	2	(included in KIT4)
4	999-9004	Washer 5/16 SAE flat stainless steel	5	(included in KIT3 and KIT4)
5	999-1862	Washer #10 flat SAE stainless steel	12	(included in KIT4)
6	999-0333	Screw 10-24 x 1/2 pan head phillips stainless steel	12	(included in KIT4)
7	999-0123	Washer 1/4 SAE flat zinc plated	2	(included in KIT4)
8	999-1232	Screw 5/16-18 x 3/4 hex head stainless steel	8	(included in KIT3 and KIT4)
9	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	2	(included in KIT3)
10	N/A	Not available	3	(washer) (only available in KIT4)
11	272-7623	Right side latch	1	(included in KIT3)
12	272-9915	Pipe plug	2
13	N/A	Not available	1	(latch mount bracket) (only available in KIT3)
14	N/A	Not available	1	(recovery latch handle) (only available in KIT3)
15	372-2952	Tether hook	1
16	372-2953	Contactor panel cover	1
17	372-2954	Cover panel	1
18	372-2955	Fuse cover panel	1
19	372-2956	Plate gasket	1
KIT3	372-2957	Recovery tank latch kit	1	(includes 1-4, 8-9, 11, 13-14)
KIT4	372-2951	Solution system hardware kit	1	(includes 3-8, 10)

Squeegee Assembly

Click to enlarge

#	Part	Description	Req	Notes
0	372-2958	Squeegee tool assembly	1	(includes 1-17)
1	999-0336	Screw 6-32 x 3/8 pan head phillips stainless steel	2	(included in KIT2)
2	999-0114	Washer 1/2 SAE flat	2	(included in KIT3)
3	999-1032	Screw 1/4-20 x 5/8 hex head stainless steel	1	(included in KIT4)
4	N/A	Not available	2	(nut) (only available in KIT2)
5	N/A	Not available	2	(bow tie cotter pin) (only available in KIT3)
6	N/A	Not available	2	(screw) (only available in KIT4)
7	272-4838	Squeegee knob	2
8	172-2085	Wheel	2	(included in KIT3)
9	N/A	Not available	1	(latch assembly) (only available in KIT2)
10	N/A	Not available	4	(squeegee clip) (only available in KIT1)
11	372-2969	Push pull clamp	1
12	N/A	Not available	1	(squeegee weldment) (order 372-2958 if you need to replace)
13	372-1145	Squeegee blade kit gum rubber (red)	1	(all squeegee blade kits include both front and rear squeegee blades)
14	372-2970	Squeegee strap	1
15	372-2971	Weldment strap	1
16	372-2972	Stud 3/8-16 x 1 3/4	2
17	372-2973	Adjustment plate	1
N/S	372-1145	Squeegee blade kit gum rubber (red)	1	(all squeegee blade kits include both front and rear squeegee blades)
N/S	572-1606	BLADE KIT-SQGEE-GUM	1	(all squeegee blade kits include both front and rear squeegee blades) (optional)
N/S	572-1607	BLADE KIT-SQGEE-PU	1	(all squeegee blade kits include both front and rear squeegee blades) (optional)
KIT1	372-2974	Squeegee clip kit	1	(includes 10)
KIT2	372-2975	Squeegee latch kit	1	(includes 1, 4, 9)
KIT3	372-2976	Squeegee wheel kit	1	(includes 2, 5, 8)
KIT4	372-2977	Squeegee tool hardware kit	1	(includes 3 and 6)

Squeegee System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	2	(nut) (only available in KIT1)
2	999-9128	Washer 3/8 SAE flat stainless steel	4	(included in KIT1)
3	999-0114	Washer 1/2 SAE flat	2	(included in KIT2)
4	N/A	Not available	1	(clevis pin) (only available in KIT2)
5	N/A	Not available	1	(clevis pin) (only available in KIT2)
6	N/A	Not available	2	(bow tie cotter pin) (only available in KIT2)
7	N/A	Not available	2	(flange bearing) (only available in KIT1)
8	372-2958	Squeegee tool assembly	1	(includes red gum rubber blades)
9a	N/A	Not available	1	(squeegee support assembly) (includes 9b-9l)
9b	N/A	Not available	2	(washer) (only available in KIT3)
9c	999-0630	Washer 3/4 SAE flat	1	(included in KIT5)
9d	N/A	Not available	2	(nut) (only available in KIT3)
9e	N/A	Not available	1	(screw) (only available in KIT5)
9f	N/A	Not available	2	(nut) (only available in KIT4)
9g	999-1895	Screw 1/4-20 x 7/8 flat head phillips stainless steel	2	(included in KIT4)
9h	N/A	Not available	1	(rod end) (only available in KIT5)
9i	N/A	Not available	2	(squeegee caster) (only available in KIT3)
9j	N/A	Not available	1	(squeegee lift pad) (only available in KIT4)
9k	372-2959	Support weldment	1
9l	372-2960	Adjustment handle	1
10	372-2961	Squeegee lift arm	1
11	372-2962	Extension spring	2
12	372-2963	Squeegee lift actuator	1
13	N/A	Not available	1	(spacer) (only available in KIT2)
14	N/A	Not available	2	(screw) (only available in KIT1)
KIT1	372-2964	Squeegee lift hardware kit	1	(includes 1-2, 7, 14)
KIT2	372-2965	Squeegee actuator hardware kit	1	(includes 3-6, 13)
KIT3	372-2966	Squeegee caster kit	1	(includes 9b, 9d, 9i)
KIT4	372-2967	Squeegee lift pad kit	1	(includes 9f-9g, 9j)
KIT5	372-2968	Squeegee rod end kit	1	(includes 9c, 9e, 9h)

Steering System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	N/A	Not available	3	(screw) (only available in KIT1 and KIT4)
2	999-0114	Washer 1/2 SAE flat	1	(included in KIT1)
3	999-9004	Washer 5/16 SAE flat stainless steel	5	(included in KIT4)
4	999-0120	Washer 3/8 SAE flat	2	(included in KIT2)
5	999-0567	Screw 1/4-20 x 5/8 pan head phillips stainless steel	3	(included in KIT3)
6	N/A	Not available	1	(screw) (only available in KIT4)
7	999-0332	Screw 10-24 x 5/8 pan head phillips stainless steel	4	(included in KIT3)
8	999-0031	Bolt 5/16-18 x 1 hex head grade 5 zinc plated	3	(included in KIT4)
9	999-0211	Nut 5/16-18 hex nylon insert lock zinc plated	4	(included in KIT3 and KIT4)
10	999-0294	Nut 1/4-20 hex nylon lock type NE stainless steel	3	(included in KIT4)
11	N/A	Not available	4	(nut) (only available in KIT3)
12	N/A	Not available	5	(nut) (only available in KIT1 and KIT3)
13	N/A	Not available	1	(nut) (only available in KIT1)
14	N/A	Not available	2	(screw) (only available in KIT2)
15	N/A	Not available	1	(key) (only available in KIT1)
16	999-1131	Screw 8-32 x 3/8 pan head phillips thread rolling SS	2	(included in KIT3)
17	999-1058	Screw 1/4-20 x 3/4 pan head thread rolling phillips	4	(included in KIT5)
18	N/A	Not available	1	(grommet) (only available in KIT2)
19	N/A	Not available	1	(bushing) (only available in KIT3)
20	N/A	Not available	4	(flange bearing) (only available in KIT4)
21	N/A	Not available	1	(steering column ratchet) (only available in KIT3)
22	N/A	Not available	5	(bushing) (only available in KIT4)
23	N/A	Not available	1	(extension spring) (only available in KIT4)
24	N/A	Not available	1	(tilt-steering weldment) (only available in KIT3)
25	N/A	Not available	1	(steering boot) (only available in KIT5)
26	N/A	Not available	1	(boot holder plate) (only available in KIT5)
27	N/A	Not available	1	(steering mount weldment) (only available in KIT4)
28	N/A	Not available	1	(tilt lever weldment) (only available in KIT4)
29	N/A	Not available	1	(steering clamp plate) (only available in KIT2)
30	N/A	Not available	1	(steering shaft) (only available in KIT1)
31	372-1443	Torque feedback device (OBSOLETE)	1
32	272-8887	Steering wheel	1
33	372-1444	Universal joint	1
34	N/A	Not available	4	(spacer) (only available in KIT4)
KIT1	372-1445	Steering shaft kit	1	(includes 1-2, 12-13, 15, 30)
KIT2	372-1446	Steering clamp plate kit	1	(includes 4, 14, 18, 29)
KIT3	372-1447	Steering column kit	1	(includes 5, 7, 9, 11-12, 16, 19, 21, 24)
KIT4	372-1448	Steering housing kit	1	(includes 1, 3, 6, 8-10, 20, 22-23, 27-28)
KIT5	372-1449	Steering boot kit	1	(includes 17, 25-26, 34)

Wheel System Assembly

Click to enlarge

#	Part	Description	Req	Notes
1	372-2978	Lug nut kit	1
2	999-0114	Washer 1/2 SAE flat	8	(included in KIT2)
3	999-9004	Washer 5/16 SAE flat stainless steel	8	(included in KIT1)
4	N/A	Not available	2	(nut) (only available in KIT1)
5	999-0977	Screw 5/16-18 x 3 1/2 hex head stainless steel	2	(included in KIT1)
6	N/A	Not available	6	(screw) (only available in KIT1)
7	N/A	Not available	6	(screw) (only available in KIT2)
8	N/A	Not available	8	(screw) (only available in KIT2)
9	372-2979	Drive wheel	1
10	N/A	Not available	1	(traction motor) (only available in KIT1)
11	372-2980	Traction drive gearbox (OBSOLETE)	1
12	272-3779	Mold-on wheel 16.2 x 4	2
13	372-2981	Brake and spindle assembly	2
14	N/A	Not available	1	(splash shield) (only avaialble in KIT1)
15	N/A	Not available	2	(cotter pin) (only available in KIT2)
16	N/A	Not available	1	(nut) (only available in KIT2)
17	N/A	Not available	2	(spacer washer) (only available in KIT2)
18	272-3783	Grease cap	2
N/S	372-2982	Speed sensor	1	(for 9)
N/S	372-2983	Thermal sensor	1	(for 9)
N/S	272-3780	Wheel bearing	1	(for 12)
N/S	272-3781	Snap ring	1	(for 12)
N/S	272-3777	Brake shoe kit	1	(for 13)
KIT1	372-2984	Drive motor kit	1	(includes 3-6, 10, 14)
KIT2	372-2985	Wheel system hardware kit	1	(includes 2, 7-8, 15-17)
KIT3	372-2986	Ring/pinion gear kit	1	(for 11)
