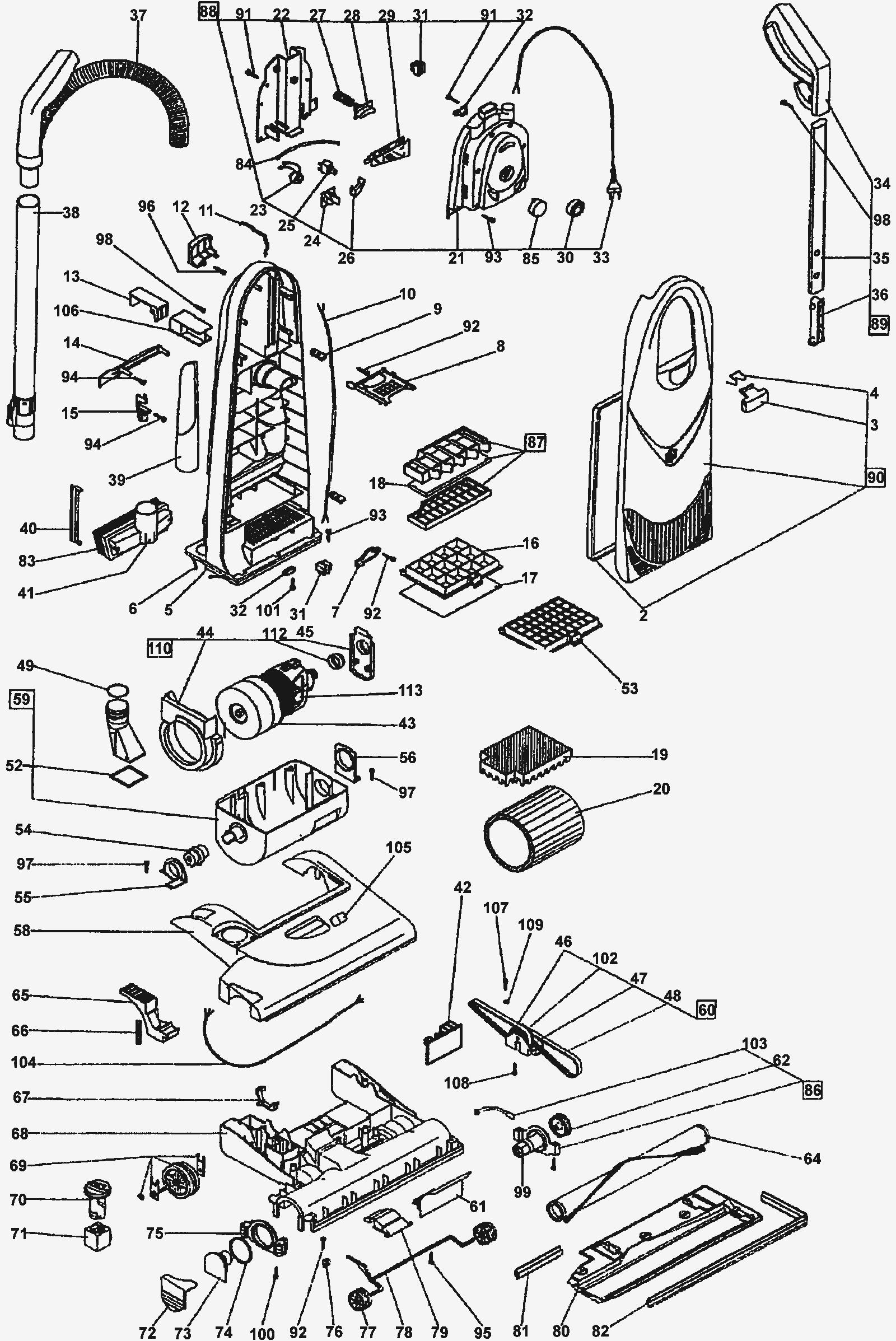

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
228-2553
|
Bag door gasket |
1 |
|
|
3 |
228-2554
|
Bag door latch |
1 |
|
|
4 |
228-2555
|
Bag door spring |
1 |
|
|
5 |
228-2556
|
Bag housing (dark gray) |
1 |
|
|
6 |
228-2557
|
Bag housing gasket |
1 |
|
|
7 |
228-2558
|
Exhaust grill hook |
1 |
|
|
8 |
228-2559
|
Bag safety support |
1 |
|
|
9 |
228-2560
|
Strain relief kit (2 pcs) |
1 |
|
|
10 |
228-2562
|
3 wire internal cord |
1 |
|
|
11 |
228-2563
|
Antistatic spring |
1 |
|
|
12 |
228-2564
|
Hose support |
1 |
|
|
13 |
228-7023
|
Lower cord hook |
1 |
|
|
14 |
228-2565
|
Transport handle |
1 |
|
|
15 |
228-2566
|
Accessory clip |
1 |
|
|
16 |
228-2011
|
Exhaust grill |
1 |
|
|
17 |
228-7025
|
Exhaust filter (pkg of 12) |
1 |
|
|
18a |
228-8048
|
Filter |
1 |
|
|
18b |
228-2567
|
Carbon active motor protection filter (pkg of 5) |
1 |
|
|
19 |
228-2568
|
Foam filter |
1 |
|
|
20 |
228-2569
|
Vacuum motor filter |
1 |
|
|
21 |
228-2570
|
Electric panel housing |
1 |
|
|
22 |
228-2571
|
Electric panel cover |
1 |
|
|
23 |
228-2572
|
Vacuum sensor with light |
1 |
|
|
24 |
228-2573
|
Red lens |
1 |
|
|
25 |
228-2129
|
Main switch |
1 |
|
|
26 |
228-2574
|
Switch button |
1 |
|
|
27 |
228-2575
|
Handle spring |
1 |
|
|
28 |
228-2576
|
Handle button |
1 |
|
|
29 |
228-2577
|
Circuit board |
1 |
|
|
30 |
228-2578
|
Power adjusting knob |
1 |
|
|
31a |
228-2579
|
2 pole terminal block |
2 |
|
|
31b |
228-2580
|
3 pole terminal block |
2 |
|
|
31c |
228-2490
|
4 pole terminal block |
2 |
|
|
32 |
228-2134
|
Clamp |
2 |
|
|
33a |
228-2581
|
2 prong 2 wire cord 2 x 17 |
1 |
|
|
33b |
181-1201
|
18/3 power cord 40 foot |
1 |
|
|
34a |
228-2917
|
Handle grip (blue) |
1 |
(eco force only) |
|
34b |
228-2918
|
Handle grip cap (blue) |
1 |
(eco force only) |
|
34c |
228-2058
|
Handle grip |
1 |
(non eco force only) |
|
34d |
228-2582
|
Handle cover rubber |
1 |
(non eco force only) |
|
35 |
228-2583
|
Chrome tube |
1 |
|
|
36 |
228-2476
|
2 position handle button assembly |
1 |
|
|
37a |
228-7029
|
Extension hose with handle |
1 |
|
|
37b |
228-8025
|
Handle grip kit |
1 |
|
|
37c |
228-2584
|
Hose with cuff |
1 |
|
|
37d |
228-2481
|
Hose cuff |
1 |
|
|
38a |
228-2500
|
Telescopic wand |
1 |
|
|
38b |
228-2515
|
Extension tube |
1 |
(non eco force only) |
|
39 |
181-1194
|
Crevice tool |
1 |
|
|
40 |
228-2507
|
Upholstery tool with center strip (black) |
1 |
|
|
41a |
228-2504
|
Upholstery tool with natural bristles |
1 |
|
|
41b |
228-2505
|
Upholstery tool with center strip |
1 |
|
|
42a |
228-2585
|
Circuit board kit |
1 |
(non eco force only) |
|
42b |
228-8046
|
Circuit board |
1 |
|
|
43a |
228-2586
|
120V vacuum motor with pulley |
1 |
|
|
43b |
228-2587
|
Carbon brush (set of 2) |
1 |
|
|
44 |
228-2588
|
Motor gasket |
1 |
|
|
45 |
228-2589
|
Brush holder gasket |
1 |
|
|
46 |
228-2590
|
Double pulley with bearings |
1 |
|
|
47 |
228-2591
|
Double support |
1 |
|
|
48 |
228-2059
|
6mm timing belt |
1 |
|
|
49 |
228-2592
|
O ring |
1 |
|
|
52 |
228-2593
|
Throat gasket |
1 |
|
|
53a |
228-2472
|
HEPA filter and grill |
1 |
|
|
53b |
228-2493
|
Carbon active exhaust filter |
1 |
|
|
54 |
228-2594
|
Bushing |
1 |
|
|
55a |
228-2595
|
Right hand support |
1 |
|
|
55b |
228-2596
|
Right hand metal support |
1 |
|
|
56 |
228-2597
|
Left hand support |
1 |
|
|
58a |
228-2598
|
Base housing cover with lens (light gray) |
1 |
(12 inch) (non eco force only) |
|
58b |
228-2599
|
Base housing cover with lens (dark gray) |
1 |
(12 inch) (non eco force only) |
|
58c |
228-2919
|
Base housing cover with lens (grey) |
1 |
(eco force only) |
|
58c |
228-2600
|
Base housing cover with lens (red) |
1 |
(12 inch) (non eco force only) |
|
58d |
228-2601
|
Base housing cover with lens (black) |
1 |
(12 inch) (non eco force only) |
|
58e |
228-2602
|
Base housing cover with lens (silver blue) |
1 |
(12 inch) |
|
58f |
228-2603
|
Base housing cover with lens (dark gray) |
1 |
(15 inch) (non eco force only) |
|
58g |
228-2604
|
Base housing cover with lens (light gray) |
1 |
(15 inch) (non eco force only) |
|
59 |
228-2605
|
Vacuum motor housing kit (dark gray) |
1 |
(includes 52) |
|
60 |
228-2123
|
Central transmission width belt |
1 |
(includes 46-48, 102) |
|
61 |
228-2606
|
Deep cleaning system converter |
1 |
|
|
62 |
228-2135
|
Toothed gear |
1 |
|
|
64a |
228-8047
|
Brush roll |
1 |
(12 inch) |
|
64b |
228-2607
|
Brush roller stiff bristle |
1 |
(12 inch) |
|
64c |
172-7987
|
Brush roller 15 |
1 |
(15 inch) |
|
65a |
228-2608
|
Foot pedal (gray) |
1 |
|
|
65b |
228-2609
|
Foot pedal (red) |
1 |
(non eco force only) |
|
66 |
228-2610
|
Foot pedal spring |
1 |
|
|
67 |
228-2611
|
Base lift lever |
1 |
|
|
68a |
228-2612
|
12 inch base housing (dark gray) |
1 |
|
|
68b |
228-2613
|
15 inch base housing (dark gray) |
1 |
|
|
68c |
228-2614
|
Base felt gasket |
1 |
|
|
69 |
228-2615
|
Rear wheel assembly |
1 |
|
|
70a |
228-2616
|
Adjusting knob |
1 |
|
|
70b |
228-2186
|
Adjusting knob (blue) |
1 |
(eco force only) |
|
71 |
228-2136
|
Brush adjuster |
1 |
|
|
72a |
228-2617
|
Side cover |
1 |
|
|
72b |
228-2920
|
Side cover (blue) |
1 |
(eco force only) |
|
73 |
172-1479
|
Roller support |
1 |
|
|
74 |
228-2137
|
O-ring |
1 |
|
|
75 |
228-2618
|
Wheel support |
1 |
|
|
76 |
228-2619
|
Clip |
1 |
|
|
77a |
228-2620
|
Front wheel nylon (silver gray) |
1 |
|
|
77b |
172-1409
|
Front wheel rubber |
1 |
|
|
78 |
228-2621
|
Front axle |
1 |
|
|
79 |
228-2622
|
Channel cover |
1 |
|
|
80a |
228-2057
|
Roller cover |
1 |
(12 inch) |
|
80b |
228-2624
|
Roller cover with felt |
1 |
(12 inch) |
|
80c |
228-2626
|
Roller cover with squeege and wheels |
1 |
(12 inch) (non eco force only) |
|
80d |
228-2627
|
Squeegee kit for roller cover |
1 |
(12 inch) |
|
80e |
228-2921
|
12 inch roller cover with squeegee and wheels |
1 |
(12 inch) (eco force only) |
|
80f |
228-2623
|
Base shoe plate |
1 |
(15 inch) |
|
80g |
228-2625
|
Roller cover with felt |
1 |
(15 inch) |
|
81a |
228-2628
|
Rear bumper |
1 |
(15 inch) |
|
81b |
228-2922
|
15 inch back bumper (blue) |
1 |
(15 inch) (eco force only) |
|
82a |
228-2629
|
Front bumper |
1 |
(12 inch) |
|
82b |
228-2923
|
12 inch front bumper (blue) |
1 |
(12 inch) (eco force only) |
|
82d |
228-2630
|
Front bumper |
1 |
(15 inch) |
|
82d |
228-2924
|
15 inch front bumper (blue) |
1 |
(15 inch (eco force only) |
|
83 |
228-2477
|
Natural bristle brush upholstery tool |
1 |
|
|
84 |
228-2631
|
Rubber tube |
1 |
|
|
85 |
228-2632
|
Electric panel cap |
1 |
|
|
86 |
228-2633
|
Transmission support complete with sensor |
1 |
(includes 62, 103) |
|
87 |
228-2634
|
Grill |
1 |
(includes 18) |
|
88a |
228-2635
|
120V 2 wire electric panel |
1 |
(includes 21-33, 84-85, 91, 93) |
|
88b |
228-2636
|
120V 3 wire electric panel |
1 |
(includes 21-33, 84-85, 91, 93) |
|
88c |
228-2637
|
120V electric panel with electronic 2 wires |
1 |
(includes 21-33, 84-85, 91, 93) |
|
89a |
228-2638
|
Handle tube assembly |
1 |
(includes 34-36, qty1 of 98) (non eco force only) |
|
89b |
228-2925
|
Handle tube assembly (grey) |
1 |
(includes 34-36, 98) (eco force only) |
|
89c |
228-2926
|
Handle tube assembly (blue) |
1 |
(includes 34-36, 98) (eco force only) |
|
90a |
228-2639
|
Bag door assembly (light gray) |
1 |
(includes 2-4) (non eco force only) |
|
90b |
228-2640
|
Bag door assembly (dark gray) |
1 |
(includes 2-4) (non eco force only) |
|
90c |
228-2641
|
Bag door assembly (red) |
1 |
(includes 2-4) (non eco force only) |
|
90d |
228-2642
|
Bag door assembly (black) |
1 |
(includes 2-4) (non eco force only) |
|
90e |
228-2927
|
Bag door assembly (light grey) |
1 |
(includes 2-4) (eco force only) |
|
90f |
228-2928
|
Bag door assembly (silver blue) |
1 |
(includes 2-4) (eco force only) |
|
91 |
228-2643
|
Screw 2.9 x 19 |
2 |
|
|
92 |
228-2644
|
Screw 3.5 x 9.5 TG |
3 |
|
|
93 |
228-2645
|
Screw 3.5 x 25 |
2 |
|
|
94 |
228-2531
|
Screw 3.9 x 16 |
2 |
|
|
95 |
228-2647
|
Screw 4.8 x 13 TG |
1 |
|
|
96 |
228-2648
|
Screw 3.5 x 32 |
1 |
|
|
97 |
228-2649
|
Screw 3.9 x 19 |
2 |
|
|
98 |
228-2650
|
Screw 3.9x13 |
2 |
|
|
99 |
228-2651
|
Drive joint clutch kit |
1 |
|
|
100 |
228-2652
|
Screw 3.9 x 25 |
1 |
|
|
101 |
228-2523
|
Screw 2.9 x 16 |
1 |
|
|
102 |
228-2653
|
Shaft 5 x 28 |
1 |
|
|
103 |
228-2654
|
Speed sensor |
1 |
|
|
104a |
228-2655
|
3 wire cord |
1 |
|
|
104b |
228-2656
|
4 wire cord |
1 |
|
|
105 |
228-2657
|
Red and green lens set |
1 |
|
|
106 |
228-2658
|
Cord hook spacer |
1 |
|
|
107 |
228-2548
|
Screw 3.9 x 19 |
1 |
|
|
108 |
228-2520
|
Screw 3.9 x 13 TG |
1 |
|
|
109 |
228-2659
|
Washer |
1 |
|
|
110 |
228-2660
|
Motor gasket kit |
1 |
(includes 44-45, 112) |
|
112 |
228-2661
|
Motor gasket bushing |
1 |
|
|
113a |
228-2662
|
Thermal protector |
1 |
|
|
113b |
228-2663
|
Cord with thermal protector |
1 |
|
|
N/S |
228-2993
|
ESO kit |
|
|
|
N/S |
228-2009
|
Paper vacuum bags (pkg of 8 with 2 filters) |
|
|
|
N/S |
228-2515
|
Extension tube |
|
|
|
N/S |
228-2929
|
Electric system kit |
1 |
(includes 21-22) |
|
