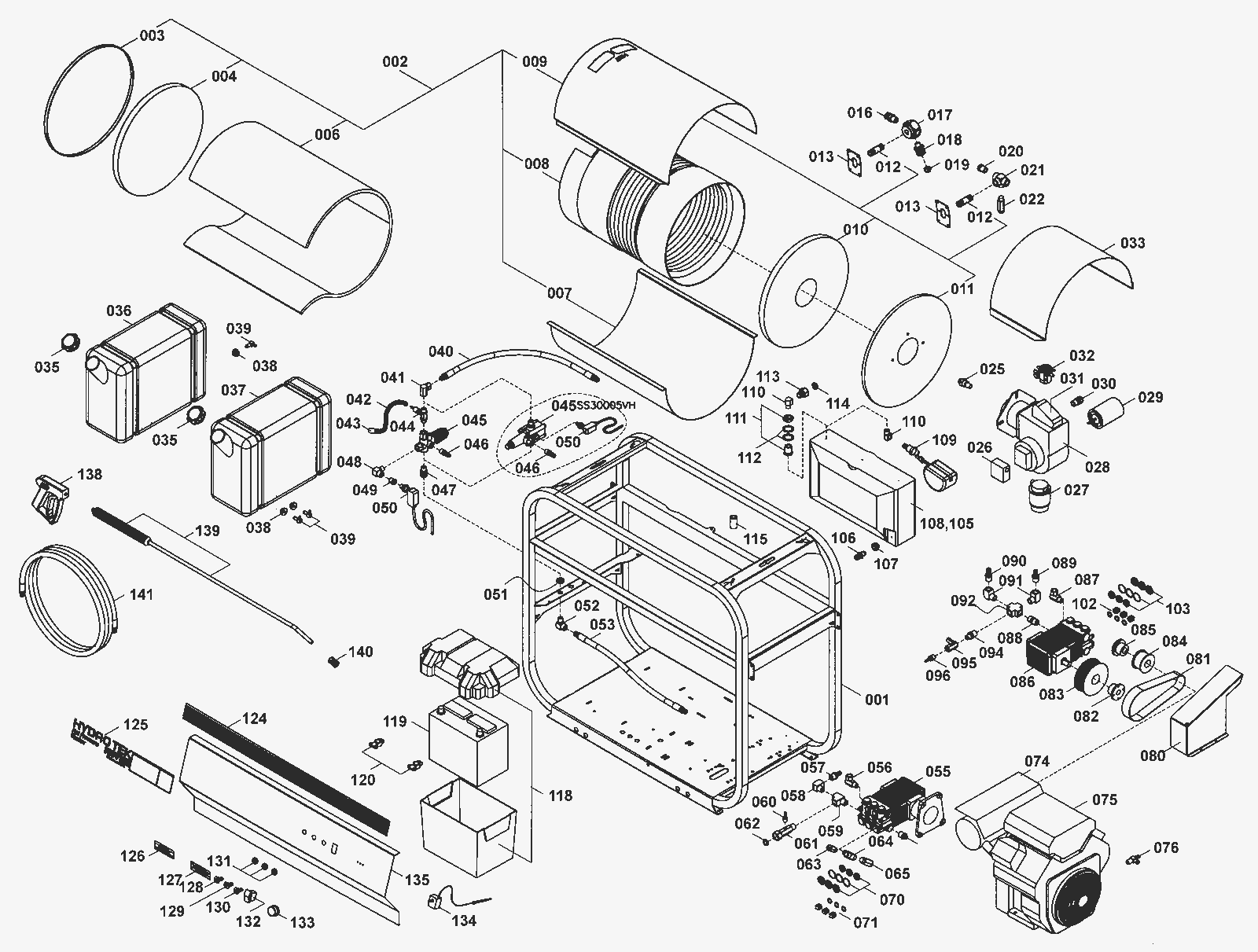

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
207-0135
|
Frame stackable assembly |
|
|
|
002 |
207-0136
|
Coil assembly (4 pack) flat end coil |
|
|
|
003 |
207-0137
|
Coil cap (flat end coil) no hole |
|
|
|
004 |
207-0004
|
Insulation disc 18 in |
|
|
|
006 |
207-0006
|
Insulation blanket 50 square feet |
|
|
|
007 |
207-0138
|
Coil wrap (flat end coil) bottom |
|
|
|
008 |
207-0008
|
Coil (4 pack) |
|
|
|
009 |
207-0139
|
Coil wrap (flat end coil) top |
|
|
|
010 |
207-0004
|
Insulation disc 18 in |
|
|
|
011 |
207-0140
|
End cap (flat end coil) 18 in burner |
|
|
|
012 |
207-0012
|
Burner nipple 1/2x5 |
|
|
|
013 |
207-0013
|
Coil nipple retainer 1/2 in |
|
|
|
016 |
207-0036
|
Swivel 3/8F x 1/2M Steel |
|
|
|
017 |
207-0035
|
Hex manifold outlet 1/2x1/2x3/8x1/2 |
|
|
|
018 |
252-8999
|
Rupture disk |
|
|
|
019 |
252-8999
|
Rupture disk |
|
|
|
020 |
207-0040
|
Bushing 1/2 x 3/8 steel |
|
|
|
021 |
207-0141
|
Tee 1/2 in special 3/8 tap |
|
|
|
022a |
207-0025
|
Pressure relief 4500+15% (red) |
|
(Model SS40004VH) |
|
022b |
207-0024
|
Pressure relief 3700psi (black) |
|
(Model SS30005VH) |
|
025 |
207-0142
|
Fuel nozzle 2.25 80A |
|
|
|
026 |
207-0017
|
Fuel pump |
|
|
|
027a |
207-0018
|
Fuel filter racor |
|
(Model SS40004VH) |
|
027b |
207-0143
|
Fuel filter inline |
|
(Model SS30005VH) |
|
028 |
207-0144
|
Burner beckett 12 volt with supported flange |
|
|
|
029 |
207-0145
|
Burner motor 12 volt beckett |
|
|
|
030 |
207-0022
|
Strain relief 1/2 heyco (3/8) |
|
|
|
031 |
207-0146
|
Ignition transformer beckett 12 volt |
|
|
|
032 |
207-0147
|
Relay burner 12 volt |
|
|
|
033 |
207-0148
|
Burner rain guard HX series |
|
|
|
034 |
207-0049
|
Fuel cap gasoline |
|
|
|
035 |
207-0050
|
Fuel cap diesel |
|
|
|
036 |
207-0048
|
Fuel tank 8 gallon gas (black) |
|
|
|
037 |
207-0149
|
Fuel tank 7.5 diesel clear |
|
|
|
038 |
207-0052
|
Fuel tank bushing 1/4 |
|
|
|
039 |
207-0053
|
Fuel tank ell 1/4 |
|
|
|
040 |
207-0150
|
Hose 3/8 x 30 in 5000psi |
|
|
|
041a |
207-0151
|
Swivel 3/8F x 90 Steel |
|
(Model SS40004VH) |
|
041b |
207-0037
|
Swivel 3/8F x 3/8M 90 |
|
(Model SS30005VH) |
|
042 |
207-0152
|
Tubing clear braided 1/4 in |
|
(Model SS40004VH) |
|
043 |
207-0153
|
Strainer chemical |
|
(Model SS40004VH) |
|
044 |
207-0154
|
Chemical injector with adjustment |
|
(Model SS40004VH) |
|
045a |
207-0042
|
Unloader 4200psi 8gpm |
|
|
|
045b |
207-0155
|
Unloader 3-5 @ 3200 |
|
(Model SS30005VH) |
|
046 |
207-0044
|
Hosebarb 1/2H x 3/8 brass |
|
|
|
047 |
207-0034
|
Swivel 3/8 steel |
|
|
|
048 |
207-0038
|
Street ell 3/8 |
|
(Model SS40004VH) |
|
049 |
207-0045
|
Bushing 3/8 x 1/4 steel |
|
(Model SS40004VH) |
|
050 |
207-0046
|
Pressure switch 4000 |
|
(Model SS40004VH) |
|
051 |
207-0039
|
Nut 3/8 hex brass |
|
|
|
052 |
207-0038
|
Street ell 3/8 |
|
|
|
053 |
207-0156
|
Hose 3/8 x 26.5in 5000psi |
|
|
|
055 |
207-0157
|
Pump 4000 @ 4 GPM direct drive |
|
(Model SS40004VH) |
|
056 |
207-0037
|
Swivel 3/8F x 3/8M 90 |
|
(Model SS40004VH) |
|
057 |
207-0043
|
Hosebarb 1/2 brass |
|
(Model SS40004VH) |
|
058 |
207-0158
|
Elbow street 1/2 in brass |
|
(Model SS40004VH) |
|
059 |
207-0159
|
Street tee 1/2 brass |
|
(Model SS40004VH) |
|
060 |
207-0062
|
Hosebarb 1/4 in brass |
|
(Model SS40004VH) |
|
061 |
207-0064
|
Garden H A 3in long 1/2 NPT |
|
(Model SS40004VH) |
|
062 |
207-0063
|
Screen washer garden H |
|
(Model SS40004VH) |
|
063 |
207-0066
|
EZ start valve |
|
(Model SS40004VH) |
|
064 |
207-0027
|
Branch tee 3/8 steel |
|
(Model SS40004VH) |
|
065 |
207-0025
|
Pressure relief 4500+15% (red) |
|
(Model SS40004VH) |
|
066 |
207-0160
|
Thermal dump valve |
|
(Model SS40004VH) |
|
070 |
207-0071
|
Packing kit 4@3200 |
|
|
|
071 |
207-0161
|
Valve kit 4@3200 pump |
|
(Model SS40004VH) |
|
074 |
207-0100
|
Muffler #1 16hp (SC/SS) |
|
|
|
075 |
207-0097
|
Engine gas 16hp vanguard |
|
|
|
076 |
207-0099
|
Oil drain valve 3/8 |
|
|
|
080 |
207-0162
|
Belt guard series |
|
(Model SS30005VH) |
|
081 |
207-0163
|
Gearbelt 270 x 1.5 |
|
(Model SS30005VH) |
|
082 |
207-0086
|
Bushing H24mm |
|
(Model SS30005VH) |
|
083 |
207-0215
|
Timing pulley |
|
(Model SS30005VH) |
|
084 |
207-0165
|
Gearbelt pulley 16 x 1.50 |
|
(Model SS30005VH) |
|
085 |
207-0166
|
Bushing G1 x 1 |
|
(Model SS30005VH) |
|
086 |
207-0074
|
Pump 4@4000 (belt drive) |
|
(Model SS30005VH) |
|
087 |
207-0037
|
Swivel 3/8F x 3/8M 90 |
|
(Model SS30005VH) |
|
088 |
207-0055
|
Nipple 1/2 brass |
|
(Model SS30005VH) |
|
089 |
207-0043
|
Hosebarb 1/2 brass |
|
(Model SS30005VH) |
|
090 |
207-0167
|
Hosebarb 5/8H x 1/2M |
|
(Model SS30005VH) |
|
091 |
207-0158
|
Elbow street 1/2 in brass |
|
(Model SS30005VH) |
|
092 |
207-0168
|
Cross 1/2 brass |
|
(Model SS30005VH) |
|
094 |
207-0169
|
Nipple 1/2 x 3/8 brass |
|
(Model SS30005VH) |
|
095 |
207-0170
|
Ball valve 3/8 |
|
(Model SS30005VH) |
|
096 |
207-0171
|
Hosbarb 1/4H x 3/8P |
|
(Model SS30005VH) |
|
102 |
207-0068
|
Valve kit for PH406 |
|
(Model SS30005VH) |
|
103 |
207-0071
|
Packing kit 4@3200 |
|
(Model SS30005VH) |
|
105 |
207-0172
|
Float tank assembly with valve |
|
(Model SS30005VH) |
|
106 |
207-0173
|
Disconnect barb/tank fitting |
|
(Model SS30005VH) |
|
107 |
207-0174
|
Water tank bushing 5/8 |
|
(Model SS30005VH) |
|
108 |
207-0175
|
tank float 4 gallon (no holes) |
|
(Model SS30005VH) |
|
109 |
207-0176
|
Float valve 3/8 brass |
|
(Model SS30005VH) |
|
110 |
207-0177
|
Street ell 3/8 brass |
|
(Model SS30005VH) |
|
111 |
207-0178
|
panel fitting 3/4 brass |
|
(Model SS30005VH) |
|
112 |
207-0179
|
Washer lock 1 galvanized |
|
(Model SS30005VH) |
|
113 |
207-0180
|
Garden H A 3/8 NPT male |
|
(Model SS30005VH) |
|
114 |
207-0063
|
Screen washer garden H |
|
(Model SS30005VH) |
|
115 |
207-0181
|
Float tank spacer |
|
(Model SS30005VH) |
|
118 |
207-0182
|
Battery box Attwood (large) |
|
|
|
119 |
162-0114
|
12V 50Ah AGM battery |
|
|
|
120 |
207-0184
|
Battery post terminal |
|
|
|
124 |
207-0106
|
Pinstripe (rolls=150 ft) multi red (OBSOLETE) |
|
|
|
125 |
207-0107
|
Label pro line 3.125 x 21 in (2 colors) |
|
|
|
126 |
207-0120
|
Label gasoline only |
|
|
|
127 |
207-0121
|
Label diesel fuel only |
|
|
|
128a |
207-0185
|
Nozzle/QDC 04x0 |
|
(Model SS40004VH) |
|
128b |
207-0186
|
Nozzle/QDC 55x0 |
|
(Model SS30005VH) |
|
129a |
207-0110
|
Nozzle/QDC 04x15 |
|
(Model SS40004VH) |
|
129b |
207-0115
|
Nozzle/QDC 55x15 |
|
(Model SS30005VH) |
|
130a |
207-0187
|
Nozzle/QDC 03x25 |
|
(Model SS40004VH) |
|
130b |
207-0188
|
Nozzle/QDC 45x25 |
|
(Model SS30005VH) |
|
131 |
207-0119
|
Gromet nozzle holder |
|
|
|
132 |
207-0189
|
Rocker switch clear 12 volt |
|
|
|
133 |
207-0123
|
Knob blue .25x1.5od |
|
|
|
134 |
207-0190
|
Thermostat |
|
|
|
135 |
207-0191
|
Control panel |
|
|
|
138 |
207-0131
|
Gun valve 12 @ 4000 ST 1500 |
|
|
|
139 |
207-0192
|
Wand 1/4 x 48 in molded grip |
|
|
|
140 |
252-0271
|
1/4 inch female brass coupler |
|
|
|
141a |
207-0134
|
Hose 3/8 x 50 ft 4000psi (red/black) |
|
(Model SS40004VH) |
|
141b |
207-0193
|
Hose 3/8 x 50 ft 3000psi |
|
(Model SS30005VH) |
|
N/S |
207-0196
|
Swivel fitting |
|
|
|
N/S |
207-0198
|
5800psi 100ft pressure hose |
|
|
|
N/S |
252-1813
|
Brass strainer |
|
|
|
N/S |
207-0199
|
Strainer (cup style with gasket) |
|
|
|
