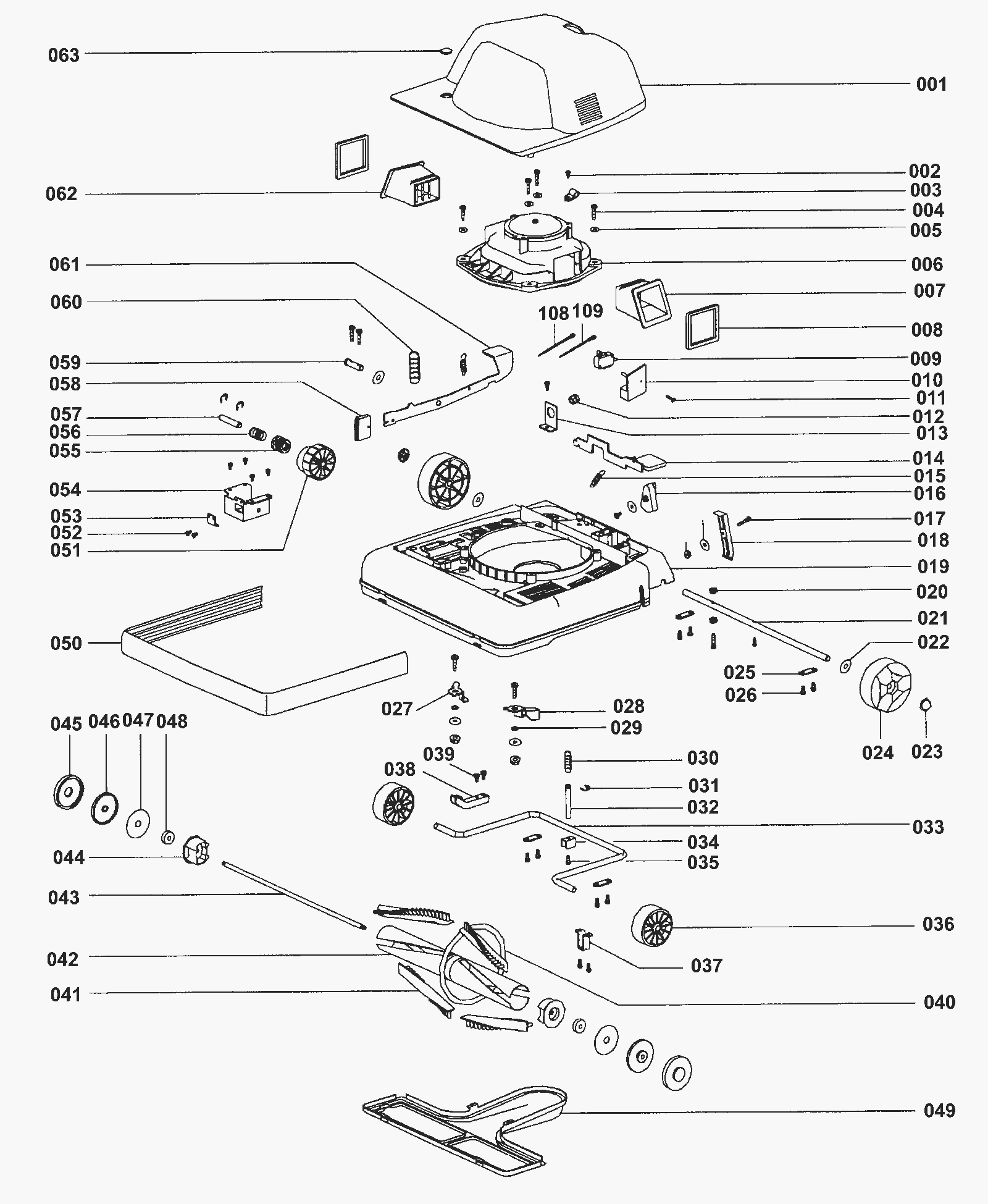

Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-5856 Hood and graphics (OBSOLETE) $82.83 1 usually ships 1-5 days
002 170-5128 Screw 4mm x 10mm $7.70 2 usually ships 1-5 days
003 170-5857 Cable clip $7.25 1 usually ships 1-5 days
004 170-5008 Screw $8.80 6 usually ships 1-5 days
005 N/A Not available Call for price 4 (Washer) usually ships 3-7 days
006 170-5858 Motor assembly (OBSOLETE) $228.69 1 usually ships 1-5 days
007 170-5859 Left motor exhaust (OBSOLETE) $7.37 1 usually ships 1-5 days
008 170-5860 Exhaust foam (OBSOLETE) $7.37 2 usually ships 1-5 days
009 170-5861 Power switch $16.50 1 usually ships 1-5 days
010 170-5862 Switch clip (OBSOLETE) $6.53 1 usually ships 1-5 days
011 N/A Not available Call for price 2 (Screw M3 x 12) usually ships 3-7 days
012 170-5863 Strain relief bushing (OBSOLETE) $6.53 1 usually ships 1-5 days
013 170-5864 Bushing bracket (OBSOLETE) $7.01 1 usually ships 1-5 days
014 170-5865 Foot pedal (OBSOLETE) $18.26 1 usually ships 1-5 days
015 170-5866 Pedal return spring (OBSOLETE) $6.78 2 usually ships 1-5 days
016 170-5867 Bag knob (OBSOLETE) $7.01 1 usually ships 1-5 days
017 170-5008 Screw $8.80 4 usually ships 1-5 days
018 170-5868 Bag support (OBSOLETE) $7.37 1 usually ships 1-5 days
019a 170-5869 12 inch base assembly (OBSOLETE) $117.92 1 usually ships 1-5 days
019b 170-5870 16 inch base assembly (OBSOLETE) $136.62 1 usually ships 1-5 days
020 N/A Not available Call for price 2 (Nut M4) usually ships 3-7 days
021 170-5871 Rear axle (OBSOLETE) $7.60 1 usually ships 1-5 days
022 N/A Not available Call for price 3 (Washer 8 1/2 x 16 x 1) usually ships 3-7 days
023 N/A Not available Call for price 2 (Cap nut f-type) usually ships 3-7 days
024 170-5872 Rear wheel (OBSOLETE) $7.15 2 usually ships 1-5 days
025 170-5873 Wheel axle clamp (OBSOLETE) $7.01 4 usually ships 1-5 days
026 170-5874 Screw m4 x 15 $8.80 23 usually ships 1-5 days
027 170-5875 Right cam (OBSOLETE) $7.37 1 usually ships 1-5 days
028 170-5876 Left cam (OBSOLETE) $7.37 1 usually ships 1-5 days
029 N/A Not available Call for price 2 (Washer) usually ships 3-7 days
030 170-5877 Front axle spring (OBSOLETE) $7.01 1 usually ships 1-5 days
031 N/A Not available Call for price 5 (E-clip) usually ships 3-7 days
032 N/A Not available Call for price 1 (Front axle support rod) usually ships 3-7 days
033 170-5878 Front axle (OBSOLETE) $15.80 1 usually ships 1-5 days
034 170-5879 Front axle seat (OBSOLETE) $7.01 1 usually ships 1-5 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
036 170-5881 Front wheel (OBSOLETE) $7.01 2 usually ships 1-5 days
037 170-5882 Front axle support plate (OBSOLETE) $7.01 1 usually ships 1-5 days
038 170-5883 Front axle clamp (OBSOLETE) $5.50 1 usually ships 1-5 days
039 N/A Not available Call for price 2 (Screw M3 x 10) usually ships 3-7 days
040 991-0026 Brush roll belt rubber (black) $0.62 1 ships same day
041a 170-3316 Brush strip set 12inch $30.80 1 usually ships 1-5 days
041b 170-5884 16 inch bristle strip set (4 strips0 $33.00 1 usually ships 1-5 days
042a N/A Not available Call for price 1 (12 inch brush roll) usually ships 3-7 days
042b N/A Not available Call for price 1 (16 inch brush roll) usually ships 3-7 days
043a N/A Not available Call for price 1 (12 inch shaft) usually ships 3-7 days
043b 170-5886 16 inch shaft (OBSOLETE) $7.37 1 usually ships 1-5 days
044 N/A Not available Call for price 2 (Bearing support) usually ships 3-7 days
045 N/A Not available Call for price 2 (Cap cover) usually ships 3-7 days
046 N/A Not available Call for price 2 (End cap) usually ships 3-7 days
047 N/A Not available Call for price 2 (Felt washer) usually ships 3-7 days
048 N/A Not available Call for price 2 (Bearing) usually ships 3-7 days
049a 170-5892 12 inch bottom plate assembly $20.90 1 usually ships 1-5 days
049b 170-5893 16 inch bottom plate assembly (OBSOLETE) $70.09 1 usually ships 1-5 days
050a 170-5894 12 inch furniture guard (OBSOLETE) $7.37 1 usually ships 1-5 days
050b 170-5895 12 inch furniture guard (OBSOLETE) $7.01 1 usually ships 1-5 days
051 170-5896 Height adjustment cam (OBSOLETE) $7.37 1 usually ships 1-5 days
052 170-5897 Screw m3 x 6 (OBSOLETE) Call for price 2 usually ships 1-5 days
053 170-5898 Height adjustment cam clip (OBSOLETE) $5.50 1 usually ships 1-5 days
054 170-5899 Height adjustment cam seat (OBSOLETE) $8.32 1 usually ships 1-5 days
055 170-5900 Height adjustment gear (OBSOLETE) $7.37 1 usually ships 1-5 days
056 170-5901 Height adjustment spring (OBSOLETE) $5.50 1 usually ships 1-5 days
057 170-5902 Height adjustment axle (OBSOLETE) $5.50 1 usually ships 1-5 days
058 170-5903 Height adjustment crank gear (OBSOLETE) $7.37 1 usually ships 1-5 days
059 170-5904 Height adjustment crank axle (OBSOLETE) $5.50 1 usually ships 1-5 days
060 170-5905 Pedal support spring (OBSOLETE) $7.15 1 usually ships 1-5 days
061 170-5906 Height adjustment crank (OBSOLETE) $12.32 1 usually ships 1-5 days
062 170-5907 Right motor exhaust (OBSOLETE) $7.37 1 usually ships 1-5 days
063 170-5908 Height indicator (OBSOLETE) $7.01 1 usually ships 1-5 days
108 N/A Not available Call for price 1 (#16 switch wire) usually ships 3-7 days
109 N/A Not available Call for price 1 (#18 switch wire) usually ships 3-7 days
110 N/A Not available Call for price 4 (Washer) usually ships 3-7 days
111 N/A Not available Call for price 3 (Cap nut) usually ships 3-7 days
N/S 170-3315 Motor pulley (OBSOLETE) $10.38 1 usually ships 1-5 days
N/S 170-5909 Carbon brush (OBSOLETE) $6.78 2 usually ships 1-5 days
N/S 182-0071 Fan $5.05 1 ships same day
N/S 272-9477 Pulley and fan kit (green) $12.00 1 (lifetime warranty) ships same day

Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-5856 Hood and graphics (OBSOLETE) $82.83 1 usually ships 1-5 days
002 170-5128 Screw 4mm x 10mm $7.70 2 usually ships 1-5 days
003 170-5857 Cable clip $7.25 1 usually ships 1-5 days
004 170-5008 Screw $8.80 6 usually ships 1-5 days
005 N/A Not available Call for price 4 (Washer 413/64 x 12 x 1) usually ships 3-7 days
006 170-5858 Motor assembly (OBSOLETE) $228.69 1 (Screw M3 x 12) usually ships 1-5 days
007 170-5859 Left motor exhaust (OBSOLETE) $7.37 1 usually ships 1-5 days
008 170-5860 Exhaust foam (OBSOLETE) $7.37 2 usually ships 1-5 days
009 170-5861 Power switch $16.50 1 usually ships 1-5 days
010 170-5862 Switch clip (OBSOLETE) $6.53 1 usually ships 1-5 days
011 N/A Not available Call for price 2 usually ships 3-7 days
012 170-5863 Strain relief bushing (OBSOLETE) $6.53 1 usually ships 1-5 days
013 170-5864 Bushing bracket (OBSOLETE) $7.01 1 usually ships 1-5 days
014 170-5865 Foot pedal (OBSOLETE) $18.26 1 usually ships 1-5 days
015 170-5866 Pedal return spring (OBSOLETE) $6.78 2 usually ships 1-5 days
016 170-5867 Bag knob (OBSOLETE) $7.01 1 usually ships 1-5 days
017 170-5008 Screw $8.80 4 usually ships 1-5 days
018 170-5868 Bag support (OBSOLETE) $7.37 1 usually ships 1-5 days
019a 170-5869 12 inch base assembly (OBSOLETE) $117.92 1 usually ships 1-5 days
019b 170-5870 16 inch base assembly (OBSOLETE) $136.62 1 usually ships 1-5 days
020 N/A Not available Call for price 2 (Nut M4) usually ships 3-7 days
021 170-5871 Rear axle (OBSOLETE) $7.60 1 usually ships 1-5 days
022 N/A Not available Call for price 3 (Washer 8 1/2 x 16 x 1) usually ships 3-7 days
023 N/A Not available Call for price 2 (Nut cap F- type) usually ships 3-7 days
024 170-5872 Rear wheel (OBSOLETE) $7.15 2 usually ships 1-5 days
025 170-5873 Wheel axle clamp (OBSOLETE) $7.01 4 usually ships 1-5 days
026 170-5874 Screw m4 x 15 $8.80 23 usually ships 1-5 days
027 170-5875 Right cam (OBSOLETE) $7.37 1 usually ships 1-5 days
028 170-5876 Left cam (OBSOLETE) $7.37 1 usually ships 1-5 days
029 N/A Not available Call for price 2 (Washer 4 7/64 x 8 x 1) usually ships 3-7 days
030 170-5877 Front axle spring (OBSOLETE) $7.01 1 usually ships 1-5 days
031 N/A Not available Call for price 5 (E-clip) usually ships 3-7 days
032 N/A Not available Call for price 1 (Front axle support rod) usually ships 3-7 days
033 170-5878 Front axle (OBSOLETE) $15.80 1 usually ships 1-5 days
034 170-5879 Front axle seat (OBSOLETE) $7.01 1 usually ships 1-5 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
036 170-5881 Front wheel (OBSOLETE) $7.01 2 usually ships 1-5 days
037 170-5882 Front axle support plate (OBSOLETE) $7.01 1 usually ships 1-5 days
038 170-5883 Front axle clamp (OBSOLETE) $5.50 1 usually ships 1-5 days
039 N/A Not available Call for price 2 (Screw M3 x 10) usually ships 3-7 days
040 991-0026 Brush roll belt rubber (black) $0.62 1 (NON-OEM) ships same day
041a 170-3316 Brush strip set 12inch $30.80 1 usually ships 1-5 days
041b 170-5884 16 inch bristle strip set (4 strips0 $33.00 1 usually ships 1-5 days
042a N/A Not available Call for price 1 (12 Inch brush roll) usually ships 3-7 days
042b N/A Not available Call for price 1 (16 Inch brush roll) usually ships 3-7 days
043a N/A Not available Call for price 1 (12 inch shaft) usually ships 3-7 days
043b 170-5886 16 inch shaft (OBSOLETE) $7.37 1 usually ships 1-5 days
044 N/A Not available Call for price 2 (Bearing support) usually ships 3-7 days
045 N/A Not available Call for price 2 (Cap cover) usually ships 3-7 days
046 N/A Not available Call for price 2 (End cap) usually ships 3-7 days
047 N/A Not available Call for price 2 (Felt washer) usually ships 3-7 days
048 N/A Not available Call for price 2 (Bearing) usually ships 3-7 days
049a 170-5892 12 inch bottom plate assembly $20.90 1 usually ships 1-5 days
049b 170-5893 16 inch bottom plate assembly (OBSOLETE) $70.09 1 usually ships 1-5 days
050a 170-5894 12 inch furniture guard (OBSOLETE) $7.37 1 usually ships 1-5 days
050b 170-5895 12 inch furniture guard (OBSOLETE) $7.01 1 usually ships 1-5 days
051 170-5896 Height adjustment cam (OBSOLETE) $7.37 1 usually ships 1-5 days
052 170-5897 Screw m3 x 6 (OBSOLETE) Call for price 2 usually ships 1-5 days
053 170-5898 Height adjustment cam clip (OBSOLETE) $5.50 1 usually ships 1-5 days
054 170-5899 Height adjustment cam seat (OBSOLETE) $8.32 1 usually ships 1-5 days
055 170-5900 Height adjustment gear (OBSOLETE) $7.37 1 usually ships 1-5 days
056 170-5901 Height adjustment spring (OBSOLETE) $5.50 1 usually ships 1-5 days
057 170-5902 Height adjustment axle (OBSOLETE) $5.50 1 usually ships 1-5 days
058 170-5903 Height adjustment crank gear (OBSOLETE) $7.37 1 usually ships 1-5 days
059 170-5904 Height adjustment crank axle (OBSOLETE) $5.50 1 usually ships 1-5 days
060 170-5905 Pedal support spring (OBSOLETE) $7.15 1 usually ships 1-5 days
061 170-5906 Height adjustment crank (OBSOLETE) $12.32 1 usually ships 1-5 days
062 170-5907 Right motor exhaust (OBSOLETE) $7.37 1 usually ships 1-5 days
063 170-5908 Height indicator (OBSOLETE) $7.01 1 usually ships 1-5 days
108 N/A Not available Call for price 1 (Switch wire 16) usually ships 3-7 days
109 N/A Not available Call for price 1 (Switch wire 18) usually ships 3-7 days
110 N/A Not available Call for price 4 (Washer 4 13/64 x 14 x 1) usually ships 3-7 days
111 N/A Not available Call for price 3 (Nut cap M4) usually ships 3-7 days
N/S 170-3315 Motor pulley (OBSOLETE) $10.38 1 usually ships 1-5 days
N/S 170-5909 Carbon brush (OBSOLETE) $6.78 2 usually ships 1-5 days
N/S 182-0071 Fan $5.05 1 ships same day
N/S 272-9477 Pulley and fan kit (green) $12.00 1 (lifetime warranty) ships same day

Collector Cup Assembly

#PartDescriptionPriceReqNotesAvailability
002 170-5128 Screw 4mm x 10mm $7.70 1 usually ships 1-5 days
026 170-5874 Screw m4 x 15 $8.80 23 usually ships 1-5 days
031 N/A Not available Call for price 5 E-clip usually ships 3-7 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
070 170-5910 Handle grip (OBSOLETE) $7.37 1 usually ships 1-5 days
071 170-5911 Upper handle assembly (OBSOLETE) $18.04 1 usually ships 1-5 days
072 170-5912 Bag hook (OBSOLETE) $7.37 1 usually ships 1-5 days
073 170-5913 Bag retainer $8.80 1 usually ships 1-5 days
074 170-5914 Upper cord retainer (OBSOLETE) $7.92 1 usually ships 1-5 days
075 N/A Not available Call for price 3 Screw usually ships 3-7 days
076 170-1176 Screw M6 x 12 (OBSOLETE) $0.99 1 usually ships 1-5 days
077 170-7186 Spacer $8.80 2 usually ships 1-5 days
078 170-5915 Handle nut (OBSOLETE) $7.37 2 usually ships 1-5 days
079 170-5916 Handle screw (OBSOLETE) $7.15 2 usually ships 1-5 days
080 170-5917 Lower handle assembly (OBSOLETE) $22.88 1 usually ships 1-5 days
081 170-5918 Lower cord retainer (OBSOLETE) $7.37 1 usually ships 1-5 days
082 N/A Not available Call for price 2 Screw usually ships 3-7 days
083 170-5919 Handle socket seat axle (OBSOLETE) $7.37 1 usually ships 1-5 days
084 N/A Not available Call for price 1 (Handle tube) usually ships 3-7 days
085 170-5921 Handle socket cam (OBSOLETE) $7.01 1 usually ships 1-5 days
086 170-3317 Power cord - Symphony $45.10 1 usually ships 1-5 days
087 N/A Not available Call for price 3 (Handle bushing) usually ships 3-7 days
088 170-5923 Handle socket seat (OBSOLETE) $7.37 1 usually ships 1-5 days
089 170-5924 Handle tube nut (OBSOLETE) $6.78 2 usually ships 1-5 days
090 170-5925 Handle socket cam clamp (OBSOLETE) $7.37 1 usually ships 1-5 days
091 170-5926 Bag spring $8.80 1 usually ships 1-5 days
092 170-5927 Chrome bag clip $12.10 1 usually ships 1-5 days
093 170-5929 Bag coupling gasket $8.80 1 usually ships 1-5 days
094 N/A Not available Call for price 1 (Bag coupling gasket assembly) usually ships 3-7 days
095 170-5928 Bag coupling $5.13 1 usually ships 1-5 days
097a 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
097b 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
097c 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
097d 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
098 170-5933 Upper hose seal (OBSOLETE) $7.01 1 usually ships 1-5 days
099 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
100 170-5934 Cup frame gasket $8.80 1 usually ships 1-5 days
101 170-3673 Dust collection cup (OBSOLETE) $43.00 1 usually ships 1-5 days
102 170-5935 Cup side clip (OBSOLETE) $7.92 2 usually ships 1-5 days
103 N/A Not available Call for price 4 Screw usually ships 3-7 days
104 170-5936 Exhaust hose (OBSOLETE) $5.50 1 usually ships 1-5 days
105 170-5937 Clamp (OBSOLETE) $6.78 1 usually ships 1-5 days
106 170-5311 Cable tie (OBSOLETE) $8.36 2 usually ships 1-5 days
107 N/A Not available Call for price 1 (Inlet curved hose) usually ships 3-7 days

Dust Cup Assembly

#PartDescriptionPriceReqNotesAvailability
002 170-5128 Screw 4mm x 10mm $7.70 1 usually ships 1-5 days
026 170-5874 Screw m4 x 15 $8.80 23 usually ships 1-5 days
031 N/A Not available Call for price 5 usually ships 3-7 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
070 170-5910 Handle grip (OBSOLETE) $7.37 1 usually ships 1-5 days
071 170-5911 Upper handle assembly (OBSOLETE) $18.04 1 usually ships 1-5 days
072 170-5912 Bag hook (OBSOLETE) $7.37 1 usually ships 1-5 days
073 170-5913 Bag retainer $8.80 1 usually ships 1-5 days
074 170-5914 Upper cord retainer (OBSOLETE) $7.92 1 usually ships 1-5 days
075 N/A Not available Call for price 3 usually ships 3-7 days
076 N/A Not available Call for price 1 (Upper cord retainer washer) usually ships 3-7 days
077 170-7186 Spacer $8.80 2 usually ships 1-5 days
078 170-5915 Handle nut (OBSOLETE) $7.37 2 usually ships 1-5 days
079 170-5916 Handle screw (OBSOLETE) $7.15 2 usually ships 1-5 days
080 170-5917 Lower handle assembly (OBSOLETE) $22.88 1 usually ships 1-5 days
081 170-5918 Lower cord retainer (OBSOLETE) $7.37 1 usually ships 1-5 days
082 N/A Not available Call for price 2 usually ships 3-7 days
083 170-5919 Handle socket seat axle (OBSOLETE) $7.37 1 usually ships 1-5 days
084 N/A Not available Call for price 1 (Handle tube) usually ships 3-7 days
085 170-5921 Handle socket cam (OBSOLETE) $7.01 1 usually ships 1-5 days
086 170-3317 Power cord - Symphony $45.10 1 usually ships 1-5 days
087 N/A Not available Call for price 3 (Handle bushing) usually ships 3-7 days
088 170-5923 Handle socket seat (OBSOLETE) $7.37 1 usually ships 1-5 days
089 170-5924 Handle tube nut (OBSOLETE) $6.78 2 usually ships 1-5 days
090 170-5925 Handle socket cam clamp (OBSOLETE) $7.37 1 usually ships 1-5 days
091 170-5926 Bag spring $8.80 1 usually ships 1-5 days
092 170-5927 Chrome bag clip $12.10 1 usually ships 1-5 days
094 N/A Not available Call for price 1 (Bag coupling gasket assembly) usually ships 3-7 days
095 170-5942 Bag coupling (OBSOLETE) $7.37 1 usually ships 1-5 days
096 170-5929 Bag coupling gasket $8.80 1 usually ships 1-5 days
097a 170-3671 Collector cup assembly $81.40 1 This part is no longer available separately. You must purchase this kit usually ships 1-5 days
097b 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
097c 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
097d 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
098 170-5933 Upper hose seal (OBSOLETE) $7.01 1 usually ships 1-5 days
099 170-3671 Collector cup assembly $81.40 1 This part is no longer available separately. You must purchase this kit usually ships 1-5 days
100 170-5934 Cup frame gasket $8.80 1 usually ships 1-5 days
101 170-3673 Dust collection cup (OBSOLETE) $43.00 1 usually ships 1-5 days
102 170-5935 Cup side clip (OBSOLETE) $7.92 2 usually ships 1-5 days
103 N/A Not available Call for price 4 usually ships 3-7 days
104 170-5936 Exhaust hose (OBSOLETE) $5.50 1 usually ships 1-5 days
105 170-5937 Clamp (OBSOLETE) $6.78 1 usually ships 1-5 days
106 170-5311 Cable tie (OBSOLETE) $8.36 2 usually ships 1-5 days
107 N/A Not available Call for price 1 (Inlet curved hose) usually ships 3-7 days

Handbag and Filter Bag Assembly

#PartDescriptionPriceReqNotesAvailability
026 170-5874 Screw m4 x 15 $8.80 23 usually ships 1-5 days
031 N/A Not available Call for price 5 E-clip usually ships 3-7 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
070 170-5910 Handle grip (OBSOLETE) $7.37 1 usually ships 1-5 days
071 170-5911 Upper handle assembly (OBSOLETE) $18.04 1 usually ships 1-5 days
072 170-5912 Bag hook (OBSOLETE) $7.37 1 usually ships 1-5 days
073 170-5913 Bag retainer $8.80 1 usually ships 1-5 days
074 170-5914 Upper cord retainer (OBSOLETE) $7.92 1 usually ships 1-5 days
075 N/A Not available Call for price 3 Screw usually ships 3-7 days
077 170-5940 Upper cord retainer spring $8.80 1 usually ships 1-5 days
078 170-5915 Handle nut (OBSOLETE) $7.37 2 usually ships 1-5 days
079 170-5916 Handle screw (OBSOLETE) $7.15 2 usually ships 1-5 days
080 170-5917 Lower handle assembly (OBSOLETE) $22.88 1 usually ships 1-5 days
081 170-5918 Lower cord retainer (OBSOLETE) $7.37 1 usually ships 1-5 days
082 N/A Not available Call for price 2 Screw usually ships 3-7 days
083 170-5919 Handle socket seat axle (OBSOLETE) $7.37 1 usually ships 1-5 days
084 N/A Not available Call for price 1 (Handle tube) usually ships 3-7 days
085 170-5921 Handle socket cam (OBSOLETE) $7.01 1 usually ships 1-5 days
086 170-3317 Power cord - Symphony $45.10 1 usually ships 1-5 days
087 N/A Not available Call for price 3 (Handle bushing) usually ships 3-7 days
088 170-5923 Handle socket seat (OBSOLETE) $7.37 1 usually ships 1-5 days
089 170-5924 Handle tube nut (OBSOLETE) $6.78 2 usually ships 1-5 days
090 170-5925 Handle socket cam clamp (OBSOLETE) $7.37 1 usually ships 1-5 days
091 170-5926 Bag spring $8.80 1 usually ships 1-5 days
092 170-5927 Chrome bag clip $12.10 1 usually ships 1-5 days
093 170-3671 Collector cup assembly $81.40 1 usually ships 1-5 days
094 N/A Not available Call for price 1 (Bag coupling gasket assembly) usually ships 3-7 days
095 170-5942 Bag coupling (OBSOLETE) $7.37 1 usually ships 1-5 days
096 170-5929 Bag coupling gasket $8.80 1 usually ships 1-5 days

Handbag and Filter Bag Assembly

#PartDescriptionPriceReqNotesAvailability
026 170-5874 Screw m4 x 15 $8.80 23 usually ships 1-5 days
031 N/A Not available Call for price 5 E-clip usually ships 3-7 days
035 170-5880 Screw m4 x 8 (OBSOLETE) $7.01 3 usually ships 1-5 days
070 170-5910 Handle grip (OBSOLETE) $7.37 1 usually ships 1-5 days
071 170-5911 Upper handle assembly (OBSOLETE) $18.04 1 usually ships 1-5 days
072 170-5912 Bag hook (OBSOLETE) $7.37 1 usually ships 1-5 days
073 170-5913 Bag retainer $8.80 1 usually ships 1-5 days
074 170-5914 Upper cord retainer (OBSOLETE) $7.92 1 usually ships 1-5 days
075 N/A Not available Call for price 3 Screw M4 x 25 usually ships 3-7 days
076 N/A Not available Call for price 1 (Upper cord retainer washer) usually ships 3-7 days
077 170-5940 Upper cord retainer spring $8.80 1 usually ships 1-5 days
078 170-5915 Handle nut (OBSOLETE) $7.37 2 usually ships 1-5 days
079 170-5916 Handle screw (OBSOLETE) $7.15 2 usually ships 1-5 days
080 170-5917 Lower handle assembly (OBSOLETE) $22.88 1 usually ships 1-5 days
081 170-5918 Lower cord retainer (OBSOLETE) $7.37 1 usually ships 1-5 days
082 N/A Not available Call for price 2 Screw M4 x 45 usually ships 3-7 days
083 170-5919 Handle socket seat axle (OBSOLETE) $7.37 1 usually ships 1-5 days
084 N/A Not available Call for price 1 (Handle tube) usually ships 3-7 days
085 170-5921 Handle socket cam (OBSOLETE) $7.01 1 usually ships 1-5 days
086 170-3317 Power cord - Symphony $45.10 1 usually ships 1-5 days
087 N/A Not available Call for price 3 (Handle bushing) usually ships 3-7 days
088 170-5923 Handle socket seat (OBSOLETE) $7.37 1 usually ships 1-5 days
089 170-5924 Handle tube nut (OBSOLETE) $6.78 2 usually ships 1-5 days
090 170-5925 Handle socket cam clamp (OBSOLETE) $7.37 1 usually ships 1-5 days
091 170-5926 Bag spring $8.80 1 usually ships 1-5 days
092 170-5927 Chrome bag clip $12.10 1 usually ships 1-5 days
093a 170-3671 Collector cup assembly $81.40 1 OEM usually ships 1-5 days
093b 991-9035 Cloth shake out bag w/liner (red) (S12 and S16) $13.79 1 (NON-OEM) ships same day
093c 991-9034 Paper F&G Micron vacuum bag (pkg of 3) $3.61 1 (NON-OEM) ships same day
094 N/A Not available Call for price 1 (Bag coupling gasket assembly) usually ships 3-7 days
095 170-5942 Bag coupling (OBSOLETE) $7.37 1 usually ships 1-5 days
096 170-5929 Bag coupling gasket $8.80 1 usually ships 1-5 days
