- Pad Holders

#PartDescription ReqNotesAvailability
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Pads

#PartDescription ReqNotesAvailability
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg 5) (OBSOLETE)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch super white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

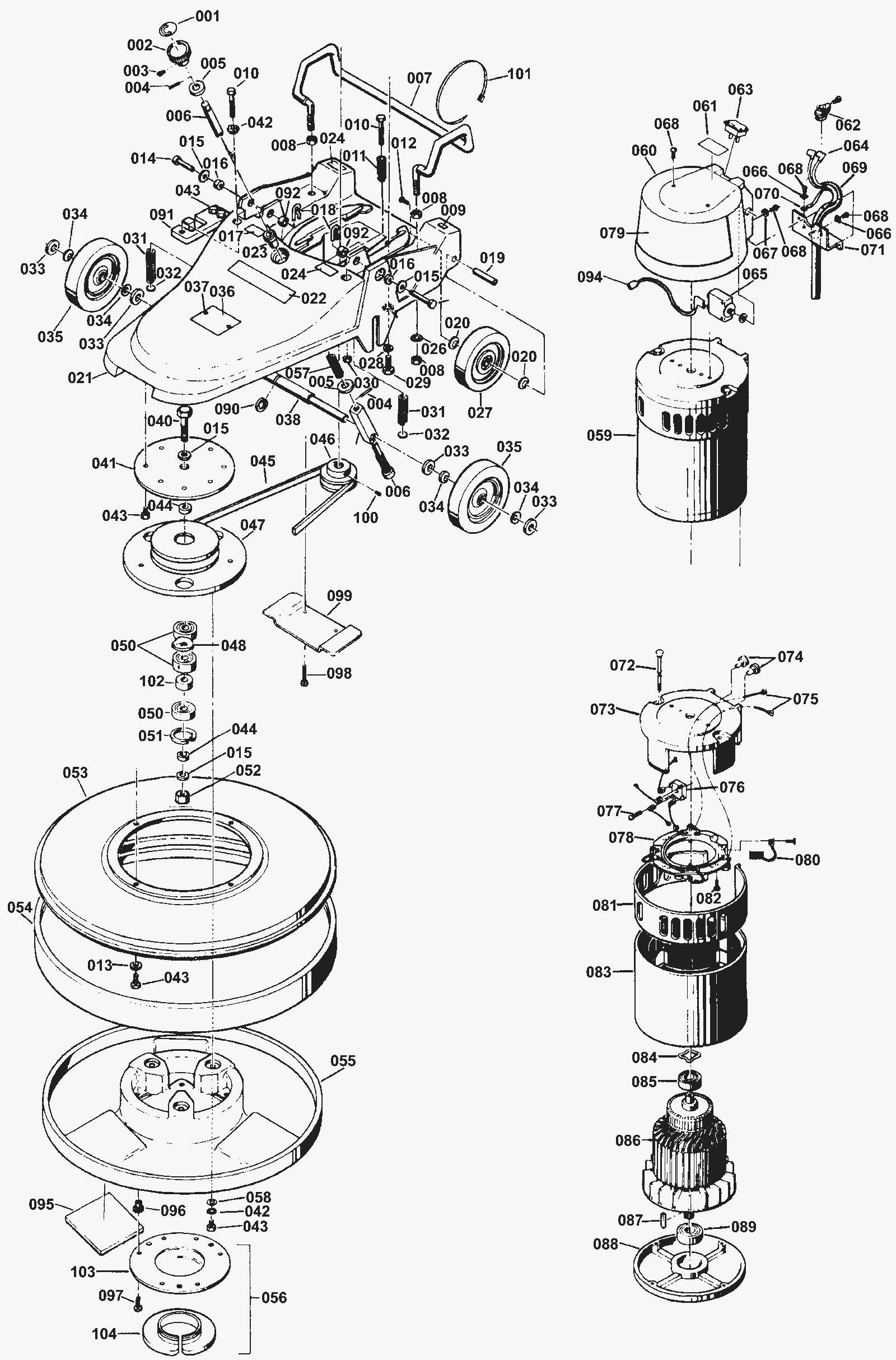

Frame Assembly

#PartDescription ReqNotesAvailability
001 170-5980 Pad leveling label (OBSOLETE) 1
002 170-3368 Knob (OBSOLETE) 1
003 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 1
004 170-5981 Roll pin 1/8 x 1 2
005 170-2414 Washer flat 2
006 170-5983 Adjustment shaft (OBSOLETE) 1
007 170-1600 Rod (OBSOLETE) 1
008 999-0247 Nut 3/8-16 hex jam plain finish 4
009 170-3503 Inspection label (OBSOLETE) 1
010 170-5985 Screw 1/4-20 x 2-1/4 hex (OBSOLETE) 2
011 170-5986 Spring (OBSOLETE) 1
012 170-5987 Screw 1/4-20 x 1-1/4 socket (OBSOLETE) 2
013 N/A Not available 1 (Manufacturer date decal)
014 170-0398 Connecting pin 2
015 170-0705 Washer 1/2 x 3/64 4
016 170-5988 Bushing (OBSOLETE) 2
017 170-2425 Caution label (OBSOLETE) 1 Spanish
018 997-2516 Cotter pin 2
019 170-2565 Rear wheel shaft (OBSOLETE) 2
020 170-5527 Washer 13/32 x 11/16 spring (OBSOLETE) 4
021 170-5989 Main frame (OBSOLETE) 1
022 170-5990 Burnisher label (OBSOLETE) 1
023 170-2550 Wheel adjustment bushing (OBSOLETE) 1
024 170-6133 Caution label 1
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
026 999-0201 Washer 3/8 internal star lock 2
027 170-3290 Transport wheel 4 inches (OBSOLETE) 2
028 999-0034 Washer 3/8 split lock plain finish 4
029 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 4
030 999-0190 Nut 1/4-20 hex plain finish 1
031 170-5993 Spring (OBSOLETE) 2
032 170-2551 Axle wear bushing (OBSOLETE) 2
033 170-3252 Motor washer 4
034 272-8202 Bowed washer 4
035 170-3289 Drive wheel (OBSOLETE) 2
036 170-5541 Fire warning plate (OBSOLETE) 1
037 170-0775 1/8 inch rivet pop aluminum 2
038 170-3458 Shaft (OBSOLETE) 1
039 170-5994 Shaft 1
040 170-3251 Screw sheave (OBSOLETE) 1
041 170-5995 Plate (OBSOLETE) 1
042 999-0017 Washer 1/4 external star lock 4
043 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 15
044 170-5997 Sheave spacer (OBSOLETE) 2
045 170-5998 Drive belt (OBSOLETE) 1
046 170-5999 Pulley (OBSOLETE) 1
047 170-6000 Sheave (OBSOLETE) 1
048 170-3292 Ball bearing (OBSOLETE) 1
049 170-1602 Spacer (OBSOLETE) 1
050 170-3292 Ball bearing (OBSOLETE) 1
051 170-0652 Retaining ring (OBSOLETE) 1
052 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
053 170-0684 20 inch Shield (OBSOLETE) 1
054 170-1253 20 inch bumper (OBSOLETE) 1
055 N/A Not available 1
057 170-0113 Spring (OBSOLETE) 2
058 999-0016 Washer 1/4 flat plain finish 7
059 170-2057 Motor 120v (OBSOLETE) 1
060 170-0750 Cover (OBSOLETE) 1
061 170-0771 Motor brushes label (OBSOLETE) 1
062 170-2564 Strain relief (OBSOLETE) 1
063 170-0785 Light assembly 120v (OBSOLETE) 1
064 170-3499 Terminal clip 2
065 170-0940 Circuit breaker 1
066 999-0311 Washer #10 external star lock zinc plated 3
067 999-0006 Washer 3/16 flat zinc plated 2
068 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 7
069 170-0956 Cord (OBSOLETE) 1
070 170-6014 Terminal clip 1
071 170-1178 Bracket 1
072 170-1249 Bolt (OBSOLETE) 2
073 170-1250 Bracket (OBSOLETE) 1
074 170-2574 Lead bushing (OBSOLETE) 2
075 N/A Not available 2 Rectifier assembly
076 163-0063 240V rectifier 1
077 170-0968 Mounting screw (OBSOLETE) 1
078 170-2579 Brush board assembly (OBSOLETE) 1
079 N/A Not available 1 Label
080 170-2342 Carbon brush (OBSOLETE) 4
081 N/A Not available 1 Brush band cover
082 170-1504 Screw 5
083 170-1251 Field assembly 120v (OBSOLETE) 1
084 170-0379 Wave washer 1
085 170-0321 Front end bearing 1
086 170-1252 Armature assembly 120v (OBSOLETE) 1
087 170-1256 Key 1
088 170-1257 Plate (OBSOLETE) 1
089 372-1890 Bearing (rear) 1
090 170-1359 Snap ring (OBSOLETE) 2
091 170-1261 Striker plate (OBSOLETE) 1
092 170-1276 Inside bushing (OBSOLETE) 2
094 170-1320 Breaker wire (OBSOLETE) 1
095 170-1412 Pad driver section (OBSOLETE) 3
096 170-1505 Nut well 6
097 170-4632 Screw 8 - 32 x 1/2 6
098 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
099 170-1587 Belt gaurd (OBSOLETE) 1
100 170-1588 Screw 5/16-18 x 3/8 set 1
101 170-1693 Wire tie 1
102 170-1603 Bearing spacer (OBSOLETE) 1
103 170-6258 Pad grab-base (OBSOLETE) 1
104 991-2209 Split retainer - pad holder ring (OBSOLETE) 1

Frame Assembly (Serial Number Baginning w/ ND 1732)

#PartDescription ReqNotesAvailability
001 170-5980 Pad leveling label (OBSOLETE) 1
002 170-3368 Knob (OBSOLETE) 1
003 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 1
004 170-5981 Roll pin 1/8 x 1 2
005 170-2414 Washer flat 7
006 170-5983 Adjustment shaft (OBSOLETE) 1
007 170-5984 Cord wrap rod (OBSOLETE) 1
008 999-0247 Nut 3/8-16 hex jam plain finish 4
009 N/A Not available 1 Inspection label
010 170-5985 Screw 1/4-20 x 2-1/4 hex (OBSOLETE) 5
011 170-5986 Spring (OBSOLETE) 1
012 170-5987 Screw 1/4-20 x 1-1/4 socket (OBSOLETE) 2
013 999-0016 Washer 1/4 flat plain finish 6
014 170-0398 Connecting pin 2
015 170-0705 Washer 1/2 x 3/64 4
016 170-5988 Bushing (OBSOLETE) 2
017 N/A Not available Not available
018 997-2516 Cotter pin 2
019 170-2565 Rear wheel shaft (OBSOLETE) 2
020 170-5527 Washer 13/32 x 11/16 spring (OBSOLETE) 4
021 170-5989 Main frame (OBSOLETE) 1
022 170-5990 Burnisher label (OBSOLETE) 1
023 170-2550 Wheel adjustment bushing (OBSOLETE) 1
024 N/A Not available 1 Caution label
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
026 999-0201 Washer 3/8 internal star lock 2
027 170-3290 Transport wheel 4 inches (OBSOLETE) 2
028 999-0034 Washer 3/8 split lock plain finish 4
029 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 4
030 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
031 170-5993 Spring (OBSOLETE) 2
032 170-2551 Axle wear bushing (OBSOLETE) 2
033 170-3252 Motor washer 4
034 272-8202 Bowed washer 4
035 170-3289 Drive wheel (OBSOLETE) 2
036 170-5541 Fire warning plate (OBSOLETE) 1
037 170-0775 1/8 inch rivet pop aluminum 2
038 170-3458 Shaft (OBSOLETE) 1
039 170-5994 Shaft 1
040 170-3251 Screw sheave (OBSOLETE) 1
041 170-5995 Plate (OBSOLETE) 1
042 999-0017 Washer 1/4 external star lock 1
043 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 19
044 170-5997 Sheave spacer (OBSOLETE) 2
045 170-5998 Drive belt (OBSOLETE) 1
046 170-5999 Pulley (OBSOLETE) 1
047 170-6000 Sheave (OBSOLETE) 1
048 170-0598 Bearing spacer 1
050 170-3292 Ball bearing (OBSOLETE) 3
051 170-0652 Retaining ring (OBSOLETE) 1
052 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
053 170-0684 20 inch Shield (OBSOLETE) 1
054 170-1253 20 inch bumper (OBSOLETE) 1
055 N/A Not available 1
057 170-0113 Spring (OBSOLETE) 2
058 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 3
059 170-2057 Motor 120v (OBSOLETE) 1
060 170-0750 Cover (OBSOLETE) 1
061 170-0771 Motor brushes label (OBSOLETE) 1
062 170-2564 Strain relief (OBSOLETE) 1
063 170-0785 Light assembly 120v (OBSOLETE) 1
064 170-3499 Terminal clip 2
065 170-0940 Circuit breaker 1
066 999-0311 Washer #10 external star lock zinc plated 3
067 999-0006 Washer 3/16 flat zinc plated 2
068 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 7
069 170-0956 Cord (OBSOLETE) 1
070 170-6014 Terminal clip 1
071 170-1178 Bracket 1
073 170-1250 Bracket (OBSOLETE) 1
074 170-2574 Lead bushing (OBSOLETE) 2
075 N/A Not available 2 Rectifier assembly
076 163-0063 240V rectifier 1
077 170-0968 Mounting screw (OBSOLETE) 1
078 170-2579 Brush board assembly (OBSOLETE) 1
079 170-9975 Clarke label (OBSOLETE) 1
080 170-2342 Carbon brush (OBSOLETE) 4
081 N/A Not available 1 Brush band cover
082 170-1504 Screw 5
083 170-1251 Field assembly 120v (OBSOLETE) 1
084 170-0379 Wave washer 1
085 170-0321 Front end bearing 1
086 170-1252 Armature assembly 120v (OBSOLETE) 1
087 170-1256 Key 1
088 170-1257 Plate (OBSOLETE) 1
089 372-1890 Bearing (rear) 1
090 170-1359 Snap ring (OBSOLETE) 2
091 170-1261 Striker plate (OBSOLETE) 1
092 170-1276 Inside bushing (OBSOLETE) 2
094 170-1320 Breaker wire (OBSOLETE) 1
095 170-1412 Pad driver section (OBSOLETE) 3
096 170-1505 Nut well 6
097 170-4632 Screw 8 - 32 x 1/2 6
098 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
099 170-1587 Belt gaurd (OBSOLETE) 1
100 170-1588 Screw 5/16-18 x 3/8 set 1
101 170-1693 Wire tie 1
102 170-1596 Bearing spacer (OBSOLETE) 1
104 991-2209 Split retainer - pad holder ring (OBSOLETE) 1

Frame Assembly (Serial Number Beginning w/ MB 1734)

#PartDescription ReqNotesAvailability
001 170-5980 Pad leveling label (OBSOLETE) 1
002 170-3368 Knob (OBSOLETE) 1
003 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 1
004 170-5981 Roll pin 1/8 x 1 2
005 170-2414 Washer flat 7
006 170-5983 Adjustment shaft (OBSOLETE) 1
007 170-5984 Cord wrap rod (OBSOLETE) 1
008 999-0247 Nut 3/8-16 hex jam plain finish 4
009 N/A Not available 1 Inspection label
010 170-5985 Screw 1/4-20 x 2-1/4 hex (OBSOLETE) 5
011 170-5986 Spring (OBSOLETE) 1
012 170-5987 Screw 1/4-20 x 1-1/4 socket (OBSOLETE) 2
014 170-0398 Connecting pin 2
015 170-0705 Washer 1/2 x 3/64 4
016 170-5988 Bushing (OBSOLETE) 2
017 N/A Not available Not available
018 997-2516 Cotter pin 2
019 170-2565 Rear wheel shaft (OBSOLETE) 2
020 170-5527 Washer 13/32 x 11/16 spring (OBSOLETE) 4
021 170-5989 Main frame (OBSOLETE) 1
022 170-5990 Burnisher label (OBSOLETE) 1
023 170-2550 Wheel adjustment bushing (OBSOLETE) 1
024 N/A Not available 1 Caution label
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
026 999-0201 Washer 3/8 internal star lock 2
027 170-3290 Transport wheel 4 inches (OBSOLETE) 2
028 999-0034 Washer 3/8 split lock plain finish 4
029 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 4
030 999-0190 Nut 1/4-20 hex plain finish 1
031 170-5993 Spring (OBSOLETE) 2
032 170-2551 Axle wear bushing (OBSOLETE) 2
033 170-3252 Motor washer 4
034 272-8202 Bowed washer 4
035 170-3289 Drive wheel (OBSOLETE) 2
036 170-5541 Fire warning plate (OBSOLETE) 1
037 170-0775 1/8 inch rivet pop aluminum 2
038 170-3458 Shaft (OBSOLETE) 1
039 170-5994 Shaft 1
040 170-3251 Screw sheave (OBSOLETE) 1
041 170-5995 Plate (OBSOLETE) 1
042 999-0017 Washer 1/4 external star lock 6
043 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 17
044 170-5997 Sheave spacer (OBSOLETE) 2
045 170-5998 Drive belt (OBSOLETE) 1
046 170-5999 Pulley (OBSOLETE) 1
047 170-6000 Sheave (OBSOLETE) 1
048 170-0598 Bearing spacer 1
050 170-3292 Ball bearing (OBSOLETE) 3
051 170-0652 Retaining ring (OBSOLETE) 1
052 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
053 170-0684 20 inch Shield (OBSOLETE) 1
054 170-1253 20 inch bumper (OBSOLETE) 1
055 N/A Not available 1
057 170-0113 Spring (OBSOLETE) 2
058 999-0016 Washer 1/4 flat plain finish 6
059 170-2057 Motor 120v (OBSOLETE) 1
060 170-0750 Cover (OBSOLETE) 1
061 170-0771 Motor brushes label (OBSOLETE) 1
062 170-2564 Strain relief (OBSOLETE) 1
063 170-0785 Light assembly 120v (OBSOLETE) 1
064 170-3499 Terminal clip 2
065 170-0940 Circuit breaker 1
066 999-0311 Washer #10 external star lock zinc plated 3
067 999-0006 Washer 3/16 flat zinc plated 2
068 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 7
069 170-0956 Cord (OBSOLETE) 1
070 170-6014 Terminal clip 1
071 170-1178 Bracket 1
072 170-1249 Bolt (OBSOLETE) 2
073 170-1250 Bracket (OBSOLETE) 1
074 170-2574 Lead bushing (OBSOLETE) 2
075 N/A Not available 2 Rectifier assembly
076 163-0063 240V rectifier 1
077 170-0968 Mounting screw (OBSOLETE) 1
078 170-2579 Brush board assembly (OBSOLETE) 1
079 170-9975 Clarke label (OBSOLETE) 1
080 170-2342 Carbon brush (OBSOLETE) 4
081 N/A Not available 1 Brush band cover
082 170-1504 Screw 5
083 170-1251 Field assembly 120v (OBSOLETE) 1
084 170-0379 Wave washer 1
085 170-0321 Front end bearing 1
086 170-1252 Armature assembly 120v (OBSOLETE) 1
087 170-1256 Key 1
088 170-1257 Plate (OBSOLETE) 1
089 372-1890 Bearing (rear) 1
090 170-1359 Snap ring (OBSOLETE) 2
091 170-1261 Striker plate (OBSOLETE) 1
092 170-1276 Inside bushing (OBSOLETE) 2
094 170-1320 Breaker wire (OBSOLETE) 1
095 170-1412 Pad driver section (OBSOLETE) 3
096 170-1505 Nut well 6
097 170-4632 Screw 8 - 32 x 1/2 6
098 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
099 170-1587 Belt gaurd (OBSOLETE) 1
100 170-1588 Screw 5/16-18 x 3/8 set 1
101 170-1693 Wire tie 1
102 170-1596 Bearing spacer (OBSOLETE) 1
103 170-6258 Pad grab-base (OBSOLETE) 1
104 991-2209 Split retainer - pad holder ring (OBSOLETE) 1

Handle Assembly

#PartDescription ReqNotesAvailability
001 170-5963 Cover 1
002 170-2619 Tube 1
003 170-3311 Power cord 1
004 170-2563 Strain relief extension cord (OBSOLETE) 1
005 170-6014 Terminal clip 2
006 170-5964 Terminal clip (OBSOLETE) 2
007 170-5965 Spring (OBSOLETE) 1
008 170-5564 Switch adaptor 1
009 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 4
010 170-5561 Switch lever spring 1
011 170-5563 Stop 1
012 170-5562 Bracket (OBSOLETE) 1
013 N/A Not available 1 Switch
014 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 2
015 170-2552 Base cord clamp (OBSOLETE) 1
016 170-5967 Cord clamp (OBSOLETE) 1
017 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 2
018 170-4632 Screw 8 - 32 x 1/2 2
019 170-2559 Nylon lever switch (OBSOLETE) 2
020 170-2603 Pivot pin (OBSOLETE) 2
021 170-5970 Pin 5/32 x 1/2 groove type b (OBSOLETE) 1
023 170-5945 Switch plate (OBSOLETE) 1
024 170-5972 Screw 0-00 x 3/16 round head drive 4
026 170-5946 Yoke release lever (OBSOLETE) 1
027 170-5974 Pin 3/16 x 5/8 (OBSOLETE) 1
028 170-5948 Clevis pin 1/4 (OBSOLETE) 1
029 170-3355 Cotter pin 1/16x5/8 1
030 170-5947 Latch rod yoke (OBSOLETE) 1
031 170-5954 Nut 1/4-28 hex (OBSOLETE) 1
032 170-5975 Rod (OBSOLETE) 1
033 170-5949 Interconnecting cord (OBSOLETE) 1
034 170-3499 Terminal clip 2
035 170-3976 Upper filter 1
036 170-2568 Tube-handle (OBSOLETE) 1
037 170-3556 Screw 5/16-1/2 (OBSOLETE) 3
039 170-5952 Handle yoke (OBSOLETE) 1
040 170-3488 Wire clamp (OBSOLETE) 2
041 170-1276 Inside bushing (OBSOLETE)
042 170-5978 Bracket (OBSOLETE) 1
043 999-0460 Nut 10-32 hex 2
044 170-5988 Bushing (OBSOLETE)
045 170-0705 Washer 1/2 x 3/64
046 170-0398 Connecting pin
047 997-2516 Cotter pin
048 170-5574 Interlock label 1
049 170-5962 Retainer ring (OBSOLETE) 1
050 170-5958 Rod return spring (OBSOLETE) 1
052 170-5953 Latch boss rod (OBSOLETE) 1
053 999-0311 Washer #10 external star lock zinc plated 4
054 170-3414 Screw 13-16 x 3/4 pan head stainless steel hi-lo 9
055 170-0079 Release pin 1
056 999-0017 Washer 1/4 external star lock 1
057 170-5957 Varistor assembly (OBSOLETE) 1
058 170-8007 Nylon wire tie 1

Handle Assembly (Beginning w/ Serial Number JG0000)

#PartDescription ReqNotesAvailability
001 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 5
002 170-4621 Switch housing cover (OBSOLETE) 1
003 170-6003 Switch adapter kit 1
004 N/A Not available 1 Switch
005 170-1227 Interlock switch (OBSOLETE) 1
006 170-1229 Bracket 1
007 170-0148 Clamp weldment 2
008 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
009 170-1232 Pin 3/16 x 1 inch (OBSOLETE) 2
010 170-1233 Lever 2
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
012 999-0006 Washer 3/16 flat zinc plated 2
013 170-1234 Spacer (OBSOLETE) 1
014 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
016 170-0532 Handle grip (OBSOLETE) 2
018 170-5574 Interlock label 1
019 170-5945 Switch plate (OBSOLETE) 1
020 170-5681 Terminal clip 2
021 170-5946 Yoke release lever (OBSOLETE) 1
022 170-5947 Latch rod yoke (OBSOLETE) 1
025 999-0092 Washer #8 internal star lock zinc plated 2
026 170-6014 Terminal clip 2
027 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 2
028 170-3499 Terminal clip 2
029 170-5951 Handle tube (OBSOLETE) 1
030 170-5952 Handle yoke (OBSOLETE) 1
031 170-3488 Wire clamp (OBSOLETE) 2
032 999-0460 Nut 10-32 hex 2
033 999-0028 Washer 5/16 split lock plain finish 3
034 170-3556 Screw 5/16-1/2 (OBSOLETE) 3
035 170-0705 Washer 1/2 x 3/64 2
036 170-0398 Connecting pin 2
037 170-5988 Bushing (OBSOLETE) 2
038 170-1276 Inside bushing (OBSOLETE) 2
039 997-2516 Cotter pin 2
040 170-5953 Latch boss rod (OBSOLETE) 1
041 999-0017 Washer 1/4 external star lock 1
042 170-5954 Nut 1/4-28 hex (OBSOLETE) 1
043 170-5955 Handle latch rod (OBSOLETE) 1
044 170-3355 Cotter pin 1/16x5/8 1
045 999-0016 Washer 1/4 flat plain finish 2
046 170-5958 Rod return spring (OBSOLETE) 1
047 170-5963 Cover 1
048 999-0311 Washer #10 external star lock zinc plated 2
049 170-3659 Cord assembly, 75 ft. (OBSOLETE) 1
050 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
051 170-5561 Switch lever spring 1
052 170-5957 Varistor assembly (OBSOLETE) 1

Handle Assembly (Beginning w/ Serial Number MD1732)

#PartDescription ReqNotesAvailability
001 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 5
002 170-4621 Switch housing cover (OBSOLETE) 1
003 170-6003 Switch adapter kit 1
004 N/A Not available 1 Switch
005 170-1227 Interlock switch (OBSOLETE) 1
006 170-1229 Bracket 1
007 999-0148 Washer #6 external star lock zinc plated 2
008 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
009 170-1232 Pin 3/16 x 1 inch (OBSOLETE) 2
010 170-1233 Lever 2
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
012 999-0006 Washer 3/16 flat zinc plated 2
013 170-1234 Spacer (OBSOLETE) 1
014 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
015 170-5944 Front half housing switch (OBSOLETE) 1
016 170-0532 Handle grip (OBSOLETE) 2
018 170-5574 Interlock label 1
019 170-5945 Switch plate (OBSOLETE) 1
020 170-5681 Terminal clip 2
021 170-5946 Yoke release lever (OBSOLETE) 1
022 170-5947 Latch rod yoke (OBSOLETE) 1
023 170-5948 Clevis pin 1/4 (OBSOLETE) 1
024 170-5949 Interconnecting cord (OBSOLETE) 1
025 999-0092 Washer #8 internal star lock zinc plated 2
026 170-6014 Terminal clip 2
028 170-3499 Terminal clip 2
029 170-5951 Handle tube (OBSOLETE) 1
030 170-5952 Handle yoke (OBSOLETE) 1
031a 170-3488 Wire clamp (OBSOLETE) 2
031b 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 2
031c 999-0460 Nut 10-32 hex 2
031d 999-0311 Washer #10 external star lock zinc plated 2
033 999-0028 Washer 5/16 split lock plain finish 3
034 170-3556 Screw 5/16-1/2 (OBSOLETE) 3
040 170-5953 Latch boss rod (OBSOLETE) 1
041 999-0017 Washer 1/4 external star lock 1
042 170-5954 Nut 1/4-28 hex (OBSOLETE) 1
043 170-5955 Handle latch rod (OBSOLETE) 1
044 170-3355 Cotter pin 1/16x5/8 1
045 999-0016 Washer 1/4 flat plain finish 2
046 170-5958 Rod return spring (OBSOLETE) 1
047 170-5956 Retainer ring 1
049 170-3659 Cord assembly, 75 ft. (OBSOLETE) 1
050 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
051 170-1228 Interlock spring (OBSOLETE) 1
052 170-5957 Varistor assembly (OBSOLETE) 1
053 170-1266 Switch adapter 1
054 999-0985 Washer #4 SAE flat 2
055 170-1264 Switch adapter spring 1
056 170-1263 Nylon bushing 1
