Manifold Assembly

#PartDescription ReqNotesAvailability
052 N/A Not available 1 Seat available in kit 208-0096
054 N/A Not available 1 Spherical valve available in kit 208-0096
060 208-0095 Spring plate 1
065 N/A Not available 3 O-ring available in kit 208-0096
068 N/A Not available 1 O-ring available in kit 208-0096
073 208-0101 Screw M8 set 1
091 N/A Not available 1 O-ring available in kit 208-0107
092a 208-0108 Injector 1
092b 208-0109 Fixed injector 1
093 N/A Not available 1 O-ring available in kit 208-0107
095 N/A Not available 1 Conical spring available in kit 208-0107
097 N/A Not available 1 Spring available in kit 208-0107
098 208-0110 O-ring 1
100 208-0112 Knob 1
101 208-0113 O-ring 2 Available in kit 208-0107
102 208-0114 Hose barb 1
121b 208-0117 2.2mm Nozzle 1
123 208-0119 O-ring 1 Available in kit 208-0107
124 208-0120 M14-1.5 Injector plug 1 Available in kit 208-0107

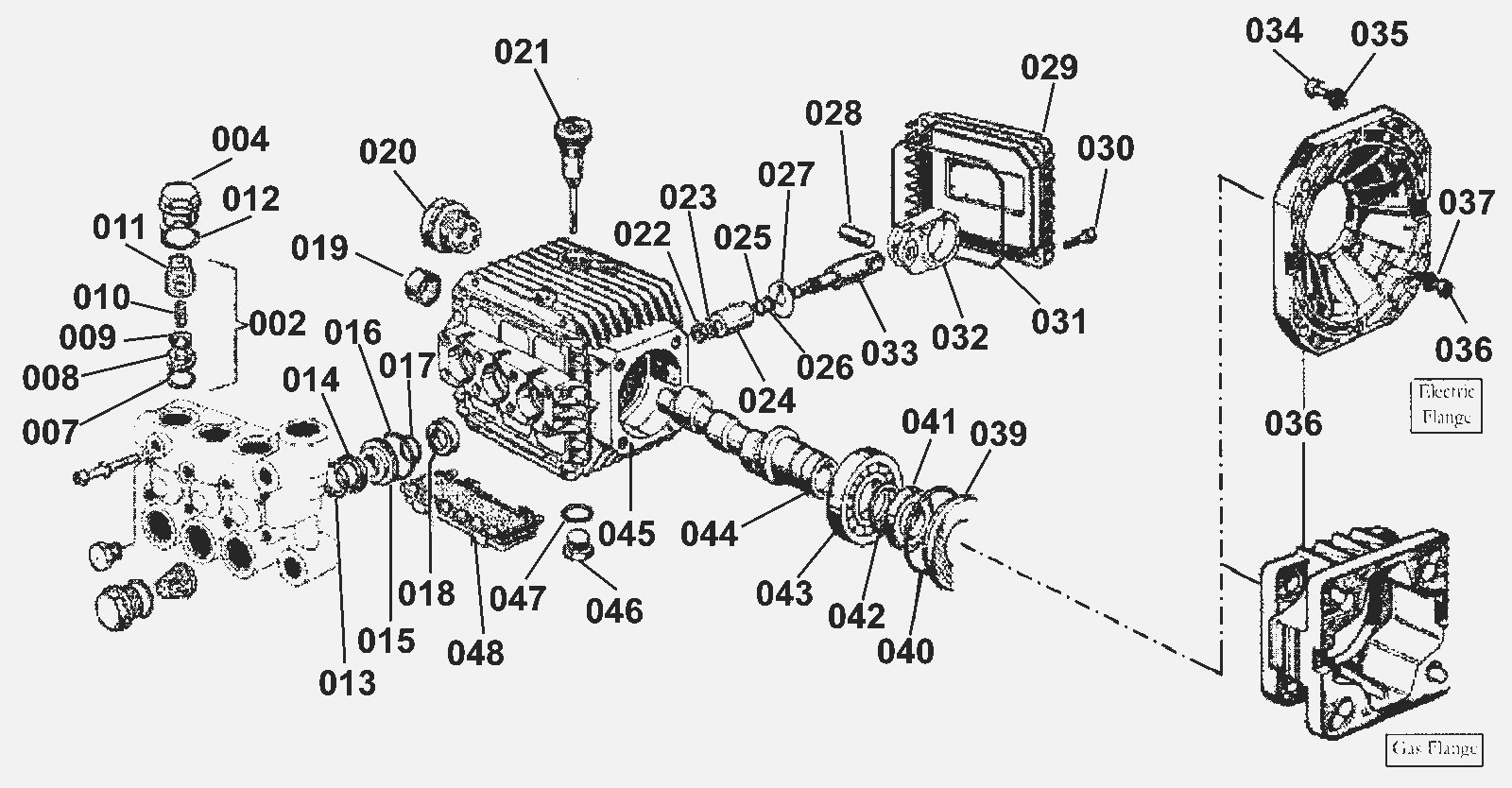

Pump Assembly

#PartDescription ReqNotesAvailability
004 208-0073 Valve plug 6
008 N/A Not available 6 Valve seat available in kit 208-0088
009 N/A Not available 6 Valve poppet available in kit 208-0088
010 N/A Not available 6 Valve spring available in kit 208-0088
015 208-0077 15mm Retainer 3
017 N/A Not available 3 LP Seal available in kit 208-0097
019 N/A Not available 1 Needle bearing
020 208-0078 Sight glass 1
022 208-0080 Nut 3
023 208-0081 Copper washer 3
024 208-0082 15mm Plunger 3
026 208-0084 Anti-ext ring 3
027 208-0085 Flinger washer 3
028 N/A Not available 3
029 208-0086 Back cover 1
030 208-0087 Screw 4
031 N/A Not available 1 O-ring available in kit 208-0089
033 N/A Not available 3 Piston guide
035 N/A Not available 4 Washer
037 208-0074 Washer 4
038a 208-0092 Gas flange 1
040 N/A Not available 1 O-ring avalable in kit 208-0089
041 N/A Not available 1 Seal avalable in kit 208-0089
042 N/A Not available 1 Clip
043 N/A Not available 1 Bearing
045 N/A Not available 1 Crankcase
046 208-0090 Plug 3
047 208-0091 O-ring 1 Avalable in kit 208-0089
