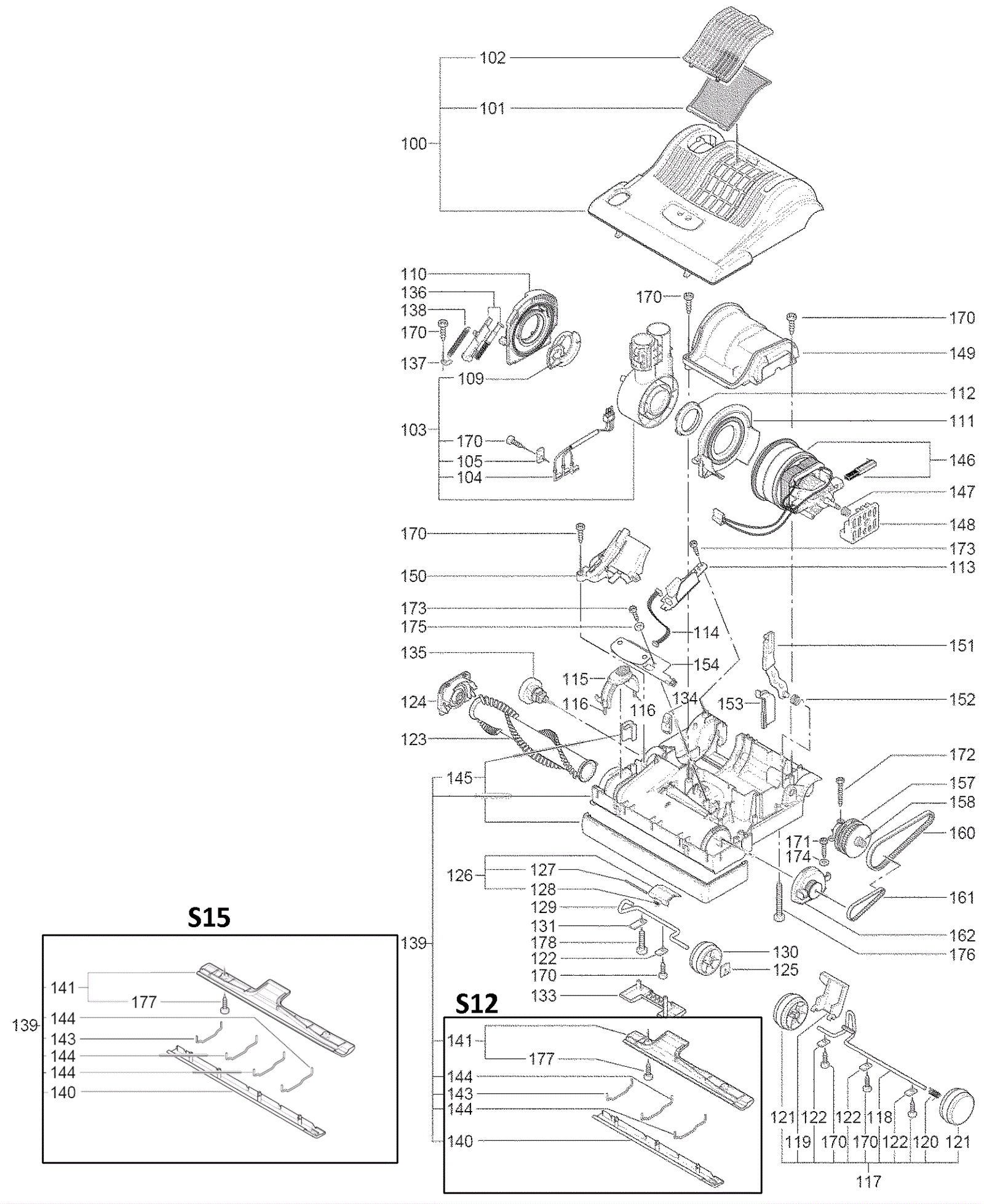

SENSOR S12 1.012-615.0 Power Head Assembly

#PartDescriptionPriceReqNotesAvailability
100a 273-3591 S12 power head cover (gray) $66.51 1 (S12) (includes 101-102) ships same day
100b 273-9553 Power head cover (basalt gray) $76.51 1 (S15) (includes 101-102) usually ships 14-22 days
101a 173-8452 Exhaust filter $10.89 1 ships same day
101b 991-9010 Exhaust filter (Sensor S) $2.31 1 (NON-OEM) ships same day
102 173-7614 Exhaust filter cover (Basalt gray) $41.90 1 ships same day
103 273-9554 Swivel neck assembly (gray/zinc yellow) $57.90 1 (includes 104-105, 109 and 170) usually ships 14-22 days
104 173-5242 Male contact holder $31.66 1 usually ships 14-22 days
105 173-2391 Cable clamp $4.30 1 usually ships 1-5 days
109 273-9555 Washer $2.84 1 usually ships 14-22 days
110 173-5246 Right side swivel neck support $52.73 1 usually ships 14-22 days
111 173-5247 Left side swivel neck support $30.95 1 usually ships 14-22 days
112 173-5248 Left side swivel neck bearing $11.59 1 usually ships 14-22 days
113 173-8465 PCB power supply $151.83 1 ships same day
114 173-5249 Internal cable $18.48 1 usually ships 14-22 days
115 173-7616 Brush roller release (Gray) $20.13 1 usually ships 14-22 days
116 173-2398 Spring $3.67 2 ships same day
117 173-7617 Axle assembly (zinc yellow) $105.35 1 (includes 118-122 and 170) usually ships 14-22 days
118 173-2401 Axle $48.49 1 usually ships 14-22 days
119 273-3582 Foot pedal (yellow) $21.78 1 ships same day
120 173-0009 Axle spring $5.50 1 ships same day
121 273-3565 Wheel (black) $52.73 2 ships same day
122 273-3565 Wheel (black) $52.73 4 ships same day
123a 173-2403 12 inch brush roller $35.19 1 (S12) ships same day
123b 173-8478 15 inch brush roll $82.39 1 (S15) ships same day
123c 991-2407 15 inch brush roll (blue bristles) $54.39 1 (NON-OEM) ships same day
123d 991-2406 12 inch brush roll $20.75 1 (NON-OEM) ships same day
124 273-4040 Right hand bearing block (black/basalt gray) $35.19 1 ships same day
125 273-1188 Rubbing plate (black) $13.18 1 usually ships 14-22 days
126 273-7613 Access panel $15.30 1 (includes 127-128) ships same day
127 173-2407 Access door axle $1.47 1 ships same day
128 173-2408 Access door spring $6.01 1 ships same day
129 173-5256 Pile adjustment axle $33.31 1 usually ships 14-22 days
130 173-7619 Pile adjustment knob (black) $50.14 1 ships same day
131 173-5257 Axle clamp $8.54 1 usually ships 14-22 days
133 173-7620 Cover (black) $24.24 1 usually ships 14-22 days
134 173-5260 Thrust member $32.60 1 usually ships 1-5 days
135 173-7621 Pile adjustment knob (zinc yellow) $9.08 1 usually ships 14-22 days
136 173-5262 Thrust member $41.07 1 usually ships 14-22 days
137 173-5263 Clamp $8.54 1 usually ships 1-5 days
138 273-8622 Spring $9.43 1 ships same day
139a 173-7622 Chassis assembly (black) $209.51 1 (S12) (includes 122, 126-129, 131, 140-145, 170, 177, 178) usually ships 14-22 days
139b 273-9556 Chassis (black) $107.11 1 (S15) (includes 122, 126-129, 131, 140-145, 170, 177, 178) usually ships 14-22 days
140a 273-8566 Front bottom plate $37.66 1 (S12) ships same day
140b 273-9557 Front bottom plate (gray black) $14.83 1 (S15) usually ships 14-22 days
141a 173-7623 Rear bottom plate (gray black) $30.13 1 (S12) (includes 177) usually ships 14-22 days
141b 273-9558 Rear bottom plate $10.65 1 (S15) (includes 177) usually ships 14-22 days
143 173-5269 Wire tie $7.66 1 usually ships 14-22 days
144 173-5270 Wire tie $7.66 3 (S12 needs qty 2) (S15 needs qty 3) usually ships 14-22 days
145a 173-7624 Bumper (black) $47.43 1 (S12) usually ships 14-22 days
145b 273-9559 Bumper $48.61 1 (S15) usually ships 14-22 days
146a 173-4726 Carbon brush (pkg of 2) $69.44 1 (includes 146b and 146c) usually ships 14-22 days
146b 173-5271 120V vacuum motor $350.75 1 ships same day
146c 273-0931 Thermo switch $72.97 1 usually ships 14-22 days
147 173-0052 Terminal block (3 wire) $46.85 1 usually ships 14-22 days
148 173-2415 Rubber mount $25.89 1 usually ships 14-22 days
149 173-5273 Motor cover $25.19 1 ships same day
150 173-5274 Air channel cover $32.60 1 usually ships 14-22 days
151 273-9560 Support lever $9.01 1 usually ships 14-22 days
152 173-2418 Support spring $4.17 1 ships same day
153 173-2419 Motor pulley cover $14.12 1 usually ships 14-22 days
154 273-9561 Computer controller $61.20 1 usually ships 14-22 days
157a 173-5277 Sensor X4 $151.83 1 (S12) usually ships 14-22 days
157b 173-8557 Sensor with red ring $148.30 1 (S15) ships same day
158 173-2416 Motor pulley $23.77 1 usually ships 14-22 days
160 173-8443 Belt $35.90 1 ships same day
161 173-2424 Belt $31.90 1 ships same day
162 173-2425 Left side bearing block $63.56 1 ships same day
170 173-0007 Screw M3-.5 x 13mm $2.05 8 ships same day
171 173-0135 Screw M3-.5 x 16mm $0.99 1 ships same day
172 173-2464 Screw 3.9 x 25mm $1.20 1 ships same day
173 273-3743 SCREW C 2.9 X 13 $5.50 2 usually ships 14-22 days
174 999-0985 Washer #4 SAE flat $0.99 1 ships same day
175 173-2463 Washer 3.2mm $0.99 1 usually ships 1-5 days
176 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated $1.91 1 ships same day
177 273-0939 Screw M4-.7 x 12mm with washer $3.39 2 ships same day
178 173-5258 Screw M4-.7 x 16mm $3.87 1 usually ships 14-22 days
