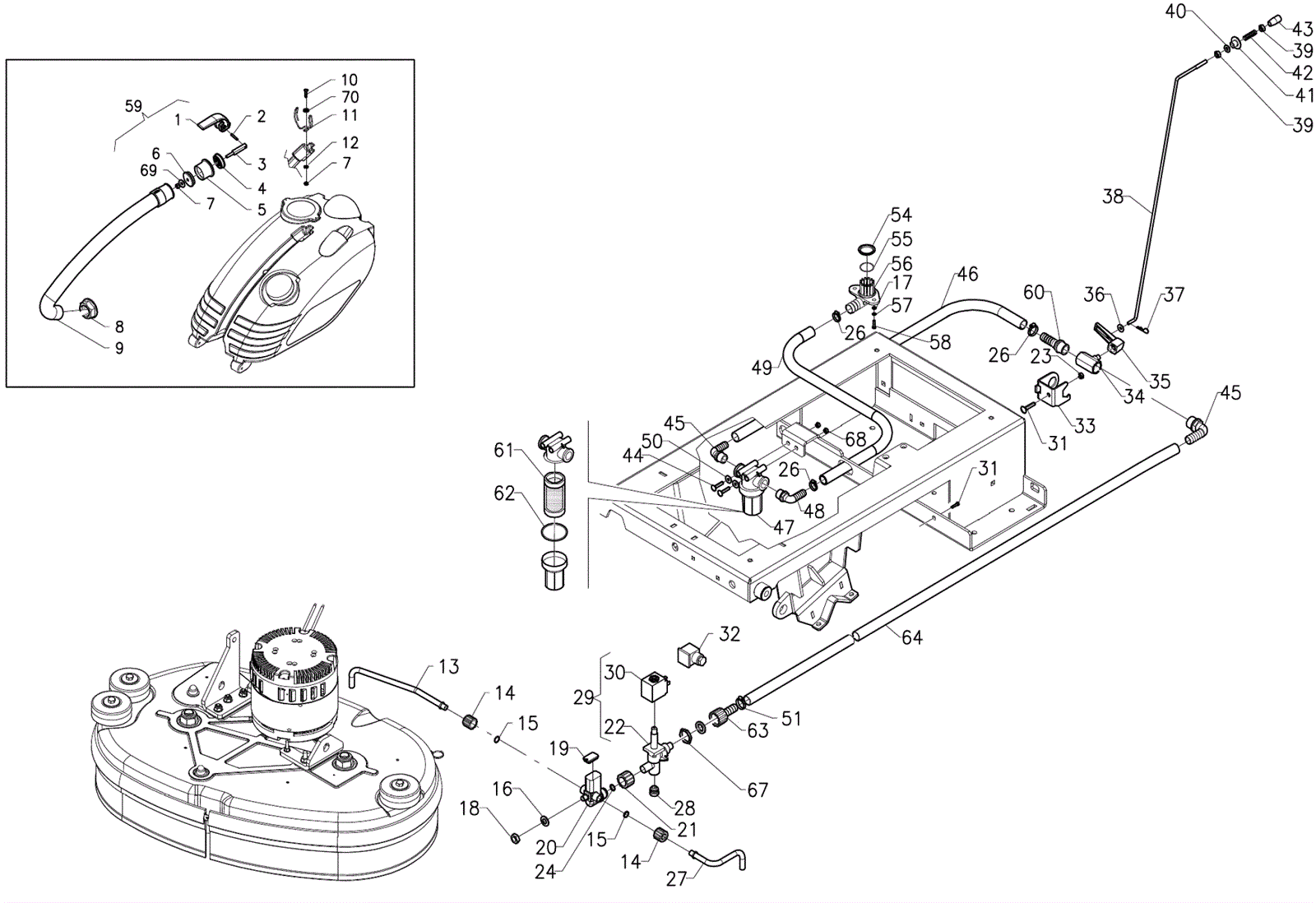

BD 26/26 Water Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8223 Drain plug lever $6.21 1 usually ships 9-20 days
2 183-2509 Parallel pin inox $1.35 1 usually ships 9-20 days
3 183-8218 Rod $13.03 1 usually ships 9-20 days
4 183-8220 Drain plug cover $2.37 1 usually ships 9-20 days
5 183-8222 Plug $5.00 1 usually ships 9-20 days
6 183-8221 Drain plug $2.52 1 usually ships 9-20 days
7 183-8229 Nut INOX $1.23 1 usually ships 9-20 days
8 183-9239 Drain hose ring nut $13.02 1 usually ships 9-20 days
9 183-9406 Drain hose M38.2 x 950mm $48.41 1 usually ships 9-20 days
10 183-8227 Screw M6 x 25 $1.23 1 usually ships 9-20 days
11 183-8226 Spring $6.86 1 usually ships 9-20 days
12 183-8228 Washer $1.23 1 usually ships 9-20 days
13 183-9947 Right hand water pipe $44.04 1 usually ships 9-20 days
14 183-9948 Ring nut $4.70 2 usually ships 9-20 days
15 183-9949 O-ring $1.23 2 usually ships 9-20 days
16 183-8264 Washer INOX $1.23 1 usually ships 9-20 days
17 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
18a 183-9198 Nut INOX $1.23 1 (after SN 10002471) usually ships 9-20 days
18b 183-8241 Clamp $5.55 1 (before SN 10002472) usually ships 9-20 days
19a 183-7656 Cover $1.48 1 (after SN 10002471) usually ships 9-20 days
19b 183-9257 Cover $2.43 1 (before SN 10002472) usually ships 9-20 days
20 183-9256 Distributor $10.75 1 usually ships 9-20 days
21 183-2520 Ring nut $5.00 1 usually ships 9-20 days
22 183-2522 Solenod valve body $80.22 1 usually ships 9-20 days
23 183-8256 Nut $1.23 1 usually ships 9-20 days
24 183-9255 O-ring $1.23 1 usually ships 9-20 days
26 183-2518 Hose clamp $5.70 3 usually ships 9-20 days
27 183-9950 Left hand water pipe $42.92 1 usually ships 9-20 days
28 183-2270 Cap $1.23 1 usually ships 9-20 days
29 183-2517 Solenoid valve assembly $130.02 1 usually ships 9-20 days
30 183-8230 Solenoid valve coil $50.84 1 usually ships 9-20 days
31 183-3162 Screw M6 x 20mm $1.23 1 usually ships 9-20 days
32 183-8198 Square connector $6.03 1 usually ships 9-20 days
33 183-9409 Solution valve support $10.40 1 usually ships 9-20 days
34 183-2524 1/2 inch solution valve body $29.50 1 usually ships 9-20 days
35 183-2154 Solution valve lever $5.37 1 usually ships 9-20 days
36a 183-8206 Washer $1.23 1 (after SN 10002471) usually ships 9-20 days
36b 183-8537 Washer $1.23 1 (before SN 10002472) usually ships 9-20 days
37 183-8323 Pin $1.23 1 usually ships 9-20 days
38 183-9410 Solution valve control rod $10.40 1 usually ships 9-20 days
39a 183-8214 Nut $1.23 1 (after SN 10002471) ships same day
39b 183-8378 Nut $1.23 1 (before SN 10002472) usually ships 9-20 days
40 183-8334 Washer $1.23 1 usually ships 9-20 days
41 183-8215 Solution control valve rod guide $12.55 1 usually ships 9-20 days
42 183-8213 Spring $8.44 1 usually ships 9-20 days
43 183-8212 Knob $5.00 1 usually ships 9-20 days
44 183-8205 Screw $1.23 1 usually ships 9-20 days
45 183-8202 Fitting $7.21 1 usually ships 9-20 days
46 183-5179 Hose (OBSOLETE) Call for price 1 usually ships 9-20 days
47 183-0897 Filter $32.89 1 usually ships 9-20 days
48 183-8247 Fitting $6.97 1 usually ships 9-20 days
49 183-5180 Hose (OBSOLETE) Call for price 1 usually ships 9-20 days
50a 183-8294 Washer $1.23 1 (after SN 10002471) usually ships 9-20 days
50b 183-5157 Screw M8 x 75mm (OBSOLETE) Call for price 1 (before SN 10002472) usually ships 9-20 days
51a 183-7651 Hose clamp $4.08 1 (after SN 10002471) usually ships 9-20 days
51b 183-9214 Conical washer $1.25 1 (before SN 10002472) usually ships 9-20 days
52 183-9215 Bushing $21.34 6 (before SN 10002472) usually ships 9-20 days
53 183-5158 Screw M8 x 65mm (OBSOLETE) Call for price 1 (before SN 10002472) usually ships 9-20 days
54 183-8239 Cover $1.37 1 usually ships 9-20 days
55 183-8235 Gasket $4.74 1 usually ships 9-20 days
56 183-8238 Fitting $5.15 1 usually ships 9-20 days
57a 183-8523 Lock washer $1.18 2 (after SN 10002471) usually ships 9-20 days
57b 190-0269 Washer 1/4 spring lock $1.18 2 (after SN 10002471) ships same day
57c 183-2539 Lock washer $1.23 1 (before SN 10002472) usually ships 9-20 days
58 999-9117 Screw 5/16-18 x 1 3/4 socket cup point set stainless steel $2.45 1 ships same day
59 183-8197 Plug assembly $48.71 1 usually ships 9-20 days
60 183-9245 Brass straight fitting $23.31 1 ships same day
61 183-8224 Filter cartridge $15.47 1 usually ships 9-20 days
62 183-8225 Filter gasket $5.50 1 ships same day
63a 183-8237 Connector $7.44 1 (after SN 10002471) usually ships 9-20 days
63b 183-8244 Collar $5.00 1 (before SN 10002472) usually ships 9-20 days
64 183-9951 Hose M14 x 1000mm (OBSOLETE) Call for price 1 usually ships 9-20 days
65 183-9258 Hose M12 x 85mm $2.79 1 (before SN 10002472) usually ships 9-20 days
67 183-2515 Adjuster nut (OBSOLETE) Call for price 1 usually ships 9-20 days
68 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
69a 183-8240 Washer INOX $1.23 1 (after SN 10002471) usually ships 9-20 days
69b 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 (before SN 10002472) ships same day
70 183-2478 Washer aluminium $1.23 1 usually ships 9-20 days
