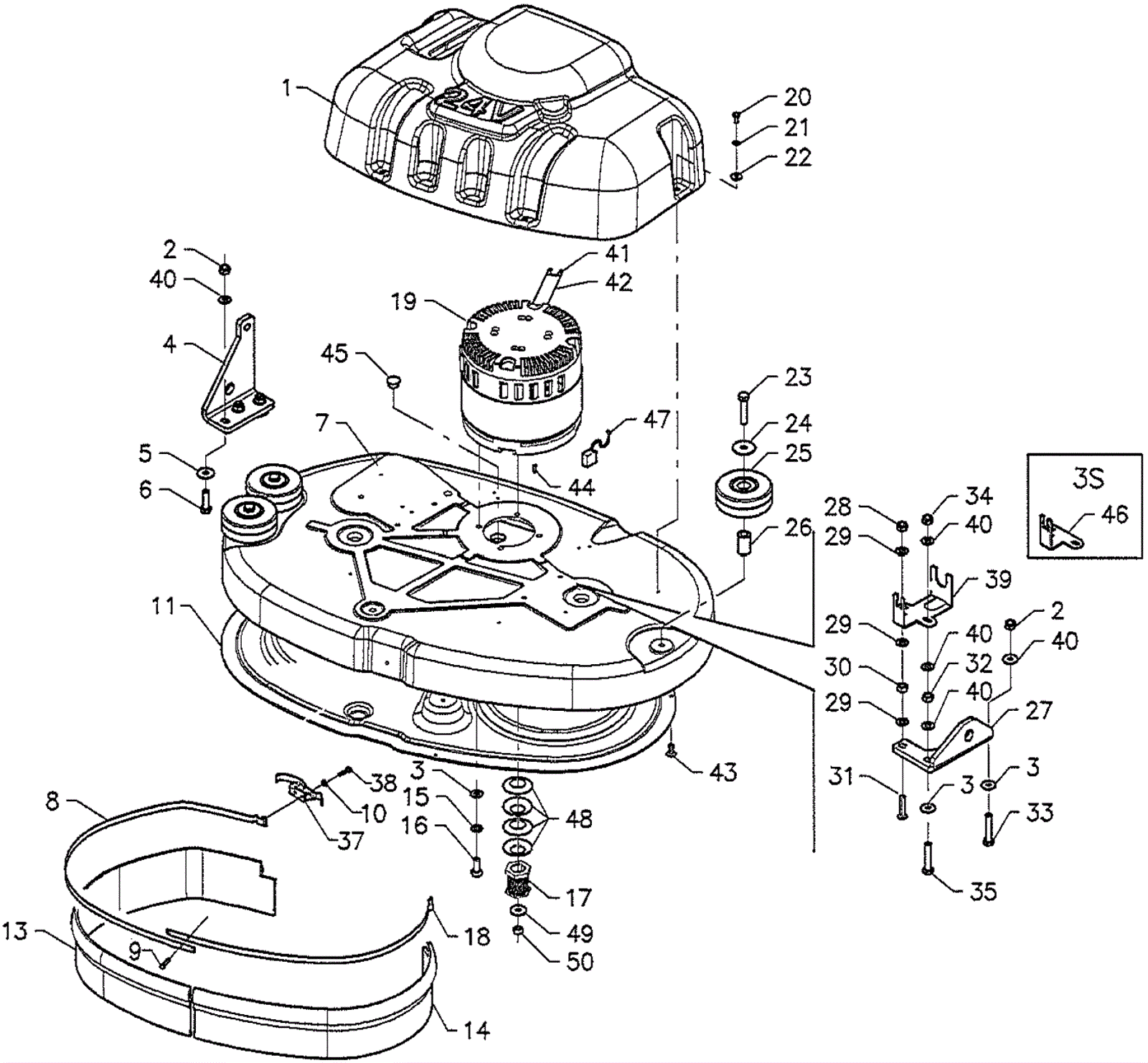

BD 26/26 Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
1a 183-9877 Brush cover $184.05 1 (after SN12001811) usually ships 15-28 days
1b 183-9878 Cover (OBSOLETE) Call for price 1 (before SN 1200812) usually ships 15-28 days
2a 183-9130 Lock nut $1.35 6 (after SN12001811) ships same day
2b 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 (before SN 1200812) ships same day
3 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
4 183-9879 Right hand base coupling (OBSOLETE) Call for price 1 usually ships 15-28 days
5a 183-8294 Washer $1.35 3 (after SN12001811) usually ships 15-28 days
5b 183-8294 Washer $1.35 1 (before SN 1200812) usually ships 15-28 days
6a 183-9104 Screw M8 x 30mm INOX $1.35 3 (after SN12001811) usually ships 15-28 days
6b 183-9329 Screw M8 x 30mm $1.35 1 (before SN 1200812) usually ships 15-28 days
7a 183-9880 Brush base and inserts $709.50 1 (after SN12001811) usually ships 15-28 days
7b 183-9881 Brush base (OBSOLETE) Call for price 1 (before SN 1200812) usually ships 15-28 days
8 183-9882 Right hand splash guard blade $56.42 1 usually ships 15-28 days
9a 183-9883 Bolt M5 x 25 inox $1.35 1 (after SN12001811) usually ships 15-28 days
9b 183-2588 Screw M4 x 20mm $1.35 1 (before SN 1200812) usually ships 15-28 days
10a 183-2578 Lock washer $1.35 2 (after SN12001811) usually ships 15-28 days
10b 183-8460 Nut $1.35 1 (before SN 1200812) usually ships 13-23 days
11 183-9884 Base cover $176.96 1 usually ships 15-28 days
13 183-8183 Right splash guard $62.04 1 usually ships 15-28 days
14 183-9885 Left hand splash guard $53.23 1 usually ships 15-28 days
15 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
16 183-2473 Screw M8 x 20mm $1.35 4 usually ships 15-28 days
17 183-9886 Motor pulley $69.04 1 usually ships 15-28 days
18 183-9887 Left hand splash guard blade $59.30 1 usually ships 15-28 days
19a 183-9888 24V brush motor with pulley $1,935.02 1 (after SN12001811) usually ships 15-28 days
19b 183-9890 24V brush motor $1,788.11 1 (after SN12001811) (after June 2012) usually ships 15-28 days
20a 183-3179 Screw M5 x 16mm $1.35 4 (after SN12001811) usually ships 15-28 days
20b 183-8518 Screw M5 x 16 $1.35 1 (before SN 1200812) usually ships 15-28 days
21a 183-2578 Lock washer $1.35 4 (after SN12001811) usually ships 15-28 days
21b 183-8327 Washer $1.35 1 (before SN 1200812) usually ships 15-28 days
22a 183-2580 Washer INOX $1.35 4 (after SN12001811) usually ships 15-28 days
22b 183-8537 Washer $1.35 1 (before SN 1200812) usually ships 15-28 days
23a 183-9412 Screw M8 x 45mm INOX $1.90 3 (after SN12001811) usually ships 15-28 days
23b 183-8496 Screw M8 x 45 $1.35 1 (before SN 1200812) usually ships 15-28 days
24a 183-2451 Washer inox $1.35 3 (after SN12001811) usually ships 15-28 days
24b 999-9097 Washer M8 flat stainless steel $0.99 1 (before SN 1200812) ships same day
25 183-4706 Bumper wheel $9.59 3 usually ships 15-28 days
26 183-8498 Bushing $8.60 3 usually ships 15-28 days
27 183-9891 Left hand base coupling (OBSOLETE) Call for price 1 usually ships 15-28 days
28a 183-8271 Nut INOX $1.35 1 (after SN12001811) usually ships 15-28 days
28b 183-8256 Nut $1.35 1 (before SN 1200812) usually ships 15-28 days
29a 183-8240 Washer INOX $1.35 3 (after SN12001811) usually ships 15-28 days
29b 183-8393 Washer $1.35 1 (before SN 1200812) usually ships 15-28 days
30a 183-8266 Nut INOX $1.35 1 (after SN12001811) usually ships 15-28 days
30b 183-8394 Nut $1.35 1 (before SN 1200812) usually ships 15-28 days
31 183-2467 Screw M6 x 30mm $1.40 1 usually ships 15-28 days
32a 183-9540 Nut INOX $1.35 1 (after SN12001811) usually ships 15-28 days
32b 183-4767 Nut $1.35 1 (before SN 1200812) usually ships 15-28 days
33a 183-9206 Screw M8 x 35mm $3.50 1 (after SN12001811) usually ships 15-28 days
33b 183-2546 Screw M8 x 35mm $1.35 1 (before SN 1200812) usually ships 15-28 days
34a 183-8404 Nut $1.35 1 (after SN12001811) usually ships 15-28 days
34b 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 (before SN 1200812) ships same day
35a 183-9412 Screw M8 x 45mm INOX $1.90 1 (after SN12001811) usually ships 15-28 days
35b 183-8496 Screw M8 x 45 $1.35 1 (before SN 1200812) usually ships 15-28 days
36 183-3233 Lock nut $1.35 1 (before SN 1200812) usually ships 15-28 days
37a 183-9416 Latch $18.99 1 (after SN12001811) usually ships 15-28 days
37b 183-9416 Latch $18.99 2 (before SN 1200812) usually ships 15-28 days
38a 183-8280 Screw M5 x 18 INOX $0.86 2 (after SN12001811) ships same day
38b 183-2671 Screw M4 x 10mm $1.35 2 (before SN 1200812) ships same day
39 183-9892 Support (OBSOLETE) Call for price 1 usually ships 15-28 days
40 183-8260 Washer INOX $1.35 7 (after SN12001811) usually ships 15-28 days
41 183-9893 Terminal $1.35 2 (after SN12001811) usually ships 15-28 days
42 183-9894 Sheath (OBSOLETE) Call for price 1 (after SN12001811) usually ships 15-28 days
43 183-9895 Screw M4.2 x 16 inox (OBSOLETE) Call for price 7 (after SN12001811) usually ships 15-28 days
44 183-9896 Key $2.75 1 (after SN12001811) usually ships 15-28 days
45 183-9897 Release cap $1.35 1 (after SN12001811) usually ships 15-28 days
46 183-9898 Distribution support (OBSOLETE) Call for price 1 (after SN12001811) (3S only) usually ships 15-28 days
47 183-9899 Carbon brush for motor $44.04 4 (after SN12001811) usually ships 15-28 days
48 183-8540 Cupped washer (OBSOLETE) $1.78 4 (after SN12001811) usually ships 15-28 days
49 183-9324 Washer $1.35 1 (after SN12001811) usually ships 15-28 days
50 183-8424 Nut $1.35 1 (after SN12001811) usually ships 15-28 days
N/S 183-9900 Pad holder center lock (green) $27.61 (before SN 1200812) usually ships 15-28 days
