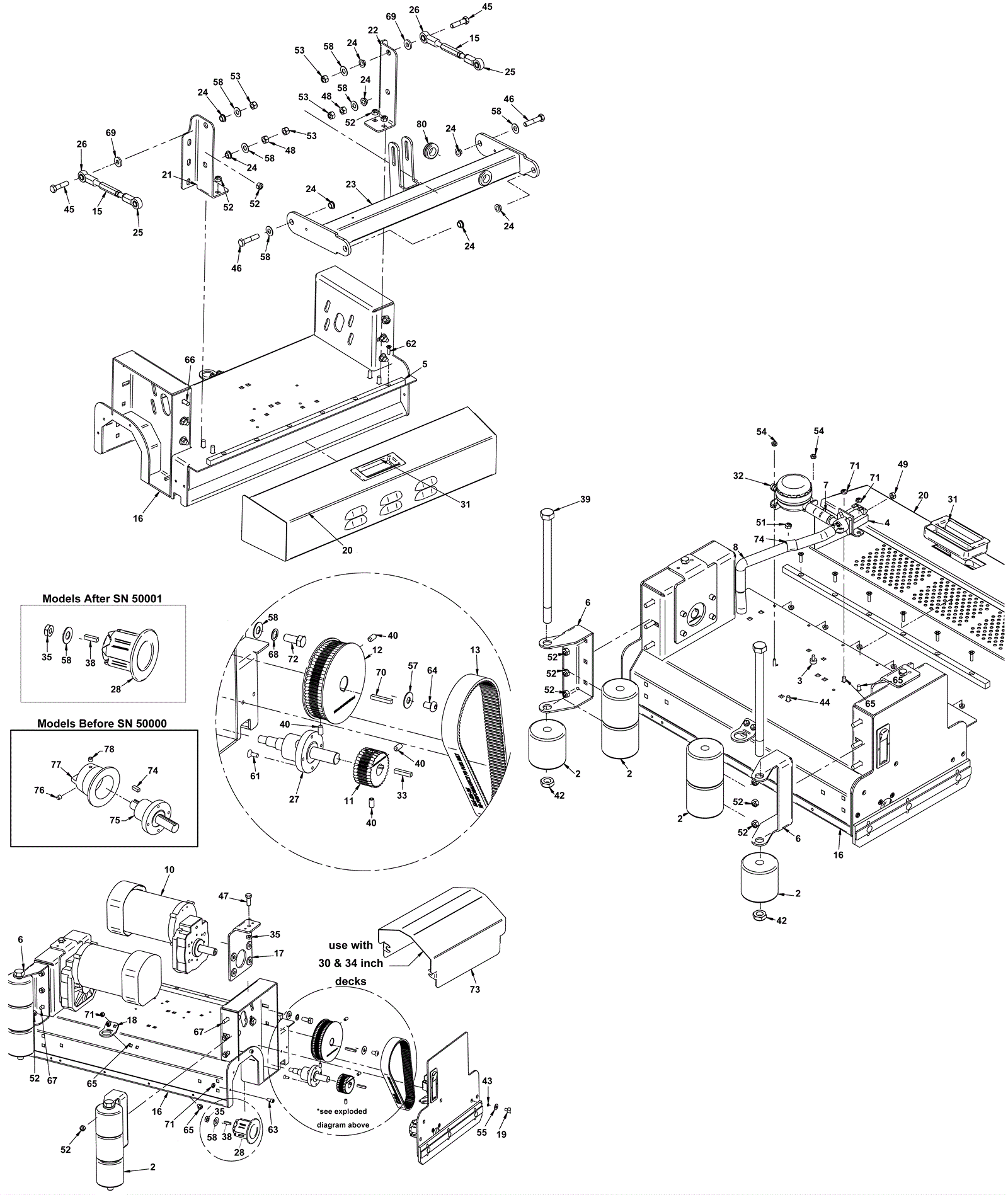

MAGNUM Cylindrical Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
2 202-0756 Guide roller $26.29 6 usually ships 12-20 days
3 202-0702 Spacer $5.50 2 usually ships 12-20 days
4a 202-0674 Adjustable solution flow valve $105.27 1 usually ships 12-20 days
4b 202-2291 Orange rubber stopper $4.40 usually ships 12-20 days
4c 202-2295 Diaphram $43.67 usually ships 12-20 days
5a 202-1275 24 inch hopper rail $25.19 1 usually ships 12-20 days
5b 202-0840 27 inch hopper rail $75.98 1 usually ships 12-20 days
5c 202-0841 30 inch hopper rail $126.09 1 usually ships 12-20 days
5d 202-4010 34 inch hopper rail $62.48 1 usually ships 1-5 days
6 202-4011 Roller bracket $108.16 2 usually ships 12-20 days
7 202-4012 Wire reinforced hose 1/2 x 2 3/4 inch $5.50 1 usually ships 12-20 days
8 202-4013 Wire reinforced hose 1/2 x 12 1/4 inch $10.01 1 ships same day
9 202-4013 Wire reinforced hose 1/2 x 12 1/4 inch $10.01 1 ships same day
10a 202-4014 24V 3/4HP brush motor $463.40 2 (24 and 27 inch) usually ships 12-20 days
10b 202-4015 24V 1HP brush motor $642.50 2 (30 and 34 inch) usually ships 12-20 days
11 202-3140 32 toothed sprocket $73.04 2 usually ships 12-20 days
12 202-3141 68 toothed sprocket $83.82 2 usually ships 12-20 days
13 202-2877 Belt $69.08 2 usually ships 12-20 days
14 202-4041 Bearing housing $156.64 1 usually ships 12-20 days
15 202-4017 Rod connector $33.99 2 usually ships 12-20 days
16a 202-5027 24 inch cylindrical scrub deck $1,037.90 1 usually ships 12-20 days
16b 202-4019 27 inch cylindrical brush deck $907.60 1 usually ships 12-20 days
16c 202-4020 30 inch cylindrical brush deck $1,430.70 1 usually ships 1-5 days
16d 202-4021 34 inch cylindrical brush deck $837.50 1 usually ships 1-5 days
17 202-3142 Motor adjustment bracket $40.37 2 usually ships 12-20 days
18 202-4022 Quick disconnect bracket $10.78 1 ships same day
19 202-4023 Thumb screw $18.48 2 usually ships 12-20 days
20a 202-4024 24 inch hopper $212.74 1 usually ships 12-20 days
20b 202-6833 Hopper,Stainless,27 inch, Complete $346.90 1 usually ships 12-20 days
20c 202-4026 30 inch hopper $328.20 1 usually ships 12-20 days
20d 202-4027 34 inch hopper $417.20 1 usually ships 1-5 days
21a 202-4028 24 inch left side lifting bracket $40.59 1 usually ships 1-5 days
21b 202-4029 27 inch left side lifting bracket $54.56 1 usually ships 1-5 days
21c 202-4030 30 inch left side lifting bracket $48.07 1 usually ships 1-5 days
21d 202-4031 34 inch left side lifting bracket $37.07 1 usually ships 1-5 days
22a 202-4032 24 inch right side lifting bracket $40.59 1 usually ships 1-5 days
22b 202-4033 27 inch right side lifting bracket $54.56 1 usually ships 1-5 days
22c 202-4034 30 inch right side lifting bracket $48.07 1 usually ships 1-5 days
22d 202-4035 34 inch ride side lifting bracket $37.07 1 usually ships 1-5 days
23 202-4036 Lifting arm $302.00 1 usually ships 1-5 days
24 202-1239 Flanged bearing $5.50 8 ships same day
25 202-3085 Left thread rod end $12.32 2 usually ships 12-20 days
26 202-3086 Right thread rod end $12.32 2 usually ships 12-20 days
27 202-3146 Bearing housing $150.70 2 usually ships 12-20 days
28 202-3147 Brush driver $98.45 2 (after SN 50001) usually ships 12-20 days
29 202-3287 Battery connector housing $27.50 1 usually ships 1-5 days
30 202-0151 Grommet $4.40 6 usually ships 12-20 days
31 202-0308 Handle $21.45 1 usually ships 12-20 days
32 202-0605 Solution filter $76.45 1 usually ships 4-10 days
33 202-0847 Square keyway $5.50 2 usually ships 12-20 days
34 999-1269 Nut 10-32 nylon insert jam stainless steel $0.99 13 usually ships 1-5 days
35 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 4 (after SN 50001) ships same day
36 202-4037 Screw 1/4-20 x 1 button head with pellet $5.50 2 usually ships 1-5 days
37 202-3096 Shim $5.50 4 usually ships 12-20 days
38 202-3153 Square keyway $5.50 2 (after SN 50001) usually ships 12-20 days
39 202-4038 Screw 5/8-11 x 10 hex head $16.28 2 usually ships 12-20 days
40 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 8 ships same day
41 999-1495 Nut 3/8-24 hex jam left hand thread plain finish $1.34 2 ships same day
42 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 2 ships same day
43 202-4039 O-ring (OBSOLETE) Call for price 2 usually ships 1-5 days
44 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
45 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 2 ships same day
46 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 2 ships same day
47 999-1498 Screw 3/8-24 x 1 hex head stainless steel $1.98 2 usually ships 1-5 days
48 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
49 999-0651 Nut 1/4-28 hex stainless steel $0.99 1 ships same day
50 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
51 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.01 1 ships same day
52 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 16 ships same day
53 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 4 ships same day
54 202-2067 Nut 10-32 keps $5.50 2 usually ships 12-20 days
55 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
56 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
57 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
58 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 16 (after SN 50001) ships same day
59 999-0659 Washer 3/8 medium split lock stainless steel $3.85 6 ships same day
60 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
61 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 8 ships same day
62 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
63 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $2.07 4 ships same day
64 999-1459 Screw 5/16-18 x 1/2 button socket head stainless steel $0.99 2 ships same day
65 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel $0.99 4 usually ships 1-5 days
66 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 10 ships same day
67 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 6 ships same day
68 202-3158 Washer 3/8 inch serrated stainless steel $8.03 8 usually ships 1-5 days
69 999-0120 Washer 3/8 SAE flat $0.99 10 ships same day
70 202-0140 Steering shaft key $5.50 2 usually ships 12-20 days
71 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 9 ships same day
73 202-4040 Motor cover $83.38 1 (30 and 34 inch models) usually ships 1-5 days
74 164-1029 Square keyway $5.28 1 (before SN 50000) ships same day
75 202-4041 Bearing housing $156.64 1 (before SN 50000) usually ships 12-20 days
76 202-3154 Screw 1/4-20 x 1/4 set $5.50 1 (before SN 50000) usually ships 12-20 days
77 202-0264 Brush driver $74.03 1 (before SN 50000) usually ships 12-20 days
78 202-3154 Screw 1/4-20 x 1/4 set $5.50 1 (before SN 50000) usually ships 12-20 days
79 202-3415 Strap $5.50 1 usually ships 1-5 days
80 202-4003 Grommet $5.50 2 usually ships 1-5 days
