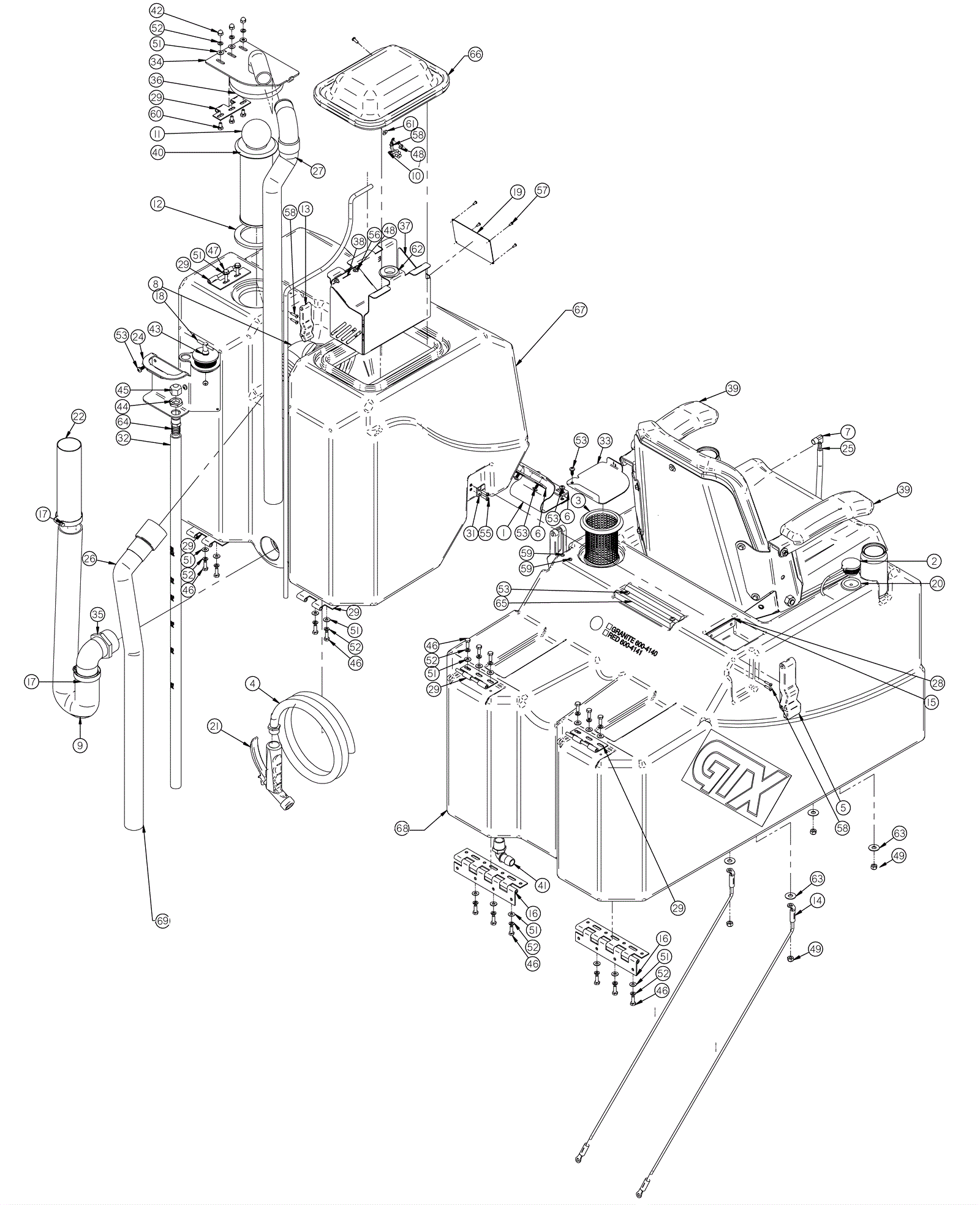

GTX 30 Solution and Recovery Tank Assembly - After SN 76765

#PartDescriptionPriceReqNotesAvailability
1 202-4091 Tank strap $22.55 1 usually ships 12-20 days
2 202-3373 Drain hose cap $17.05 2 usually ships 12-20 days
3 202-3036 Strainer screen $38.94 1 usually ships 12-20 days
4 202-5025 12 foot hose (blue) $66.99 1 usually ships 12-20 days
5 202-5630 Soft draw latch $55.55 2 usually ships 12-20 days
6 202-3279 Tank support strap $10.01 2 usually ships 12-20 days
7 202-0686 90 degree barb 1/4 x 1/4 $8.03 2 usually ships 1-5 days
8 202-0703 Elbow $21.67 1 usually ships 12-20 days
9 202-0708 Drain hose $58.74 1 usually ships 12-20 days
10 202-3127 4 inch chain (6 inch no longer available) $13.97 1 usually ships 12-20 days
11 202-0232 Float shut-off ball $11.00 1 ships same day
12 202-0230 Strainer gasket $8.69 1 ships same day
13 202-1487 Latch $22.55 1 ships same day
14 202-2022 Hood cable $25.52 2 usually ships 12-20 days
15 202-2734 Corner seal strip $8.03 1 usually ships 12-20 days
16 202-0403 Hinge $22.77 2 usually ships 12-20 days
17 997-2011 Hose clamp $2.13 2 ships same day
18 202-0240 Drain hose plug $62.59 1 usually ships 12-20 days
19 202-0675 Detergent warning plate $8.25 1 usually ships 12-20 days
20 202-4106 O-ring $5.50 2 usually ships 12-20 days
21 202-0103 Spray nozzle $78.87 1 ships same day
22 202-0694 Drain hose end tube $65.78 1 usually ships 12-20 days
23 202-5636 Curtain band $16.28 1 usually ships 1-5 days
24 202-5646 Tank utility handle $53.13 1 usually ships 1-5 days
25 202-4183 Sight tube $13.64 1 usually ships 12-20 days
26 202-5710 Squeegee vacuum hose 2 x 55 inch $41.36 1 usually ships 12-20 days
27 202-3561 Vacuum hose $47.08 1 usually ships 12-20 days
28 202-4184 Drain saver curtain $8.69 1 usually ships 12-20 days
29 202-5648 4 inch hinge stainless steel $23.10 3 usually ships 12-20 days
30 202-4185 Splash curtain $18.04 1 usually ships 12-20 days
31 N/A Not available Call for price 2 (Clip) usually ships 3-7 days
32 202-4186 Sight tube $50.71 1 usually ships 12-20 days
33 N/A Not available Call for price 1 (Solution fill lid) usually ships 3-7 days
34 202-5651 Vacuum inlet screen $147.73 1 usually ships 1-5 days
35 202-4187 Elbow $33.44 1 usually ships 12-20 days
36 202-5652 Vacuum inlet gasket $15.73 1 usually ships 12-20 days
37 202-5653 Small drain saver basket $100.32 1 usually ships 12-20 days
38 202-5654 NO LONGER AVAILABLE - SEE NOTE Call for price 1 usually ships 1-5 days
39 202-0081 Seat with switch, cover, locking track and mounting $628.20 1 usually ships 12-20 days
40 202-0231 Filter screen $48.07 1 ships same day
41 202-5572 3/4 inch barbed elbow $5.50 3 usually ships 1-5 days
42 999-0429 Nut 1/4-20 acorn nickel plated $0.99 1 ships same day
43 202-2210 Washer 3/8 x 3/4 flat nylon $5.50 1 usually ships 12-20 days
44 999-1928 Nut 1/2 inch lock brass $4.15 1 usually ships 1-5 days
45 999-1929 Pipe cap 1/2 inch female brass $6.45 16 usually ships 1-5 days
46 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
47 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 3 ships same day
48 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
49 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
50 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 21 ships same day
51 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 19 ships same day
52 999-0632 Washer 1/4 split lock stainless steel $0.99 10 ships same day
53 202-2918 Screw 1/4-20 x 3/4 self tapping $5.50 1 usually ships 1-5 days
54 202-2122 Screw 10-32 x 5/8 inch phillips pan head $5.50 4 usually ships 12-20 days
55 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
56 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 4 ships same day
57 999-1930 Screw #6-18 x 3/8 phillips pan head SS $0.99 7 ships same day
58 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
59 202-4188 Screw #10 $4.40 3 usually ships 12-20 days
60 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 1 usually ships 12-20 days
61 202-3244 Neoprene washer $5.50 1 usually ships 12-20 days
62 202-2592 Grommet $5.50 4 usually ships 12-20 days
63 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
64 202-3439 Male brass fitting $13.42 1 usually ships 1-5 days
65 202-3576 Seal $24.53 1 usually ships 12-20 days
66 202-5655 Tank lid assembly $180.07 1 usually ships 12-20 days
67a 202-3573 Recovery tank (granite) $576.30 1 usually ships 12-20 days
67b 202-5656 Recovery tank (red) $680.40 1 usually ships 1-5 days
68a 202-3574 Solution tank (granite) $1,357.20 1 usually ships 12-20 days
68b 202-3575 Solution tank (red) $1,223.40 1 usually ships 11-19 days
69 202-5544 Squeegee hose with 2 inch pigtail $95.71 1 usually ships 12-20 days
