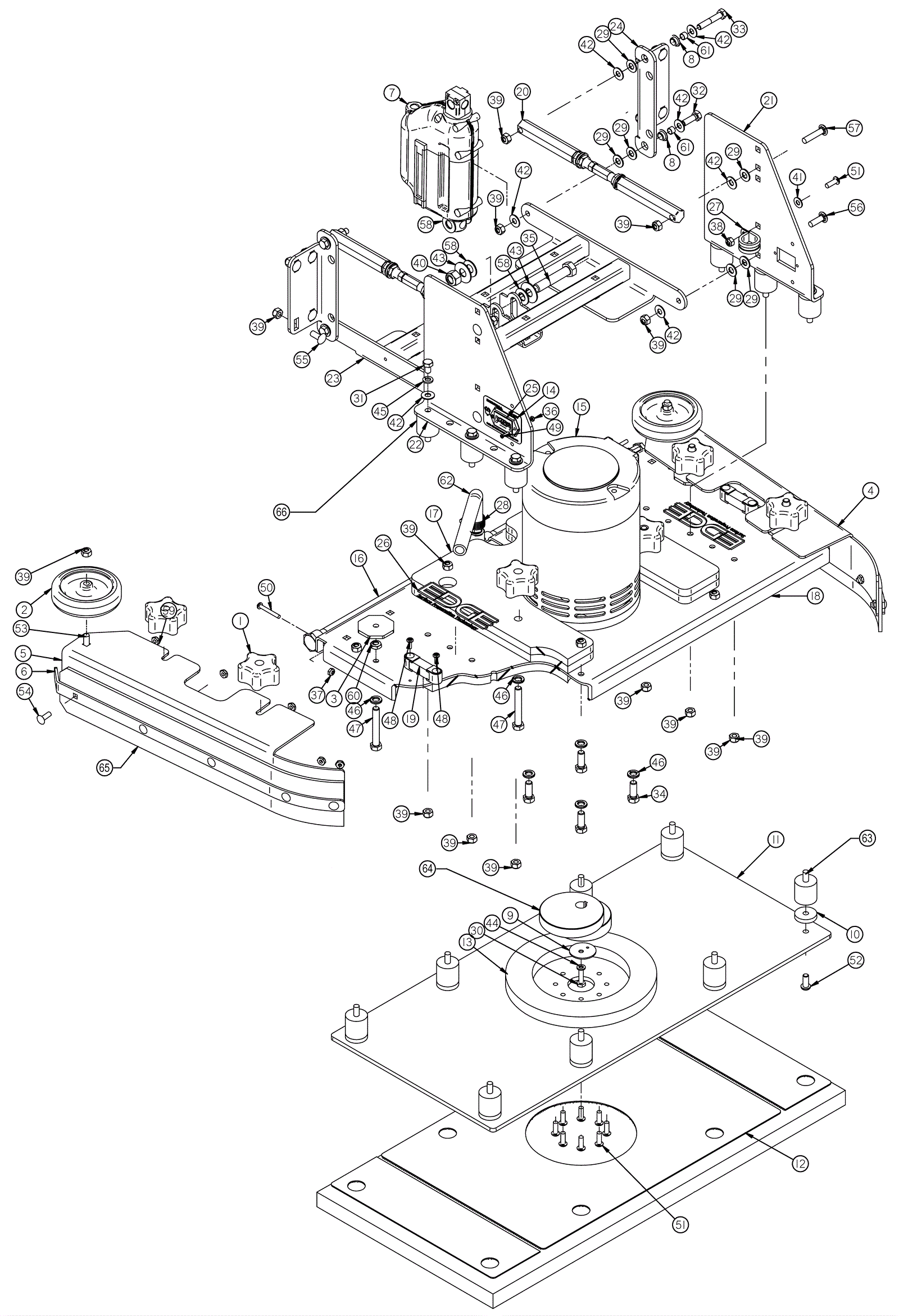

GTX 30 Scrub Deck Assembly - EDGE

#PartDescriptionPriceReqNotesAvailability
1 202-5078 Star knob $13.64 6 ships same day
2 202-5079 4 inch wheel $8.47 2 usually ships 17-25 days
3 202-5080 Adjustment knob shroud $15.07 4 usually ships 17-25 days
4 202-5081 Right side wiper shroud $83.05 1 usually ships 17-25 days
5 202-5082 Left side wiper shroud $83.05 1 usually ships 17-25 days
6 202-5083 Wiper band $38.28 2 usually ships 17-25 days
7 202-1932 36V actuator $490.00 1 usually ships 17-25 days
8 202-1239 Flanged bearing $5.50 4 ships same day
9 202-5084 Crush washer $6.49 1 usually ships 17-25 days
9b 202-5086 32 inch spacer $6.27 8 usually ships 1-5 days
10a 202-5085 20 and 28 inch spacer $5.50 8 usually ships 17-25 days
11a 202-5087 28 inch aluminum pad driver $258.28 1 usually ships 17-25 days
11b 202-5088 32 inch aluminum pad driver $308.80 1 usually ships 17-25 days
12 202-5089 Mighty-Lok II grip face pad holder set (brown) $143.88 1 ships same day
13 202-5202 1 inch bearing gasket $38.28 1 usually ships 17-25 days
15b 202-4189 32 inch feed tube $120.89 1 usually ships 17-25 days
14 202-5091 Isolator decal $9.24 1 usually ships 17-25 days
15 202-5092 36V 1HP motor $1,335.60 1 usually ships 1-5 days
17b 202-7032 Kit, Deck, Square Head, SS, 32 inch $1,610.30 1 usually ships 17-25 days
16a 202-5093 28 inch solution feed tube $88.99 1 usually ships 17-25 days
19b 202-4189 32 inch feed tube $120.89 1 usually ships 17-25 days
17 202-5095 15 pound top weight $290.98 2 usually ships 17-25 days
18a 202-5096 28 inch square scrub deck $666.53 1 usually ships 17-25 days
19 202-5098 2 inch bolt on level $5.50 2 ships same day
20 202-5099 Adjustable lateral arm assembly $102.08 2 usually ships 17-25 days
21 202-5100 Left side deck lifting bracket $55.77 1 usually ships 17-25 days
22 202-5101 Right side deck lifting bracket $55.77 1 usually ships 17-25 days
23 202-5102 Lateral arm $253.77 1 usually ships 17-25 days
24 202-5103 Adjustable arm bracket $165.33 2 usually ships 1-5 days
25 202-0376 Hour meter $80.85 1 usually ships 17-25 days
26 202-5104 5 1/2 inch Tomcat EDGE decal (black) $13.97 2 usually ships 1-5 days
27 202-5105 1 inch rubber loop clamp $7.26 1 usually ships 1-5 days
28 202-0680 Hose clamp $5.50 1 usually ships 17-25 days
29 202-2210 Washer 3/8 x 3/4 flat nylon $5.50 12 usually ships 17-25 days
30 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
31 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 6 ships same day
32 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
33 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
34 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
35 999-1113 Bolt 1/2-13 x 2 1/2 hex cap stainless steel $3.62 1 ships same day
36 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
37 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
38 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.01 1 ships same day
39 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 32 ships same day
40 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
41 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
42 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 18 ships same day
43 999-0559 Washer 1/2 x 1/4 flat stainless steel $2.37 2 ships same day
44 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
45 999-0553 Washer 5/16 medium split lock stainless steel $1.87 6 ships same day
46 999-0659 Washer 3/8 medium split lock stainless steel $3.85 10 ships same day
47 202-3156 Bolt 3/8 x 2-1/2 inch hex head stainless steel full thread $5.50 6 usually ships 17-25 days
48 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
49 202-2370 Screw 4-40 x 1/2 Phillips pan head stainless steel $5.50 2 usually ships 1-5 days
50 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel $0.99 3 usually ships 1-5 days
51 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 9 ships same day
52a 202-2372 Bolt 5/16-18 x 3/4 inch button head socket cap $5.50 8 (28 inch) usually ships 1-5 days
52b 999-1630 Screw 5/16-18 x 7/8 button socket head stainless steel $0.99 8 (32 inch) usually ships 1-5 days
53 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel $5.50 2 usually ships 17-25 days
54 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.06 10 ships same day
55 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 8 ships same day
56 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 2 ships same day
57 202-2092 Bolt 5/16 x 1 1/2 carriage stainless steel $5.50 2 usually ships 1-5 days
58 999-0566 Washer 1/2 flat nylon $0.99 4 ships same day
59 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 10 ships same day
60 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 4 ships same day
61 202-3128 Sleeved bearing $5.50 4 usually ships 17-25 days
62 202-5106 Reinforced hose 1/2 x 60 inch $30.91 1 usually ships 1-5 days
63a 202-5107 28 inch isolator kit (pkg of 8) $134.97 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal) usually ships 17-25 days
63b 202-5721 32 inch isolator kit (pkg of 8) $166.10 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal) usually ships 17-25 days
64a 202-9586 Eccentric kit with hardware and loctite for scrubbers $256.30 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite) usually ships 17-25 days
64b 202-5109 28 inch eccentric assembly $234.74 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite) usually ships 17-25 days
68b 202-5721 32 inch isolator kit (pkg of 8) $166.10 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal) usually ships 17-25 days
69b 202-5110 32 inch eccentric assembly $256.30 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite) usually ships 17-25 days
65a 202-5112 linatex® wiper $37.40 1 usually ships 17-25 days
65b 202-5113 Polyurethane wiper $45.10 1 usually ships 17-25 days
66 202-5111 Isolator kit (pkg of 6) $71.06 1 (includes 6 isolators, 6 bolts, 6 washers, 6 lock washers and 6 nylok nuts) usually ships 17-25 days
