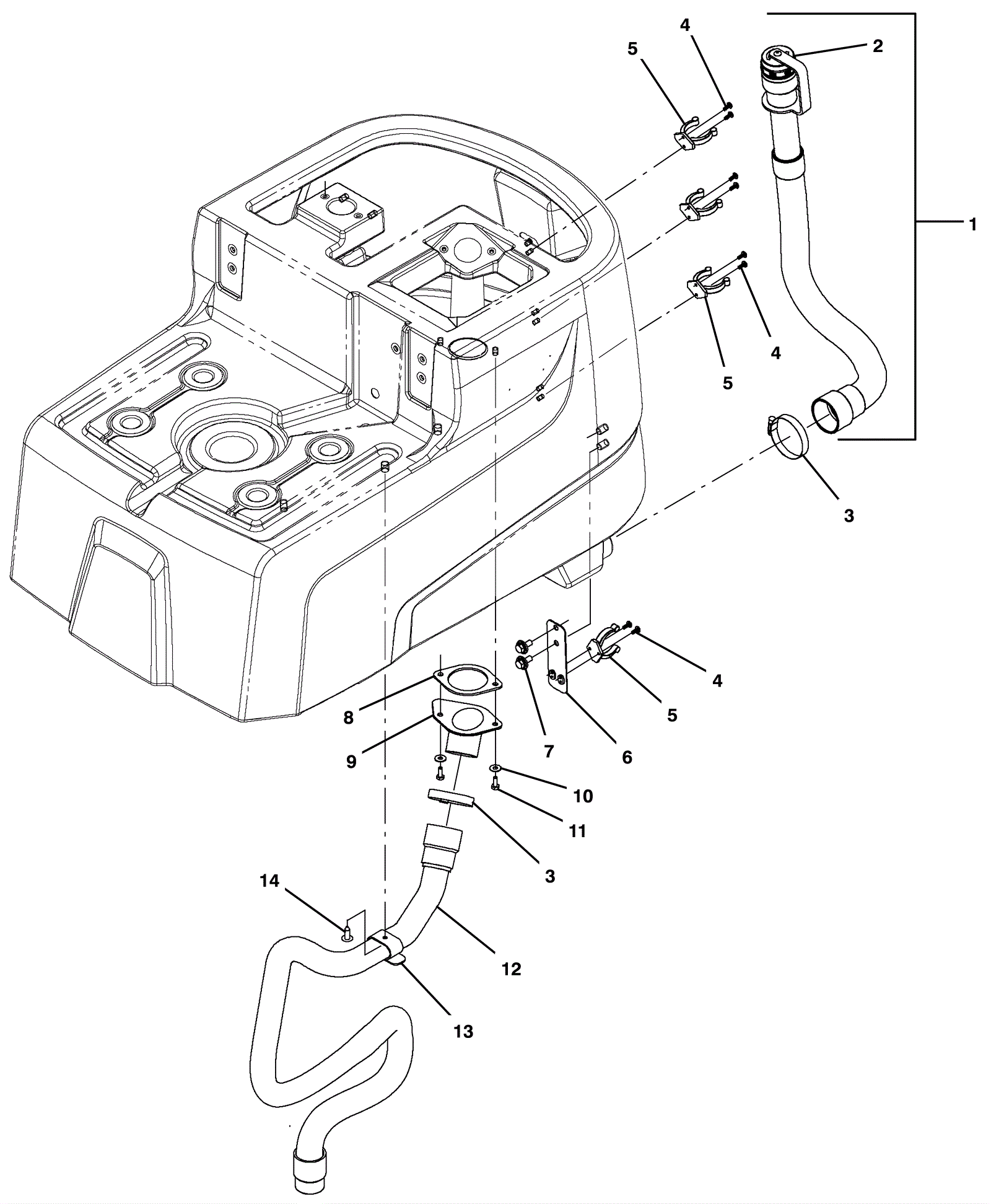

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
375-7889
|
Drain hose assembly |
$58.10
|
1 |
(includes 2) |
usually ships 7-14 days |
2 |
375-0214
|
Drain cap assembly (black) |
$8.14
|
1 |
|
ships same day |
3 |
997-2006
|
Hose clamp |
$2.94
|
2 |
|
ships same day |
4 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
$2.31
|
8 |
|
ships same day |
5 |
275-8165
|
Hose clip |
$5.83
|
4 |
|
ships same day |
6 |
375-7890
|
Hose mounting bracket |
$60.00
|
1 |
|
usually ships 7-14 days |
7 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$3.30
|
2 |
|
ships same day |
8 |
375-4539
|
Hose adapter gasket |
$2.00
|
1 |
|
usually ships 7-14 days |
9 |
375-7891
|
Hose adapter tube |
$6.70
|
1 |
|
usually ships 7-14 days |
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
8 |
|
ships same day |
11 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
8 |
|
ships same day |
12 |
375-7892
|
Hose assembly with 2 cuffs |
$79.40
|
1 |
|
usually ships 7-14 days |
13 |
275-7799
|
Fastener |
$5.30
|
1 |
|
usually ships 7-14 days |
14 |
991-5122
|
1/4 nylon tree push-in rivet |
$1.71
|
1 |
|
ships same day |
