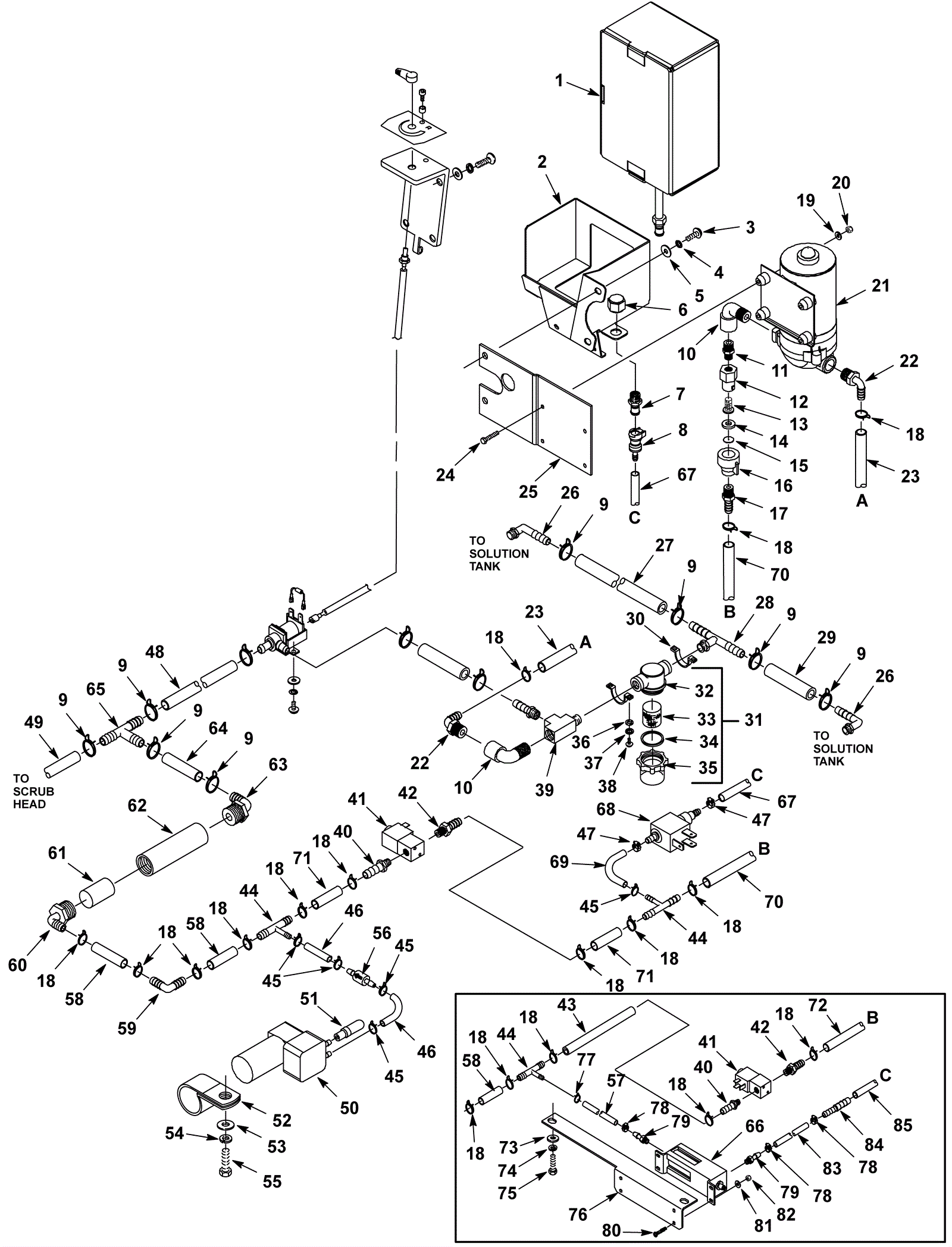

Solution Assembly - FaST

#PartDescription ReqNotesAvailability
001a N/A Not available 1 Detergent pack of 2 liter
001b N/A Not available 1 Detergent pack of 2 liter
002 175-8700 Holder box concentrate bracket 1
003 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
004 999-1117 Washer M6 split lock stainless steel 2
005 999-0016 Washer 1/4 flat plain finish 2
006 175-5313 Plastic cap fitting 1
007 175-5312 Male coupling strainer fitting 1
008 175-5311 Female fitting with valve 1
009 175-3671 Hose clamp 8
010 175-8701 Plastic fitting 2
011a 175-8702 Plastic strainer fitting 1
011b 175-8703 Plastic fitting cap assembly 1 Includes 012, 013, 014, 015, 016
012 175-7948 Plastic spray body fitting 1
013 175-5248 Mesh screen 1
014 175-8704 Orifice plate 1
015 175-5246 Washer 11/32 x 3/4 x 1/8 flat viton 1
016 175-8726 Plastic spray cap fitting 1
017 175-5217 Plastic nylon fitting (OBSOLETE) 1
018 175-3671 Hose clamp 12
019 999-0412 Washer #8 SAE flat 4
020 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
021 175-8705 Solution pump (OBSOLETE) 1
022 175-7933 90 degree plastic elbow 2
023 175-8706 Pvc board hose 1
024 275-6397 Screw M6-.7 x 25mm hex head (Tennant Industrial) 4
025 175-8727 Water pump bracket (OBSOLETE) 1
026 175-3685 90 degree elbow fitting 2
027 175-5052 Hose 1
028 175-3692 Tee fitting 1
029 175-1043 3 inch hose 1
030 175-3690 U clamp 2
031a 175-9025 In-line screen filter assembly 1 Includes 032, 033, 034, 035
031b 991-8582 Mesh inline filter 1
032 175-5865 Top filter body housing 1
033a 175-5866 Mesh filter screen 1
033b 991-8569 Mesh filter screen stainless steel 1
034 175-5867 Filter gasket 1
035a 175-5868 Short clear filter bowl 1
035b 991-8575 Short bowl (clear) 1
036 999-0393 Washer 3/16 flat aluminum 4
037 999-9132 Washer M5 split lock stainless steel 4
038 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 4
039 175-5869 Tee fitting 3/8 x 3/8 inch 1
040 175-8707 Strainer plastic fitting 1
041 175-8728 Shutoff electric valve 1
042 175-8707 Strainer plastic fitting 1
043 175-8706 Pvc board hose 1
044 175-8729 Plastic tee fitting (Tennant Industrial) 2
045 175-5304 Hose clamp 5
046 175-8709 Vinyl hose 3
047 175-3594 Hose clamp 2
048 175-8710 Pvc board hose 1
049 175-8711 Pvc board hose 1
050 175-8712 Air pump 1
051 175-5318 Filter assembly 1
052 175-5314 P clamp (Tennant Industrial) 1
053 999-0024 Washer 5/16 flat stainless steel 1
054 999-1053 Washer 5/16 internal star lock stainless steel 1
055 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
056 175-8713 C valve fitting 1
057 175-8714 Pvc hose 1
058 175-8715 PVC board hose 2
059 175-8716 FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) 1
060 175-3595 Plastic fitting 1
061 175-3597 Foam filter 3
062 175-3596 Plastic tube 1
063 175-5231 Nylon fitting 1
064 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 1
065 175-3329 Plastic tee fitting 1
066 175-8718 Replacement pump kit 1 Includes 067, 068, 069, 070, 071
067 175-7928 Hose 1/4 x 26 inch 1
068 175-8719 24v detergent pump 1
069 175-8709 Vinyl hose 1
070 175-8706 Pvc board hose 1
071 175-8715 PVC board hose 2
072 175-8720 Pvc board hose 1
073 999-0024 Washer 5/16 flat stainless steel 2
074 999-1053 Washer 5/16 internal star lock stainless steel 2
075 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
076 175-8721 Concentrate pump bracket (OBSOLETE) 1
077 175-5304 Hose clamp 1
078 175-3594 Hose clamp 3
079 175-8722 Plastic strainer fitting 2
080 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
081 999-0412 Washer #8 SAE flat 4
082 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
083 175-8723 Pvc hose 1
084 175-8724 Plastic strainer fitting (OBSOLETE) 1
085 175-8725 Pvc hose 1
