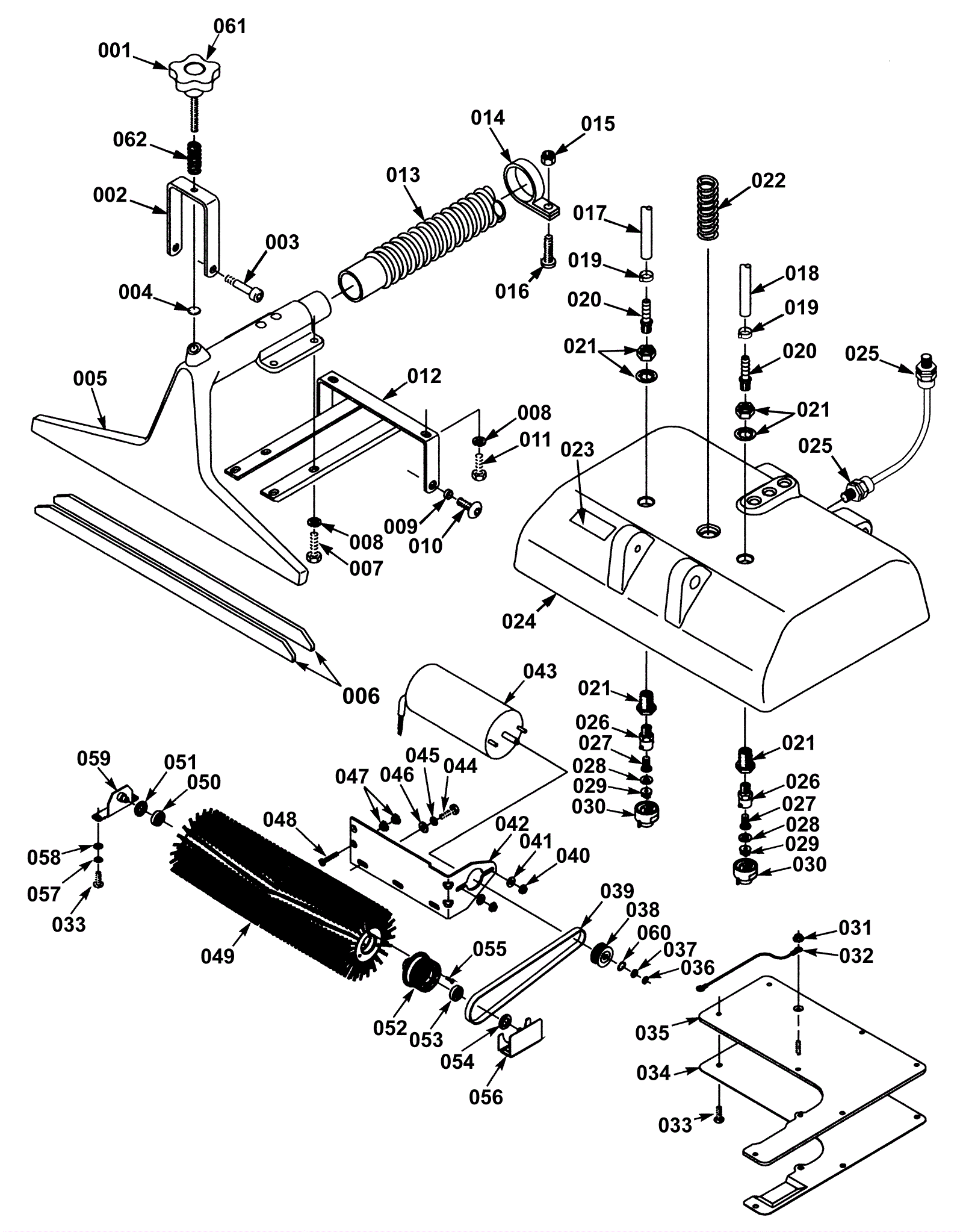

1260 Brush Housing Assembly - After 06.2002

#PartDescriptionPriceReqNotesAvailability
001 275-5156 Adjustment knob (black) $21.23 1 usually ships 5-14 days
002 175-6152 Height adjustment bracket $27.83 1 usually ships 5-14 days
003 175-6156 Screw 3/8 x 3/4 shoulder $3.96 2 ships same day
004 175-6112 Spacer $3.04 1 usually ships 5-14 days
005a 175-6148 16 inch pick-up tool (black) $458.70 1 (1240) usually ships 5-14 days
005b 175-6151 20 inch pick-up tool (black) $379.50 1 (1260 and EX-SC-1020) ships same day
006a 175-6146 16 inch pick-up shoe plate stainless steel $17.05 2 (1240) ships same day
006b 175-6147 20 inch pick-up shoe plate stainless steel $17.71 2 (1260 and EX-SC-1020) ships same day
007 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.90 4 ships same day
008 999-0553 Washer 5/16 medium split lock stainless steel $1.70 6 ships same day
009 175-6154 Spacer $3.83 2 usually ships 5-14 days
010 999-1562 Screw 3/8-16 x 3/4 truss head phillips zinc plated $0.90 2 usually ships 1-5 days
011 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.04 2 ships same day
012 175-6153 Mounting bracket $57.20 1 usually ships 1-5 days
013 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch $45.32 1 ships same day
014 175-3123 Cable tie $3.17 1 usually ships 1-5 days
015 999-0442 Nut 10-24 nylon insert lock stainless steel $1.60 1 ships same day
016 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.90 1 ships same day
017 175-4868 Hose 3/8 x 24 1/2 inch (gray) $10.12 1 usually ships 5-14 days
018 175-7292 Vinyl tubing 3/8 x 30 inch (gray) $11.44 1 usually ships 5-14 days
019 175-6032 Hose clamp $3.70 2 ships same day
020 175-2613 Straight brass fitting $3.96 2 ships same day
021 175-4814 Brass strainer fitting $21.23 2 usually ships 5-14 days
022 175-7224 Compression spring $5.61 1 usually ships 5-14 days
023 175-6108 Height adjustment decal $5.50 1 usually ships 5-14 days
024a 275-5157 16 inch brush base (teal) $155.10 1 (1240) usually ships 1-5 days
024b 275-5158 20 inch brush base (teal) $146.85 1 (1260 and EX-SC-1020) usually ships 1-5 days
024c 275-9961 20 inch brush base (black) $223.30 1 ships same day
025 175-6232 Cord grip $6.49 2 usually ships 5-14 days
026 175-4192 Quick jet body $10.01 2 ships same day
027 175-4204 Check valve filter screen $12.10 2 ships same day
028 175-4193 Quick jet gasket $2.51 2 ships same day
029a 175-7242 T-jet fitting $12.54 2 (1240) ships same day
029b 175-7227 Spray jet tip $18.70 2 (1260 and EX-SC-1020) ships same day
030 175-4194 Quick jet cap (green) $5.41 2 ships same day
031 999-0356 Nut 10-24 lock stainless steel $0.90 1 ships same day
032 175-3578 Ground wire assembly $2.64 1 usually ships 5-14 days
033 999-0434 Screw 6 x 3/8 pan head phillips $0.90 10 ships same day
034 175-7228 Brush base plate $83.05 1 usually ships 5-14 days
035 175-7229 Brush base plate gasket $18.37 1 usually ships 5-14 days
036 175-7230 Retaining clip $3.17 1 ships same day
037 999-1666 Washer M7 flat stainless steel $0.90 1 ships same day
038 175-7231 Motor pulley $6.82 1 ships same day
039 175-7243 Brush belt $26.40 1 ships same day
040 999-0239 Nut 10-32 k-lock zinc plated $0.90 2 ships same day
041 999-0006 Washer 3/16 flat zinc plated $0.90 2 ships same day
042 175-6438 Motor mounting bracket $20.35 1 usually ships 1-5 days
043 175-7232 120V 1/4HP brush motor $214.50 1 usually ships 5-14 days
044 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.90 2 ships same day
045 999-0632 Washer 1/4 split lock stainless steel $0.90 2 ships same day
046 999-0016 Washer 1/4 flat plain finish $0.90 2 ships same day
047 999-0356 Nut 10-24 lock stainless steel $0.90 2 ships same day
048 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.90 1 ships same day
049a 175-7233 13 inch stiff scrub brush assembly - CYLINDRICAL $228.80 1 (1240) (includes 050 and 051) (standard) ships same day
049b 175-7234 13 inch soft scrub brush assembly - CYLINDRICAL $210.10 1 (1240) (includes 050 and 051) (optional) usually ships 5-14 days
049c 175-7235 17 inch stiff scrub brush assembly - CYLINDRICAL $201.30 1 (1260 and EX-SC-1020) (includes 050 and 051) (standard) usually ships 5-14 days
049d 175-7236 17 inch soft scrub brush assembly - CYLINDRICAL $243.10 1 (1260 and EX-SC-1020) (includes 050 and 051) (optional) ships same day
050a 175-0069 Brush bearing $13.09 1 (OEM) ships same day
050b 991-5125 Brush bearing $3.49 1 (NON-OEM) ships same day
051 175-6444 Brush seal $25.30 1 ships same day
052 175-7237 Brush pulley assembly $23.76 1 (includes 053 and 054) ships same day
053a 175-0069 Brush bearing $13.09 1 (OEM) ships same day
053b 991-5125 Brush bearing $3.49 1 (NON-OEM) ships same day
054 175-6444 Brush seal $25.30 1 ships same day
055 175-7238 Screw 6 x 1 pan head phillips stainless steel $2.51 3 ships same day
056 175-7239 Bracket $55.55 1 ships same day
057 999-0053 Washer #10 split lock plain finish $0.90 2 ships same day
058 999-0393 Washer 3/16 flat aluminum $0.90 2 ships same day
059 175-7240 Bracket $37.84 1 ships same day
060 175-7241 Washer 3/8 wave $3.17 1 ships same day
061 275-5161 Knob position decal $26.18 1 usually ships 5-14 days
062 275-5162 Compression spring $4.62 1 ships same day
