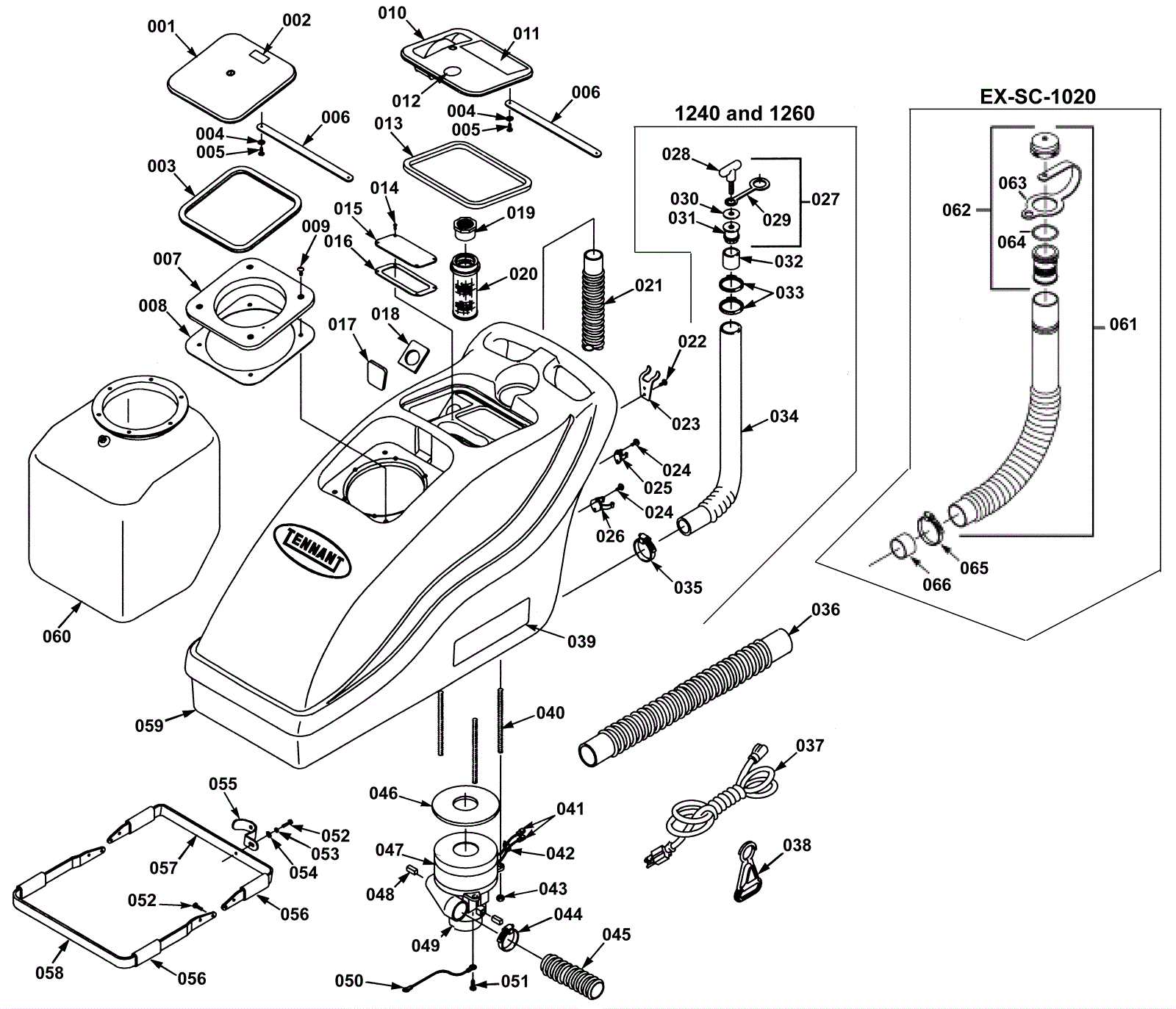

1260 Tank Assembly - After 06.2002

#PartDescriptionPriceReqNotesAvailability
001a 275-5134 Tank lid assembly $164.78 1 (solution) (includes 001b-003) usually ships 14-22 days
001b 275-5135 Tank lid (clear) $53.68 1 (solution) usually ships 14-22 days
002 175-6107 Always drain decal $6.05 1 ships same day
003 175-4226 Tank lid gasket $35.64 1 (solution) ships same day
004 175-5797 Washer 1/6 flat zinc $3.83 4 ships same day
005 999-0434 Screw 6 x 3/8 pan head phillips $0.99 4 ships same day
006 175-8786 Strap $5.50 2 ships same day
007 275-5136 Nylon cover adapter (black) $22.77 1 usually ships 1-5 days
008 275-5137 Bladder bag gasket $7.04 1 usually ships 14-22 days
009 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 4 ships same day
010 275-5138 Tank lid assembly $175.56 1 (recovery) (includes 011-013) ships same day
011 175-3906 Warning decal $9.68 1 usually ships 1-5 days
012 175-6109 Do not allow foam decal $5.50 1 usually ships 14-22 days
013 175-9058 Tank lid gasket $35.64 1 ships same day
014 999-0434 Screw 6 x 3/8 pan head phillips $0.99 4 ships same day
015 275-5139 Standpipe cover $12.54 1 usually ships 14-22 days
016 275-5140 Standpipe cover gasket $5.02 1 ships same day
017 275-5141 Gasket $5.02 1 ships same day
018 175-4208 Rear gasket $5.02 1 ships same day
019 175-7386 PVC adapter $9.90 1 usually ships 14-22 days
020 175-9838 Shut-off float $85.58 1 ships same day
021 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch $52.47 1 ships same day
022 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
023 175-6069 Drain hose bracket $21.23 1 usually ships 14-22 days
024 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.99 4 ships same day
025 275-5142 Hose clip .75 nylon (black) $5.50 1 usually ships 1-5 days
026 275-8165 Hose clip $5.61 1 ships same day
027a 175-6070 Drain plug assembly $81.84 1 (1240 and 1260) (includes 028-031) (before SN 10126650) (OEM) ships same day
027b 175-4214 Drain plug assembly $19.47 1 (includes 028-031) (after SN 10126649) (OEM) ships same day
027c 991-3028 Drain plug assembly $13.55 1 (NON-OEM) ships same day
028 175-6071 Drain plug knob $15.84 1 (1240 and 1260) ships same day
029 175-6072 Drain plug strap $17.16 1 (1240 and 1260) ships same day
030 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 1 (1240 and 1260) ships same day
031 175-6073 Fitting $9.90 1 (1240 and 1260) usually ships 14-22 days
032 175-6074 Drain hose sleeve $15.07 1 (1240 and 1260) usually ships 14-22 days
033 175-1789 Hose clamp $5.50 2 (1240 and 1260) usually ships 14-22 days
034a 175-1535 Drain hose assembly $102.19 1 (includes 27b, 064) (OEM) ships same day
034b 991-1907 22 inch molded hose with drain cap $34.61 1 (NON-OEM) ships same day
035 997-2007 Hose clamp $2.07 1 (1240 and 1260) ships same day
036a 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch $84.92 1 (OEM) usually ships 14-22 days
036b 991-5154 Vacuum hose with cuffs 1 1/2 x 53 inch $58.61 1 (NON-OEM) usually ships 7-10 days
037a 175-6091 16/3 extension cord 50 foot (yellow) $70.68 1 (OEM) ships same day
037b 991-5002 16/3 extension cord 50 foot (yellow) $40.25 1 (NON-OEM) ships same day
038 175-0236 Cord belt clip $9.79 1 ships same day
039a 275-5143 Side decal (1240) $62.15 2 usually ships 1-5 days
039b 275-5144 Side decal (1260) $261.80 2 usually ships 14-22 days
039c 275-9770 Dual logo decal (Tennant Industrial) $8.64 2 (EX-SC-1020) usually ships 1-5 days
040 175-6078 Stud 1/4-20 x 5 inch full threaded $5.50 3 usually ships 14-22 days
041 175-3011 Female terminal $2.64 2 usually ships 14-22 days
042 175-0037 Wire tie $3.70 2 usually ships 14-22 days
043 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
044 997-2000 Hose clamp $2.20 1 ships same day
045 175-6090 Exhaust hose 2 x 26 inch (black) $10.01 1 ships same day
046 175-6084 Vacuum motor gasket $12.32 1 ships same day
047a 175-0198 120V 3 stage vacuum motor $526.51 1 (OEM) (includes 048) ships same day
047b 991-1213 120V 3 stage vacuum motor tangential $195.36 1 (NON-OEM) ships same day
047c 175-0140 Terminal ring #10 $4.62 1 (1240 and 1260) usually ships 14-22 days
048 375-3946 Carbon brush kit $26.18 1 usually ships 14-22 days
049 175-6087 Vacuum fan cover $22.11 1 usually ships 14-22 days
050 175-7215 18 gauge wire assembly $3.96 1 usually ships 1-5 days
051 175-4550 Ground screw $2.77 1 usually ships 1-5 days
052 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 5 ships same day
053 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
054 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
055 275-5145 Tank brace clamp $15.84 1 usually ships 1-5 days
056 175-6102 Grip $5.50 4 usually ships 1-5 days
057 275-5146 Rear tank brace bracket $158.73 1 usually ships 1-5 days
058 275-5147 Front tank brace bracket $158.73 1 usually ships 1-5 days
059a 275-5148 Tank assembly $769.10 1 (1240 and 1260) usually ships 14-22 days
059b 275-6090 Tank assembly $666.40 1 (EX-SC-1020) usually ships 1-5 days
060 175-6083 10 gallon bladder bag $327.10 1 usually ships 14-22 days
061a 175-1535 Drain hose assembly $102.19 1 (EX-SC-1020) (includes 062) (OEM) ships same day
061b 991-1907 22 inch molded hose with drain cap $34.61 1 (NON-OEM) ships same day
062a 175-4214 Drain plug assembly $19.47 1 (EX-SC-1020) (includes 063 and 064) (OEM) ships same day
062b 991-3028 Drain plug assembly $13.55 1 (EX-SC-1020) (includes 063 and 064) (NON-OEM) ships same day
063 N/A Not available Call for price 1 (Drain cap strap) (EX-SC-1020) usually ships 3-7 days
064 175-5804 O-ring $11.11 1 (EX-SC-1020) ships same day
065 997-2000 Hose clamp $2.20 1 (EX-SC-1020) ships same day
066 175-9500 Hose adapter sleeve $5.50 1 (EX-SC-1020) usually ships 14-22 days
