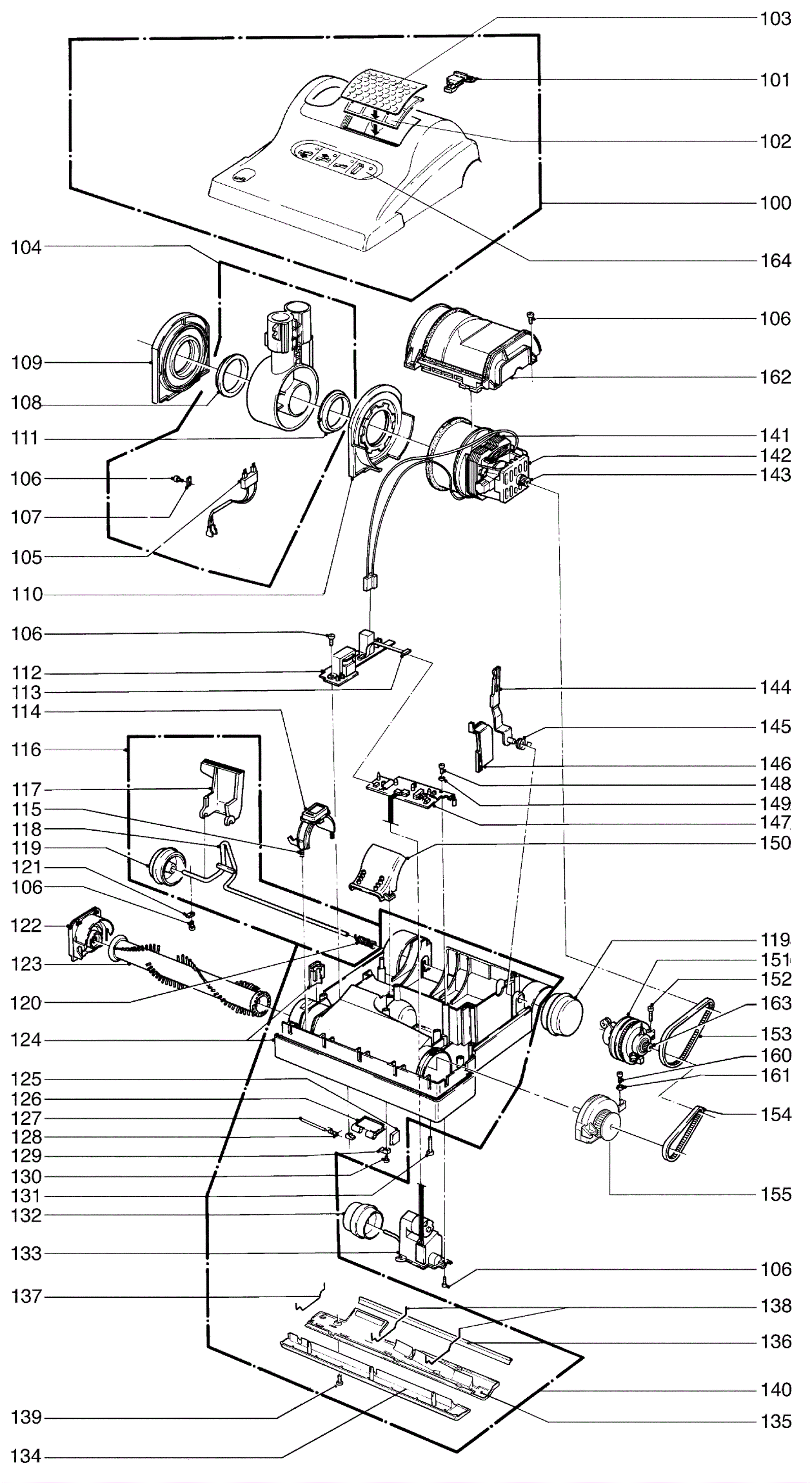

Power Head Assembly

#PartDescription ReqNotesAvailability
100a 284-1210 Power head cover (white/gray black) 1 (includes 101-103, 164) (9570Am model)
100b 284-1211 Power head cover (onyx/silver) 1 (includes 101-103, 164) (9504AM model)
100c 284-1212 Power head cover (red/gray black) 1 (includes 101-103, 164) (9558AM model)
100d 284-1213 Power head cover (spring green/dark gray) 1 (includes 101-103, 164) (9574AM model)
100e 284-1214 Power head cover (dark blue/yellow) 1 (includes 101-103, 164) (9577AM model)
101a 284-1215 Exhaust filter catch (white) 1 (9570Am model)
101b 284-1216 Exhaust filter catch (gray black) 1 (9504AM model)
101c 284-1217 Exhaust filter catch (dark gray) 1 (9574AM model)
101d 284-1218 Exhaust filter catch (dark blue) 1 (9577AM model)
102 173-0093 Exhaust filter 1
103a 284-1219 Filter cover (white) 1 (9570Am model)
103b 284-1220 Filter cover (onyx) 1 (9504AM model)
103c 284-1221 Filter cover (red) 1 (9558AM model)
103d 284-1222 Filter cover (spring green) 1 (9574AM model)
103e 284-1223 Filter cover (dark blue) 1 (9577AM model)
104 284-1224 Swivel neck assembly 1 (includes 105-108, 111)
105 273-7151 Male contact holder 1
106 173-0007 Screw M3-.5 x 13mm 6
107 173-2391 Cable clamp 1
108 284-1225 Right hand swivel neck bearing 1
109 284-1226 Right hand swivel neck support 1
110 173-5247 Left side swivel neck support 1
111 173-5248 Left side swivel neck bearing 1
112 173-2395 12V power supply 1
113 173-2396 Ribbon cable 1
114a 284-1231 Brush roller release (white) 1 (9570Am model)
114b 284-1232 Brush roller release (onyx) 1 (9504AM model)
114c 284-1233 Brush roller release (gray) 1 (9558AM model)
114d 284-1234 Brush roller release (spring green) 1 (9574AM model)
114e 284-1235 Brush roller release (dark blue) 1 (9577AM model)
115 173-2398 Spring 1
116 373-5051 Axle assembly 1 (includes 117-120)
117 284-1027 Foot pedal 1
118 173-2401 Axle 1
119 284-1236 Wheel 2
120 173-0009 Axle spring 1
121 173-0008 Axle clamp 1
122a 284-1023 Right bearing block 1 (9570Am model)
122b 284-1238 Right hand bearing block 1 (9504AM model)
122c 284-1239 Right hand bearing block (red/gray black) 1 (9558AM model)
122d 284-1240 Right hand bearing block (spring green/dark gray) 1 (9574AM model)
122e 284-1241 Right hand bearing block (dark blue/gray black) 1 (9577AM model)
123 173-2403 12 inch brush roller 1
124 284-1242 Bumper set 1
125 284-1243 Rubbing plate 1
126 173-2406 Access door 1 (includes 127-128)
127 173-2407 Access door axle 1
128 173-2408 Access door spring 1
129 284-1244 Hinge 1
130 173-2458 Screw M2.9 x 9.5mm (OBSOLETE) 1
131 284-1246 Screw 4 x 30 1
132 284-1247 Pile adjustment wheel 1
133 173-2411 Drive motor with gear box 1
134 284-1028 Front bottom plate 1
135 284-1034 Rear bottom plate 1 (includes 136, 139)
136 284-1021 Sealing strip 1
137 173-5269 Wire tie 1
138 173-5270 Wire tie 2
139 273-0939 Screw M4-.7 x 12mm with washer 1
140 284-1248 Chassis assembly 1 (includes 124-130, 134-139)
141a 284-1249 120V vacuum motor 1 (includes 141b-143) (9570Am model)
141b 173-4726 Carbon brush (pkg of 2) 1
142 173-2415 Rubber mount 1
143 173-5272 Motor pulley 1
144 173-2417 Support lever 1
145 284-1252 Support spring 1
146 173-2419 Motor pulley cover 1
147 173-2395 12V power supply 1
148 173-2462 Screw M2.9 x 13mm 1
149 173-2463 Washer 3.2mm 1
150 173-2421 Cover 1
151 173-5277 Sensor X4 1
152 173-2464 Screw 3.9 x 25mm 1
153 173-8443 Belt 1
154 173-2424 Belt 1
160 173-0135 Screw M3-.5 x 16mm 1
161 173-0090 Lock washer 1
162 173-2430 Motor cover 1
163 284-1258 Sensor pulley 1
164a 284-1259 Display (gray black) 1 (9570Am model)
164b 284-1260 Display (yellow) 1 (9577AM model)
