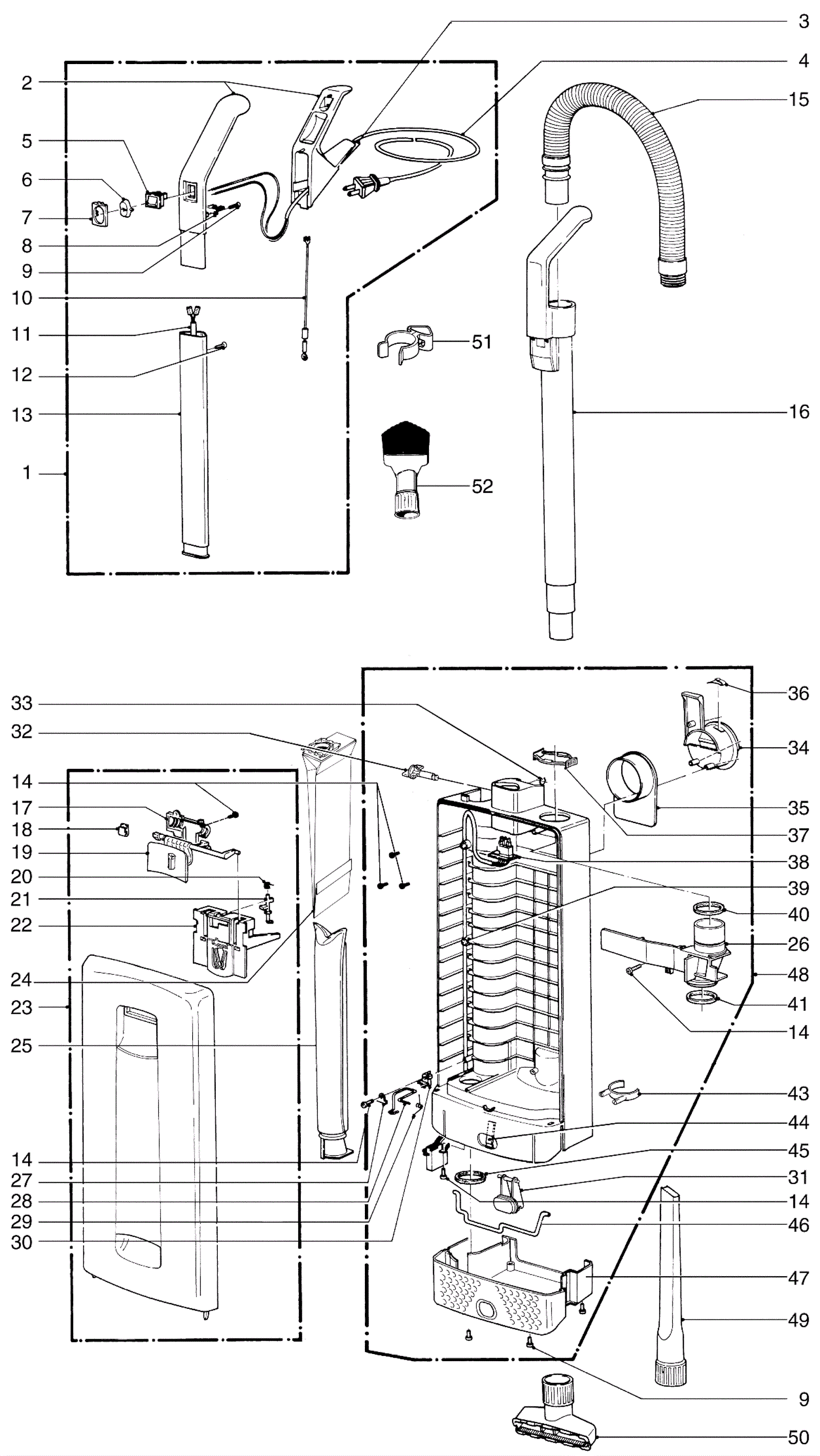

X4 Filter Bag Housing and Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1a 284-1037 Handle assembly (gray black/white) $74.81 1 (includes 2-13) (9570AM model) usually ships 12-20 days
1b 284-1038 Handle assembly (onyx/silver) $74.81 1 (includes 2-13) (9501AM model) usually ships 12-20 days
1c 284-1039 Handle assembly (red/gray black) $74.81 1 (9558AM model) usually ships 12-20 days
1d 284-1040 Handle assembly (spring green) Call for price 1 (includes 2-13) (9574AM model) usually ships 11-21 days
1e 284-1041 Handle assembly (gray black/yellow) $74.81 1 (9577AM model) usually ships 12-20 days
2a 284-1042 Handle grip Call for price 1 (includes 3, 7, 10) (9570AM model) usually ships 11-21 days
2b 284-1043 Handle grip Call for price 1 (includes 3, 7, 10) (9501AM model) usually ships 11-21 days
3 284-1044 Grommet $1.41 1 usually ships 12-20 days
4 284-1045 Power supply cord $46.75 1 usually ships 12-20 days
5 284-1046 Switch with screws $28.05 1 usually ships 12-20 days
6a 284-1047 Switch cap (white) Call for price 1 (9570AM model) usually ships 11-21 days
6b 284-1048 Switch cap (silver) Call for price 1 (9501AM model) usually ships 11-21 days
6c 284-1049 Switch cap (red) Call for price 1 (9558AM model) usually ships 11-21 days
6d 284-1050 Switch cap (spring green) Call for price 1 (9574AM model) usually ships 11-21 days
6e 284-1051 Switch cap (yellow) Call for price 1 (9577AM model) usually ships 11-21 days
7a 284-1052 Switch cap holder $3.19 1 (9570AM model) usually ships 12-20 days
7b 284-1053 Switch cap holder (black) Call for price 1 (9501AM model) usually ships 11-21 days
8 173-2354 Cable clamp $3.03 1 ships same day
9 173-0135 Screw M3-.5 x 16mm $0.99 6 ships same day
10 173-2355 Antistatic wire $19.58 1 usually ships 14-22 days
11 173-2356 Interconnect cord $40.37 1 ships same day
12 173-2457 Screw M4 x 12mm $1.64 1 usually ships 14-22 days
13 173-2357 Handle tube weldment $53.79 1 ships same day
14 173-0007 Screw M3-.5 x 13mm $1.91 6 ships same day
15 173-0205 Hose $94.05 1 ships same day
16a 284-1024 Extension wand $36.66 1 (9570AM model) usually ships 11-21 days
16b 284-1057 Extension tube (black) $23.38 1 (9501AM model) usually ships 12-20 days
17a 284-1058 Cover (white) Call for price 1 (9570AM model) usually ships 11-21 days
17b 284-1059 Cover (black) Call for price 1 (9501AM model) usually ships 11-21 days
17c 284-1060 Cover (red) Call for price 1 (9558AM model) usually ships 11-21 days
17d 284-1061 Cover (spring green) Call for price 1 (9574AM model) usually ships 11-21 days
17e 284-1062 Cover (dark blue) Call for price 1 (9577AM model) usually ships 11-21 days
18 173-2359 Bag holder spring $4.07 1 ships same day
19a 284-1063 Release cover (gray black) $8.61 1 (9570AM model) usually ships 12-20 days
19b 284-1064 Release cover (silver) Call for price 1 (9501AM model) usually ships 11-21 days
19c 284-1065 Release cover (yellow) Call for price 1 (9577AM model) usually ships 11-21 days
20 173-2361 Safety catch $4.66 1 usually ships 14-22 days
21 173-2361 Safety catch $4.66 1 usually ships 14-22 days
22 173-2362 Bag holder $30.58 1 (includes 20 and 21) ships same day
23a 284-1066 Front cover (white/gray black) $68.88 1 (inlcludes 14, 17-22) (9570AM model) usually ships 12-20 days
23b 284-1067 Front cover (black/silver) $56.10 1 (9501AM model) usually ships 12-20 days
23c 284-1068 Front cover (red/gray black) $68.88 1 (9558AM model) usually ships 12-20 days
23d 284-1069 Front cover (spring green) Call for price 1 (9574AM model) usually ships 11-21 days
23e 284-1070 Front cover (dark blue) $68.88 1 (9577AM model) usually ships 12-20 days
24 284-1000 Paper bags 8 pack $64.16 1 usually ships 10-13 days
25 284-1016 Micro grade filter $54.92 1 usually ships 11-21 days
26a 284-1071 Internal cover $16.10 1 (includes 40 and 41) (9570AM model) usually ships 12-20 days
26b 284-1072 Internal cover Call for price 1 (includes 40 and 41) (9501AM model) usually ships 11-21 days
27 173-0048 Clamp $3.39 1 usually ships 14-22 days
28 173-2365 Filter safety catch $12.21 1 usually ships 14-22 days
29 173-2366 Torsion spring $5.39 1 ships same day
30 173-2367 Cable clamp $7.32 1 usually ships 14-22 days
31a 284-1073 Dust bag housing locking catch (gray black) Call for price 1 (9570AM model) usually ships 11-21 days
31b 284-1074 Dust bag housing locking catch (silver) Call for price 1 (9501AM model) usually ships 11-21 days
31c 284-1075 Dust bag housing locking catch (yellow) Call for price 1 (9558AM model) usually ships 11-21 days
32a 284-1076 Handle catch (gray black) $5.50 1 (9570AM model) usually ships 12-20 days
32b 284-1077 Handle catch (silver) $5.50 1 (9501AM model) usually ships 12-20 days
32c 284-1078 Handle catch (yellow) $5.50 1 (9558AM model) usually ships 12-20 days
33 173-0173 Clip $1.28 1 usually ships 14-22 days
34a 284-1080 Carrying handle (gray black) Call for price 1 (9570AM model) usually ships 11-21 days
34b 284-1081 Carrying handle (black) Call for price 1 (9501AM model) usually ships 11-21 days
34c 284-1082 Carrying handle (spring green) Call for price 1 (9558AM model) usually ships 11-21 days
34d 284-1083 Carrying handle (dark blue) $8.47 1 usually ships 12-20 days
35a 284-1208 Cable hook (white) $7.18 1 (9570AM model) usually ships 12-20 days
35b 284-1085 Cable hook (black) $7.17 1 (9501AM model) usually ships 12-20 days
35c 284-1086 Cable hook (red) $15.79 1 (includes 34) (9558AM model) usually ships 12-20 days
35d 284-1087 Cable hook (spring green) Call for price 1 (9574AM model) usually ships 11-21 days
35e 284-1088 Cable hook (dark blue) $7.17 1 (9577AM model) usually ships 12-20 days
36 173-0170 Spring stop $4.48 1 usually ships 14-22 days
37a 284-1089 Retaining ring $2.09 1 (9570AM model) usually ships 12-20 days
37b 284-1090 Retaining ring Call for price 1 (9501AM model) usually ships 11-21 days
38 273-7152 Internal cable $45.21 1 usually ships 14-22 days
39 173-2376 Cord clamp $4.11 1 usually ships 14-22 days
40 284-1093 Seal $3.43 1 usually ships 12-20 days
41 173-0162 Seal $12.87 1 usually ships 14-22 days
43a 284-1094 Attachment clip (gray black) $3.50 1 (9570AM model) usually ships 12-20 days
43b 284-1095 Attachment clip (black) $3.37 1 (9501AM model) usually ships 12-20 days
44 173-2379 Locking rod spring $5.39 1 ships same day
45 173-2381 Seal $6.44 1 usually ships 14-22 days
46 173-5234 Locking rod $20.90 1 usually ships 14-22 days
47a 284-1096 Dust bag housing bumper base (white) Call for price 1 (9570AM model) usually ships 11-21 days
47b 284-1097 Dust bag housing bumper base (black) Call for price 1 (9501AM model) usually ships 11-21 days
47c 284-1098 Dust bag housing bumper base (gray black) Call for price 1 (9558AM model) usually ships 11-21 days
47d 284-1099 Dust bag housing bumper base (spring green) Call for price 1 (9574AM model) usually ships 11-21 days
47e 284-1200 Dust bag housing bumper base (dark blue) Call for price 1 (9577AM model) usually ships 11-21 days
48a 284-1201 Dust bag housing (white/gray black) $117.68 1 (includes 9, 14, 26-47) (9570AM model) usually ships 12-20 days
48b 284-1209 Dust bag housing (black) Call for price 1 (includes 9, 14, 26-47) (9501AM model) usually ships 11-21 days
48c 284-1202 Dust bag housing (red) $117.68 1 (9558AM model) usually ships 12-20 days
48d 284-1203 Dust bag housing (spring green) Call for price 1 (includes 9, 14, 26-47) (9574AM model) usually ships 11-21 days
48e 284-1204 Dust bag housing (dark blue) $113.38 1 (9577AM model) usually ships 12-20 days
49a 284-1003 Crevice nozzle $27.48 1 (9570AM model) usually ships 11-21 days
49b 284-1205 Crevice nozzle (black) $14.03 1 (9501AM model) usually ships 12-20 days
50a 284-1010 Upholstery nozzle $27.48 1 (9570AM model) usually ships 11-21 days
50b 284-1206 Upholstery nozzle (black) $14.03 1 (9501AM model) usually ships 12-20 days
51 284-1032 Mounting clip $10.12 1 usually ships 11-21 days
52 284-1004 Dusting brush $45.83 1 usually ships 11-21 days
N/S 173-7405 Front cover seal $16.39 1 usually ships 1-5 days
