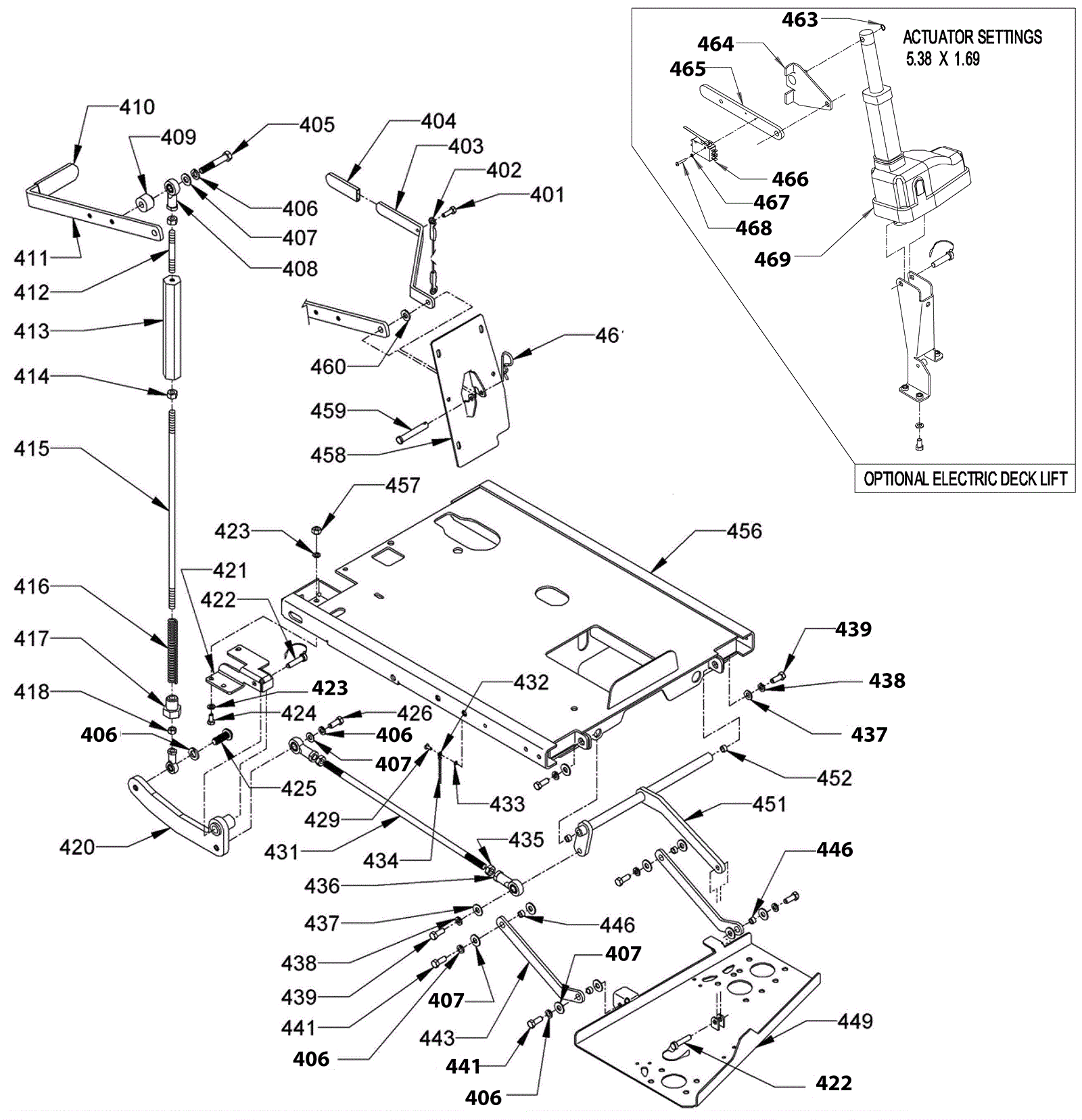

WRANGLER 3330 Brush Deck Lift Assembly

#PartDescriptionPriceReqNotesAvailability
401 164-1458 Bolt 5/16-18 x 3/8 long socket head $7.15 1 ships same day
402 164-1447 Squeegee lift cable $11.72 1 ships same day
403 164-1494 Squeegee lift handle $28.00 1 usually ships 7-10 days
404 164-1495 Squeegee lift handle grip $2.11 1 ships same day
405 164-0261 Handle grip $2.64 1 ships same day
406 164-1496 Brush lift handle $35.53 1 ships same day
407 164-0277 Ball joint $30.31 2 usually ships 7-10 days
408 999-0033 Washer 7/16 SAE flat $0.90 2 ships same day
409 999-0034 Washer 3/8 split lock plain finish $0.90 2 ships same day
410 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $0.90 2 ships same day
411 999-0143 Nut 3/8-24 hex plain finish $0.90 1 ships same day
412 164-0275 Spring housing retainer $11.72 1 usually ships 7-10 days
413 164-3131 4 1/2 inch spring $5.02 1 usually ships 1-5 days
414 164-1498 Lift rod 13 inch $13.59 1 usually ships 7-10 days
415 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.90 1 ships same day
416 164-1497 Brush lift spring housing $27.89 1 usually ships 1-5 days
417 164-0276 Short lifting rod $10.29 1 usually ships 7-10 days
418 999-0028 Washer 5/16 split lock plain finish $0.90 3 ships same day
419 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.90 3 ships same day
420 999-0143 Nut 3/8-24 hex plain finish $0.90 1 ships same day
421a 164-3301 Brush lift rod and crank kit $116.22 1 ships same day
421b 164-8298 Brush lift crank $42.19 1 ships same day
422 164-0151 Spacer $2.64 1 ships same day
423 999-0033 Washer 7/16 SAE flat $0.90 1 ships same day
424 999-0034 Washer 3/8 split lock plain finish $0.90 1 ships same day
425 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $0.92 1 ships same day
426 164-0823 Clevis pin with retainer $7.15 1 ships same day
427 164-3303 Pivot bracket $35.15 1 usually ships 7-10 days
428 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.90 1 ships same day
429 164-1502 End coupling $1.85 1 usually ships 1-5 days
430 164-1503 8 inch round bead chain $2.24 1 (cut to 3 inches) usually ships 1-5 days
431 999-0311 Washer #10 external star lock zinc plated $0.90 1 ships same day
432 164-3301 Brush lift rod and crank kit $116.22 1 ships same day
433 999-0134 Nut 1/2-20 hex jam plain finish $0.90 1 ships same day
434 164-0238 Ball joint $36.41 1 ships same day
435 999-0114 Washer 1/2 SAE flat $0.90 2 ships same day
436 999-0126 Washer 1/2 split lock $0.90 2 usually ships 6-14 days
437 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.23 2 ships same day
438 164-0151 Spacer $2.64 2 ships same day
439 999-0033 Washer 7/16 SAE flat $0.90 4 ships same day
440 999-0034 Washer 3/8 split lock plain finish $0.90 2 ships same day
441 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $0.90 2 ships same day
442 164-1506 Brush deck arm $18.81 2 ships same day
443 999-0033 Washer 7/16 SAE flat $0.90 4 ships same day
444 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $0.90 2 ships same day
445 999-0034 Washer 3/8 split lock plain finish $0.90 2 ships same day
446 164-0823 Clevis pin with retainer $7.15 1 ships same day
447 164-1486 Brush deck $131.67 1 ships same day
448 164-0151 Spacer $2.64 2 ships same day
449 164-1507 Front brush lifting shaft $120.18 1 usually ships 1-5 days
450 164-0130 Bushing $2.84 2 ships same day
451 999-0114 Washer 1/2 SAE flat $0.90 2 ships same day
452 999-0126 Washer 1/2 split lock $0.90 2 usually ships 6-14 days
453 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.23 2 ships same day
454 164-1392 Frame $559.90 1 usually ships 1-5 days
455 164-1430 Brush actuator bracket (OBSOLETE) $44.00 1 usually ships 7-10 days
456 164-1428 Brush lifting handle mount $62.04 1 ships same day
457 164-0823 Clevis pin with retainer $7.15 1 ships same day
458 999-0187 Washer 1/2 flat plain finish $0.90 1 ships same day
459 164-3300 Lower actuator spacer $25.30 1 usually ships 1-5 days
460 164-3296 Upper actuator spacer (OBSOLETE) $23.27 1 usually ships 7-10 days
461 164-1490 3/8 retaining ring $1.72 1 (optional) usually ships 1-5 days
462 164-1491 Brush actuator stop arm (OBSOLETE) $49.34 1 (optional) usually ships 1-5 days
463 164-1492 Brush actuator switch arm (OBSOLETE) $21.78 1 (optional) usually ships 1-5 days
464 164-1179 Limit switch $42.74 1 (optional) usually ships 7-10 days
465 999-0148 Washer #6 external star lock zinc plated $0.90 2 (optional) ships same day
466 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.90 2 (optional) ships same day
467 164-1623 Actuator kit (brush and squeegee) $919.53 1 (optional) ships same day
