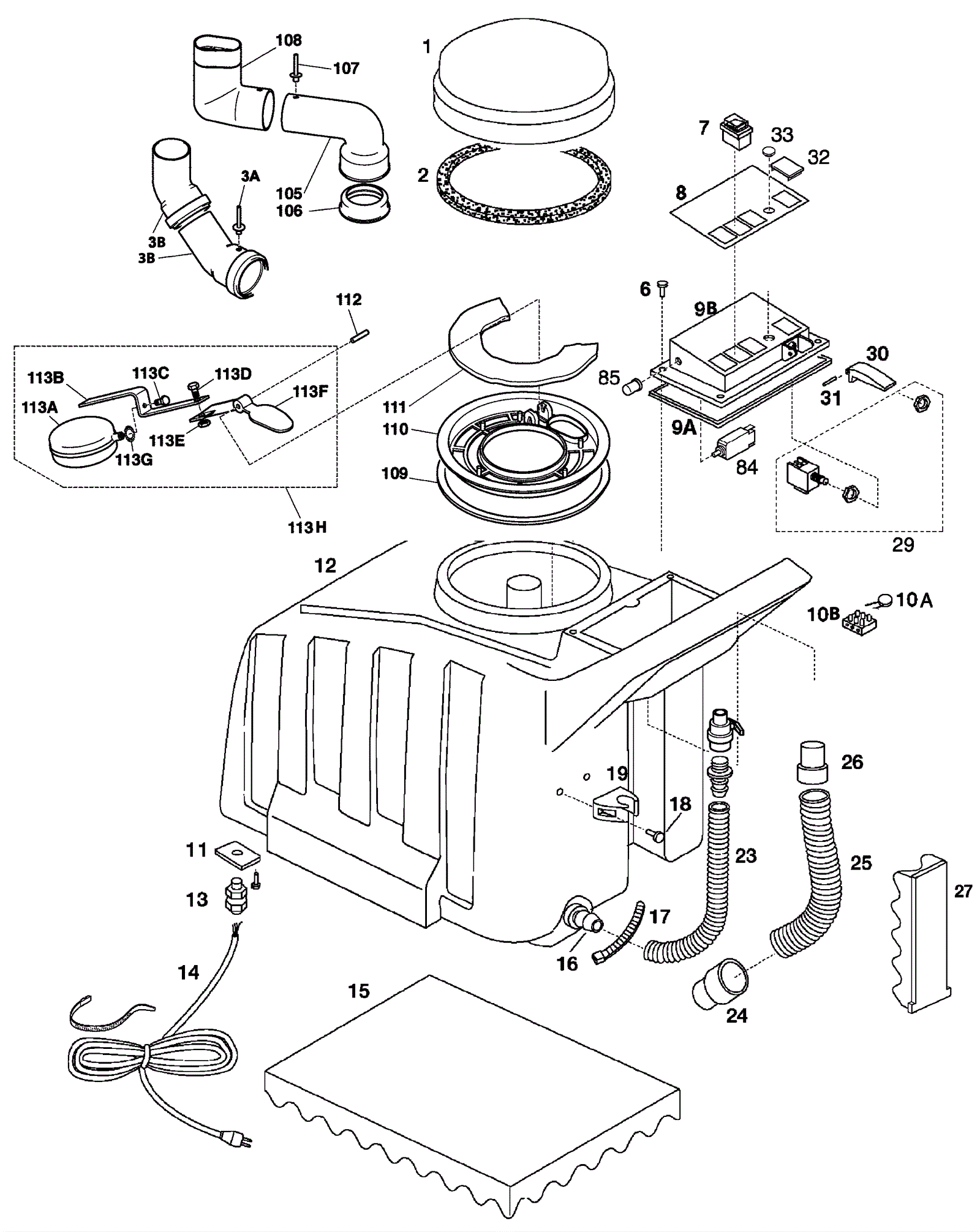

AVENGER 12QX Recovery Tank Assembly After SN 92890

#PartDescriptionPriceReqNotesAvailability
1 220-0420 Recovery lid with gasket $77.62 usually ships 12-15 days
2 220-0420 Recovery lid with gasket $77.62 usually ships 12-15 days
3a 220-0697 Rivet $1.05 usually ships 12-15 days
3b 220-0466 Elbow $10.44 usually ships 12-15 days
6 220-0467 Screw $1.14 usually ships 12-15 days
7a 193-0120 Switch $11.06 ships same day
7b 220-0423 3 position switch $10.63 (for pump) usually ships 12-15 days
8 220-0724 Panel decal $5.83 usually ships 12-15 days
9a 220-0478 Panel gasket $7.36 usually ships 12-15 days
9b 220-0725 Control panel $73.43 usually ships 12-15 days
10a 220-0515 Varistor $8.50 usually ships 12-15 days
10b 220-0472 Connecting terminal $5.83 usually ships 12-15 days
11 220-0482 Plate $5.83 usually ships 12-15 days
12a 220-0761 Blue upper tank Call for price usually ships 12-15 days
12b 220-0727 Green upper tank Call for price usually ships 12-15 days
13 220-0425 Strain relief with nut $5.83 usually ships 12-15 days
14 220-4027 Power cord $148.42 usually ships 12-15 days
15 220-0728 Soundproofing panel $14.66 usually ships 12-15 days
16 220-4036 Hose nipple $11.32 usually ships 12-15 days
17 220-4037 Tie $4.81 usually ships 12-15 days
18 220-4041 Screw $1.05 usually ships 12-15 days
19 220-4042 Clip $8.70 usually ships 12-15 days
23a 220-4038 Drain hose $26.04 usually ships 12-15 days
23b 220-0430 Drain hose $46.15 usually ships 12-15 days
24 220-0731 Hose cuff $9.48 usually ships 12-15 days
25 220-0732 Hose with cuffs $11.99 usually ships 12-15 days
26 220-4059 Hose cuff $7.96 usually ships 12-15 days
27a 220-0733 Soundproofing panel $52.18 (up to S/N 92890) usually ships 12-15 days
27b 220-0762 Soundproofing panel $49.18 (from S/N 92890) usually ships 12-15 days
29 220-0416 Microswitch support and nuts $55.30 usually ships 12-15 days
30 220-0059 Solution lever $63.05 usually ships 1-5 days
31 220-0479 Pin $2.75 usually ships 12-15 days
32 220-0734 Cap $2.08 usually ships 12-15 days
33 220-0735 Circular cap $3.88 usually ships 12-15 days
84 220-0513 Drive motor circuit breaker $37.54 usually ships 12-15 days
85 220-0514 Cap $7.93 usually ships 12-15 days
105 220-0760 Elbow $10.43 usually ships 12-15 days
106 220-0763 Gasket Call for price usually ships 12-15 days
107 220-0697 Rivet $1.05 usually ships 12-15 days
108 220-0764 Special oval elbow Call for price usually ships 12-15 days
109 220-0765 Gasket for filter support $9.59 usually ships 12-15 days
110 220-0766 Large filter $35.07 usually ships 12-15 days
111 220-0767 Large filter $13.63 usually ships 12-15 days
112 220-0479 Pin $2.75 usually ships 12-15 days
113a 220-4079 Float $16.13 usually ships 12-15 days
113b 220-0769 Silent floater Call for price usually ships 12-15 days
113c 220-0524 Screw $2.66 usually ships 12-15 days
113d 220-0570 Screw $1.05 usually ships 12-15 days
113e 220-0770 Nut with washer Call for price usually ships 12-15 days
113f 220-0771 Float $5.71 usually ships 12-15 days
113g 220-0525 Locking washer $1.05 ships same day
113h 220-0768 Moving part for floater $64.59 (includes 113a-g) usually ships 12-15 days
N/S 220-4039 Tie $3.27 usually ships 12-15 days
