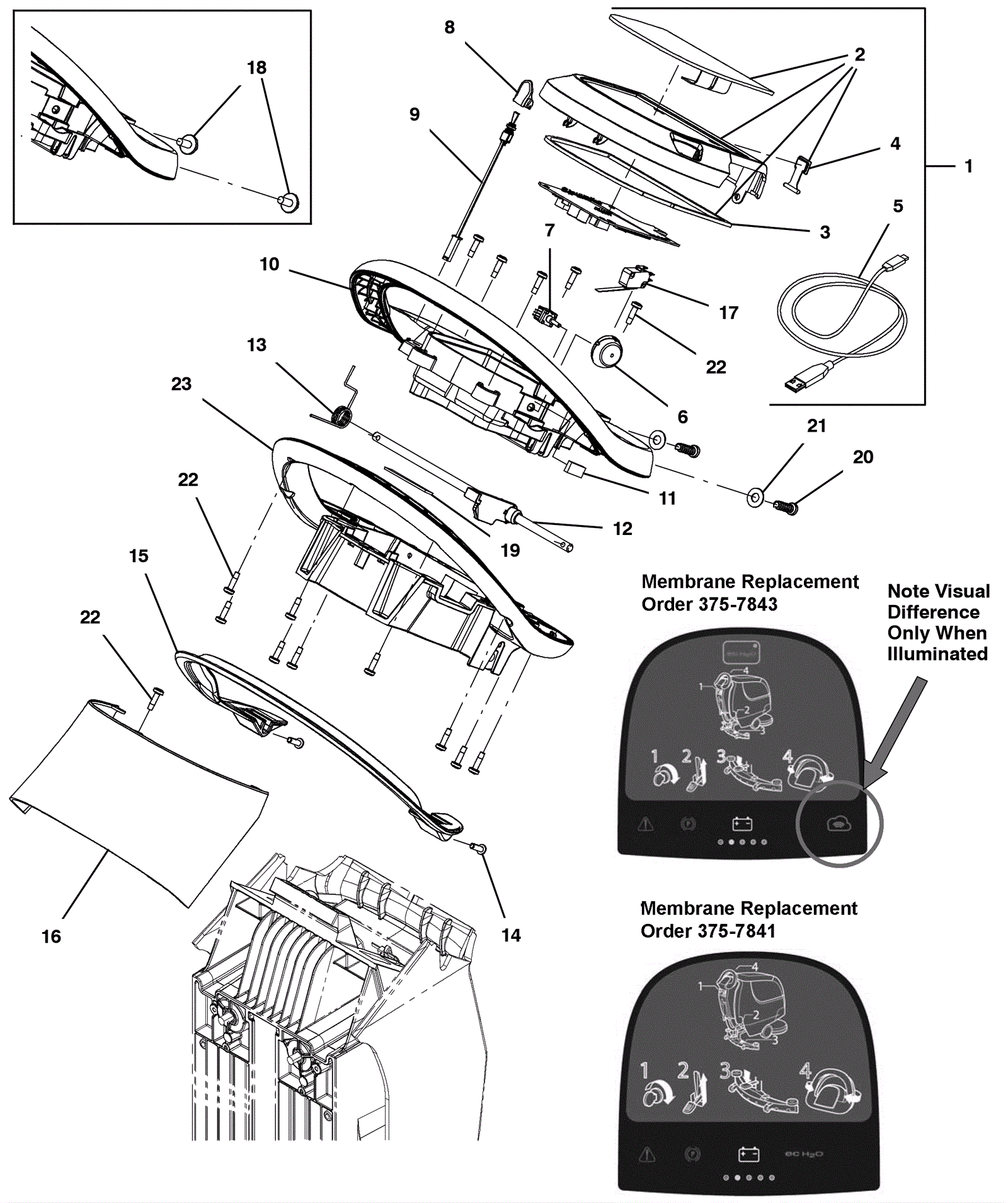

Handle Assembly

#PartDescription ReqNotesAvailability
1a 375-7841 Bezel kit 1 (includes 2a, 3-5) (propel model) (kit includes circuitboard) (requires Tennant True service or an authorized Tennant service provider)
1b 375-7842 Bezel kit 1 (includes 2b, 3-5) (after SN 11055625) (push model) (kit includes circuitboard) (requires Tennant True service or an authorized Tennant service provider)
1c 375-1349 Bezel kit 1 (includes 2c, 3-5) (before SN 11055626) (push model) (kit includes circuitboard) (replaced by 1b) (requires Tennant True service or an authorized Tennant service provider)
2a 375-7843 Screen kit 1 (includes 3-4) (propel model)
2b 375-7844 Screen kit 1 (includes 3-4) (after SN 11055625) (push model)
2c 375-7842 Bezel kit 1 (includes 3-4) (before SN 11055626) (push model) (replaced by 1b)
3 375-9374 Console gasket 1 (after 02/2020)
4 275-5430 USB cap 1
5 375-1351 USB to USB mini cable 1
6 375-4600 Speed range dial 1 (propel model)
7 275-5452 Potentiometer 1 (propel model)
8 275-5453 Toggle cap 1 (propel model)
9 275-5454 Toggle switch assembly 1 (propel model)
10 275-5434 Top handle housing 1
11 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT 1 (after 02/2020)
12 275-5436 Handle shaft assembly 1
13 275-5435 Spring 1
14 999-1403 Screw M8 x 16mm torx head 2
15 275-5438 Bail 1
16 275-5439 Handle cover 1
17 275-5433 Switch 1
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (before SN 10795905)
19 275-5893 Seal 1
20 375-3186 Screw 2 (after SN 10795904)
21 999-0024 Washer 5/16 flat stainless steel 2 (after SN 10795904)
22 175-7660 Screw #10-14 x .675 shoulder self-tapping 15
23 275-5437 Bottom handle housing 1
N/S 275-5427 Wiring harness 1 (bail switch)
