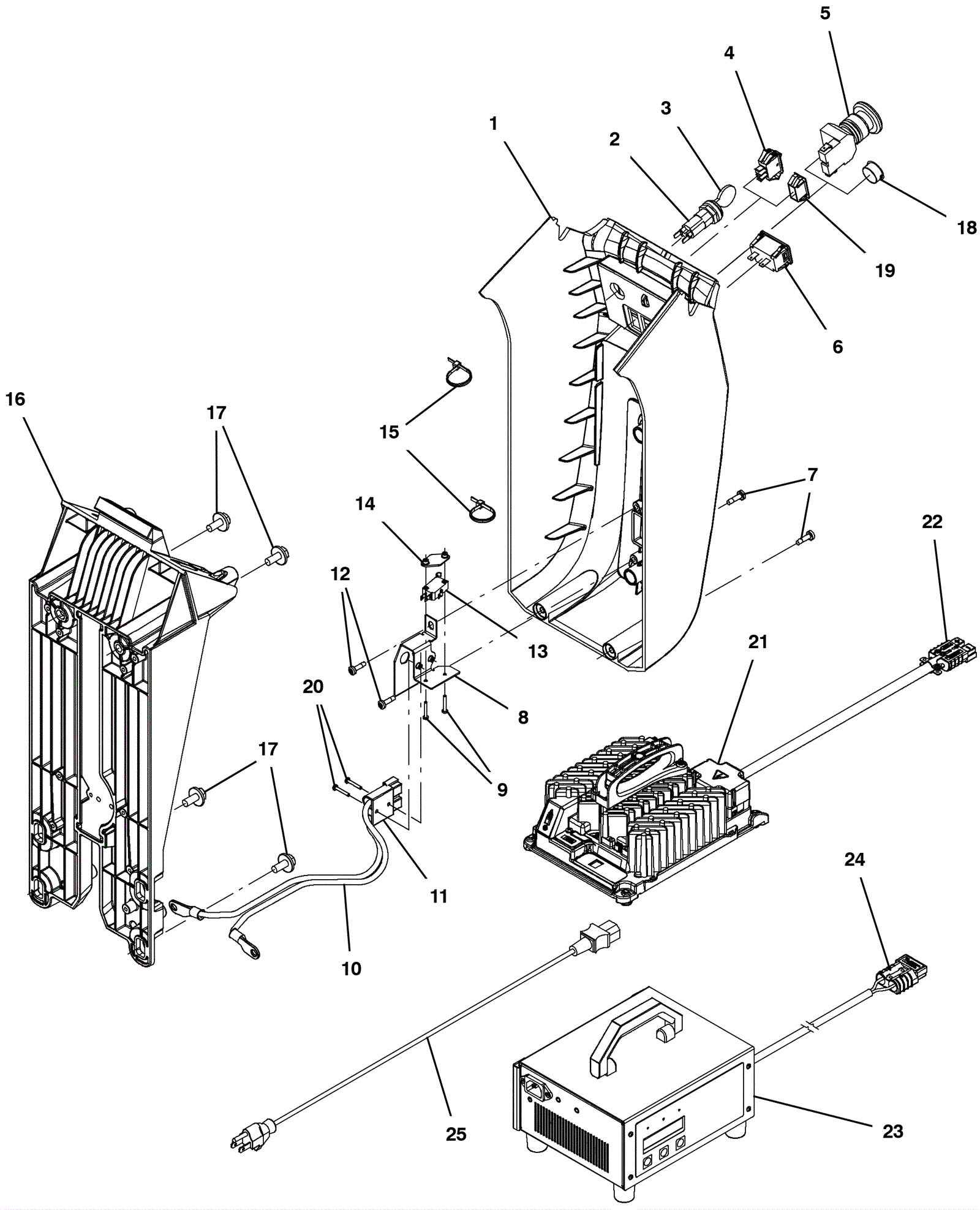

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-0182
|
Control column cover |
1 |
|
|
1b |
275-5444
|
Console cover |
1 |
(replaced by 1a) |
|
2 |
175-7872
|
Key switch with 2 keys |
1 |
(includes 3) |
|
3 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
4 |
275-4773
|
Rocker switch |
1 |
(ec-H2O) |
|
5 |
275-1416
|
Safety shut-off switch |
1 |
(propel model) |
|
6 |
275-9900
|
Hour meter |
1 |
|
|
7a |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
2 |
(after SN 10795904) |
|
7b |
999-1403
|
Screw M8 x 16mm torx head |
2 |
(before SN 10795905) |
|
8 |
375-0046
|
Charger plug bracket |
1 |
|
|
9 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
10a |
475-1496
|
HARNESS, CHRGR, 12GA [M8 RING/M8 RING] |
1 |
(includes 11) (wet and AGM batteries) |
|
10b |
N/A
|
Not available |
1 |
(charger harness) (includes 11) (Lithium-ion batteries) |
|
11 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
12 |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
2 |
|
|
13 |
375-0226
|
Mircroswitch |
1 |
|
|
14 |
175-7839
|
Switch plate |
1 |
|
|
15 |
175-7795
|
Cable tie |
2 |
|
|
16a |
375-3182
|
Column frame |
1 |
(after SN 10795904) |
|
16b |
375-0185
|
Control column frame |
1 |
(before SN 10795905) (replaced by 375-2560) |
|
17 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
18 |
175-3126
|
Plug |
1 |
(push model) |
|
19 |
175-2698
|
Switch plug |
1 |
(standard model) |
|
20 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
21 |
375-2531
|
24V 650W Lithium-ion charger |
1 |
(includes 22) (Lithium-ion batteries) |
|
22 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
23 |
375-0186
|
24V battery charger |
1 |
(includes 24) (wet and AGM batteries) |
|
24 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
25 |
275-1585
|
16/3 charger power cord 15 foot (black) |
1 |
|
|
