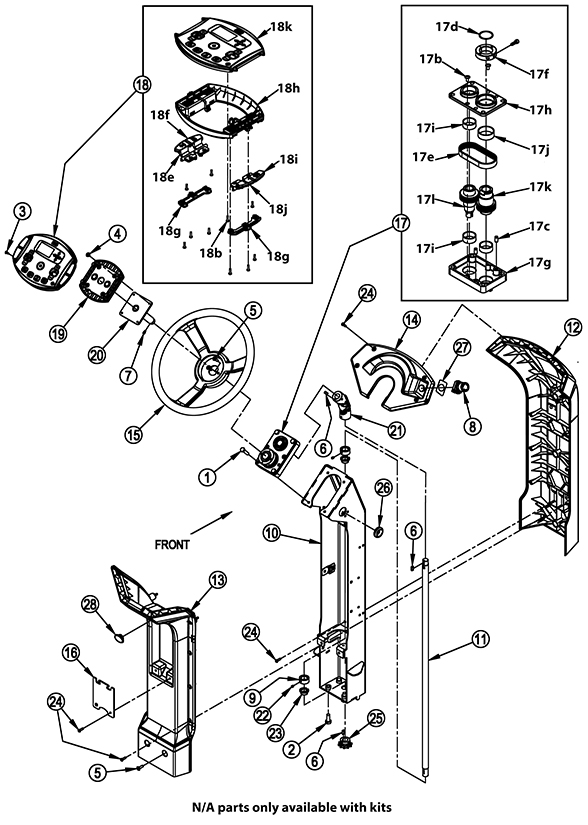

SC4000 32C HP Steering Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9215 Screw M8-1.25 x 35 hex cap stainless full thread $1.36 4 usually ships 16-20 days
2 999-9216 Screw M10 x 25 hex cap stainless full thread $2.20 4 usually ships 16-20 days
3 N/A Not available Call for price 4 (screw M4 x 10 torx with thread lock) usually ships 3-26 days
4 999-1317 Screw M6-1 x 8mm hex head stainless steel $0.99 4 usually ships 1-5 days
5 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 6 ships same day
6 N/A Not available Call for price 3 (square key) usually ships 3-26 days
7 N/A Not available Call for price 1 (screw M6 x 12 socket set dog) usually ships 3-26 days
8 272-6704 Emergency stop $86.94 1 ships same day
9 N/A Not available Call for price 2 (shaft collar) usually ships 3-26 days
10 572-8017 Steering column weldment $694.54 1 usually ships 13-18 days
11 N/A Not available Call for price 1 (lower steering shaft) usually ships 3-26 days
12 572-8018 Front steering shroud $183.28 1 usually ships 13-18 days
13 572-8019 Back steering shroud $158.30 1 usually ships 13-18 days
14 572-8020 Top steering shroud $55.30 1 usually ships 13-18 days
15 572-9210 Wheel-steering $296.16 1 usually ships 13-18 days
16 572-8021 Cover plate shroud $33.33 1 usually ships 13-18 days
17a 572-8022 Offset steering assembly $511.26 1 (includes 17b-17l) usually ships 13-18 days
17b N/A Not available Call for price 2 (screw m6 x 12 torx with thread lock) usually ships 3-26 days
17c N/A Not available Call for price 2 (dowel pin) usually ships 3-26 days
17d N/A Not available Call for price 1 (retaining ring) usually ships 3-26 days
17e N/A Not available Call for price 1 (belt) usually ships 3-26 days
17f N/A Not available Call for price 1 (shaft collar) usually ships 3-26 days
17g N/A Not available Call for price 1 (offset steering base) usually ships 3-26 days
17h N/A Not available Call for price 1 (offset steering cover) usually ships 3-26 days
17i N/A Not available Call for price 3 (sleeve bearing) usually ships 3-26 days
17j N/A Not available Call for price 1 (sleeve bearing) usually ships 3-26 days
17k N/A Not available Call for price 1 (steering wheel socket) usually ships 3-26 days
17l N/A Not available Call for price 1 (u-joint sprocket) usually ships 3-26 days
18a N/A Not available Call for price 1 (includes 18b, 18e-k, and N/S) (interface assembly) usually ships 3-26 days
18b N/A Not available Call for price 10 (screw M3.5 x 14 torx plastic) usually ships 3-26 days
18e N/A Not available Call for price 1 (boost of power paddle) usually ships 3-26 days
18f N/A Not available Call for price 1 (solution paddle) usually ships 3-26 days
18g N/A Not available Call for price 2 (interface paddle retainer) usually ships 3-26 days
18h N/A Not available Call for price 1 (paddle membraine housing assembly) usually ships 3-26 days
18i N/A Not available Call for price 1 (reverse paddle) usually ships 3-26 days
18j N/A Not available Call for price 1 (paddle horn) usually ships 3-26 days
18k N/A Not available Call for price 1 (Oled display assembly) usually ships 3-26 days
19 572-8023 Interface base $64.38 1 usually ships 13-18 days
20 N/A Not available Call for price 1 (interface mounting weldment) usually ships 3-26 days
21 N/A Not available Call for price 1 (double ujoint) usually ships 3-26 days
22 999-1413 Screw M6-1 x 8mm socket cup point set $0.99 2 ships same day
23 572-8024 Flange bearing $14.31 2 usually ships 13-18 days
24 372-1301 Screw $8.54 18 usually ships 13-18 days
25 N/A Not available Call for price 1 (10 tooth sprocket) usually ships 3-26 days
26 572-8025 Grommet $43.19 1 usually ships 13-18 days
27 572-8026 Emergency stop decal $42.42 1 usually ships 13-18 days
28 N/A Not available Call for price 1 (USB holes cap) usually ships 3-26 days
KIT1 572-8027 Interface kit $978.96 1 (includes 3, 18a-18b, 18e-18k) usually ships 13-18 days
KIT2 572-8028 Interface mount kit $106.05 1 (includes 7, 20) usually ships 13-18 days
KIT3 572-8029 Universal joint kit $244.65 1 (includes 6, 21) usually ships 13-18 days
KIT4 572-8030 Lower steering shaft kit $147.71 1 (includes 6, 11) usually ships 13-18 days
KIT5 572-8031 Shaft collar kit $38.64 1 (includes 9, 22) usually ships 13-18 days
KIT6 572-8032 Sprocket kit $78.32 1 (includes 7, 25) usually ships 13-18 days
