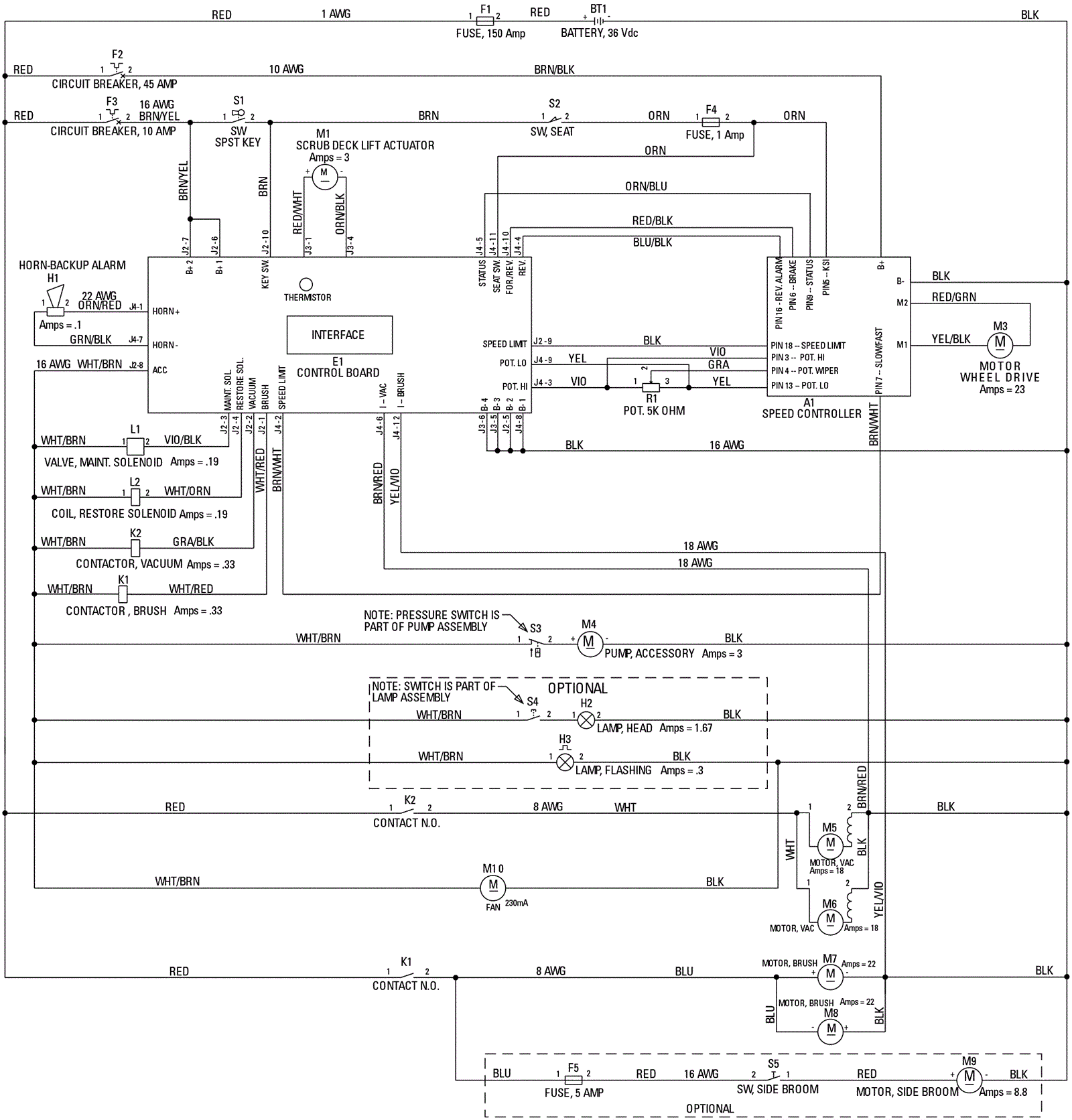

AQUARIDE AXP Wiring Diagram - Before SN 1837636

#PartDescriptionPriceReqNotesAvailability
A1 272-0409 Controller $1,044.05 1 usually ships 1-5 days
BT1 N/A Not available Call for price 1 (battery) usually ships 3-26 days
E1 272-0459 Control panel assembly $1,397.00 1 usually ships 1-5 days
F1 172-8836 150amp fuse $20.59 1 usually ships 13-18 days
F2 272-2581 45amp circuit breaker $158.82 1 (wheel drive) usually ships 13-18 days
F3 172-2160 10amp circuit breaker $80.75 1 (control circuit) usually ships 13-18 days
F4 N/A Not available Call for price 1 (1amp fuse) usually ships 3-26 days
F5 N/A Not available Call for price 1 (10amp circuit breaker) usually ships 3-26 days
H1 172-8839 Backup alarm $55.14 1 usually ships 13-18 days
H2 172-3498 Headlight kit $347.08 1 (optional) usually ships 1-5 days
H3 172-3495 Warning beacon kit $401.42 1 (optional) usually ships 13-18 days
K1 272-8184 36V 100amp contactor $58.17 1 usually ships 13-18 days
K2 272-8183 36V 200amp contactor $103.32 1 usually ships 13-18 days
L1 272-0454 Solenoid valve $225.10 1 (maintenance) usually ships 1-5 days
L2 272-0454 Solenoid valve $225.10 1 (restoration) usually ships 1-5 days
M1 172-8921 Actuator $635.35 1 usually ships 13-18 days
M3 472-6839 MOTOR/DRIVE WHEEL ASSY $3,740.00 1 usually ships 13-18 days
M4 172-1855 36V pump $914.51 1 usually ships 13-18 days
M5a 272-9272 36V 3 stage vacuum motor $312.82 1 ships same day
M5b 272-5681 Carbon brush (pkg of 2) $27.26 1 usually ships 13-18 days
M6a 272-9272 36V 3 stage vacuum motor $312.82 1 ships same day
M6b 272-5681 Carbon brush (pkg of 2) $27.26 1 usually ships 13-18 days
M7 172-9300 36V motor $1,683.87 1 usually ships 13-18 days
M8 172-9300 36V motor $1,683.87 1 usually ships 13-18 days
M9 N/A Not available Call for price 1 (side broom motor) (optional) usually ships 3-26 days
M10 272-0412 Fan assembly (OBSOLETE) $192.61 1 usually ships 1-5 days
R1 172-2039 5K potentiometer $66.03 1 ships same day
S1a 272-1316 Key switch assembly $208.89 1 usually ships 13-18 days
S1b 172-8098 Replacement key $34.23 1 usually ships 13-18 days
S2 272-9417 Seat switch $24.09 1 usually ships 13-18 days
S3 N/A Not available Call for price 1 (pump switch) (part of M4) usually ships 3-26 days
S4 N/A Not available Call for price 1 (headlight switch) (part of H2) usually ships 3-26 days
S5 N/A Not available Call for price 1 (side broom switch) (optional) usually ships 3-26 days
N/S 172-8922 Plastic drive nut $20.91 1 usually ships 13-18 days
N/S 172-1033 F.E. Bearing $90.50 1 usually ships 1-5 days
N/S 172-9303 Brush cap assembly (OBSOLETE) $387.31 1 usually ships 1-5 days
N/S 172-9304 Carbon brush (sold individually) $50.45 4 usually ships 13-18 days
N/S 172-1816 Brush cover cap (OBSOLETE) $8.14 4 usually ships 1-5 days
