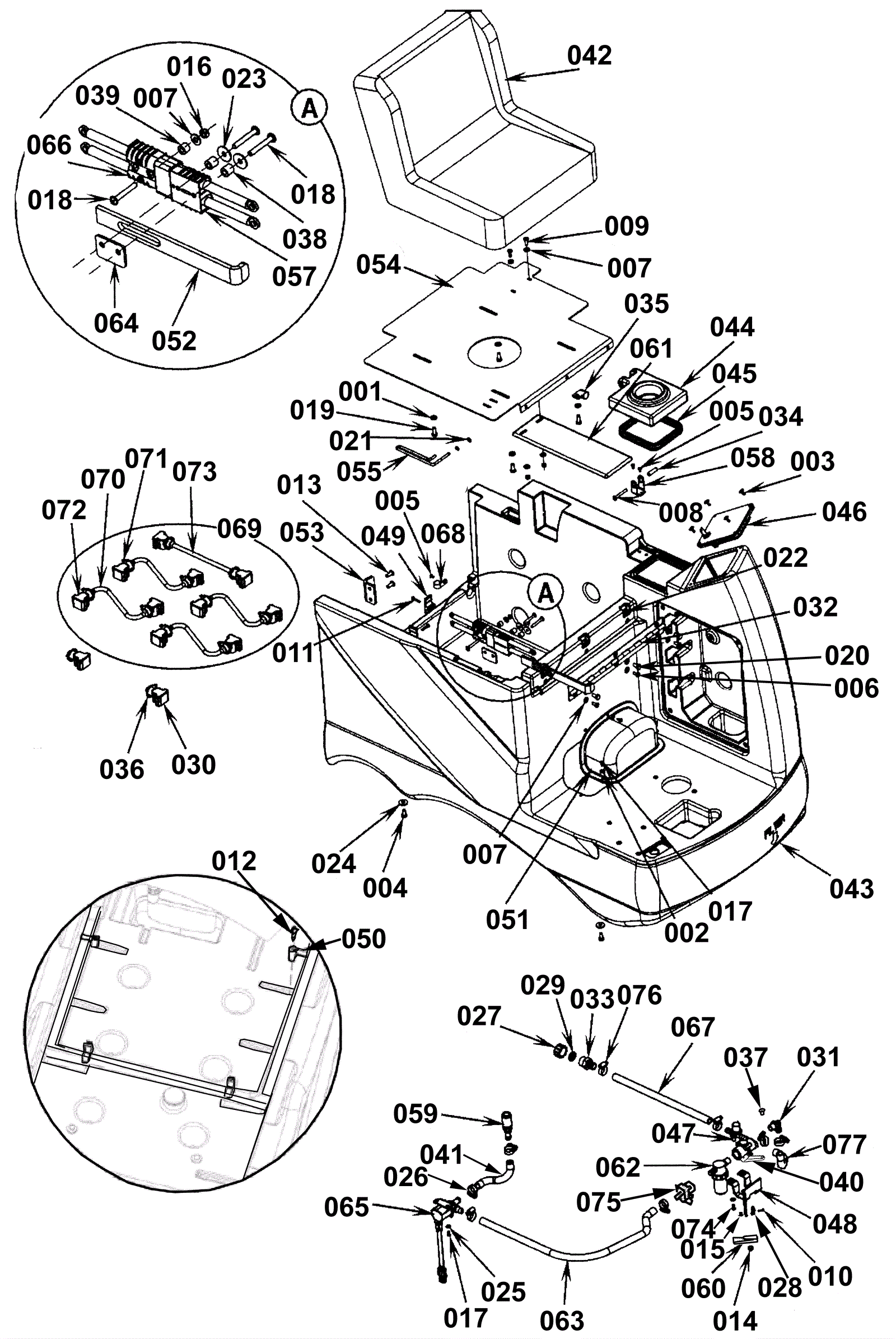

ADVENGER 2810D Solution Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
002 999-0006 Washer 3/16 flat zinc plated $0.99 3 ships same day
003 999-0256 Screw 10-32 x 1/2 truss head slotted zinc plated $0.99 4 ships same day
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
005 999-0477 Screw 10-24 x 5/16 truss head phillips zinc $1.54 3 ships same day
006 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 3 ships same day
007 999-0123 Washer 1/4 SAE flat zinc plated $0.99 11 ships same day
008 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel $2.05 1 ships same day
009 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
010 999-1376 Screw 6-32 x 1/2 hex head stainless steel $0.99 1 ships same day
011 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 5 ships same day
012 999-1106 Screw 10-24 x 2 pan head phillips zinc plated $0.99 4 ships same day
013 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
014 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 1 ships same day
015 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 1 ships same day
016 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
017 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 5 ships same day
018 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel $2.05 3 ships same day
019 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 4 ships same day
020 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 3 ships same day
021 172-0392 Retaining ring $10.56 3 usually ships 16-41 days
022 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
023 172-0553 Washer 17/64 x 1/16 flat $10.56 2 usually ships 16-41 days
024 172-2067 Washer 11/32 x 1/8 flat $11.99 4 usually ships 16-41 days
025 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
026 997-2002 Hose clamp #6 $2.15 4 ships same day
027 172-0254 Nylon pipe cap $11.99 1 usually ships 16-41 days
028 172-9023 Cable clamp $11.99 1 usually ships 16-41 days
029 172-0197 Rubber washer $10.56 1 usually ships 16-41 days
030 172-0223 Battery cable boot $9.02 2 ships same day
031a 172-2103 Elbow barb $10.56 1 (before SN 1757999) usually ships 16-41 days
031b 272-1448 90 degree elbow barb $11.99 1 (after SN 1758000) usually ships 16-41 days
032a 172-8806 Hinge (OBSOLETE) $37.53 1 usually ships 1-5 days
032b 272-2589 Hinge $62.83 1 usually ships 1-5 days
033a 172-9033 Adapter barb 1/2 x 3/4 $9.13 1 (before SN 1757999) usually ships 1-5 days
033b 170-0264 Hose barb $10.56 1 (after SN 1758000) usually ships 16-41 days
034 172-3429 Bushing $17.61 1 usually ships 1-5 days
035 172-8870 P clamp $10.56 1 usually ships 1-5 days
036 997-2101 6 inch cable tie $0.99 2 ships same day
037 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
038 181-0421 Spacer $13.40 2 usually ships 1-5 days
039 181-0176 Phenolic spacer $13.40 1 usually ships 1-5 days
040 172-2105 Manual solution valve $194.27 1 usually ships 16-41 days
041 172-2327 Wire reinforced clear hose (OBSOLETE) $12.52 7 in usually ships 16-41 days
042a 172-3430 Seat kit $257.10 1 usually ships 16-41 days
042b 172-8800 Seat switch $83.60 1 usually ships 1-5 days
043 272-2590 Solution tank (OBSOLETE) $2,547.56 1 usually ships 1-5 days
044 172-3432 Solution tank cover $48.32 1 usually ships 1-5 days
045 172-3433 Gasket $41.84 1 usually ships 16-41 days
046a 172-3434 Control panel assembly $1,297.48 1 usually ships 16-41 days
046b 272-9259 Control panel assembly $1,714.77 1 usually ships 16-41 days
046c 272-8156 Panel assembly $201.47 1 usually ships 16-41 days
046d 272-1316 Key switch assembly $194.27 1 usually ships 16-41 days
046e 172-8098 Replacement key $31.83 1 usually ships 16-41 days
047a 172-3435 Tee barb $10.56 1 (before SN 1757999) usually ships 16-41 days
047b 272-1451 Tee barb $10.56 1 (after SN 1758000) usually ships 16-41 days
048a 172-3446 Flow control kit $174.69 1 (updates machines before SN 1797186) usually ships 1-5 days
048b 272-1459 Valve bracket $57.75 1 (after SN 1797186) usually ships 1-5 days
049 172-3437 Cable clamp $13.40 5 usually ships 1-5 days
050 272-0462 Cable clamp $11.99 4 usually ships 1-5 days
051 172-3438 Actuator cover $13.40 1 usually ships 16-41 days
052 172-3439 Disconnect bar $31.83 1 usually ships 1-5 days
053 172-3344 Tank mount bracket $48.32 1 usually ships 16-41 days
054a 172-3440 Seat mount weldment (OBSOLETE) $418.11 1 (before SN 1726172) usually ships 1-5 days
054b 272-2592 Seat mount weldment (OBSOLETE) $378.24 1 (after SN 1726172) usually ships 1-5 days
055 172-3441 Prop rod $43.88 1 usually ships 1-5 days
057 172-3443 Charger connector assembly $246.26 1 (plug to batteries) usually ships 1-5 days
058 172-3444 Hinge bracket $17.90 1 usually ships 1-5 days
059 172-3445 Quick disconnect female coupling $57.08 1 usually ships 1-5 days
060a 172-3446 Flow control kit $174.69 1 (before SN 1797186) usually ships 1-5 days
060b 272-1460 Water valve bracket $40.45 1 (after SN 1797186) usually ships 1-5 days
061 172-3447 Battery box panel $15.07 1 usually ships 16-41 days
062a 172-3448 Strainer $64.23 1 (before SN 1757999) usually ships 16-41 days
062b 272-1461 Strainer $40.45 1 (after SN 1758000) usually ships 16-41 days
063 272-1038 Hose $30.28 1 usually ships 1-5 days
064 172-2155 Spacer $9.02 1 usually ships 1-5 days
065 272-2586 36V solenoid valve $171.88 1 usually ships 1-5 days
066 172-1770 Connector assembly $67.20 1 usually ships 16-41 days
067a 172-2327 Wire reinforced clear hose (OBSOLETE) $12.52 1 (before SN 1757999) usually ships 16-41 days
067b 272-1462 Clear hose 3/4 inches $11.99 1 (after SN 1758000) usually ships 16-41 days
068 172-2071 P clamp $11.99 1 usually ships 16-41 days
069a 172-3449 Battery connector kit $132.86 1 (kit includes 070-073) (For Advance models Battery connector kit (172-3449) is included with machine. For Nilifisk models battery cables are not included, but (272-1470) can be ordered separately if battery connectors are desired) usually ships 16-41 days
070 272-1144 Cable assembly $28.46 4 usually ships 16-41 days
071 997-2101 6 inch cable tie $0.99 10 ships same day
072 172-0223 Battery cable boot $9.02 10 ships same day
073 172-3450 Battery cable assembly- ring type 4x15 1/2 $54.10 1 usually ships 1-5 days
074 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 (after SN 1758000) ships same day
075 272-1469 Solution valve $98.89 1 (after SN 1758000) usually ships 16-41 days
076a 997-2004 Hose clamp $2.15 4 (after SN 1758000) ships same day
076b 997-2002 Hose clamp #6 $2.15 4 (before SN 1757999) ships same day
077a 172-1062 7 inch spiral hose $12.83 1 (after SN 1758000) usually ships 16-41 days
077b 172-2327 Wire reinforced clear hose (OBSOLETE) $12.52 7 in (before SN 1757999) usually ships 16-41 days
N/S 172-3451 Battery spacer $13.40 1 (for Advance models only) usually ships 16-41 days
N/S 272-2248 Battery watering kit $552.39 1 usually ships 1-5 days
N/S 272-2593 Main harness (OBSOLETE) $869.00 1 usually ships 1-5 days
N/S 272-8194 Pump $91.00 1 usually ships 16-41 days
N/S 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $11.63 1 (NON-OEM) usually ships 5-16 days
N/S 998-0010 Battery jumper cable - ring type (red) $3.87 1 ships same day
