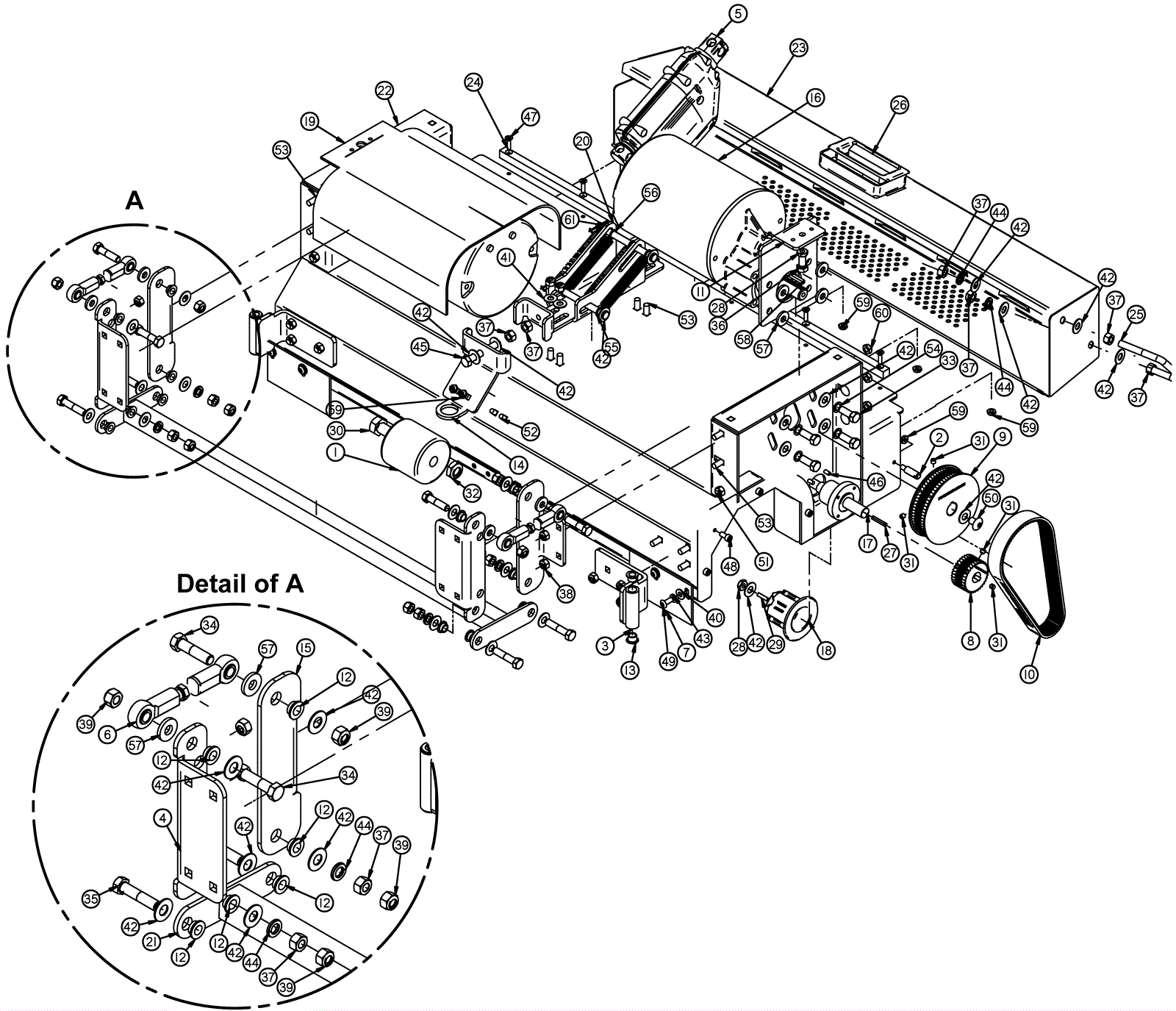

XR Scrub Deck Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 202-0756 Guide roller $26.29 1 usually ships 12-20 days
2 202-3136 Retaining pin $17.38 2 usually ships 12-20 days
3 202-3137 Hinge $65.89 2 usually ships 12-20 days
4 202-1879 Bracket $37.29 2 usually ships 12-20 days
5 202-1932 36V actuator $490.00 1 usually ships 12-20 days
6 202-3138 Adjustable ball joint $31.24 2 usually ships 1-5 days
7 202-3139 Curtain blade $6.49 2 usually ships 12-20 days
8 202-3140 32 toothed sprocket $73.04 2 usually ships 12-20 days
9 202-3141 68 toothed sprocket $83.82 2 usually ships 12-20 days
10 202-2877 Belt $69.08 2 usually ships 12-20 days
11 202-3142 Motor adjustment bracket $40.37 2 usually ships 12-20 days
12 202-1239 Flanged bearing $5.50 12 ships same day
13 202-0754 Flanged bearing $5.50 4 ships same day
14 202-3143 Bracket $34.65 1 usually ships 12-20 days
15a 202-3144 34 inch lifting bracket $29.59 2 (same for both left and right sides) usually ships 1-5 days
15b 202-3159 40 inch right side lifting bracket $37.95 2 usually ships 12-20 days
15c 202-3161 40 inch left side lifting bracket $37.95 2 usually ships 12-20 days
15d 202-3160 45 inch right side lifting bracket $83.60 2 usually ships 1-5 days
15e 202-3162 45 inch left side lifting bracket $83.60 2 usually ships 1-5 days
16 202-3145 36V brush motor $585.40 2 usually ships 12-20 days
17 202-3146 Bearing housing $150.70 2 usually ships 12-20 days
18 202-3147 Brush driver $98.45 2 usually ships 12-20 days
19 202-3148 Motor shield $27.83 2 usually ships 1-5 days
20 202-3149 Lifting bracket $62.81 1 usually ships 1-5 days
21 202-3150 Lateral arm $111.43 1 usually ships 12-20 days
22a 202-3151 34 inch scrub deck $835.00 1 usually ships 1-5 days
22b 202-3163 40 inch scrub deck $1,024.80 1 usually ships 12-20 days
22c 202-3164 45 inch scrub deck $1,609.90 1 usually ships 1-5 days
23a 202-3152 34 inch hopper $313.50 1 usually ships 1-5 days
23b 202-3166 40 inch hopper $267.70 1 usually ships 12-20 days
23c 202-3167 45 inch hopper $313.80 1 usually ships 12-20 days
24a 202-2483 34 inch hopper rail $46.86 1 usually ships 1-5 days
24b 202-3165 40 and 45 inch hopper rail $44.99 1 usually ships 12-20 days
25 202-0855 Hopper handle $24.20 1 usually ships 12-20 days
26 202-0308 Handle $21.45 1 usually ships 12-20 days
27 202-0847 Square keyway $5.50 2 usually ships 12-20 days
28 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 4 ships same day
29 202-3153 Square keyway $5.50 2 usually ships 12-20 days
30 999-1209 Bolt 5/8-11 x 4 hex head zinc plated $2.75 1 usually ships 1-5 days
31 202-3154 Screw 1/4-20 x 1/4 set $5.50 8 usually ships 12-20 days
32 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 1 ships same day
33 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
34 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 4 ships same day
35 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 4 ships same day
36 999-1498 Screw 3/8-24 x 1 hex head stainless steel $1.98 2 usually ships 1-5 days
37 999-0635 Nut 3/8-16 hex stainless steel $0.99 10 ships same day
38 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 16 ships same day
39 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 8 ships same day
40 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
41 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
42 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 34 ships same day
43 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
44 999-0659 Washer 3/8 medium split lock stainless steel $3.85 6 ships same day
45 999-0041 Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated $2.09 1 ships same day
46 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 8 ships same day
47 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
48 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $2.07 8 ships same day
49 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 4 ships same day
50 999-1481 Screw 3/8-16 x 1/2 button head stainless steel $4.33 2 usually ships 1-5 days
51 N/A Not available Call for price 8 (Bolt) usually ships 3-7 days
52 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel $0.99 2 usually ships 1-5 days
53 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 14 ships same day
54 202-3158 Washer 3/8 inch serrated stainless steel $8.03 8 usually ships 1-5 days
55 202-1968 Clevis pin $6.49 2 usually ships 12-20 days
56 202-2208 Compression spring $5.94 4 ships same day
57 999-0120 Washer 3/8 SAE flat $0.99 12 ships same day
58 202-0140 Steering shaft key $5.50 2 usually ships 12-20 days
59 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 10 ships same day
60 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 6 ships same day
61 202-2036 Cotter pin $5.50 2 usually ships 12-20 days
