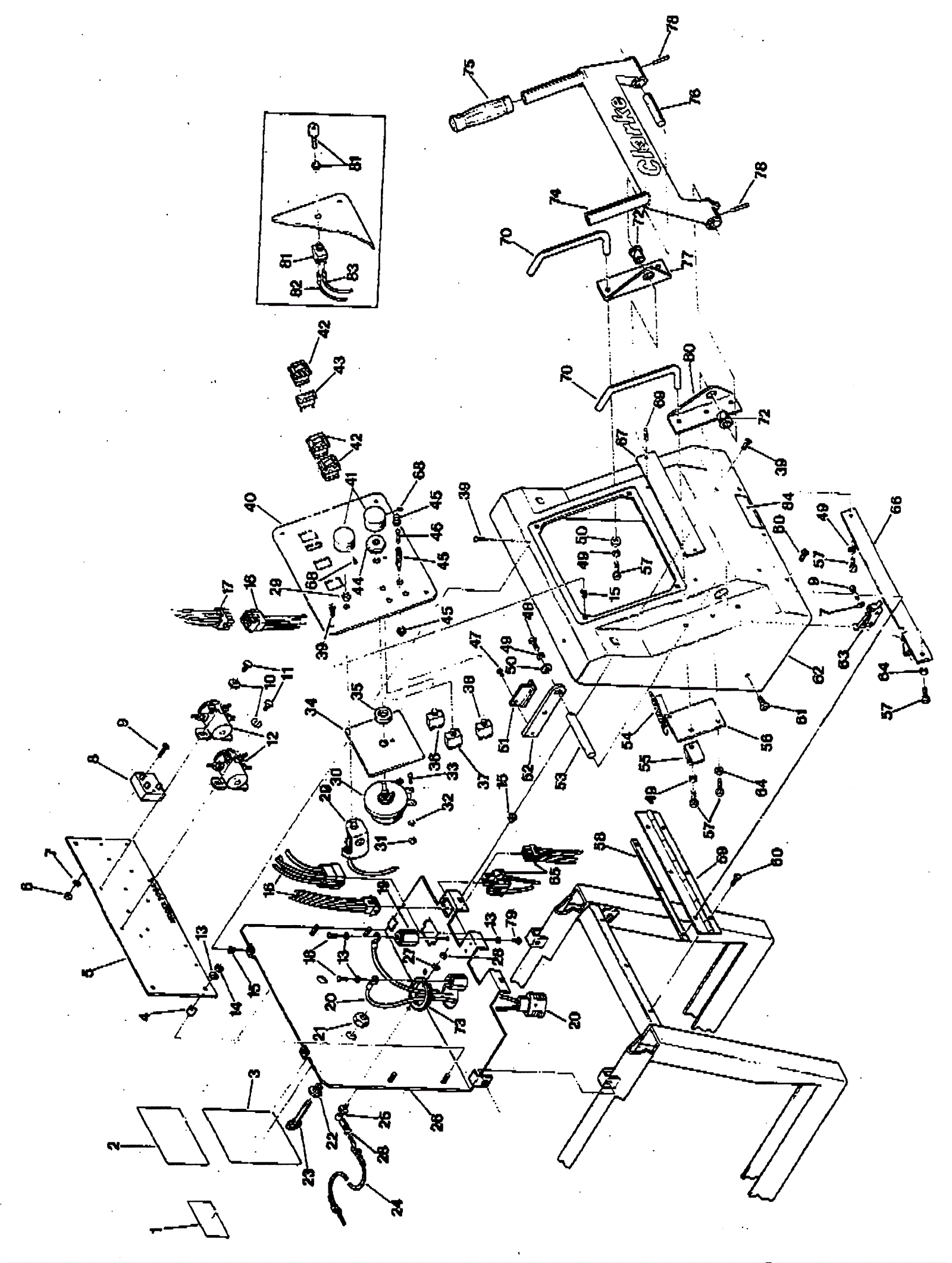

Leader 2000B Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-2268 Wiring diagram label (OBSOLETE) Call for price 1 usually ships 1-5 days
002 170-0542 Battery care label (OBSOLETE) $6.78 1 usually ships 1-5 days
003 170-0545 Warning label (FSO) (OBSOLETE) $5.50 1 usually ships 1-5 days
004 170-2269 Spacer (OBSOLETE) $3.99 4 usually ships 1-5 days
005 170-2270 Electrical panel (OBSOLETE) $58.33 1 usually ships 1-5 days
006 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
007 999-0148 Washer #6 external star lock zinc plated $0.99 4 ships same day
008 170-2271 Time delay relay (OBSOLETE) $97.99 1 usually ships 1-5 days
009 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 4 ships same day
010 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
011 N/A Not available Call for price 4 (Screw) usually ships 3-7 days
012 170-1797 Vacuum solenoid (OBSOLETE) $79.84 2 usually ships 38-65 days
013 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
014 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
015 170-2272 Screw grommet (OBSOLETE) $5.50 8 usually ships 1-5 days
016 170-2273 Panel wire harness (OBSOLETE) $148.32 1 usually ships 1-5 days
017 170-2274 Console wire harness (OBSOLETE) $182.60 1 usually ships 1-5 days
018 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 2 ships same day
019 170-0063 Insulated stand off $11.75 2 usually ships 1-5 days
020 170-2275 Console cable assembly (OBSOLETE) $95.04 1 usually ships 1-5 days
021 170-5778 Nut 5/8-18 x 3/8 hex $8.48 2 usually ships 1-5 days
022 170-0078 Tank stop bushing (OBSOLETE) $6.06 2 usually ships 1-5 days
023 170-0079 Release pin $8.03 2 usually ships 1-5 days
024 170-0546 Tank stop cord assembly (OBSOLETE) $15.44 1 usually ships 1-5 days
025 170-0511 Ball joint assembly (OBSOLETE) $7.01 1 usually ships 1-5 days
026 170-2276 Elec. rear panel (OBSOLETE) $121.65 1 usually ships 1-5 days
027 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
028 999-0460 Nut 10-32 hex $0.99 1 ships same day
029 170-2277 Solution control (OBSOLETE) $102.17 1 usually ships 1-5 days
030 170-2278 Rheostat 100 watts (OBSOLETE) $238.19 1 usually ships 1-5 days
031 999-0308 Nut 8-32 plain $0.99 2 ships same day
032 999-0092 Washer #8 internal star lock zinc plated $0.99 2 ships same day
033 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
034 170-2279 Rheostat heat sink (OBSOLETE) Call for price 1 usually ships 1-5 days
035 170-2280 Rheostat spacer (OBSOLETE) $6.66 1 usually ships 1-5 days
036 170-2233 10 Amp circuit breaker (OBSOLETE) $54.26 1 usually ships 1-5 days
037 170-2213 35 Amp Brush Breaker $29.79 1 usually ships 1-5 days
038 170-2225 20 amp circuit breaker $26.28 1 usually ships 10-14 days
039 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 8 ships same day
040 170-2281 Console panel (OBSOLETE) Call for price 1 usually ships 1-5 days
041 170-8261 Knob solution flow module $30.40 2 usually ships 38-65 days
042 170-5566 Switch $69.71 3 usually ships 1-5 days
043 170-5700 Clamp (OBSOLETE) $12.00 1 usually ships 1-5 days
044 170-2282 Rheostat nut (OBSOLETE) Call for price 1 usually ships 1-5 days
045 170-6074 115V fuse holder $24.96 1 usually ships 1-5 days
046 170-2283 Fuse (OBSOLETE) $2.78 1 usually ships 1-5 days
047 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated $2.20 1 ships same day
048 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
049 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
050 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
051 170-2284 Switch actuator bracket (OBSOLETE) $18.89 1 usually ships 1-5 days
052 170-2285 Switch actuator arm Call for price 1 usually ships 1-5 days
053 N/A Not available Call for price 1 Handle pin usually ships 3-7 days
054 N/A Not available Call for price 1 Idler tension spring usually ships 3-7 days
055 170-0457 Strap (OBSOLETE) $5.50 1 usually ships 1-5 days
056 170-2286 Spring mounting plate (OBSOLETE) Call for price 1 usually ships 1-5 days
057 170-3357 Screw 5/16-18x1 1/4 hex head $8.35 4 usually ships 10-14 days
058 170-2287 Hinge retainer (OBSOLETE) $19.25 1 usually ships 1-5 days
059 170-2288 Hinge (OBSOLETE) Call for price 1 usually ships 1-5 days
060 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 3 ships same day
061 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc $0.99 2 ships same day
062 170-3249 Housing control (OBSOLETE) $253.01 1 usually ships 1-5 days
063 170-2289 15 amp switch (OBSOLETE) $28.51 1 usually ships 1-5 days
064 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
065 170-2255 Machine wiring harness (OBSOLETE) $241.04 1 usually ships 1-5 days
066 170-2237 Motor 120V 2500 (OBSOLETE) $1,142.97 1 usually ships 1-5 days
067 170-2291 Warning plate (OBSOLETE) $5.50 1 usually ships 1-5 days
068 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 2 ships same day
069 170-2292 Plastic blind rivet (OBSOLETE) $2.29 2 usually ships 1-5 days
070 170-0534 Stationary handle (FSO) (OBSOLETE) $15.57 2 usually ships 1-5 days
072 170-0088 Flanged bearing $11.75 2 usually ships 1-5 days
073 170-2293 Snap bushing (OBSOLETE) Call for price 1 usually ships 1-5 days
074 170-2294 Control handle (OBSOLETE) $179.74 1 usually ships 1-5 days
075 170-0532 Handle grip (OBSOLETE) $6.29 2 usually ships 38-65 days
076 170-0535 Handle pivot pin (OBSOLETE) $12.60 1 usually ships 1-5 days
077 170-0541 Adjusting right hand bracket (OBSOLETE) $27.45 1 usually ships 1-5 days
078 N/A Not available Call for price 2 Not available (pin 3/16 dia spiral) usually ships 3-7 days
079 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
080 170-0527 Adjusting left hand bracket (OBSOLETE) $29.82 1 usually ships 1-5 days
082 170-2295 Processed orange/yellow wire (OBSOLETE) $27.27 1 usually ships 1-5 days
083 170-2296 Processed tan/yellow wire (OBSOLETE) $27.28 1 usually ships 1-5 days
084 N/A Not available Call for price 1 Not available (serial no. label) usually ships 3-7 days
N/S 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 3 ships same day
