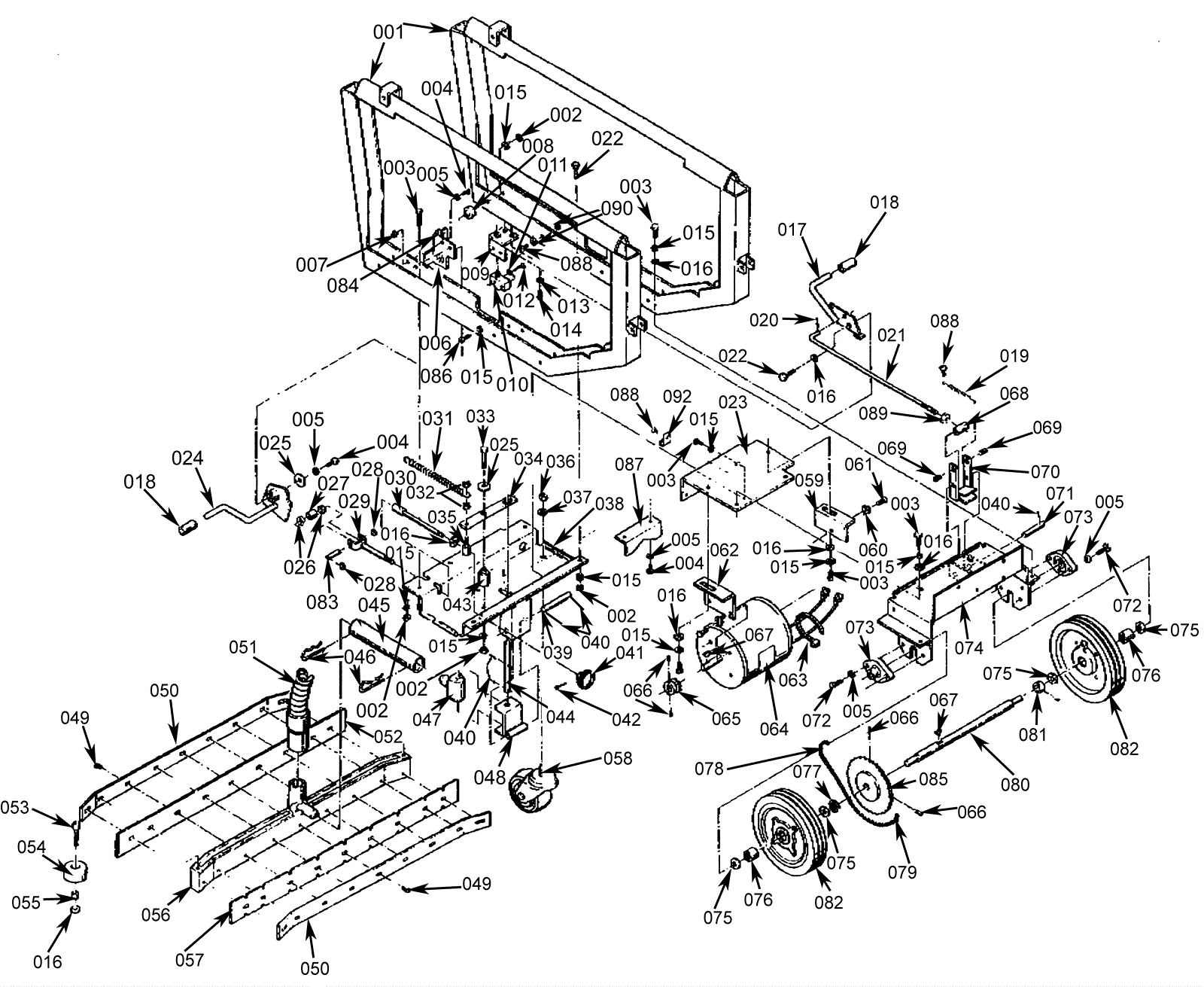

Leader 2000B Squeegee and Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-0420 Main frame assembly (OBSOLETE) $264.57 2 usually ships 1-5 days
002 999-0069 Nut 5/16-18 hex $0.99 6 ships same day
003 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 12 ships same day
004 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 5 ships same day
005 999-0060 Washer 1/4 split lock plain finish $0.99 9 ships same day
006 170-3350 Pedal plate assembly (OBSOLETE) $55.59 1 usually ships 1-5 days
007 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
008 170-0553 Brake pedal spacer (FSO) (OBSOLETE) $6.29 1 usually ships 1-5 days
009 170-3351 Brake switch bracket (OBSOLETE) $20.20 1 usually ships 1-5 days
010 170-3352 Brake switch (micro switch125v 15amp SPST) (OBSOLETE) $69.38 1 usually ships 1-5 days
011 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
012 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
013 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
014 170-3353 Screw 3/8-16x1/2 hex head (OBSOLETE) $5.94 2 usually ships 1-5 days
015 999-0028 Washer 5/16 split lock plain finish $0.99 18 ships same day
016 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
017 170-3354 Brake pedal assembly (OBSOLETE) $65.46 1 usually ships 1-5 days
018 170-0434 Brake pedal cover (OBSOLETE) $5.94 2 usually ships 1-5 days
019 N/A Not available Call for price 1 Idler tension spring usually ships 3-7 days
020 170-3355 Cotter pin 1/16x5/8 $1.93 2 usually ships 1-5 days
021 170-3356 Brake rod (OBSOLETE) $45.27 1 usually ships 1-5 days
022 170-3357 Screw 5/16-18x1 1/4 hex head $8.35 3 usually ships 10-14 days
023 170-3358 Motor bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
024 170-3359 Squeegee pedal lock (OBSOLETE) Call for price 1 usually ships 1-5 days
025 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
026 170-3360 Spacer (OBSOLETE) $6.78 2 usually ships 1-5 days
027 170-3361 Sleeve bearing (OBSOLETE) $9.98 1 usually ships 1-5 days
028 170-0427 Retaining ring (OBSOLETE) $7.92 2 usually ships 1-5 days
029 170-3362 Squeegee yoke assembly (OBSOLETE) $157.29 1 usually ships 1-5 days
030 170-3363 Squeegee adjustment rod (OBSOLETE) $80.07 1 usually ships 1-5 days
031 170-1692 Spring $17.06 1 usually ships 1-5 days
032 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
033 999-0354 Screw 5/16-18 x 2 round head slotted zinc plated $0.99 1 ships same day
034 170-3364 Squeegee arm (OBSOLETE) $20.91 1 usually ships 1-5 days
035 170-3365 Squeegee swivel rod (OBSOLETE) Call for price 1 usually ships 1-5 days
036 999-0202 Nut 1/2-13 hex plain finish $0.99 2 ships same day
037 999-0126 Washer 1/2 split lock $1.28 2 ships same day
038 170-3366 Caster bracket (OBSOLETE) $134.49 1 usually ships 1-5 days
039 170-3367 Pin (OBSOLETE) $14.01 1 usually ships 1-5 days
041 170-3368 Knob (OBSOLETE) Call for price 1 usually ships 1-5 days
042 170-3369 Screw 10-32 x 5/16 slotted knurl $9.17 1 usually ships 1-5 days
043 170-3370 Arm spacer (OBSOLETE) Call for price 1 usually ships 1-5 days
044 170-3371 Squeegee pivot pin (OBSOLETE) $17.70 1 usually ships 1-5 days
045 170-3372 Squeegee tube (OBSOLETE) $84.11 1 usually ships 1-5 days
046 170-2180 Squeegee locking pin $12.87 2 usually ships 1-5 days
047 170-3373 Squeegee guide (OBSOLETE) $112.86 1 usually ships 1-5 days
048 170-3374 Squeegee pivot bracket (OBSOLETE) $37.18 1 usually ships 1-5 days
049 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 18 ships same day
050 170-2167 Squeegee retainer $62.04 2 usually ships 1-5 days
051 170-0007 Squeegee hose with cuffs $62.04 1 usually ships 38-65 days
052 170-0018 Squeegee blade 29 inch gum rubber rear (tan) $19.65 1 usually ships 38-65 days
053 999-1667 Screw 5/16-18 x 1 1/4 socket head stainless steel $1.85 2 ships same day
054 170-0403 Brush guide wheel (OBSOLETE) $10.23 2 usually ships 38-65 days
055 170-0404 Wheel spacer (OBSOLETE) $7.65 2 usually ships 1-5 days
056 170-2169 Squeegee casting (OBSOLETE) $261.32 1 usually ships 1-5 days
057 170-0021 Squeegee blade 29 inch gum rubber front (tan) $18.41 1 usually ships 38-65 days
058 170-3267 4 inch caster wheel $92.44 2 usually ships 1-5 days
059 170-3377 Motor bracket - right $13.31 1 usually ships 1-5 days
060 170-3378 Washer #1518 shakeproof (OBSOLETE) $5.50 1 usually ships 1-5 days
061 170-3379 Screw 5/16-18x5/8 flat (OBSOLETE) $5.50 1 usually ships 1-5 days
062 170-3380 Motor bracket - left (OBSOLETE) $13.19 1 usually ships 1-5 days
063 170-0080 Wire tie $10.52 1 usually ships 38-65 days
064 170-3381 Traverse motor (OBSOLETE) Call for price 1 usually ships 1-5 days
065 170-0687 Drive sprocket $124.82 1 usually ships 1-5 days
066 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish $0.99 4 ships same day
067 170-0672 Square keyway $8.90 2 usually ships 1-5 days
068 170-3382 Parking brake shaft (OBSOLETE) $28.27 1 usually ships 1-5 days
069 999-0627 Screw 5/16-18 x 1/2 socket cup point set ss $5.41 2 ships same day
070 170-3383 Parking brake (OBSOLETE) Call for price 1 usually ships 1-5 days
071 170-3384 Brake pivot shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
072 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 4 ships same day
073 170-1304 Bearing assembly $273.00 2 usually ships 38-65 days
074 170-3385 Axle bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
075 170-1436 Oil seal (OBSOLETE) $7.92 1 usually ships 1-5 days
076 170-1438 Roller clutch bearing $129.89 2 usually ships 1-5 days
077 170-3386 Spacer $9.27 1 usually ships 1-5 days
078 170-6260 Drive chain (OBSOLETE) $52.58 1 usually ships 1-5 days
079 170-0676 Connecting link $9.35 1 usually ships 1-5 days
080 170-3387 Axle shaft (OBSOLETE) $133.12 1 usually ships 1-5 days
081 170-3388 Set collar (OBSOLETE) $20.68 1 usually ships 1-5 days
082 170-1437 Drive wheel $242.59 2 usually ships 1-5 days
083 170-3389 Follower pin (OBSOLETE) $19.48 1 usually ships 1-5 days
084 170-0429 Pedal stop sleeve (OBSOLETE) $5.50 1 usually ships 1-5 days
085 170-3390 Driven sprocket (OBSOLETE) $174.99 1 usually ships 1-5 days
086 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 2 ships same day
087 170-3391 Squeegee stop (OBSOLETE) Call for price 1 usually ships 1-5 days
088 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 3 ships same day
089 170-3393 Stop collar (OBSOLETE) Call for price 1 usually ships 1-5 days
090 999-0062 Nut 10-24 hex $0.99 2 ships same day
092 170-1744 Nylon clip $8.88 1 usually ships 10-14 days
