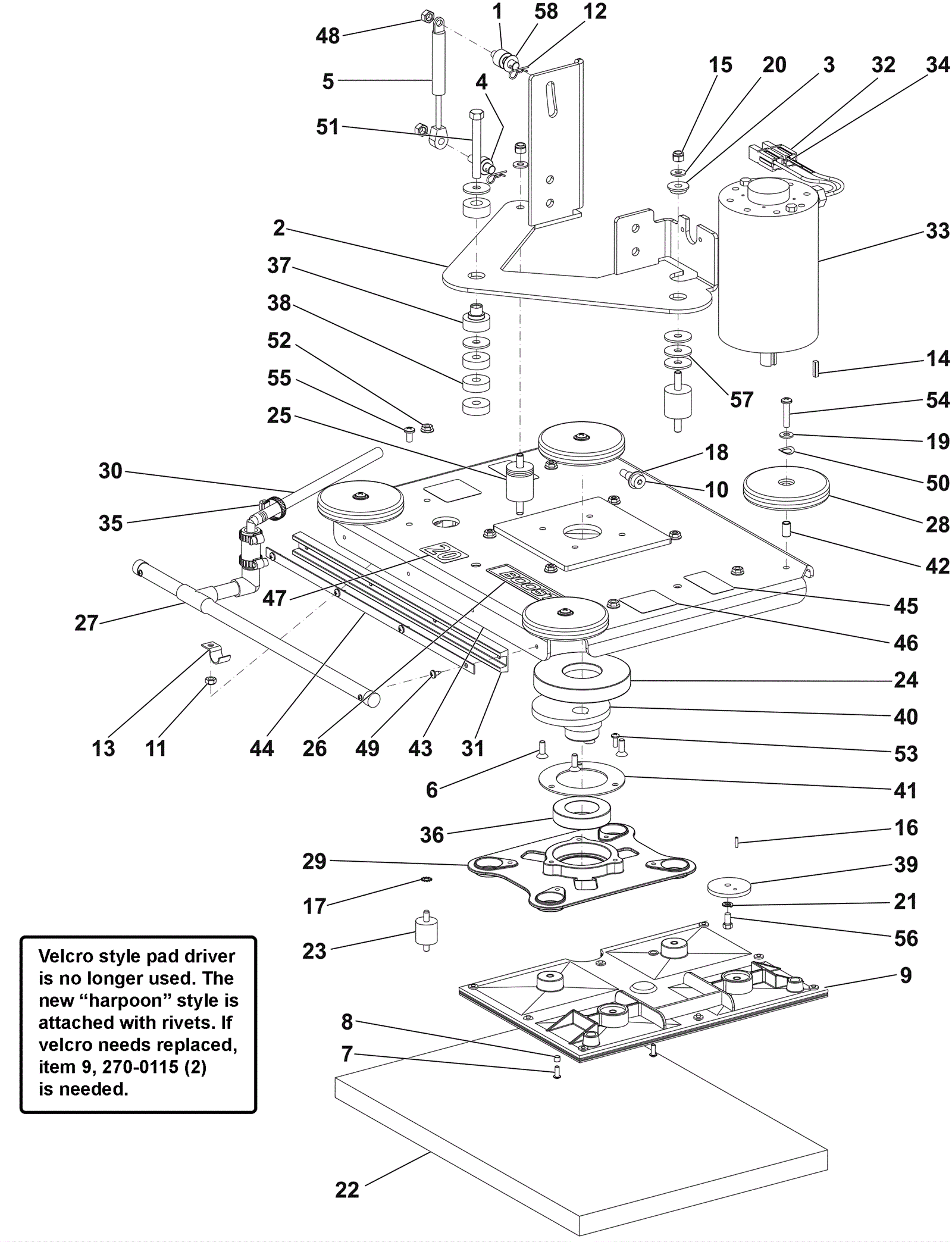

FOCUS II BOOST L20 BOOST Deck Assembly - After SN 8000023706

#PartDescriptionPriceReqNotesAvailability
1 172-4814 Pin $10.45 1 ships same day
2 172-4812 Brush deck holder plate $163.46 1 usually ships 5-16 days
3 172-4806 Bushing $10.45 1 usually ships 5-16 days
4 172-4816 Pin $11.33 1 usually ships 5-16 days
5 270-0409 Gas spring $62.04 1 ships same day
6 172-4274 Screw 1/4-20 x 3/4 flat socket head $9.35 4 usually ships 5-16 days
7a 270-0844 Shoulder bolt $8.25 4 (before 04/10) ships same day
7b 472-3546 Screw 10-32 button $9.35 4 (after 04/10) usually ships 5-16 days
8 270-0844 Shoulder bolt $8.25 4 (after 04/10) ships same day
9 270-0115 Flex plate - Boost 20 inch $151.69 2 ships same day
10 172-4807 Bolt M10 x 16mm shoulder $4.03 1 usually ships 5-16 days
11 999-0609 Nut 1/4-20 hex stainless steel $0.90 6 ships same day
12 272-0721 Cotter pin $12.87 2 usually ships 5-16 days
13 170-0198 Hose clamp $8.25 2 usually ships 5-16 days
14 170-1310 Square keyway $7.54 1 usually ships 3-12 days
15 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.90 2 ships same day
16 170-0507 Roll pin 1/8 x 1/2 $9.35 1 usually ships 5-16 days
17 999-0017 Washer 1/4 external star lock $0.90 8 ships same day
18 999-0032 Washer 3/8 USS flat plain finish $1.15 1 ships same day
19 999-0016 Washer 1/4 flat plain finish $0.90 4 ships same day
21 999-0060 Washer 1/4 split lock plain finish $0.90 1 ships same day
23 272-5555 Isolator kit (pkg of 8) $94.71 1 ships same day
24 270-0763 Eccentric and shield kit $128.59 1 ships same day
25 272-5572 Isolator $10.45 2 ships same day
26 170-9202 BOOST decal $11.77 1 usually ships 1-5 days
27 270-0580 20 inch drip tube assembly $128.59 1 ships same day
28 170-7172 4 inch guide wheel $25.96 4 ships same day
29 272-7249 Driver plate $18.70 1 ships same day
30 270-0847 Vinyl hose 3/8 x 23 inch $8.25 1 usually ships 5-16 days
31 270-0581 Bumper $36.63 1 usually ships 1-5 days
32 170-0009 Connector housing $12.87 2 ships same day
33a 272-9948 24V brush motor $896.94 1 ships same day
33b 172-8951 Carbon brush and spring kit $169.18 1 usually ships 5-16 days
34 170-0218 Contact pins for charger plug (sold individually) $7.04 2 ships same day
35 997-2001 Hose clamp $2.20 1 ships same day
36 270-0065 Bearing $51.33 1 ships same day
37 270-0583 Universal mount $23.65 1 ships same day
38 270-0584 Spacer $8.25 3 ships same day
39 270-0322 Eccentric retainer $61.49 1 ships same day
40 270-0125 Eccentric (OBSOLETE) $119.39 1 usually ships 5-16 days
41 270-0126 Bearing retainer $54.12 1 usually ships 5-16 days
42 270-0129 Guide wheel sleeve $9.35 4 usually ships 5-16 days
43 270-0848 BOOST 20 plate weldment $407.55 1 usually ships 5-16 days
44 270-0586 Bumper retainer $47.96 1 usually ships 5-16 days
45 170-0226 Moving warning decal $12.87 2 usually ships 1-5 days
46 170-9201 No step decal $17.49 2 usually ships 1-5 days
47 170-7895 BOOST 20 decal $12.87 1 usually ships 1-5 days
48 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.90 2 ships same day
49 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.90 4 ships same day
50 270-0174 Washer 29/64 x 47/64 bowed $9.35 4 usually ships 5-16 days
51 999-9094 Screw 3/8-16 x 3 hex head stainless steel $5.68 1 ships same day
52 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.90 8 ships same day
53 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.90 3 ships same day
54 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $0.94 4 ships same day
55 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $0.90 2 ships same day
56 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.90 1 ships same day
57 999-0716 Washer 3/8 x 1 1/4 fender $0.90 8 ships same day
58 270-0849 Nylon washer $9.35 1 ships same day
59 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.90 2 (after 4/10) ships same day
