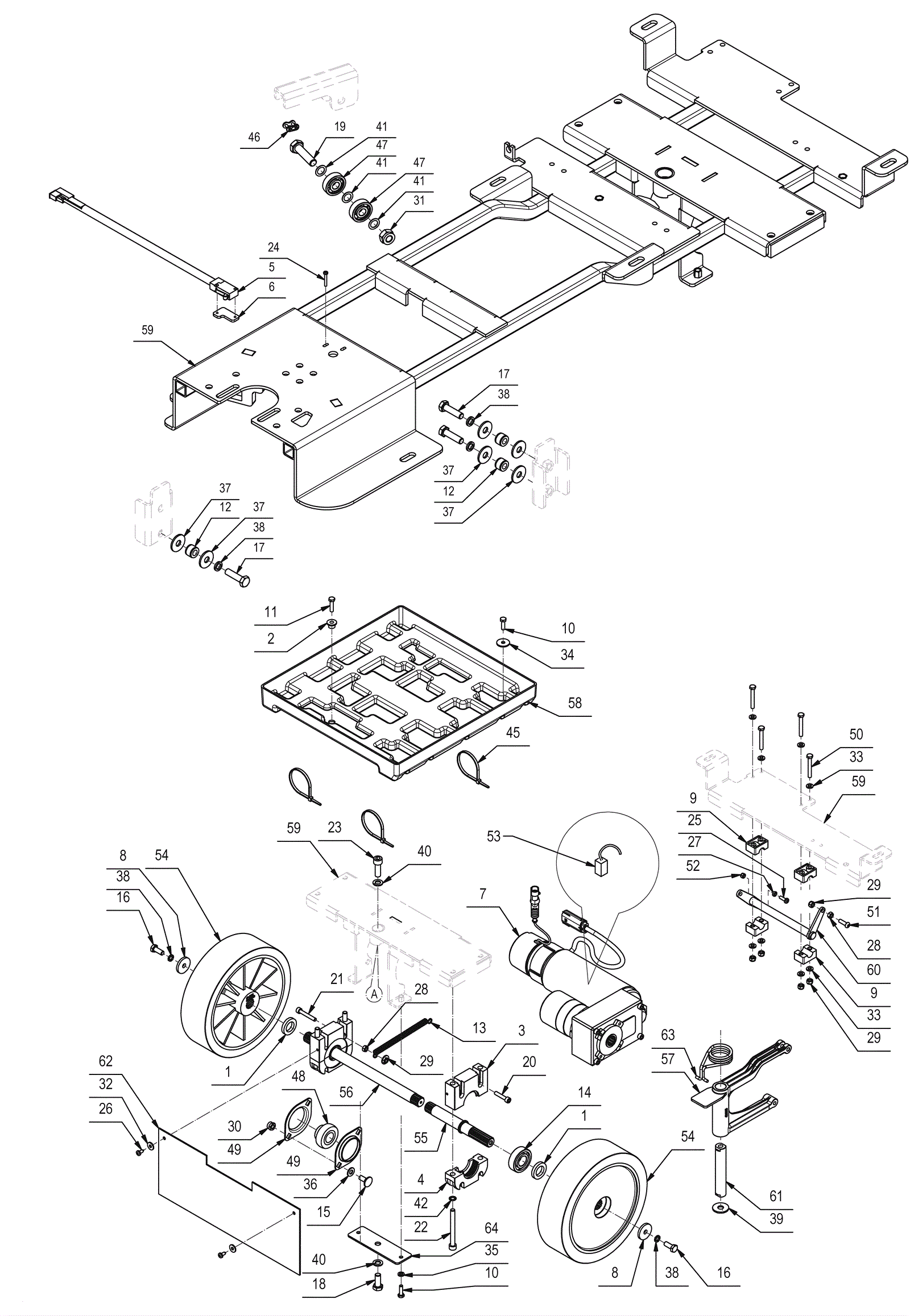

Chassis Assembly

#PartDescription ReqNotesAvailability
1 189-4502 Spacer 2
2 189-4503 Bushing 1
3 189-4504 Bearing mount base 2
4 189-4505 Bearing mount cap (OBSOLETE) 2
5 189-6224 Microswitch 1
6 189-5226 Support plate 1
7 189-4506 24V traction motor 1
8 250-1320 Washer 2
9 189-6241 Pivot block 4
11 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
12 220-0375 Bushing (OBSOLETE) 3
13 189-4508 Spring 1
14 189-8647 Bearing 2
15 189-4509 Screw 2
16 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
17 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 3
18 189-4510 Bolt M10 x 25mm hex zinc 1
19 189-4511 Bolt M10 x 40mm hex zinc 1
20 189-4512 Screw M6 x 30mm 4
21 999-1593 Screw M6-1 x 40mm socket head stainless steel 1
22 189-4513 Screw M8 x 80mm 4
23 189-4514 Screw M10 x 30mm zinc 1
24 999-1431 Screw M3-.5 x 20mm pan head zinc plated 2
25 189-4515 Washer 1
26 189-4516 Screw M4.8 x 13mm 2
27 999-0740 Nut M5-.8 hex stainless steel 1
28 189-9083 Nut M6 x 5 hex 2
29 189-5094 Nut M6 6
30 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
31 999-1550 Nut M10-1.5 nylon insert lock 1
33 999-6714 Washer M6 x 12mm flat stainless steel 8
34 206-5168 Washer (OBSOLETE) 1
36 999-1267 Washer M8 flat zinc 2
37 189-6198 Flat washer 6
38 189-9084 Washer M8 lock zinc 5
39 189-4517 Washer 1
41 189-4519 Shim 3
42 189-4520 Washer M8 4
43 189-6325 Wire tie 3
44 189-4521 Hose clamp 9
45 189-4453 Clamp 7
46 189-4455 Master chain link 1
48 189-4522 Bearing 1
49 189-4523 Flange 2
50 189-4524 Screw M6 x 45mm 4
51 999-1591 Screw M6-1 x 20mm button head socket stainless steel 1
52 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
53 189-9034 Carbon brush 4
54 189-4525 Wheel 2
55 189-4526 Left hand axle shaft 1
56 189-4527 Right hand axle shaft (OBSOLETE) 1
57 189-5201 Coupling mount 1
58 189-4528 Battery tray 1
59 189-4529 Machine frame 1
60 189-4530 Lever 1
61 189-4531 Bushing 1
62 189-4532 Splash skirt 1
63 189-4533 Spring 1
64 189-5232 Plate 1
