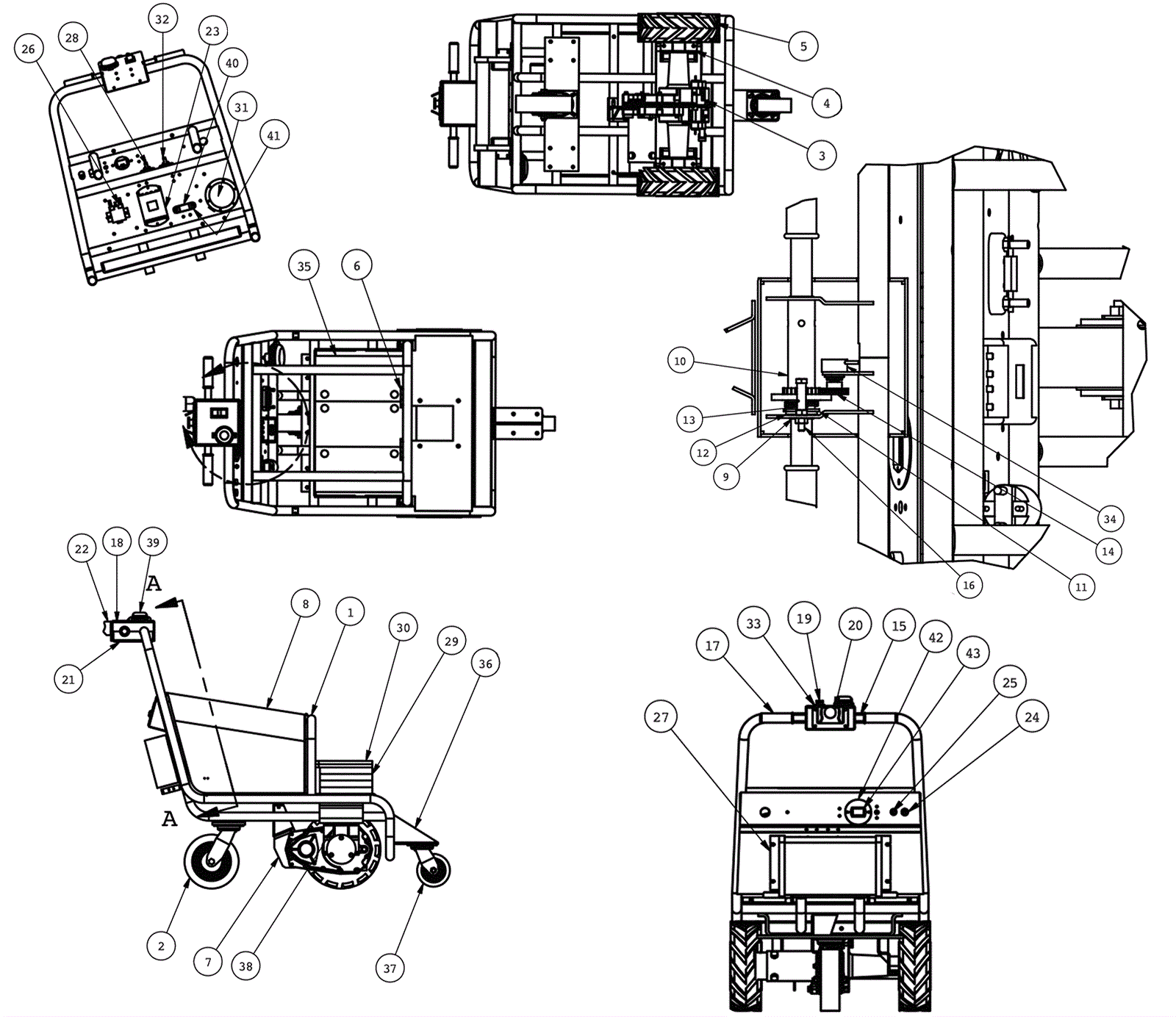

CartCaddy5WP Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 179-0096 Frame weldment Call for price 1 usually ships 1-5 days
2 179-0023 8 inch swivel caster wheel $139.63 1 ships same day
3 179-0046 Differential (OBSOLETE) $1,606.00 1 (Optional) usually ships 1-5 days
4 179-0050 Axle clamp (OBSOLETE) $12.65 2 (Optional) usually ships 1-5 days
5 179-0006 Snow tire and rim assembly $188.47 2 ships same day
6 179-0031 Cover hinge (OBSOLETE) $32.12 2 usually ships 1-5 days
7 179-0026 Axle bracket (OBSOLETE) $57.18 1 usually ships 1-5 days
8 179-0097 Hood weldment Call for price 1 usually ships 1-5 days
9 179-0041 Bushing (OBSOLETE) $4.59 2 usually ships 1-5 days
10 179-0010 Handle bar gear $49.40 1 usually ships 3-12 days
11 179-0098 Spacer Call for price 1 usually ships 1-5 days
12 179-0099 Spacer Call for price 1 usually ships 1-5 days
13 179-0011 Return spring (OBSOLETE) $4.79 1 usually ships 1-5 days
14 179-0009 Pot gear $41.39 1 usually ships 3-12 days
15 179-0035 Handle (OBSOLETE) $26.82 1 usually ships 1-5 days
16 179-0100 Torsion spring centering bolt Call for price 1 usually ships 1-5 days
17 179-0047 Handle grip $24.65 2 ships same day
18 179-0101 Control cover top Call for price 1 usually ships 1-5 days
19 179-0102 Horn switch Call for price 1 (Optional) usually ships 1-5 days
20 179-0003 Emergency stop button $57.85 1 ships same day
21 179-0103 Control cover bottom Call for price 1 usually ships 1-5 days
22 179-0019 Emergency stop switch guard (OBSOLETE) $21.73 1 usually ships 1-5 days
23 286-0046 140amp motor controller $1,087.38 1 ships same day
24 179-0013 Key assembly $28.90 1 ships same day
25 179-0042 Circuit breaker assy 10 amp (OBSOLETE) $41.59 1 usually ships 1-5 days
26 179-0044 36V contactor $222.99 1 usually ships 1-5 days
27 286-0004 110V 10amp battery charger $1,319.43 1 ships same day
28 286-0148 JUNCTION BLOCK BLACK $15.98 1 usually ships 3-12 days
29 179-0104 Weight 1 inch 5w Call for price 4 (Optional) usually ships 1-5 days
30 179-0105 Weight 28.3 lbs Call for price 2 (Optional) usually ships 1-5 days
31 286-0010 Horn $29.30 1 (Optional) ships same day
32 286-0149 JUNCTION BLOCK RED Call for price 1 usually ships 3-12 days
33 286-0041 Horn switch $37.42 1 ships same day
34 173-3159 Side decal $22.66 1 usually ships 7-19 days
35 162-0011 12V 105Ah wet battery (SNSR) $291.50 1 (Optional) ships same day
36 179-0106 Caster bracket weldment Call for price 1 (Optional) usually ships 1-5 days
37 179-0107 5 inch caster swivel Call for price 1 (Optional) usually ships 1-5 days
38 179-0108 Universal transaxle bracket Call for price 2 (Optional) usually ships 1-5 days
39 179-0109 Amber light Call for price 1 (Optional) usually ships 1-5 days
40 286-0145 FUSE, 100 AMP $81.25 1 ships same day
41 179-0110 100amp fuse block Call for price 1 usually ships 1-5 days
42 179-0111 Plate Call for price 1 usually ships 1-5 days
43 286-0007 Battery charge indicator (OBSOLETE) $73.90 1 usually ships 3-12 days
