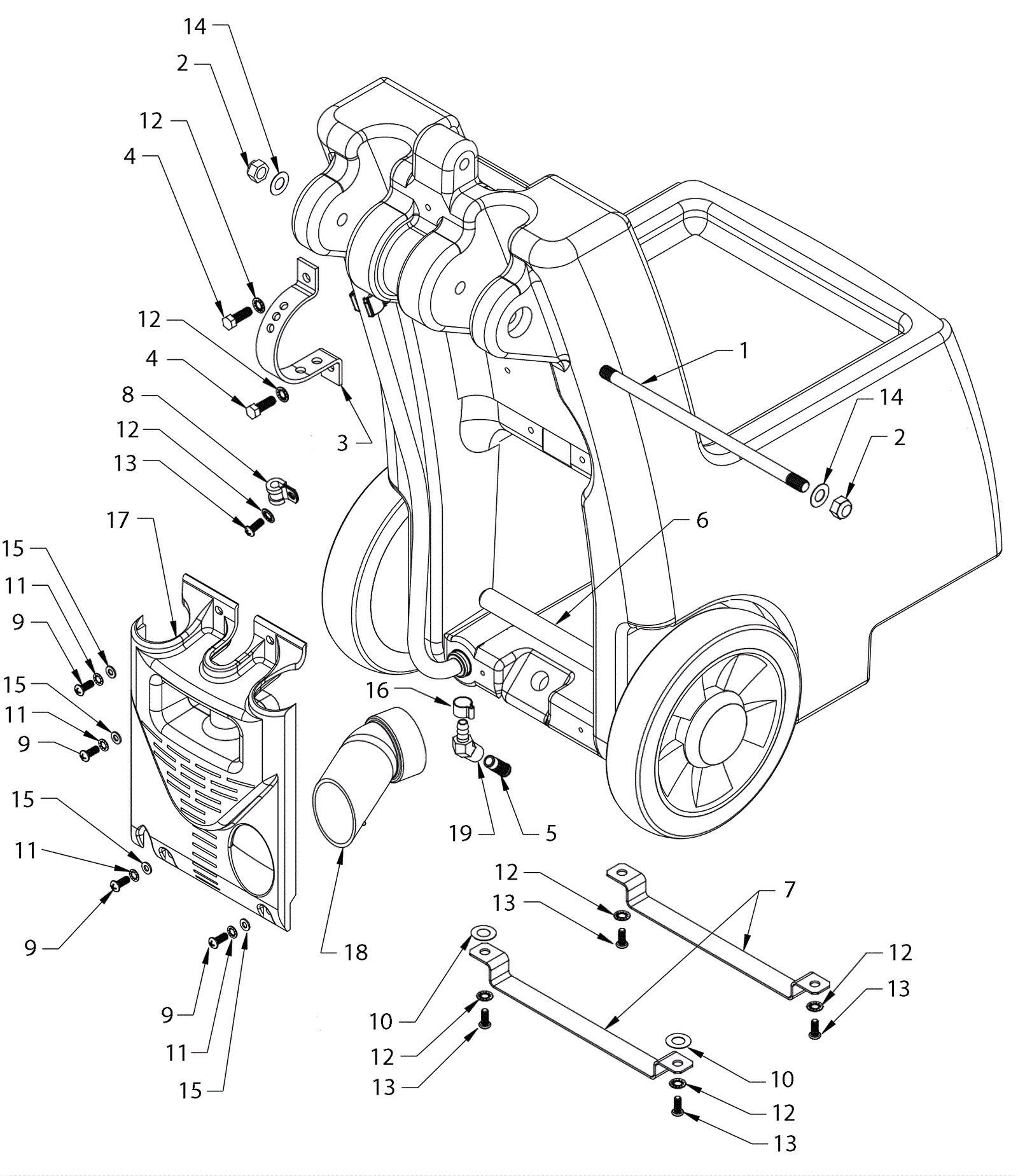

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
992-7095
|
3/8 inch aluminum handle mount stud |
1 |
|
|
2 |
992-7096
|
Nylock nut |
2 |
|
|
3 |
992-7097
|
Detent handle adjust bracket |
1 |
|
|
4 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
|
5 |
992-7098
|
Tank to pump filter |
1 |
|
|
6 |
992-7099
|
Wheel shaft tube |
1 |
|
|
7 |
992-7100
|
Duct strap |
2 |
|
|
8 |
992-7101
|
Loop cushioned clamp |
1 |
|
|
9 |
992-6944
|
10-24 x 1/2 inch phillips stainless steel bolt |
4 |
|
|
10 |
992-7089
|
Thick nylon wheel spacer |
2 |
|
|
11 |
999-1026
|
Washer #10 internal lock stainless steel |
4 |
|
|
12 |
992-7056
|
1/4 inch washer lock |
7 |
|
|
13 |
992-7102
|
1/4-20 x 5/8 inch stainless steel phillips head bolt |
5 |
|
|
14 |
992-7103
|
Stainless steel washer |
2 |
|
|
15 |
151-0127
|
Flat washer #10 stainless steel |
5 |
|
|
16 |
992-7104
|
5/8 inch gear pump clamp |
1 |
|
|
17 |
992-7105
|
Gray door |
1 |
|
|
18 |
992-7106
|
Exhaust tube (black) |
1 |
|
|
19 |
992-7107
|
Brass elbow |
1 |
|
|
