| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

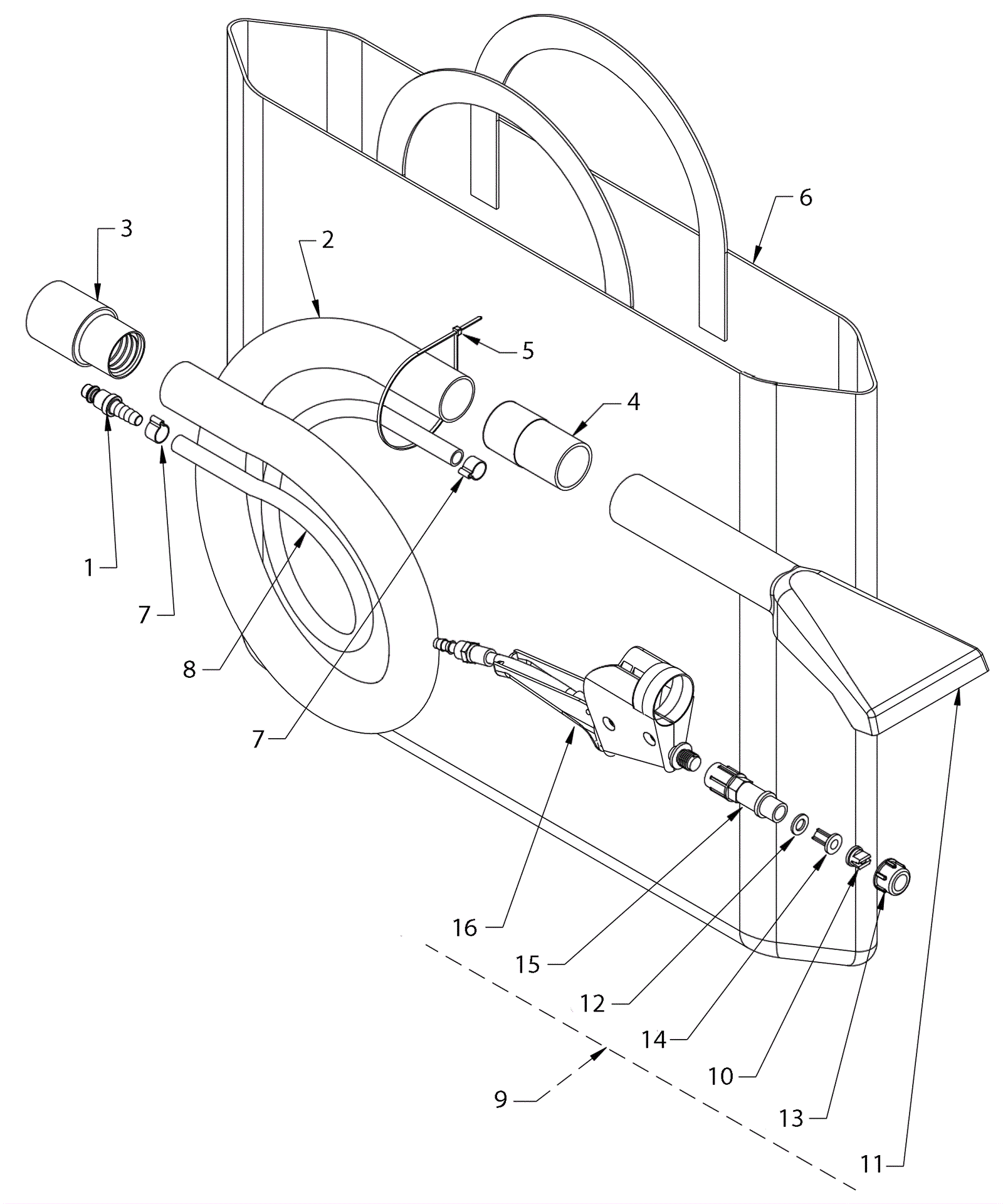

992-8151
|
Hand tool kit |
1 |
(includes 1-16) |
|
1 |
992-6941
|
1/4 inch brass barb plug |
1 |
|
|
2 |
992-3412
|
Hose with cuffs 1 inch x 10 foot |
1 |
|
|
3 |
992-7064
|
1 to 1 1/4 inch hose enlarger cuff |
1 |
|
|
4 |
992-7065
|
Straight hose cuff |
1 |
|
|
5 |
992-7066
|
Wire tie |
4 |
|
|
6 |
992-7067
|
Bag |
1 |
|
|
7 |
992-6950
|
1/4 inch stainless steel hose clamp |
2 |
|
|
8 |
992-7068
|
Hand tool hose |
1 |
|
|
9 |
992-7069
|
Hand tool assembly |
1 |
(includes 10-16) |
|
10 |
992-7070
|
Hand tool spray tip |
1 |
|
|
11 |
992-7071
|
H.T. plastic body |
1 |
|
|
12 |
992-7072
|
H.T spray tip washer |
1 |
|
|
13 |
992-7073
|
H.T. spray tip ring |
1 |
|
|
14 |
992-7074
|
H.T. spray tip filter |
1 |
|
|
15 |
992-7075
|
H.T. tube extension |
1 |
|
|
16 |
992-7076
|
H.T. valve assembly |
1 |
|
|
