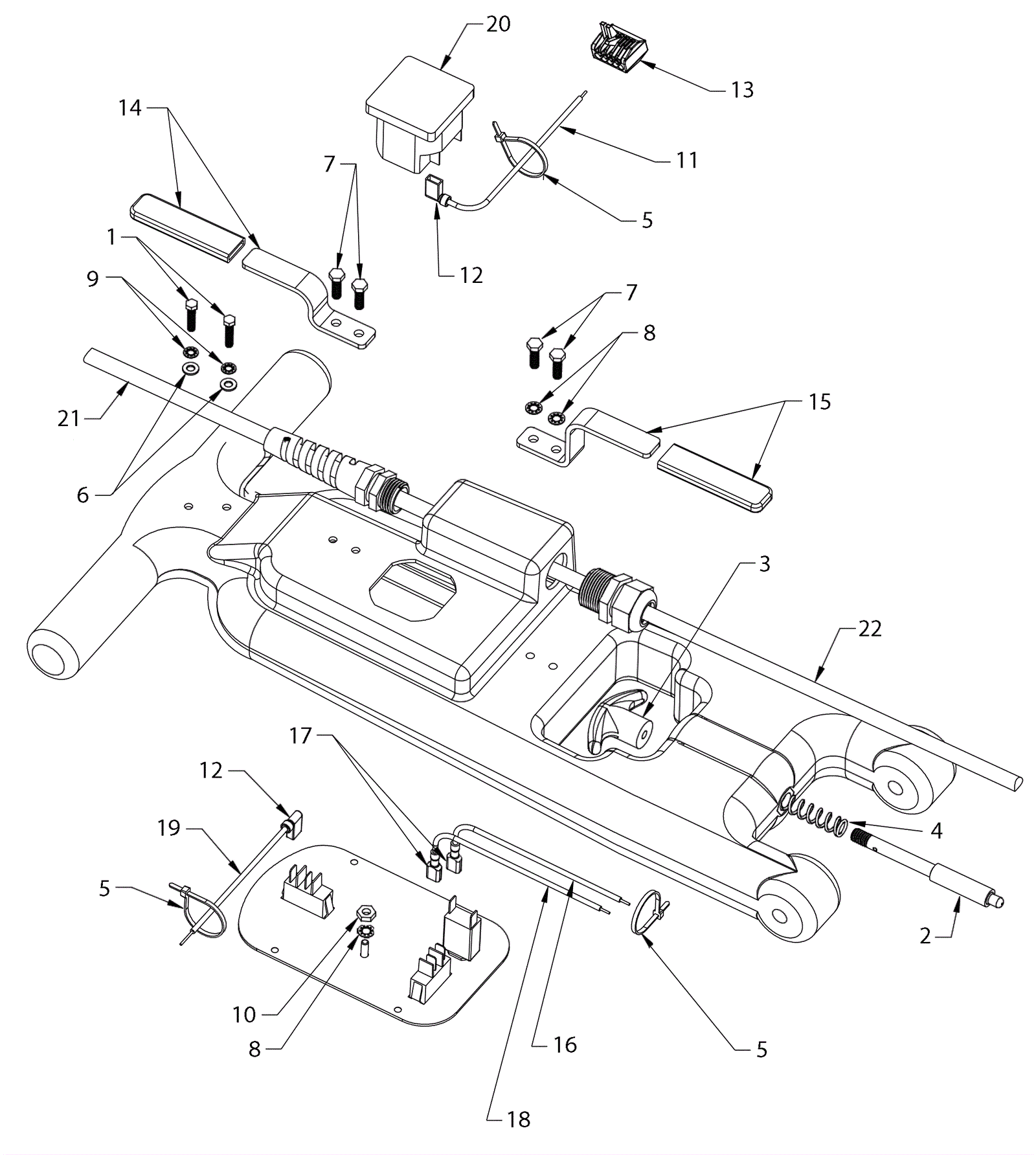

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
992-7011
|
8-32 x 3/4 inch stainless steel hex bolt |
2 |
|
|
2 |
992-7012
|
Detent plunger shaft |
1 |
|
|
3 |
992-7013
|
Detent "T" handle |
1 |
|
|
4 |
992-7014
|
Detent stainless steel spring |
1 |
|
|
5 |
992-6946
|
6 inch wire tie |
4 |
|
|
6 |
992-6947
|
Washer #8 flat stainless steel |
2 |
|
|
7 |
999-1231
|
Screw 10-24 x 5/8 hex head stainless steel |
1 |
|
|
8 |
999-1026
|
Washer #10 internal lock stainless steel |
3 |
|
|
9 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
10 |
992-7016
|
10-32 inch ground nut |
1 |
|
|
11 |
151-0130
|
5 inch flag center wire (black) |
2 |
(includes 12) |
|
13 |
151-0236
|
Five port lever nut |
2 |
|
|
14 |
992-7018
|
Upper cord wrap bracket protector |
1 |
|
|
15 |
992-7019
|
Lower cord wrap bracket protector |
1 |
|
|
16 |
992-7020
|
8 inch wire nut (black) |
1 |
(includes 17) |
|
17 |
992-7021
|
18 gauge female spade terminal |
1 |
|
|
18 |
992-7022
|
8 inch brown wire nut |
2 |
(includes 17) |
|
19 |
992-7023
|
8 inch black wire nut |
1 |
(includes 12) |
|
20 |
992-7024
|
Unwired hour meter |
1 |
|
|
21 |
992-7025
|
Power cord handle assembly |
1 |
(see cord assembly 2 for breakdown) |
|
22 |
992-7026
|
8 wire handle to motors cable assembly |
1 |
(see cord assembly 1 for breakdown) |
|
