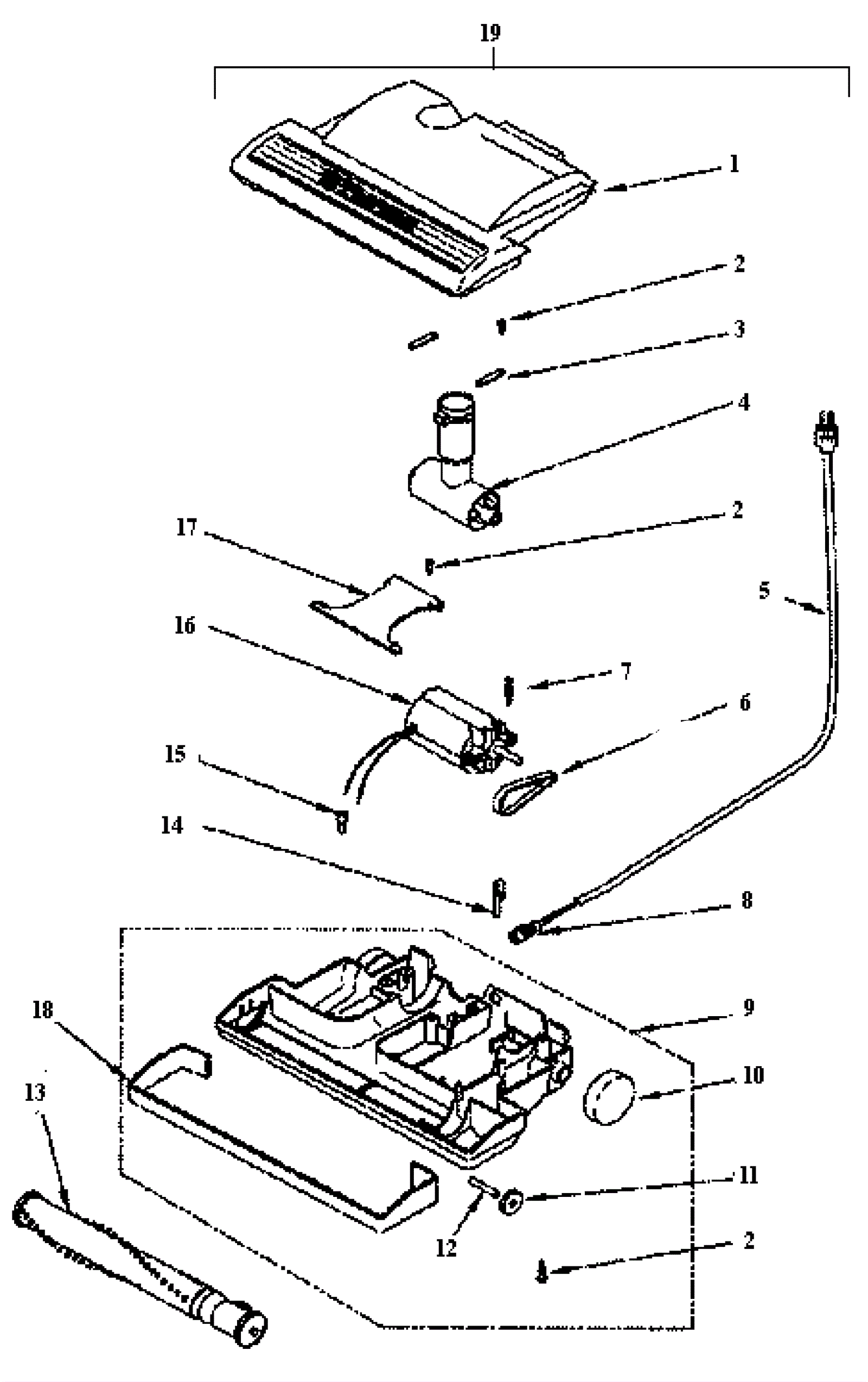

THERMAX AF1 Power Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 992-3388 Power head case top assembly (OBSOLETE) $55.46 usually ships 17-20 days
2 992-3327 Screw M8 x .5mm $18.28 usually ships 17-20 days
3 992-3389 Power nozzle retainer $7.81 usually ships 17-20 days
4 992-3390 Swivel tube power nozzle $32.43 usually ships 17-20 days
5 992-3391 Power nozzle cord $44.00 usually ships 17-20 days
6 992-6901 Belt $9.09 usually ships 17-20 days
7 992-3392 Screw 6 x 1 inch $1.65 usually ships 17-20 days
8 992-3393 Strain relief $2.97 usually ships 17-20 days
9 992-3394 Power nozzle bottom case $146.87 (includes 2, 10-12, and 18) usually ships 17-20 days
10 992-3283 Rear wheel assembly $9.65 usually ships 17-20 days
11 992-3396 Front wheel $10.93 usually ships 17-20 days
12 992-3397 Front wheel axle $7.16 usually ships 17-20 days
13 992-3398 Agitator brush assembly $69.34 usually ships 17-20 days
14 992-3399 Power nozzle rib shoe $10.84 usually ships 17-20 days
15 992-3400 Wire joint $1.74 usually ships 17-20 days
16 992-3401 120V power nozzle motor assembly $163.49 usually ships 17-20 days
17 992-3402 Power head plate assembly $17.73 usually ships 17-20 days
18 992-3403 Power nozzle bumper $41.34 usually ships 17-20 days
19 992-3386 120V power head assembly $402.30 (includes 1-18) usually ships 17-20 days
