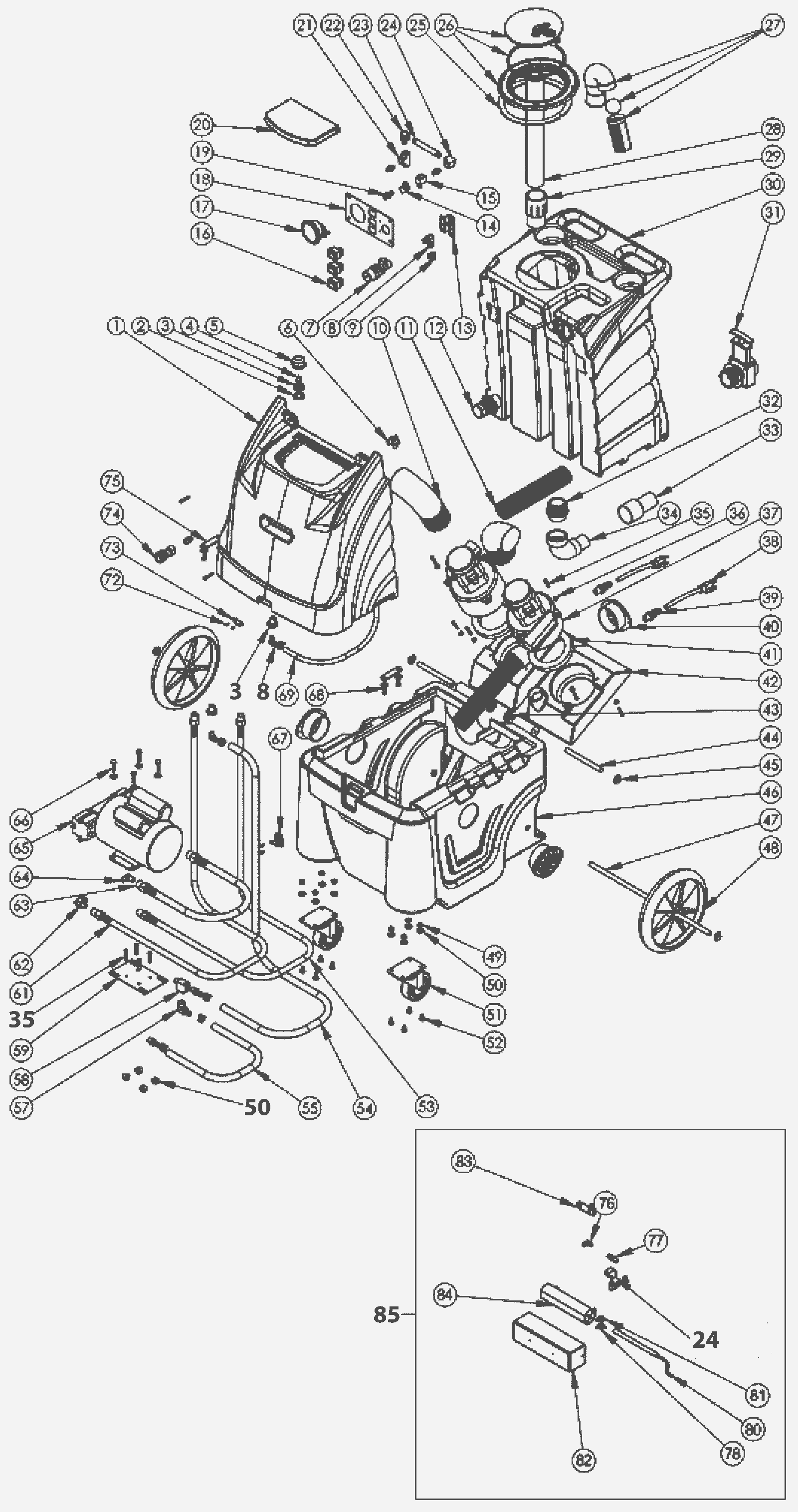

Entire Assembly

#PartDescription ReqNotesAvailability
1 992-9739 12 gallon solution tank (blue granite) (OBSOLETE) 1
2 N/A Not available (included with 1) (insert molded into solution tank)
3 228-4082 Bulkhead fitting 4
4 N/A Not available (included with 3) (threaded end)
5 228-4089 1/4 hex nipple 1
6 228-8027 Solution screen 2
7 228-4076 500psi regulator 1
8 228-4092 90 degree barb 4 (1pc included with 54)
9 992-9740 3/4 inch hose clamp 5
10 228-4065 Exhaust hose 16 in
11 228-4007 4 foot vacuum hose 2
12 228-4095 1 1/2 inch barb fitting 1
13 N/A Not available 1 (included with 65) (bracket)
14 228-4096 45 degree street elbow 1
15 228-4090 90 degree street elbow 1
16a 228-4087 Lighted rocker switch (OBSOLETE) 1
16b 228-4062 Rocker switch 2
17 228-4086 500PSI extractor gauge 1
18 228-4085 200PSI switch plate 1
19 N/A Not available 1 (included with 17) (connector)
20 992-9741 12 gallon lid (blue granite) 1
21 228-4099 1/4 inch brass tee 2
22 228-4100 90 degree street elbow 1
23 228-4101 1/4 inch brass nipple 1
24 228-4102 90 degee brass elbow 4
25 228-4103 Hatch cover gasket 1
26 228-4063 Hatch cover 1
27 228-4067 Stuf off valve 1
28 228-4104 1 1/2 inch stand pipe 52 in
29 228-4105 Female adapter 1
30 992-9742 12 gallon recovery tank (blue granite) 1
31 228-4068 Dump valve 1
32 228-4106 Fitting 1
33 228-4010 Standard hose cuff 1
34 228-4107 90 degree street elbow 3
35 228-4108 Motor manifold bolt 10
36 228-4148 Spacer 6
37 228-4012 2 stage vacuum motor 2
38 228-4060 Pigtail 1 (includes 39a-39b)
39a 228-4061 Strain relief 1
39b 228-4109 Strain relief nut 1
40 228-4110 Exhaust grate 3
41 228-4072 Vacuum motor gasket 2
42 228-4074 Motor manifold 2
43 228-4111 Hinge keeper 2
44 228-4112 Hinge 2
45 228-4113 End cap 4
46 228-4114 Base 1
47 228-4115 19 inch axle 1
48 228-4069 Wheel 2
49 228-4116 Washer 18
50 228-4117 Nut 12
51 992-1206 3 1/2 inch caster 2
52 228-4118 Bolt 12
53 992-9743 1/2 inch x 54 inch clear hose 1 (includes fittings and filter)
54 228-4138 46 inch hose 1 (includes 8 (1pc), 58)
55 992-9744 30 inch black hose 1 (includes 57,63,64)
57 N/A Not available 1 (hose fitting) (included with 55)
58 N/A Not available 1 (hose fitting) (included with 54)
59 992-9745 Pump mount plate 1
61 992-9746 67 inch black hose 4 (includes 62
62 N/A Not available 1 (hose fitting) (included with 61)
63 N/A Not available 1 (hose fitting) (included with 55)
64 228-4121 Fitting 1 (included with 55)
65 228-4052 500 PSI pump 1 (includes 13)
66 228-4122 Bolt 4
67 228-4123 Keeper 1
68 228-4124 Bolt 1
69 228-4119 3000PSI hose (sold by the foot) 1
72 228-4245 Screw 8
73 228-4128 Latch 1
74 228-4129 Female fitting 1
75 228-4130 Bracket 2
76 228-4191 Valve 1
77 228-4131 Fitting 1
78 228-4134 Sensor 2
80 228-4133 Heater element 2
81 228-4134 Sensor 2
82 228-4135 Dual rod heater box 1
83 228-4205 Relief valve 1
84 228-4137 Dual rod heat exchanger tube 1
85 228-4275 Heater 500 psi 1 (includes 29 (1pc), 76-78, 80-84)
