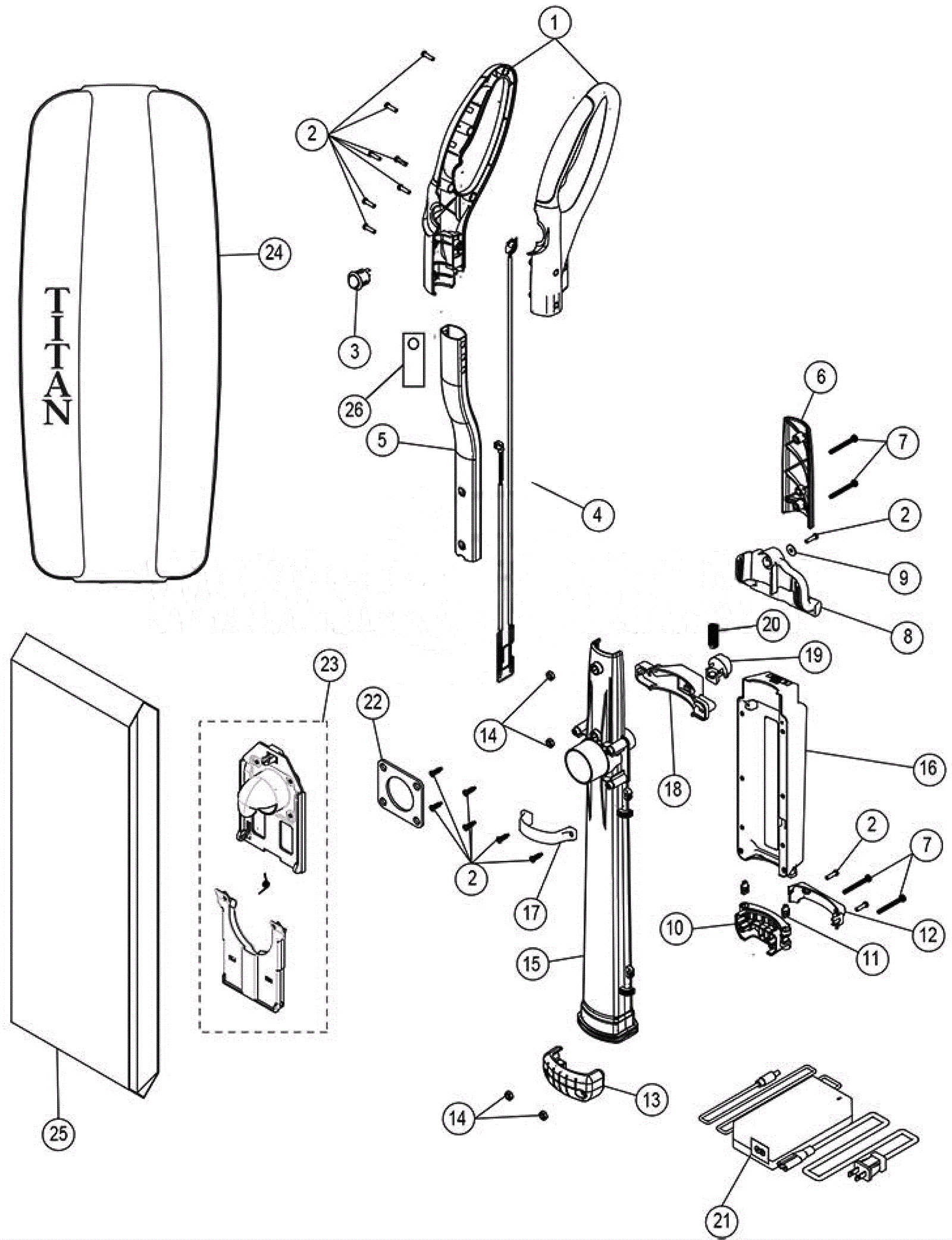

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-9349
|
Handle grip assembly |
1 |
|
|
2 |
190-9686
|
Screw #8-18 x 5/8 |
16 |
|
|
3 |
190-9350
|
On-off switch |
1 |
|
|
4 |
183-2345
|
Wire harness |
1 |
|
|
5 |
190-9352
|
Handle tube |
1 |
|
|
6 |
190-9353
|
Handle back cover |
1 |
|
|
7 |
190-0514
|
Screw 10-32 x 1.625 |
4 |
|
|
8 |
190-9354
|
Carry handle |
1 |
|
|
9 |
190-9355
|
Washer |
1 |
|
|
10 |
190-9356
|
Neck coupling back with posts |
1 |
|
|
11 |
190-9357
|
Post |
2 |
|
|
12 |
190-9358
|
Cable cover |
1 |
|
|
13 |
190-9359
|
Front neck coupling |
1 |
|
|
14 |
190-0517
|
Hex nut |
4 |
|
|
15 |
190-9360
|
Handle duct |
1 |
|
|
16 |
183-2357
|
BATTERY PACK 2.9 AH DC FOR CORDLESS ULW |
1 |
|
|
17 |
190-9362
|
Battey clamp |
1 |
|
|
18 |
183-2359
|
Latch case |
1 |
|
|
19 |
190-9364
|
Latch button |
1 |
|
|
20 |
190-9365
|
Latch spring |
1 |
|
|
21 |
190-1481
|
ZM-800 charger |
1 |
|
|
22 |
190-9367
|
Bag mount seal |
1 |
|
|
23 |
190-9368
|
Bag mount assembly |
1 |
|
|
24 |
190-8062
|
Hard shell bag |
1 |
|
|
25 |
190-8063
|
Hepa bag |
1 |
|
|
26 |
190-8064
|
Handle spacer |
1 |
|
|
