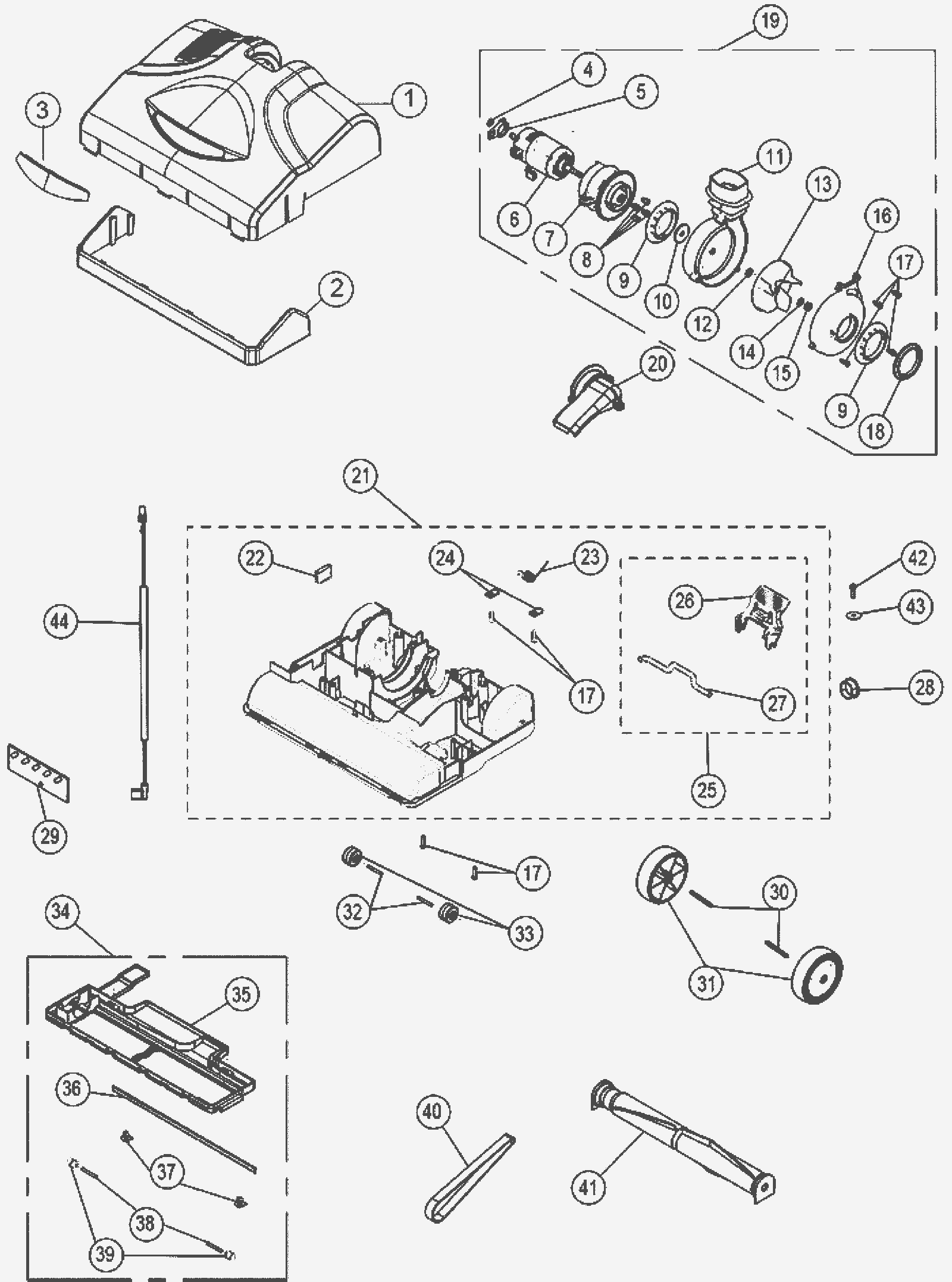

Titan T500 Nozzle Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-8056 Nozzle cover Call for price 1 usually ships 20-37 days
2 190-8057 Furniture guard $5.75 1 usually ships 20-37 days
3 190-8058 Lens Call for price 1 usually ships 20-37 days
4 190-0537 E-clip for motor shaft $1.18 1 usually ships 20-37 days
5 190-8059 Motor support base $1.23 1 usually ships 20-37 days
6 N/A Not available Call for price 1 (only available with 19) (14,000 RPM motor) usually ships 3-26 days
7 190-9378 Motor housing $6.50 1 usually ships 20-37 days
8 190-9379 Screw M5 x 6 socket $1.18 4 usually ships 20-37 days
9 190-9380 Pivot bushing $1.18 2 usually ships 20-37 days
10 190-9381 Felt pivot seal $1.18 1 usually ships 20-37 days
11 190-9382 Right hand scroll housing $5.99 1 usually ships 20-37 days
12 190-9383 Washer $1.18 1 usually ships 20-37 days
13 190-9384 Motor fan $15.99 1 usually ships 20-37 days
14 190-9385 Washer $1.72 1 usually ships 20-37 days
15 190-9386 Nut $1.18 1 usually ships 20-37 days
16 190-9387 Left hand scroll housing $3.10 1 usually ships 20-37 days
17 190-9686 Screw #8-18 x 5/8 $1.18 8 usually ships 10-27 days
18 190-9388 Motor inlet seal $1.18 1 usually ships 20-37 days
19 183-2385 Motor assembly $103.99 1 (includes 4-16, (4 pcs of 17), 18) usually ships 8-21 days
20 190-9390 Inlet duct cover $2.02 1 usually ships 20-37 days
21 183-2387 Basetray assembly $37.99 1 (includes (2 pcs of 17), 22-25) ships same day
22 190-9392 Basetray plug $1.18 1 usually ships 20-37 days
23 190-9393 Upright stop spring $1.18 1 ships same day
24 190-0132 Set washer for axle $1.18 2 usually ships 20-37 days
25 190-9394 Upright stop pedal assembly $11.99 1 (includes 26-27) usually ships 20-37 days
26 190-9395 Pedal $1.62 1 usually ships 20-37 days
27 190-9396 Upright stop pedal pivot $2.82 1 usually ships 20-37 days
28 190-9397 Hole plug $1.18 1 usually ships 20-37 days
29 190-1454 Circuit board $51.99 1 ships same day
30 183-2395 Large wheel axle $1.52 2 ships same day
31 183-2396 Rear wheel assembly $3.96 2 ships same day
32 190-9400 Small wheel axle $1.64 2 usually ships 20-37 days
33 183-2398 Bottom plate wheels $1.98 2 ships same day
34 190-9402 Baseplate assembly $13.99 1 (includes 35-39) usually ships 20-37 days
35 N/A Not available Call for price 1 (only available with 34) (baseplate) usually ships 3-26 days
36 190-9042 Basetray cover squeegee $0.96 1 usually ships 20-37 days
37 190-9404 Baseplate cover screw $1.18 2 usually ships 20-37 days
38 190-8060 Baseplate wheel axle $1.23 2 usually ships 20-37 days
39 190-0546 Wheel $1.18 2 ships same day
40 190-1092 Belt $1.80 1 ships same day
41 190-8061 Wood agitator with white bristles $26.00 1 usually ships 20-37 days
42 190-0161 Screw for inlet tube $1.18 1 usually ships 20-37 days
43 190-0550 Strain relief washer $1.18 1 usually ships 20-37 days
44 183-2345 Wire harness $38.99 1 ships same day
